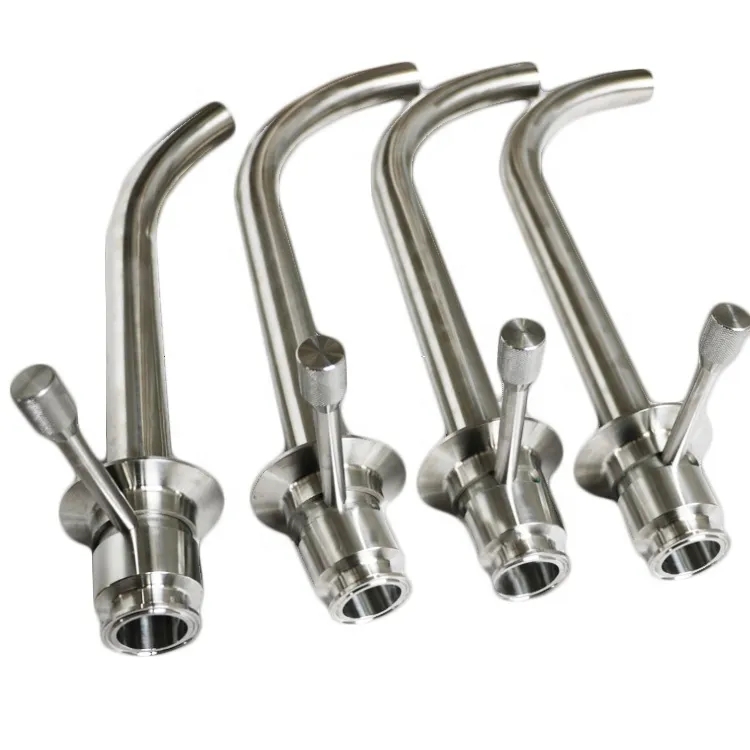

1.5inch 120 Degree Sanitary Stainless Steel Rotating Racking Arm Valve for Beer Fermenter Tank

Sanitary Rotating Racking Arms Valve is an necessary part of any conical fermenter or tanks. Typically found in the bottom cone of a cylindroconical fermentation tank, the racking arm is rotated slowly downward drawing off clear liquid until the fine sediment of yeast beogins to trickle through.It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
  • 011901001A38

  • XUSHENG & COMPASS

  • 011901001A38

Availability:
Quantity:

Sanitary Rotating Racking Arms Valve is an necessary part of any conical fermenter or tanks. Typically found in the bottom cone of a cylindroconical fermentation tank, the racking arm is rotated slowly downward drawing off clear liquid until the fine sediment of yeast beogins to trickle through.It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

未标题-1

The Details of product

Standard

SMS,DIN,3A

Material Contact Parts

SS304/SS316L

Material Non-contact Parts

SS304

Size

1” to 4”, DN25-DN100

Bend Size

R=200MM,R=300MM,R=500MM or per request

Bend Degree

45°,60°,90°,120°,130°or per request

Connection

Tri-clamp,Female Thread,Union,Square-flange,Round-flange

Seal Material

Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600

Power Option

Manual Stainless Steel Handle

Media

Water,Gas,Oil

Working Pressure

6-16bar(87~232psi)

Supply Pressure for Air Actuator

6~8(87psi~116psi)

External Surface Treatment

Ra32~64uin(o.8~1.6um)

Internal Surface Treatment

Ra16~32uin(0.4~0.8um)

Sanitary Racking Arm Valve


Sanitary Rotating Racking Arms Valve is an necessary part of any conical fermenter or tanks. Typically found in the bottom cone of a cylindroconical fermentation tank, the racking arm is rotated slowly downward drawing off clear liquid until the fine sediment of yeast beogins to trickle through.It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.


Technical Specifications:

Working Pressure: 6-16bar(87~232psi)

Supply Pressure for Air Actuator: 6~8(87psi~116psi)

Temperature range:

Domestic Silicone:-22 ~ 302°F (-30~150℃)

Domestic EPDM:14 ~ 230°F (-10~110℃)

Importing Silicone:-40 ~ 392°F (-40~200℃)

Importing EPDM:-13~ 266°F (-25~130℃)

Buna:5~ 212°F (-15~100℃)

FKM:14 ~ 392°F  (-10℃~200℃ )


Options

1.Various standards can be provided: SMS,DIN,3A

2.Material contacts parts: SS304,SS316L

3.Available in sizes from 1” to 4”, DN25-DN100
4.The gasket can be Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600
5.Connection can be Tri-clamp,Female Thread,Union,Square-flange,Round-flange

6.Bend size can be customization

7.Bend degree can be customization


Advantages:

1.Widely application range: Widely used in food, water supply, drainage, electricity, urban construction, petroleum, chemical, environmental protection, various large enterprises and other fields for water supply and drainage fitness.

2.Exquisite workmanship: The valve body is meticulously cast, washed and polished for durability, winning by quality, and resistant to work and material reduction

3.Durable and long-lasting: Pressure resistance, corrosion resistance, good performance, high reliability, and worry free safety make the product more durable to use


Design Features

1. The product is made of SS304, SS316L, solid, wear-resistant, not easy to rust, anti-aging, acid and alkali resistant, durable

2. The surface is treated with CNC precision turning, which is resistant to large temperature differences and corrosion

3. It has a simple and compact structure, fast pressure reduction, convenient maintenance, and adjustable pressure control

4. Every detail of craftsmanship has been tested multiple times, and craftsmanship has created a good product


Packing & Shipping
包装 方式


How to order Sanitary Rotating Racking Arms?

1. What size ? 1” to 4”, DN25-DN100
2. What's material ? SS304/SS316L
3. What's bend size ? R=200MM,R=300MM,R=500MM or per request
4. What's bend degree? 45°,60°,90°,120°,130°or per request
5. What's connection ends ? Tri-clamp,Female Thread,Union,Square-flange,Round-flange
6. What's seal material ? Silicone,EPDM,FKM,Buna
7. Do you need mirror polished or sand blast ?
8. We can produce rarking arms valves as per customer's drawings.
