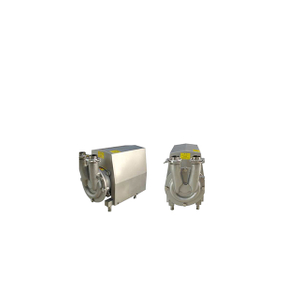

Stainless Steel Sanitary CIP Self Priming Self Sucking Pumps for Water Circulation

Sanitary Self Primming CIP Pumps is mainly used to deal with the convey of gas-bearing materials.So it is widely used in the occassions that the liquid level is instable,and the liquid level is lower than that of inlet to draw the material,and also used as reture in the CIP systerm.And it is the necessary convey equipment in the food,chemical,pharmacy fields.
  • CIP-B07

  • XUSHENG & COMPASS

  • 0203B01A011110101

Availability:
Quantity:

Products Name: Stainless Steel Sanitary CIP Self Priming Self Sucking Pumps for Water Circulation

Application:  Sanitary CIP Self Primming Pumps is mainly used to deal with the convey of gas-bearing materials.So it is widely used in the occassions that the liquid level is instable,and the liquid level is lower than that of inlet to draw the material,and also used as reture in the CIP systerm.And it is the necessary convey equipment in the food,chemical,pharmacy fields.

Technical Parameters

Flow 7000 l/hr to 30000 l/hr
Motor Power 3hp to 10hp (2.2kw to 7.5kw)
Contacted Flow Medium Parts SS304, SS316L
Non-contacted Flow Medium Parts SS304
Suction Type Single Suction, Double Suction
Impeller Type Open Impeller, Close Impeller, Semi Close Impeller
Motor Type ABB Motor,China Motor, Siemens Motor
Voltage 220V, 240V, 380V, 420V, 440V, 480V, Ect
Frequency Type 50HZ(2900RPM), 60HZ(3500RPM)
Gasket Type Silicone, EPDM, Viton(FKM), Buna
Mechanical Seal(Standard) Double Mechanical Sealing, Single Mechanical Seal
Material of Mechanical Seal C/SiC/EPDM
Flushed Mechanical Seal Water Pressure:Max 0.1Pa
Flow Rate: 0.25-0.5L/min
Shaft Sealing Sanitary priming pump seal is mechanical seal,include the sanitionary ring ss316L steel embedded in grapgite structure,and the movable ring made of silicon carbide
Pump Surface Finished Mirror Polished,Sand Blasting, Matte Brush
Impeller Surface Mirror,Matte, not required
Connection ends Triclover, Butt Weld, Threaded, Union, Round Flange, Square Flange
Temperature Range 14 ºF ~ 284 ºF (-10 ºC-140 ºC)
Working Pressure 87.02 PSI (6Bar)
Design Pressure 145.04 PSI(10Bar)


Design and Features
1. Casing manufactured with cold-formed plate.
2. Stainless steel investment casting inlet body and impeller.
3. Mechanical seal prevents contacted between the spring and the pumps fluid.
4. Stainless steel supports

Advantage of Stainless Steel Sanitary CIP Self Primming Pumps

1. Configuration of "ABB" brand three-phase AC motor is in accordance with the international electrotechnical comission IEC60072 standard design comply with European "CE" marking requirements
2. The explosion-proof motor also availabe,that can meet with the requirements of different applications.
3. It with excellent electric performance,and with low noise,low vibration,the protection grade is IP55,insulation grade is F

Sanitary-Stainless-Steel-SS316L-Pump-Liquid-CIP-Recycling-Self-Priming-Centrifugal-Pump.webp

Disassamble for Sanitary CIP Self Primming Pumps
自吸泵拆分配件

Techanical Sheet for Sanitary CIP Self Primming Pumps

Sanitary-Stainless-Steel-SS316L-Pump-Liquid-CIP-Recycling-Self-Priming-Centrifugal-Pump2.webp (1) 拷贝Sanitary-Stainless-Steel-SS316L-Pump-Liquid-CIP-Recycling-Self-Priming-Centrifugal-Pump3.webp (2) 拷贝Sanitary CIP Self Primming Pumps 1.webp (1) 拷贝Sanitary-Stainless-Steel-SS316L-Pump-Liquid-CIP-Recycling-Self-Priming-Centrifugal-Pump4.webp (2) 拷贝
