Specification
Standard | SMS |
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |
Size | 1/4”, 3/8”, 1/2”, 3/4” |
Glass Size | Suitable for OD 19mm Glass |
Connection | Butt Weld, TC Ends, Male Thread, Union, Flange |
Power | Manual |
Function | Arranged in The Tank Body to Observe The Liquid |
Application | Beer, beverage, dairy, food,fruit juice, biological, Cosmetic, Chemical, etc |
Customized support | OEM, ODM, OBM |
Operation
Turn circular handle like a sample valve to control flow.
The side arm connection contains silicone inside and it compresses to the sight gauge and provides a seal.

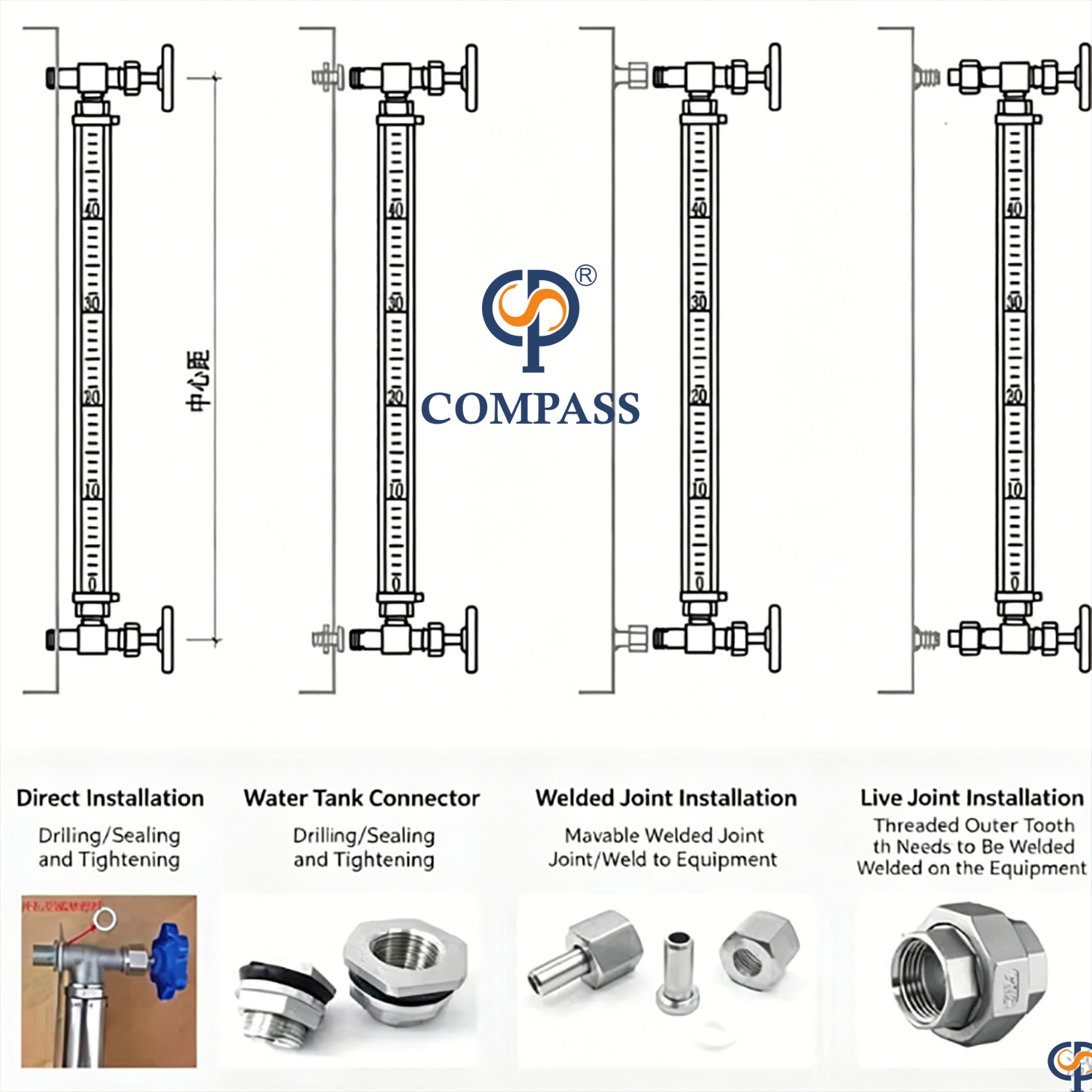

The level gauge is mainly applied to the tank equipment.The two same gauges or two different gauges are assemble on the tank so that the liquid condition or capacity can be observed and the sample can be extracted.
Options
1.The gasket can be Silicone,EPDM. All seals material comply with FDA21CFR117.2600.
2.Connection can be Butt Weld, TC Ends, Male Thread, Union, Flange or others upon request.
3.Available material is SS304 and SS316L.
4.Available size includes of 1/4”, 3/8”, 1/2”, 3/4”.
Technical Specifications
Working Pressure: 6bar(87psi)
Max. Pressure: 10bar(145psi)
Temperature range：14 ~248°F(-10 ~ +120℃)
How to order liquid level gauges?
1. Which material , such as SS304 or SS316L?
2. Which size, such as 1/4”, 3/8”, 1/2”, 3/4”?
3. Which connection ends, such as Butt Weld, TC Ends, Male Thread, Union, Flange?
4. How length of tube and glass?
