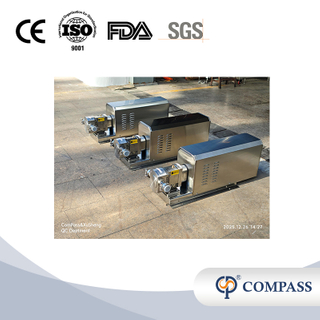

The lobe pump is widely used for food industry, Daily Chemical, Pharmacy, Chemical Industry, Construction Industry and other industries.





Operating Principles



Rotor pump is also named rotary lobe pump, threelobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.





Working Principle

Three sets of stators and rotors are equipped in working cavity. Driving shaft in working cavity is an arm, electrical motor and the shaft in bearing cabinet can be connected by spring coupling to improve the operation quality of driving shaft. Seal form can be selected in different conditions. It is fit for middle-large scale on-line continuous production or circulated treatment production process.



Principle Of Dynamics

1. Medium sucked in by strong axial suction force.

2. Single phase liquid, multi-phase liquid or suspended particles are pumped

in though single-stage, double-stage or three-stage rotor and stators.

3. No matter what medium property is, pump will evenly shear all the liquid with high-intensity and controllable force.

4. Shearing rate is constant, different sizes depends on gear of rotor and stator and speed of rotor.

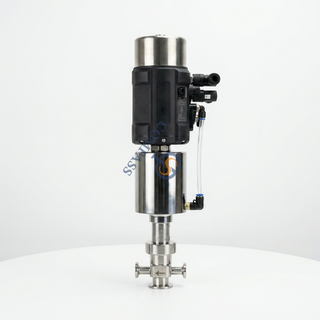

This valve is in the form of an electric pneumatic regulating valve, used in automation control systems. The three-way regulating valve is designed to meet the needs of two different working conditions. It is used in a widely range of fields such as alcohol, pharmaceuticals, food, and water treatment.

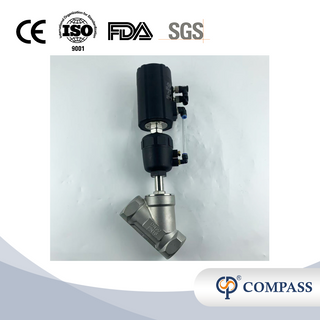

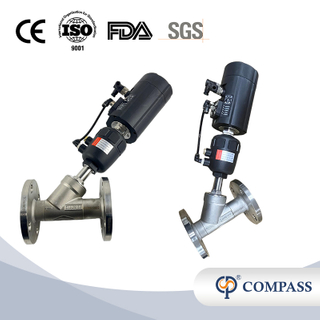

It can save space by maintaining the flow rate. It uses a single acting pneumatic actuator with spring safety protection to operate the guide angle seat valve. When using it, it should choose to be normally open or normally closed. It is widely used in automation industry control fluid, foodstuff dairy industry, domestic water, common pipeline fluid medium and so on.

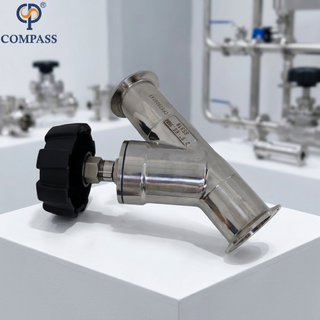

Pneumatic angle seat valves are widely used for short and frequent starts, with the characteristics of sensitive response and accurate action. When used in conjunction with electromagnetic valves, pneumatic control can accurately control the flow of gas and liquid. It can achieve accurate temperature control and liquid dripping requirements. The damp heat sterilization cabinet should use corner seat valves to control the amount of steam and accurately control the temperature.

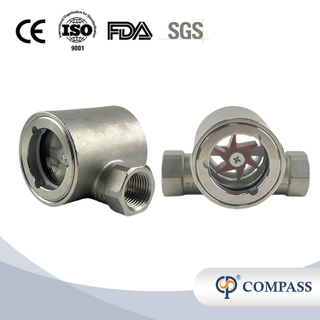

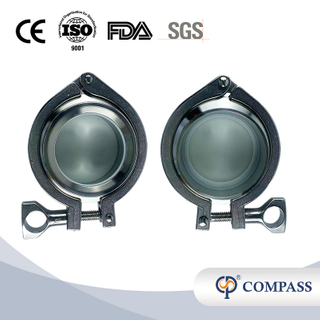

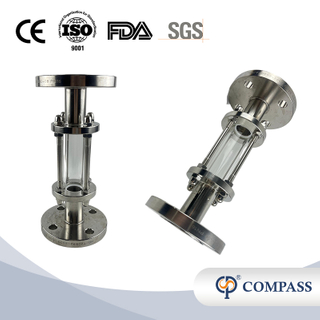

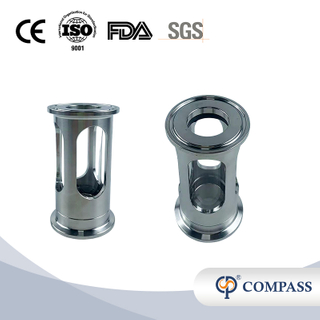

Flang type sight glass with wiper is observed the products in the tanks. What's more, wiper can be clean the glass in order to make vision better. It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from DN50 to DN300 sizes, and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline



Flanges, also known as flange discs or flanges. A flange is a component that connects shafts to each other and is used for connecting pipe ends; Also used for flanges on equipment imports and exports, used for connecting two devices, such as gearbox flanges.

Sanitary powder rotary butterfly valve with the feature of vane disc is suitable for applications where a continuous flow of powder and gradules is required.And it is also designed to continuously control the discharged flow. It is widely applied to many fileds,such as powder, particle, capsule and other related pharmacy industries.

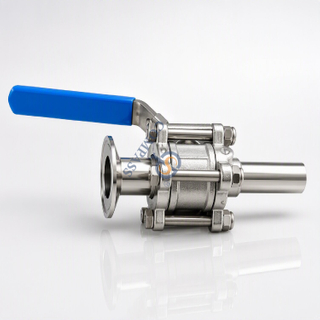

Sanitary Ball Valves are widely used in food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, biochemical industrialprocess control occasions. It is automatic or manual operated Ball valve, suitable for various applications inside the stainless steel piping system. Sanitary ball valve seat seal is made of PTFE material, with good sealing performance.



Working Principle

Sanitary ball valves can be tightly closed with only 90 degrees of pneumatic rotation and a small turning torque. The completely equal valve body cavity provides a small resistance and straight flow path for the medium. It is generally believed that ball valves are most suitable for direct opening and closing use, and ball valves have been designed to have throttling and flow control functions. The main characteristic of ball valves is their compact structure, easy operation and maintenance, suitable for general working media such as water, solvents, acids, and natural gas, and also suitable for harsh working conditions such as oxygen, hydrogen peroxide, methane, and ethylene. The valve body of a ball valve can be integral or modular.

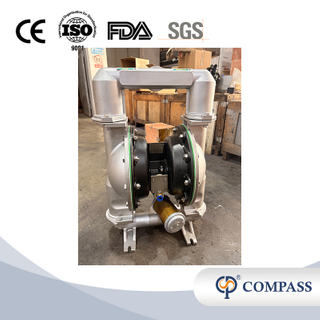

The pneumatic double diaphragm pump is a reciprocating positive displacement pump that utilizes compressed air as the power source. It transports fluids through the reciprocating motion of two flexible diaphragms. Due to its outstanding safety, reliability, and versatility, it is widely used in industrial applications.

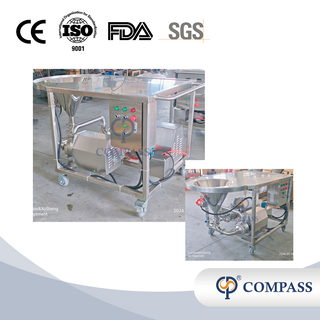

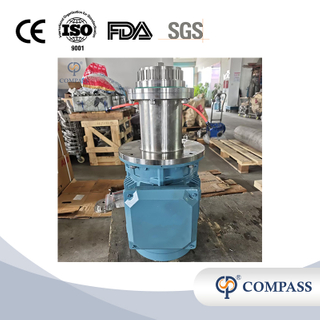

The sanitary bottom-mounted homogenizing emulsifier is a high-end mixing and emulsification equipment designed for industries with stringent hygiene and safety requirements, such as food, pharmaceuticals, cosmetics, and biotechnology. It is not merely a simple homogenizing and emulsifying tool but also a "core component of the process system" that complies with strict hygiene standards, facilitates cleaning and sterilization, and ensures product contamination-free operation



Sanitary powder rotary butterfly valve with the feature of vane disc is suitable for applications where a continuous flow of powder and gradules is required.And it is also designed to continuously control the discharged flow. It is widely applied to many fileds,such as powder, particle, capsule and other related pharmacy industries.

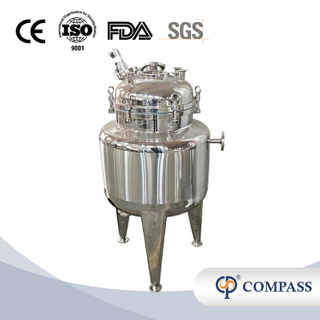

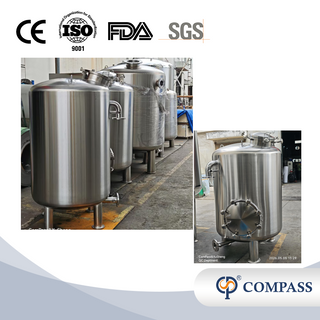

Mixing tanks are widely used in industries such as coatings, pharmaceuticals, building materials, chemicals, pigments, resins, food, and research. These tanks can be fabricated from materials like carbon steel or stainless steel based on the process requirements of the user's products. They can also be equipped with heating or cooling devices to meet various process and production needs. The heating methods include jacket electric heating and coil heating. The equipment features a well-designed structure, advanced manufacturing technology, and long-lasting durability, along with simple operation and ease of use. It is an ideal chemical processing equipment with low investment, quick production startup, and high returns.

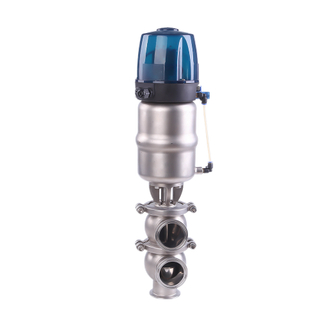

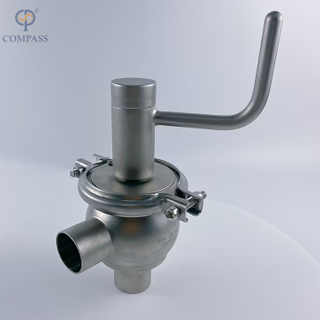

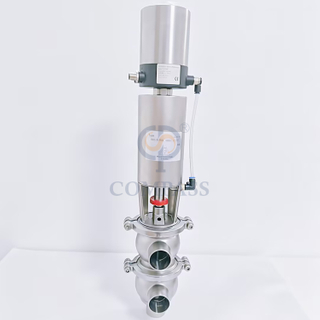

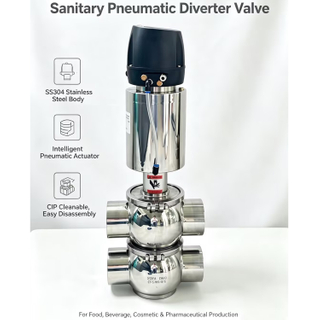

Sanitary Diverter Valves can be actuated either manually or pneumatically. The series of Sanitary Pneumatic Flow Division Valves makes major medium reaching the purpose of revising or end stop, because the good sealability and cleanability, they are extensively use different sanitary industry areas. They can be fitted with control tops and proximity. It is widely applied to many fileds, such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Sanitary Diverter Valves have two types valves, including of cut-off type and reversing types. The cut-off type can be made of two or three pipeline connector. The reversing type can be made of three to five pipeline connector. Their variety fully satisfied the demands of market.
