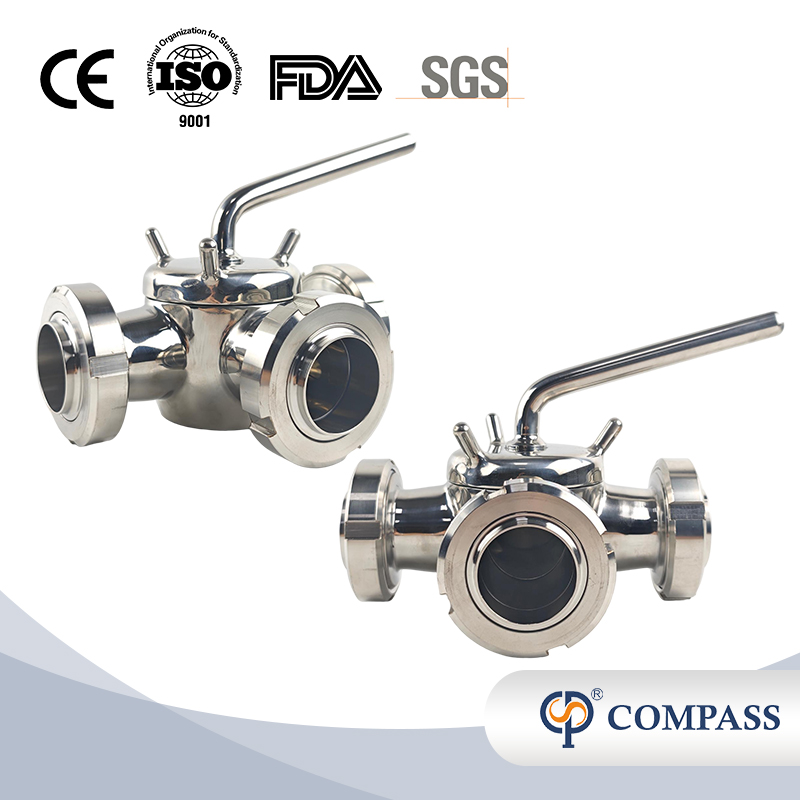

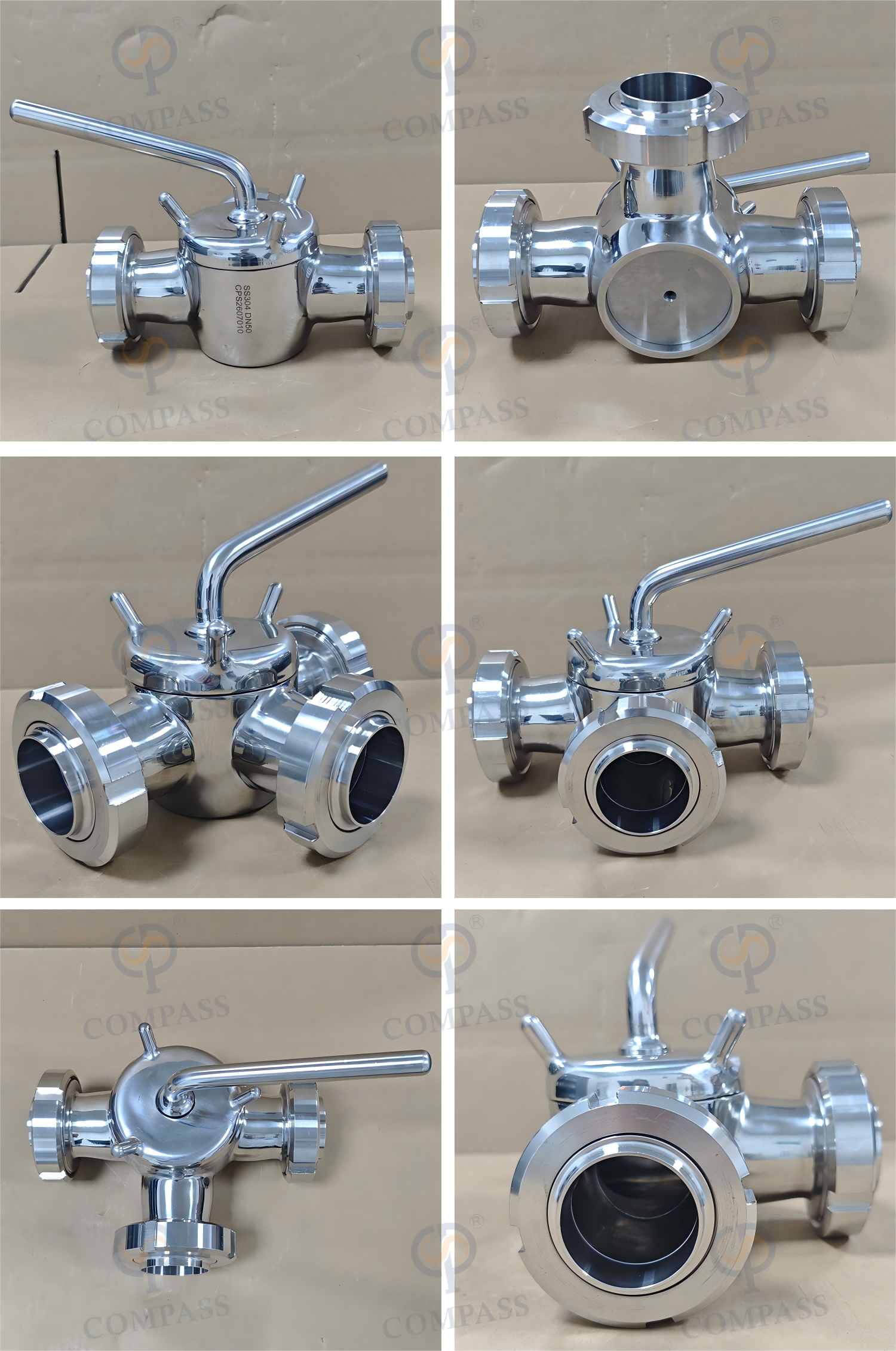

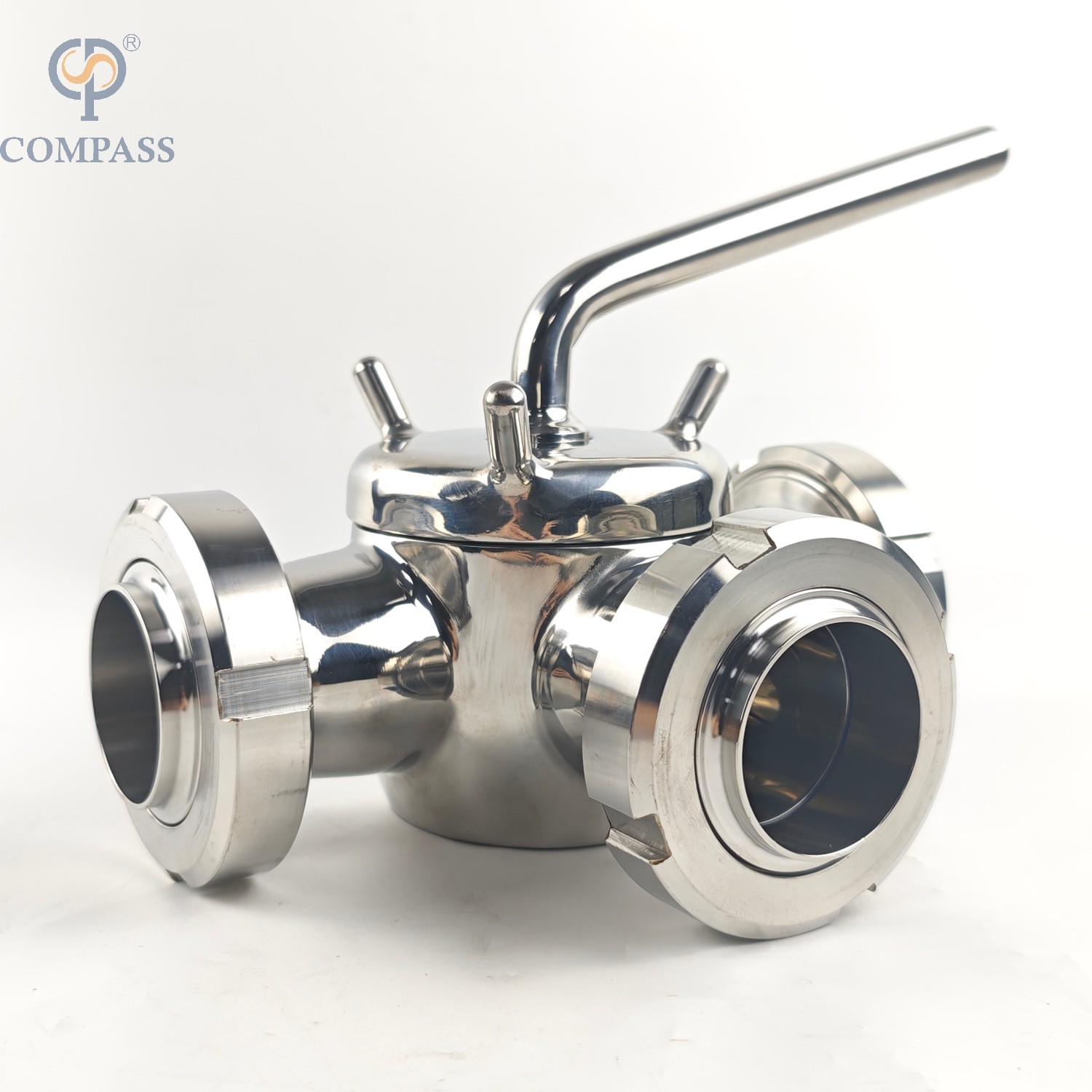

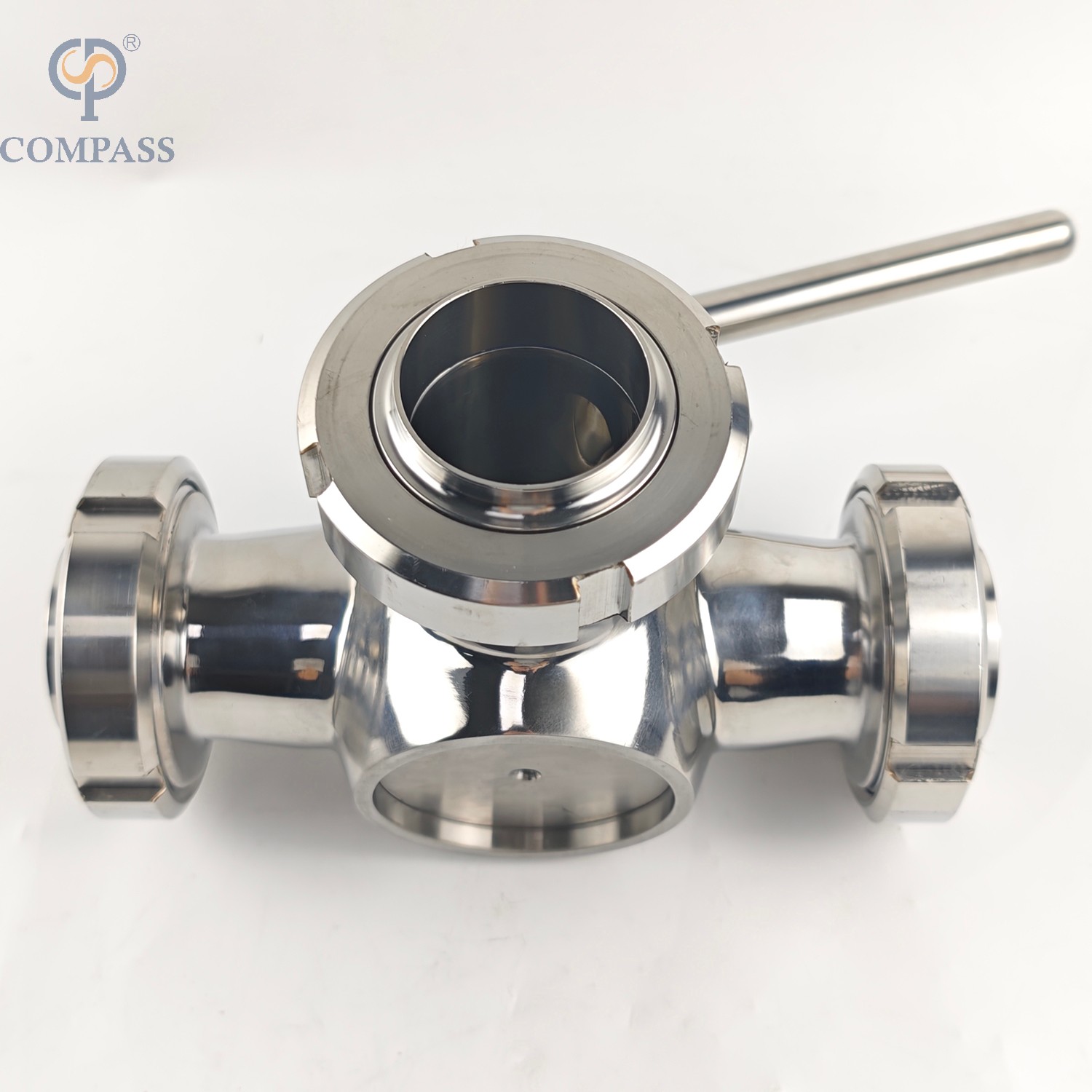

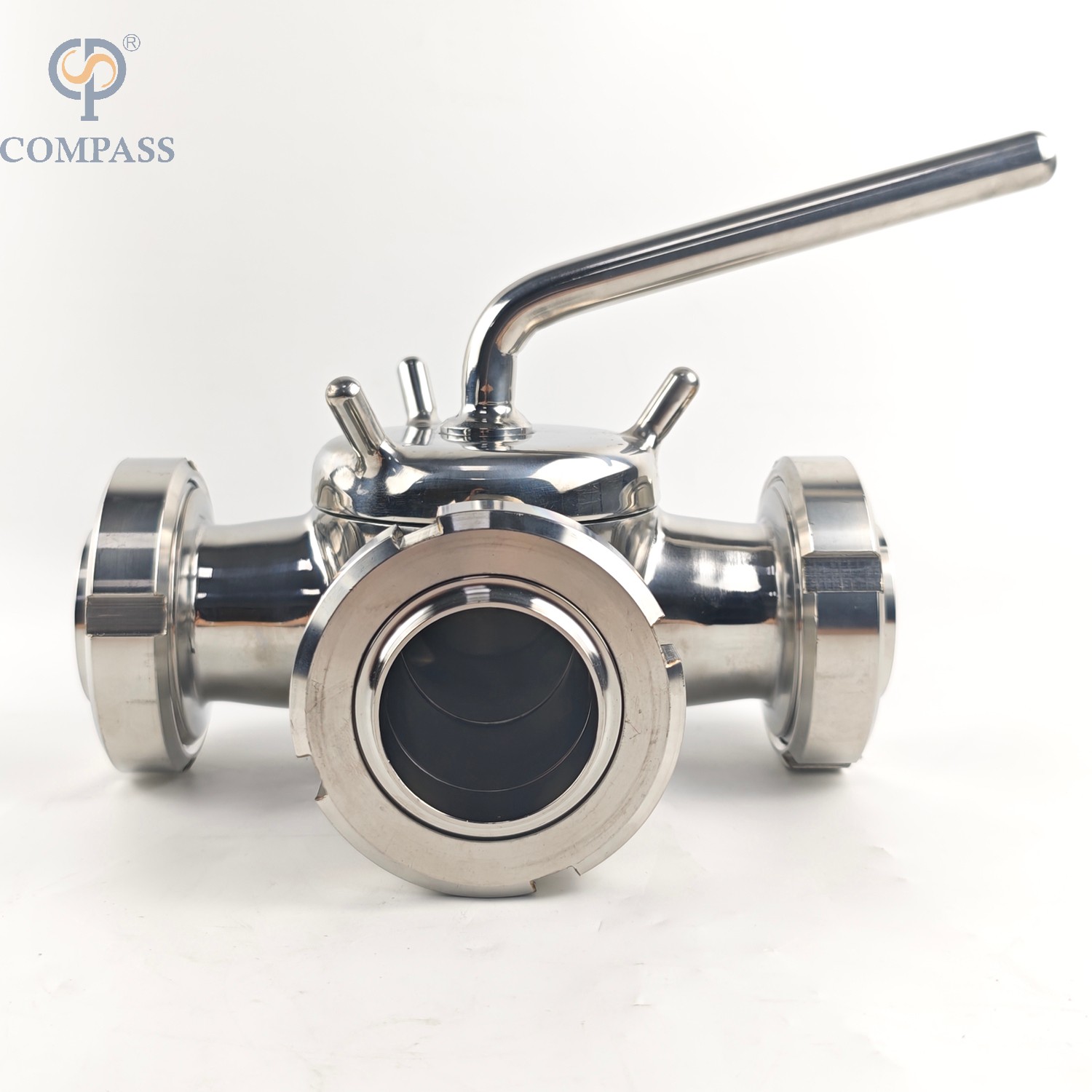

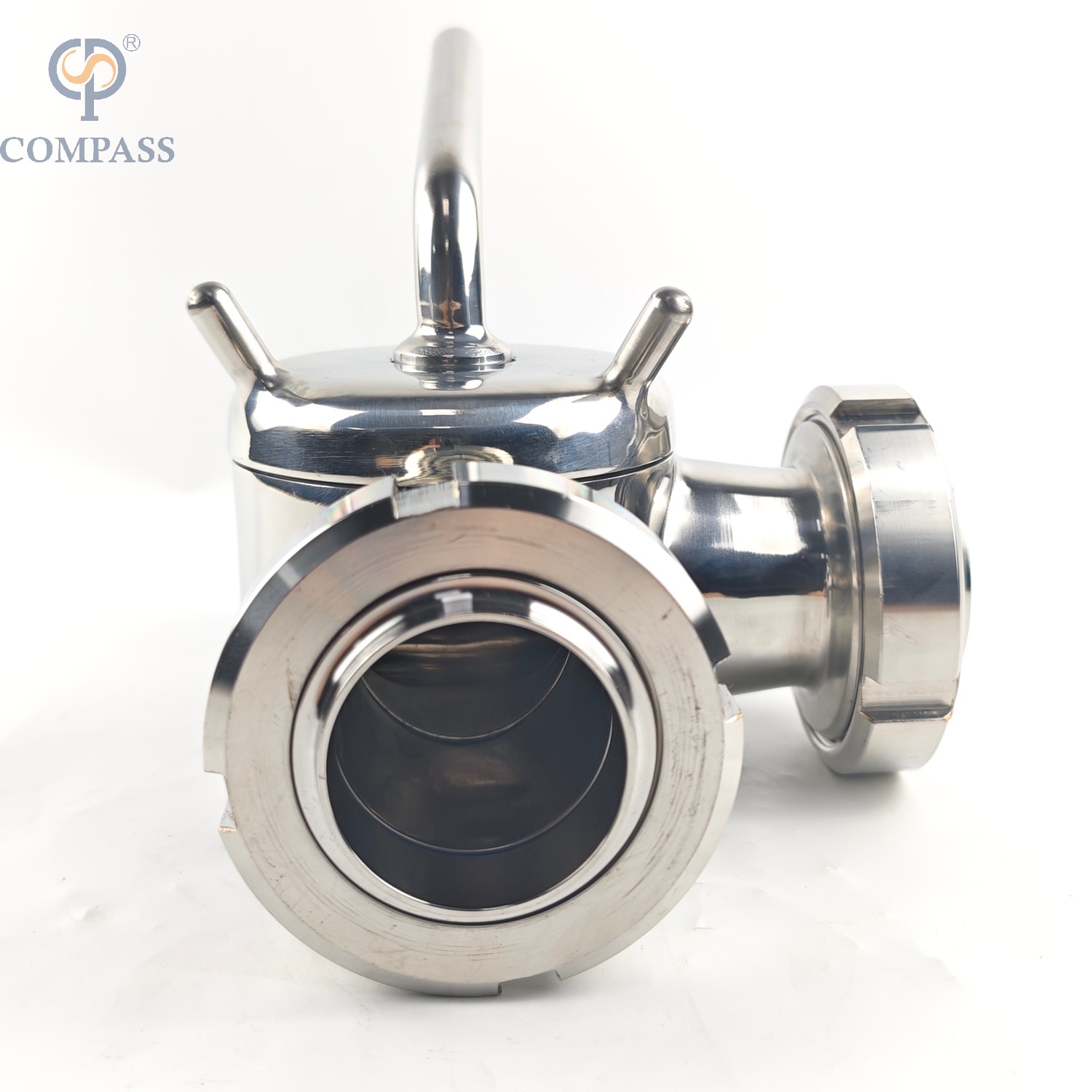

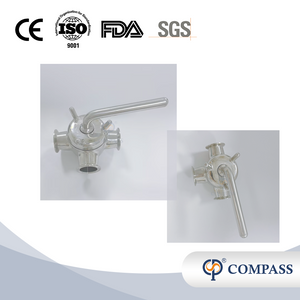

Sanitary Stainless Steel SS304 DN50 Union T-port Three Ways Plug Valves

The application of plug valve is mainly used in chromatography system, to achieve the manual replacement of samples, buffer and other pipelines, CP, SP.

.

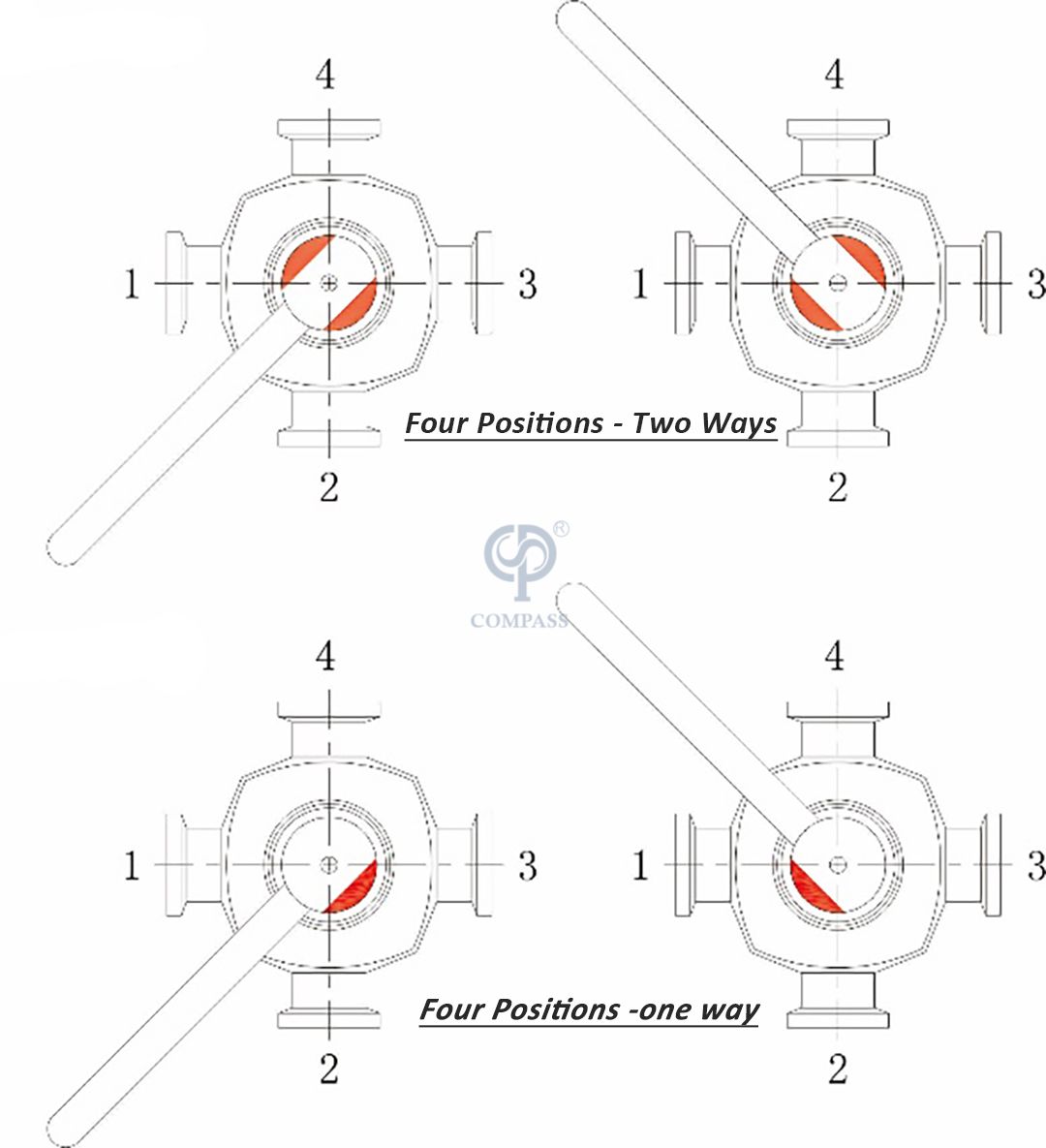

Working Principle

The top of the valve core is marked with a channel flow diagram. The four-way valve is divided into four-way two-way valve and four-way one-pass valve. The rotating handle makes the channel direction of the valve core aligned with the inlet and outlet direction of the valve body.

Model:
DN50
Brand:
COMPASS
Code:
0115021204A50

Availability:

Quantity:



Inquire Add to Basket

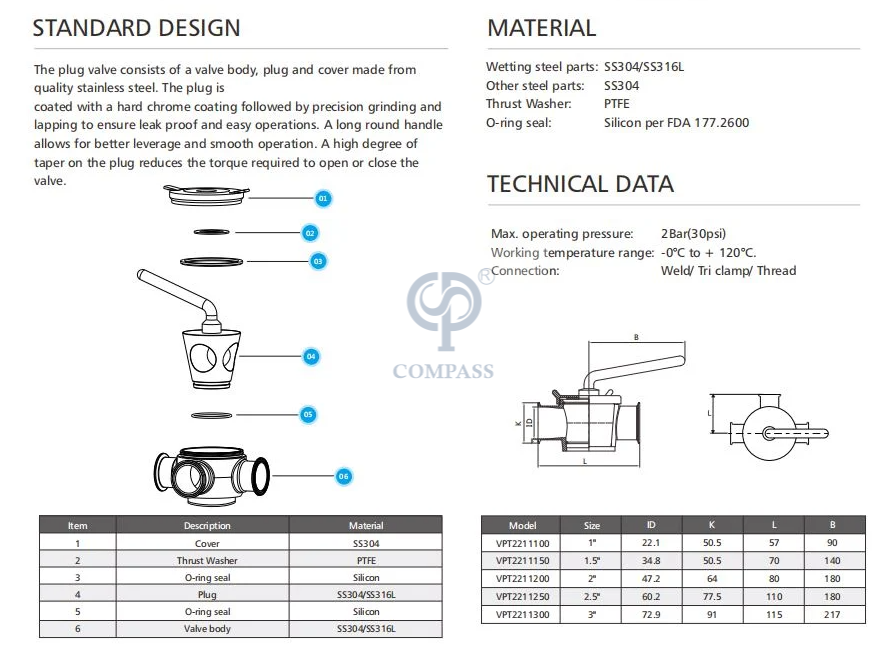

Main Parameter

Standard	SMS,DIN
Material Contact Parts	SS304/SS316L(1.4301/1.4404)	Provided with material inspection report
Size	1/4",1/2"
Connection	Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union
Seal Material	PTFE seals material comply with FDA21CFR117.2600
Drive Option	Manual Stainless Steel Handle
Max. Working Pressure	≤10bar (145psi)
Min. Working Pressure	0.2bar (2.9psi)
Supply Pressure for Air Actuator	5~8bar (72.52psi~116psi)
External Surface Treatment	Ra32~64ui n (o.8~1.6um)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)
Temperature range	-10~150 ºC (14°F~302°F)
Status display	The position of the scale line on the valve represents the valve connected position
Certificate	ISO 9001, FDA, SGS, CE
Support	OEM & ODM are welcome
Application	Widely used for alcohol, pharmaceuticals, food, and water treatment and so on

Technical Specifications

Max. pressure: ≤10bar (145psi)
Min. pressure: 0.2bar (2.9psi)

Temperature range:-10~150 ºC (14°F~302°F)

Options

Connection can be Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, or others upon request.

Design Features

1. Various standards can be provided: SMS,DIN
2. Available in sizes from 1/4" to 1/2"
3. Seals comply with FDA 21CFR 177. 2600.
4. The valve body can be customized with a wide selection of different connections

How to order Sanitary Three Ways Plug Valve?

1.What's standard , such as DIN, SMS ?
2.What's material, such as SS304 or SS316L ?
3.Which size, the size is from 3/4 inch to 4 inch ?
4.What's connection, such as butt-weld, tri-clamp, male-threaded, female-threaded, union or flange ?
