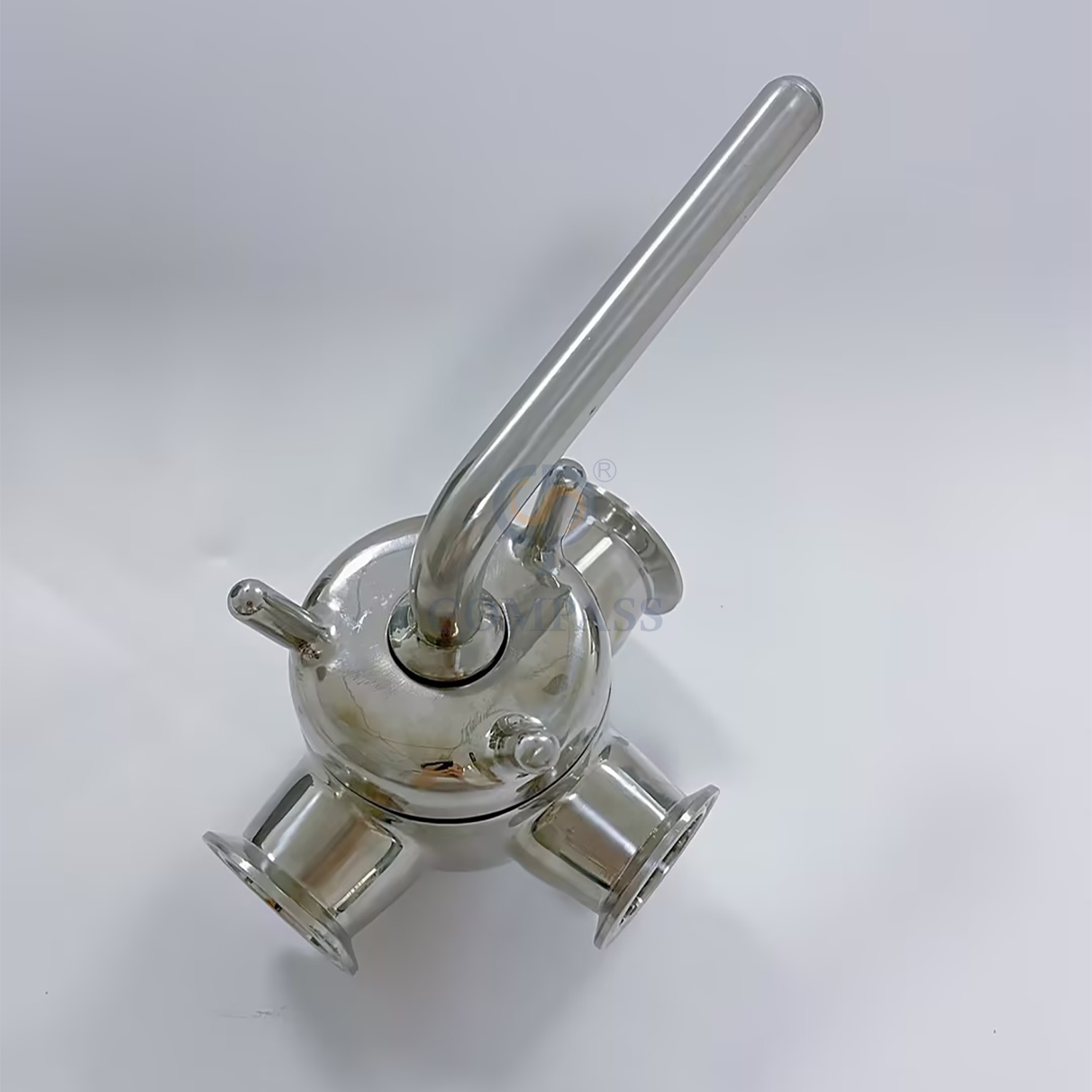

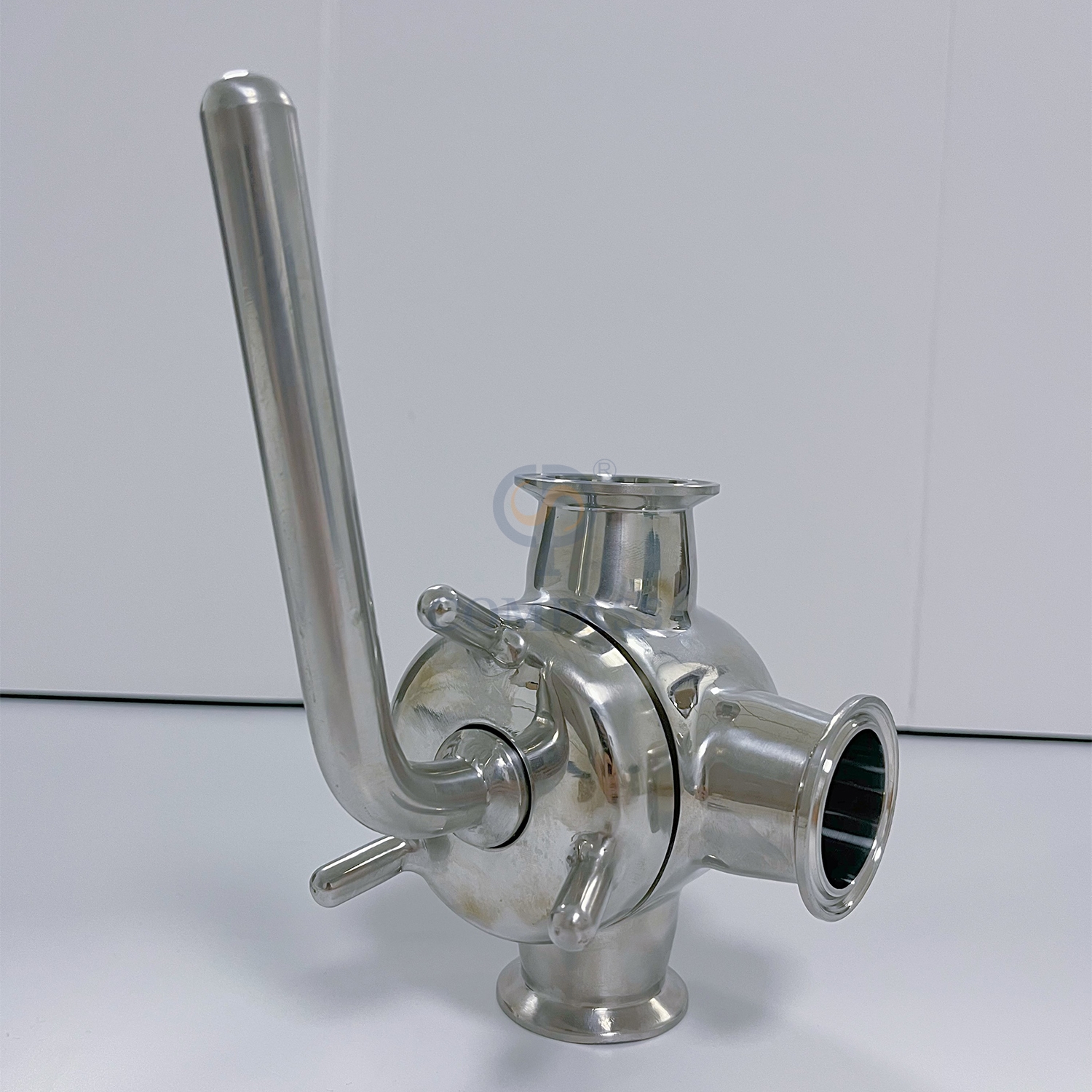

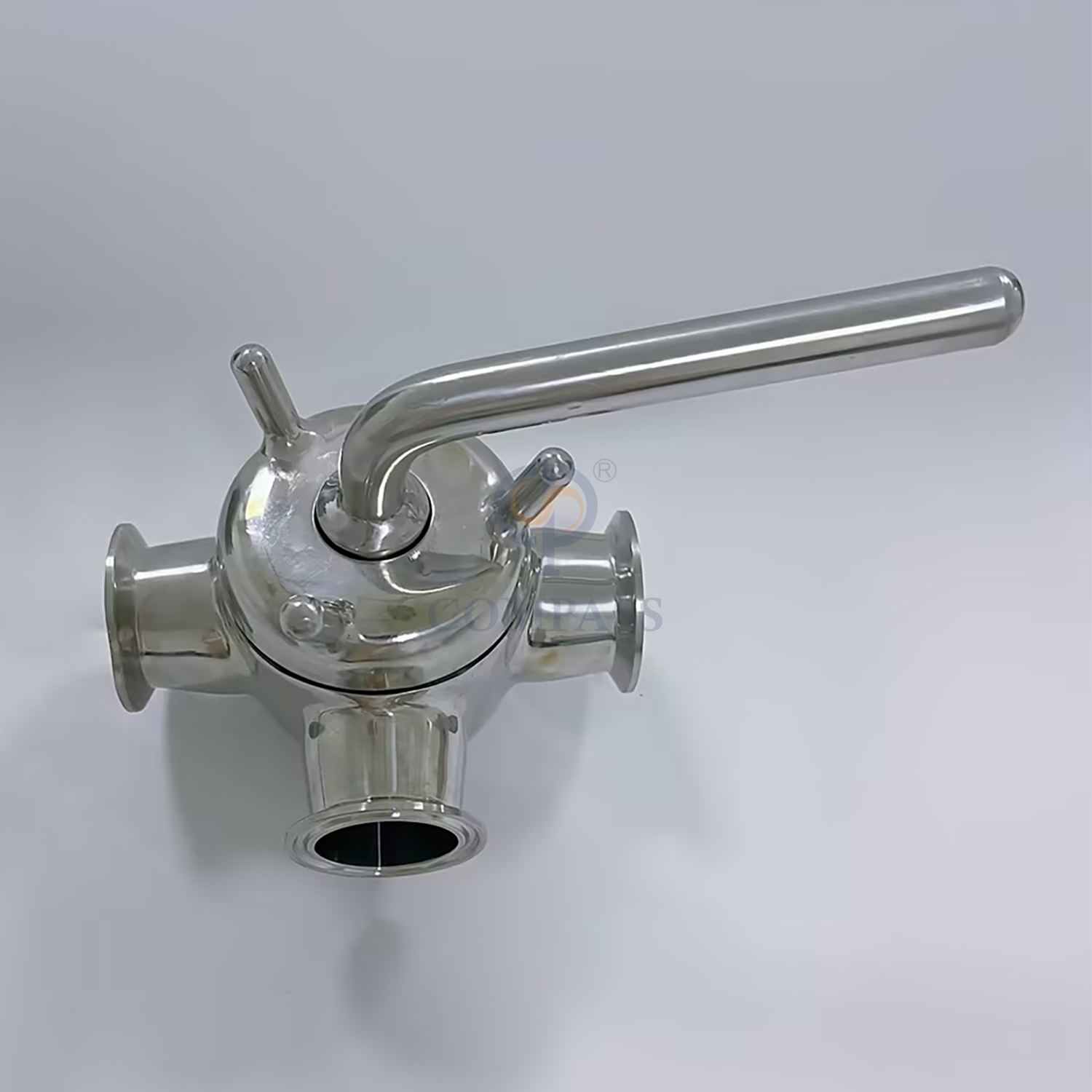

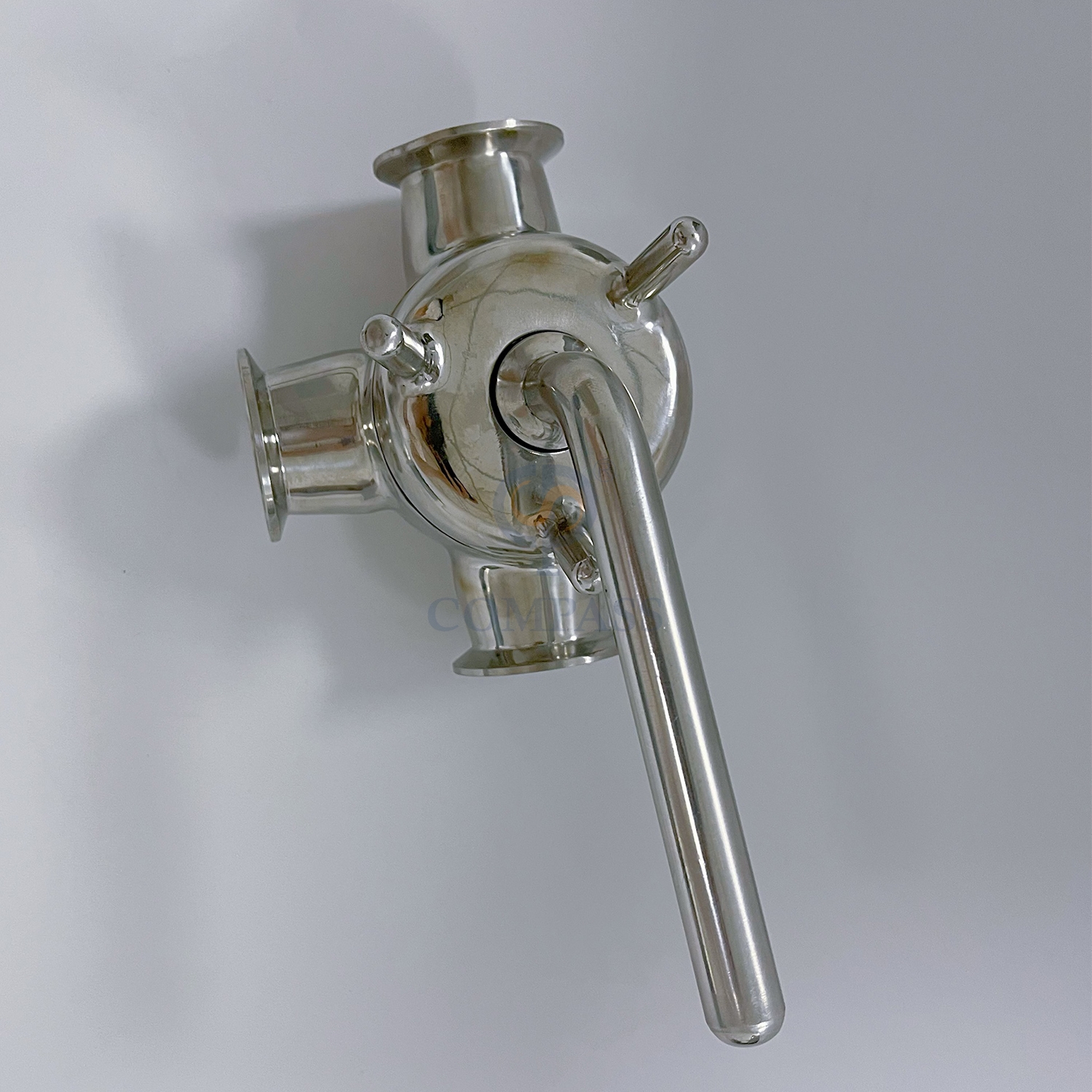

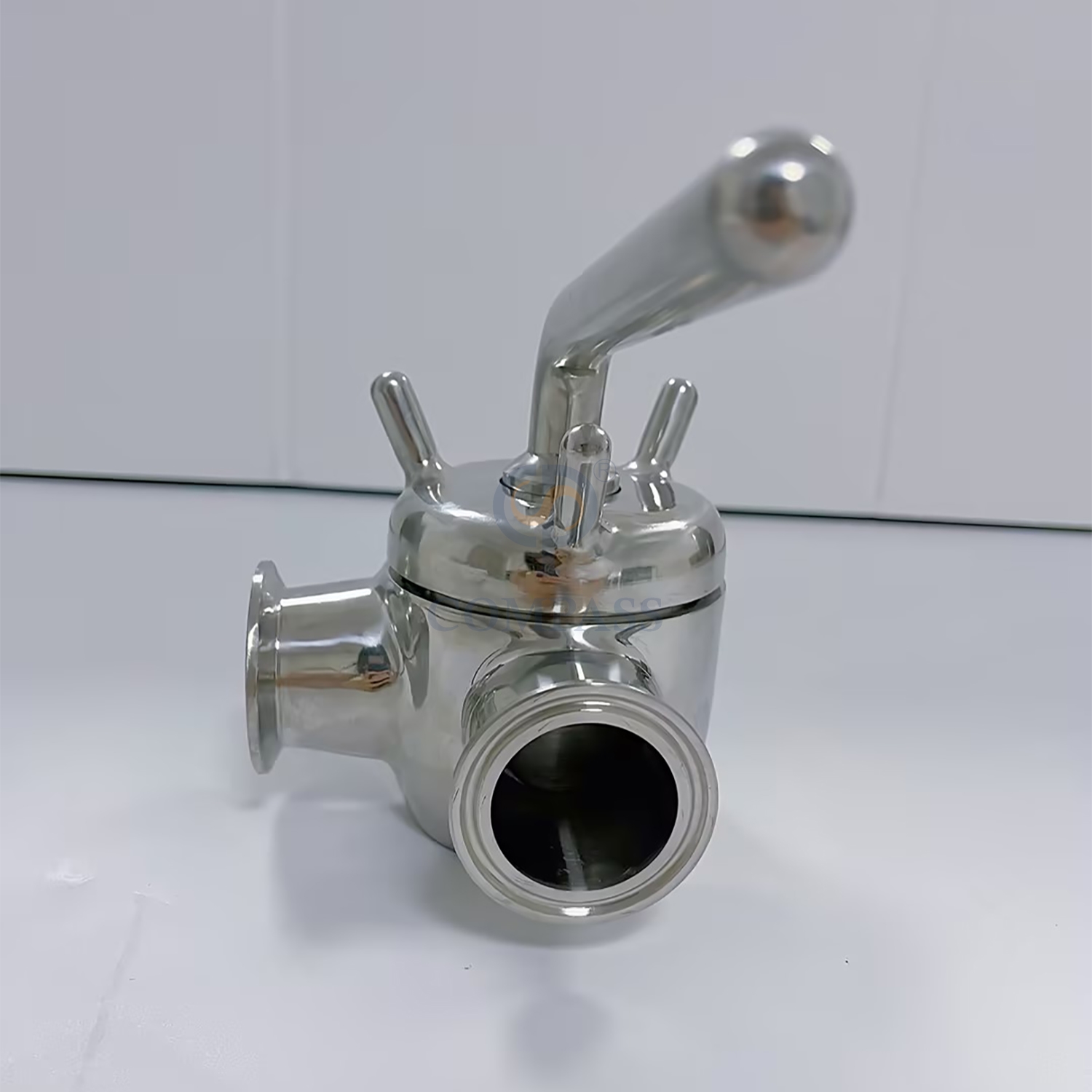

High Quality 38.1MM Sanitary Stainless Steel SS304 SMS Forging Manual Ferrule End Three Ways T-port Plug Valve with Silicone OEM

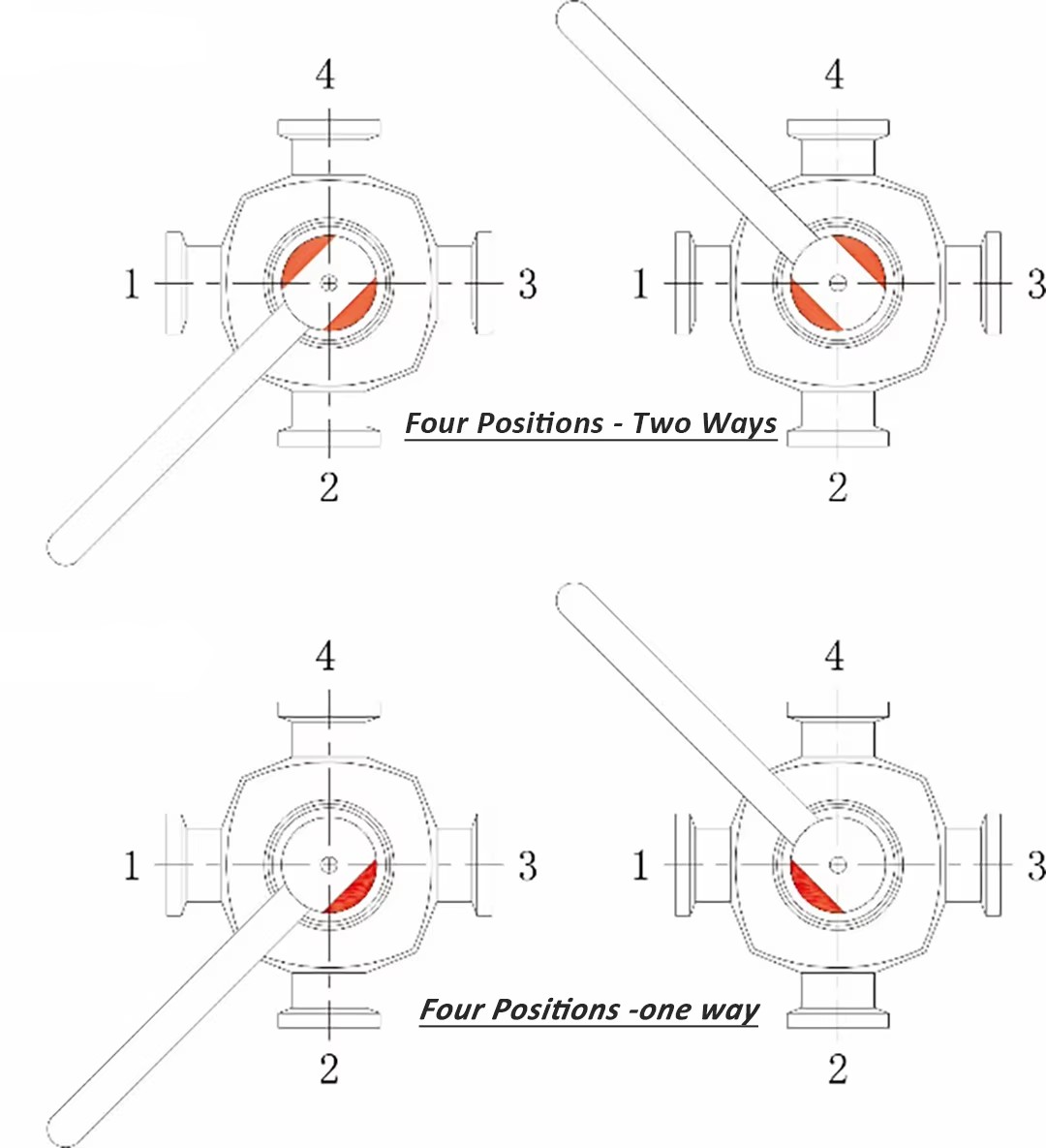

The top of the valve core is marked with a channel flow diagram. The four-way valve is divided into four-way two-way valve and four-way one-pass valve. The rotating handle makes the channel direction of the valve core aligned with the inlet and outlet direction of the valve body.

Model:
1 1/2Inch 38.1MM
Brand:
XUSHENG
Code:
0115021102A38

Size:	1/2"-12",DN15-DN300
Availability:

Quantity:



Inquire Add to Basket

The Details of Product

Standard	SMS,DIN
Material Contact Parts	SS304/SS316L(1.4301/1.4404)	Provided with material inspection report
Size	1/4",1/2", 1", 1 1/2', 2"
Connection	Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union
Seal Material	PTFE seals material comply with FDA21CFR117.2600
Drive Option	Manual Stainless Steel Handle
Supply Pressure for Air Actuator	5~8bar (72.52psi~116psi)
Max. Working Pressure	≤10bar (145psi)
Min. Working Pressure	0.2bar (2.9psi)
External Surface Treatment	Ra32~64ui n (o.8~1.6um)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)
Temperature range	-10~150 °℃ (14°F~302°F)
Status display	The position of the scale line on the valve represents the valve connected position

Description of Commodity: High Quality 38.1MM Sanitary Stainless Steel SS304 SMS Forging Manual Ferrule End Three Ways T-port Plug Valve with Silicone OEM

Technical Specifications

Max. pressure: ≤10bar (145psi)

Min. pressure: 0.2bar (2.9psi)

Temperature range：-10~150 ℃ (14°F~302°F)

Application

The application is mainly used in chromatography system, to achieve the manual replacement of samples, buffer and other pipelines, CP, SP.

How to order?

1. What type of plug valve? Such as Two-way, Three-way, Four-way.

2. What’s pressure? 16Bar

3. What’s gasket? PTFE or SILICONE

4. What’s material you need? CF8 or CF8M

5. What’s the connection you need? Such Female Threaded, Socket, Welded, Flange
