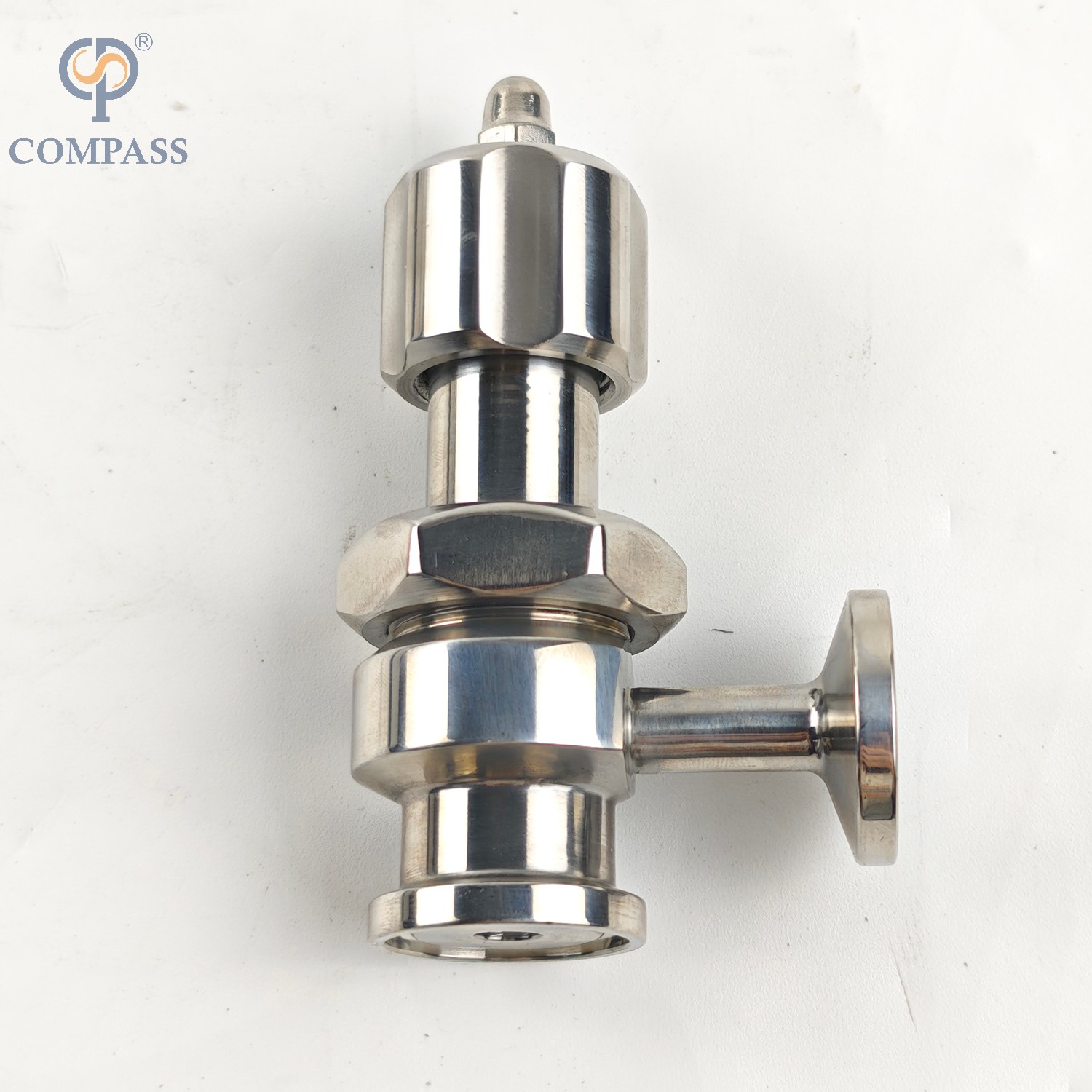

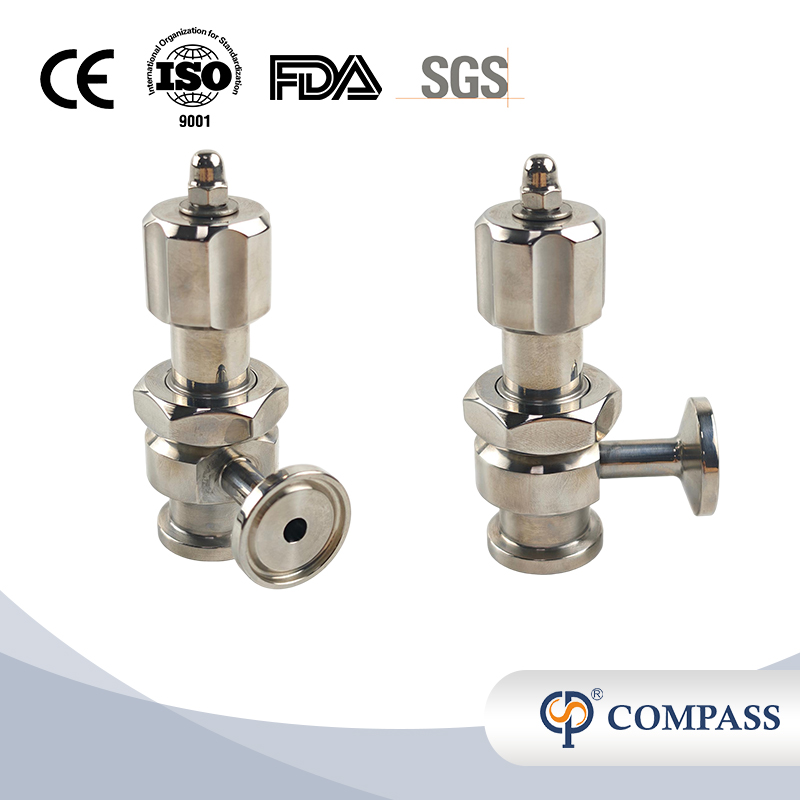

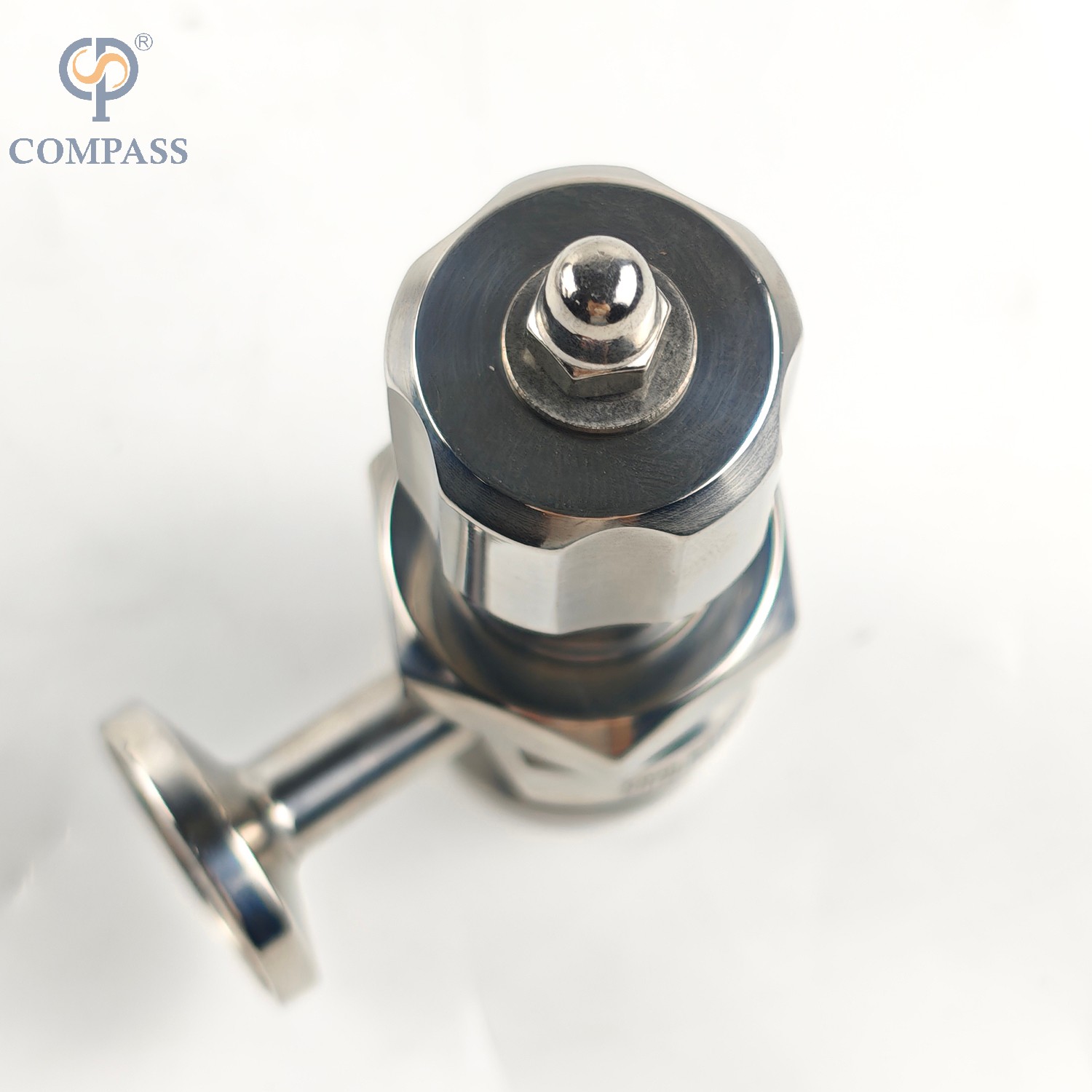

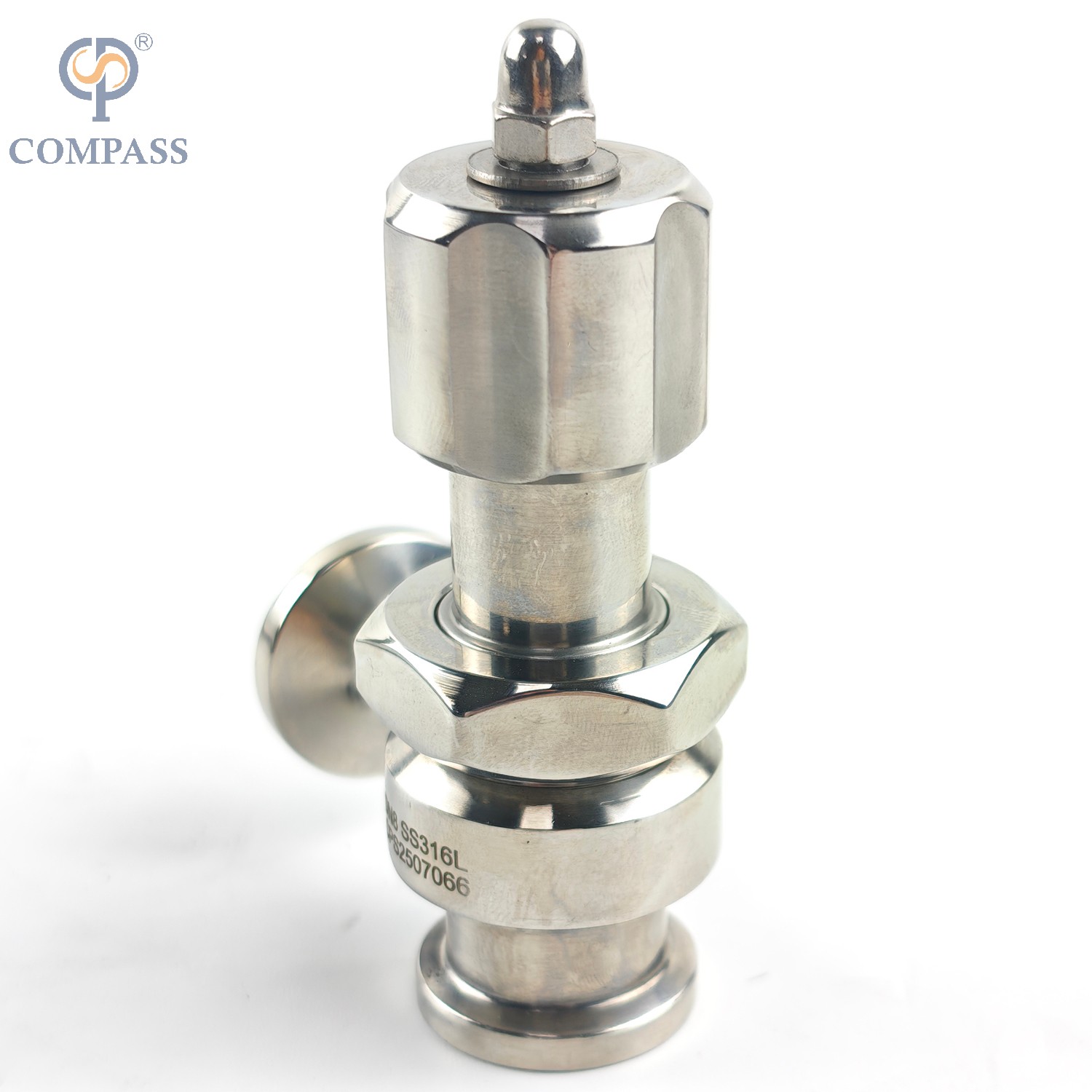

DN8 Food Grade Sanitary Stainless Steel SS316L ASEPTIC CLAMP SAMPLING VALVES

Sanitary Ball Valves are widely used in food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, biochemical industrialprocess control occasions. It is automatic or manual operated Ball valve, suitable for various applications inside the stainless steel piping system. Sanitary ball valve seat seal is made of PTFE material, with good sealing performance.

Working Principle

Sanitary ball valves can be tightly closed with only 90 degrees of pneumatic rotation and a small turning torque. The completely equal valve body cavity provides a small resistance and straight flow path for the medium. It is generally believed that ball valves are most suitable for direct opening and closing use, and ball valves have been designed to have throttling and flow control functions. The main characteristic of ball valves is their compact structure, easy operation and maintenance, suitable for general working media such as water, solvents, acids, and natural gas, and also suitable for harsh working conditions such as oxygen, hydrogen peroxide, methane, and ethylene. The valve body of a ball valve can be integral or modular.

Model:
DN8
Brand:
COMPASS
Code:
010302A0902BDN8A

Availability:

Quantity:



Inquire Add to Basket

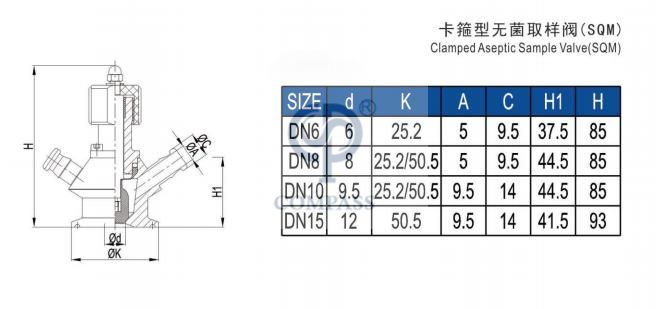

Main Parameter

Standard	SMS,DIN
Material Contact Parts	SS316L(1.4404)	Provided with material inspection report
Size	DN6,DN10,DN15
Body Combination	A Model,B Model,C Model,D Model,E Model,F Model
	A1 Model,B1 Model, C1 Model,D1 Model,E1 Model, F1Model
Connection	Butt-weld,Tri-clamp
Seal Material	Silicone, EPDM or FKM. The seal material comply with FDA21CFR117.2600
Power Option	Manual Operated
Working Pressure	≤10bar(145psi)
Supply Pressure for Air Actuator	5~8(72.52psi~116psi)
External Surface Treatment	Ra16~32uin(0.4~0.8um)
Internal Surface Treatment	Ra16~32uin(0.4~0.8um)
Standard	SMS,DIN

Product Overview

Sampling valve A valve used to obtain media samples in pipelines or equipment. In many cases where chemical analysis of media samples is often required, specialized sampling valves are often used.

According to the working principle or performance of the sampling, the sampling valve is mainly divided into three types, including double opening valve, flange clip valve and sampling valve with thermal jacket.

Application

Sampling valves have a wide range of applications in many industries, mainly including chemical, food processing, pharmaceutical, oil and gas, water treatment, environmental monitoring, scientific research and education and other fields.

Working Principle

When Turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling.When turn the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.

Design & Features

Available steam or alcohol for fisintection of the oringinal.

Use the diaphragm to seal the material.

It is typical sampling and good repeatability to sample.

Use this type valve, secondary pollution can be prevented, can be used as a large number of sampling or mirco-sampling.

Complete specifications
You can call to customize yourfavorite products and producevarious products according toyour needs.

How to order Sanitary Microbial Sterile Sampling Valve?

1.What's material,only SS316L.
2.What's size,such as DN6,DN10,DN15?
3.What's gasket?Silicone,EPDM,FKM.
4.What's connection end,suh as butt-weld,tri-clamp?
5.What's type of power you need,such as manual,pneumatic or manual-pneumatic?
6.What's body connection,such as A model,B model,C model?
