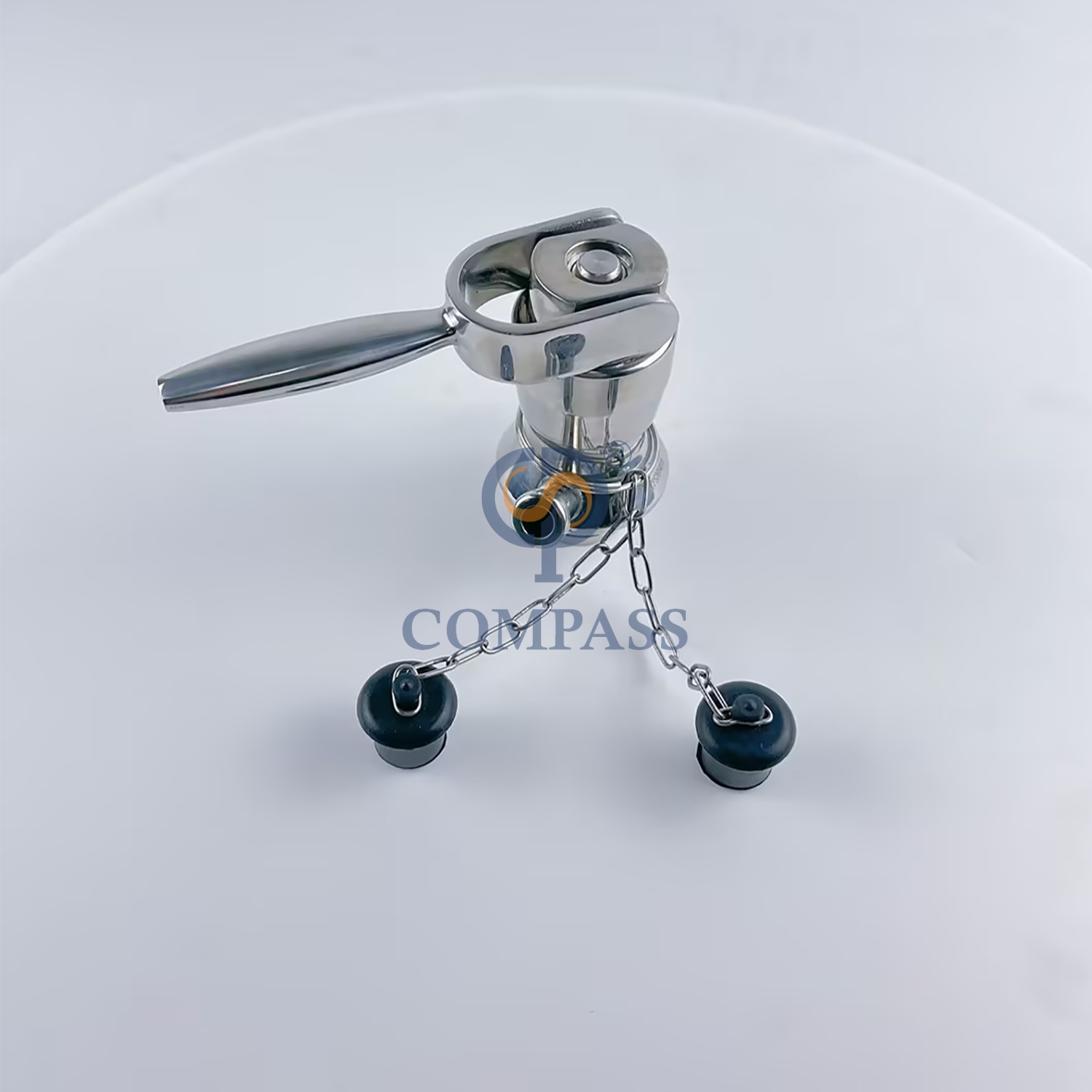

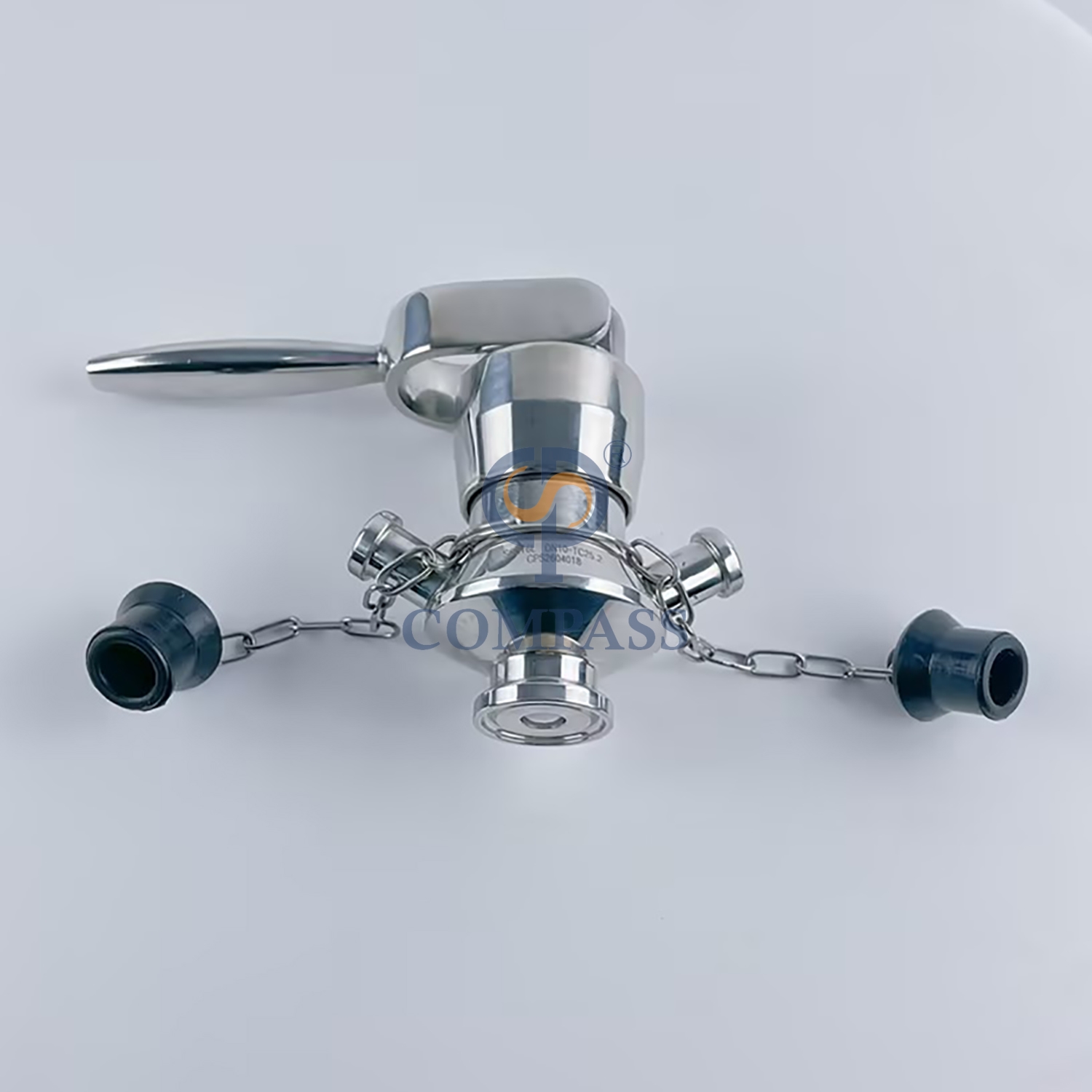

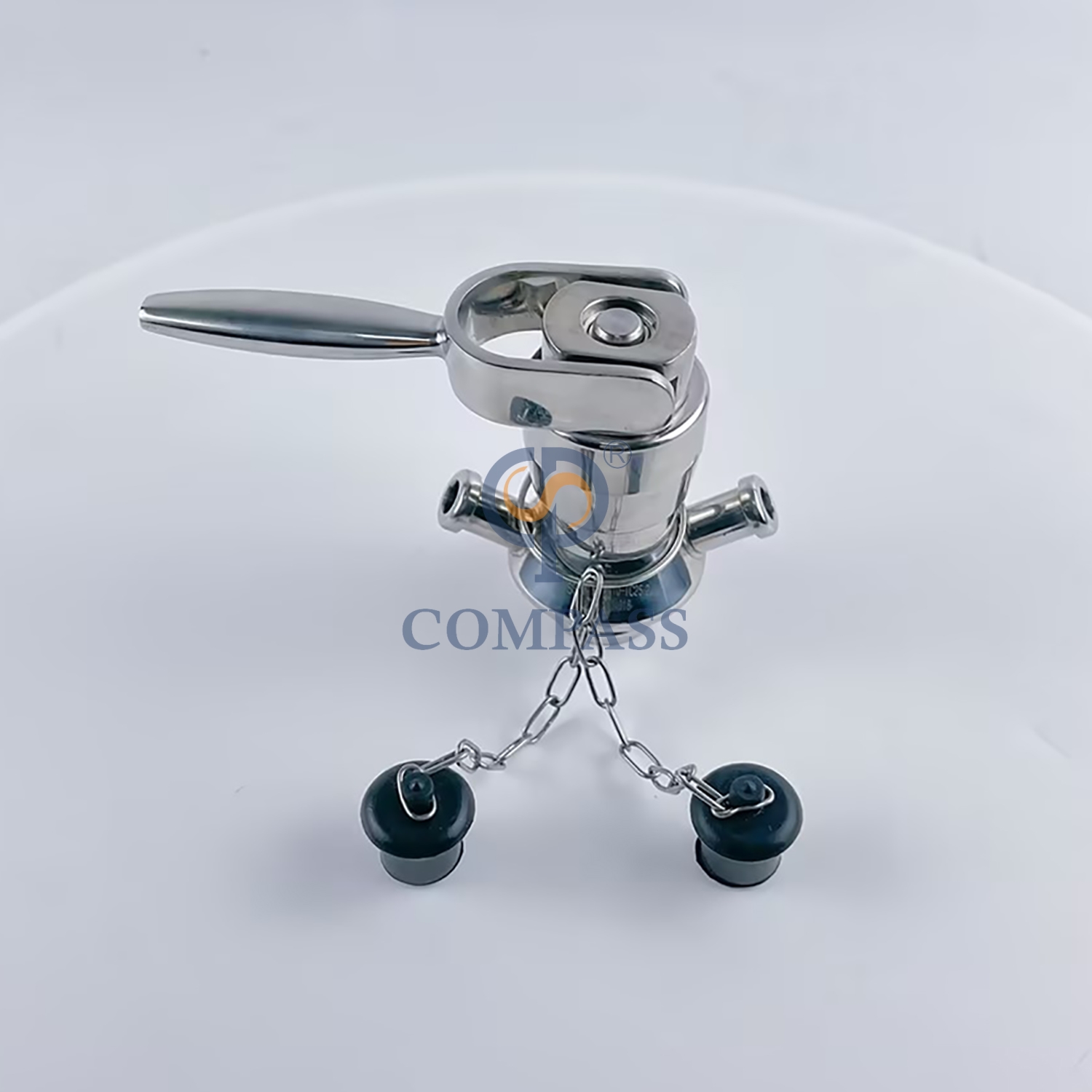

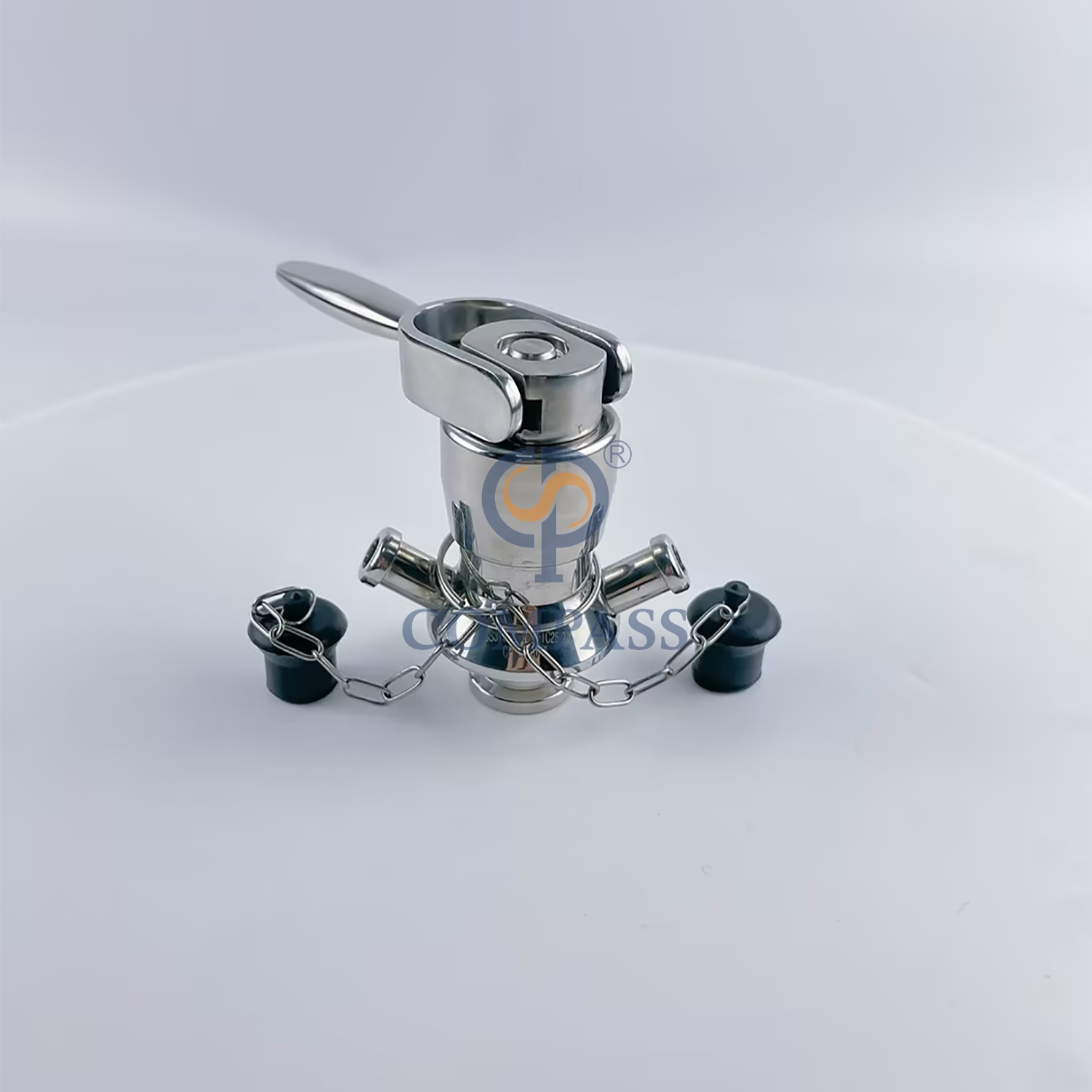

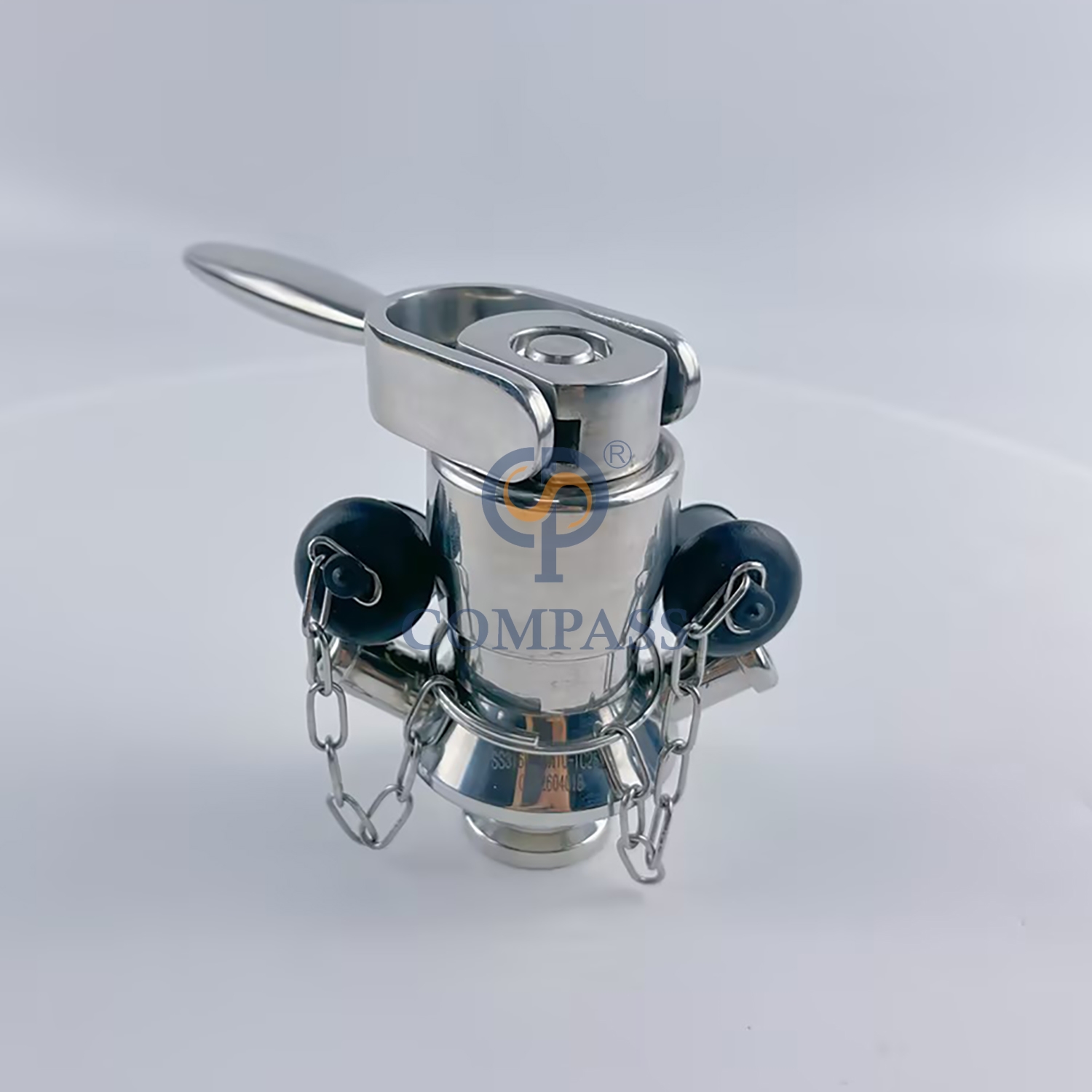

Best Selling DN10 TC 25.2MM SS316L Sanitary Stainless Steel Quickly Open Aseptic Clamp Sampling Valve with Silicone Seal
Sanitary sampling valves used for sampling from tanks or piping systems under aseptic conditions, and require sterilization before and after each sampling. No dead ends, complete sterilization, continuous and sterile sampling can be performed at any time. So widely used in food, wine, beverage, dairy products, toothpaste cosmetics, bio-pharmaceutical and other industries. Our valve is used to obtain media samples in pipelines or equipment. In many occasions where chemical analysis of media samples is often required, special sanitary sampling valves are often used. The sampling valve consists of three parts, the valve body, valve head and sealing ring. The rubber sealing ring is placed on the valve stem to make it telescopic. The valve body and valve head can be replaced with each other.
PTFE. The seal material comply with FDA21CFR117.2600
Power Option
Manual and Pneumatic Operated
Working Pressure
≤10bar(145psi)
External Surface Treatment
Ra32~64uin(0.8~1.6um)
Internal Surface Treatment
Ra16~32uin(0.4~0.8um)
Description of Commodity: Best Selling DN10 TC 25.2MM SS316L Sanitary Stainless Steel Quickly Open Aseptic Clamp Sampling Valve with Silicone Seal
Product Overview
Sampling valve A valve used to obtain media samples in pipelines or equipment. In many cases where chemical analysis of media samples is often required, specialized sampling valves are often used. According to the working principle or performance of the sampling, the sampling valve is mainly divided into three types, including double opening valve, flange clip valve and sampling valve with thermal jacket.
Application
Sampling valves have a wide range of applications in many industries, mainly including chemical, food processing, pharmaceutical, oil and gas, water treatment, environmental monitoring, scientific research and education and other fields.
Working Principle
When Turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling.When turn the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.
Design & Features
Available steam or alcohol for disinfection of the original. Use the diaphragm to seal the material. It is typical sampling and good repeatability to sample. Use this type valve, secondary pollution can be prevented, can be used as a large number of sampling or micro-sampling.
Complete specifications You can call to customize your favorite products and produce various products according to your needs.
How to order?
1.What's material,only SS316L. 2.What's size,such as DN6,DN10,DN15? 3.What's gasket?Silicone,EPDM,FKM. 4.What's connection end,suh as butt-weld,tri-clamp? 5.What's type of power you need,such as manual,pneumatic or manual-pneumatic? 6.What's body connection,such as A model,B model,C model?

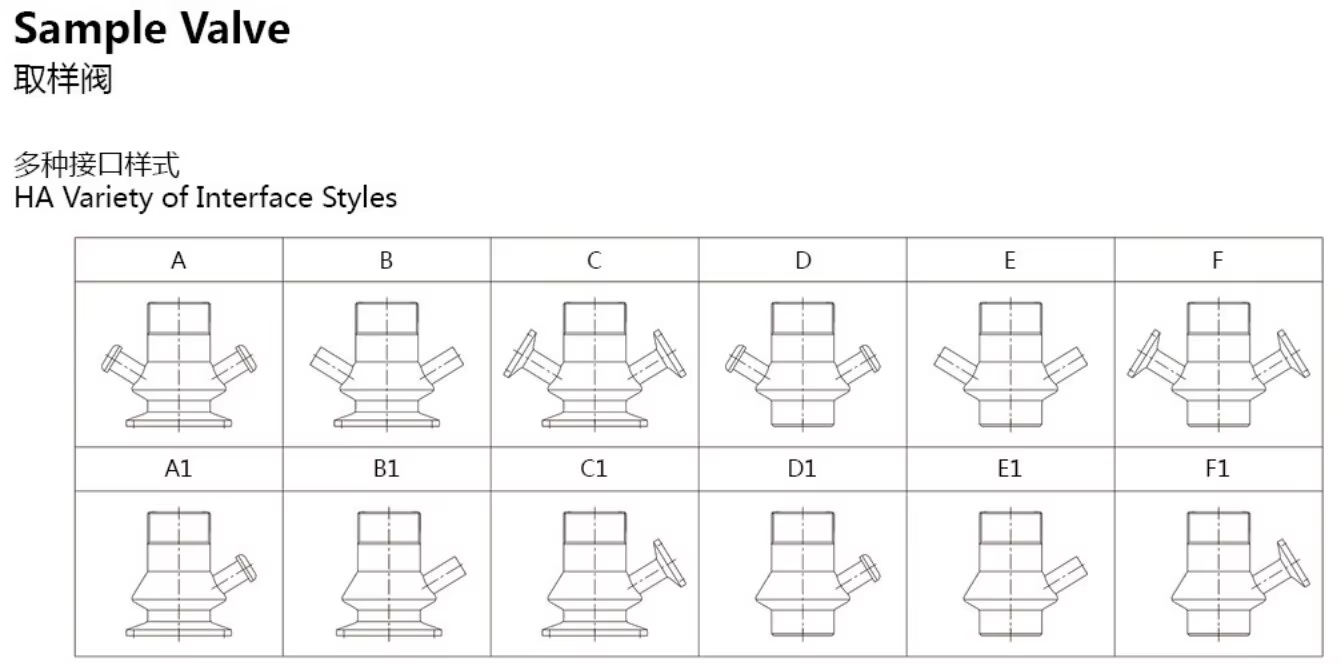

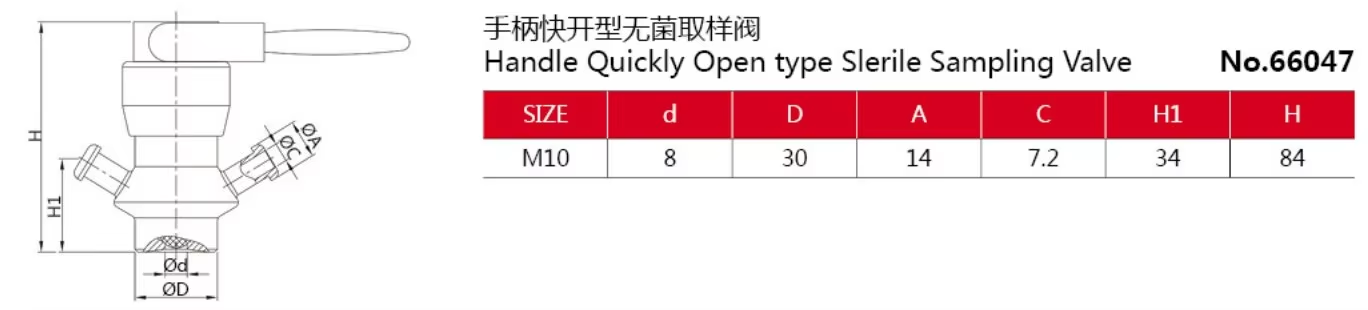

Drawing & Techanical
Packaging & Shipping
In order to better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If ordered in small batches and selected by express delivery, the items are packaged in shrink packaging and cartons.
If the cargo is heavy, it is packaged in a highly airworthy wooden box.
To protect items, these items will be packaged in wooden boxes by safety and impact resistance.
Application
The diaphragm valve is made of stainless steel. Its hygienic and cost-effective design makes it highly suitable for industries,such as beverage and food processing, pharmaceuticals, bioengineering, and cosmetics.
