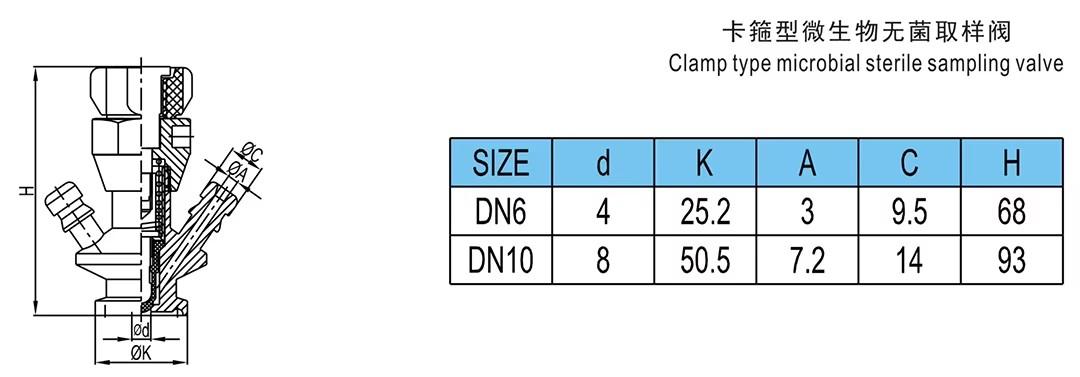

Specification
Standard | SMS,DIN |
Material Contact Parts | SS316L(1.4404) | Provided with material inspection report |
Size | DN6,DN10,DN15 |

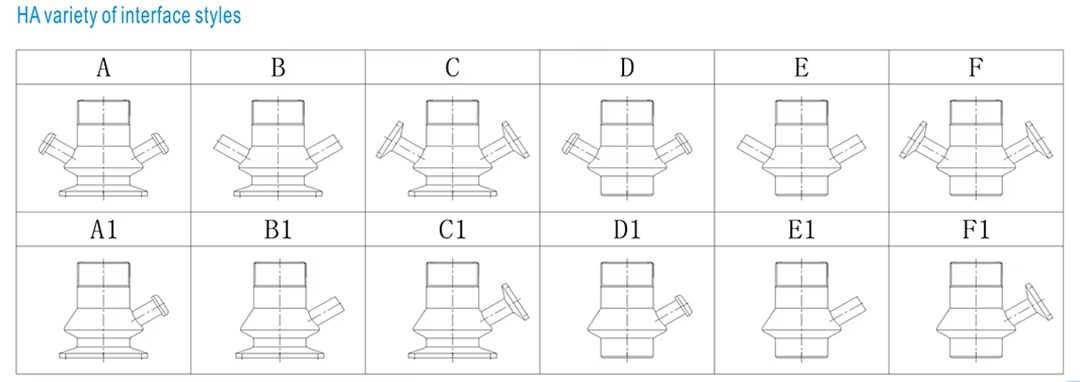

Body Combination | A Model,B Model,C Model,D Model,E Model,F Model A1 Model,B1 Model, C1 Model,D1 Model,E1 Model, F1Model |
Connection | Butt-weld,Tri-clamp |
Seal Material | Silicone, EPDM. The seal material comply with FDA21CFR117.2600 |
Power Option | Manual Operated |
Working Pressure | ≤10bar(145psi) |
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
External Surface Treatment | Ra16~32uin(0.4~0.8um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |

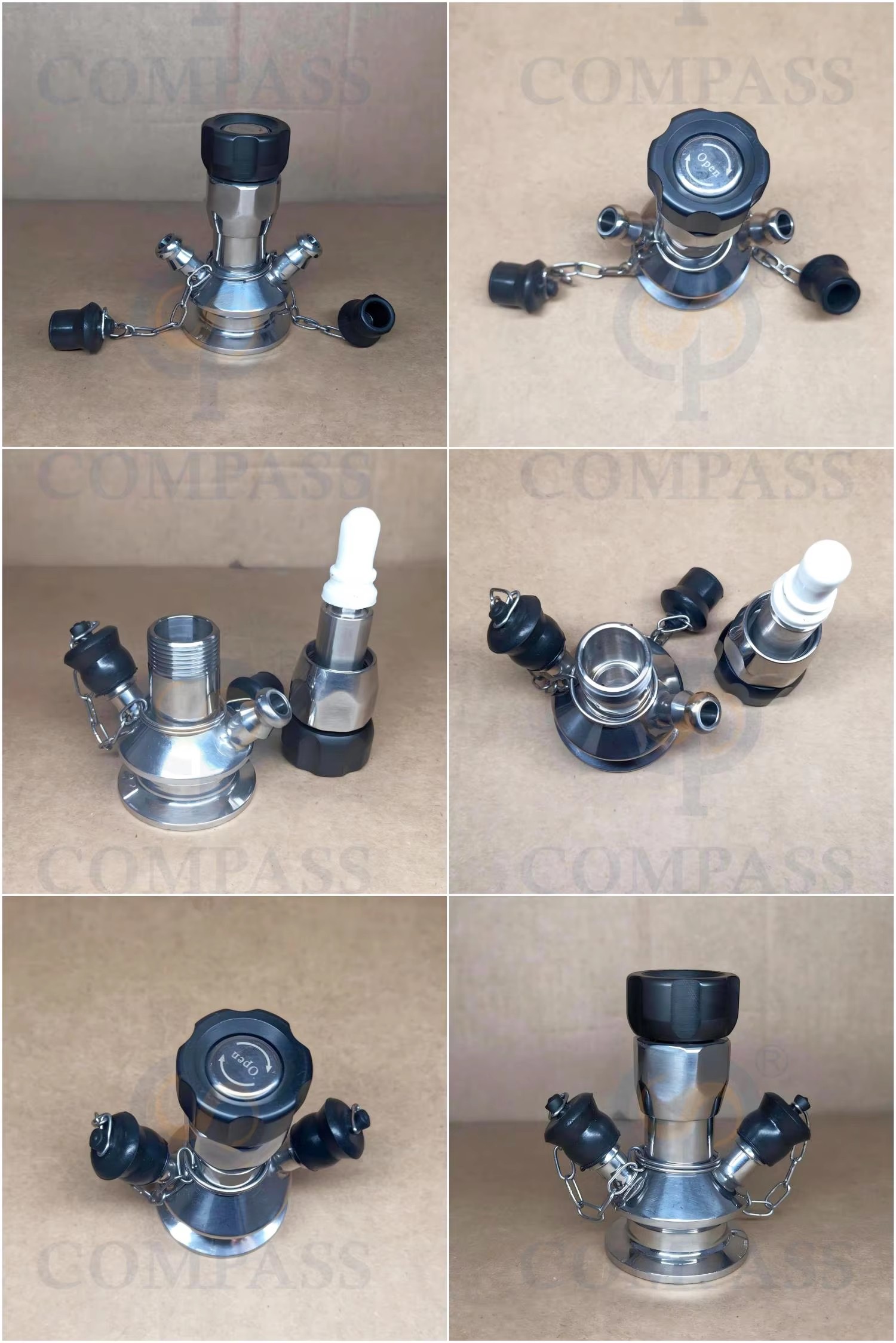

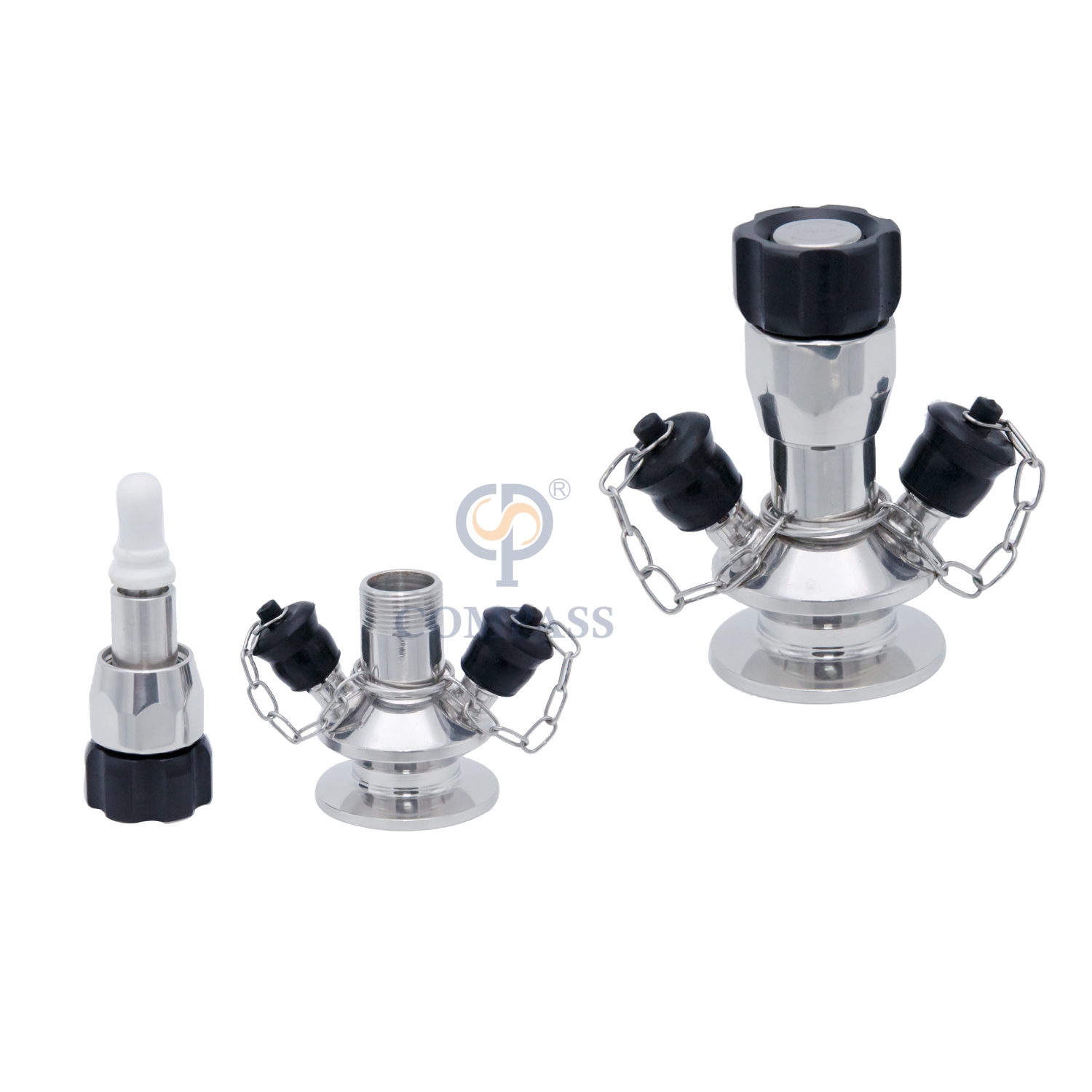

Highlights at a glance
* Stainless Steel: Corrosion-resistant and built for long-lasting use.
* Clamp End: Secure and leak-proof connection for fast, easy installation.
* Silicone Gasket: Provides a tight seal to prevent leaks and ensure safety.
* Sanitary Grade: Suitable for food and beverage processing, ensuring sterile sampling.
* Aseptic Design: Ideal for microbiology applications requiring precision and hygiene.

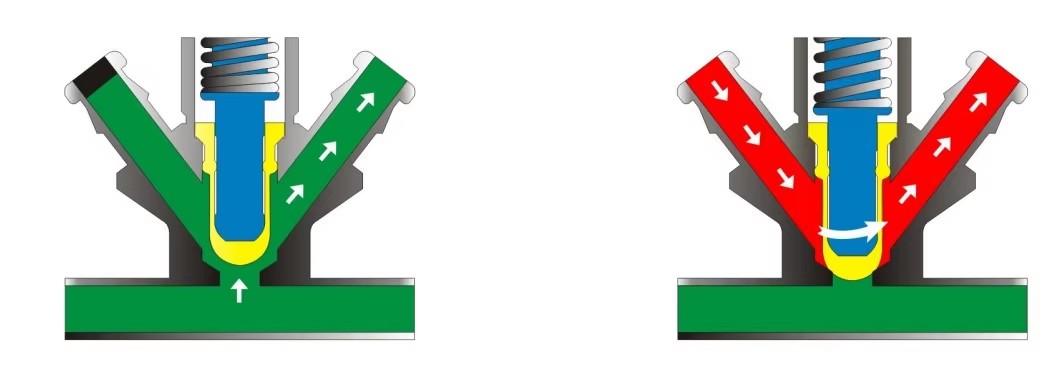

Working Principle
When Turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling.When turn the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.
Design Features
1.SS316L stainless steel
2.Silicone O-ring plus plunger to assure a leak proof connection
3.Surface finish polish to sanitary standards
4.Recommended usage in wineries
5.End connections available: Butt-weld,Tri-clamp
6.Size available: DN6,DN10,DN15
How to Order ?
1.What's material? Only SS316L.
2.What’s size? Such as DN6,DN10,DN15.
3.What’s gasket? Such as Silicone, EPDM.
4.What’s connection end? Such as butt-weld, tri-clamp.
5. What’s type of power you need? Such as manual, pneumatic or manual-pneumatic.
6. What’s body connection? Such as A Model,B Model,C Model,D Model,E Model,F Model, A1 Model,B1 Model, C1 Model,D1 Model,E1 Model, F1Model.
