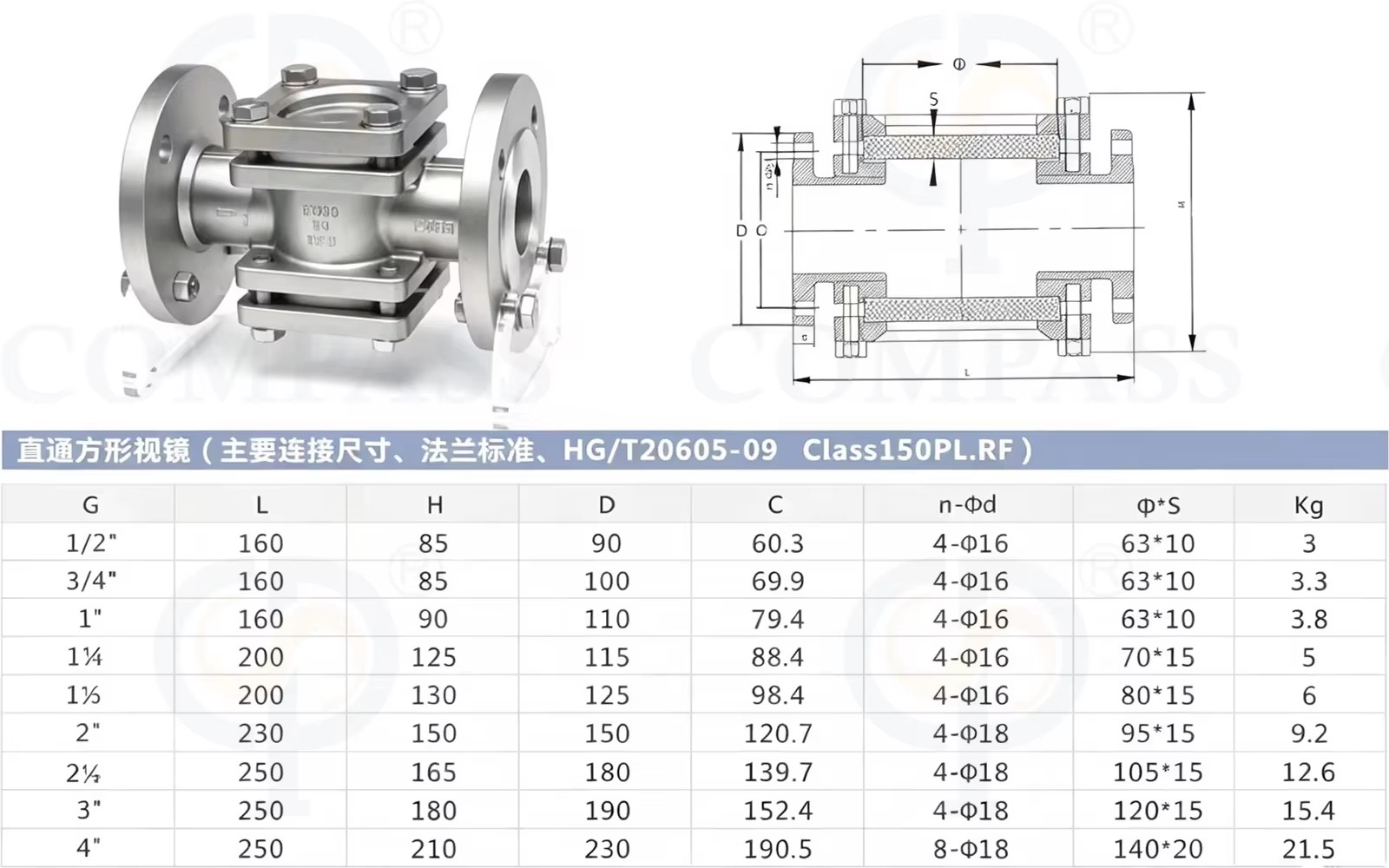

Specification
Availably standard | SMS,DIN,IDF RJT BS, ISO |
Material Quality | SS304 SS304L SS316.SS316L |
Specification | DN50-DN150, 1Inch-4Inch |
Availabe Connection | Welding ends,triclamp ends,union ends,male ends |
Seal Material | Silicone, EPDM, PTFE |
Machine Processing | The most advanced CNC machine from Japan for processing |
Continuous working temperature | 20'C-+135'C(EPDM,Silicone) |
Glass | Heavy Wall Borosilicate (Pyrex)Tubing, Polycarbonate (Lexan)Tubing, Acrylic Tubing; etc |
Protection Lens Cove | Polycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel |
Screw Blot | Full Stainless Steel |
Structure | Straight way.cross |
Application
Chemical industry: paint, coating, lubricating oil, detergent, etc.
Household chemicals: toothpaste, shampoo, cosmetics, soap, etc.
Food industry: ice cream, dairy, condiment, beverage, chili patse, etc.
Pharmaceutical industry: syrup, nutrient solution, cod-liver oil, ointment, etc.
Product Overview
The stainless steel integrated tank top movable contact mirror is installed on pressure vessels, vacuum vessels, tanks, reactors, filters, boiling beds, and other tanks and sealed containers. It can observe the internal situation of the container under the same pressure and temperature conditions as the container. When the observation environment is dark, it can provide sanitary grade stainless steel spotlights.
Complete specifications
You can call to customize yourfavorite products and producevarious products according toyour needs.
Stainless Steel Material
Made of good steel materials,anti-corrosion and anti-rustlong service life.

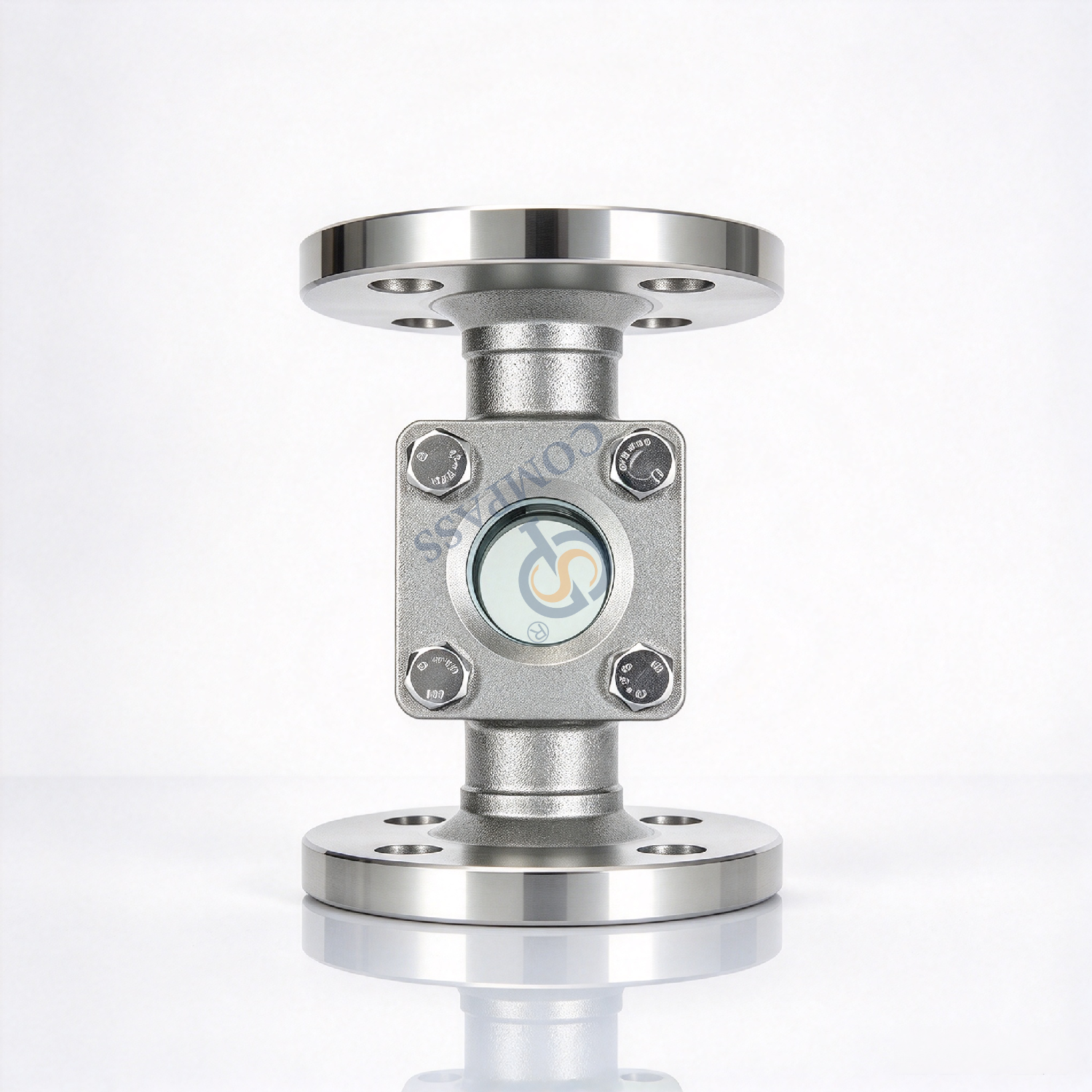

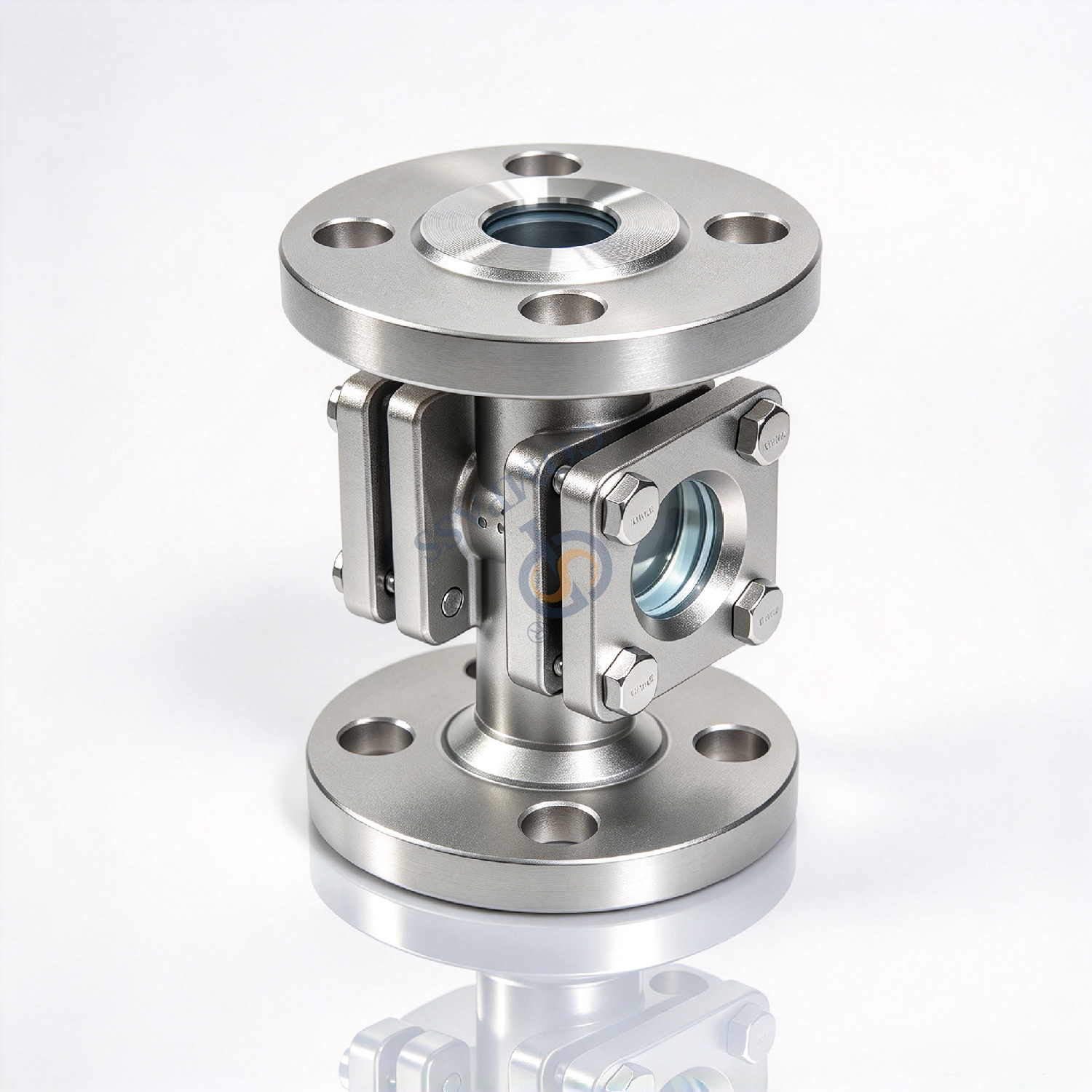

Highlights at a glance

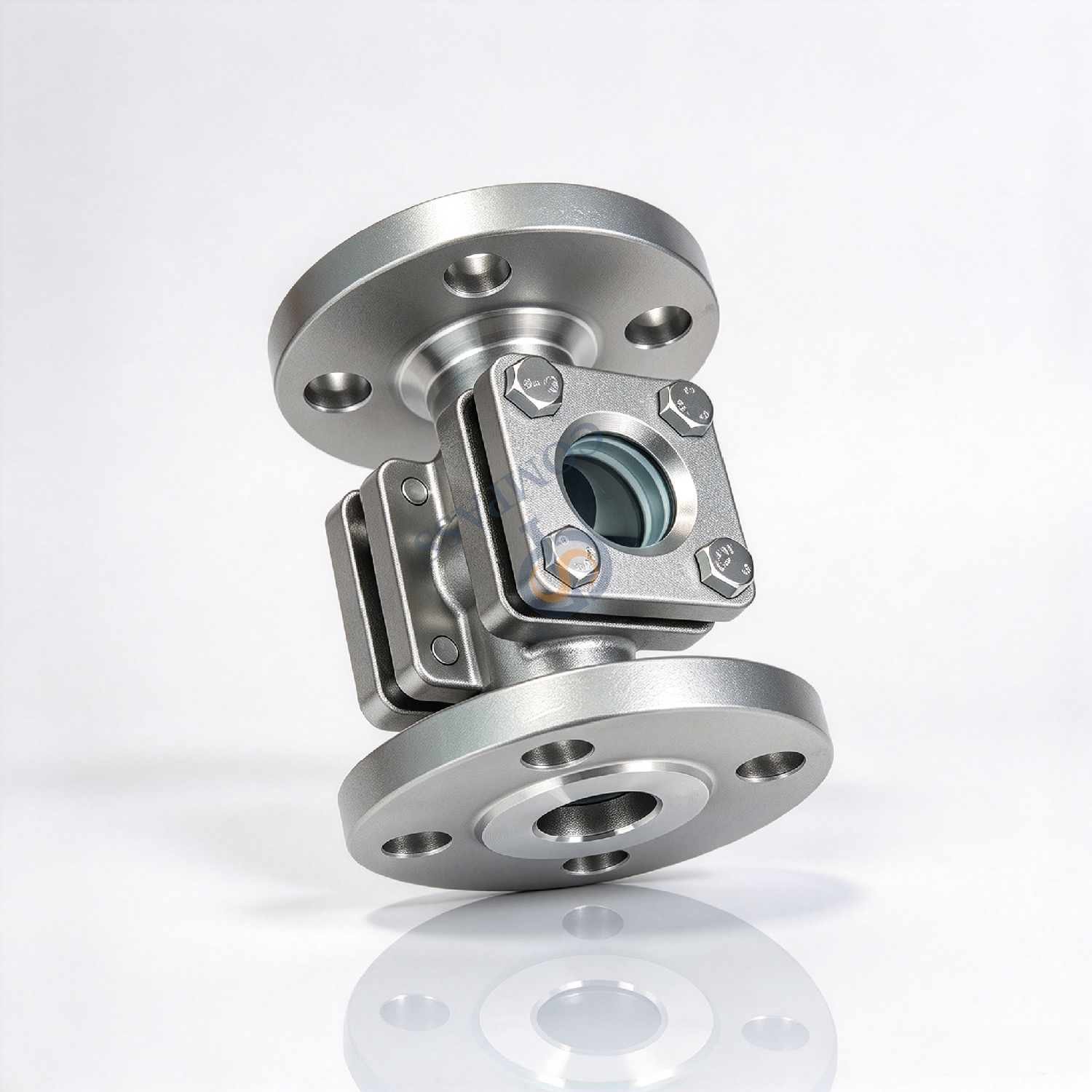

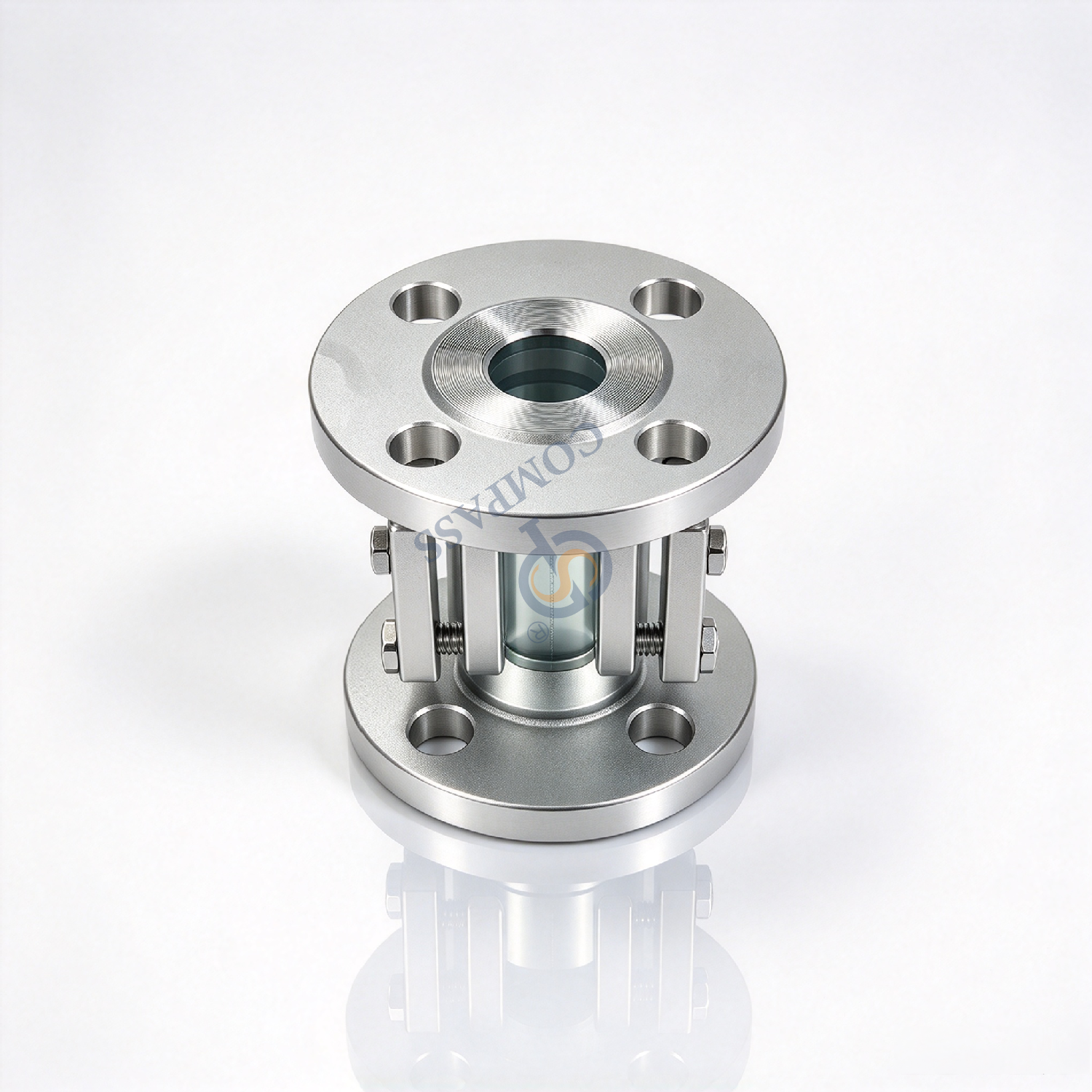

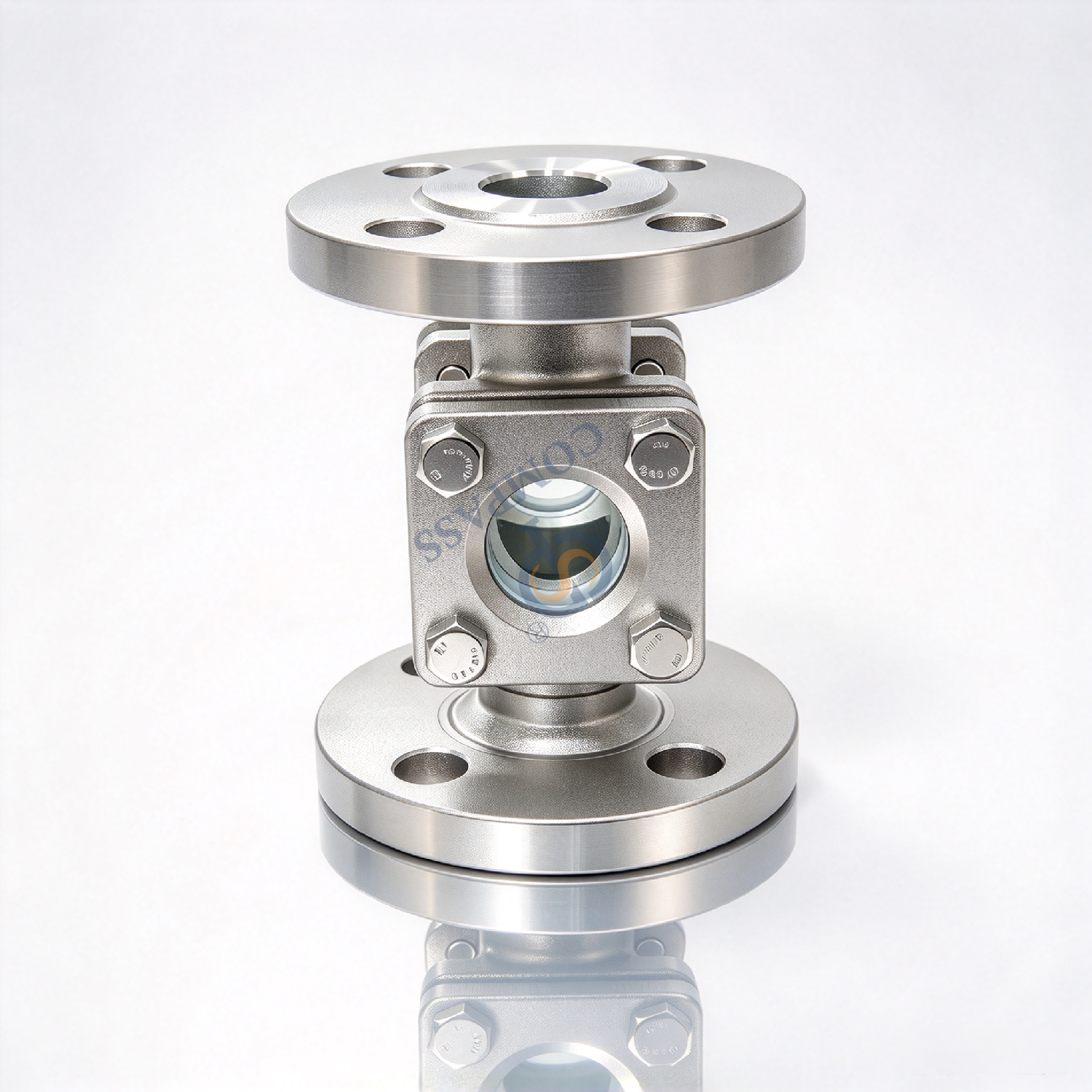

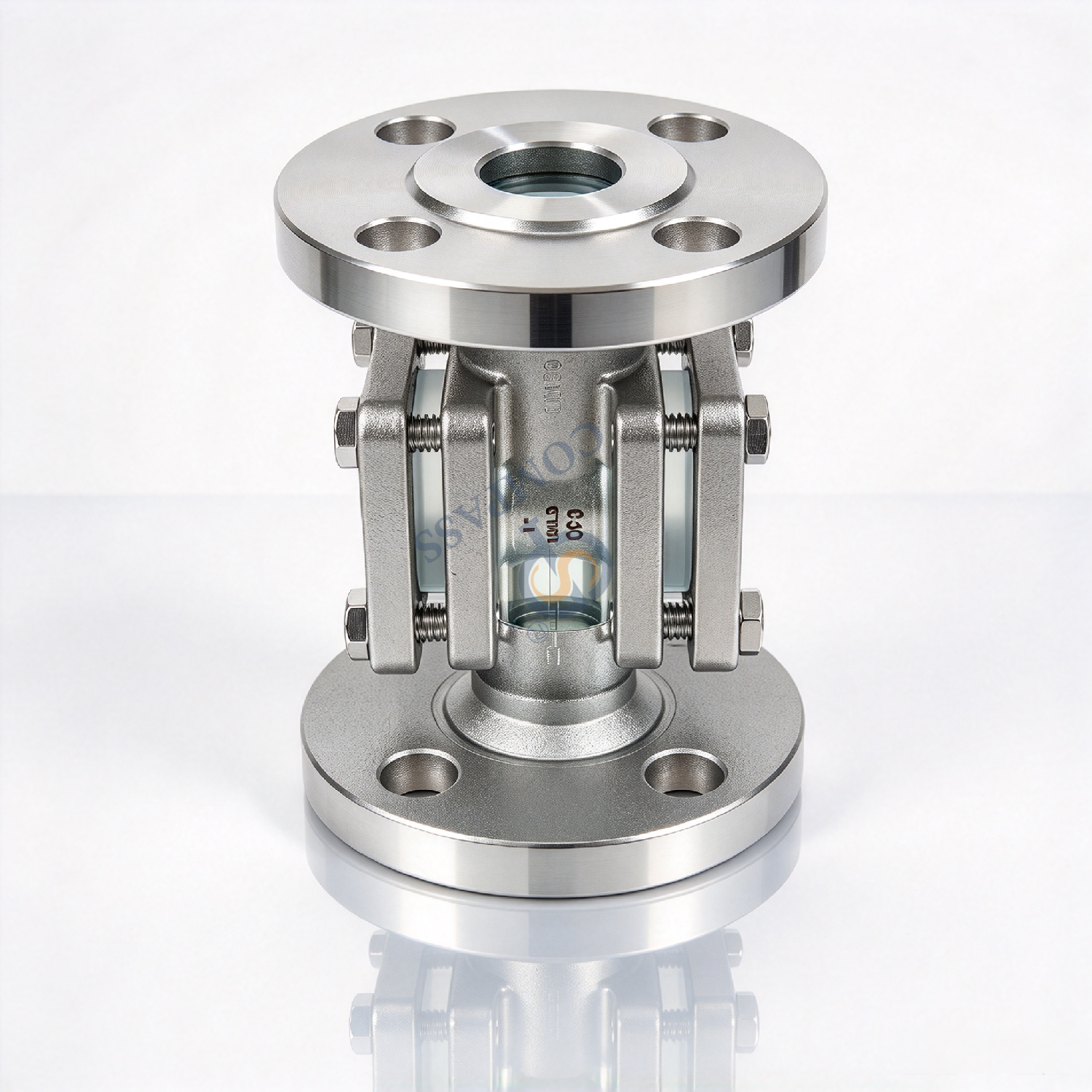

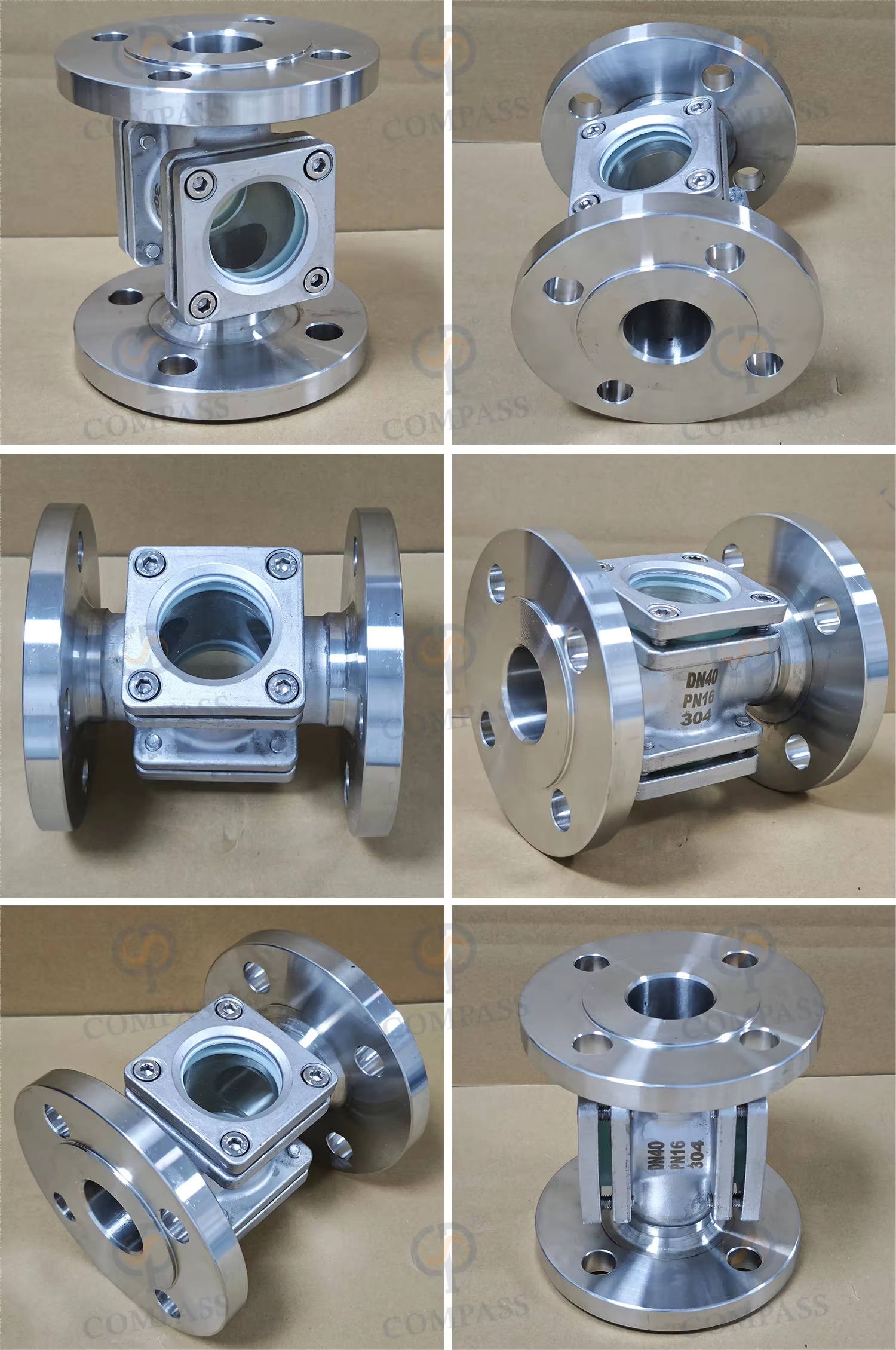

1.Four Way Viewing Design: Square cross structure with four flanges and central sight window.
2.Material Construction: SS304 body plus tempered glass for visual monitoring.
3.Sealing Components: PTFE gasket for flange sealing assembly.
4.Connection Specification: 1 inch ANSI RF flange ends for pipeline matching.
5.Pressure Rating: 150LBS flange pressure class for application selection.
How to order?
1.What's material? Such as SS304 or SS316L.
2.What's size? The size can be customized as per customer's request. Such as DN25- DN150.
3. What's pressure rating?
4. How many quantity?
