Main Parameter
Standard | SMS,DIN |
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |

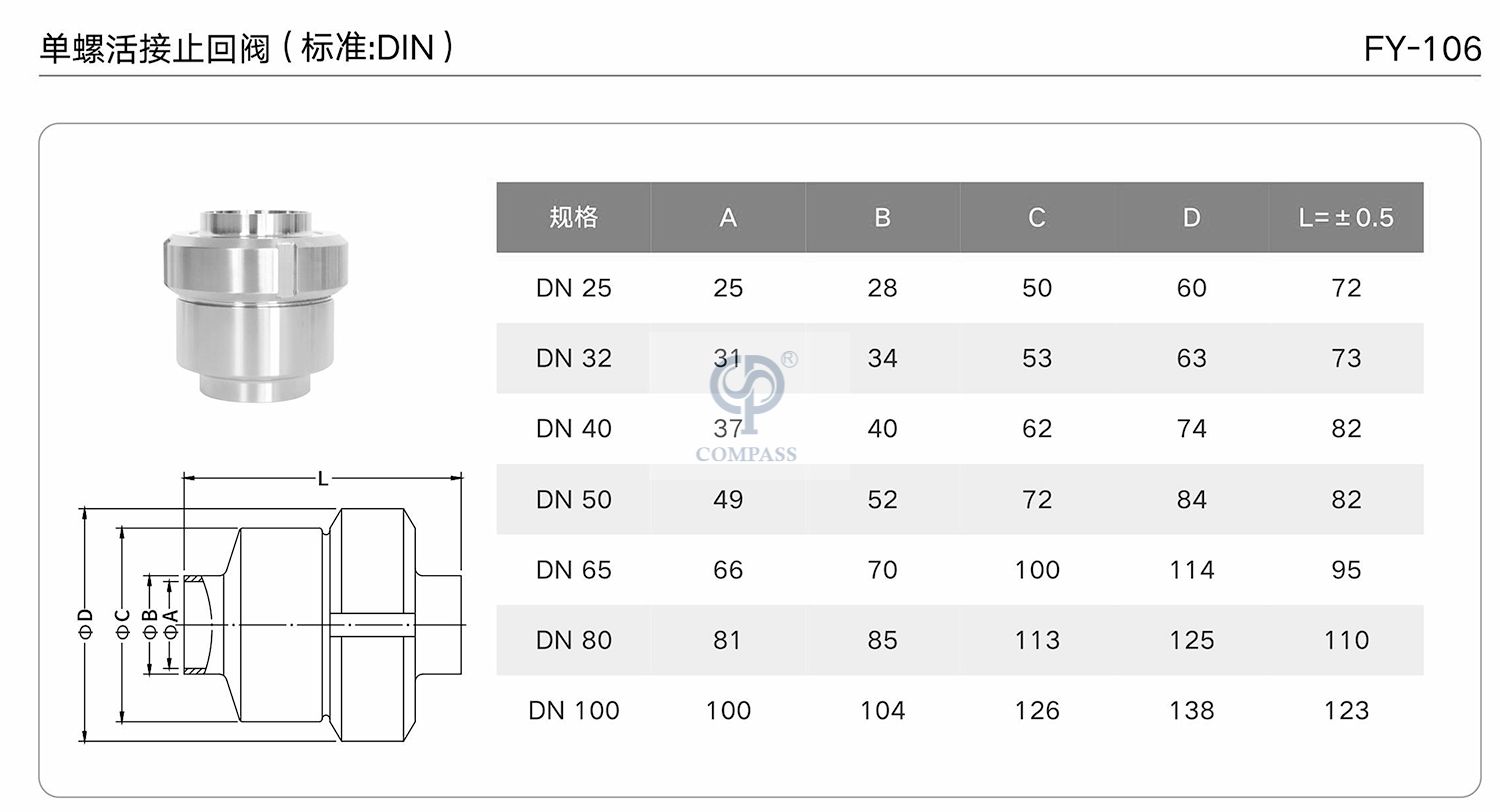

Size | 1/2" to 12",DN10 to DN300 |
Connection | Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange |
Seal Material | Silicone,EPDM,FKM,Buna.All seals material comply with FDA21CFR117.2600 |
Power Option | Manual Operation |
Working Pressure | ≤10bar(145psi) |
Open Pressure | 0.3bar for DN25, 0.2bar for DN32/DN40, 0.1bar for DN50/DN100 |
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
External Surface Treatment | Ra32~64uin(0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
Design & Features
Valve wall steamlined design,a smaller flow resistance,a flow smooth.
Flexible seat seal.Sealing a better effect.
Spring reduction and design,installation location unrestricted
Middle with clamp or flange design for easy maintance and clean.
Forging valve,the pressure better.
How to order Sanitary Check Valve?
1.What's standard,such as DIN,SMS?
1.What's material,such as SS304 or SS316L.
2.What's available size,such as 1/2" to 12",DN10 to DN300?
3.What's gasket?Silicone,EPDM,FKM.
4.What's connection end,suh as butt-weld,tri-clamp?
