The Details of Product
Valve Body Material | 1.4404/1.4301, SS304/SS316L(Forged) |
|
Disc | 1.4404/1.4301, SS304/SS316L(Forged) |
|
Seal Material | EPDM, Silicone, Viton, Buna |
|
Standard | DIN, ISO/IDF, BS/RTJ, ASME/BPE |
|
Surface Finishing | RA=0.8 um |
|
Max Working Pressure | 10Bar(DN25 to DN100), 8 bar(DN125 to DN150). Min pressure: 0.2 bar p.abs |
|
Operating temperature | -10℃ to +120℃ (EPDM) |
|
Available Size | 1/2"-8",DN15-DN250 |
|

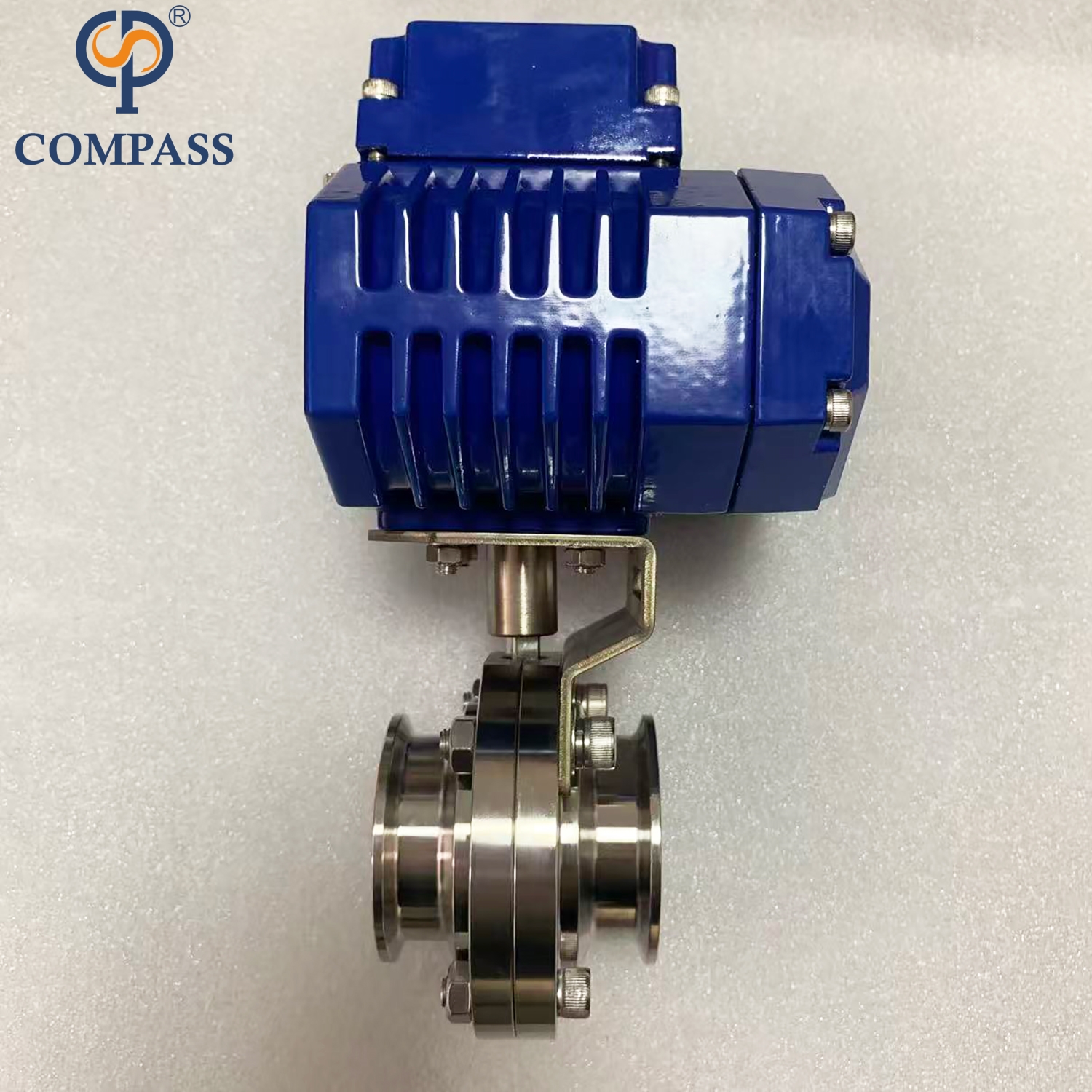

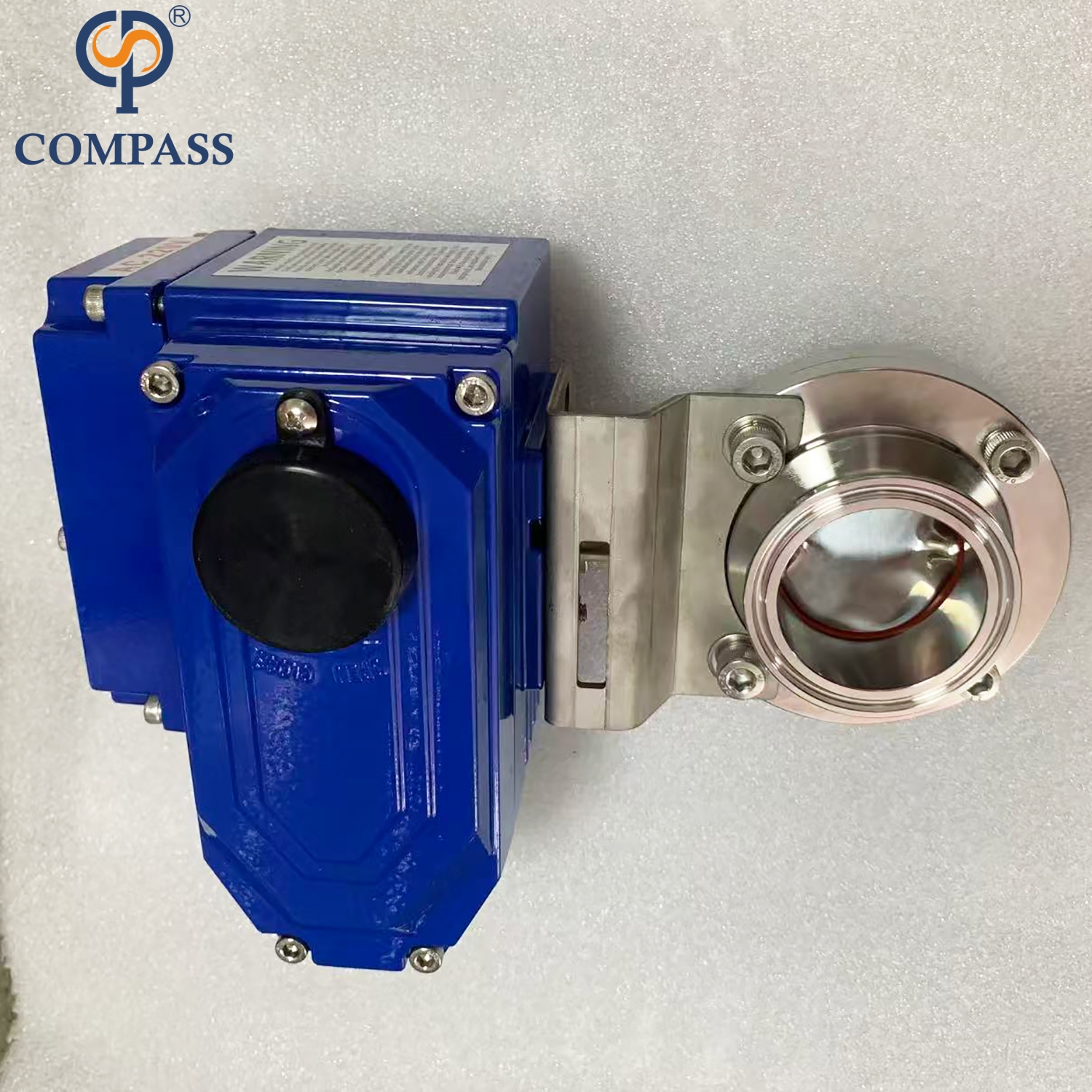

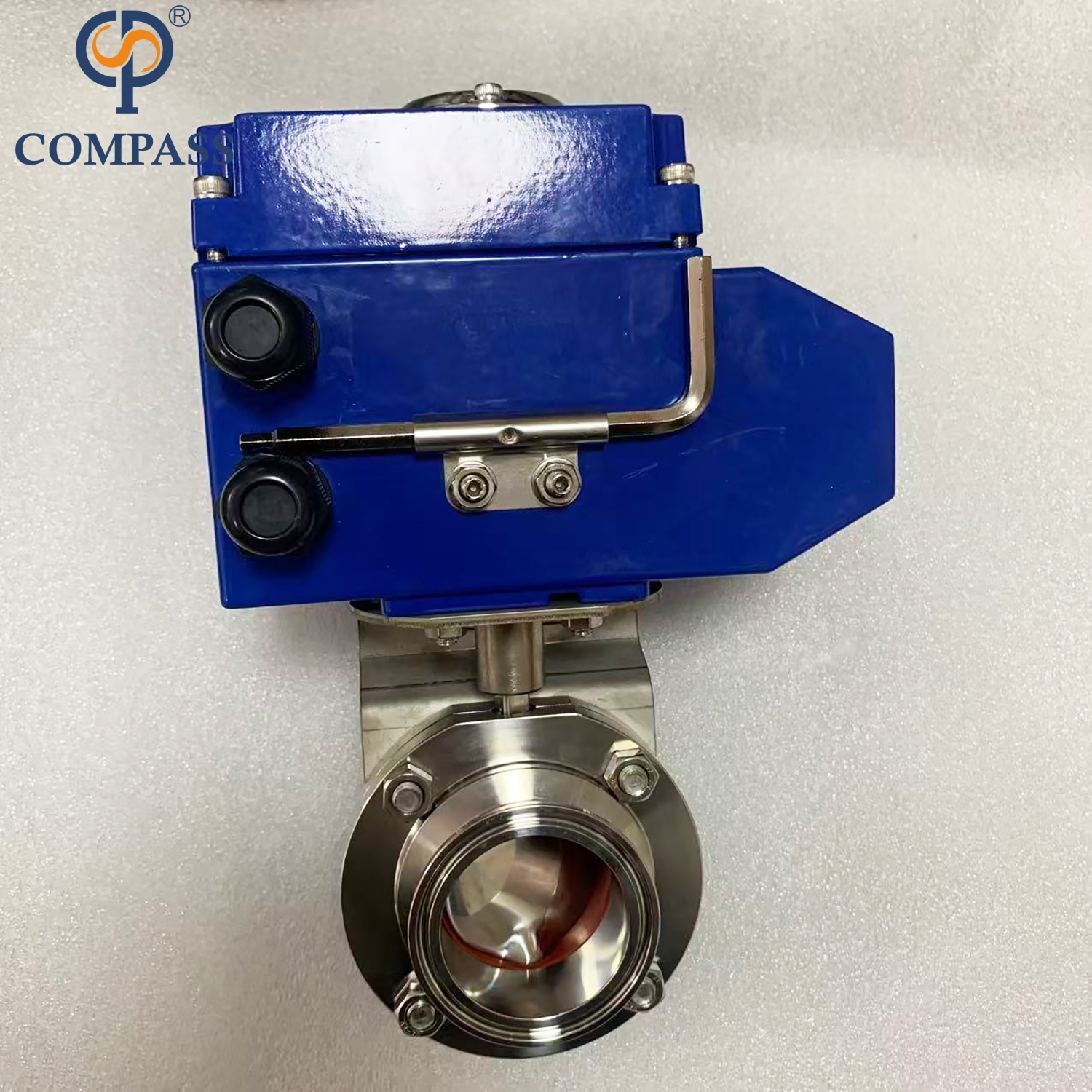

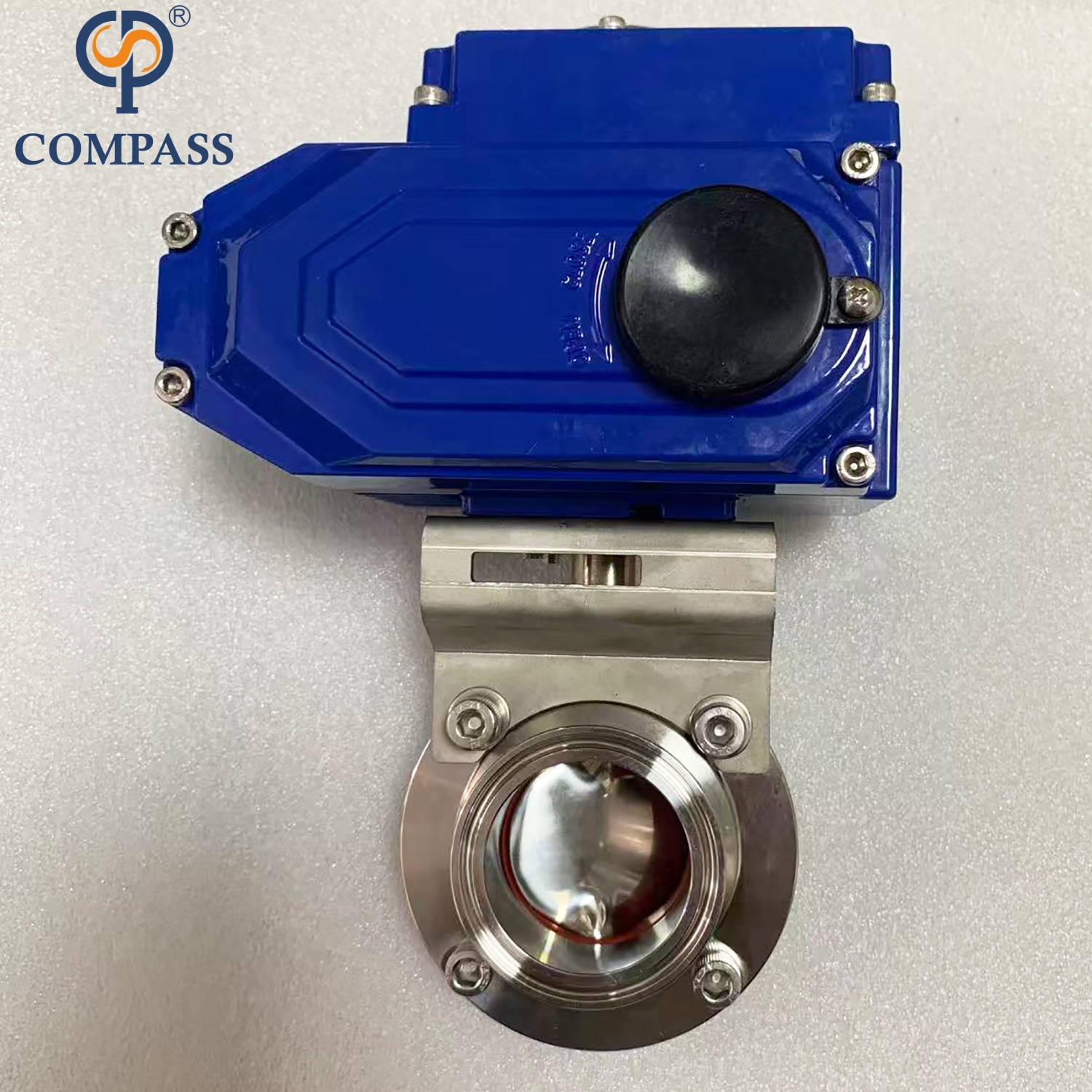

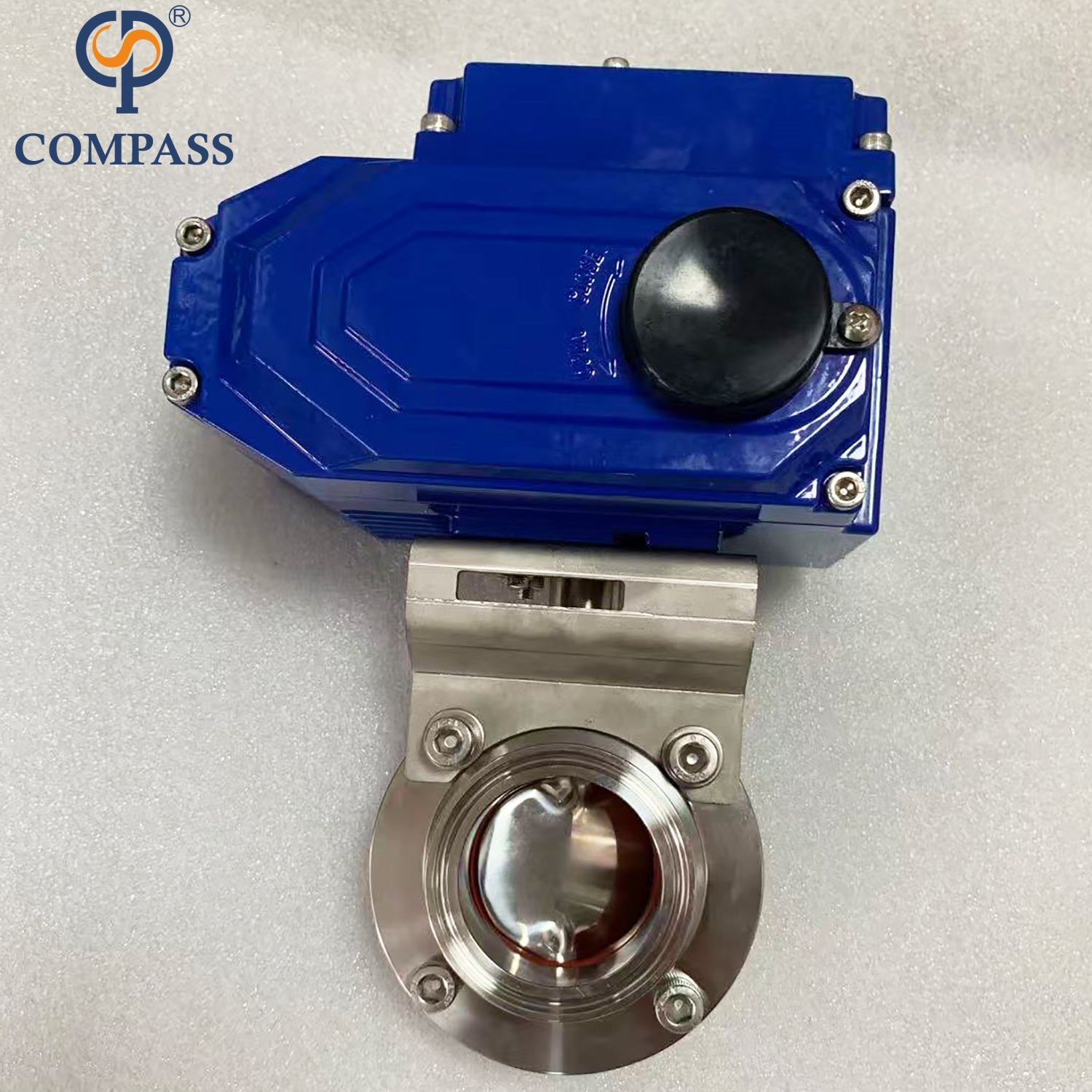

Operated: | Manual handle,pneumatic actuator and electric actuator can be exchangeable with each |
|
Connection | Weld,clamp,thread,weld thread,flange,thread-welded |
|
Design Features
* Various standards can be provided : DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
* Available in sizes from DN25 / 1" to DN300 / 12"
* Multiposition handles can be used for valves from DN25 / 1" to DN300 / 12" Manual handle.
* Pneumatic actuator and electric actuator are interchage
Function
Due to the large variety of materials, the butterfly valve is universally compatible, for example with countless industrial applications, water/drinking water treatment, coastal and offshore sectors. The butterfly valve is also often a cost effective alternative to other valve types, where there are no stringent requirements regarding switching cycles, hygiene or control accuracy.
How to Order ?
1.What's standard for butterfly valve? Such as DIN, SMS.
2.What’s material quality? Such as SS304 and SS316L for optional.
3.What’s size? The available size is from 1/2inch to 12inch, DN25 to DN300.
4.What’s connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
5.What's working principle? Such as manual, pneumatic, control head.
6.What's material of gasketl? Such as silicone, EPDM.
7.What's type of handle? Such as plastic gripper handle, stainless steel gripper handle, stainless steel pull handle.
