The details of product
Material | SS304Provided with material inspection report |
Max Flow | 240m³/h |
Seal Gasket | SILICONE, EPDM |
Motor Power | 0.55kw~30kw |
Motor Brand | CHINA MOTOR |
Speed | 3600RPM,2900RPM, 1400RPM |
Voltage | 110V, 220V, 380V. 440V |
Motor Frequency | 50HZ, 60HZ |
Type of Motor | China Motor |
| Type of Hertz | Single Phase, Three Phase |
| Available Connection | Clamp, Union, Flange, Threaded Fittings |
Mechanical Seal | SIC/C/EPDM (Standard), Alloy Material |
Type of Mechanical Seal | Single Mechanical Seal, Double Mechanical Seal |
Type of Impeller | Open Impeller, Close Impeller, Semi-open Impeller |

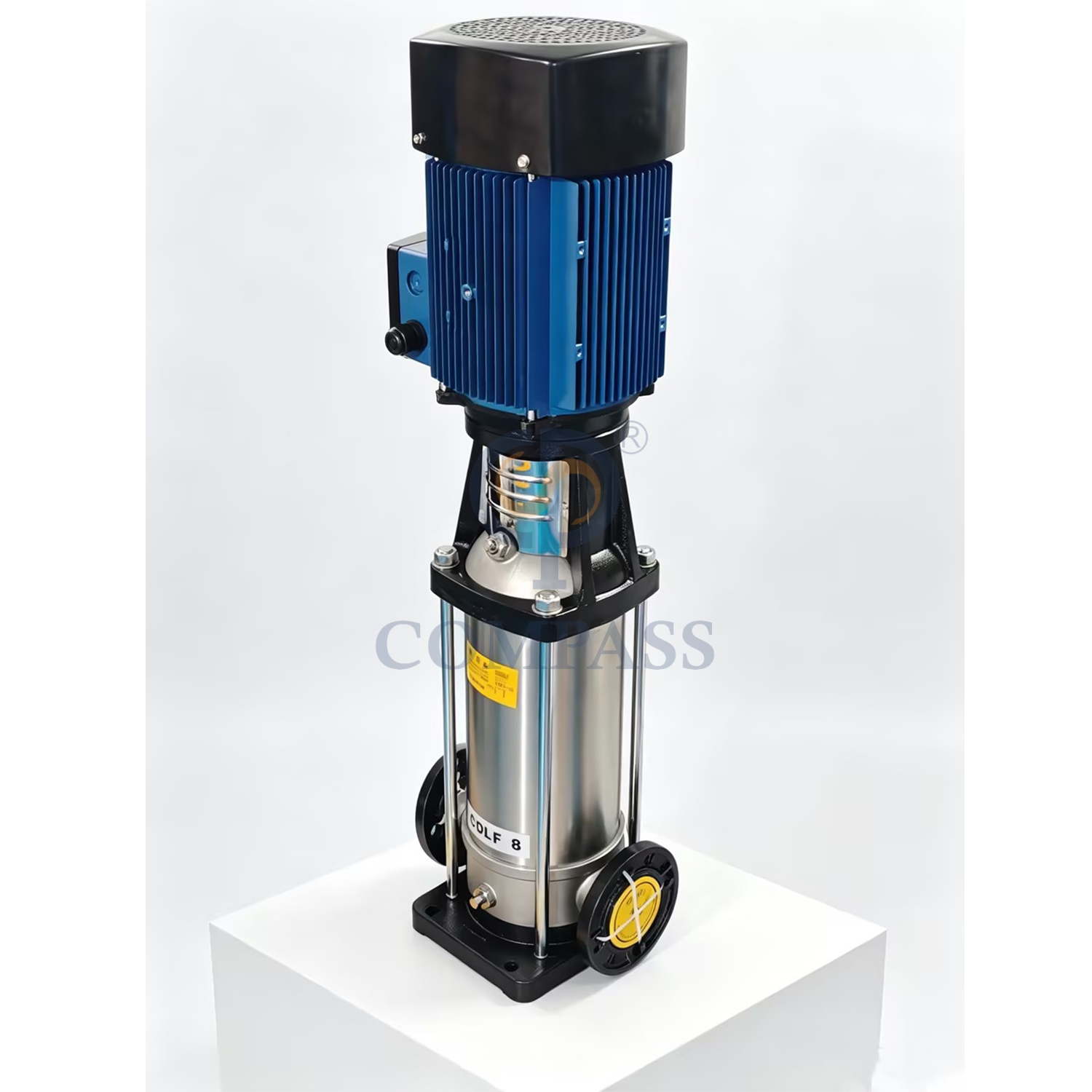

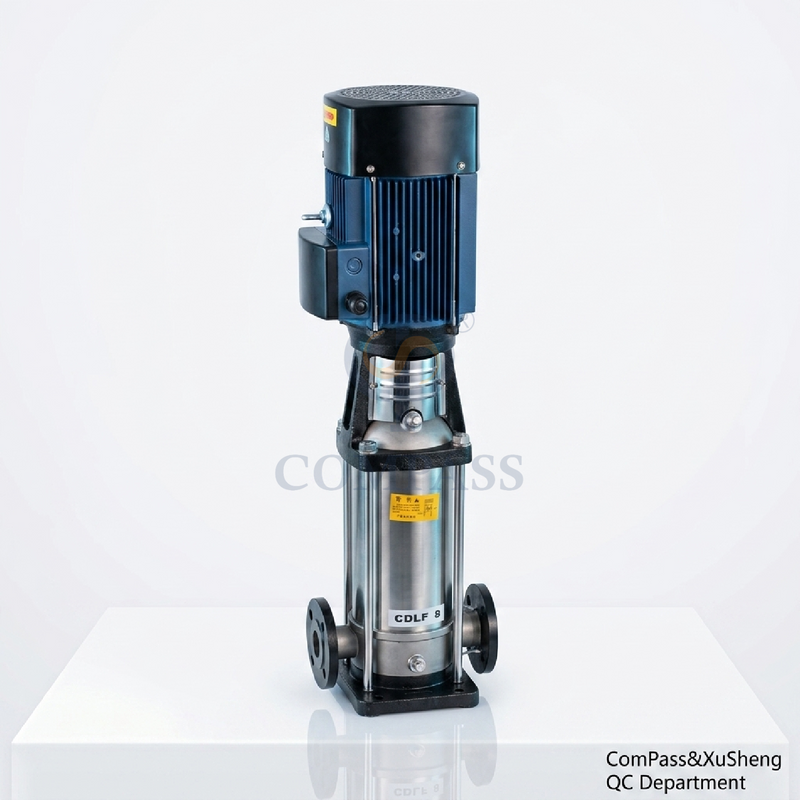

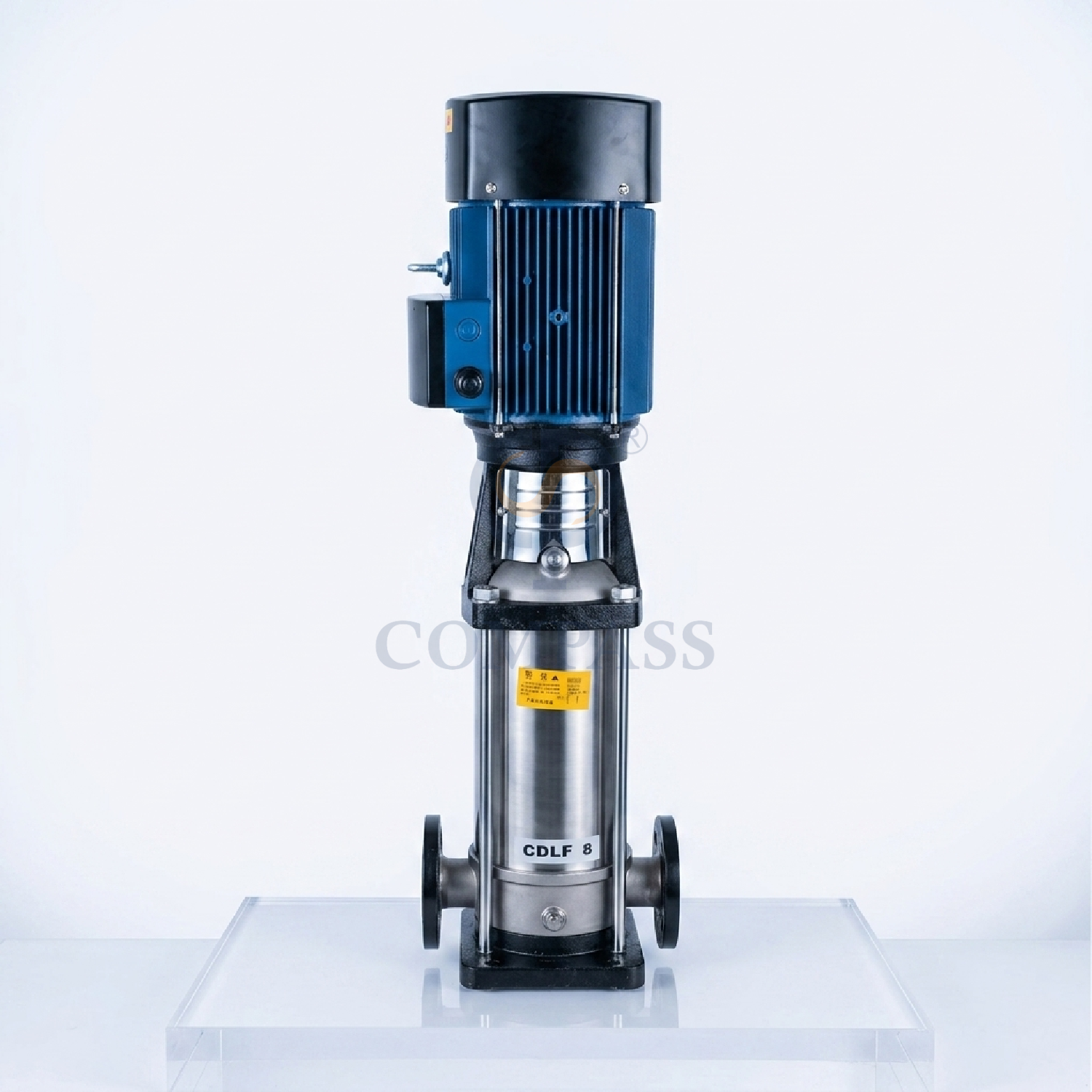

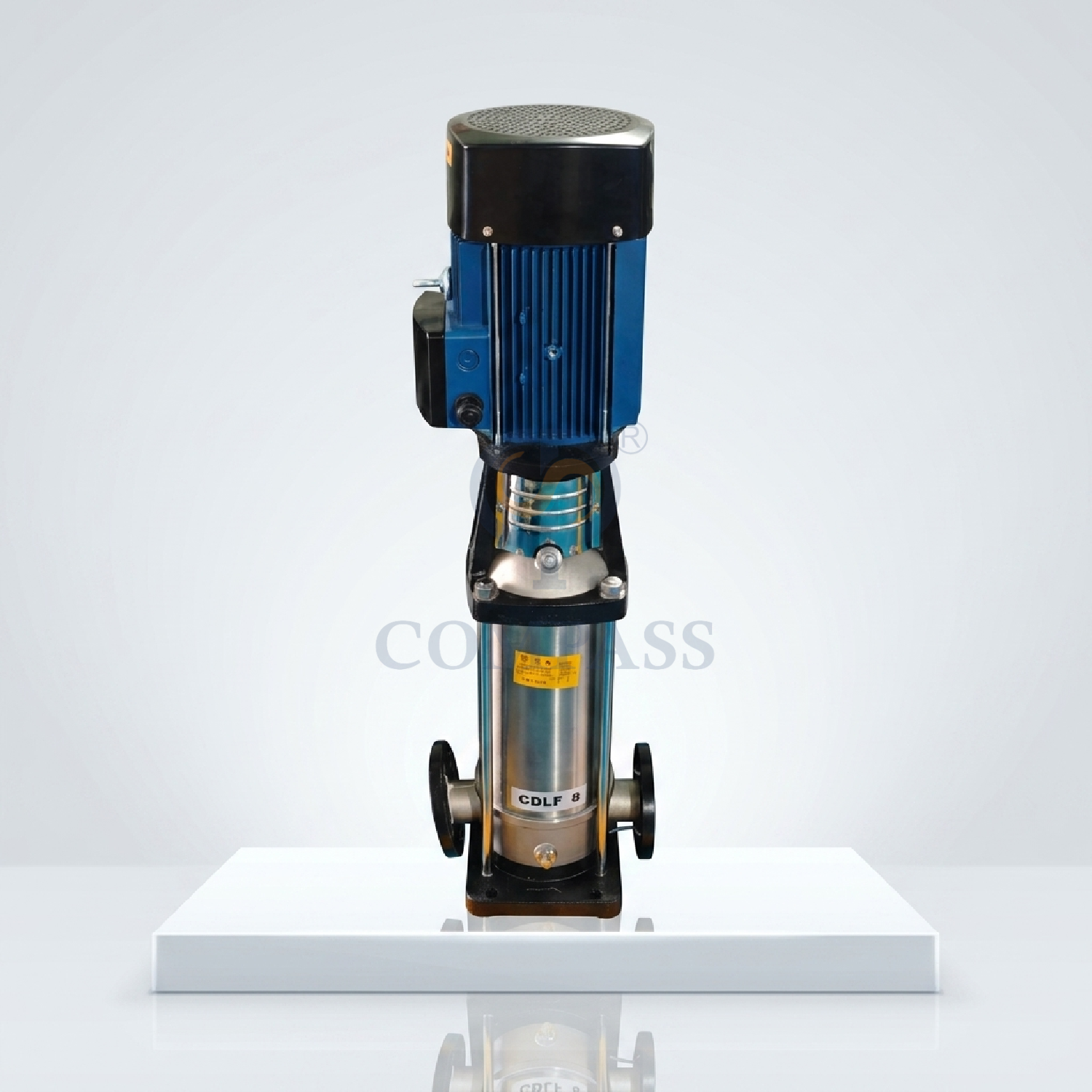

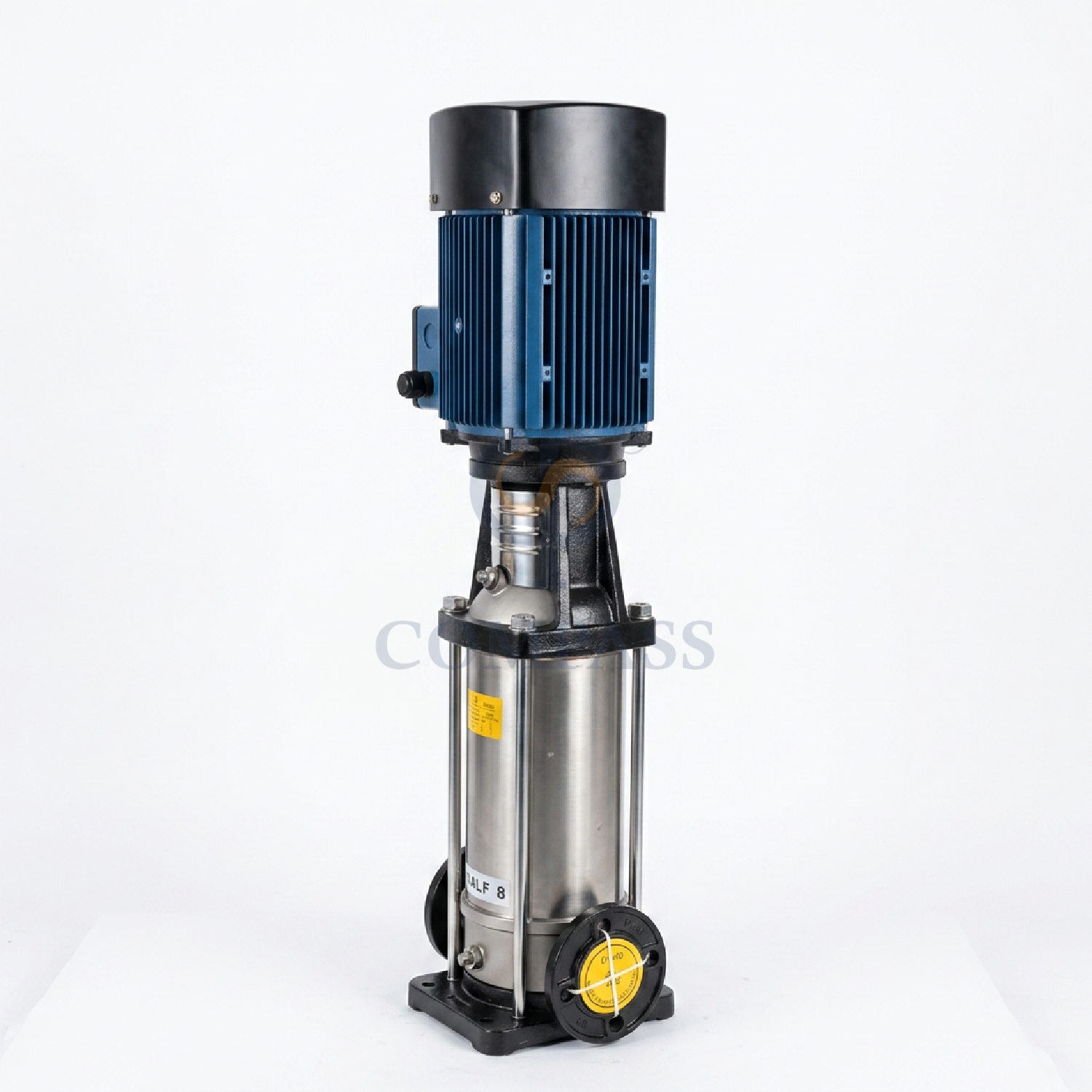

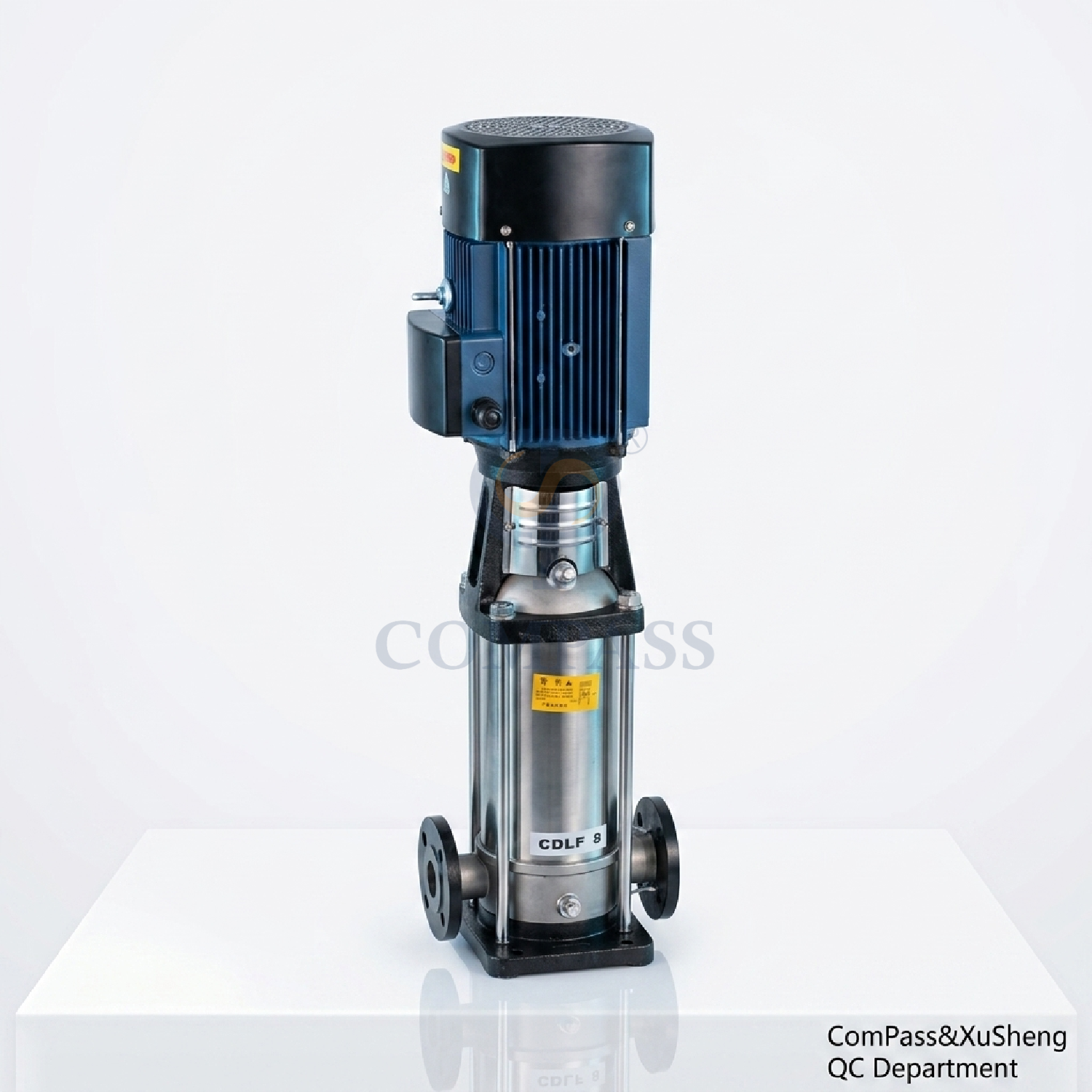

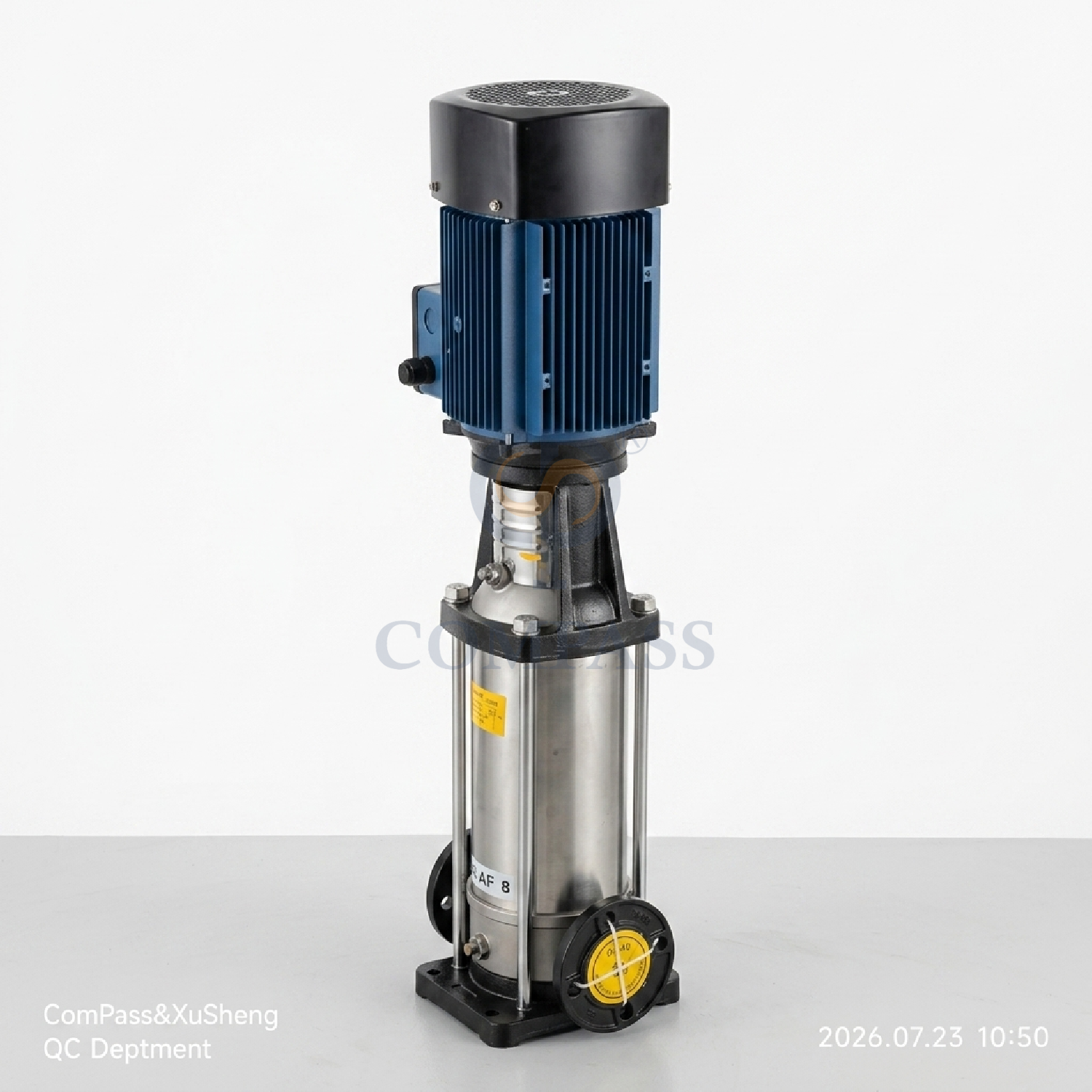

Description of Commodity: 4kw CDLF8-100 Sanitary Stainless Steel SS304 4000 Liter/hr PN25 Flange End Vertical Multi Stage Centrifugal Pump with Good Price
1.Application
(1) Suitable for low-viscosity, neutral, non-explosive liquids free of solid particles or fibers. The conveyed medium shall not cause chemical corrosion to pump materials. (2) Boiler feed water and condensate systems
(3) Water treatment, osmosis and filtration systems
(4) Food and beverage industry
(5) Water supply and drainage for high-rise buildings
(6) Irrigation for agriculture, nurseries and golf courses
(7) Fire protection systems
(8) Industrial cleaning systems
(9) Liquid transfer, circulation and boosting
(10) Hot and cold water
2. Operating rage
(1) Medium temperature: Standard version -15℃~ +70℃; Hot water version -15℃~ +120℃
(2) Flow rate: 0.4 ~ 240 m³/h
(3) Medium pH value: 5 ~ 9
(4) Maximum ambient temperature: +40℃
(5) Maximum altitude: 1000 m above sea level
(6) Minimum inlet pressure: Refer to NPSH curve
3. Structure description
(1) The pump consists of major components including motor, pump head, diffuser, impeller, pressure barrel, suction & discharge casing, pump shaft and mechanical seal.
(2) Key components such as diffuser, impeller, pressure barrel and shaft are made of stainless steel. For pump head, suction and discharge casing: Model CDL adopts cast iron; Model CDLF adopts precision stainless steel castings.
(3) The pump is equipped with single mechanical seal. Seal faces: hard alloy / graphite. Inner support of diffuser is made of tungsten carbide.
(4) The standard connection between pump and pipeline is round flange. Other connection types can be provided upon customer’s request.
4. Highlights at a glance
(1)High Efficiency: Delivers up to 4000 liters per hour with minimal energy consumption.
(2)Stainless Steel Construction: Ensures durability and resistance to corrosion for long-term use.
(3)Multi-Stage Design: Offers improved performance and efficiency compared to single-stage pumps.
(4)Customizable Options: Available in various voltages including 110V, 220V, 380V, and 440V.
(5)Reliable Quality: Meets CE standards for quality assurance.
5. How to order centrifugal pump?
1.What’s material quality? Such as SS304 and SS316L for optional
2.What’s flow rate for centrifugal pump, such as 1500 liters per hour ?
3. What's head, such as 14 meters ?
4. What's motor power, such as 0.55kw ?
5. What's voltage and hertz, such as 380v, 50hz, three-phase?
6. What's motor brand, such as China motor ?
7.What’s connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
8.What's design temperature and working temperature for pump ?
9. Do you need single mechanical seal or double mechanical seal?
10. Type of impeller, such as open impeller, close impeller, semi-open impeller ?
