Specification
Stanadrd | SMS, DIN |
|
|
|
Body Material | SS304, SS316L |
Available Size | 1" to 4", DN25 to DN100 |
|
|
|
Structure | Cross 4-way |
|
|
|
Available Connection | Butt-Weld,Male Threaded,Tri Clamped,Union End |
|
|
|
Glass Material | Heavy Wall Borosilicate (Pyrex)Tubing, Polycarbonate(Lexan)Tubing,
Acrylic Tubing, Tempered Glass |
|
|
|
Gasket Material | Silicone, EPDM, PTFE |
Protection Lens Cove | Polycarbonate Tubing,Acrylic Tubing,Slotted Stainless Steel |
Temperature Range | Minus 20degree Celsius~135degree Celsius |
Pressure Range | 0bar~10bar |
|
|
|
Working Pressure | 6bar |
|
|
|
Inside and Outside(Mirror Finish) | RA ≤ 0.8um |
|
|
|
Inside and Outside Electrolytic Polishing | RA ≤ 0.8um |
|
|
|
Warrenty | One Year |
Support | OEM, ODM Are Welcome |
Application | Food-Processing, Beverage, Beer |
|
|
|
Machine Processing | The most advanced CNC machine from Japan for processing |
|
|
|
Highlights at a glance
* Sterilization DN40 Stainless Steel: Reliable and durable for high-performance applications.

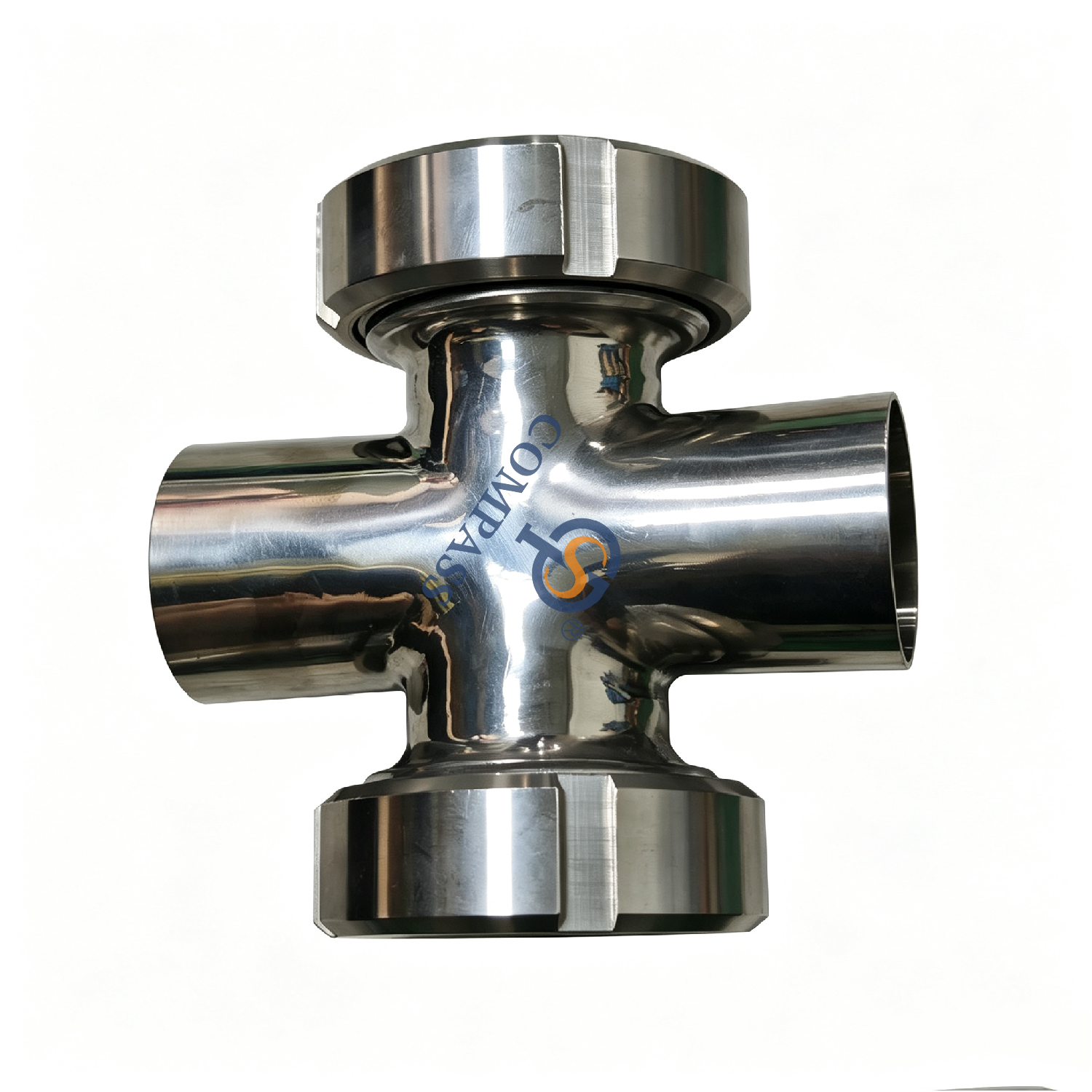

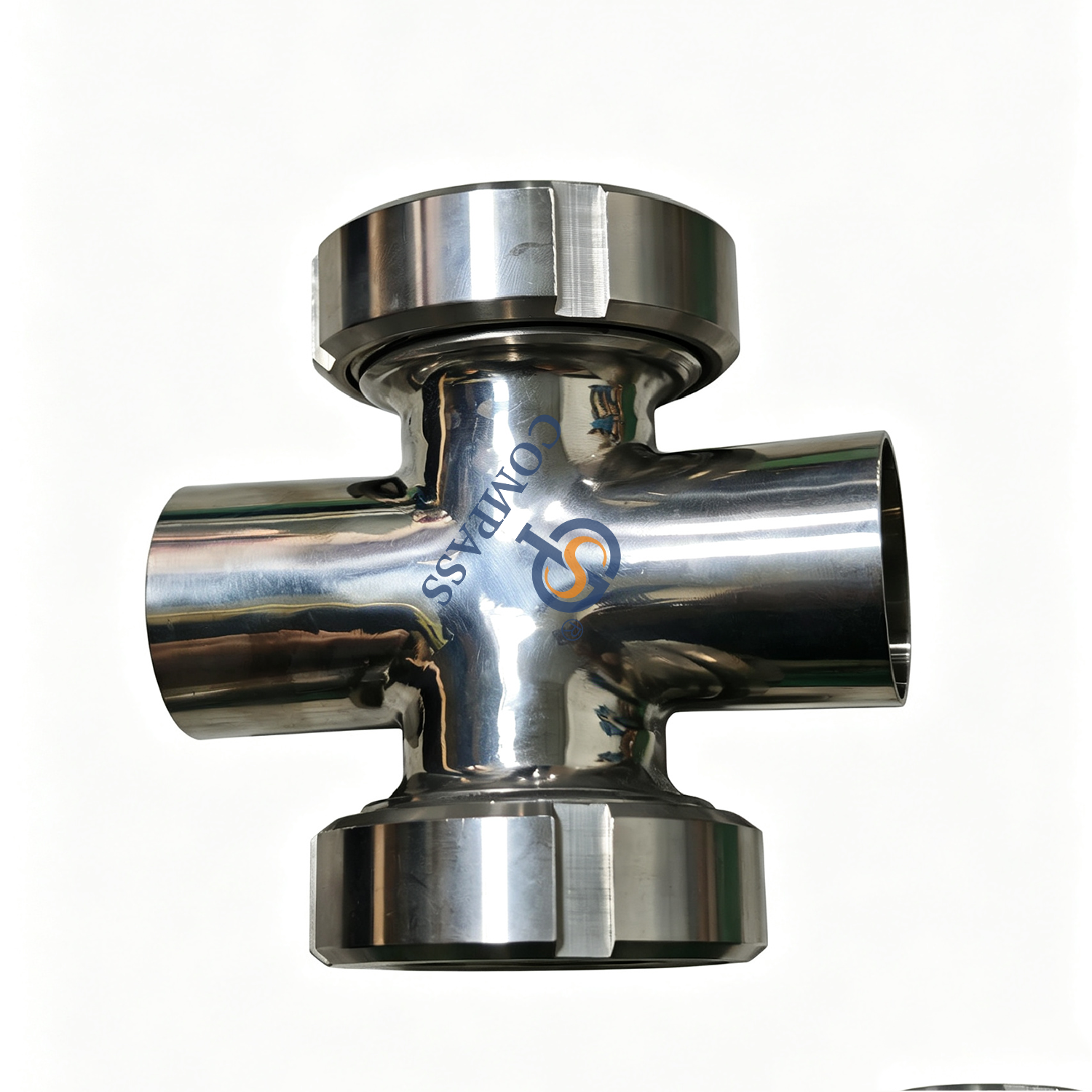

* Cross Sight Glass: Provides clear visibility for monitoring sterile processes.
* Four Ways Structure: Offers versatile connectivity options for various tank configurations.
* Stainless Steel Material: Ensures long-lasting performance in food and beverage processing.
Introduce

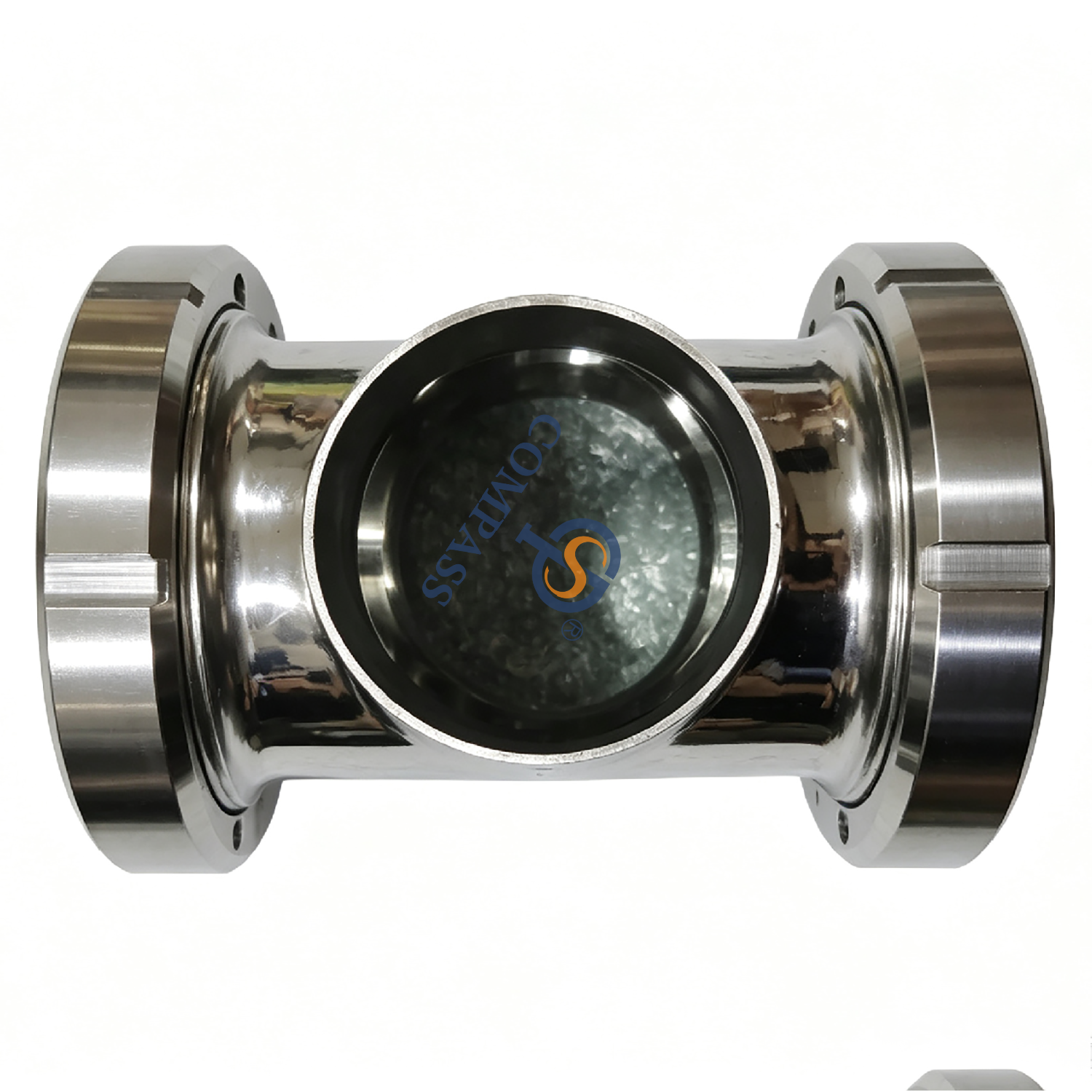

The sight glass is composed of mirror glass, gasket, joint edge, clamping ring, double headed bolt, nut, etc. Through these
components, the flow of liquid, gas or steam in the pipeline can be clearly observed, thereby helping operators to timely detect
problems and take measures.
Product Details

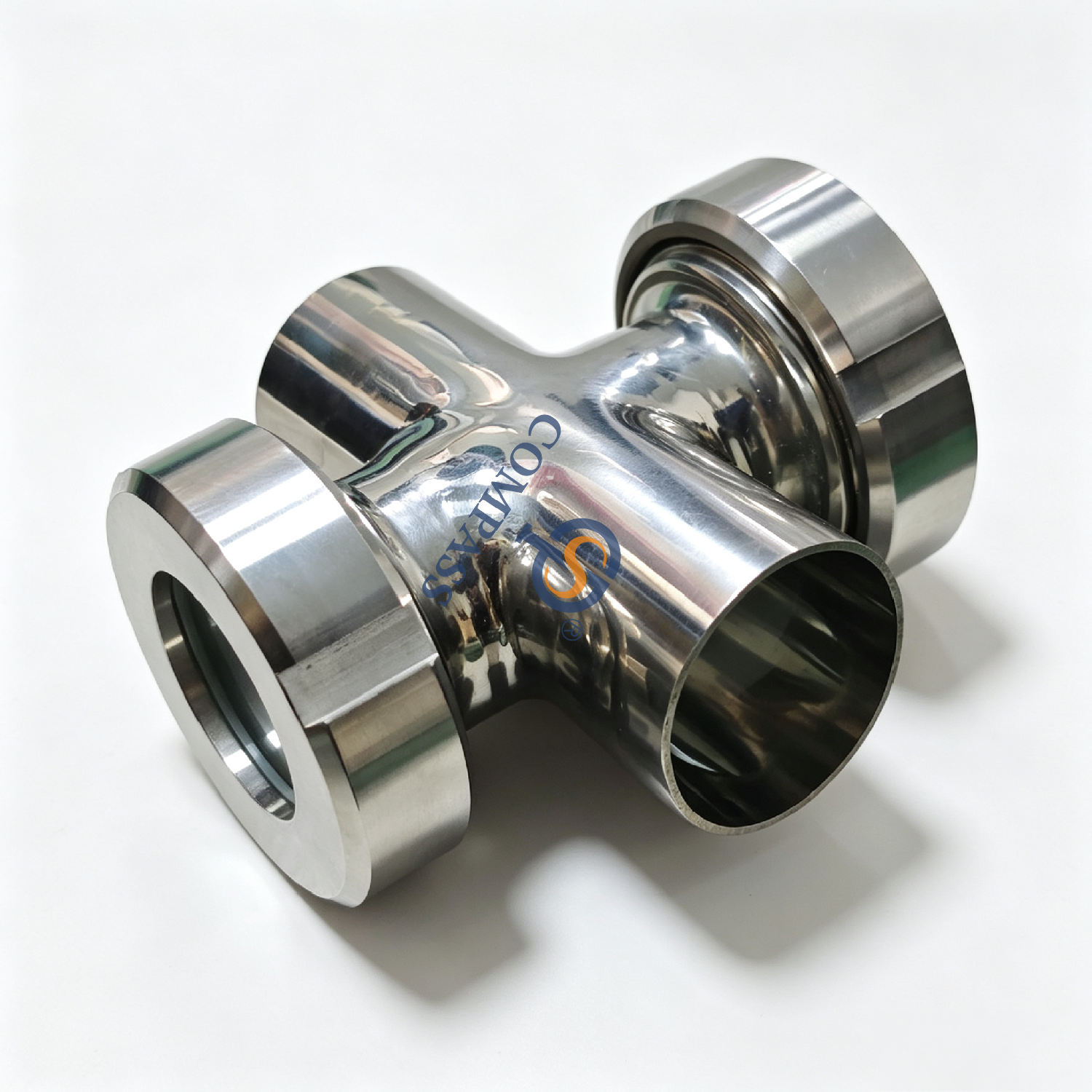

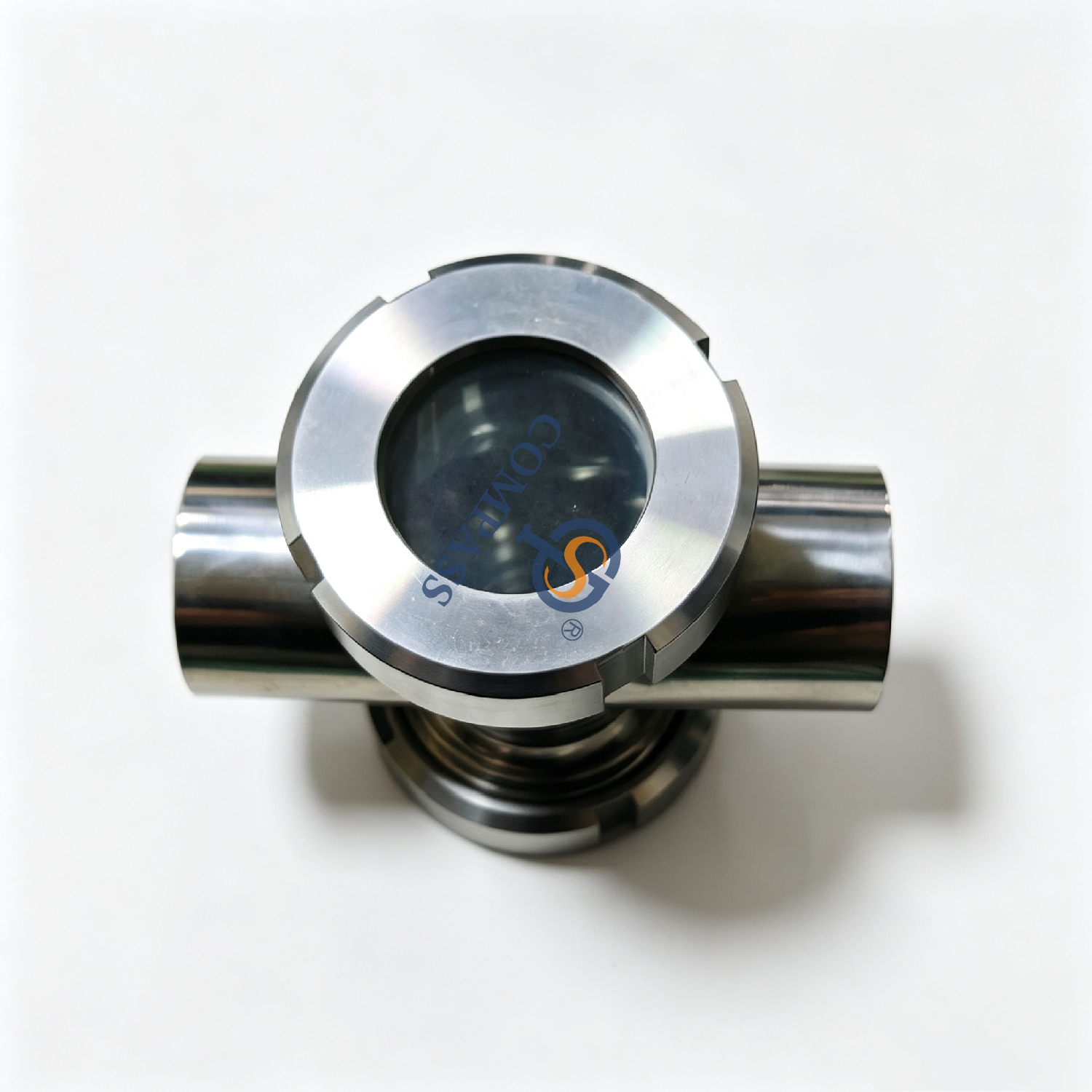

Equipped with union nuts on both sides for compressing glass windows, butt‑weld ends at the other two ports. Sanitary fitting for food & pharmaceutical pipelines, for direct observation of internal material flow and compatible with CIP in‑place cleaning.
Advantage of products
1.Each kind of products has strong corrosion resistance and over-long service lifetime
2.Problem-free welding and assembly and highest possible strength
How to Order Sight Glass?
1.What's material, such as SS304 or SS316L?
2.Which size, the size is from 1/2" to 6", DN15 to DN150?
3.What's connection end, such as butt-weld, tri-clamp, male-thread, union end?
4.Do you need stainless steel protective screen or not?
5.How many quantity?
