The Details of Product
Standard | SMS,DIN |
|
Material Contact Parts | SS304(1.4301)/SS316L (1.4404) | Provided with material inspection report |
|
Material Non-contact Parts | SS304(1.4301) |
|
|

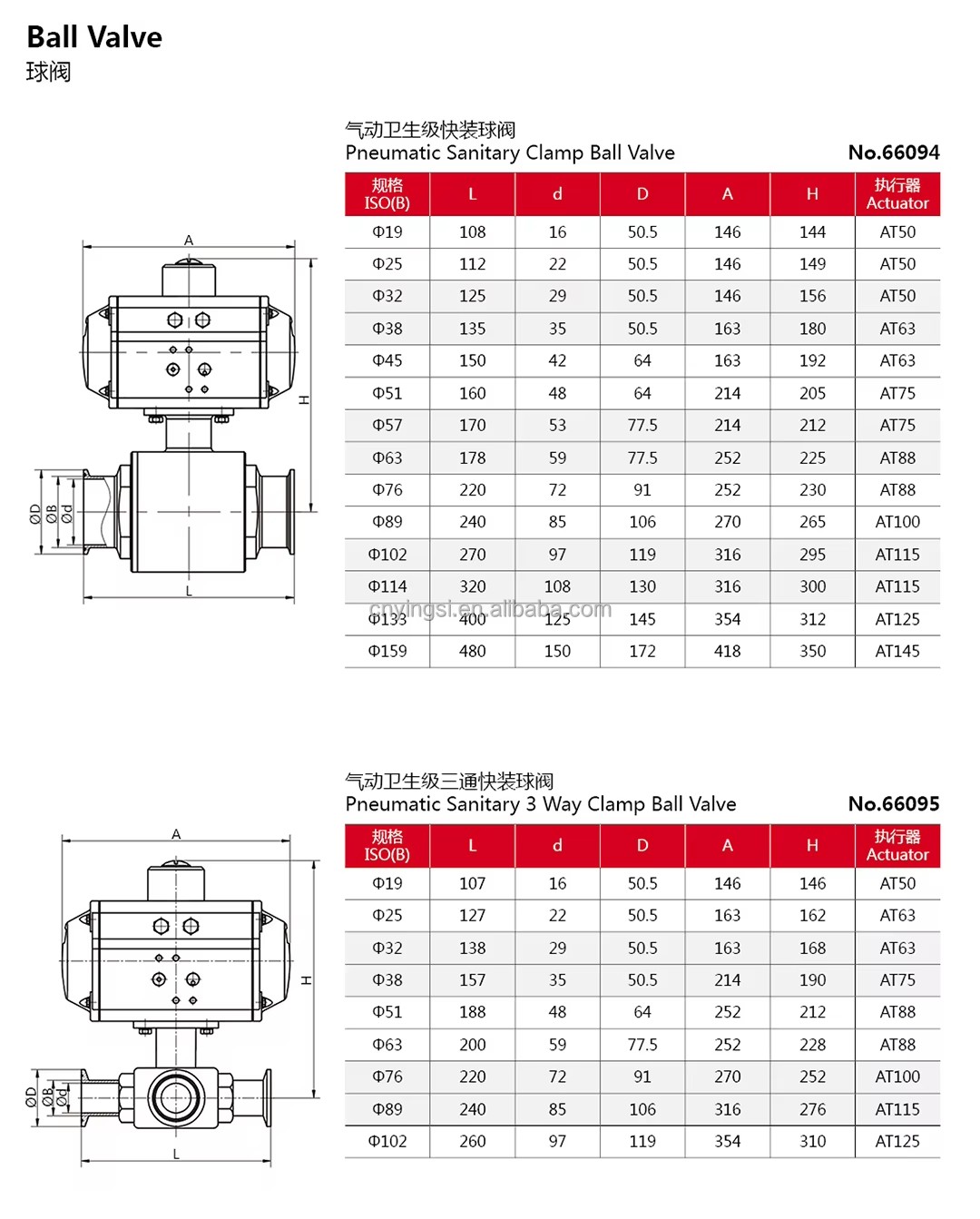

Size | 1/2 to 4 inch, DN10 to DN100 |
|
Body Combination | Straight Two Ways, Three Ways T port, Three Ways L port |
|
Connection | Butt-weld, Tri-clamp, Male Thread, Union, Flange |
|
Seal Material | PTFE Seal. The seal material comply with FDA21CFR117.2600 |
|
Power Option | Manual Operated |
|
SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator |
|
Working Pressure | ≤10bar(145psi) |
|
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
|
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
|
External Surface Treatment | Ra32~64uin(o.8~1.6um) |
|
Design Features
1.Various standards can be provided: SMS,DIN
2.Available in sizes from 1/2”-4”, DN10-DN100
3.Seals comply with FDA 21CFR 177. 2600.
4.The valve body can be customized with a wide selection of different connections.
Advantages
1.Free of maintenances
2.Compact and portable
3.Small operating torque
4.Gasket complies with PTFE FDA 177.2600
5.Handle level can be installed on the side of valves body, no matter of the flow direction.
How to Order ?
1. What's standard for butterfly valve? Such as DIN, SMS.
2. What's material quality? Such as SS304 and SS316L for optional.
3. What's size? The available size is from 1/2inch to 4inch, DN15 to DN100.
4. What type of ball valve? Such as straight two ways, three ways T port, three ways L port.
5. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
6. What's working principle, such as SS pneumatic actuator, aluminum pneumatic actuator, electrical Actuator?
