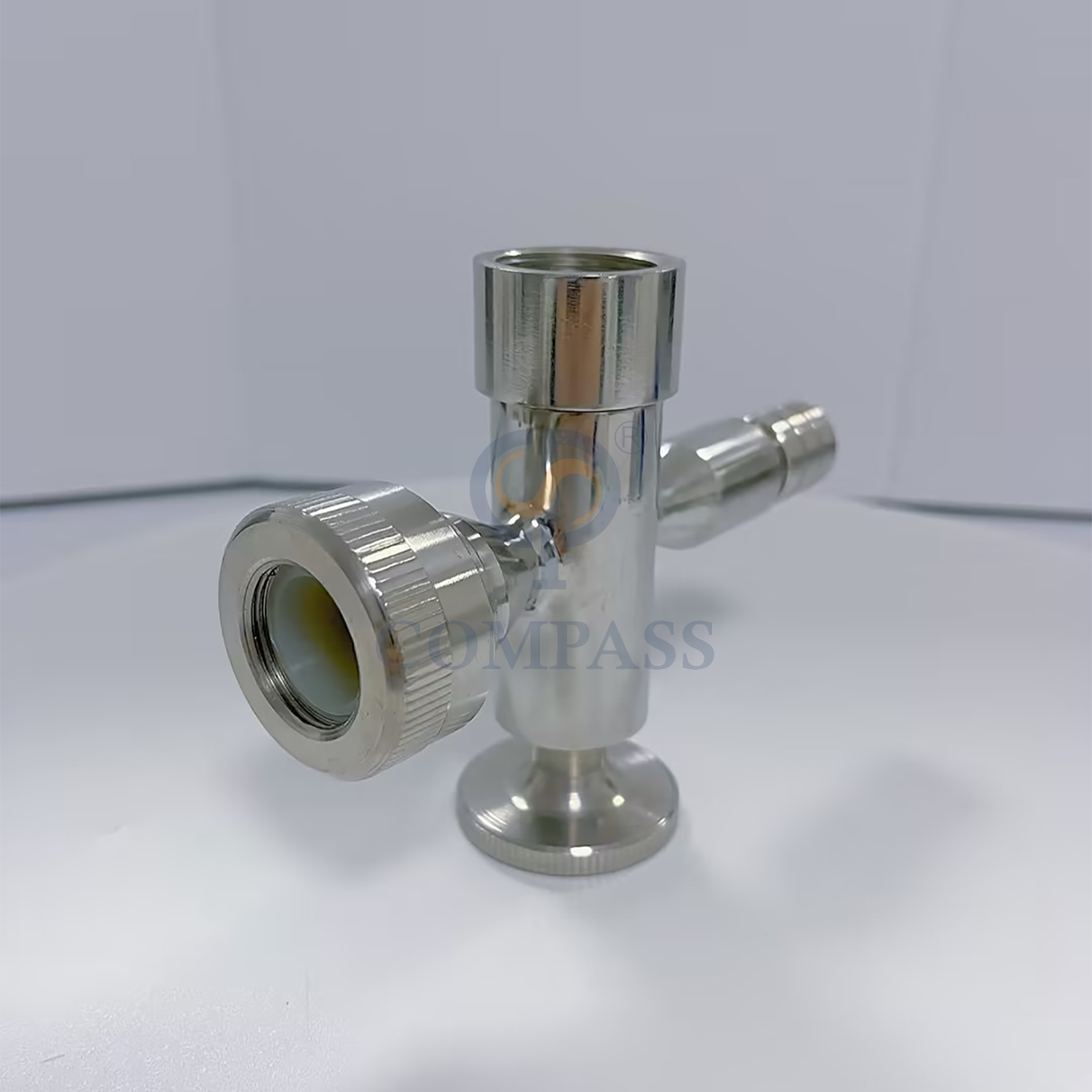

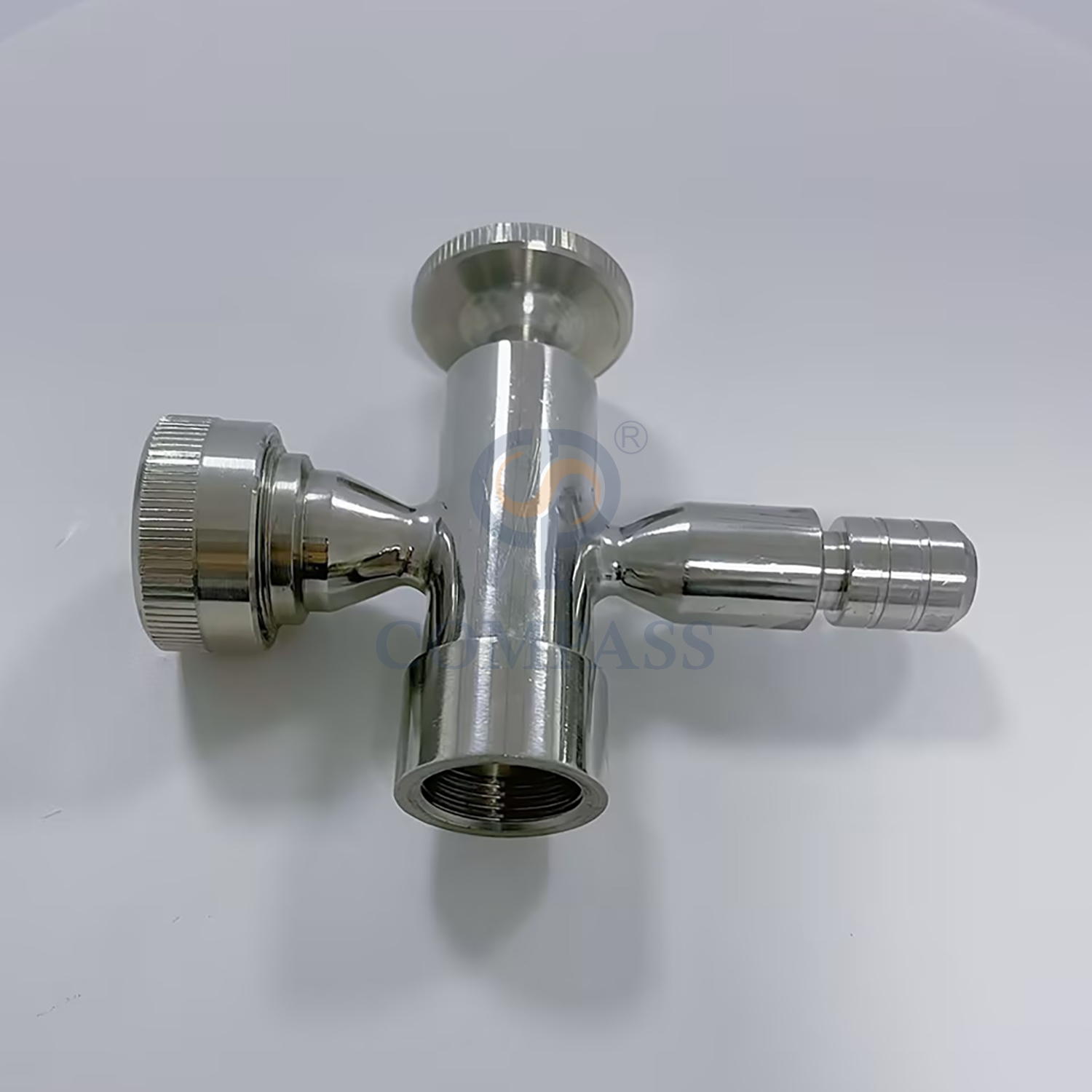

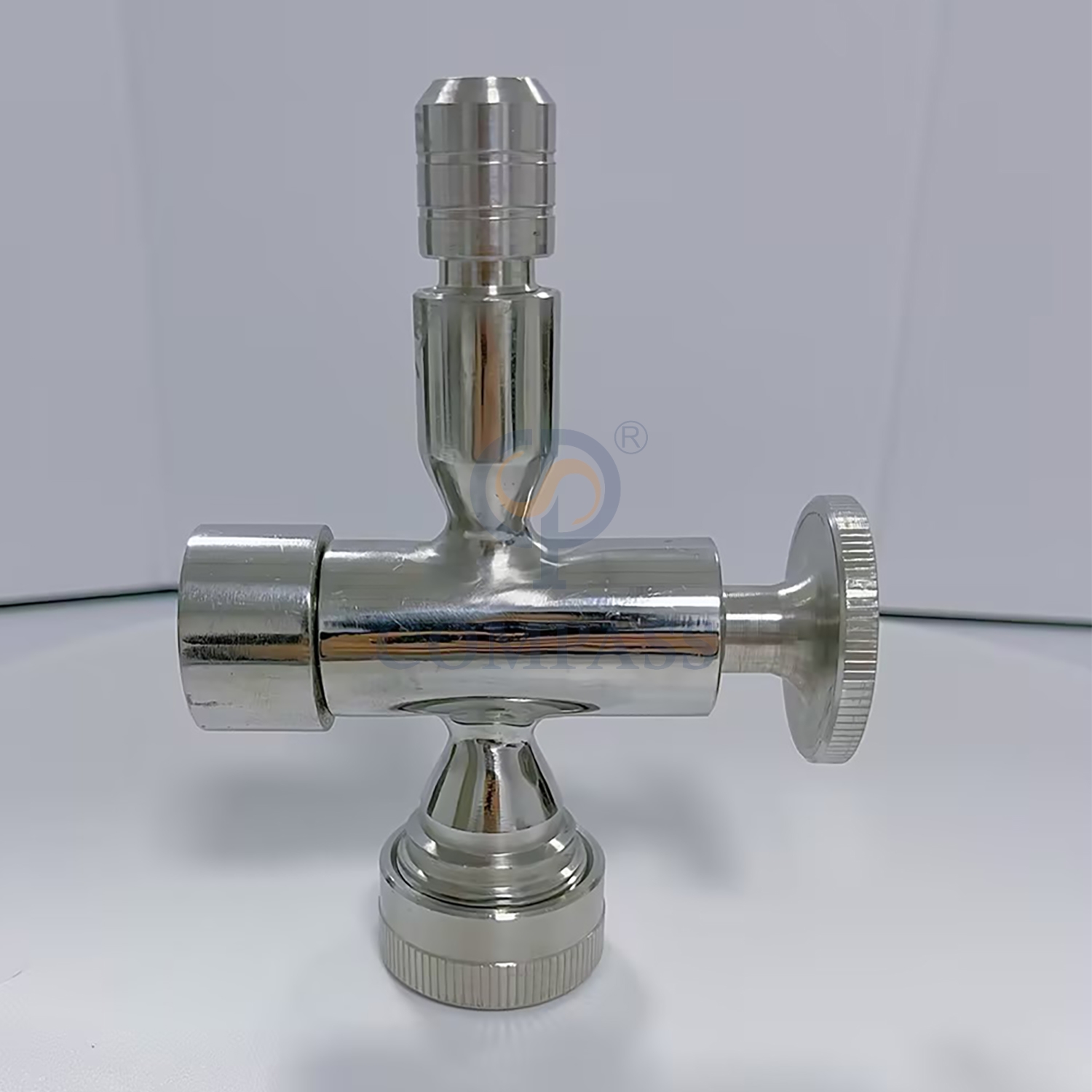

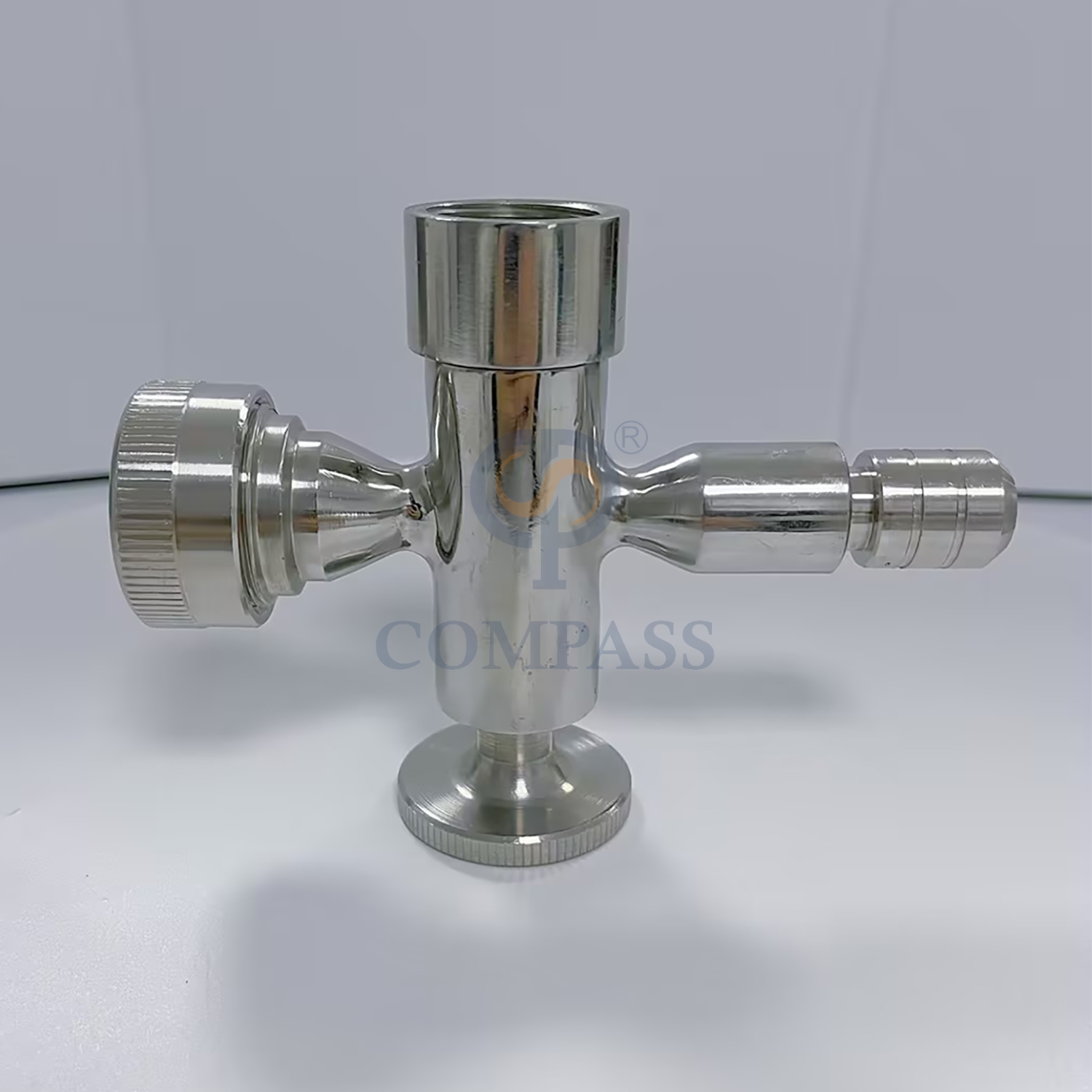

High Quality 1/2Inch Liquid Level Valve Sanitary Stainless Steel SS316L BSPP Female Thread Bottom Level Gauges for Storage Tanks

Glass tube liquid level gauge and is called liquid level valve, is a kind of liquid level measuring instrument, which is mainly installed in the tank, so as to observe the flow of liquid in the tank. It is suitable for the industrial production process of the liquid position of the general storage equipment in the field test, the structure is simple, accurate measurement, is a traditional measurement tools. By welding the quick assembly of the container, and the container, through the glass tube, the liquid level height of the container is directly displayed.

Model:
1/2Inch 12.7MM
Brand:
XUSHENG
Code:
011602103B12

Size:	1/2"-12",DN15-DN300
Availability:

Quantity:



Inquire Add to Basket

The Details of Product

Standard		SMS, DIN
Material Contact Parts	SS304/SS316L(1.4301/1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Size	1/4", 3/8", 1/2", 3/4"
Glass Size	Suitable for OD 19mm Glass
Connection	Butt Weld, TC Ends, Male Thread, Union, Flange
Seal Material	Silicone,EPDM,FKM,Buna, PTFE. All seals material comply with FDA21CFR117.2600
Working Pressure	6bar(87psi)
Max. Pressure	10bar(145psi)
Temperature Range	14 ~248F(-10 ~ +120°C)
External Surface Treatment Internal Surface Treatment	Ra32~64uin(0.8~1.6um) Ra16~32uin(0.4~0.6um)
Function	Arranged in The Tank Body to Observe The Liquid
Application	Beer, beverage, dairy, food,fruit juice, pharmacy, biological, Cosmetic, Chemical, etc

Description of Commodity: High Quality 1/2Inch Liquid Level Valve Sanitary Stainless Steel SS316L BSPP Female Thread Bottom Level Gauges for Storage Tanks

Operation

Turn circular handle like a sample valve to control flow.
The side arm connection contains silicone inside and it compresses to the sight gauge and provides a seal.
The level gauge is mainly applied to the tank equipment.The two same gauges or two different gauges are assemble on the tank so that the liquid condition or capacity can be observed and the sample can be extracted.

Options

1. The gasket can be Silicone,EPDM,FKM,Buna,PTFE. All seals material comply with FDA21CFR117.2600

2. Connection can be Butt Weld, TC Ends, Male Thread, Union, Flange or others upon request.

3. Available material is SS304 and SS316L.

4. Available size includes of 1/4”, 3/8”, 1/2”, 3/4”

Technical Specifications

Working Pressure: 6bar(87psi)
Max. Pressure: 10bar(145psi)
Temperature range：14 ~248°F(-10 ~ +120℃)

How to order liquid level gauges?
1. Which material , such as SS304 or SS316L?
2. Which size, such as 1/4”, 3/8”, 1/2”, 3/4”?
3. Which connection ends, such as Butt Weld, TC Ends, Male Thread, Union, Flange ?
4. How length of tube and glass ?
