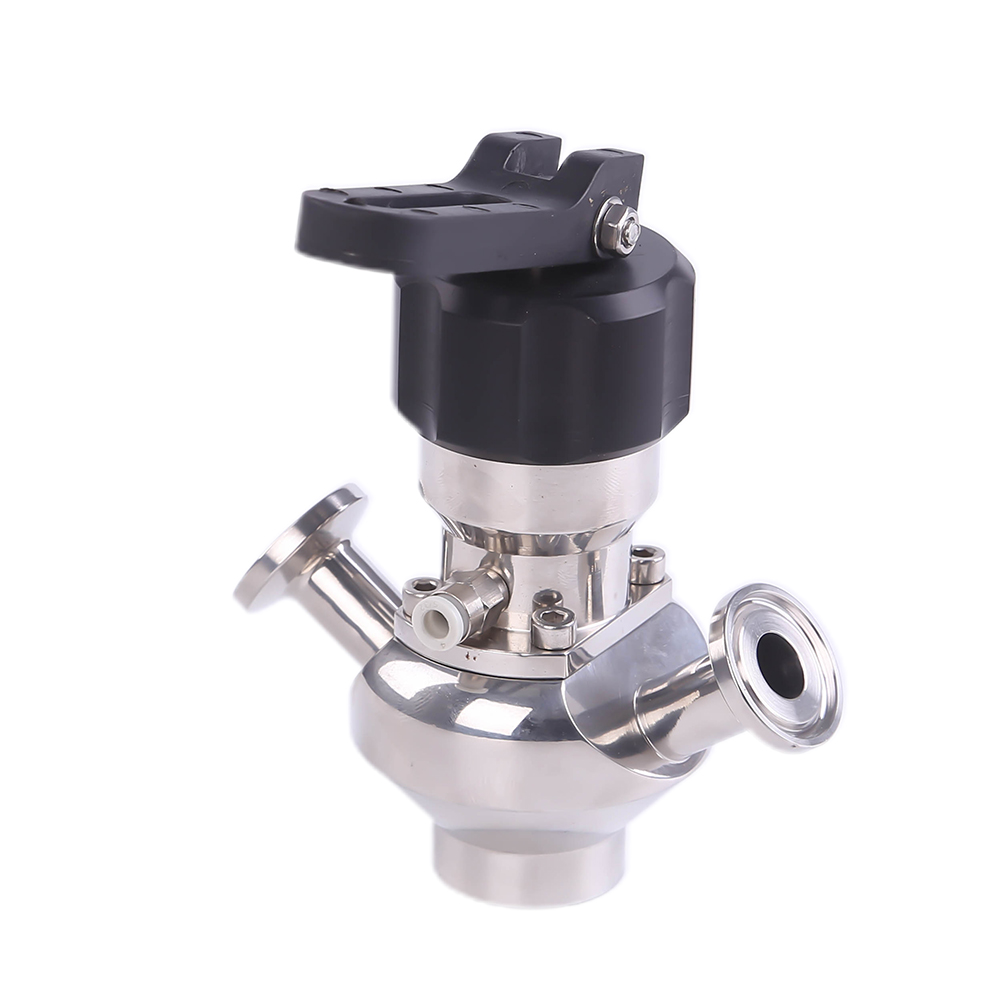

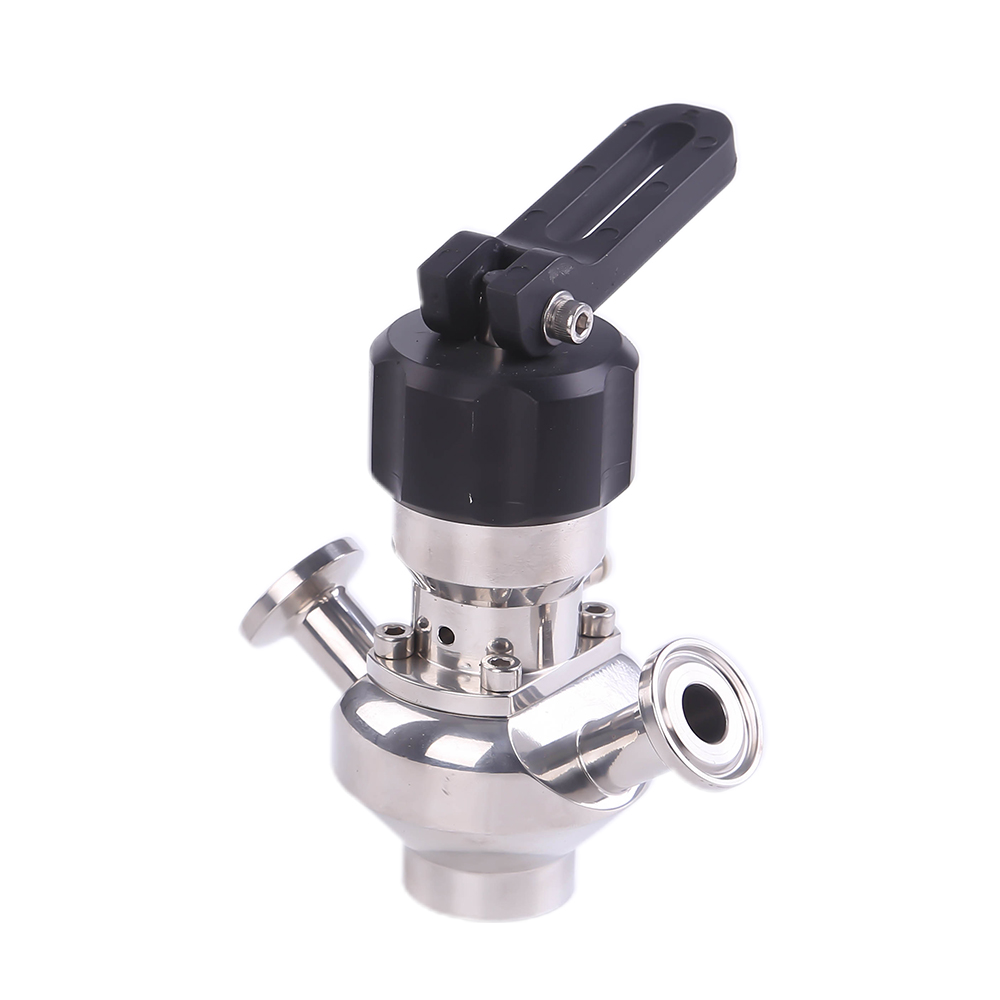

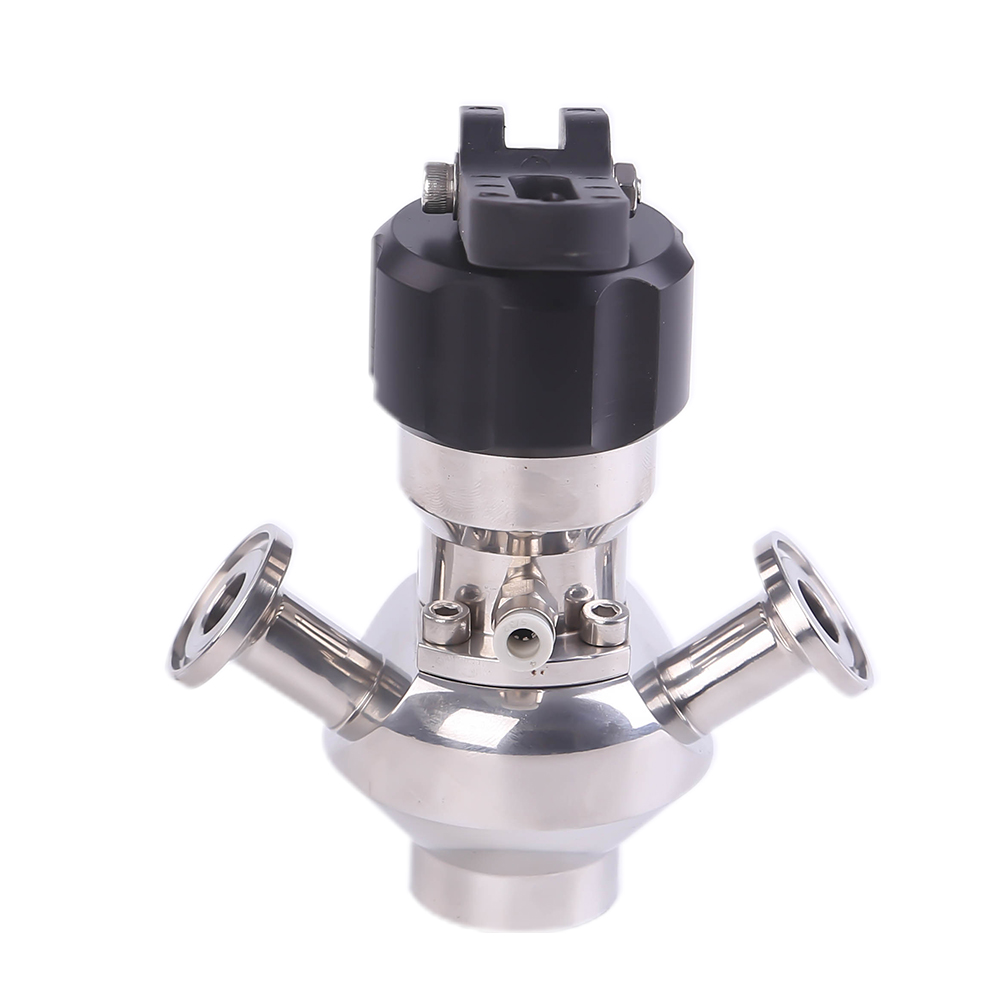

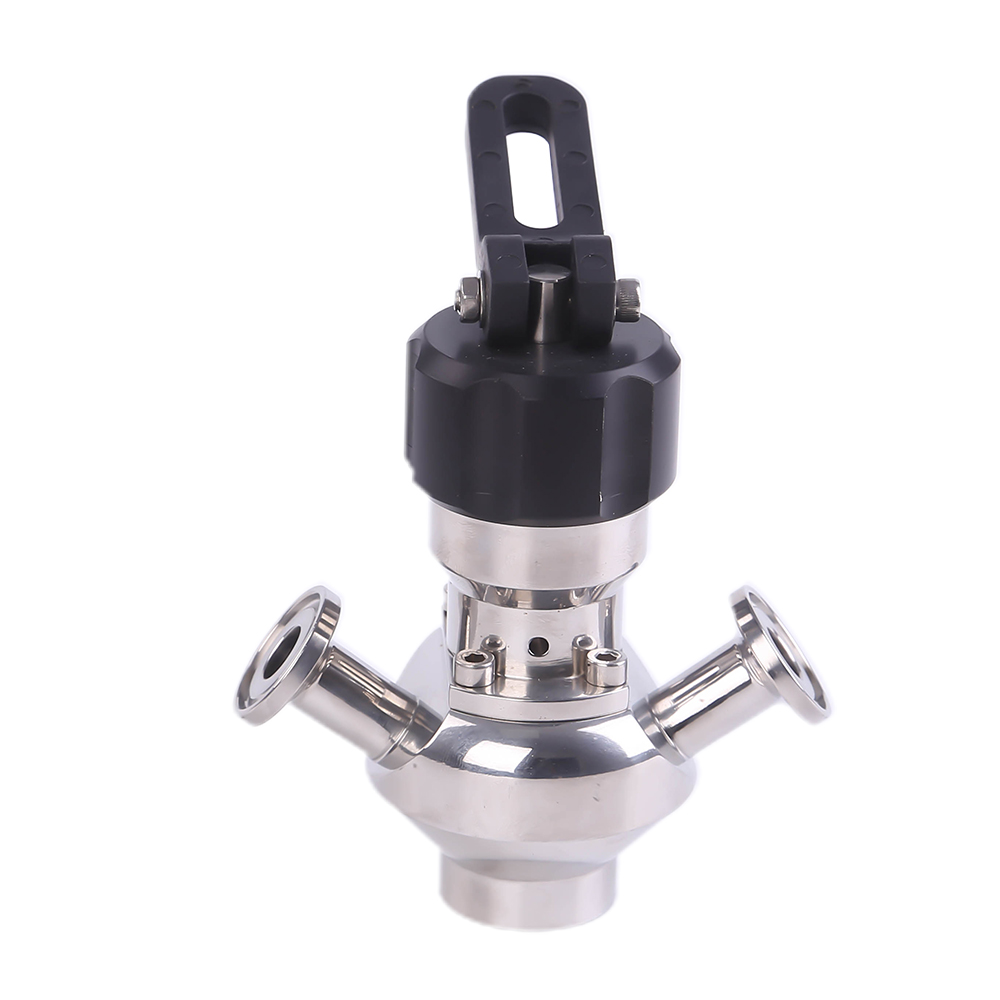

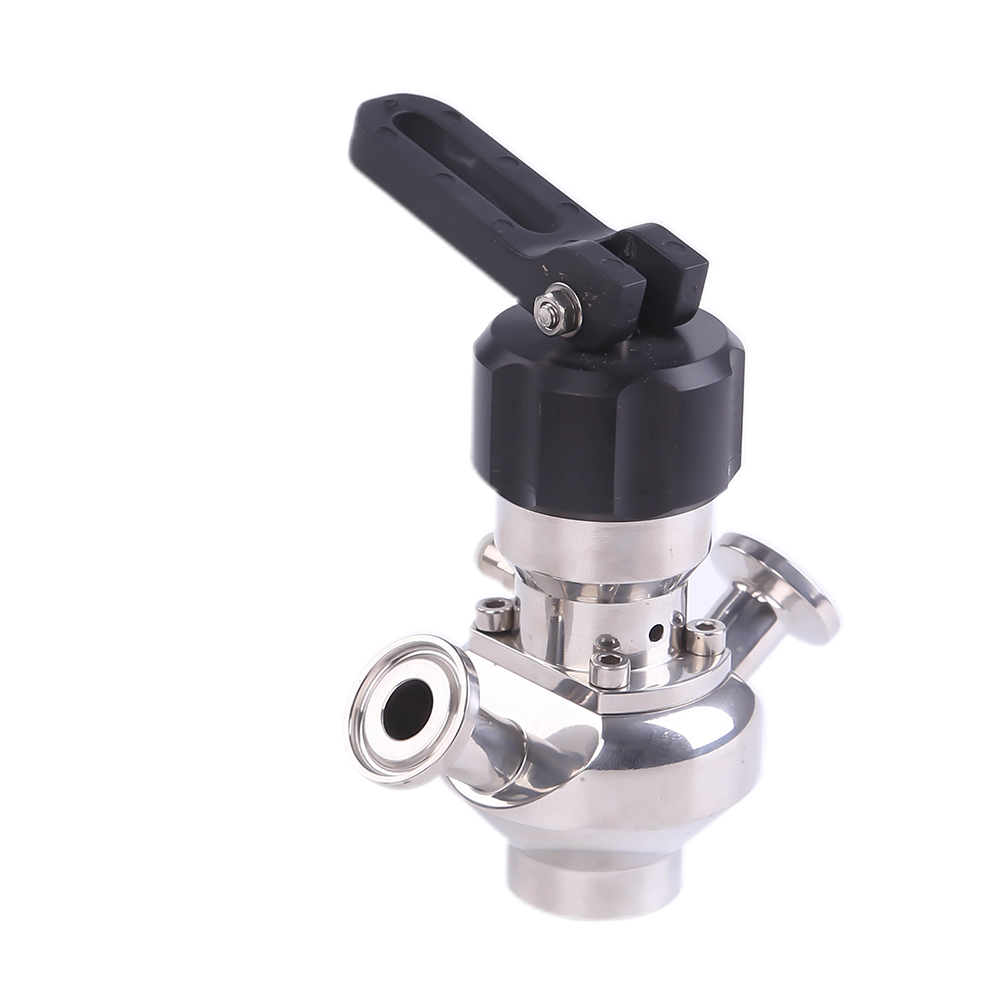

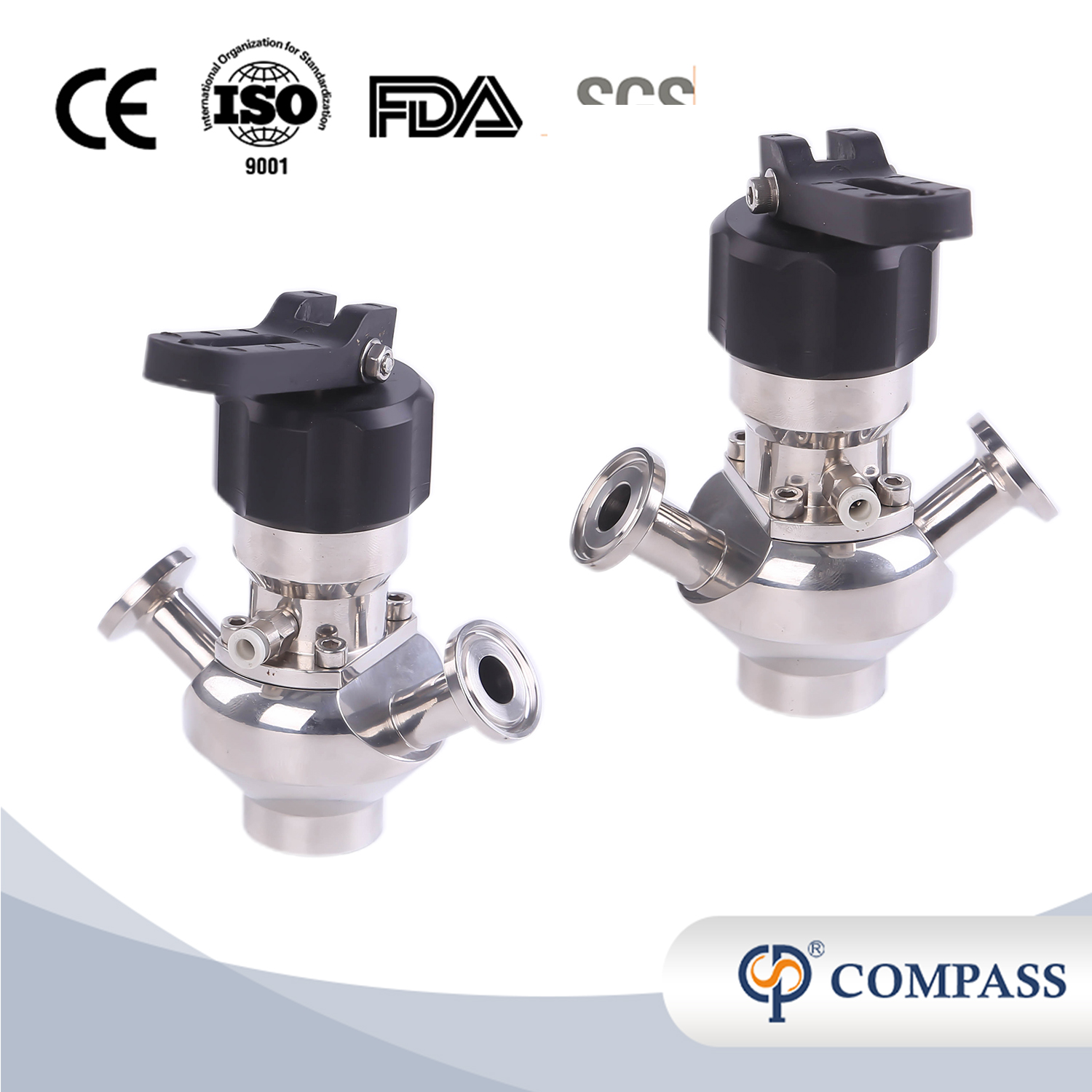

The Details of Product
Standard | SMS,DIN |
Material Contact Parts | SS316L(1.4404). Provided with material inspection report. |

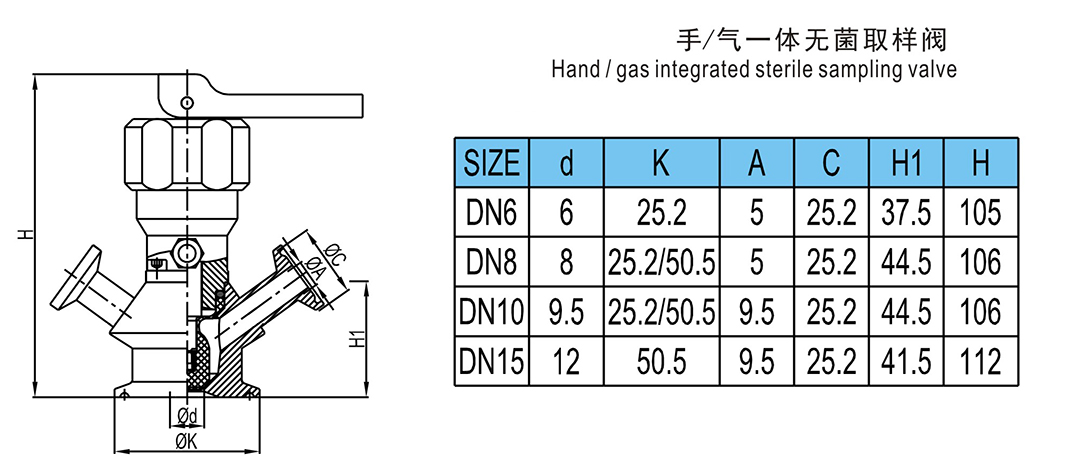

Size | DN6,DN10,DN15 |
Body Combination | A Model,B Model,C Model,D Model,E Model,F Model A1 Model,B1 Model, C1 Model,D1 Model,E1 Model, F1Model |
Connection | Butt-weld,Tri-clamp |
Seal Material | Silicone, EPDM. The seal material comply with FDA21CFR117.2600. |
Power Option | Manual Operated |
Working Pressure | ≤10bar(145psi) |
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
External Surface Treatment | Ra16~32uin(0.4~0.8um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
Working Principle
When Turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling.When turn the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.
Design Features
1.SS316L stainless steel
2.Silicone O-ring plus plunger to assure a leak proof connection
3.Surface finish polish to sanitary standards
4.Recommended usage in wineries
5.End connections available: Butt-weld,Tri-clamp
6.Size available: DN6,DN10,DN15
How to order?
1.What's material? Only SS316L.
2.What’s size? Such as DN6,DN10,DN15.
3.What’s gasket? Silicone or EPDM.
4.What’s connection end? Such as butt-weld, tri-clamp.
5. What's type of power you need? Such as manual, pneumatic or manual-pneumatic.
6. What's body connection? Such as A Model,B Model,C Model,D Model,E Model,F Model, A1 Model,B1 Model, C1 Model,D1 Model,E1 Model, F1Model.
