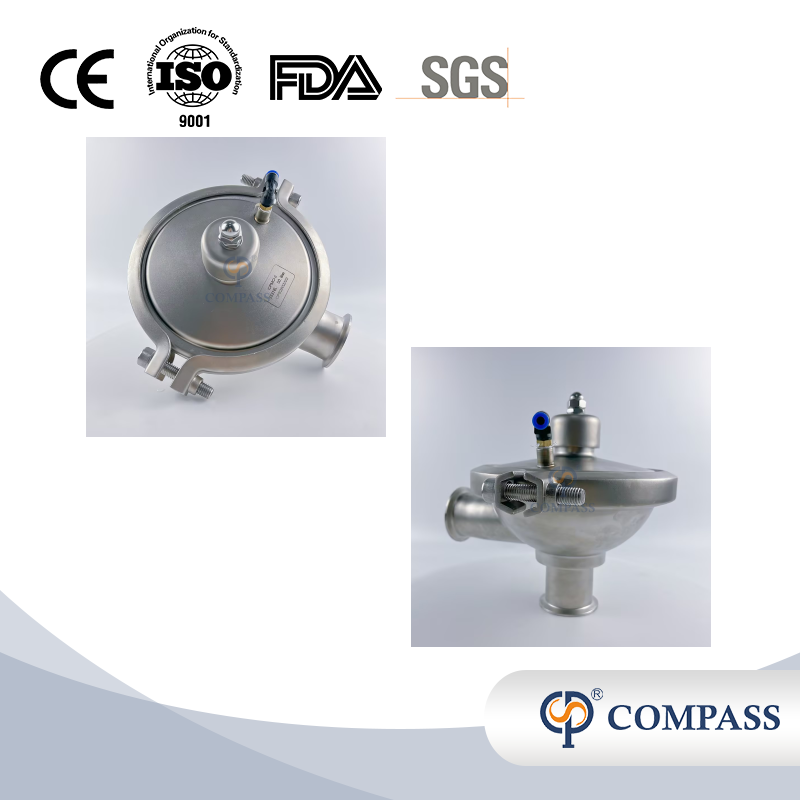

The details of product
Standard | SMS,DIN11850,DIN11851 |
Material Contact Parts | SS304/SS316L(1.4301/1.4404) Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301)Provided with material inspection report |

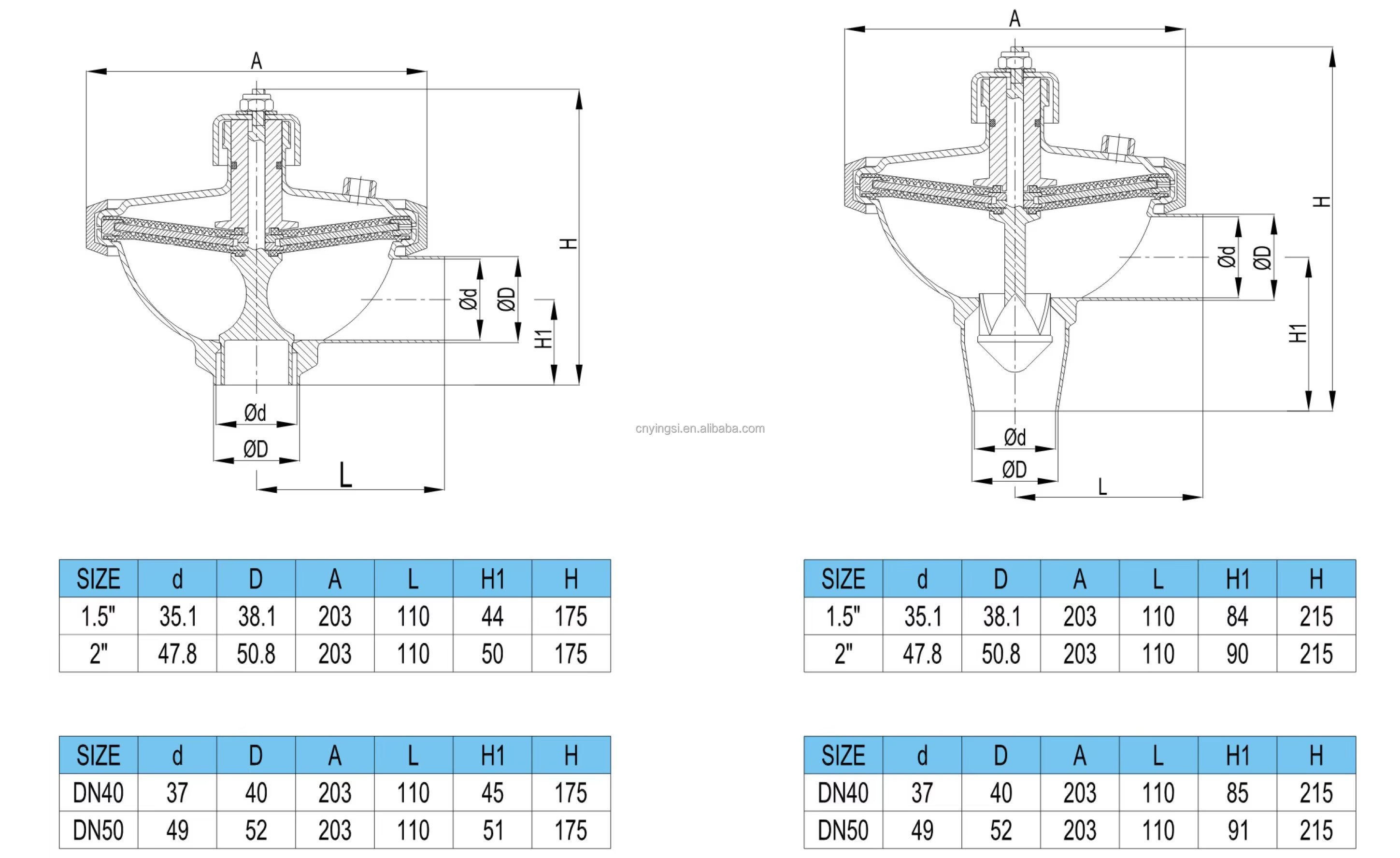

Size | 1" to 2.5",DN25-DN65 |
Connection | Butt-weld,Tri-clamp,Threaded,Union |
Upper Diaphragm | EPDM,Buna. All seals material comply with FDA21CFR117.2600 |
Bottom Diaphragm | EPDM+PTFE. All seals material comply with FDA21CFR117.2600 |

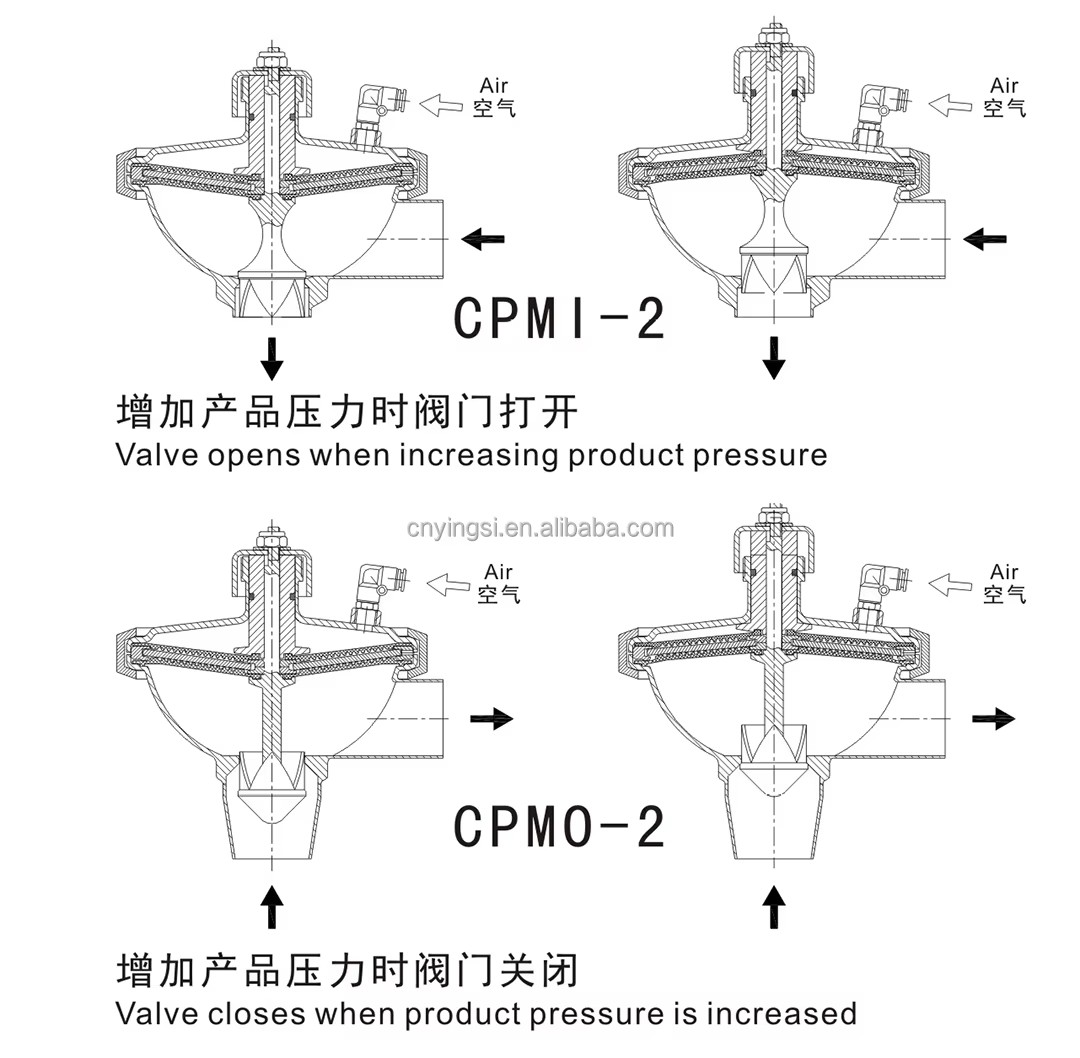

Type | CPMI-2,CPMO-2 |
Max. Pressure | ≤10bar(145psi) |
| Supply Air Pressure | ≤8bar(116psi) |
| Temperature Range | EPDM, Buna Upper Diaphragm for 14 ~203°F(-10 ~ 95°C) EPDM+PTFE Bottom Diaphragm for 14 ~ 284°F(-10 ~ 140°C) |

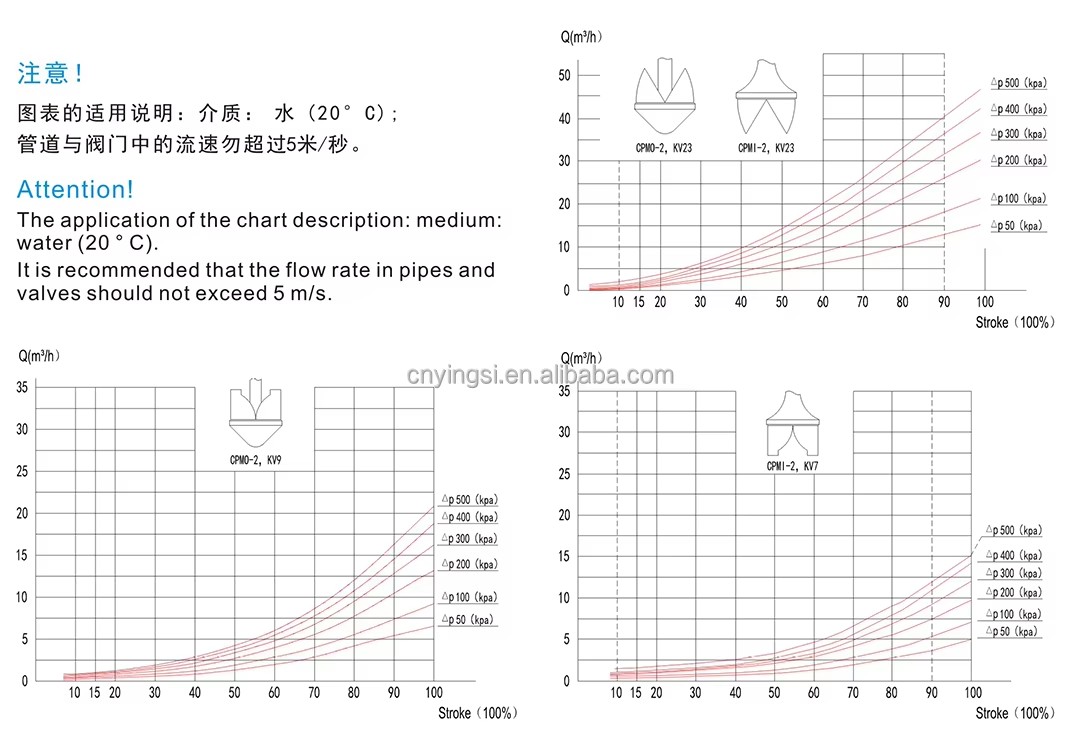

Flow Range KV | Full Open(P=1bar) about 23m3/hr Low Flow(P=6bar) about 2m3/hr |
Min. Working Pressure | 0.2bar (2.9psi) |
External Surface Treatment Internal Surface Treatment | Ra32~64uin(o.8~1.6um) Ra16~32uin(0.4~0.8um) |

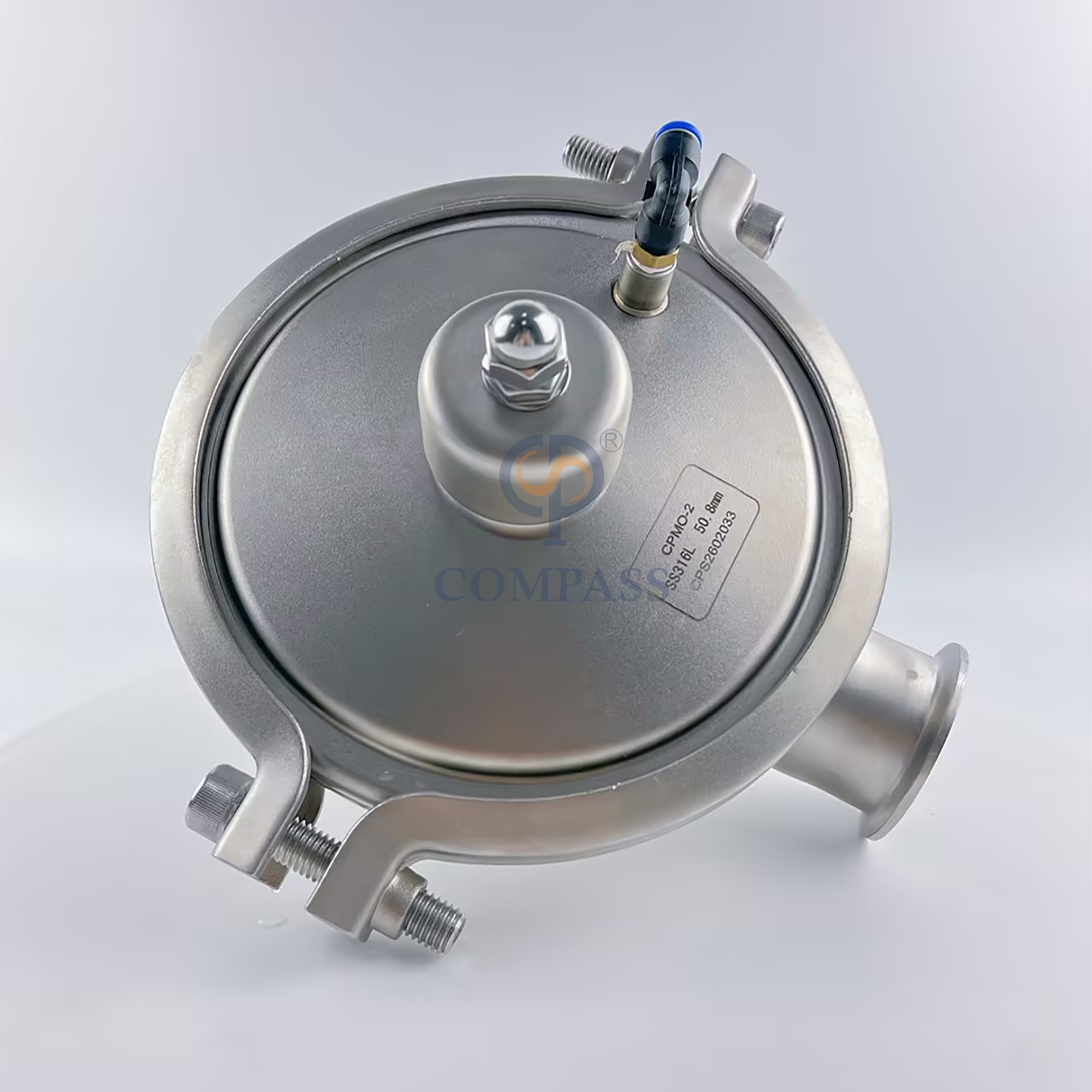

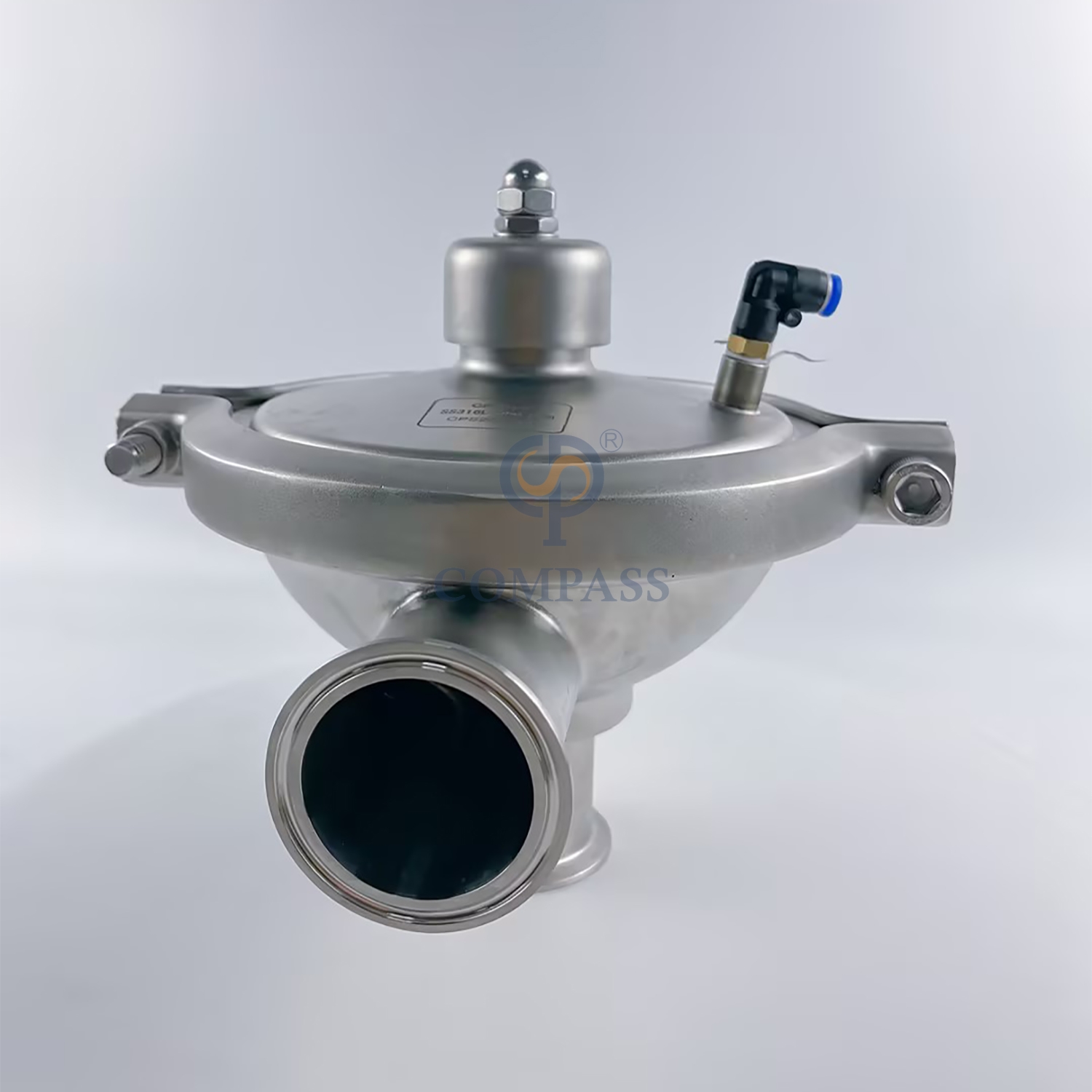

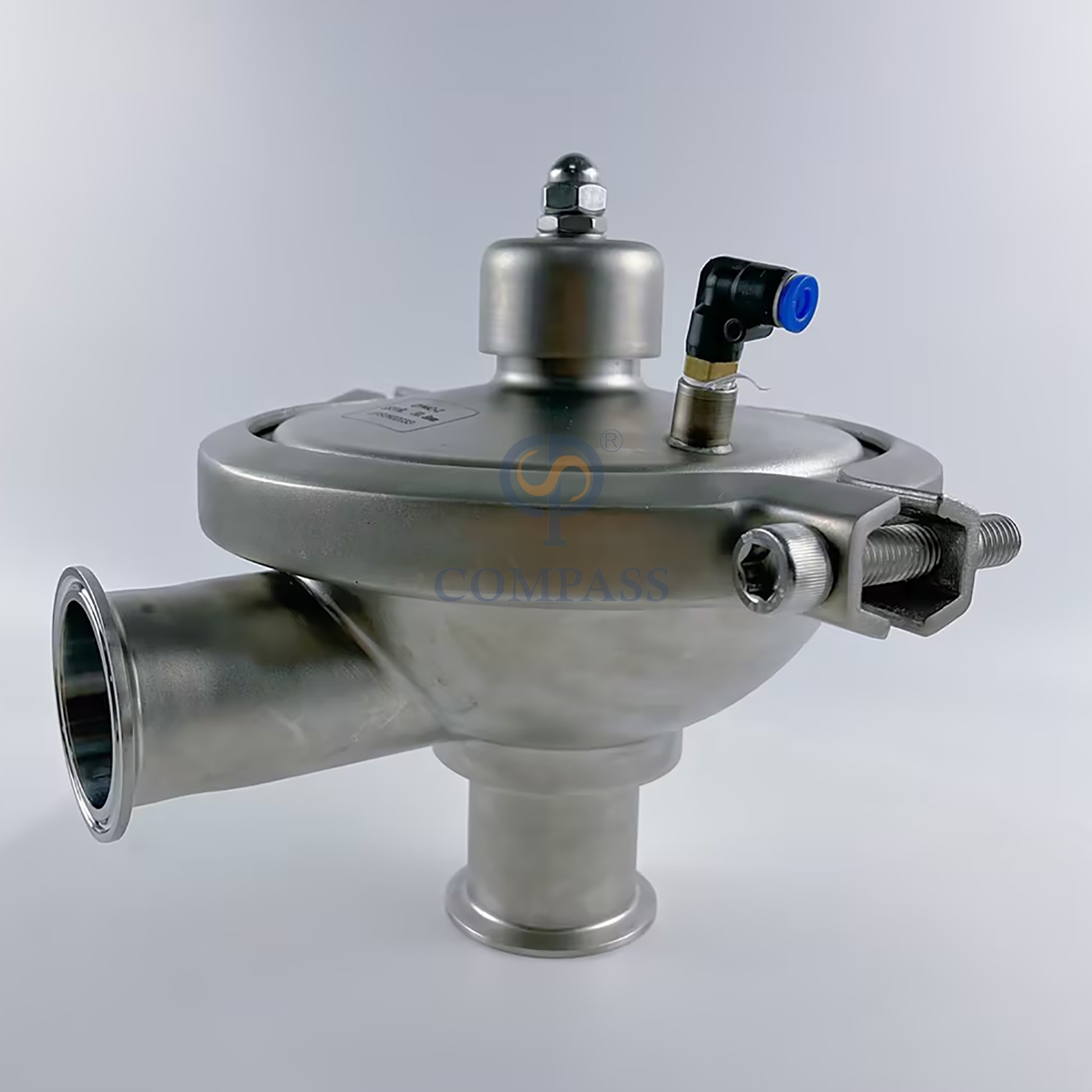

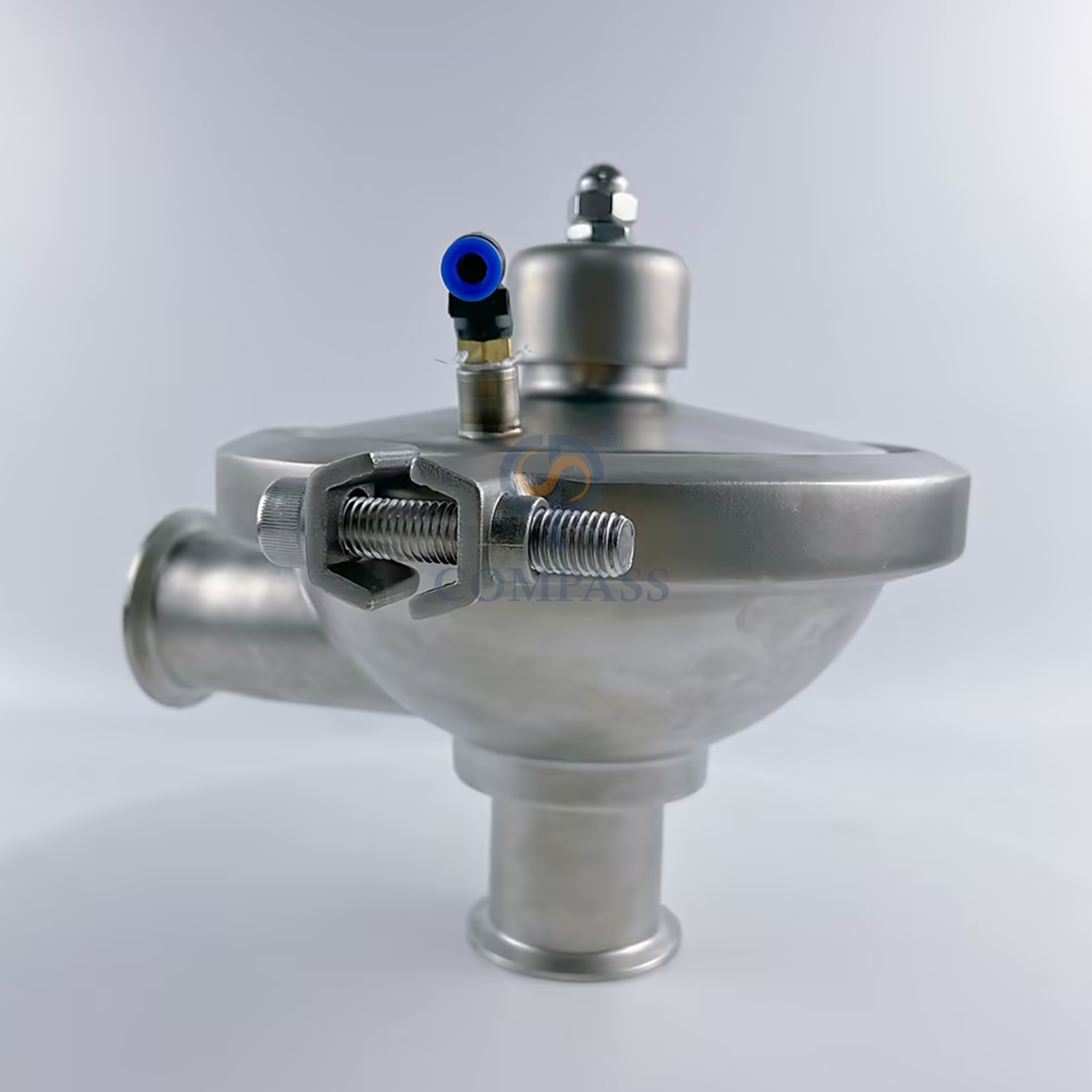

Description of Commodity: SMS CPM0-2 2'' TC64MM Sanitary Stainless Steel SS316L Adjustable Pressure Constant Pressure Valve for Water Treatment Liquid Gas

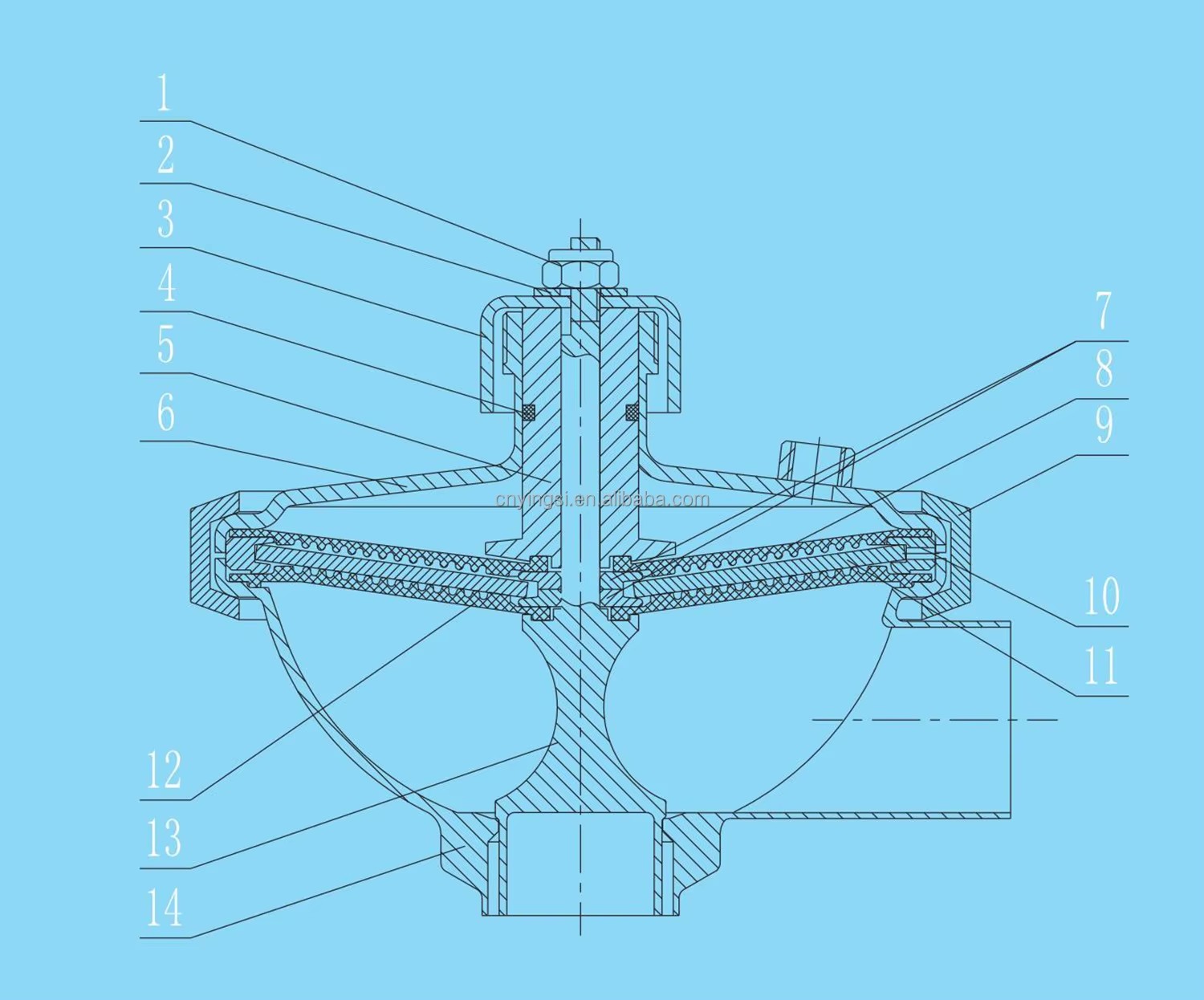

Technical Specifications
Max. pressure: ≤10bar(145psi)
Min. pressure:0bar(0psi)
Supply Air Pressure: ≤8bar(116psi)
Temperature range：
EPDM, Buna Upper Diaphragm: 14 ~203°F(-10 ~ 95℃)
EPDM+PTFE Bottom Diaphragm: 14 ~ 284°F(-10 ~ 140℃)
Actuators used compressed air quality requirements
1. Compressed air connection: Air tube equipped with air connection BSP R1/8or BSP R1/4”
2.Max. particle size: 0.01mm
3.Max. oil content: 0.08ppm
4.Dew point: atmospheric temperature 10℃(14°F) or lower
5.Max water content: 7.5g/kg
Options
1. Connection can be Butt-weld,Tri-clamp,Threaded,Union or others upon request.
2. Type can be CPMI-2 and CPMO-2
3. The available size is 1” to 2.5”，DN25-DN65
Advantage
1. No dead corners, no stagnation
2. Supports CIP online cleaning, and can also be disassembled for cleaning
3. Support SIP online sterilization, before temperature drops below 60℃
How to order Sanitary CPM Constant Pressure Valve?
1. What size ? 1” to 2.5”，DN25-DN65
2. What's material ? SS304/SS316L
3. What's type? CPMI-2 or CPMO-2 ?
4. What's connection ends ? Butt-weld, Tri-clamp, Threaded, Union ?
5. What's seal material ? Domestic diaphragm or import diaphragm ?
6. Do you need mirror polished or sand blast ?
