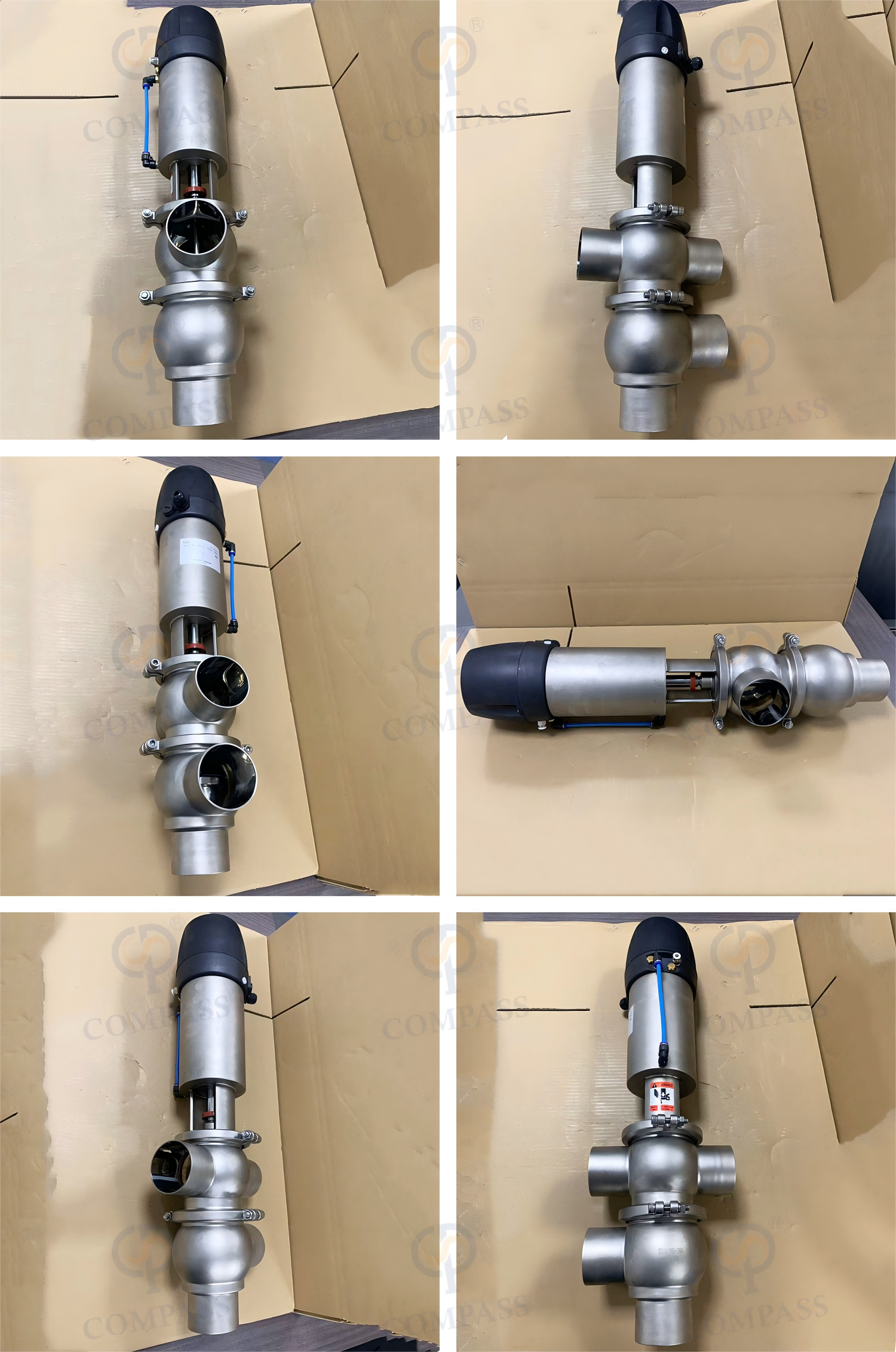

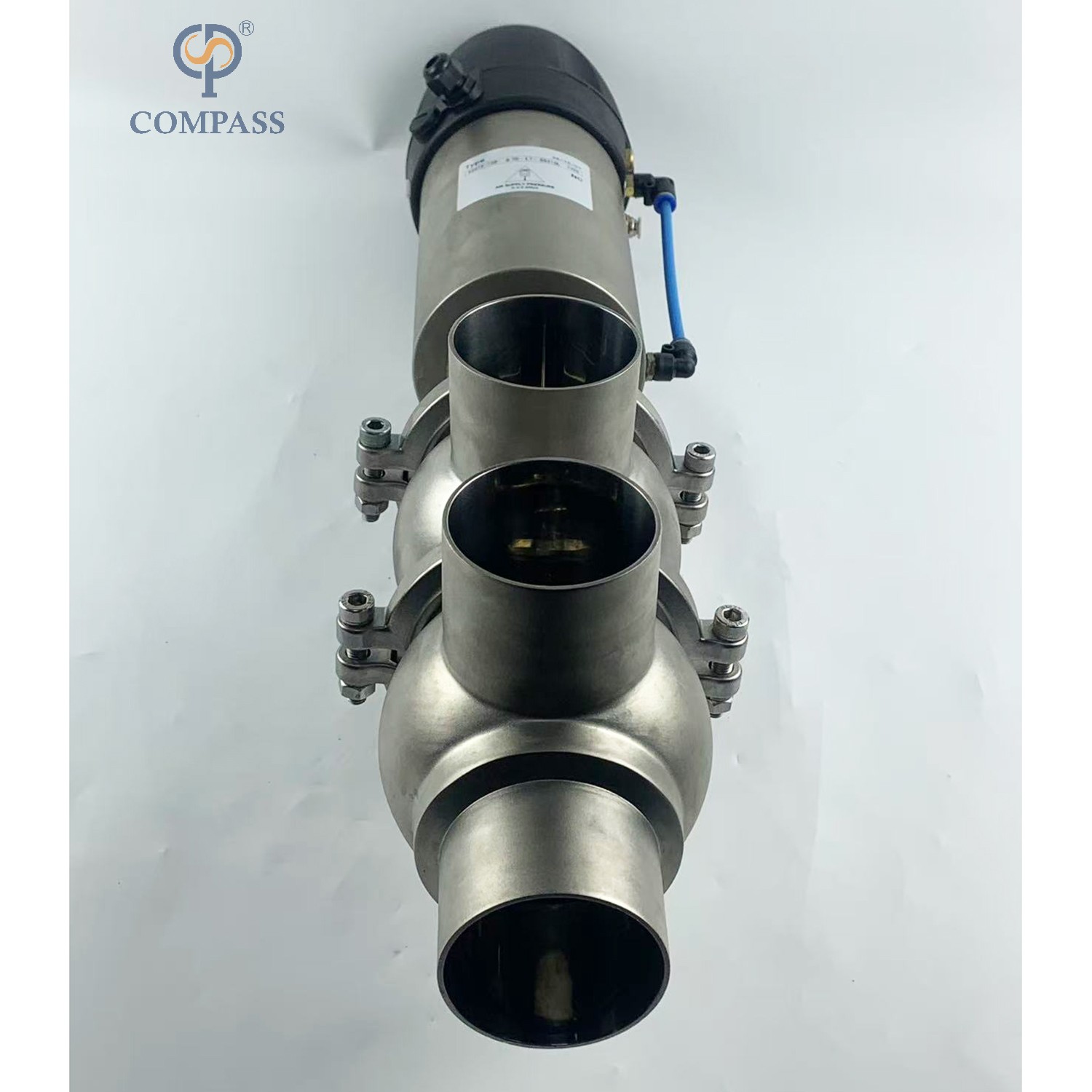

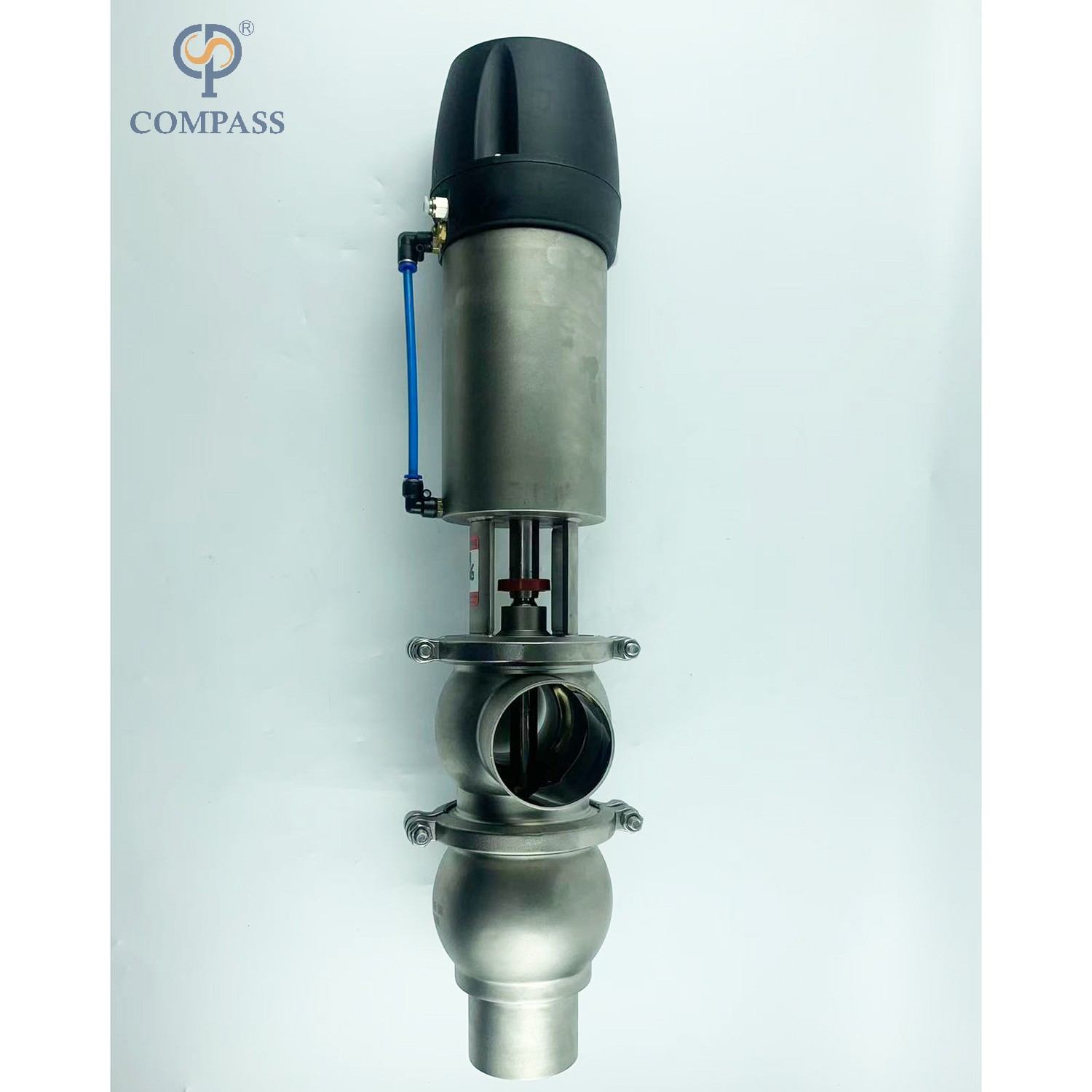

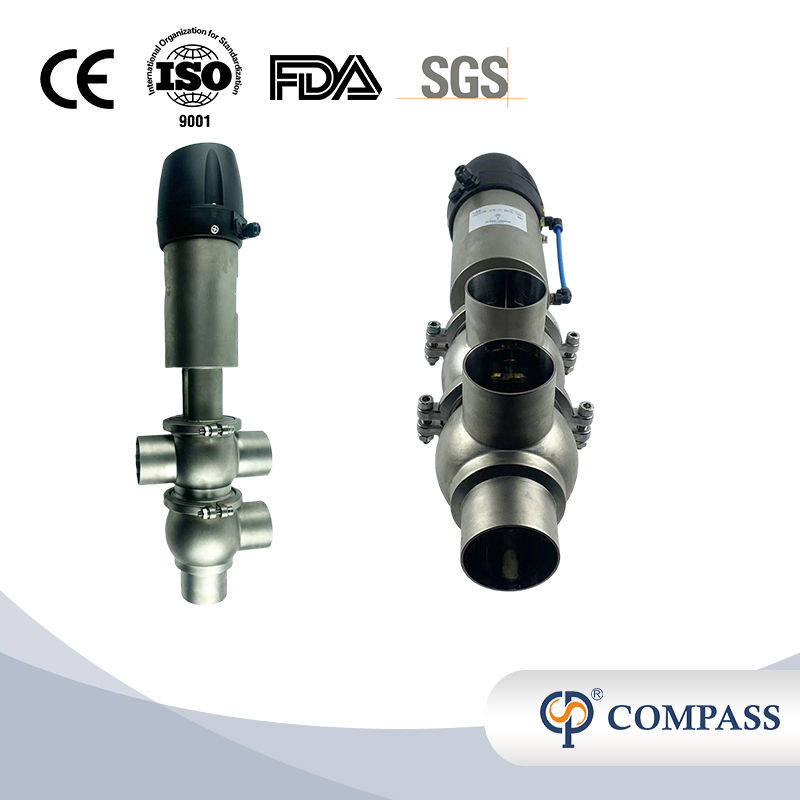

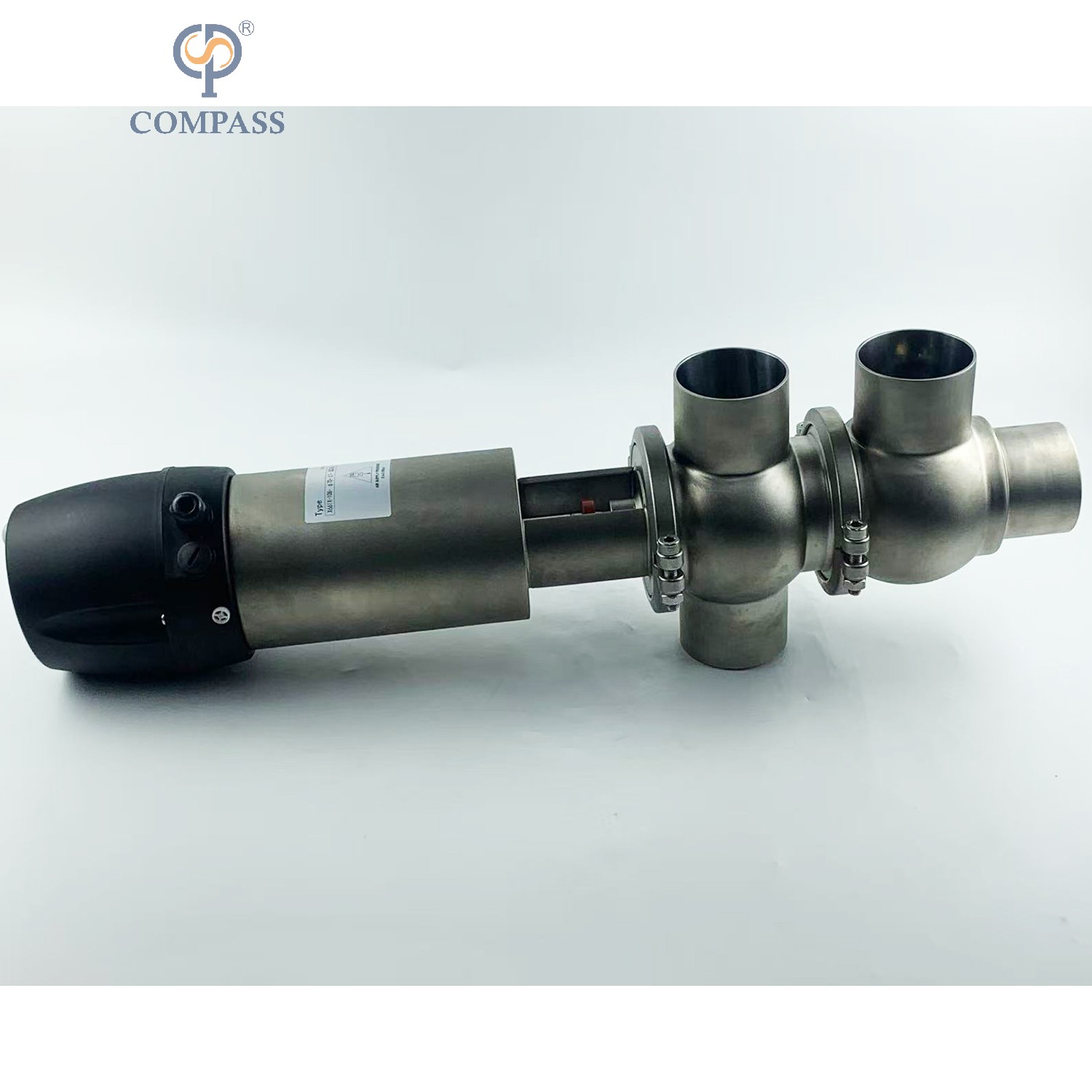

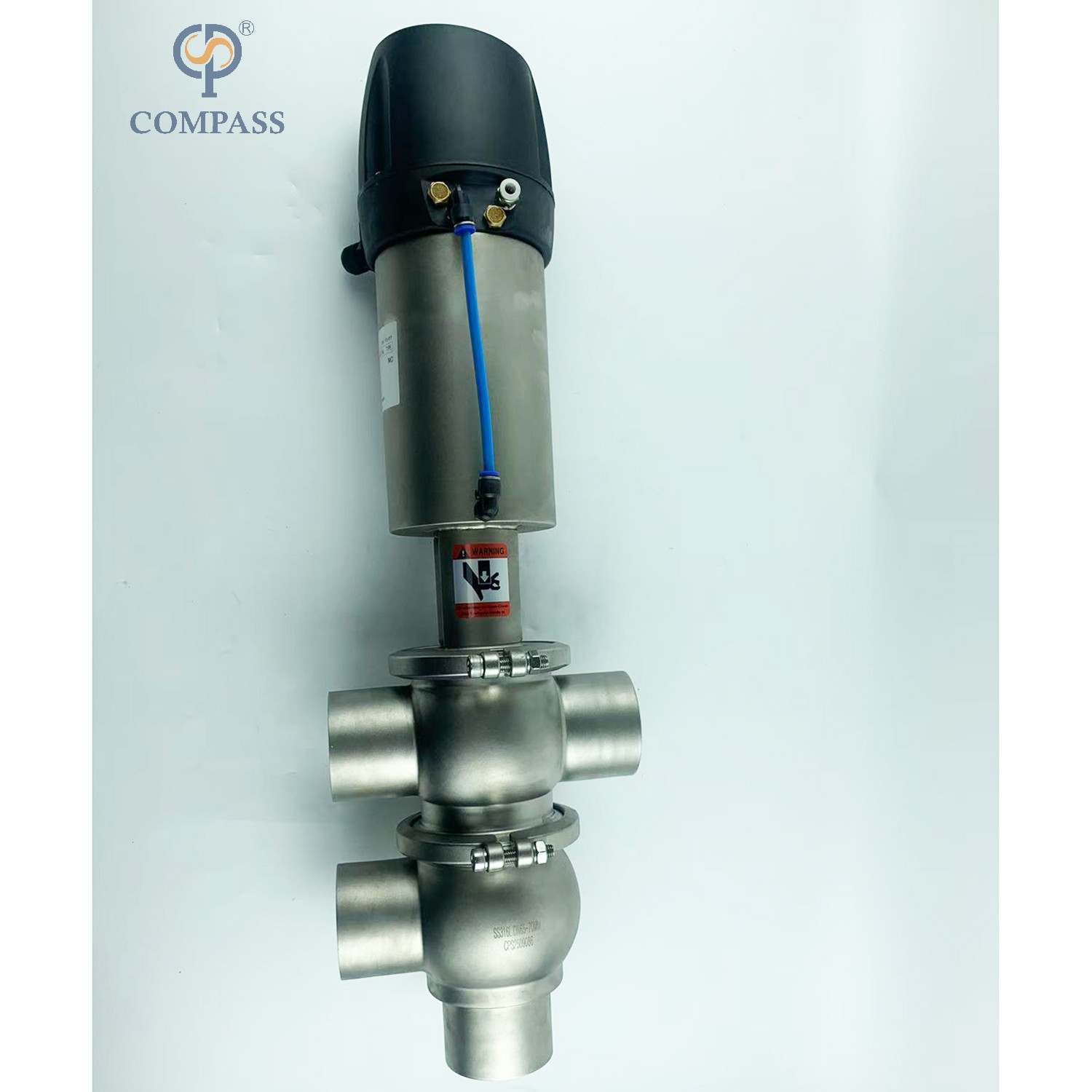

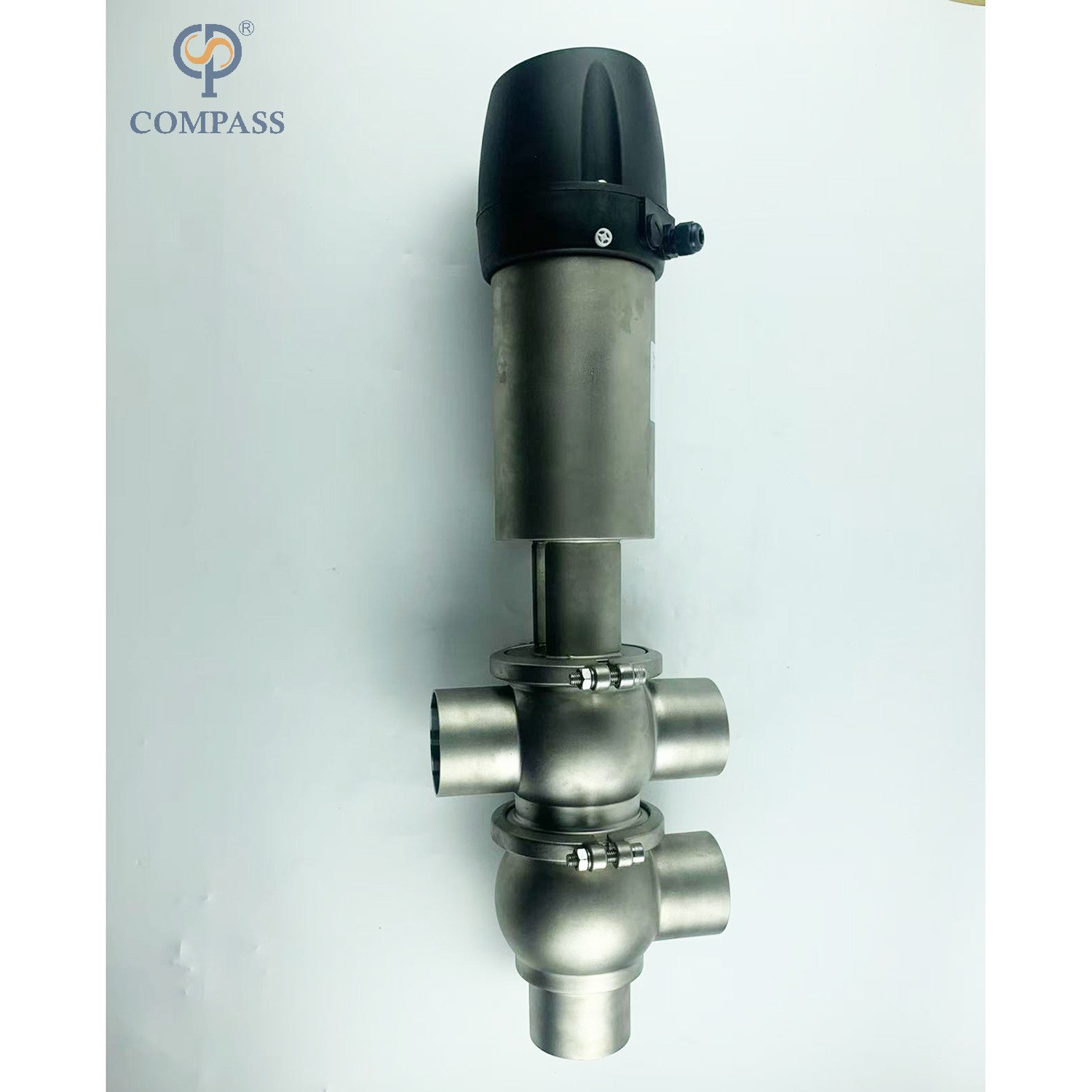

SS304 DIN 21 MODEL PNEUMATIC CLAMP DIVERTER VALVE WITH 24V CONTROL HEAD

Sanitary Diverter Valves can be actuated either manually or pneumatically. The series of Sanitary Pneumatic Flow Division Valves makes major medium reaching the purpose of revising or end stop, because the good sealability and cleanability, they are extensively use different sanitary industry areas. They can be fitted with control tops and proximity. It is widely applied to many fileds, such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

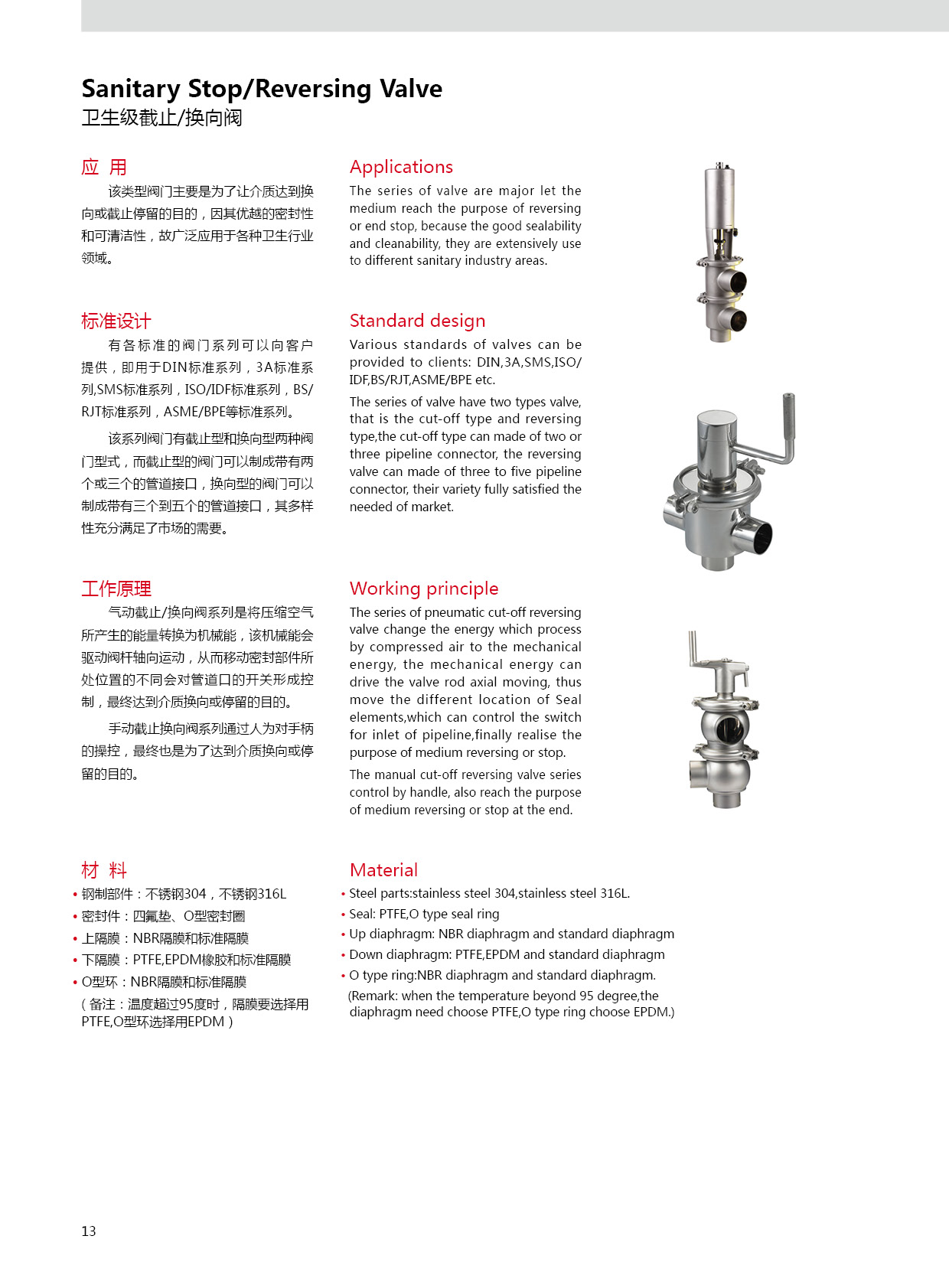

Sanitary Diverter Valves have two types valves, including of cut-off type and reversing types. The cut-off type can be made of two or three pipeline connector. The reversing type can be made of three to five pipeline connector. Their variety fully satisfied the demands of market.

Model:
DN40
Brand:
COMPASS
Code:
01022A02202A40

Availability:

Quantity:



Inquire Add to Basket

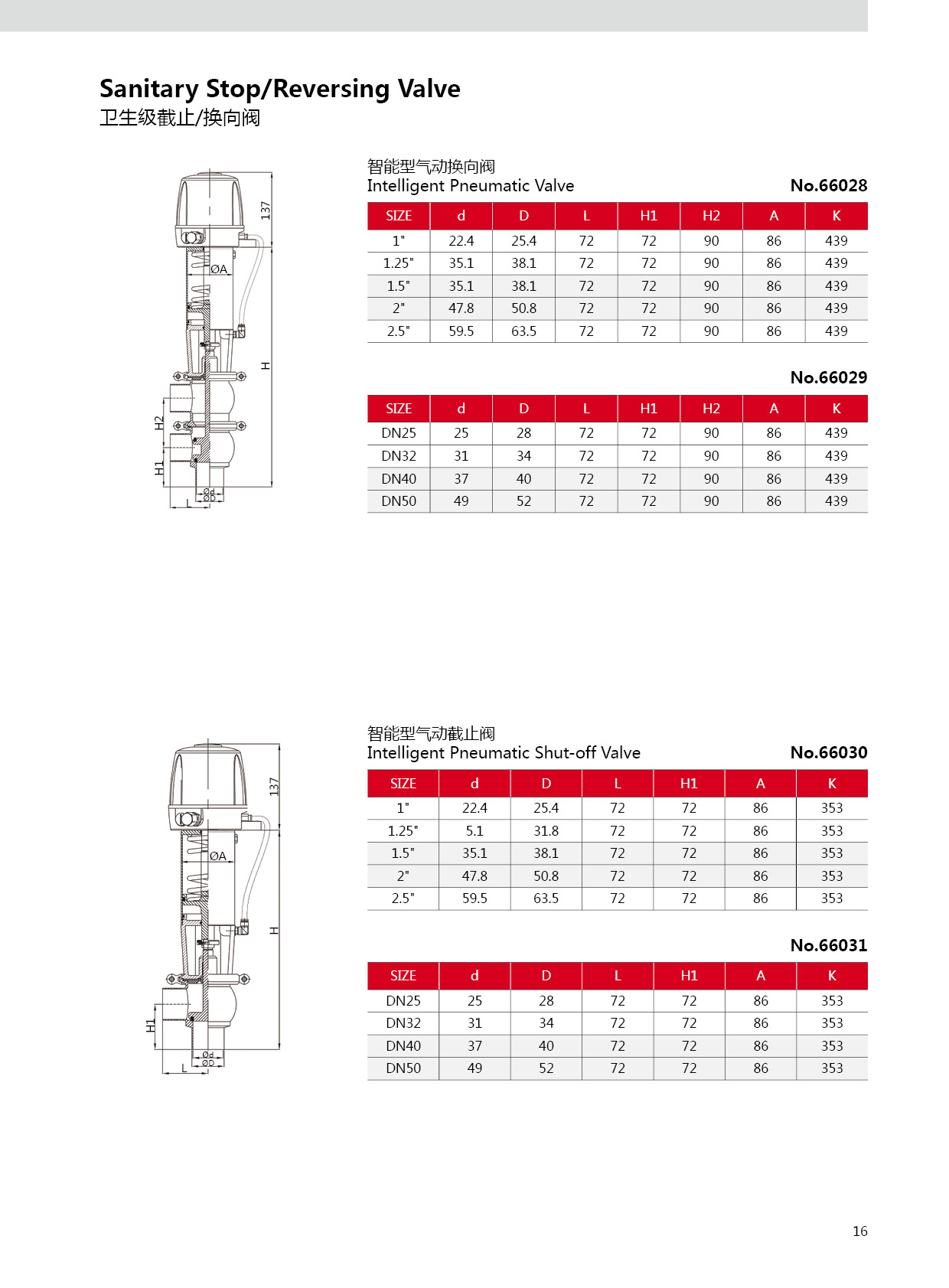

Main Parameter

Standard	SMS,DIN
Material Contact Parts	SS304/SS316L(1.4301/1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Size	1"-4", DN25-DN100

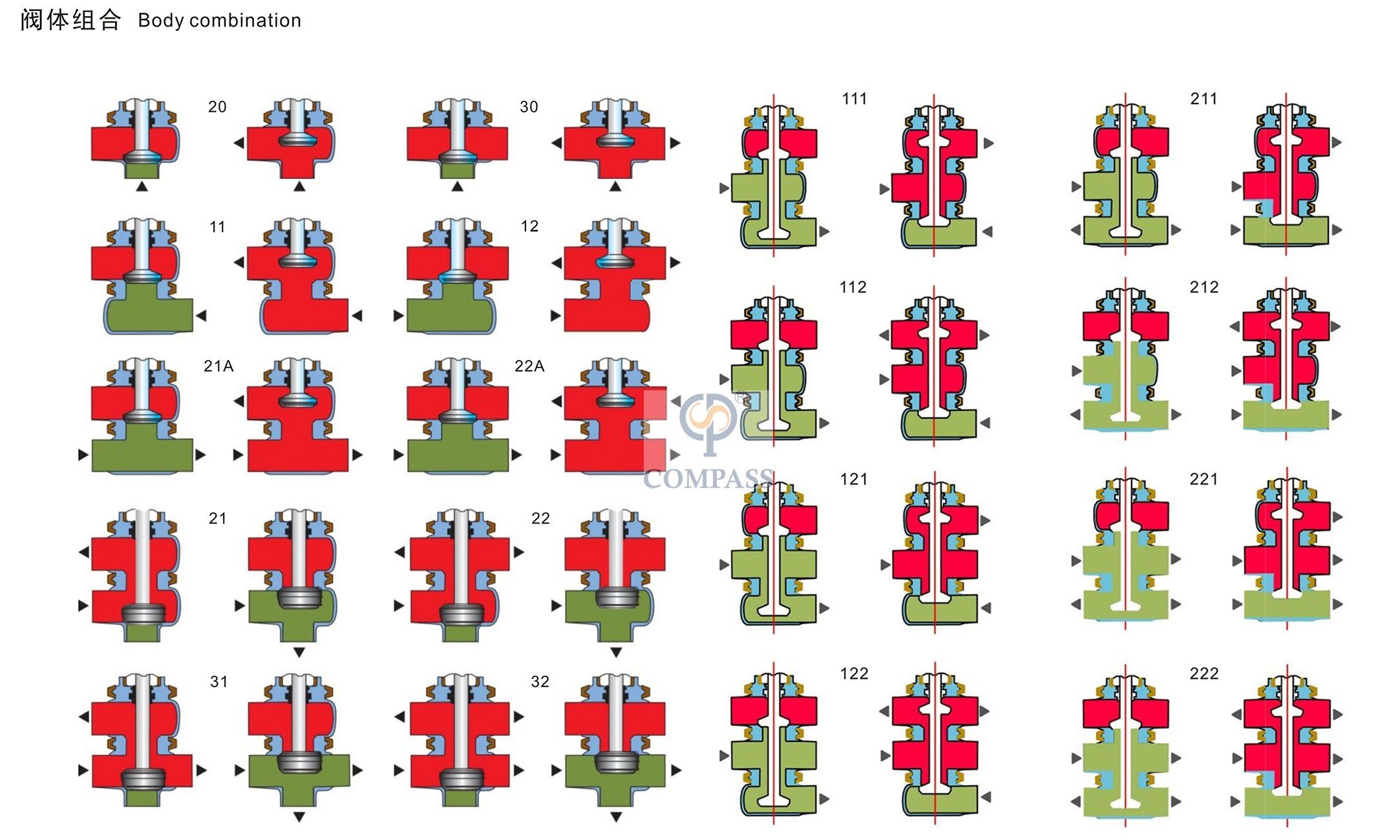

Body Combination	20 Model,30 Model,11 Model,12Model,21A Model,22A Model,21 Model,22 Model,31Model,32 Model, 111 Model,112 Model,121 Model,122Model,211 Model,212 Model,221 Model,222 Model

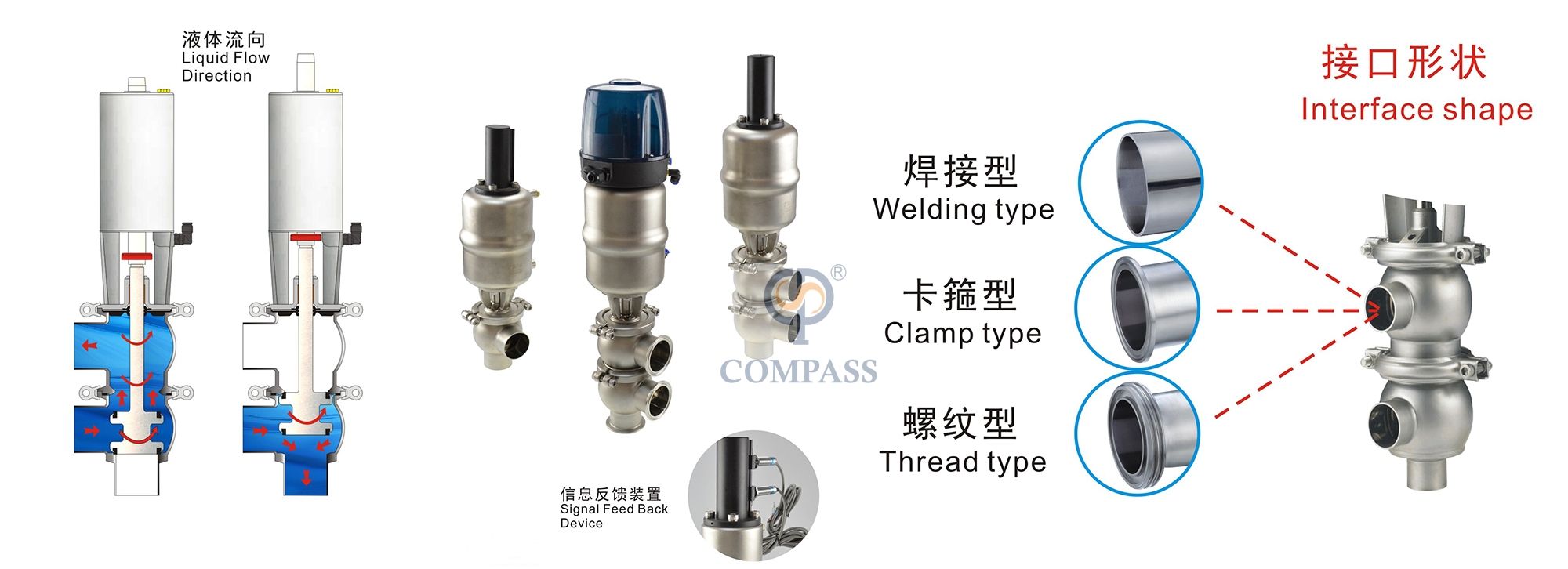

Connection	Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
Seal Material	Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600
Power Option	Manual Operated
	SS Pneumatic Actuator

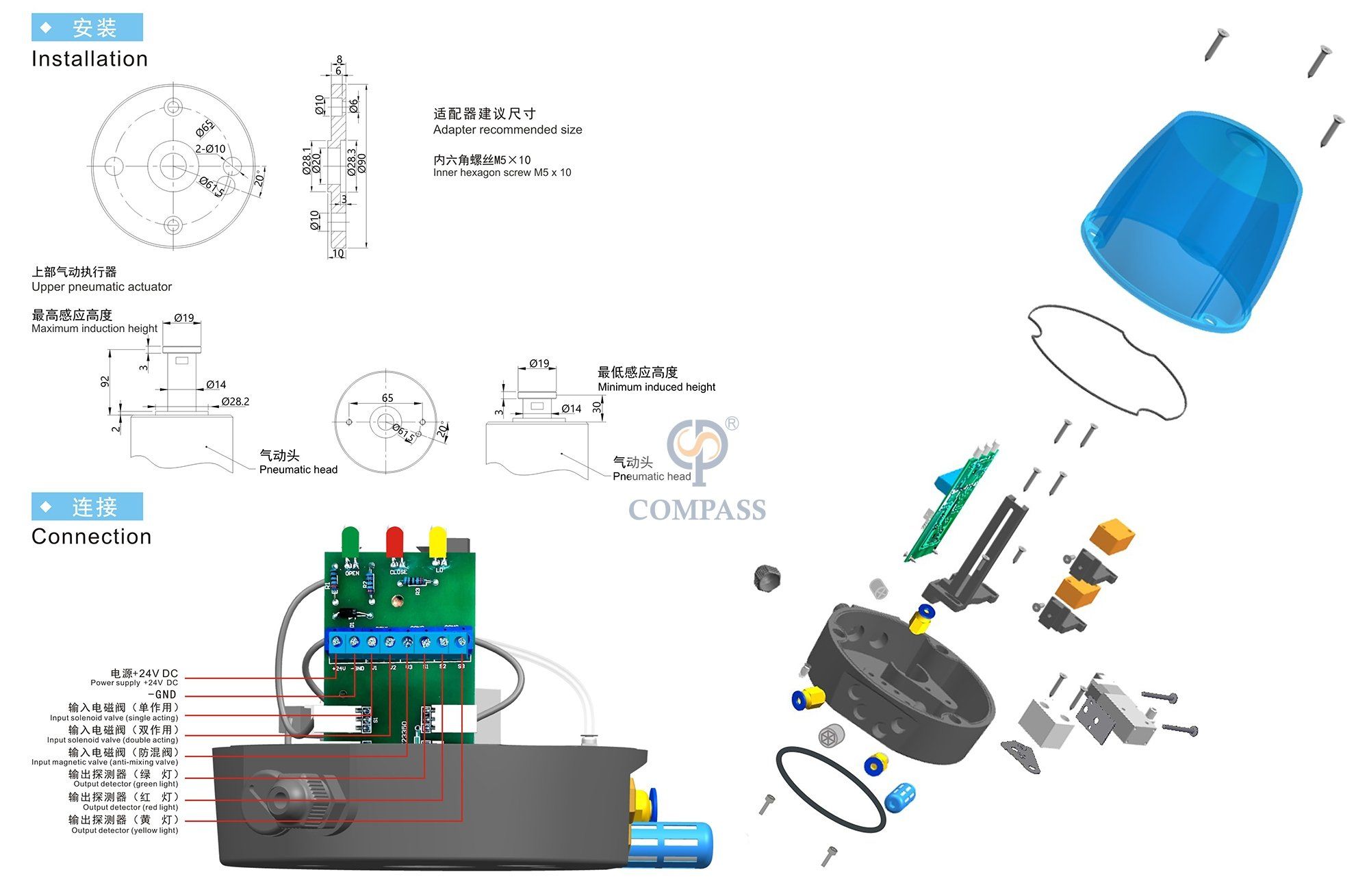

	Position Sensor, C-top Controller, C-top Controller (AS-I)
Working Pressure	≤10bar(145psi)
Supply Pressure for Air Actuator	5~8(72.52psi~116psi)
External Surface Treatment	Ra32~64uin(0.8~1.6um)
Internal Surface Treatment	Ra16~32uin(0.4~0.8um)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)

Design & Features

1.Various standards can be provided: SMS,DIN,3A
2.Available in sizes from 1"-4", DN25-DN100
3.Seals comply with FDA 21CFR 177. 2600.
4.The valve body can be customized with a wide selection of different connections.

Our Advantages

1. Hygienic satinelss steel diverter valves have more safety,cleanliness, durability, and aesthetics.

2. With open bracket, the actuator body was dissociated, you can check the shaft seal directly. The design maks the transmission and product are partially seperated to prevent heat transfer from the body ro the actuator.

3. The condition " NO" and " NC" can be change instantly.

4. The spherical body has the ideal flowability and cleaning properities. Meanwhile, the treatment of material is more moderate.

5. The standard valve design makes the coupling combination has a high degree of spirit activity and diversity.

6. Metal stop ensures longer seal life.

7. Fast and convenient assembly and maintenance operations.

How to order Sanitary Diverter Valve?

1.What's standard for diverter valves?Such as DIN,SMS
2.What's material?Such as SS304 or SS316L
3.What's available size?Such as 1" to 4",DN25 to DN100
4.What's connection end?Such as butt-weld,tri-clamp,male threaded or female threaded
5.What's body cobmination?Such as 20 model,21 model,22 model
6.What's power,such as manual,pneumatic actuator or contral head 24v?
7.What's material of seal,such as EPDM or Silicone
