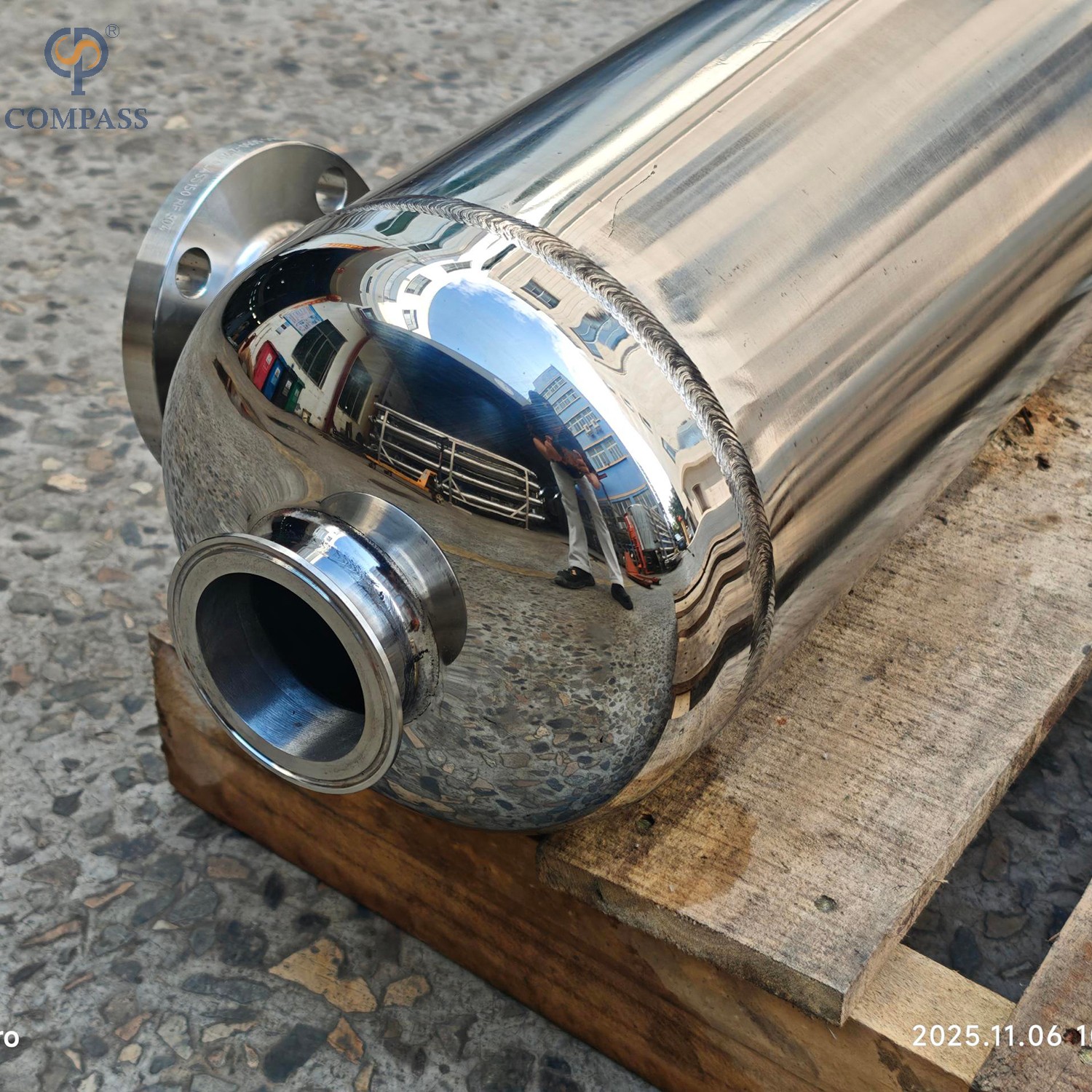

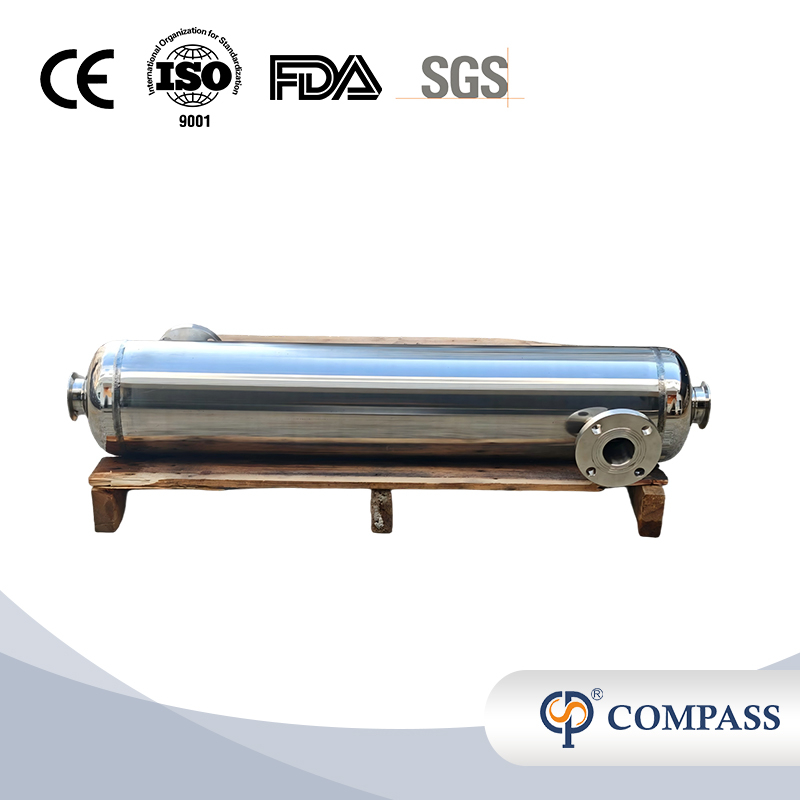

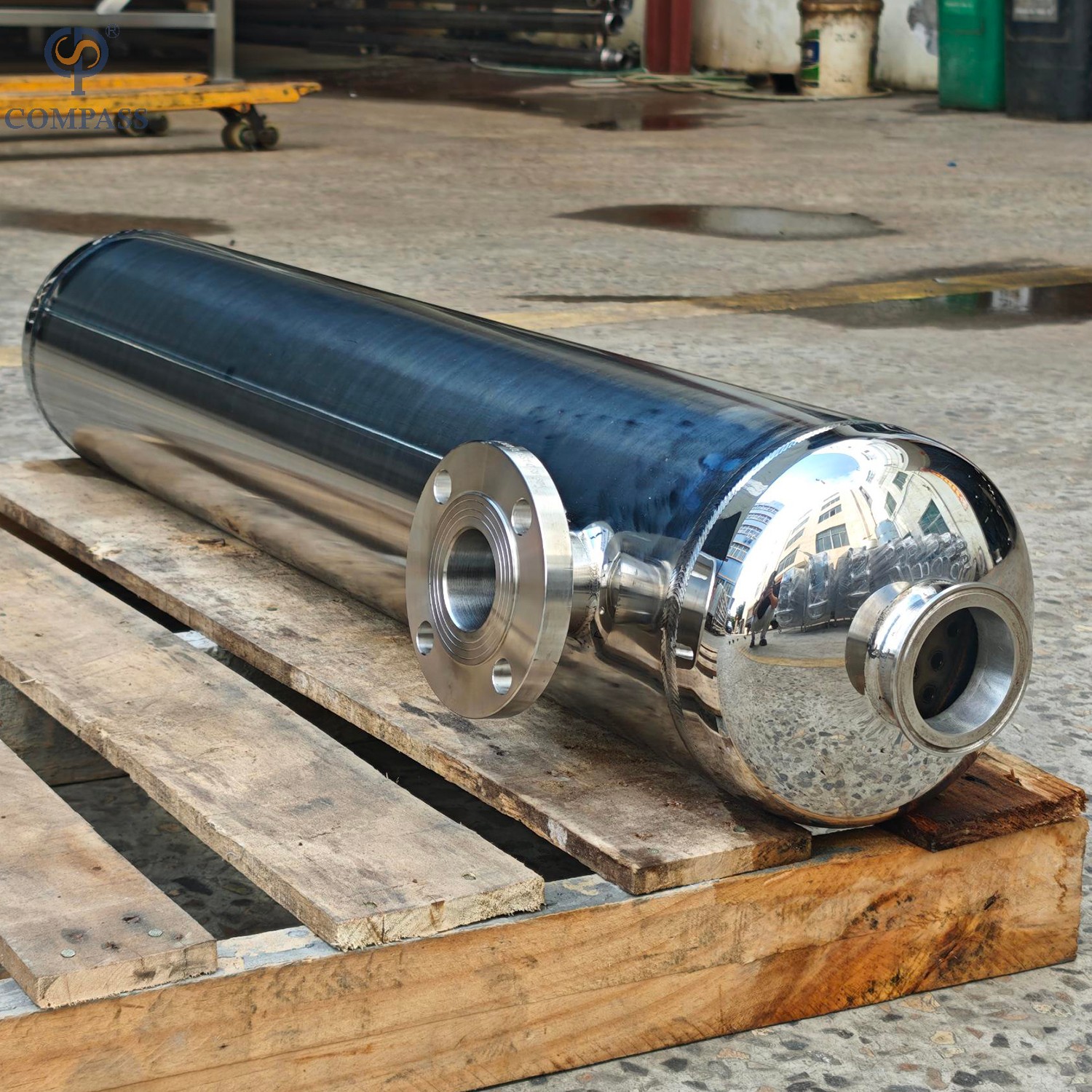

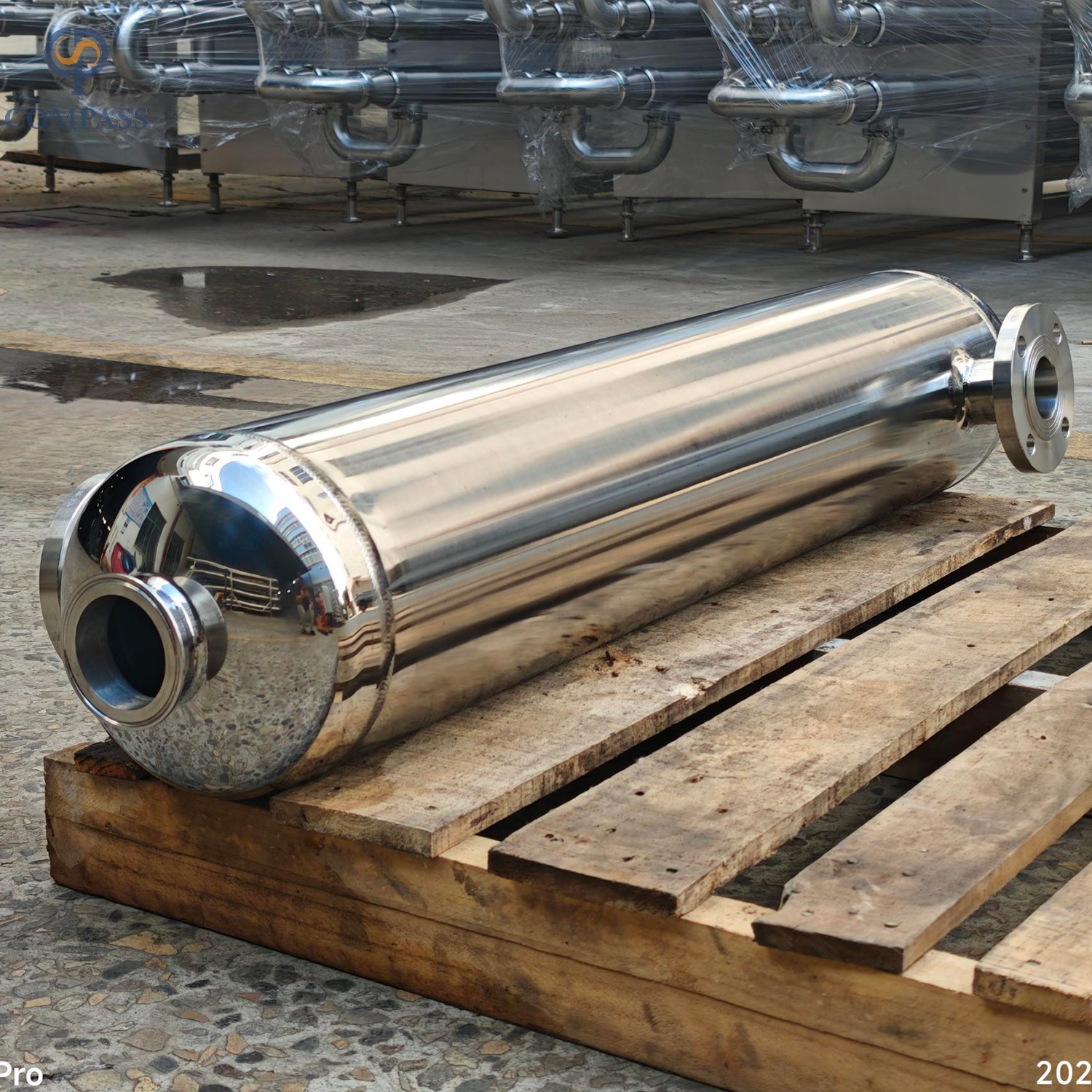

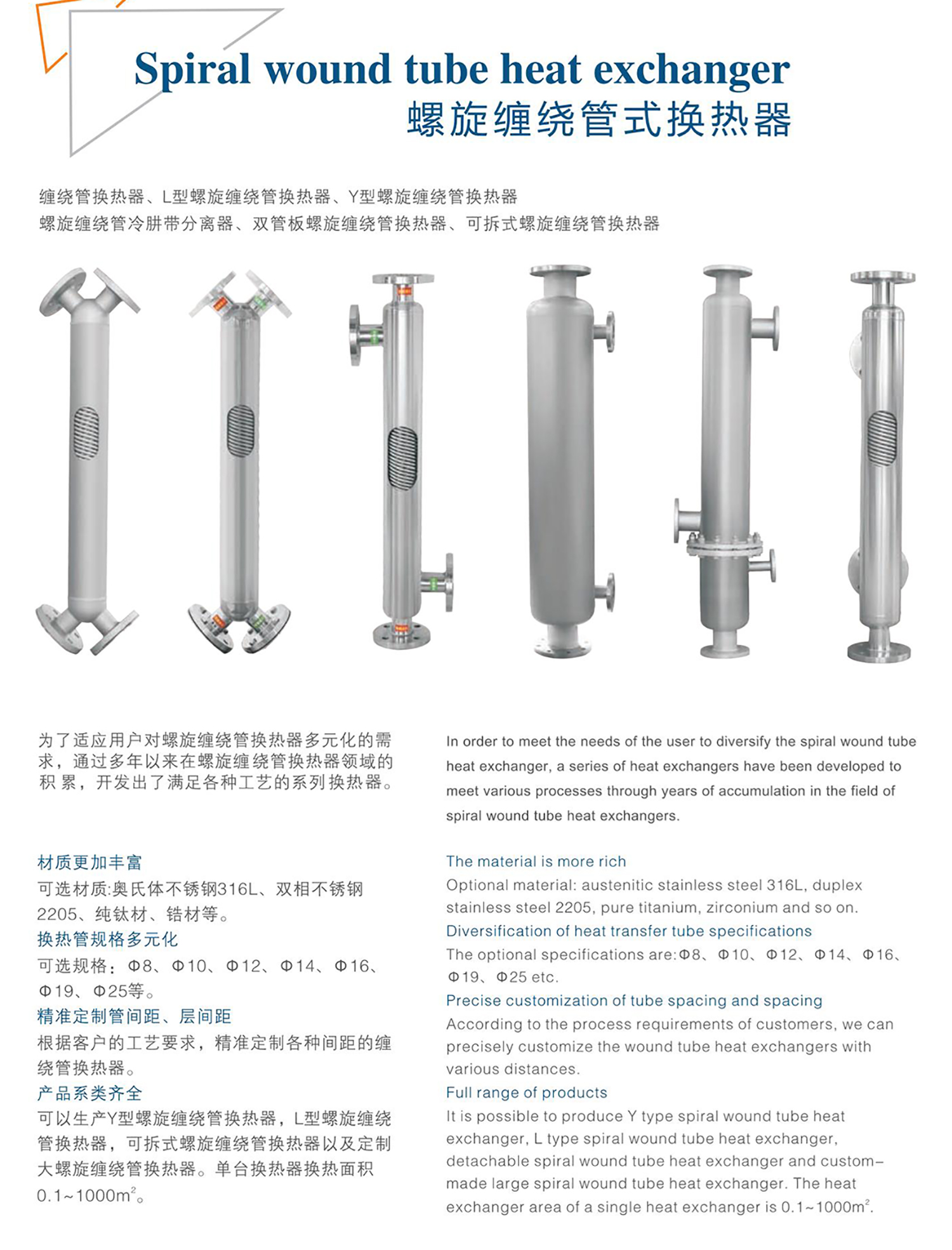

SS304 Food Grade Coiled Tube Heat Exchanger

Sanitary tube heat exchanger,designed for high cleanliness requirements, meets the high cleanliness requirements of the pharmaceutical industry, usually used in injection water point cooling, modular integration, process cooling or heating, etc. Sanitary tube plate heat exchanger refers to a tube and shell heat exchanger where the tube sheets at both ends of the tube bundle are fixedly connected to the shell by welding. After welding the tube plate and shell, it can also be used as a flange and connected to the pipe box flange with bolts.

Working Principle
The material flows inside tube, the cold and hot medium flows inside shell, and the material and the cold and hot medium carry on the high efficiency heat exchange through the compact arrangement tube bundle to meet the technological temperature requirement. Because the heat exchanger adopts the double tube plate /Shell & Tube design, the bidirectional cross-contamination between the material and the cold and hot medium is completely eliminated.

Model:
08T02001BA8
Brand:
CPMPASS

Availability:

Quantity:



Inquire Add to Basket

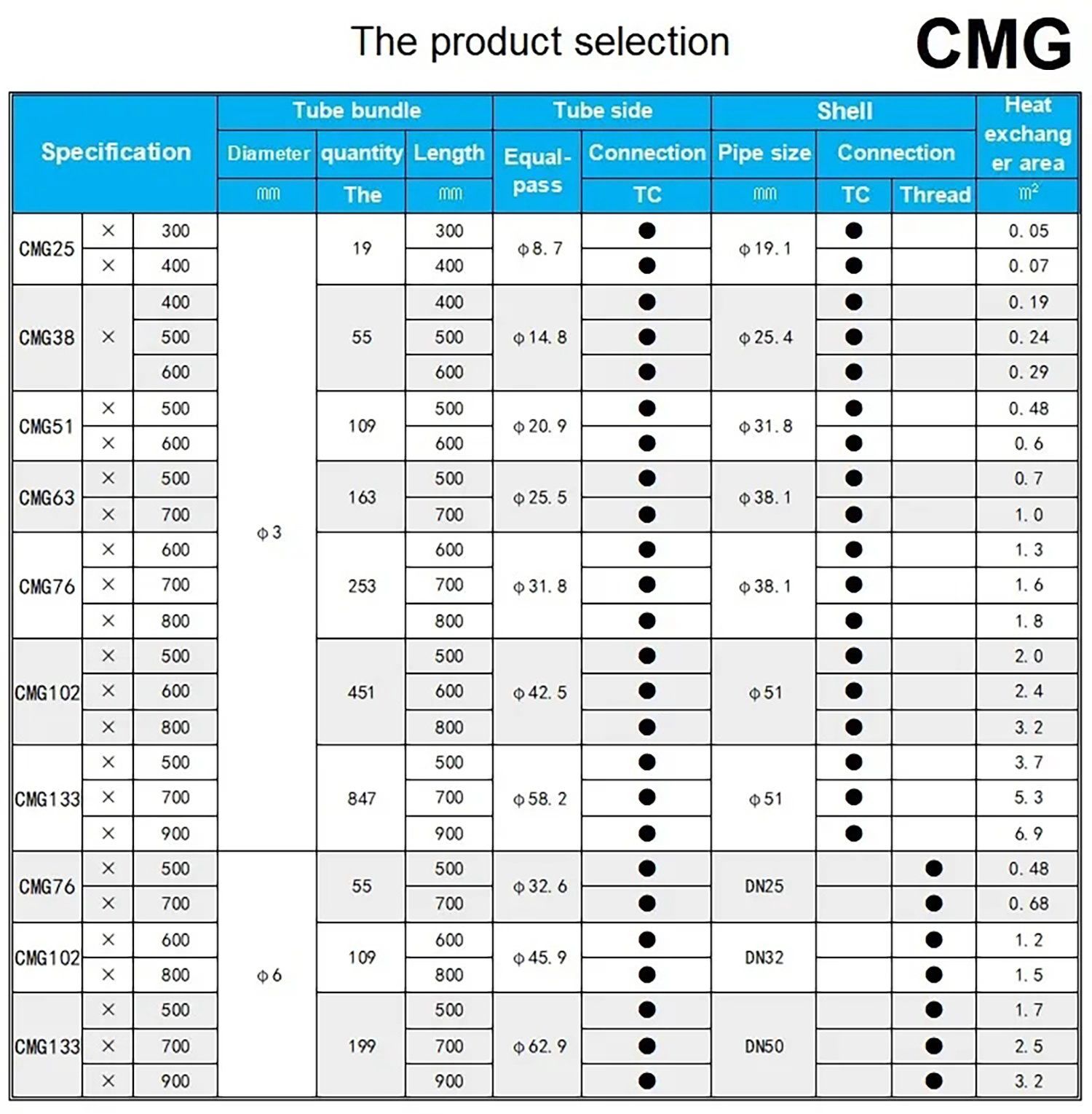

Main Parameter

Commodity	Tube Plate Heat Exchanger
Type of Tube Plate Heat Exchanger	Double Tube Plate Heat Exchanger
	Single Tube Plate Heat Exchanger
Material Contact Parts	SS304(1.4301)/SS316L (1.4404),SS2205, SS2507	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Sealing Material	NBR,EPDM,Silicone,FKM. All material comply with FDA21CFR117.2600
Flow	30-32000L
Heat Transfer Area	0.05m², 1.0m², 1.5m², 2.0m², 2.5m², 3.0m²
Tube Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 19mm ,25mm etc
Heat Transfer Coefficient	Water - Water : 1100~1400W/(m2 ºC)
	Water -Steam : 2300~5700W/(m2 ºC)

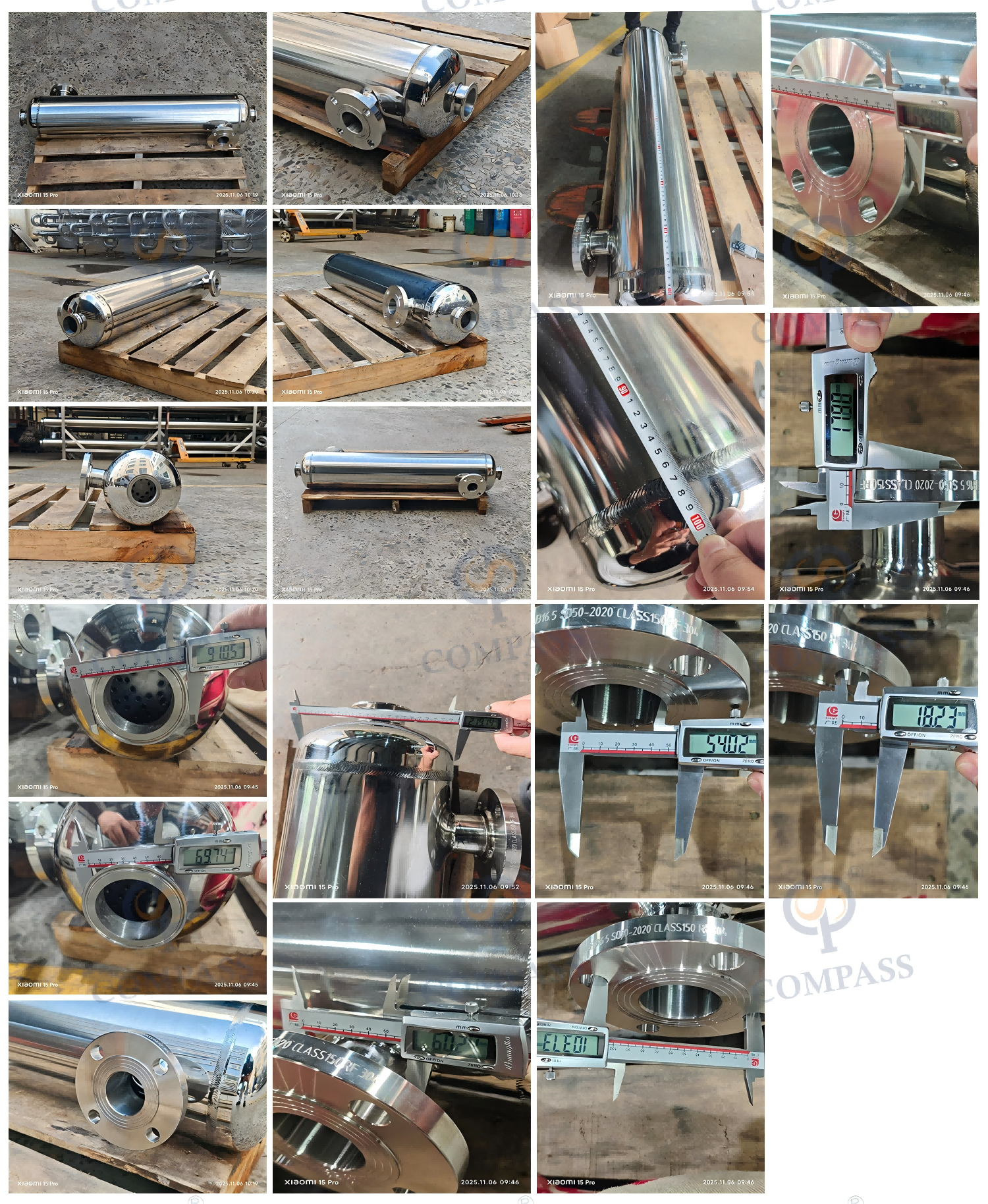

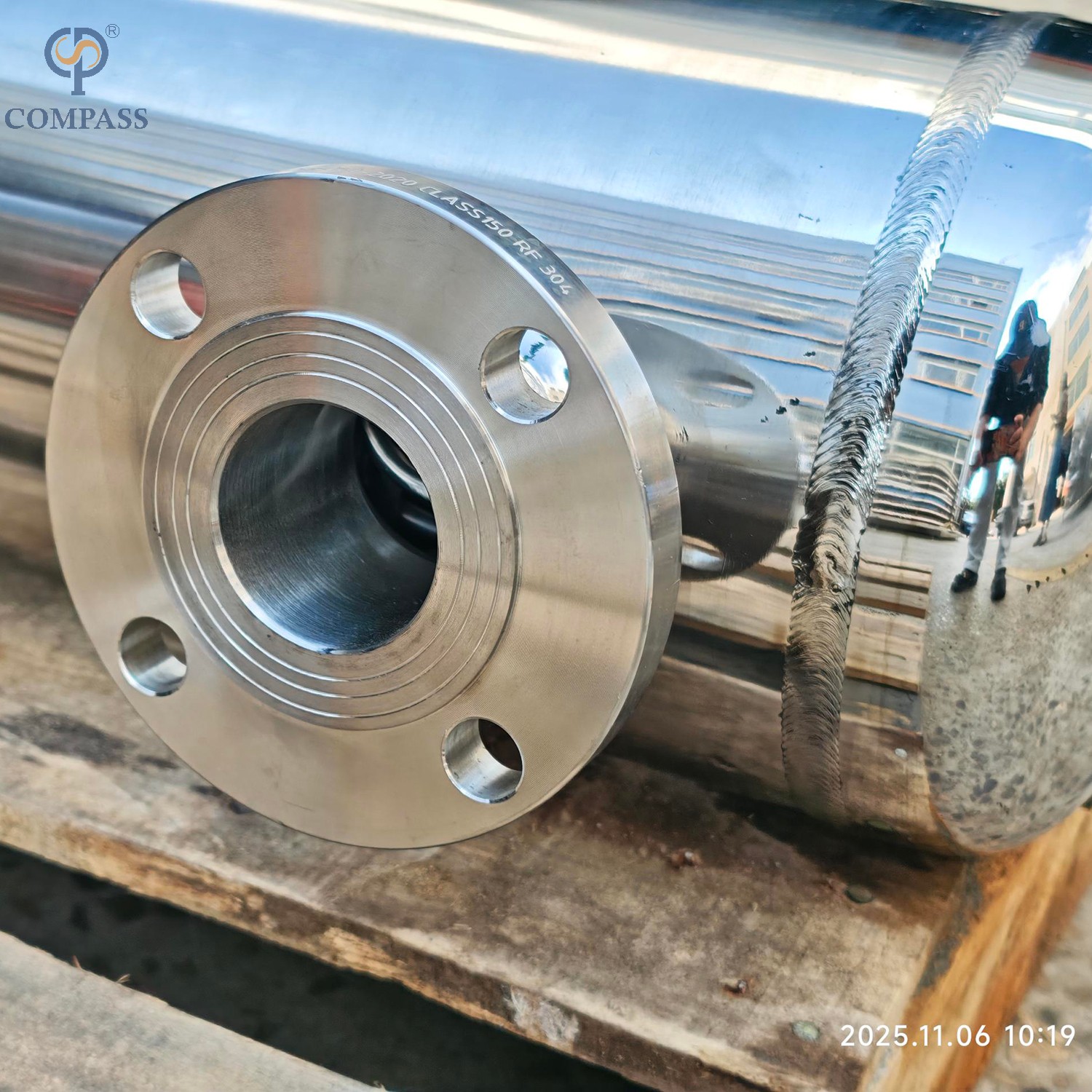

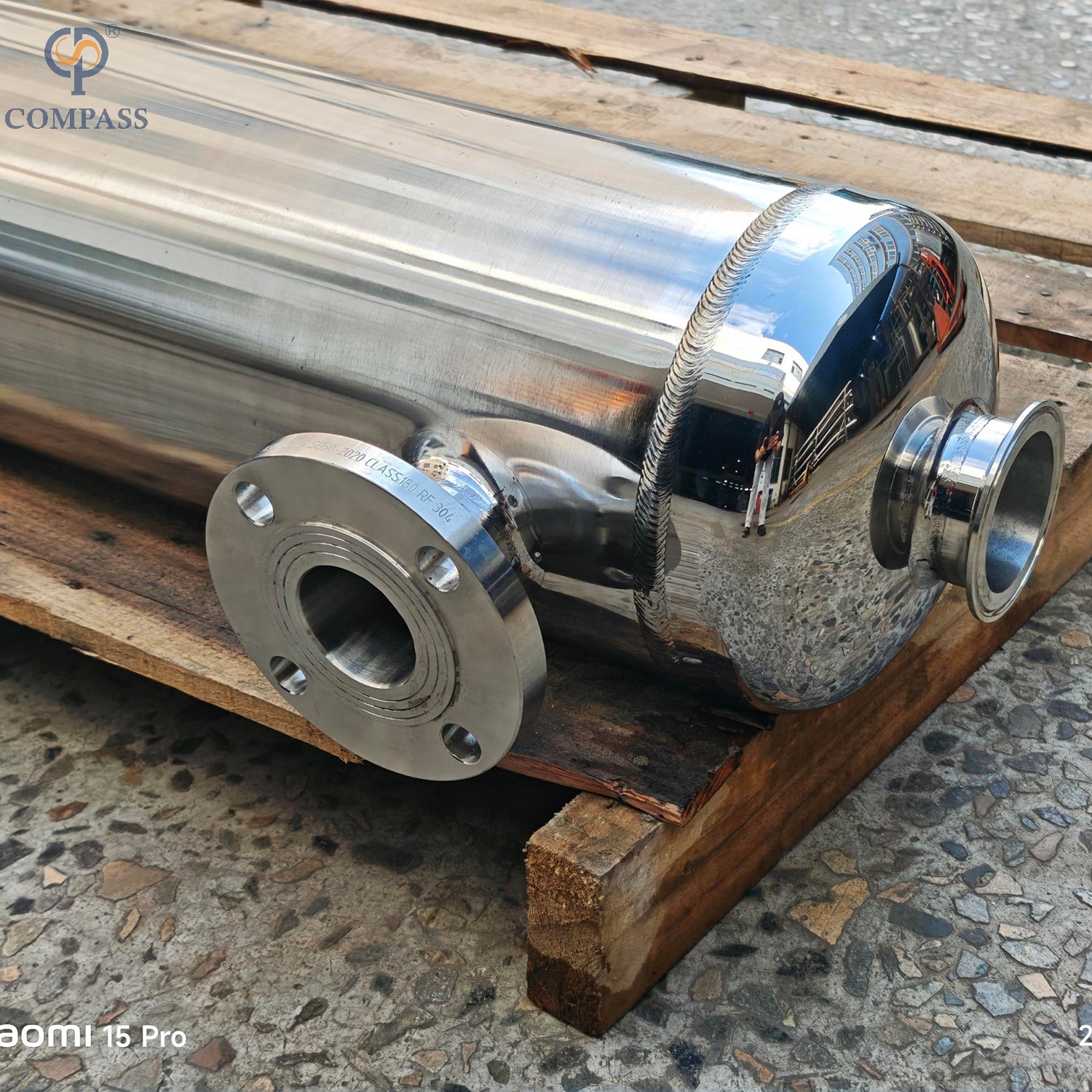

Connection	Union, Internal Thread, Tri-clamp, Flange
Max. Pressure	10bar (145psi)
Workingl Pressure	0-6bar (0-87psi)
Design Temperature	14 ~ 392°F (-10ºC~+200 ºC)
Internal Surface Finish	Ra<0.5μm
Installed Position	Vertical, Horizontal

Feature

Point cooling for water injection
2.SIP disinfection and sterilization for water injection system
3.Point cooling for purified water
4.Pasteurization of purified water system
5.Heating for CIP purified system
6.High purity water cooling
7.Condensation and cooling of clean steam 8.Cooling and heating of high clean liquids

Structural Principles

In the tube side and shell side of a fixed tube sheet heat exchanger, fluids at different temperatures flow through and heat exchange is completed. When the temperature difference between the two fluids is large, a compensation ring (expansion joint) is usually added at an appropriate position on the shell side to avoid high temperature difference stress. When the thermal expansion of the shell and tube bundle is different, the compensation ring undergoes slow elastic deformation to compensate for the thermal expansion caused by temperature difference stress.

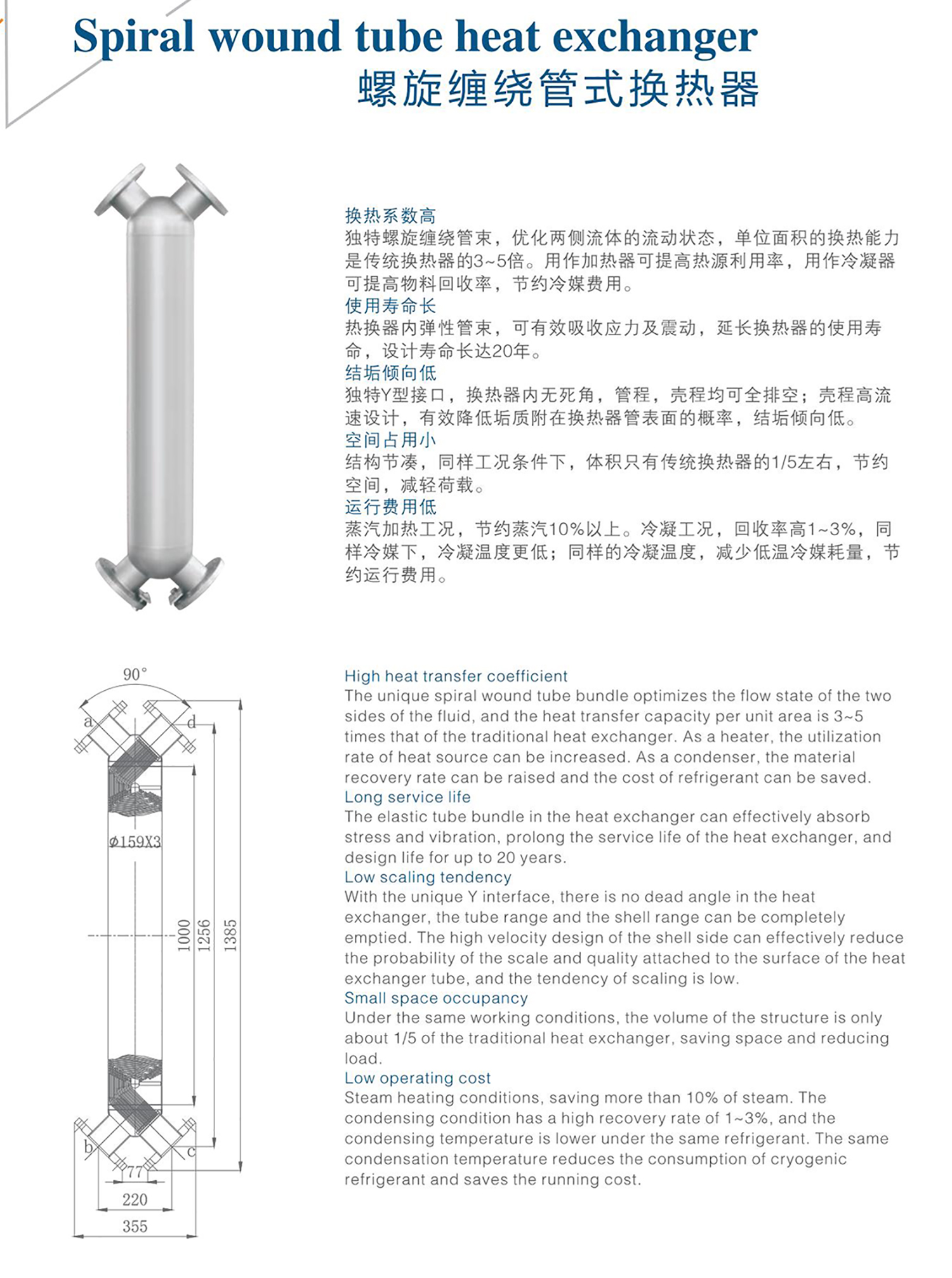

Advantages & Feature

1. Less use of forgings, low cost
2. Simple design, easy to maintain
3. No internal leakage;
4. Suitable for higher pressures and temperatures
5. Lower Pressure Drop
6. Easy to find Leaks
7. Less Prone to Fouling

How to order？

1.What's flow for purified water ?
2.What's purity water's inlet and outlet tempeture ?
3.What's heating steam inlet and outlet tempeture ?
4.What's flow for heating steam ?
5.What's heating steam pressure ?
6.What's connection type and size ?
