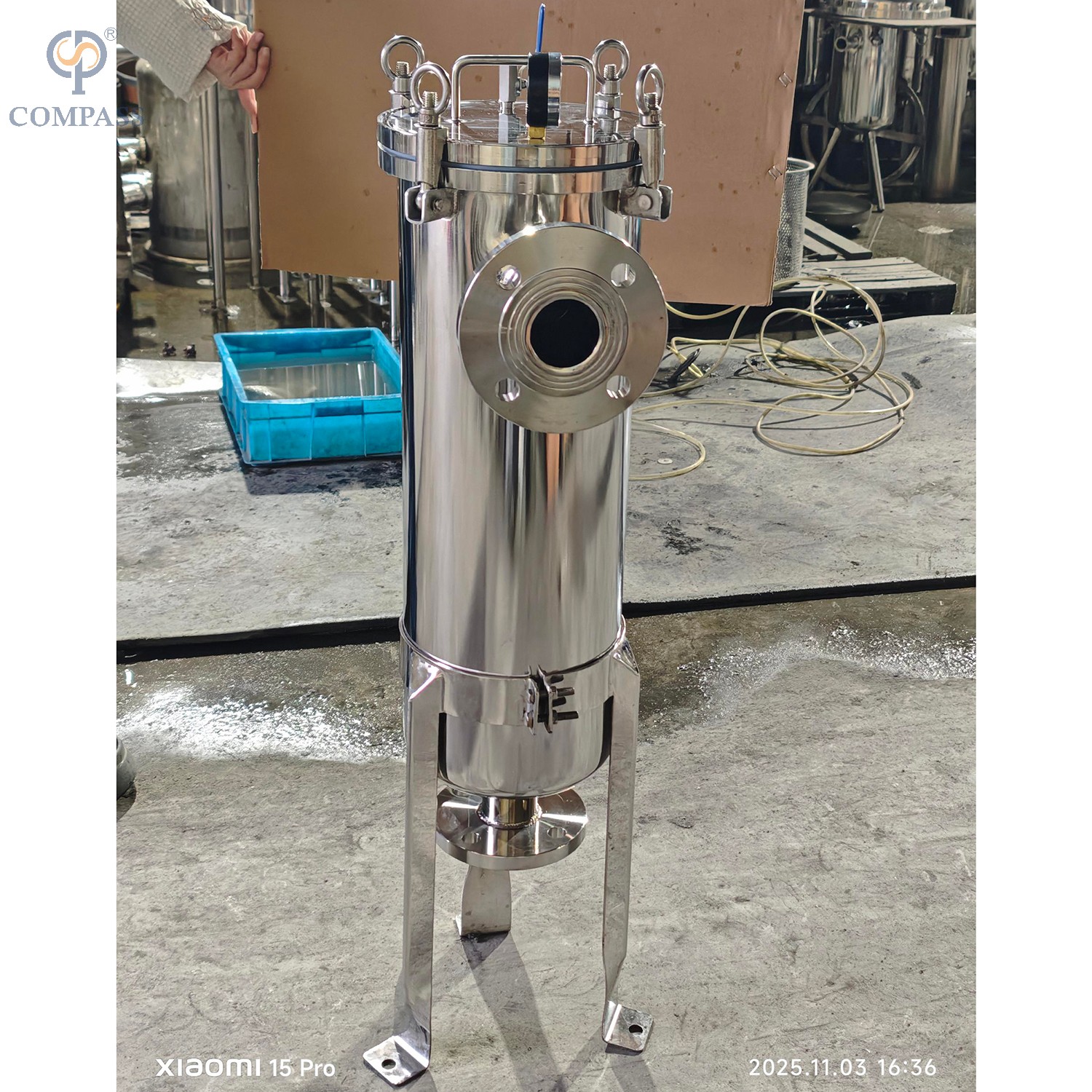

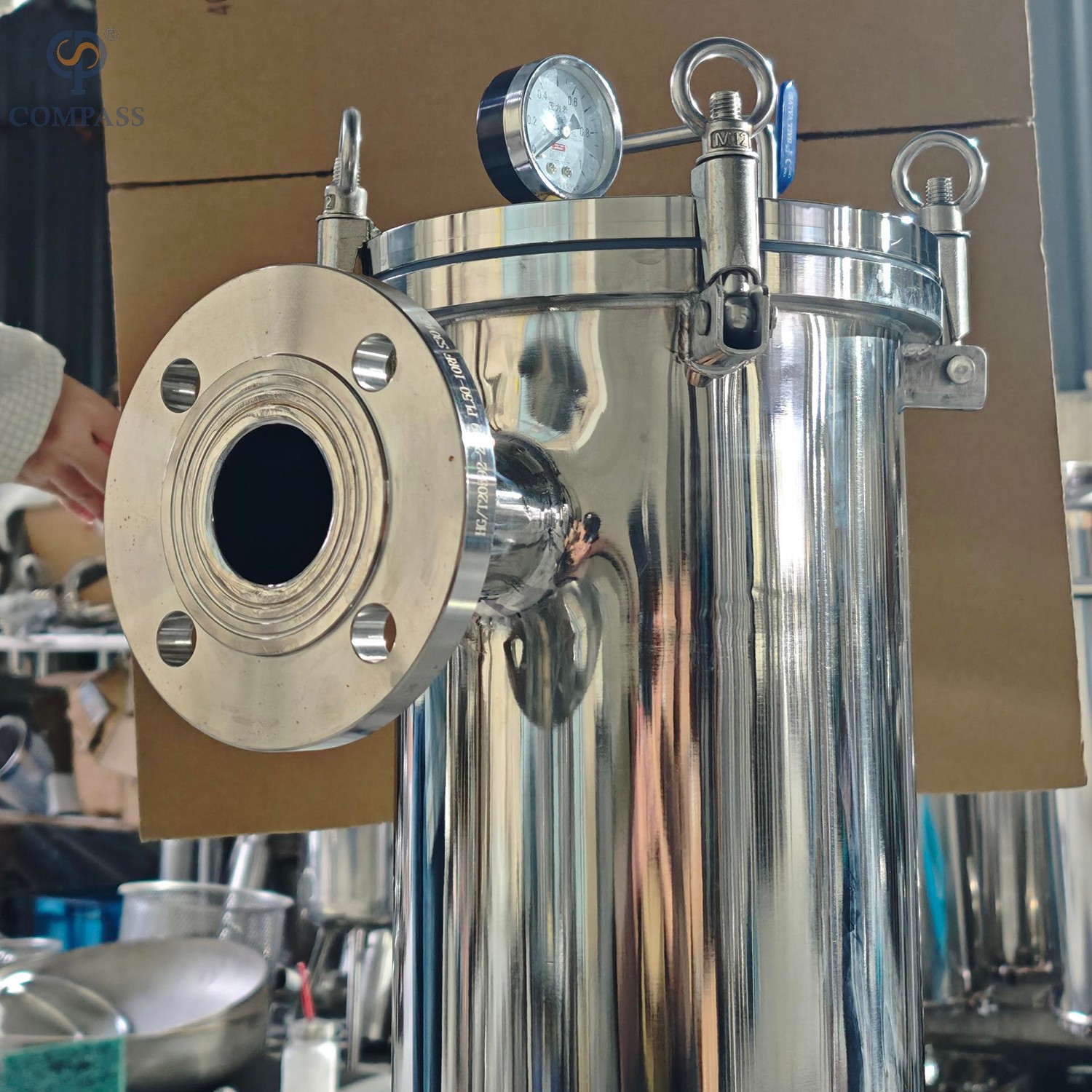

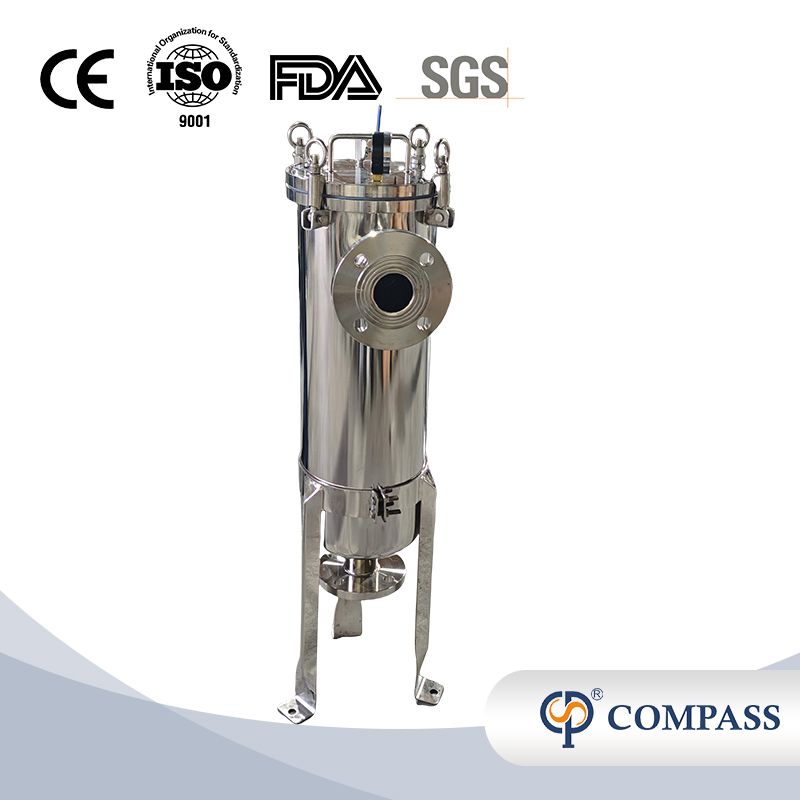

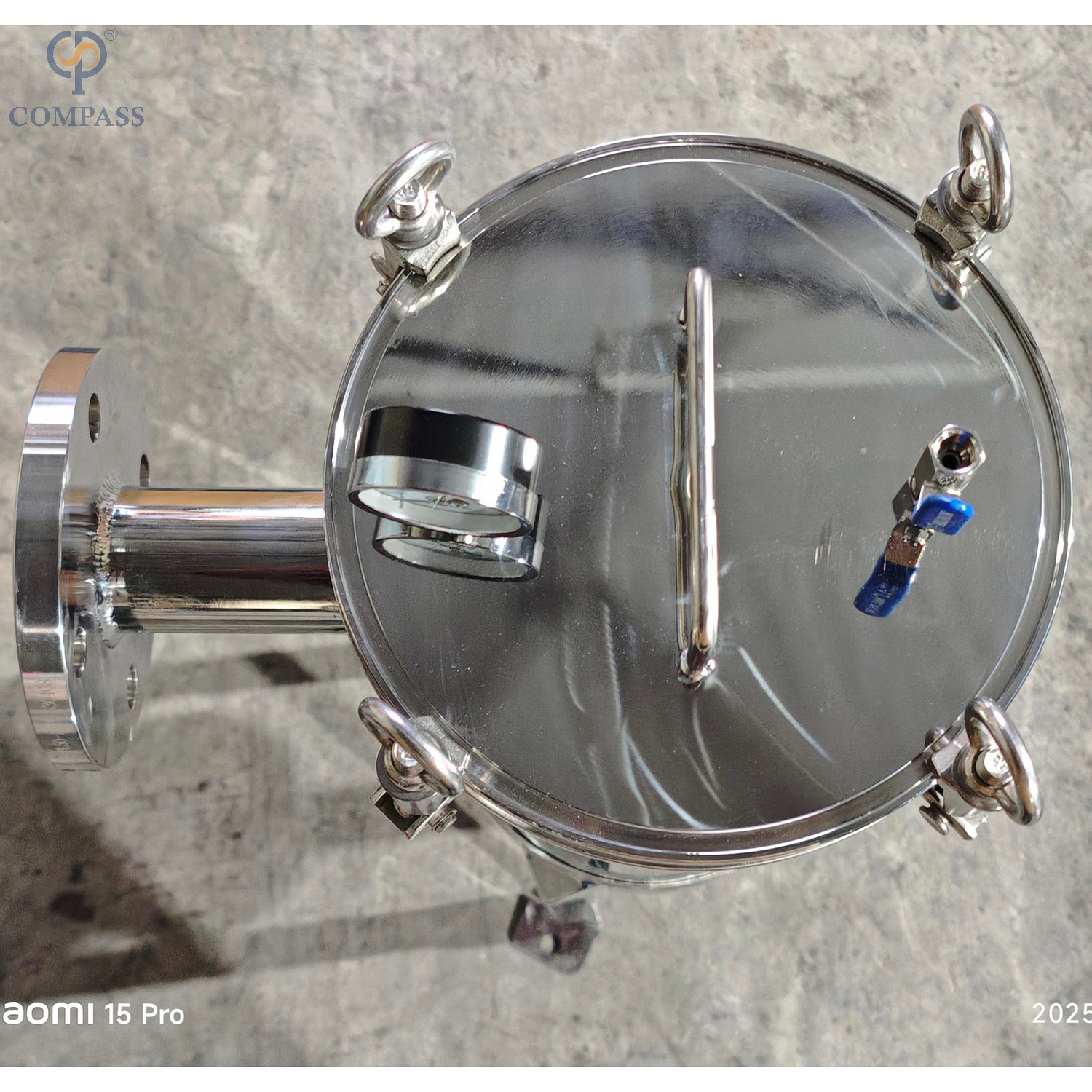

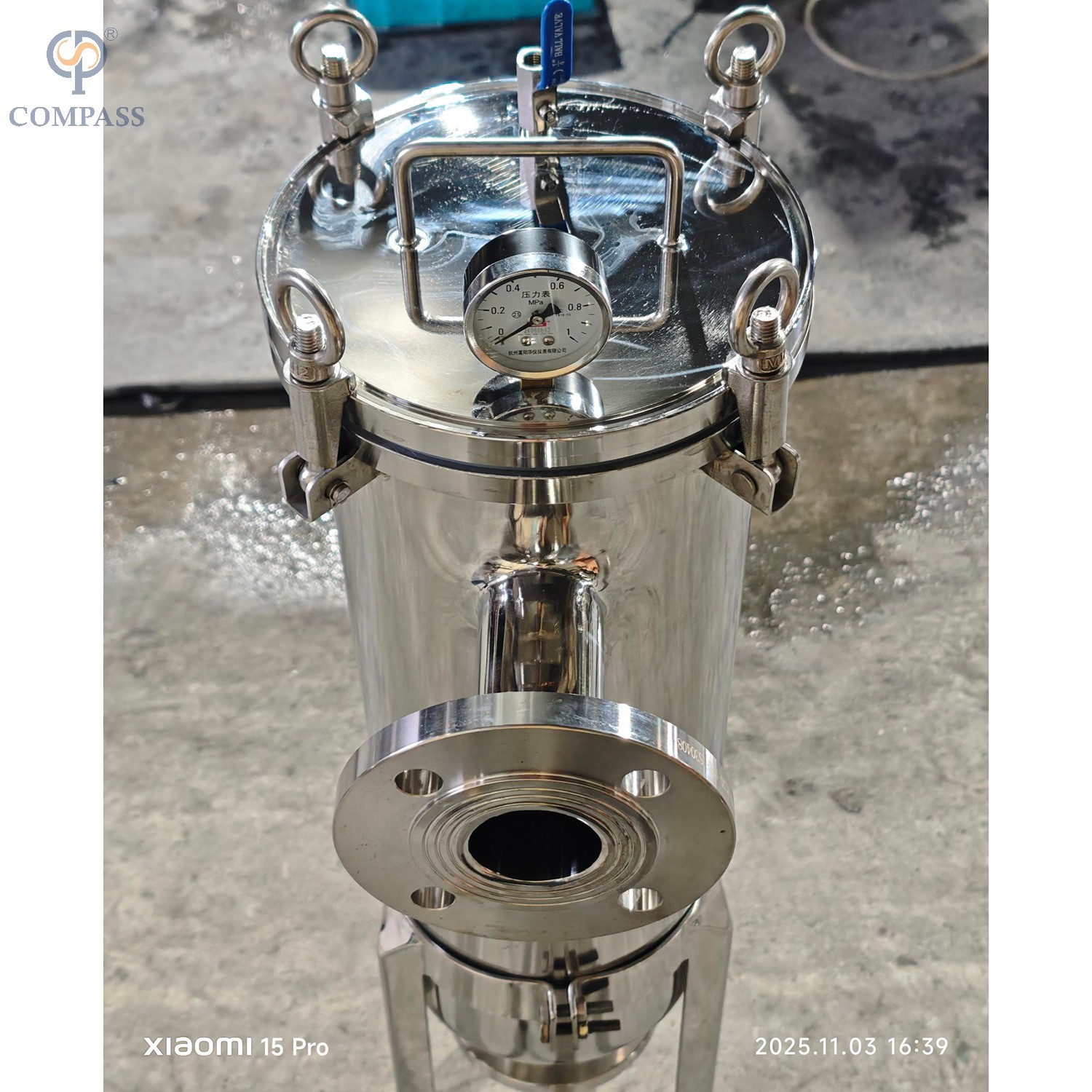

SS304 Stainless Steel Hygienic Side Entry Bag Filter with Plate Cover

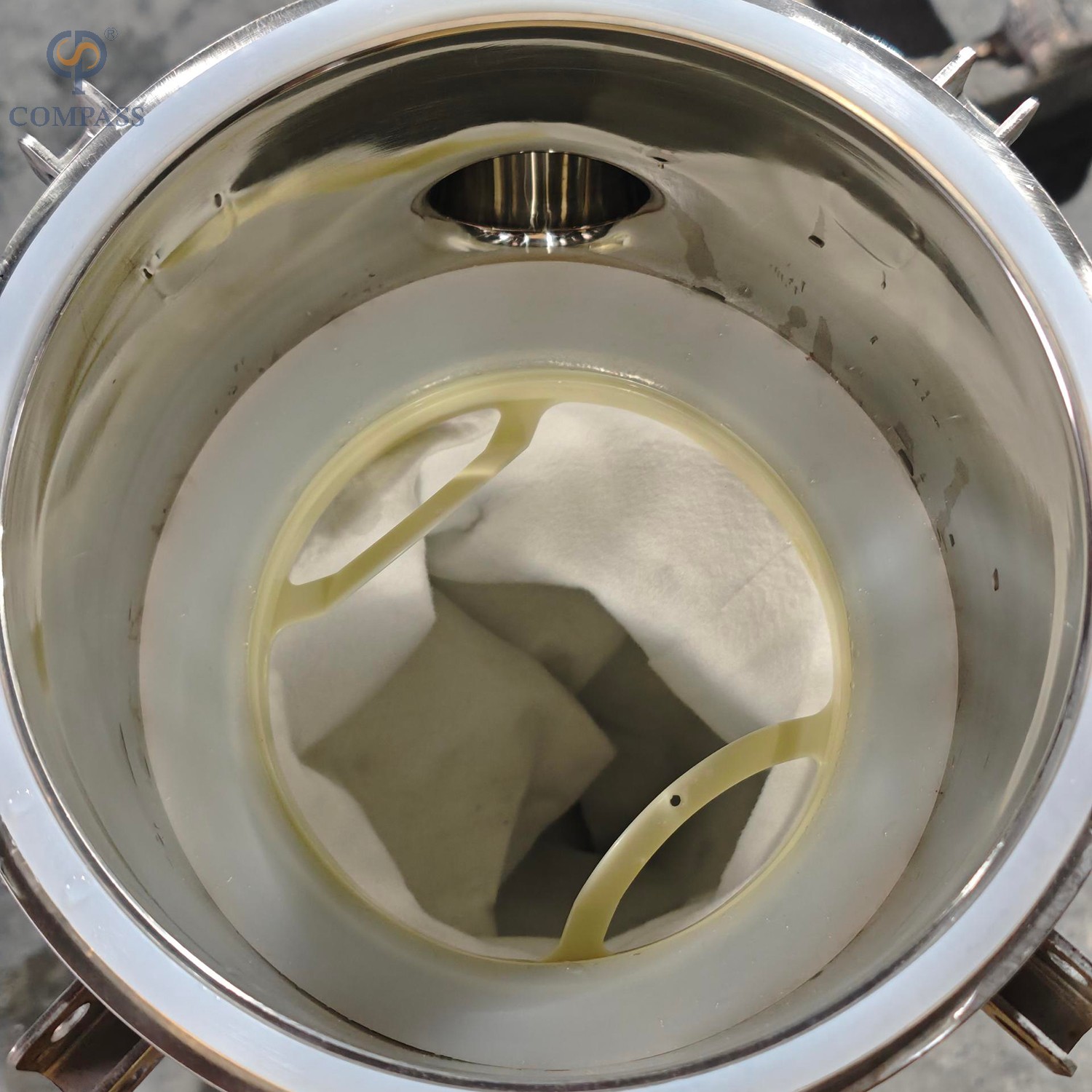

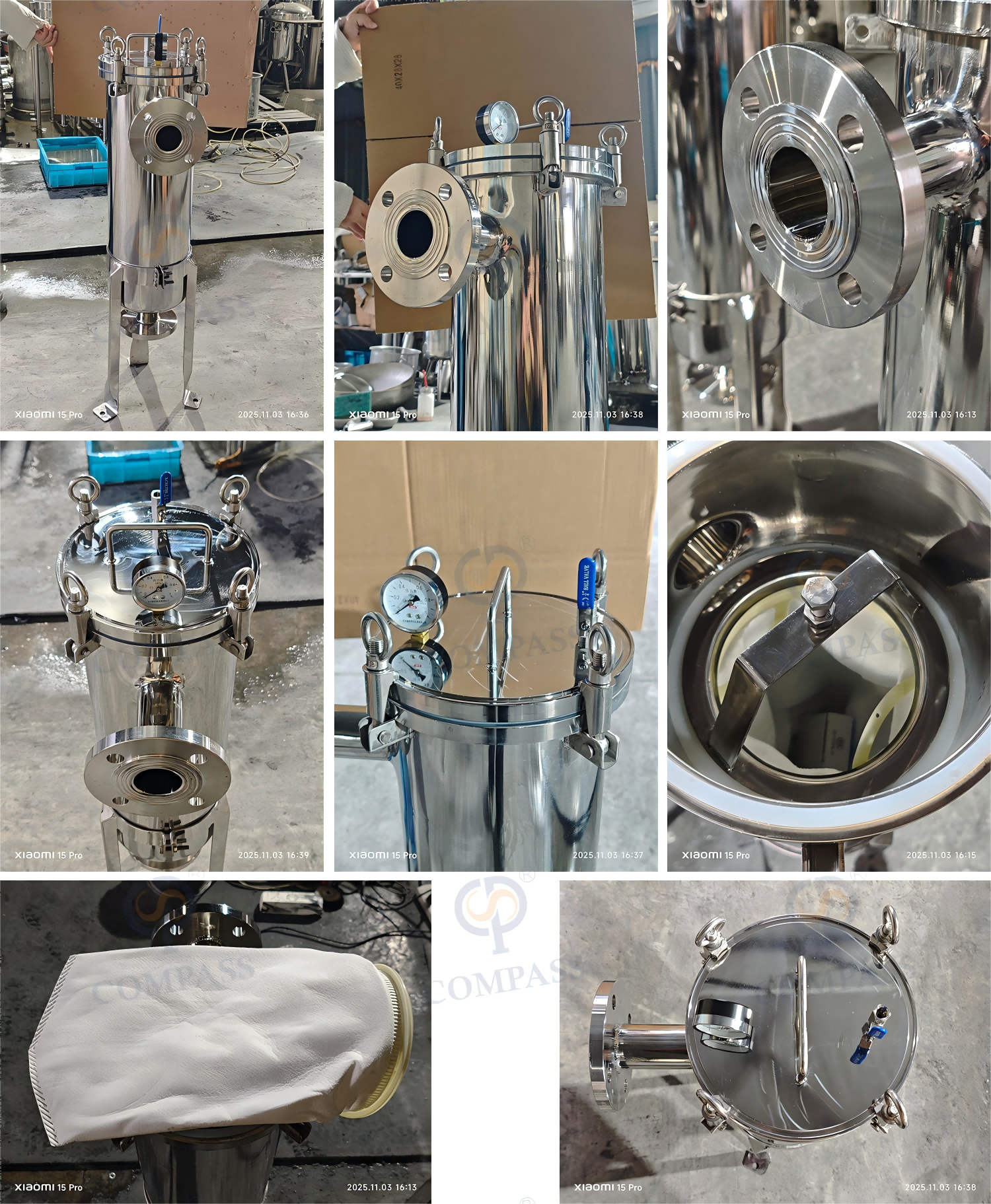

Single Bag filter adopts new filtration system.The metal basket inside the filter supports filter bag.The liquid flows in and out after the bag filtration.Theimpurities are trapped in the bag, After replacement of bag, it can work again.

Liquid Bag filter effectively removesdirt,pipe scale,and other cotaminants from process liquids such as water,beverage chemical and petroleum products.Bag filter can be used with the standard #1, #2, #3, #4 size bags or the standard perforated basket as a stainer. Mesh lined baskets are also available as an optional feature.Effective filtering area is rather big,achieving more efficient filtering result;It is more convenient and swift to change the filter bag,thus to lower operating cost, The adjustable height makes the filter applicable to different occasions.

Model:
1P-1S(1袋1号袋）
Brand:
COMPASS
Code:
030205AA1P1S-F-5um

Availability:

Quantity:



Inquire Add to Basket

Main Parameter

Flow Rate	0 to 100000 Liters per Hour
Model of Bag Filter	1#Bag, 2#Bag, 3#Bag, 4#Bag
Material Contact Parts	SS304/ SS316L (1.4301/1.4404)	Provided with Material Inspection Report
Material Non-contact Parts	SS304 (1.4301)
Type and Material of Bag	Suction Bag	Made of Non-woven Fabrics and Oil-absorbing Material, Both Filter Has Oil-absorbing Function
	Activated Carbon Filter Bag	Effectively Absorbing Pigment and Smell
Seal Material	Silicone, EPDM, FKM, PTFE. All Seals Material Comply with FDA21CFR117.2600
Mesh Size	3Mesh to 400Mesh, 37Micron to 6730Micron, 0.037MM to 6.730MM
Connection	Butt Weld, Tri Clamp, Male Thread, Female Male Threaded, Union, Weld Thread, Flange
Max Operating Pressure	≤10bar(145psi)
Max Operating Temperature	150 Degree Celsius
Basket Polish Precision	Ra≤0.6um
External Surface Treatment	Ra≤0.8um
Internal Surface Treatment	Ra≤0.6um
Type of Finish Polished	Mechanical, Electrolytical Polishing, Sand Blasting
Warrenty	One Year
Support	OEM, ODM Are Welcome
Application	Food and Beverage, Liquor, Dairy Industry, Edible Oil, Water Treatment, Fine Chemicals, Pharmaceutical

Features

1.The bag filter has large flow rate capacity, small volume and dirt holding capacity.

2.It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.

3.The side leakage rate of the filter bag is small, which greatly improves the filtration quality.

4.The bag filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.

5.Filter bag filtration accuracy has been continuously improved and has reached 0.5um.

6.The bag filter has a wide range of applications, flexible use and various installation methods.

Technical specification

1. Material: SS304, SS316L
2. Design vessel pressure: 6~10Bar (87PSI~150PSI)
3. Operate temperature: -4ºF~302ºF (-20°C~150°C)
4. Filtering accuracy: 0.1-20um
5. Filter Bag type: 1#Bag, 2#Bag, 3#Bag, 4#Bag
6. Flow Type: Side Entry, Top Entry, S-Multi, B-Multi Bag Filter
7. Connection: Tri-clamped, Flanged, Threaded , Union, Welded
8. Inlet/Out Dimension: 1", 1.5", 2", 2.5", 3", 3.5", 4"
9. Material of Gasket: EPDM, Viton, Silicone, Buna
9. Surface Finish: Mirror Polish, Electrical Polish, Acid Washing, Matt Polish, echanical Polishing
10. Usage: Widely used in Food & Beverage, Wine Industry, Medicine, Chemical Industry, Electronic Industry and so on.

Suction bag: made of non-woven fabrics and oil-absorbing material, both filter has oil-absorbing function.

Activated carbon filter bag: and effectively absorbing pigment and smell.

Bag filter - composite metal filter basket, a new generation of basket filter pipeline launched in the field of filter elements, filter surface protective layer, filter layer, the diversion layer and enhancement layer optimization combinationthrough state of-the-art vacuum high-temperature composite technology combined into one, "durable, washable filter effect" outstanding advantages. The traditional structure of the filter basket is a simple superposition of the filter layer and enhancement layer them spot welding, there is easily damaged, intolerance backwash, accuracy deterioration ills. Our customers in the selection of the metal filter basket cleaning easier, the filtering effect is more stable, longer life. This filtering technology, customers reduce operating costs, maintenance and replacement costs of the filter basket, the most important is to have a stable filtration process and improve the quality of the final product.

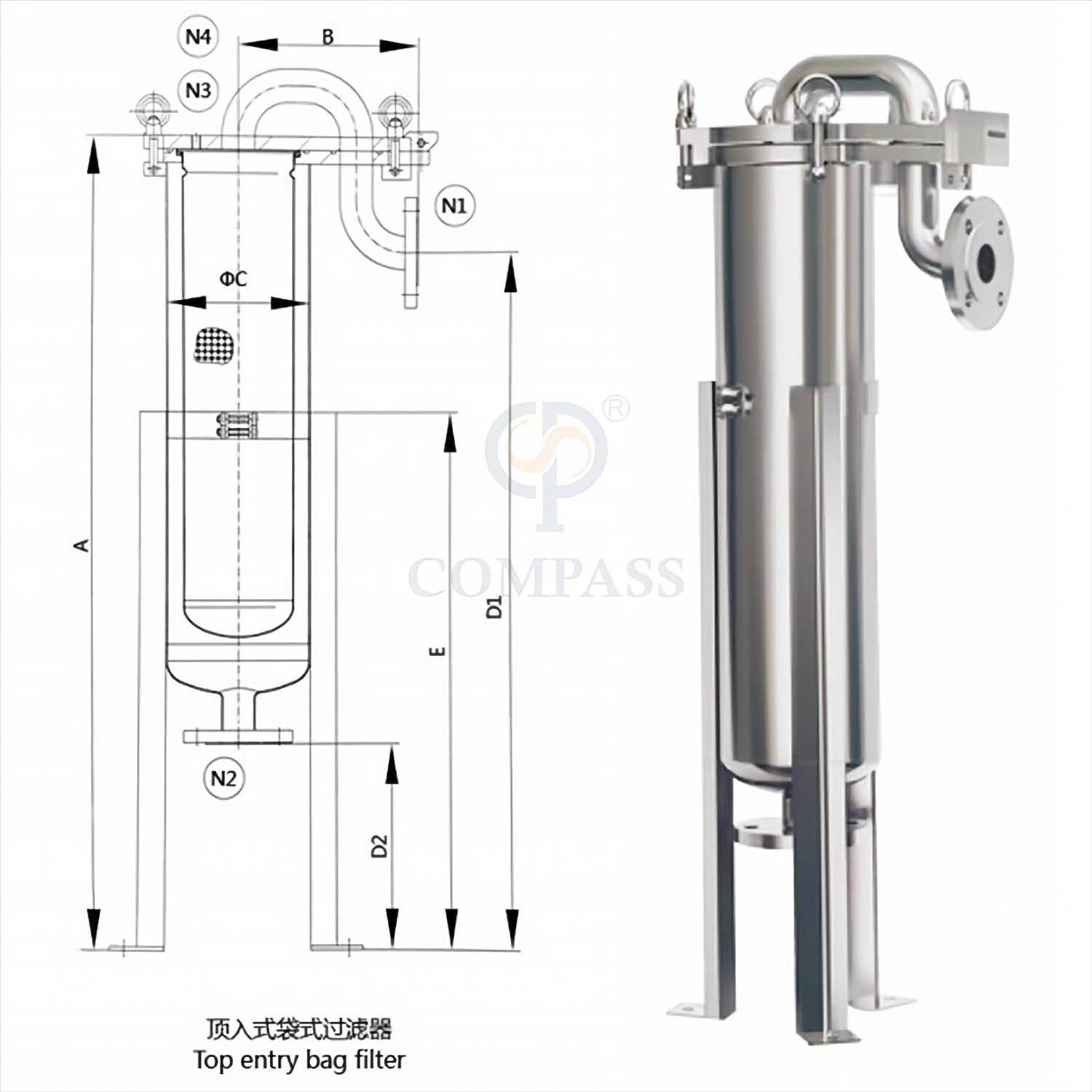

Dimension Parameters

S/N.	Description	Cover(MM)
S/N.	Description	1# Bag	2# Bag
A	Total Height	790	1110
B	Distance from Inlet to Center	275
C	Shell Diameter	Φ204	Φ204
D1	Height from Inlet to Ground	620	940
D2	Height from Inlet to Ground	200
N1/N2	Inlet-Outlet	1.5"or 2"
E	Adjustable Feet	550	700
Flow	Max. Flow m3/h	20	40

Selection Table

Qty of Bag Filter	Model of Bag Filter	Size of Bag Filter	Shell Material	In-outlet Connection	O-ring
1P	1S=1# Bag	180×430MM	SS304/SS316L	Flange,Tri-clamp,Thread	EPDM,PTFE,Vtion,Silicone
1P=1PC	2S=2# Bag	180×810MM	SS304/SS316L	Flange,Tri-clamp,Thread	EPDM,PTFE,Vtion,Silicone
	3S=3# Bag	105×230MM	SS304/SS316L	Flange,Tri-clamp,Thread	EPDM,PTFE,Vtion,Silicone
	4S=4# Bag	105×380MM	SS304/SS316L	Flange,Tri-clamp,Thread	EPDM,PTFE,Vtion,Silicone

How To Order Top Entry Bag Filter?

1. Which's material you need, such as SS304 or SS316L ?
2. How many flow rate, such as 10000 lilter per hour ?
3. What's product and viscosity of products used for bag filter ?
4. What's connection you need, such as butt weld, tri clamp, male thread ?
5. What's micron for bag ?
