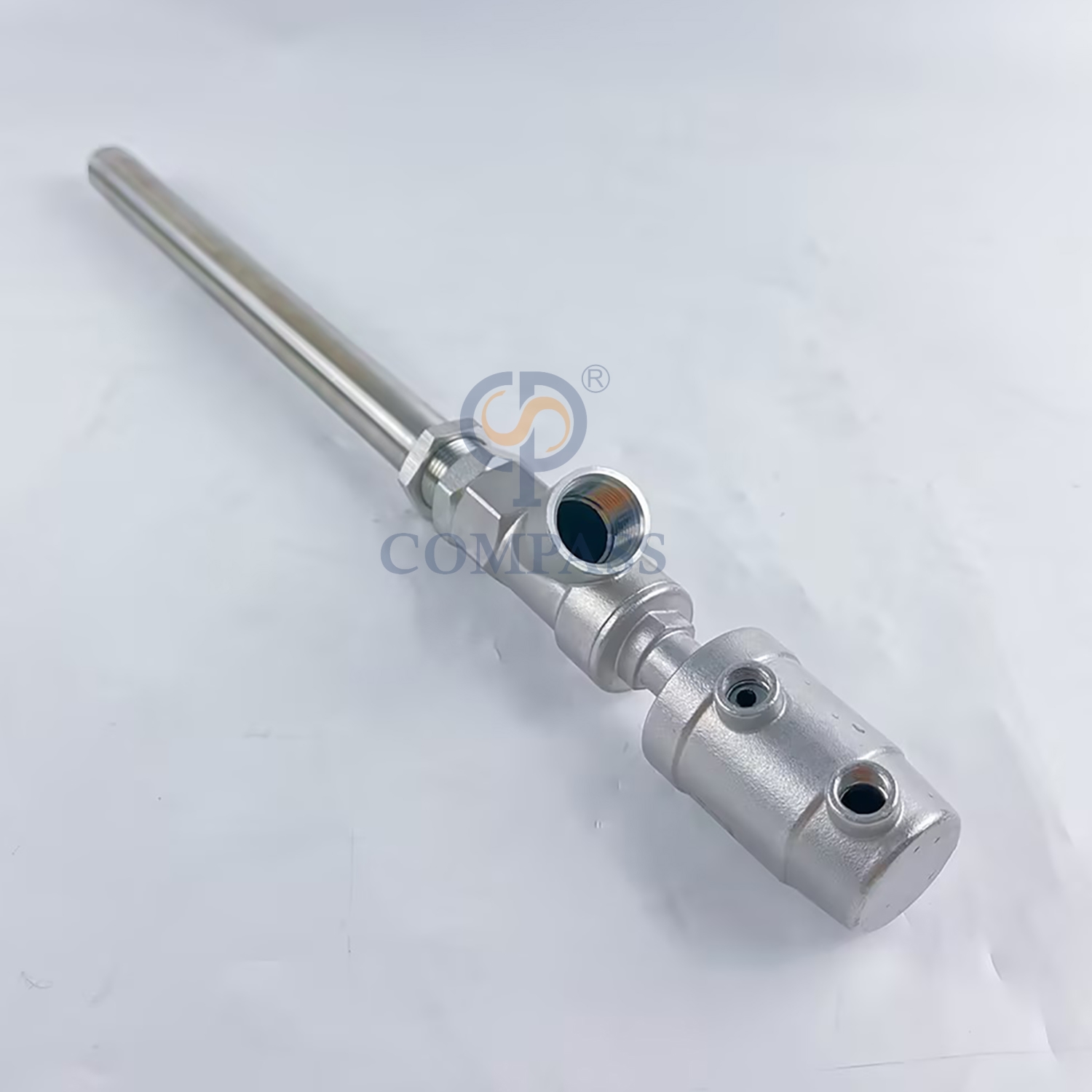

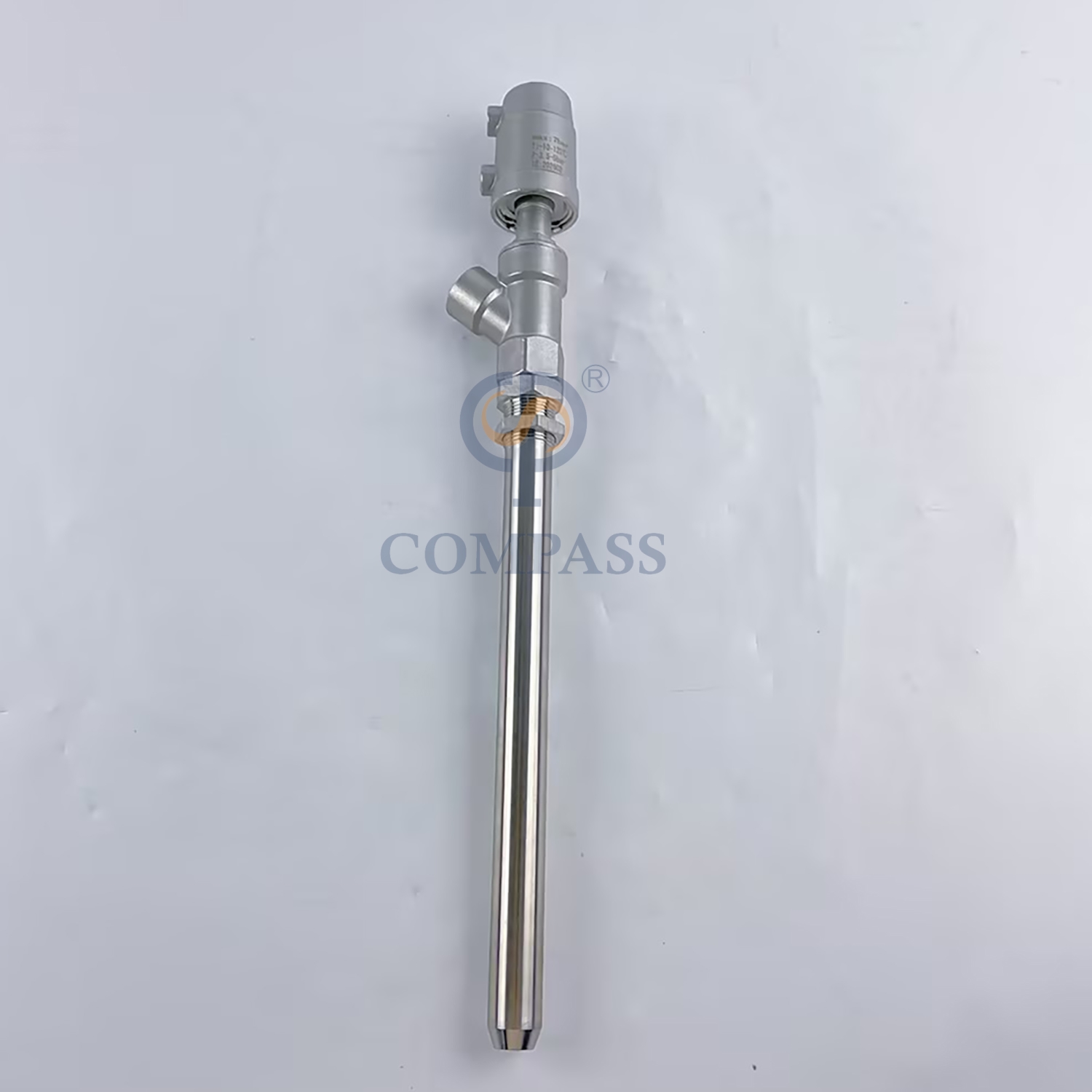

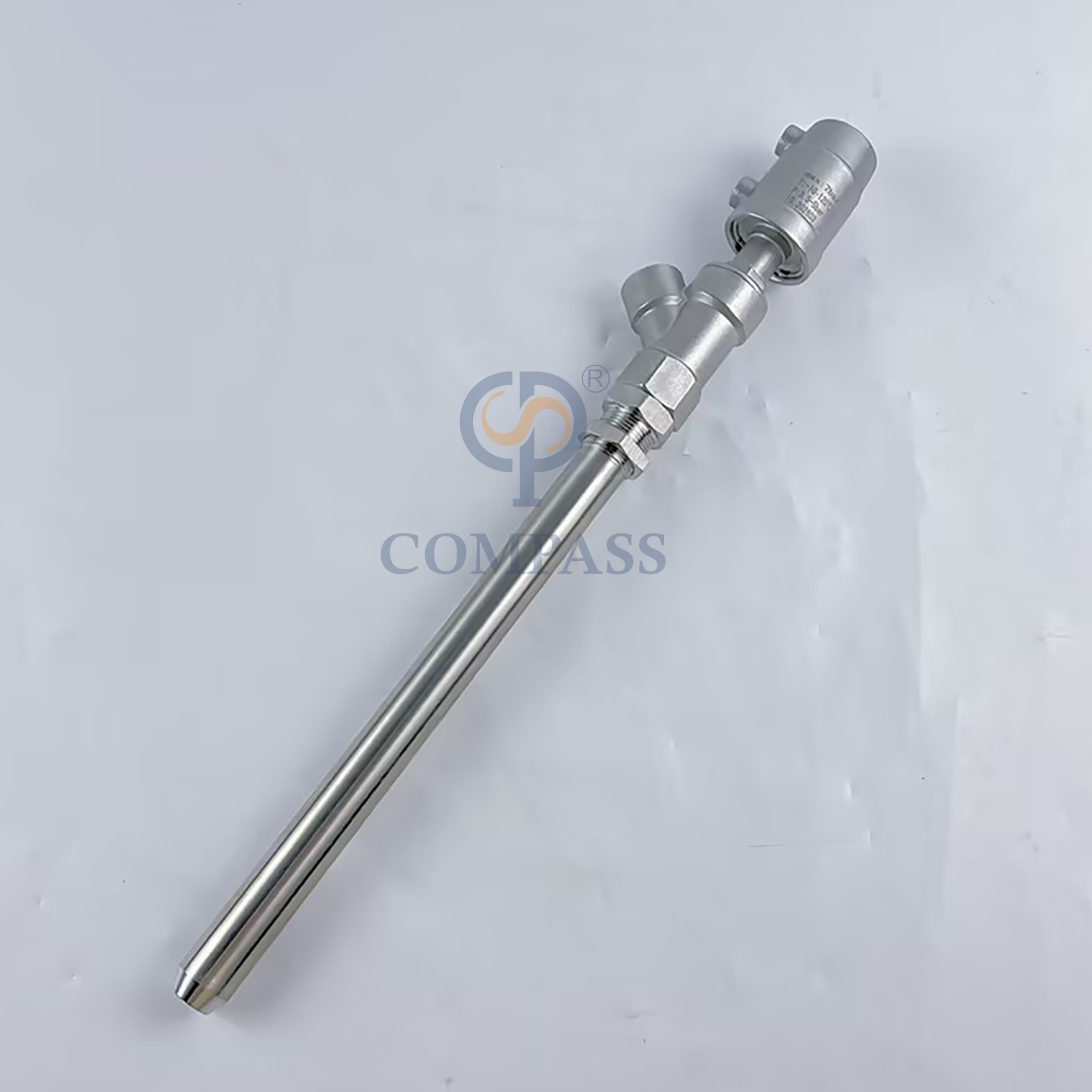

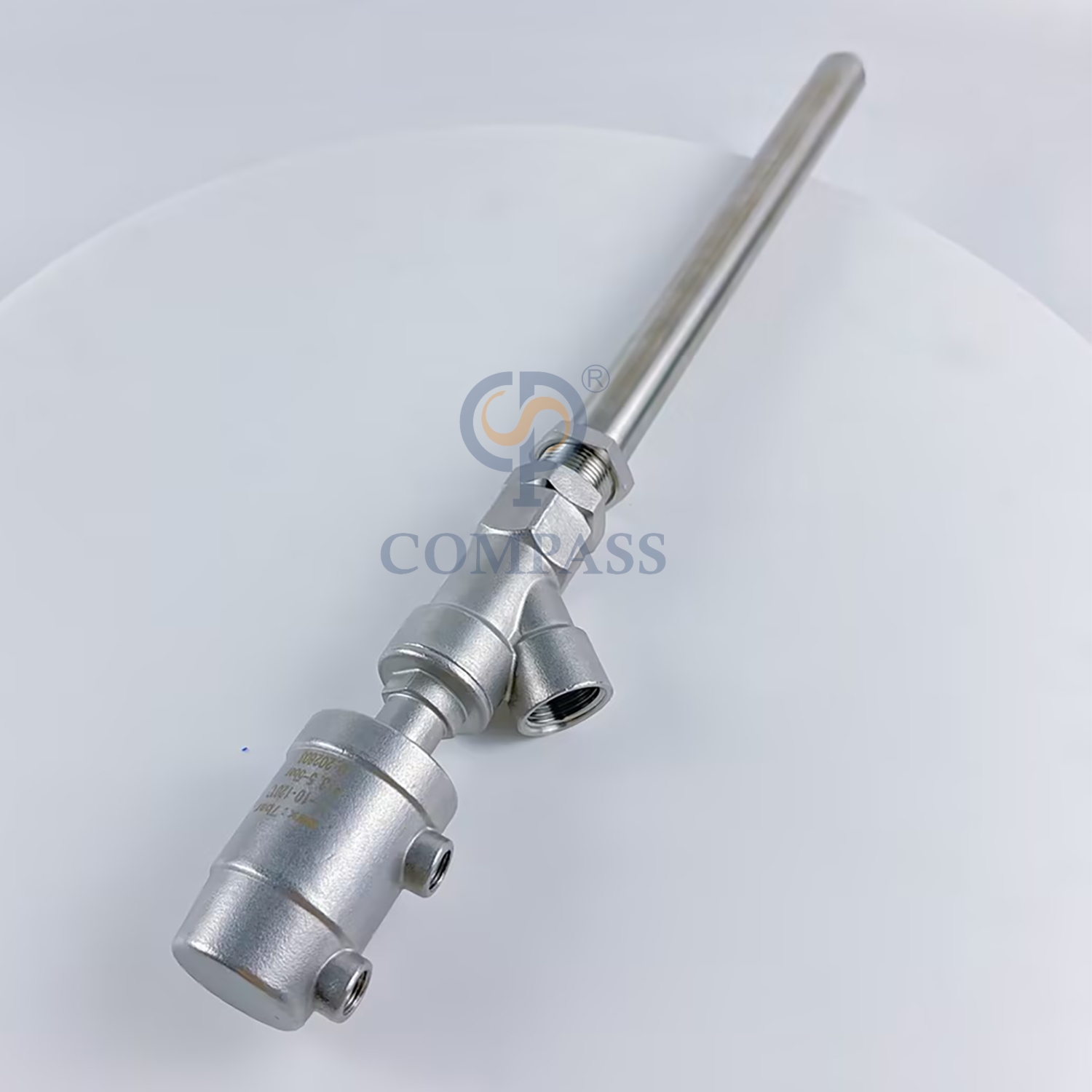

The Details of Product
Standard | DIN |
Material Contact Parts | SS316L(1.4404). Provided with material inspection report. |

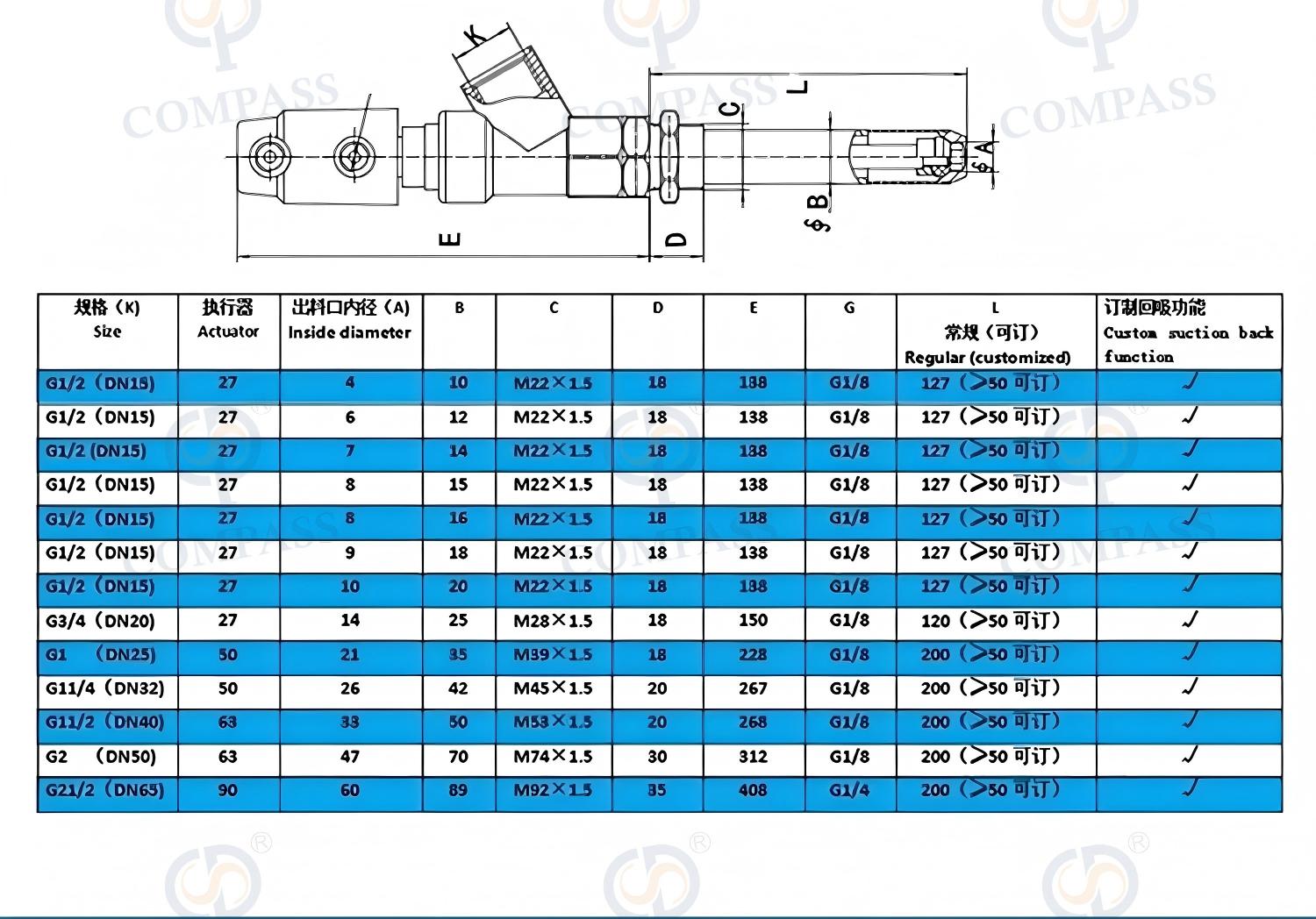

Size | DN15-DN65 |
Body Combination | Straight Way |
Connection | G Thread |
G Size | G1/8, G1/4 |
Power Option | Pneumatic Operated |
Working Pressure | ≤10bar(145psi) |
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
External Surface Treatment | Ra16~32uin(0.4~0.8um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
Working Principle
1. Equal pressure: The bottle mouth is sealed, and the pressure inside the bottle and the material box is balanced.
2. Liquid inlet: Pneumatic opening of the liquid valve allows the material to flow into the container while simultaneously venting.
3. Quantitative/valve closing: After reaching the set capacity, the pneumatic valve is quickly closed.
4. Relieve pressure/discharge residual liquid: Release the pressure inside the bottle, and the residual liquid flows into the container without dripping.
How to order?
1.What's material? SS304 or SS316L.
2.What’s size? Such as DN15-DN65.
3.What’s the required quantity?
