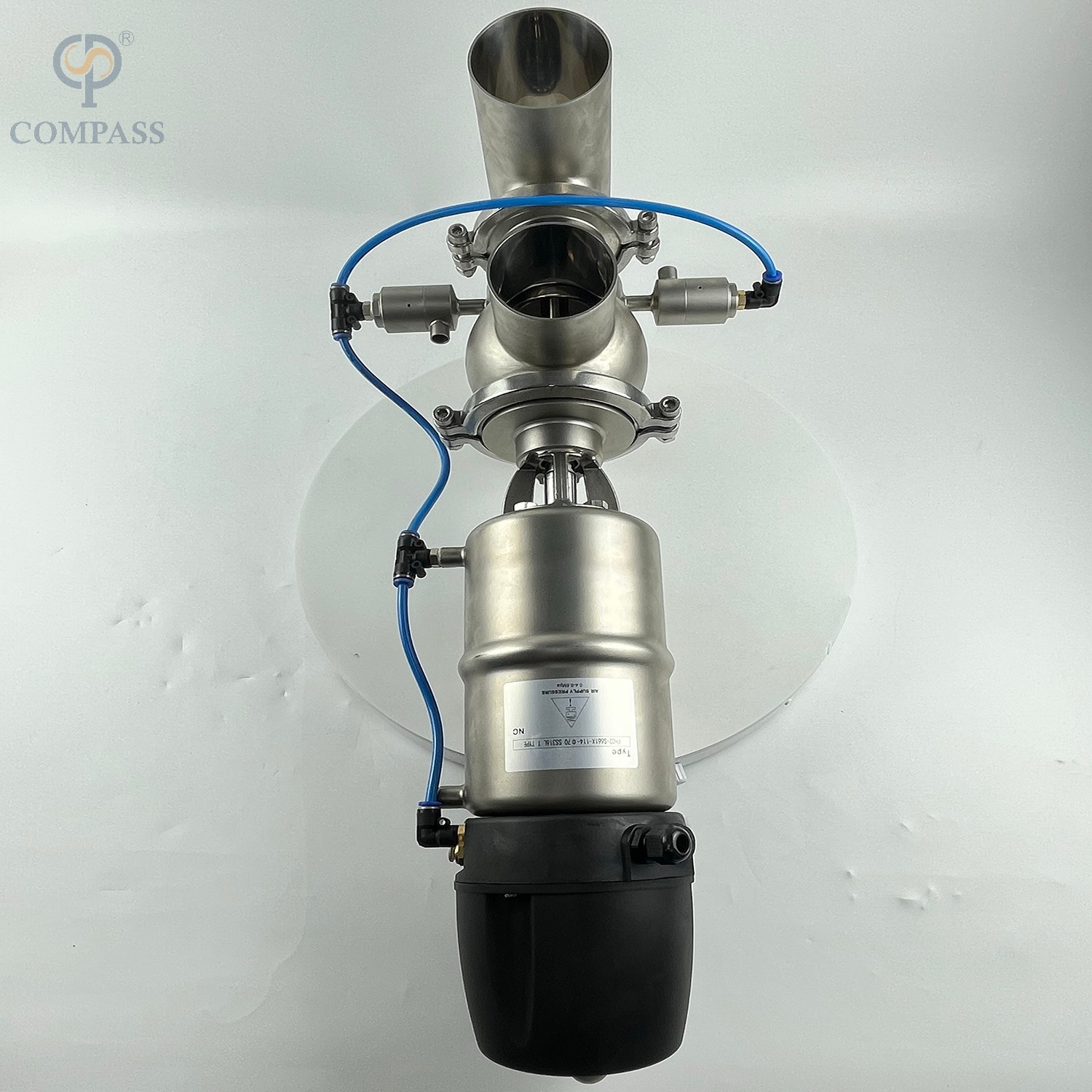

Main Parameter
Standard | SMS,DIN |
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |
|

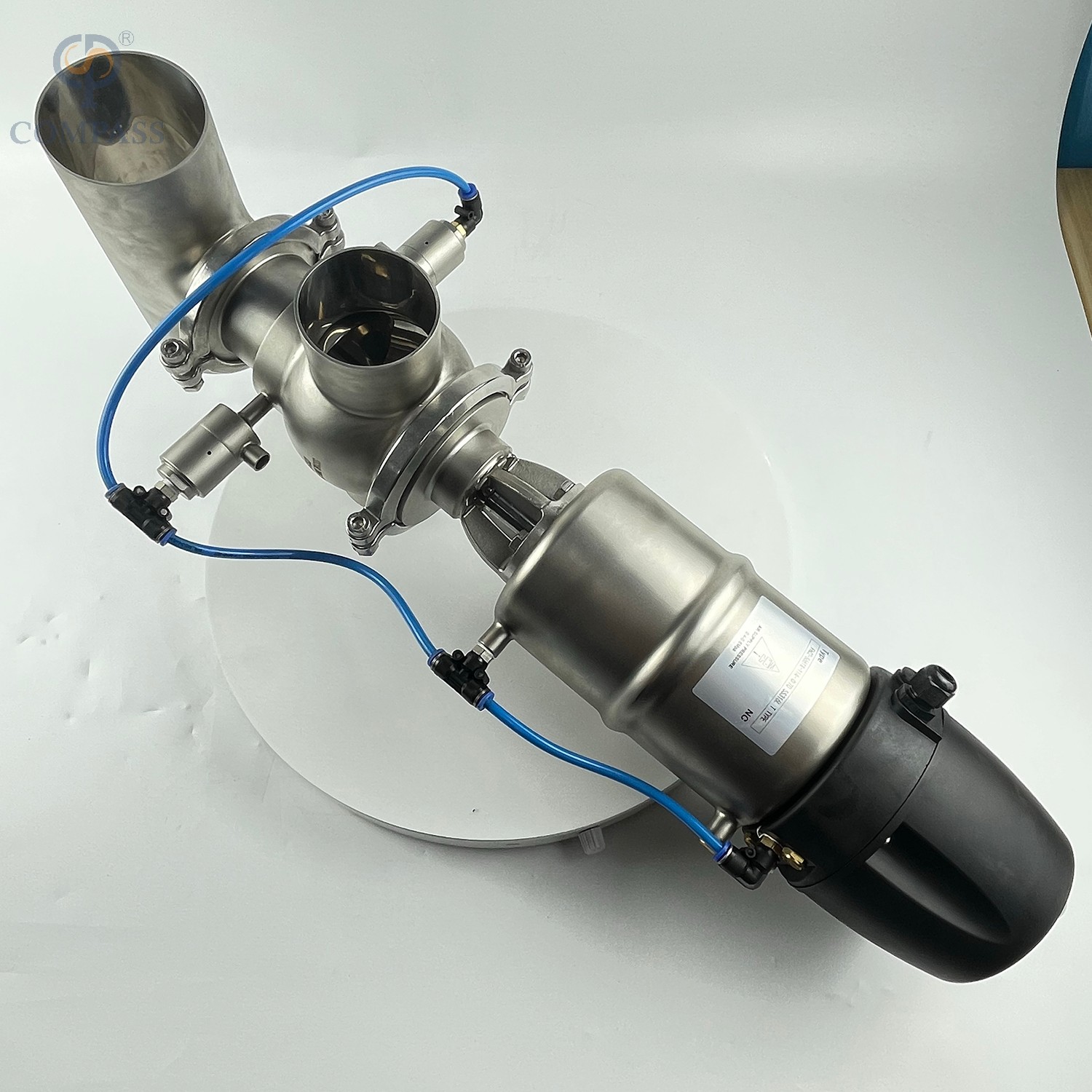

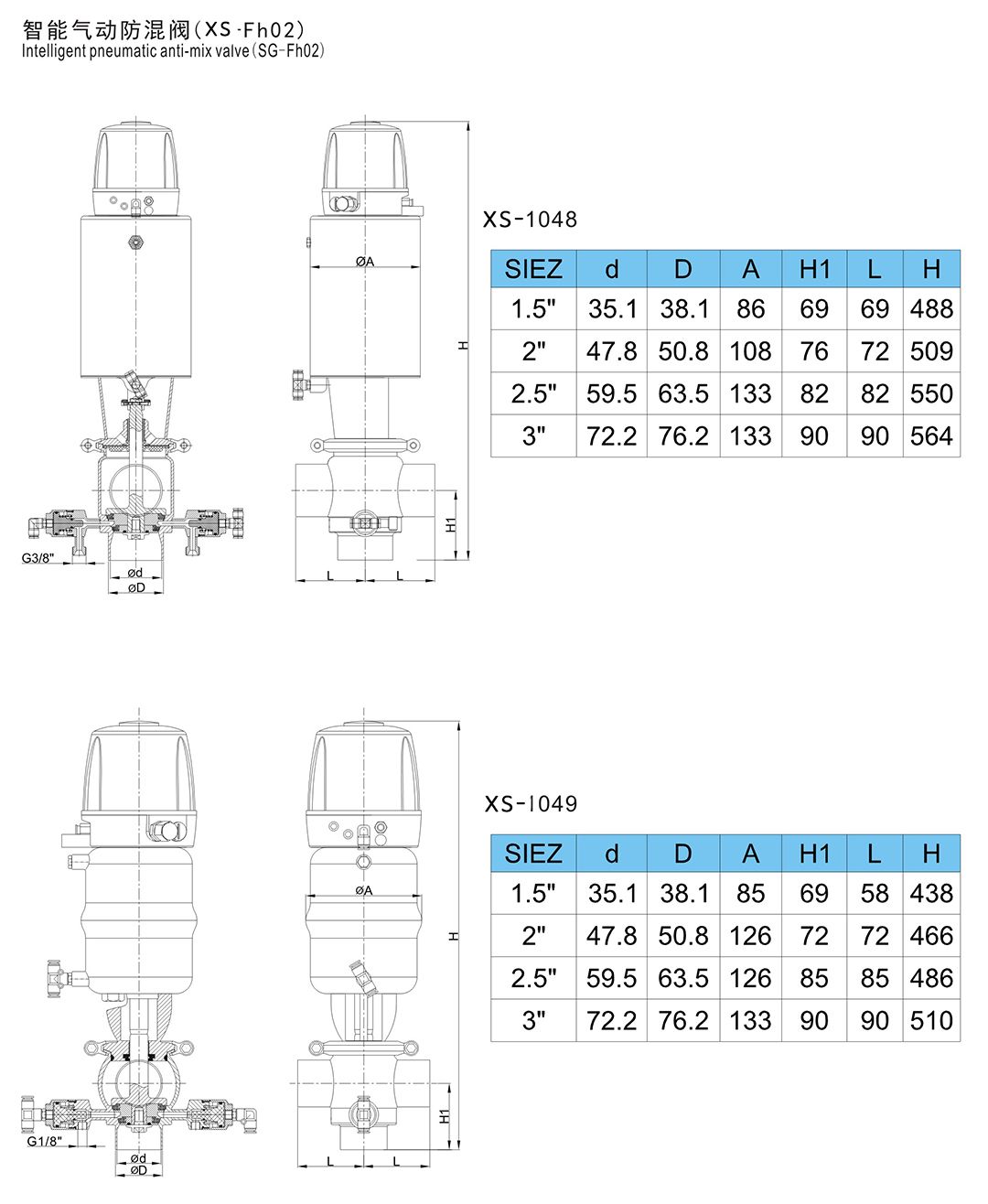

Size | 1.5"-4", DN40-DN100 |
Integrated Body Combination | T11 00°,T11 90°,T11 180°,T11 270°
T12 00°,T12 90°
T21 00°,T21 90°
T22 00°,T22 90° |
Assemble Body Combinatio | T11, T12, T21, T22 |
Connection | Butt-weld, Tri clamp, Male Thread, Female-Male Threaded, Union, Weld-Thread, Flange |
Seal Material | Silicone, EPDM, FKM, Buna. All seals material comply with FDA21CFR117.2600 |
Power Option | Position Sensor, C-top Controller, C-top Controller (AS-I) |
Proximity Switch | 6-36V DC, 2pc of NPN or PNP (Options) |
Input Power Supply | 24V DC |
Max. Working Pressure | ≤6bar(87si) |
Supply Pressure for Air Actuator | 4~8bar(58psi~116psi) |
Compressed Air Connection | Furnish Air Pipe with Air Connector G1/8" |
Working Temperature Range | -10~120 ºC (14 ~ 248ºF) |
External Surface Treatment | Ra32~64uin(0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |

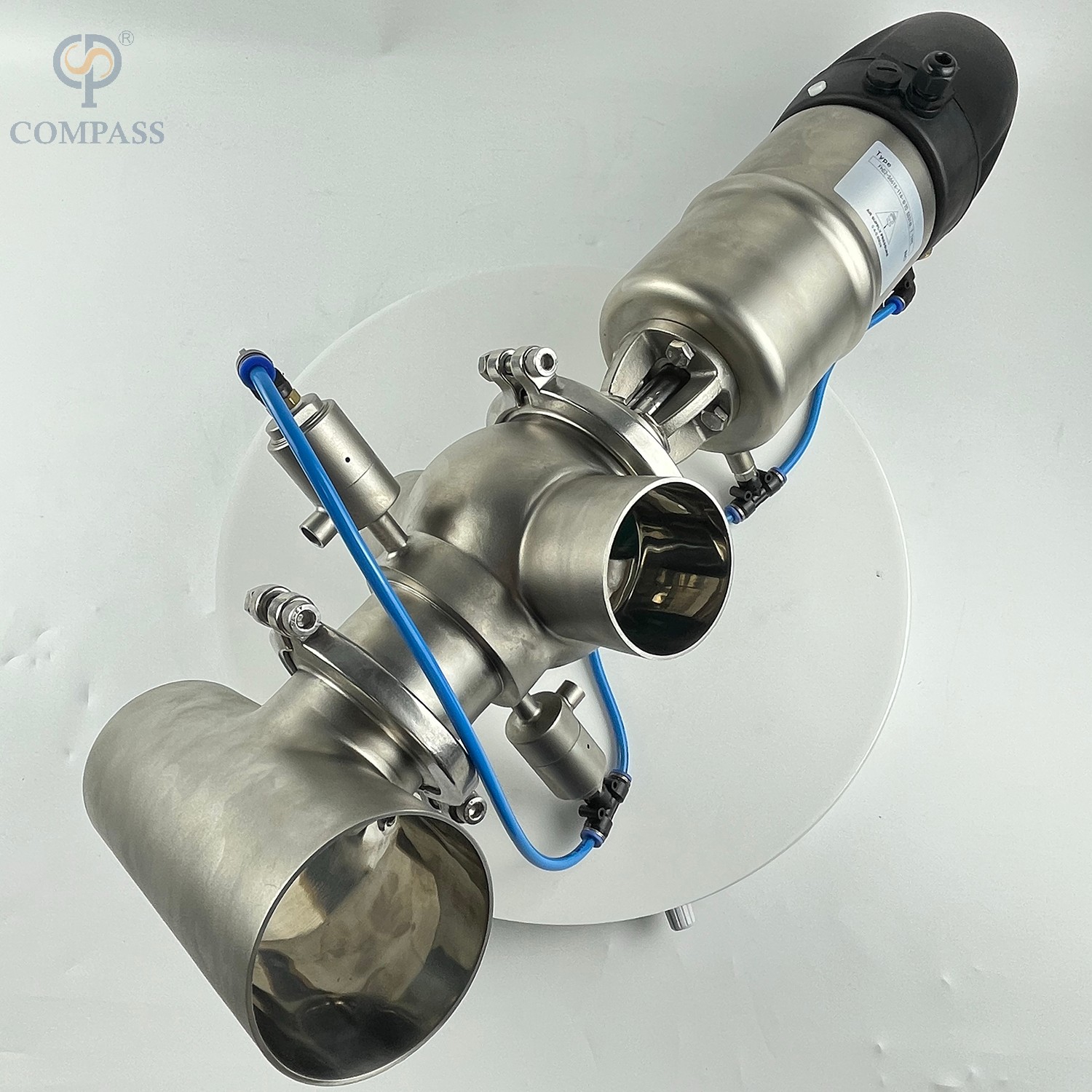

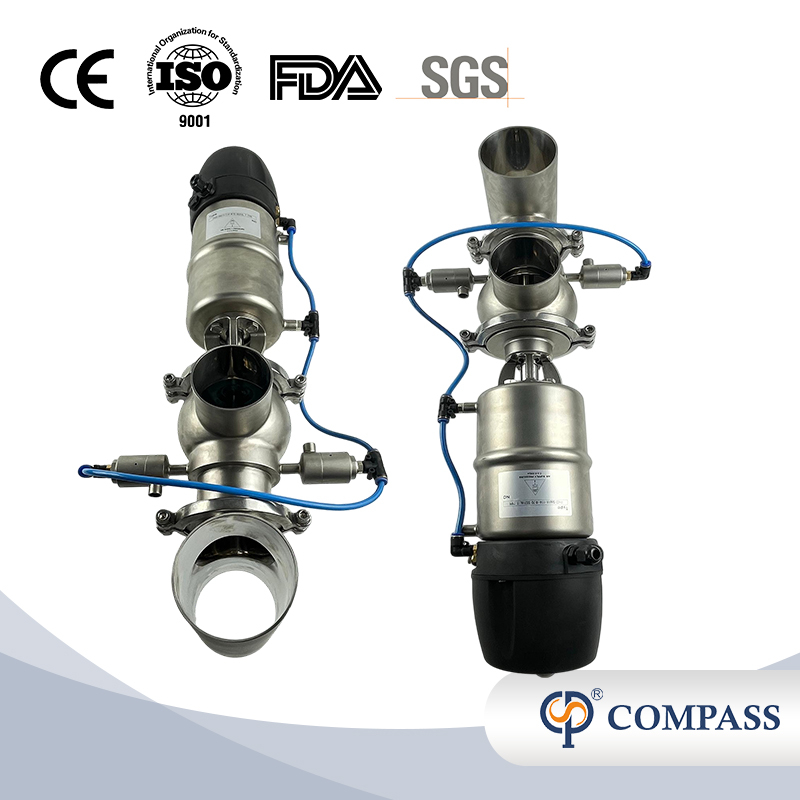

Certificate | ISO 9001, FDA, SGS, CE |
Support | OEM & ODM are welcome |
Application | Beer, Beverage, Dairy, Food, Fruit Juice, Pharmacy, Biological, Toothpaste, Cosmetics and so on |
Quality requirement for compressed air used in actuator | Compressed air connection: Furnish air pipe with air connector R1/8" Maximum particle size: 0.01mm Maximum oil content: 0.08ppm Dew point: 10ºC or lower below atmospheric temparture Maximum water content: 7.5g/kg |
Options
1.Various standards can be provided: SMS,DIN 2.Material contacts parts: SS304 and SS316L
3.Available in sizes from 1.5" to 4", DN40 to DN100 4.The gasket can be Silicone,EPDM,FKM,Buna.
All seals material comply with FDA21CFR117.2600
5.Connection can be butt-weld, tri clamp, male thread, female-male threaded,weld-thread, flange or others upon request.
6.Power operated: Position Sensor, C-top Controller, C-top Controller (AS-I) 7.The valve body can be customized
with a wide selection of different connections.
Technical Specifications
Max. Working Pressure≤6bar(87si) Supply Pressure for Air Actuator: 4~8(58psi~116psi) Temperature range:
Domestic Silicone:-22 ~ 302°F (-30~150ºC)
Domestic EPDM:14 ~ 230°F (-10~110ºC)
Importing Silicone:-40 ~ 392°F (-40~200ºC)
Importing EPDM:-13~ 266°F (-25~130ºC)
Buna:5~ 212°F (-15~100ºC)
FKM:14 ~ 392°F (-10ºC~200ºC )

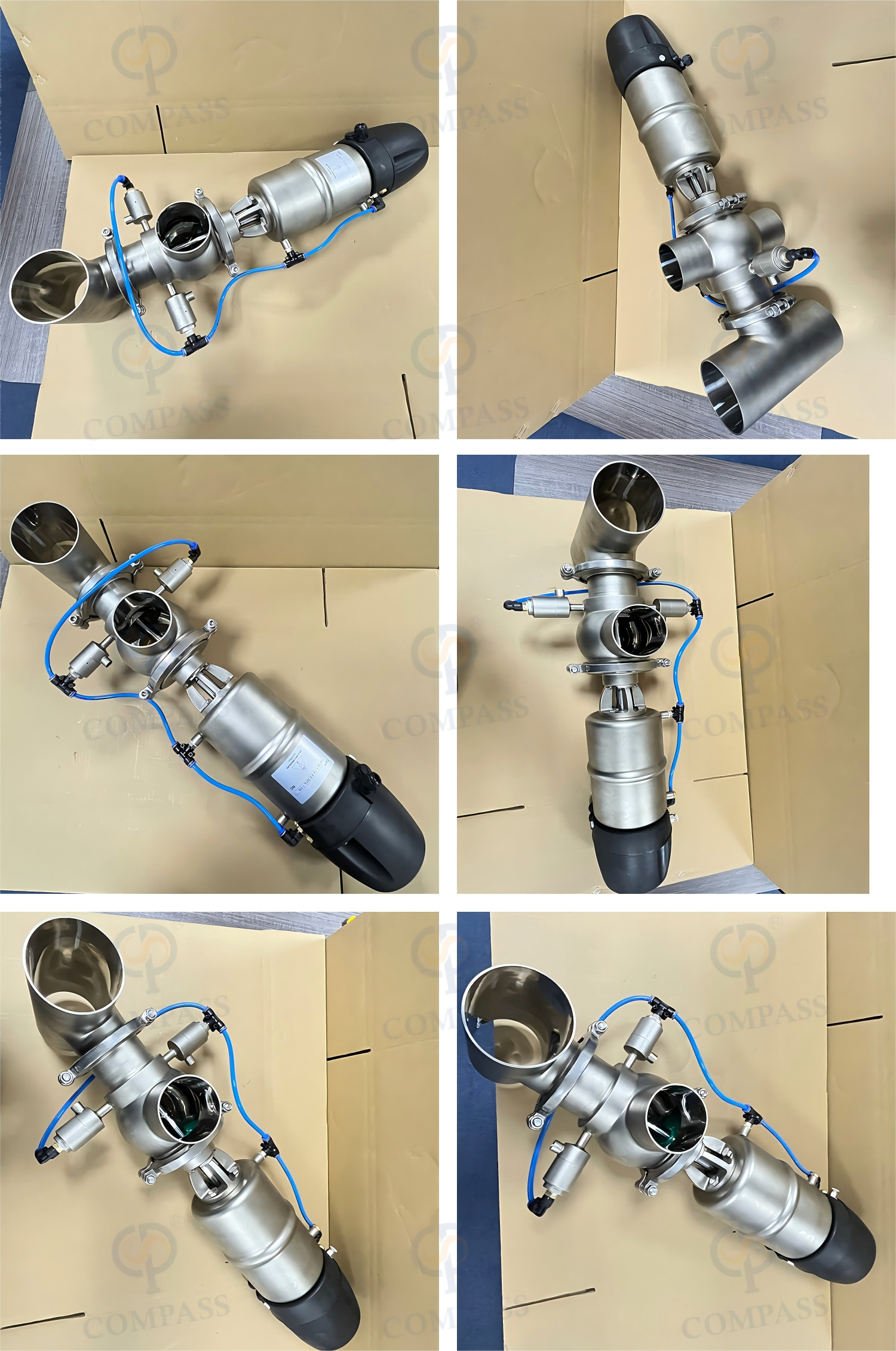

The advantages Compared with Traditional Design
1.Less components
2.Less space
3.Easier maintenance
4.No dead corner
5.No contact between drain systerm

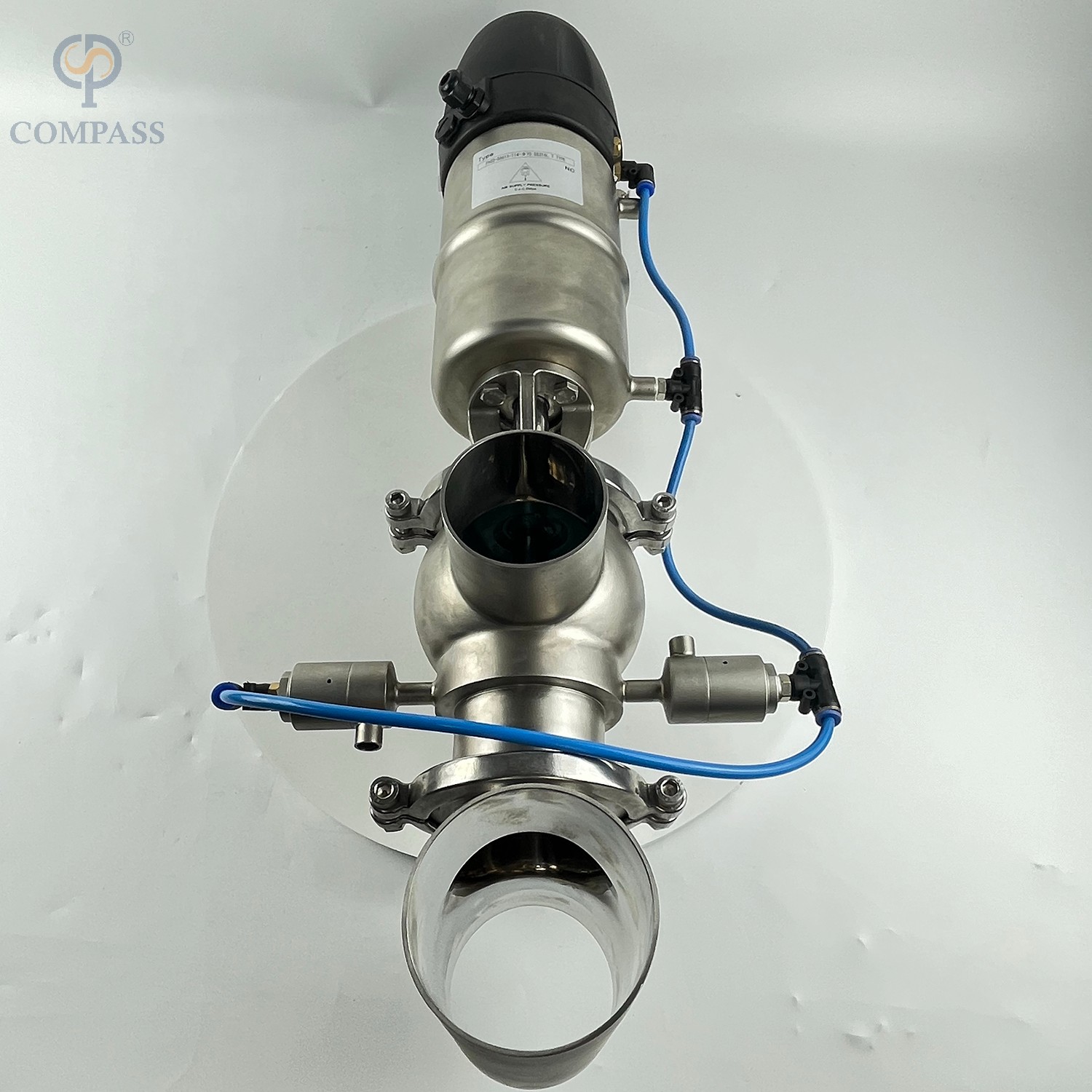

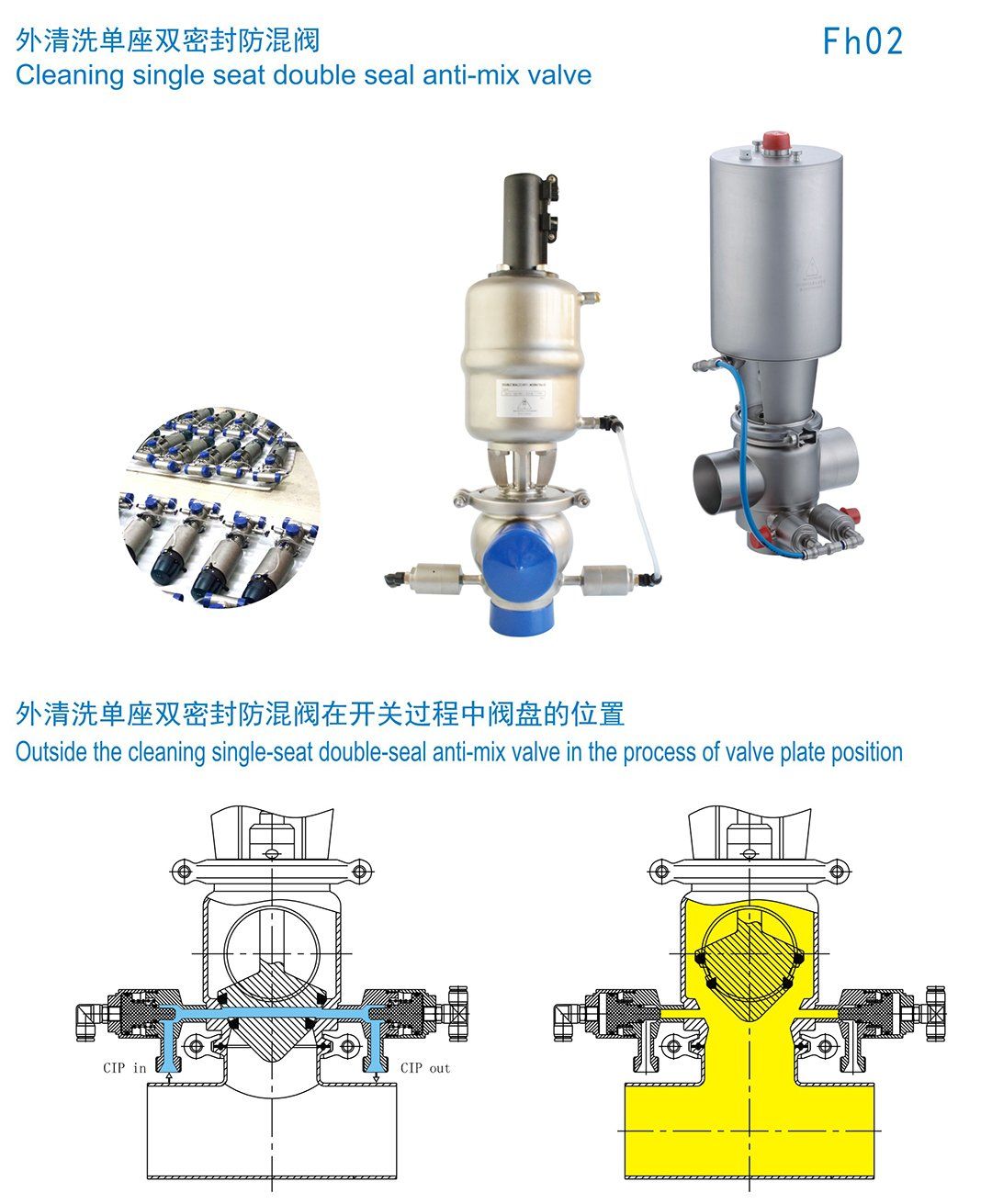

and products 6.The separation chamber cleaning
will do not occur any hydraulic
- pressure and not influenced by the equipment or valve status.

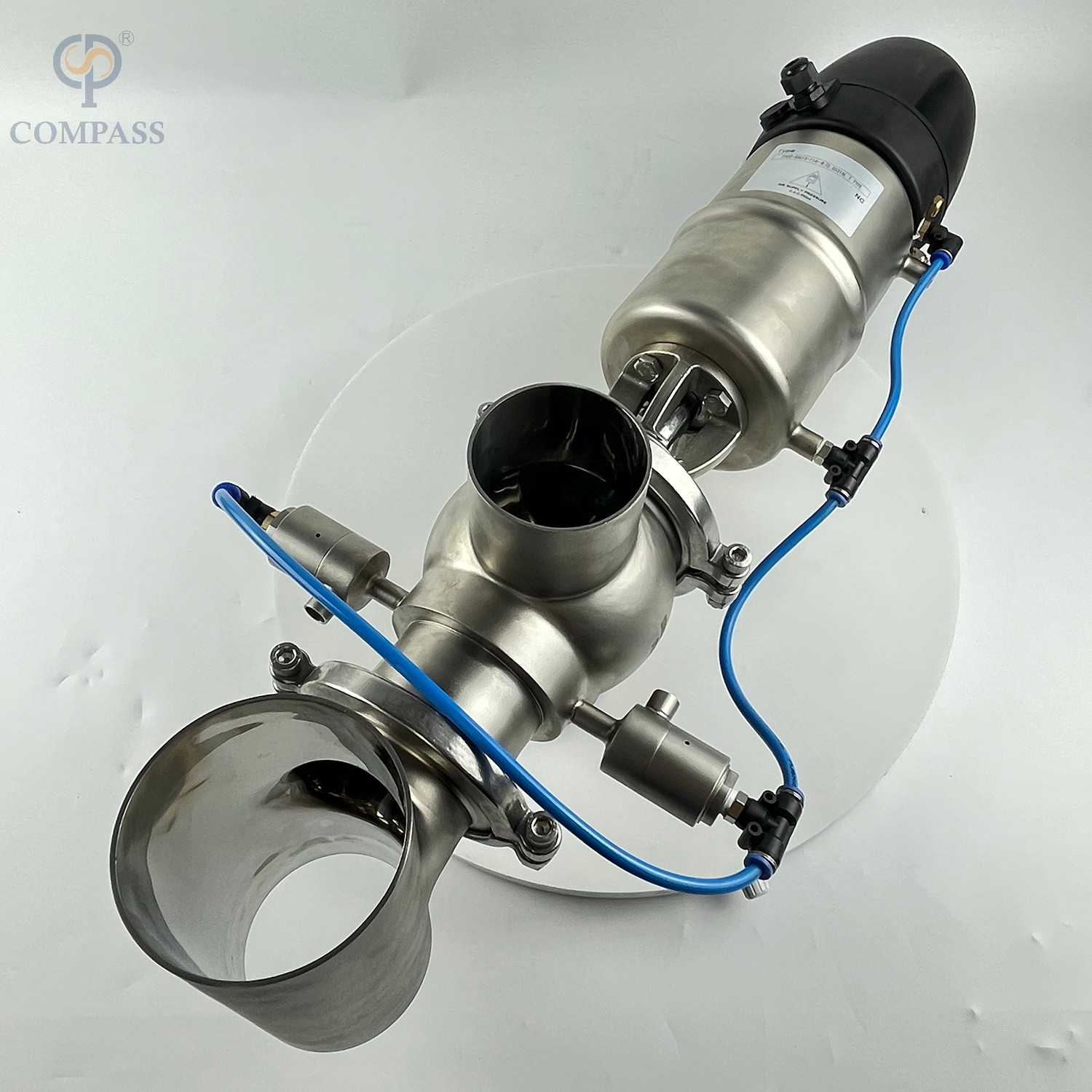

How to order？
1.What's model , such as FH01 or FH02 ?
2.What's material, such as SS304 or SS316L ?
3.Which size, the size is from 1.5"to 4"and from DN40 to DN100 ?
4.What's body combination, such as T11, T12, T21 or T22 ?
5.What's control head, such as 24V or 4-20mA signal ?
