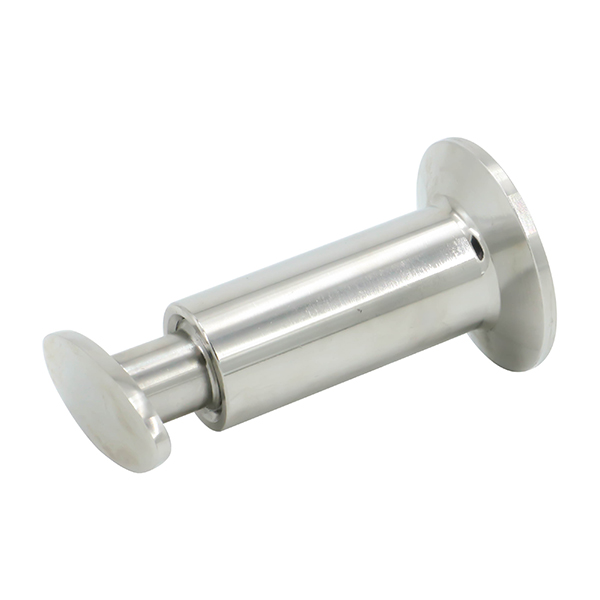

Sanitary Stainless Steel SS304 Clamped Sampling Cock Valve

Sanitary sampling valves mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to frain away the remains. The material includes of SS304 and SS316L, and sizes have 1/2", 3/4" .Connections ends have welding, threading and tri clover. Valves head designs silicone rubber and PTFE rubber. But PTFE rubber is more durable and high purity.
  • XS-SV002

  • XUSHENG

  • 10000540001

Availability:
Quantity:

Description of Commodity: Sanitary Stainless Steel SS304 Clamped Sampling Cock Valve

Product Description


Technical Specification

Connections Thread,Clamp,Weld
Material SS304,SS316L
Operated Manual
Size

1/2",3/4"

Gasket PTFE, Silicone
Working Pressure: Vacuum - 10Bar 145PSI
Working Temperature -10℃/14℉ ~ 120℃/248℉


Applications

It 's mainly applied to extract sample from tank or pipeline. it also can be assembled at the bottom of the tank or pipeline to frain away the remains.


Design and features

♦ Available steam or alcohol for fisintection of the oringinal.

♦ Use the diaphragm to seal the material.

♦ It is typical sampling and good repeatability to sample.

♦ Use this type valve, secondary pollution can be prevented, can be used as a large number of sampling or mirco-sampling.


Working Principle:

When turn the handle wheel clockwise, the valve shaft and seal rise up. Valve is open for sampling. When turn the hand wheel anti-clockwise, the valve shaft and seal go down, the valve is close.


Product Details

Sanitary Hygienic Sampling Valve

Related Pictures for Different Types of Sanitary Sampling Cock Valves

Pictures of Stainless Steel Sanitary Sampling Valves
