Stainless Steel Sanitary Hygienic Two Stages Single Screw Pump with Fix Speed Motor

Xusheng and Compass'Single Screw Pumps are used in all fields widely to feed kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.
Food industry: ketchup, mashed potatoes, peanut butter, yogurt, fresh cream, ice cream, cheese cubes, whey, beer, wort, yeast, fruit juice drinks, vegetable paste, jam, jelly, etc.
Petroleum industry: conveying crude oil, mixture of crude oil and water, mixture of coal field gas and water, etc.
Xusheng and Compass'Single Screw Pump include of screw pump with fixed speed motor, stepless variator screw pump and rectangular inlet with feeding screw impeller, ect.
  • CP-SP002

  • COMPASS

  • CP-SP002-0209A02001GR

Availability:
Quantity:

Product Name : Stainless Steel Sanitary Hygienic Two Stages Single Screw Pump with Fix Speed Motor

Sanitary screw pump is a single-screw transport pump. Its main working parts are the screw of the eccentric screw (called the rotor) and the screw bushing (called the stator) with the inner surface of the double helical surface. Its working principle is that when the motor drives the pump shaft to rotate, the screw rotates around its own axis on the one hand, and on the other hand it rolls along the inner surface of the bushing, thus forming the sealed chamber of the pump. Each time the screw rotates once, the liquid in the sealing cavity advances by a pitch, and with the continuous rotation of the screw, the liquid is pressed from one sealing cavity to the other sealing cavity in a spiral manner, and finally squeezes out of the pump body. Sanitary Single Screw Pump is used for in all fields widely to feed kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium , and change the gauging aim through adjusting rotation speed.


Feeding Medium

This products is applicable for feeding medium which has the following properties

High solid content (diameter of the biggest particle is 50mm) or no soild content

Medium with all viscosities (1mPas ~ 300000mPas)

Medium that  is easy to be generated and swelled

Shearing sensitive medium

Medium with erosion

Medium with/without self lubrication

Erosive medium (PH=1~14)

Adhesive medium

Toxicity hazard medium


Structure Diagram of Sanitary Single Screw Pump




No.1 No.2 No.3 No.4 No.5 No.6 No.7 No.8 No.9 No.10
Outlet Tie Rod Stator Screw Shaft Universal Joint Inlet Connecting Shaft Filling Seat Filling Cover Bearing Seat


No.11 No.12 No.13 No.14 No.15 No.16
Bearing Transmission Shaft Bearing Cap Coupling Base Motor


Main Parameter of Sanitary Single Screw Pumps

Model Flow Rate(t/h)

Electric Power

(kw)

RotationSpeed

(r/min)

Inlet/outlet

(mm)

Connection Ends

DischargePressure

(Mpa)

CP10-2 0.5 0.37 1400 20 Clamp/union/flange 1.2Mpa,12bar
CP15-2 1 0.55 960 25 Clamp/union/flange 1.2Mpa,12bar
CP20-2 1.5 0.75 960 32 Clamp/union/flange 1.2Mpa,12bar
CP25-2 2 1.1 960 32 Clamp/union/flange 1.2Mpa,12bar
CP30-2 3 1.5 960 40 Clamp/union/flange 1.2Mpa,12bar
CP35-2 5 2.2 960 50 Clamp/union/flange 1.2Mpa,12bar
CP40-2 7 3 960 50 Clamp/union/flange 1.2Mpa,12bar
5.5 2.2 720 50 Clamp/union/flange 1.2Mpa,12bar
CP45-2 9 4 960 50 Clamp/union/flange 1.2Mpa,12bar
7 3 720 50 Clamp/union/flange 1.2Mpa,12bar
CP50-2 13 5.5 960 65 Clamp/union/flange 1.2Mpa,12bar
10 4 720 65 Clamp/union/flange 1.2Mpa,12bar
CP55-2 18 7.5 960 76 Clamp/union/flange 1.2Mpa,12bar
13 5.5 720 76 Clamp/union/flange 1.2Mpa,12bar
CP60-2 22 11 960 89 Clamp/union/flange 1.2Mpa,12bar
17 7.5 720 89 Clamp/union/flange 1.2Mpa,12bar
CP65-2 30 11 720 80 Clamp/union/flange 1.2Mpa,12bar
CP85-2 60 15 720 100 Clamp/union/flange 1.2Mpa,12bar


Application

Food industry: ketchup, mashed potatoes, peanut butter, yogurt, fresh cream, ice cream, cheese cubes, whey, beer, wort, yeast, fruit juice drinks, vegetable paste, jam, jelly, etc.

Petroleum industry: conveying crude oil, mixture of crude oil and water, mixture of coal field gas and water, etc.

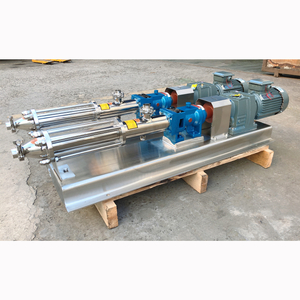

Photos Show of Screw Pumps

.jpg


Advantages

1

Wide range of pressure and flow.

The pressure is about 3.4-340 kgf/cm2, and the flow rate can reach 18600cm3/min

2 The type and viscosity range of the conveyed liquid are wide
3 Because the inertial force of the rotating parts in the pump is low, it can use a high speed
4 Good suction performance and self-priming ability
5 Uniform and continuous flow, low vibration and low noise
6 Compared with other rotary pumps, it is less sensitive to incoming gas and dirt
7 Solid structure and installation Maintenance is easy
