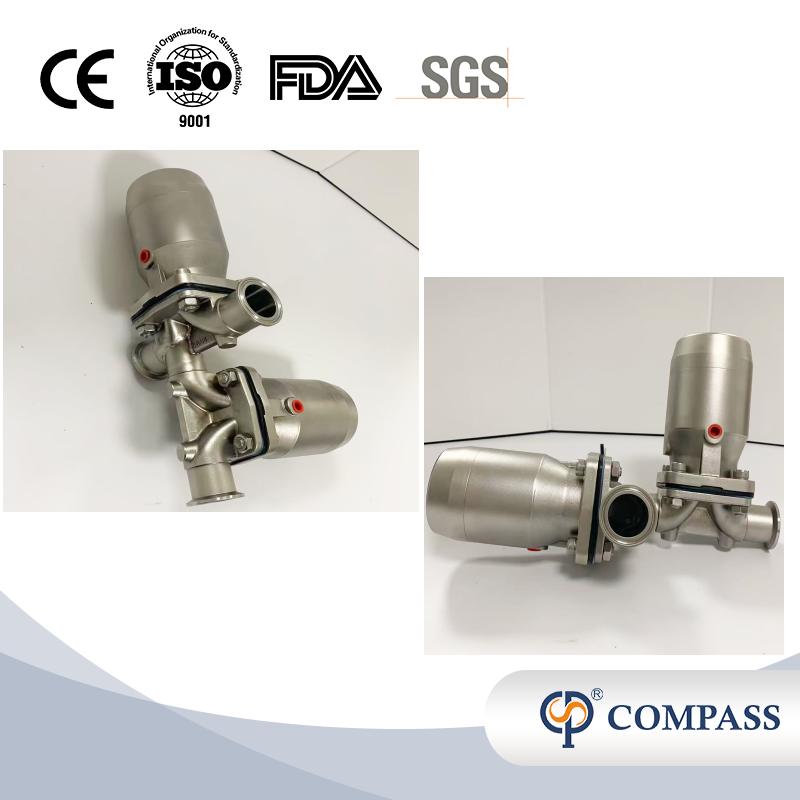

Product Details
Standard | SMS,DIN,BPE |
Material Contact Parts | SS316L(1.4404) | Provided with material inspection report |
Size | 1”to 4”，DN25 to DN100 |

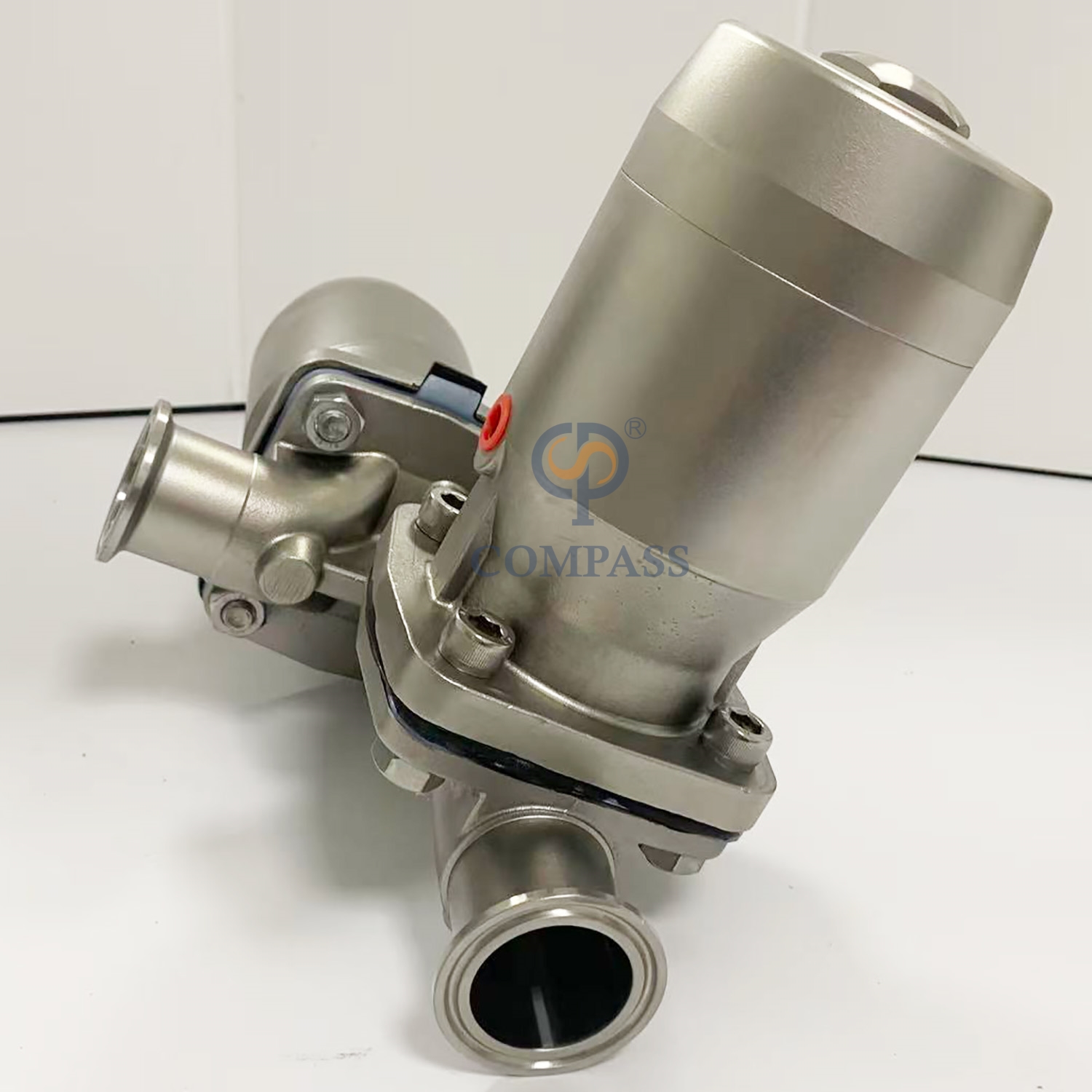

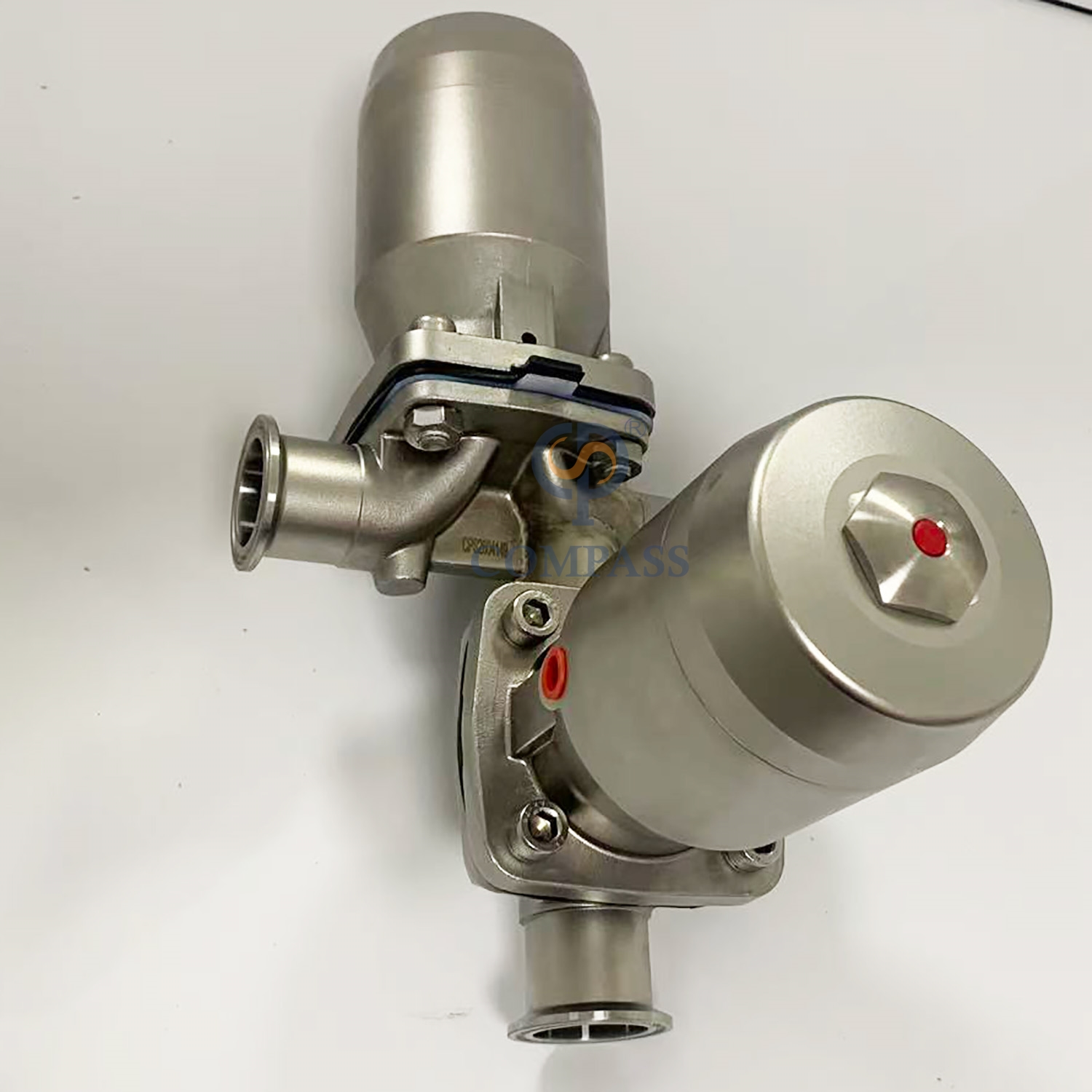

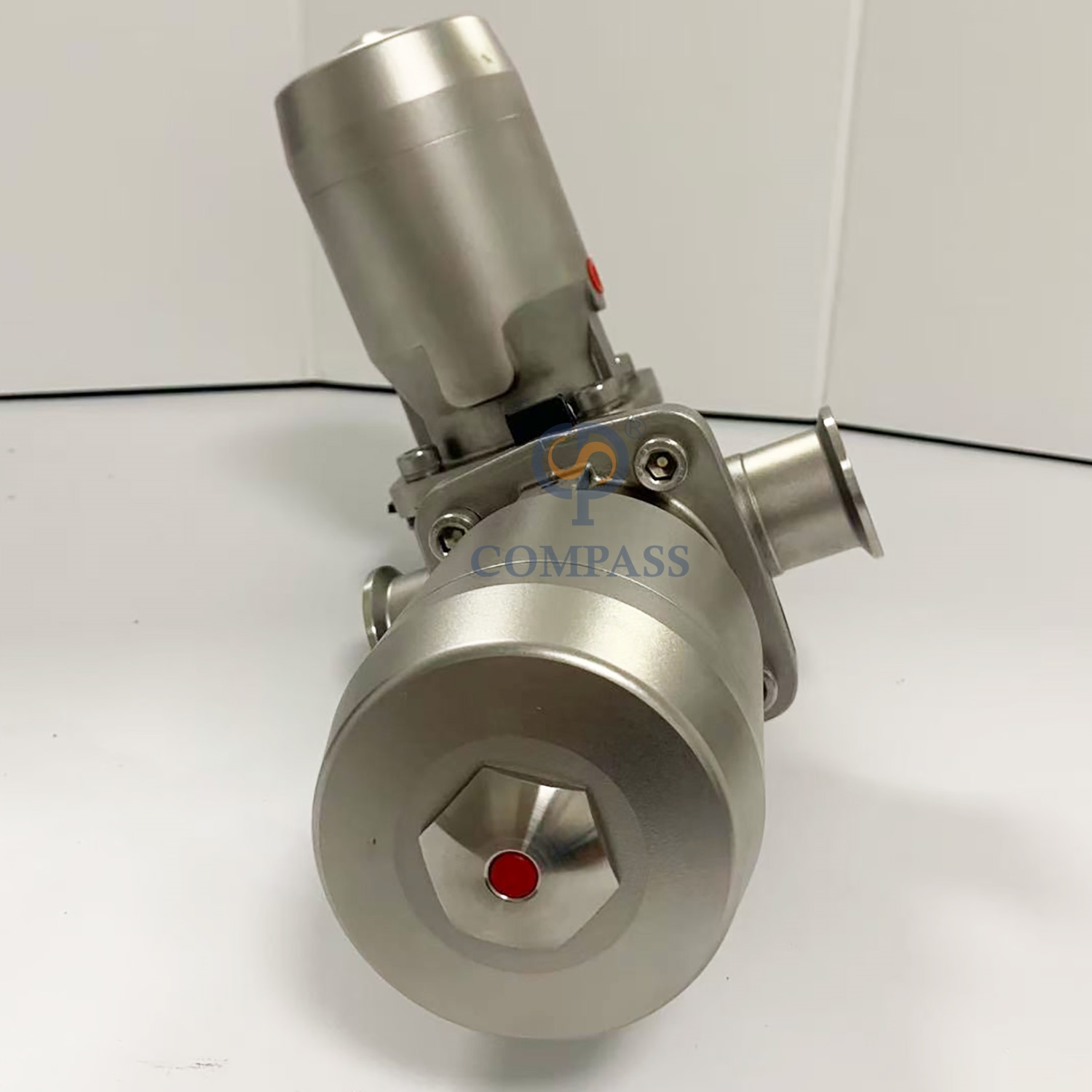

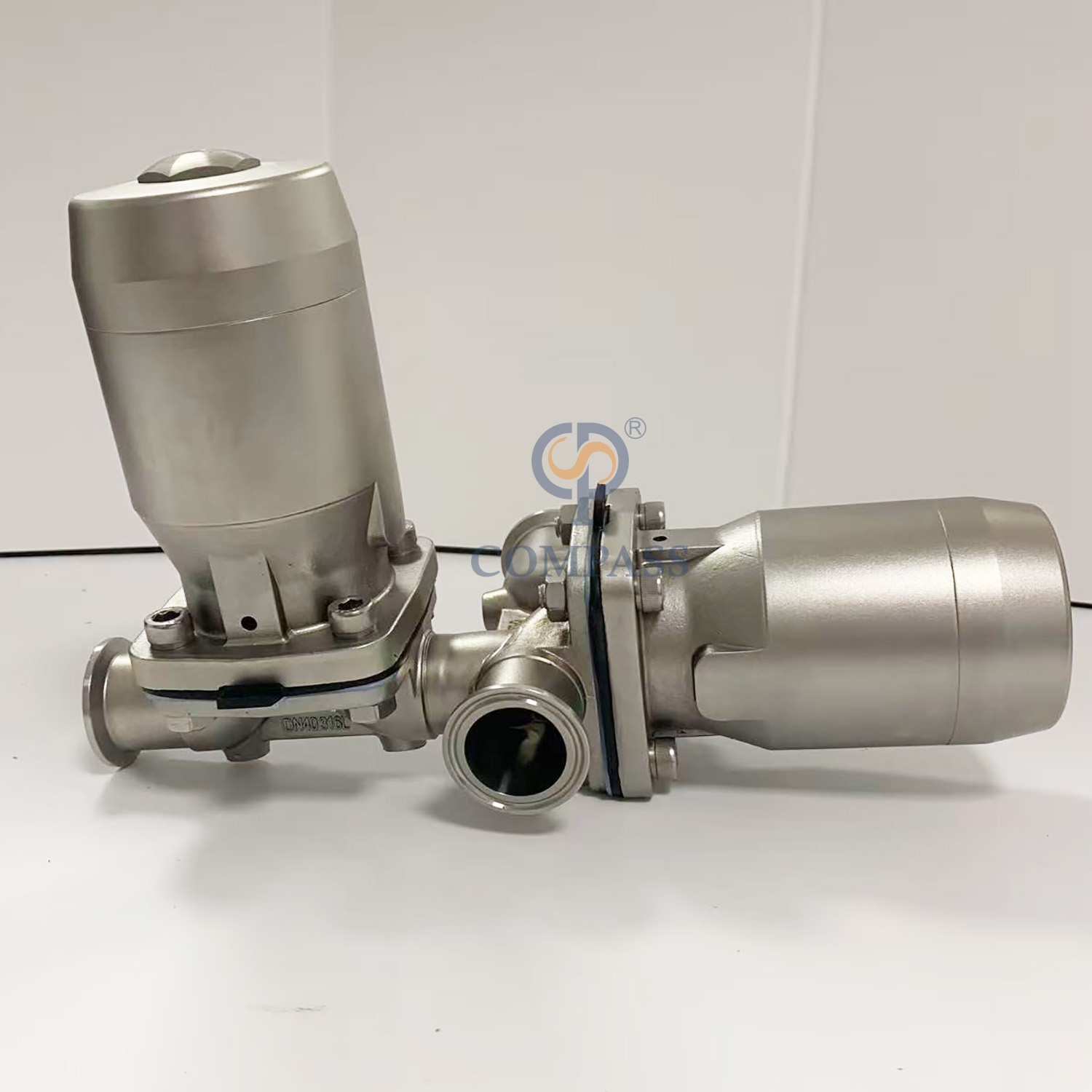

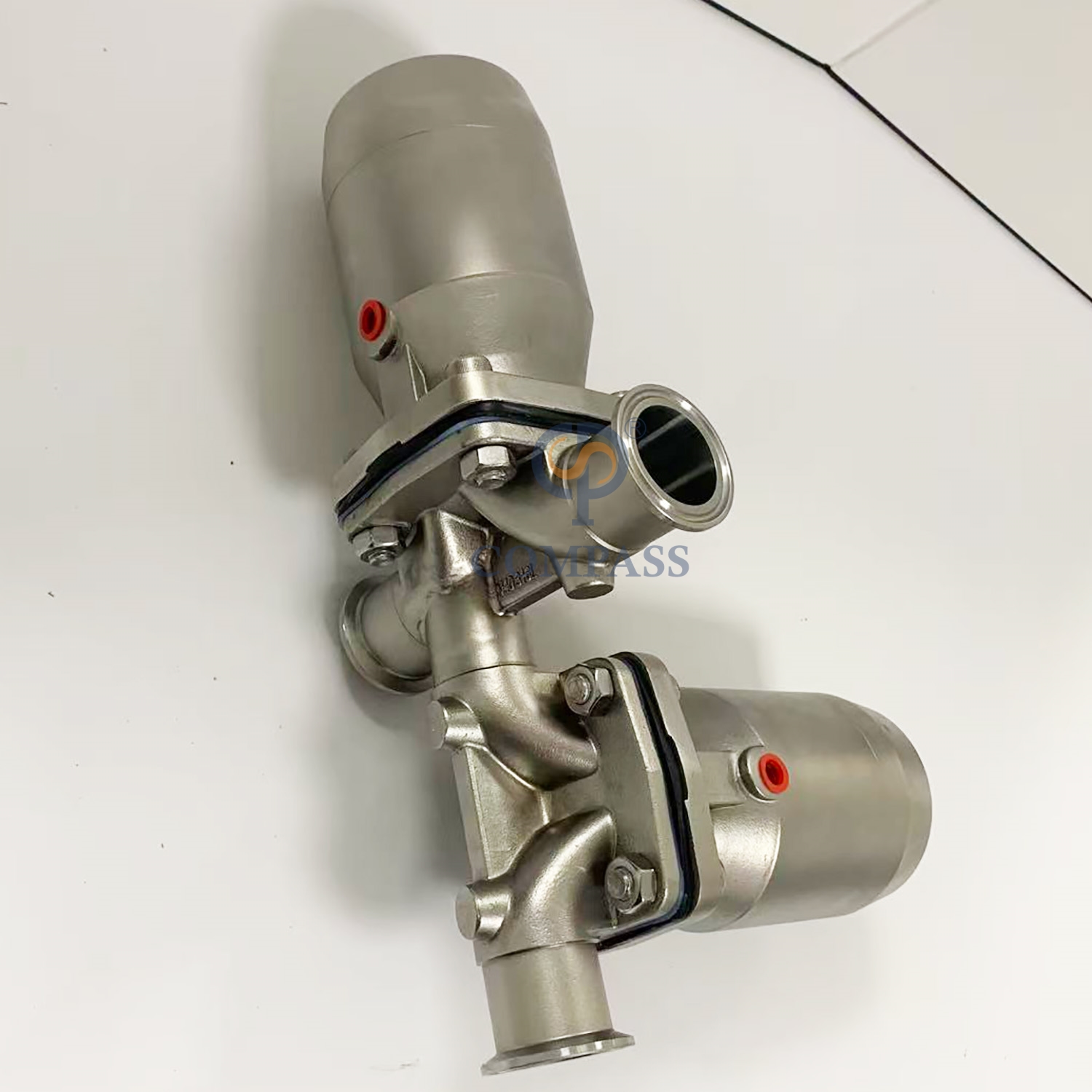

Body Combination | Straight Model, T Three Ways,U Type, Tank Bottom |
Connection | Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange |
Seal Material | Silicone, EPDM,EPDM with PTFE Split Diaphragm,EPDM with PTFE Composite Diaphragm. All seals material comply with FDA21CFR117.2600 |
Power Option | Manual Operation |
SS Pneumatic Actuator, Plastic Pneumatic Actuator |
C-top Controller, C-top Controller (AS-I) |
Working Pressure | ≤10bar(145psi) |
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
External Surface Treatment | Ra16~32uin(0.4~0.8um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
Working Principle
The diaphragm valve is normally closed, where the diaphragm clings to the inner cavity of the valve body and closes the pipeline flow path. When the diaphragm valve needs to be cleaned or opened, the stem moves upward by rotating the handwheel manually or driving the pneumatic control actuator, and the spherical diaphragm bends upward, so that the valve is open and reach the requirement of clean and open. The diaphragm separates the inner cavity of the lower valve body from the inner cavity of the upper valve cover, so that the stem and valve core located in the upper part of the diaphragm are not corroded by the medium, thus the packing sealing structure is eliminated and the medium leakage will not occur. Optimized valve body design made the cleaning liquid discharge fully, do not form a retention phenomenon.
Options
1.The gasket can be EPDM, EPDM with PTFE Split Diaphragm, EPDM with PTFE Composite Diaphragm.
2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange or others upon request.
3.Power Option has Manual Operation,SS Pneumatic Actuator, Plastic Pneumatic Actuator,C-top Controller, C- top Controller (AS-I).
4.Body Combination has Straight Model, T Three Ways,U Type, Tank Bottom.

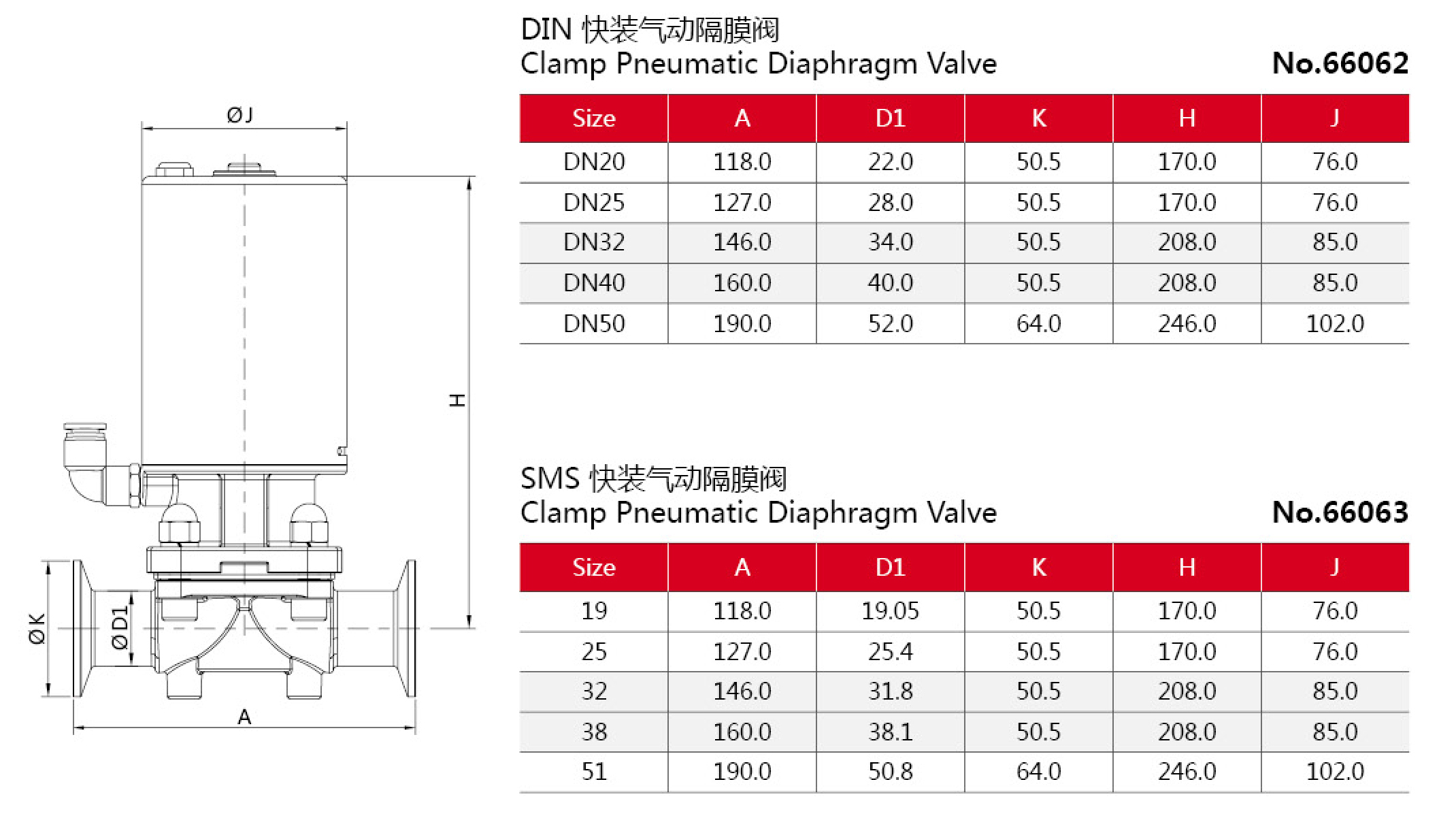

Technical Specifications
Max. pressure: 10bar
Min. pressure: 0.2bar
Temperature range：
EPDM: -5 ~ 212°F(-20 ~ 100℃)
EPDM with PTFE:-184~ 302°F(-120 ~ 150℃)
Other materials are Available upon request.
Design Features
1.Sanitary diaphragm valve are better in feature of flow in comparison with other valves. It is easier to clean up and better to process the substance with particles. the phenomenon of air pocket is rare during application of flow control.
2.Mini diaphragm valve available size:1/4",3/8",1/2",3/4",DN6,DN10,DN15,DN20.
3.Diaphragm valve availbale size: 1"-4",DN25-DN100.
4.Suitable for CIP/SIP.
5.Parts in contact with the product: SS316L,Other stainless steel parts:SS304.
How to Order ?
1. What's standard for diaphragm valve? Such as DIN, SMS, BPE.
2. What's material quality? Only SS316L material.
3. What's size optional? The available size is from 1/4inch to 4inch, DN6 to DN100.
4. What's body combination? Such as Straight Model, T Three Ways,U Type, Tank Bottom.
5. What's connection en? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
6. What's working principle? Such as manual, SS pneumatic actuator, plastic pneumatic actuator, C-top Controller, C-top Controller (AS-I).
7. What's material of diaphragm? Such as silicone, EPDM, EPDM with PTFE Split Diaphragm,EPDM with PTFE Composite Diaphragm.
