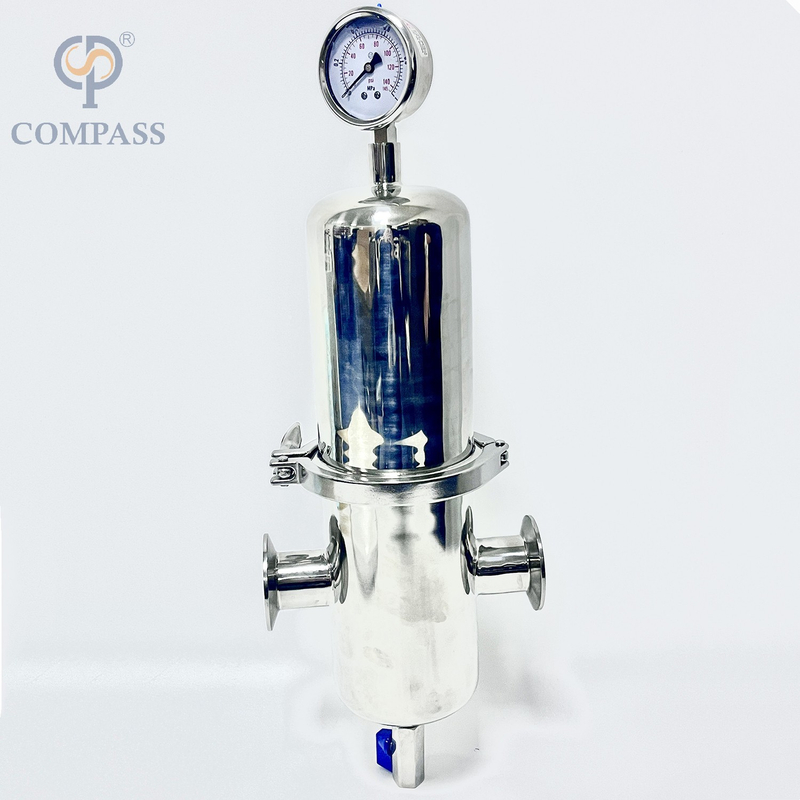

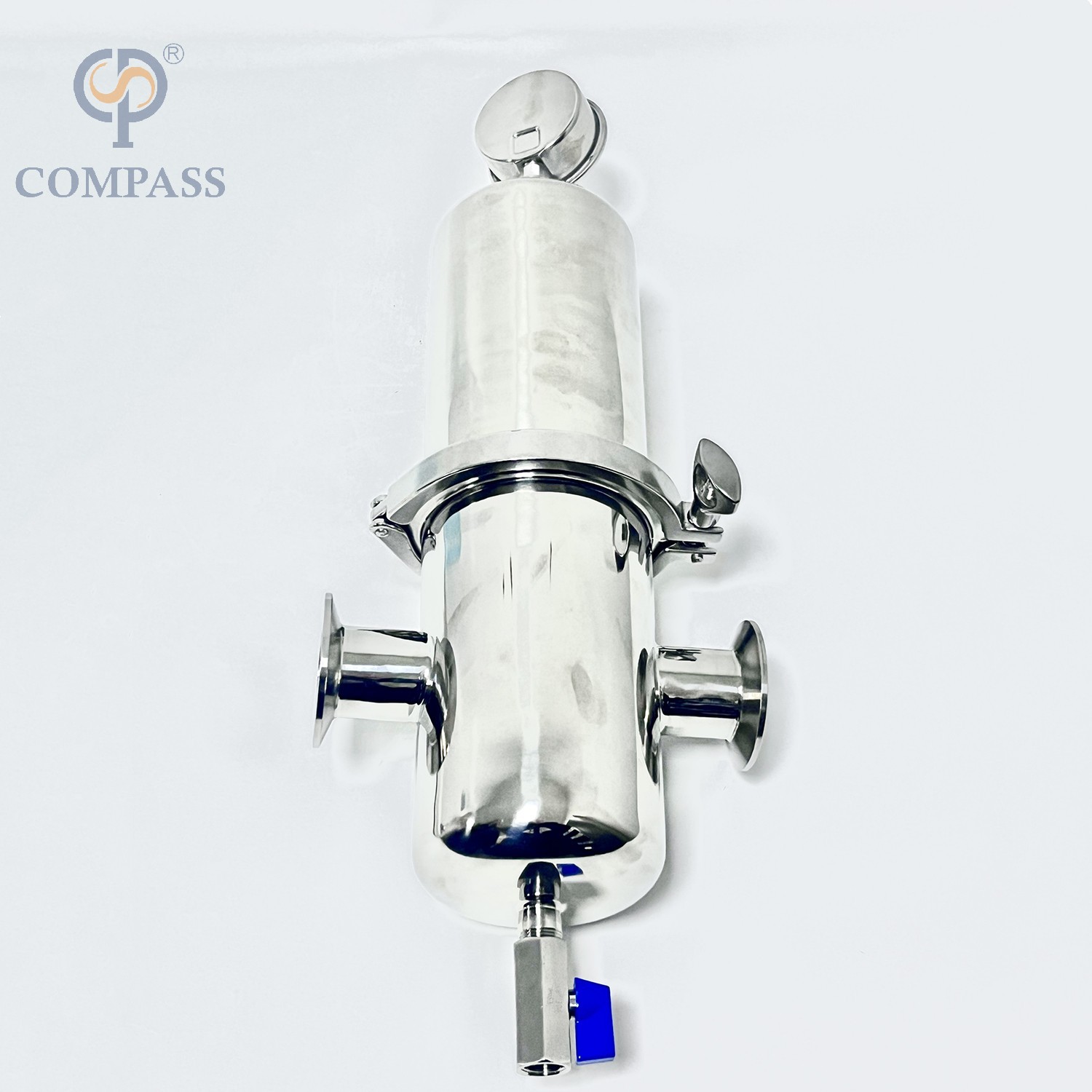

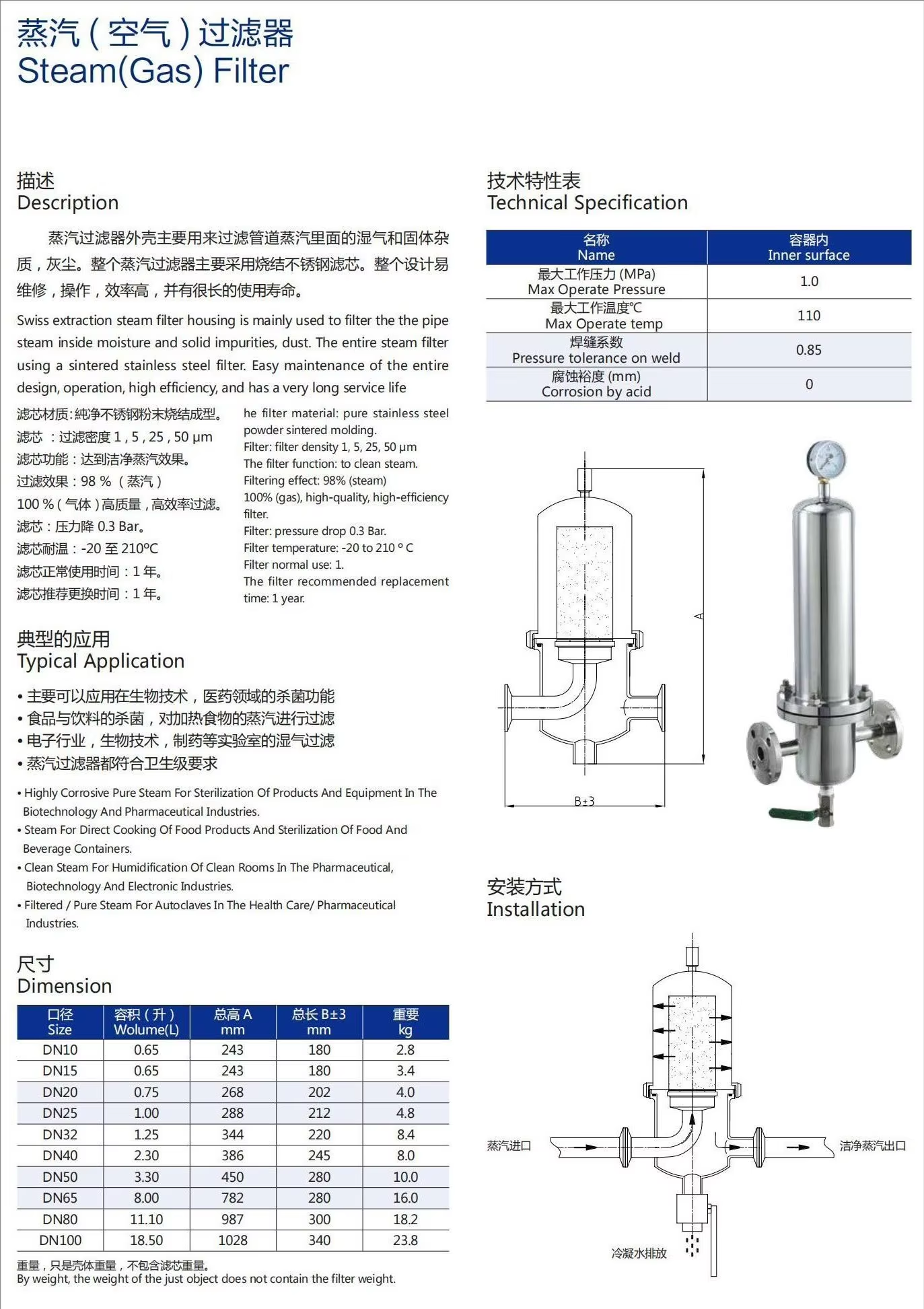

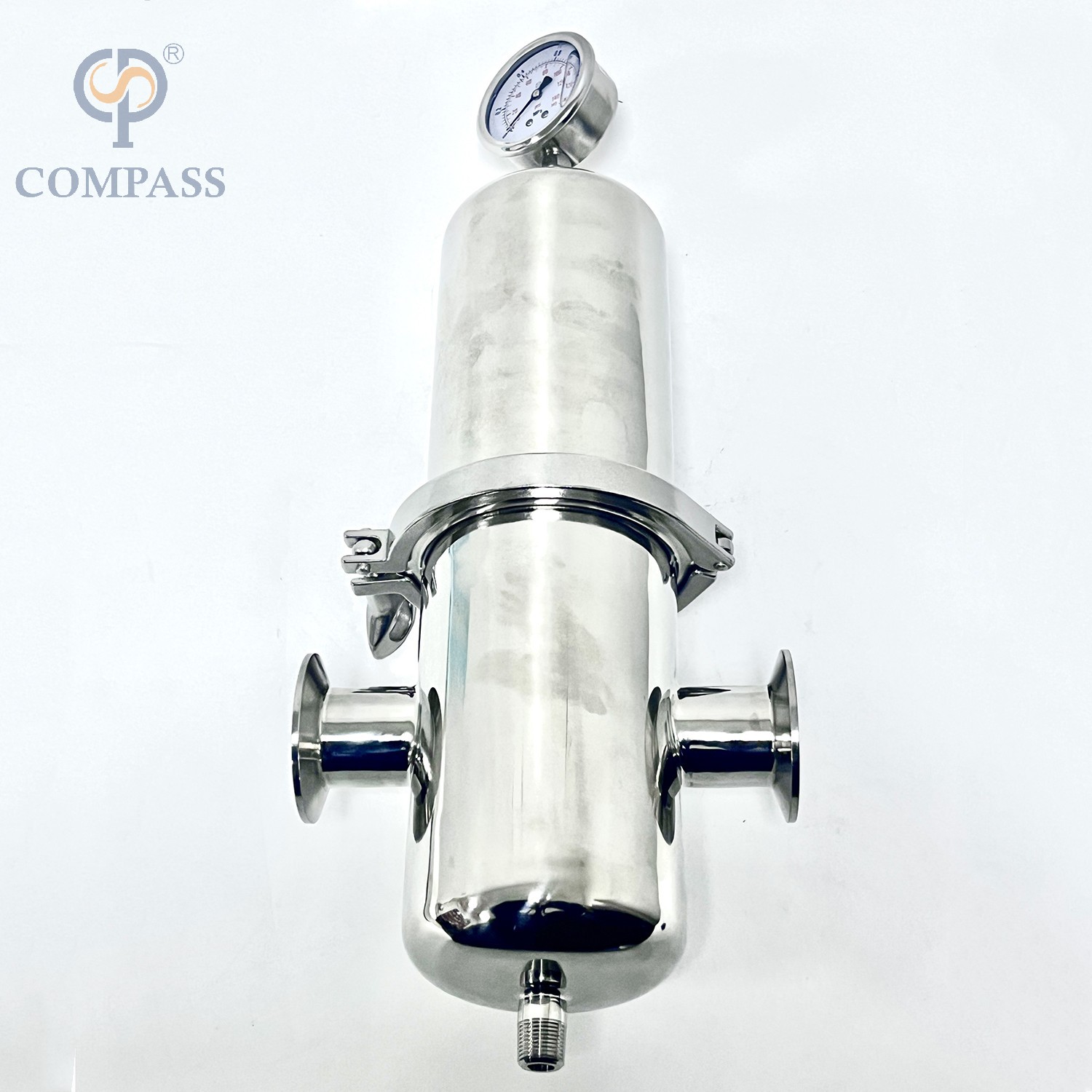

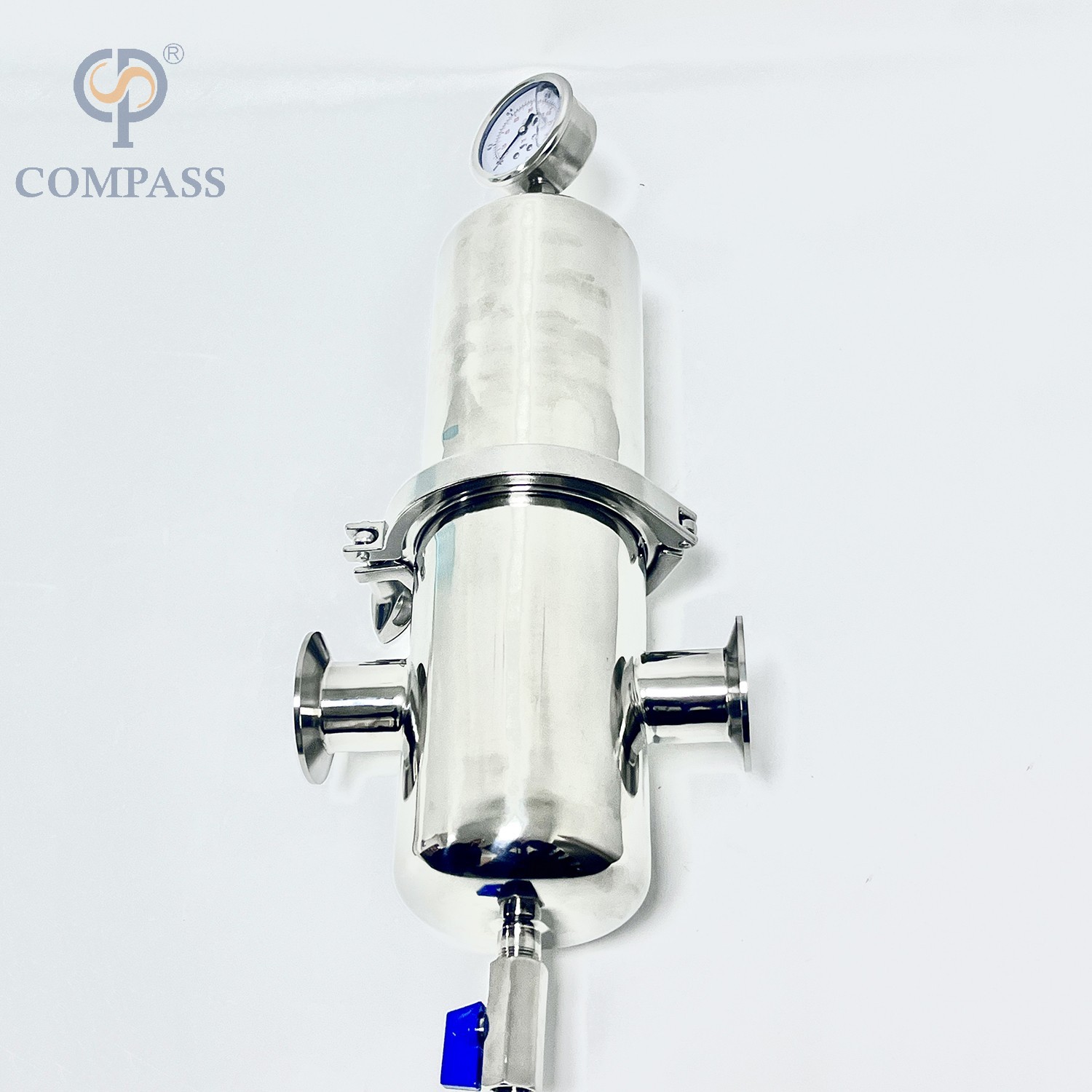

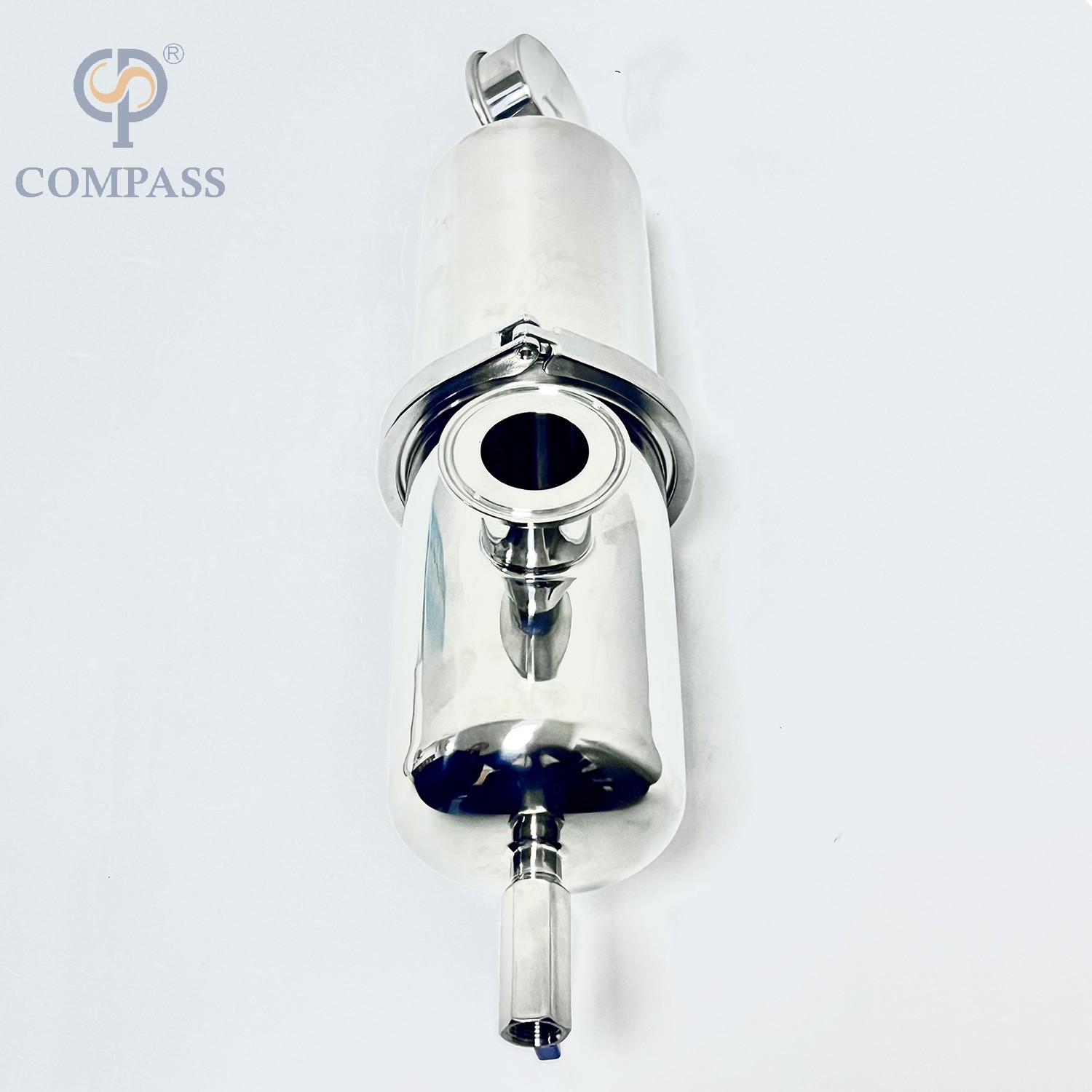

The Details of Product
Standard | SMS,DIN |
Material Contact Parts | SS304/SS316L (1.4301/1.4404) |
Size | 1/2inch to 4inch, DN10 to DN100 |
Mesh Size | 3Mesh to 400Mesh, 37Micron to 6730Micron, 0.037MM to 6.730MM |
Connection | Butt Weld,Tri Clamp, Male Thread, Female Male Threaded, Union, Weld Thread, Flange |
Filter Cartridge Screen | Sintered Stainless Steel Screen, PTFE Filter Cartridge |
Length of Filter Cartridge | 10inch, 20inch, 30inch, 40inch |
Seal Material | Silicone, EPDM, FKM, PTFE. All seals material comply with FDA21CFR117.2600 |
Temperature Range | Minus 20 Degree Celsius~ +210 Degree Celsius |
External Surface Treatment | Ra16~32uin(0.4~0.8um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
Application
Highly Corrosive Pure Steam for Sterilization of Products and Equipment in the Biotechnology and Pharmaceutical Industries.
Steam for Direct Cooking of Food Products and Sterilization of Food and Beverage Containers.
Clean Steam for Humifification of Clean Rooms in the Phamaceutical, Biotechnology and Electronic Industries.
Filtered/ Pured Steam for Autoclaves in the Health Care/ Phamaceutical Industries.
Design Features
Filter Cartridge Density: 1um, 5um, 25um, 50um
Filter Fuction: Purity and Steam
Filter Effect: 98%(Steam)100% (gas) High Quality, High Efficiency
Filter Pressure Drop to 0.3 Bar
Filter Temperature: Minus 20 Degree Celsius~ +210 Degree Celsius
Filter Normal Use: 12 Months
The Filter Recommended Replacement Time: 12 Months
How to order?
1.Which's material you need, such as SS304 or SS316L ?
2. Which's available size, the size is ranged from 1/2inch to 4inch, DN10 to DN150 ?
3. What's length of filter cartridge, such as 10inch, 20inch, 30inch, 40inch ?
4. What's Connection you need, such as butt weld, tri clamp, male thread ?
5. What's micron or mesh for inside cartridge filter ?
6. What's material of filter cartridge, such as sintered stainless steel screen, PTFE filter cartridge?
