Product details
Standard | SMS, DIN |
Material Contact Parts | SS316L(1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |

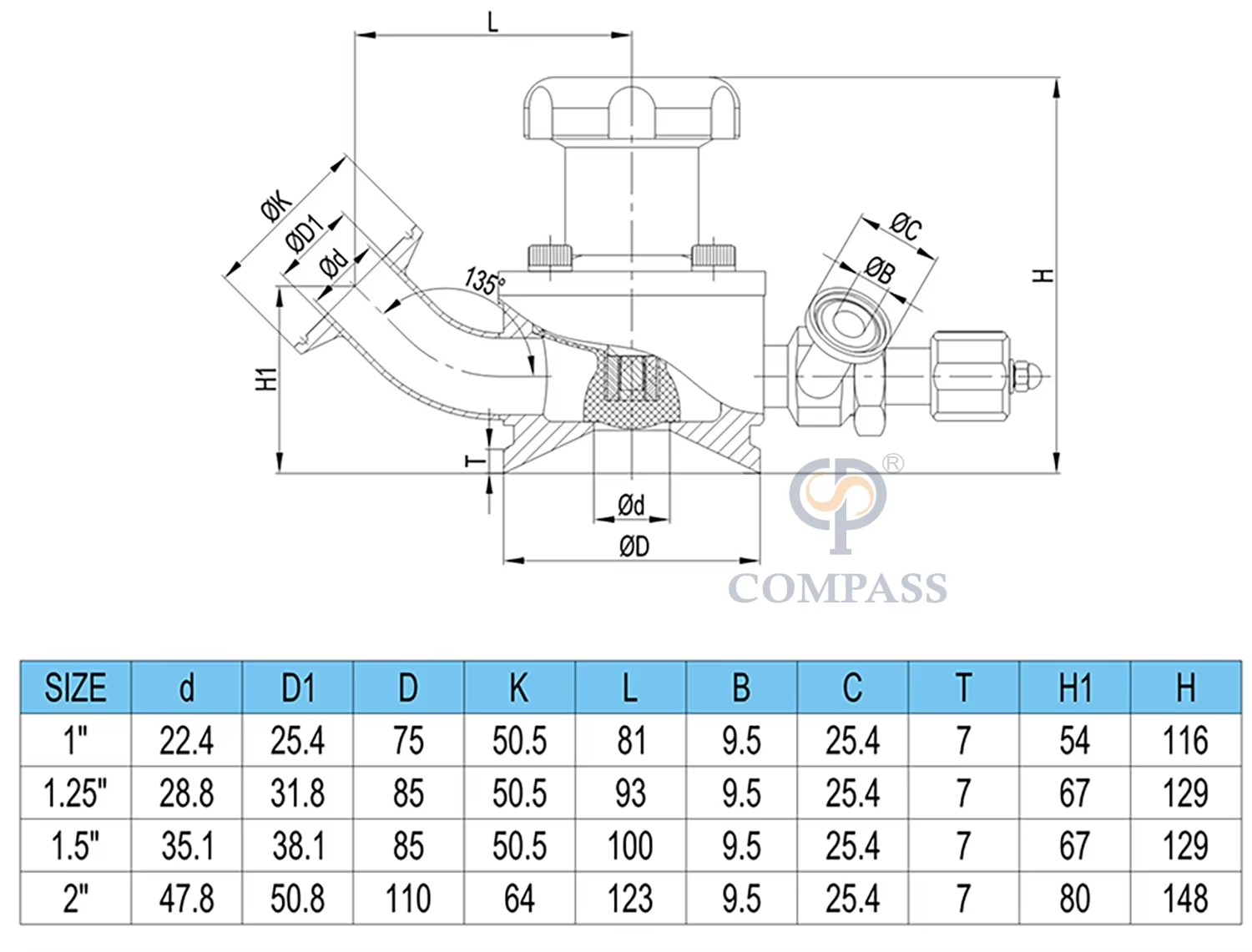

Size | 1”, 1.5” |
Inlet Connection | Flush Bottom |
Outlet Connection | Butt-weld,Tri-clamp |
Seal Material | PTFE, EPDM, the material comply with FDA21CFR117.2600 |
Drive Option | Manual, Pneumatic |
Pressure Range | 0~10bar(0~145psi) |
Working Temperature | PTFE -4 ~ 266°F(-20~ + 130℃) |
Sterilization Temperature | 302°F (150℃)≤30min |
External Surface Treatment | Ra32~64uin(0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.2~0.45um) |
Working Principle

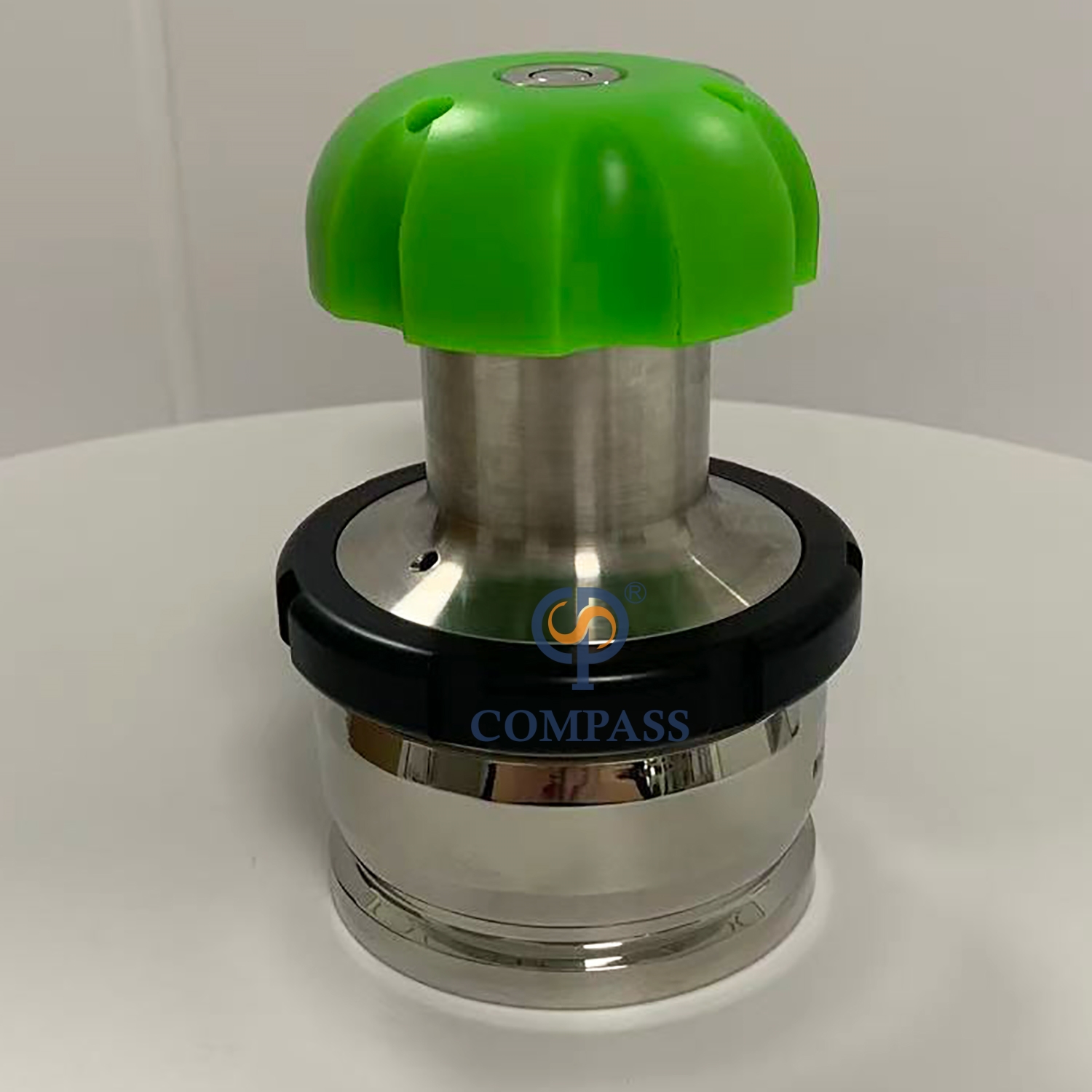

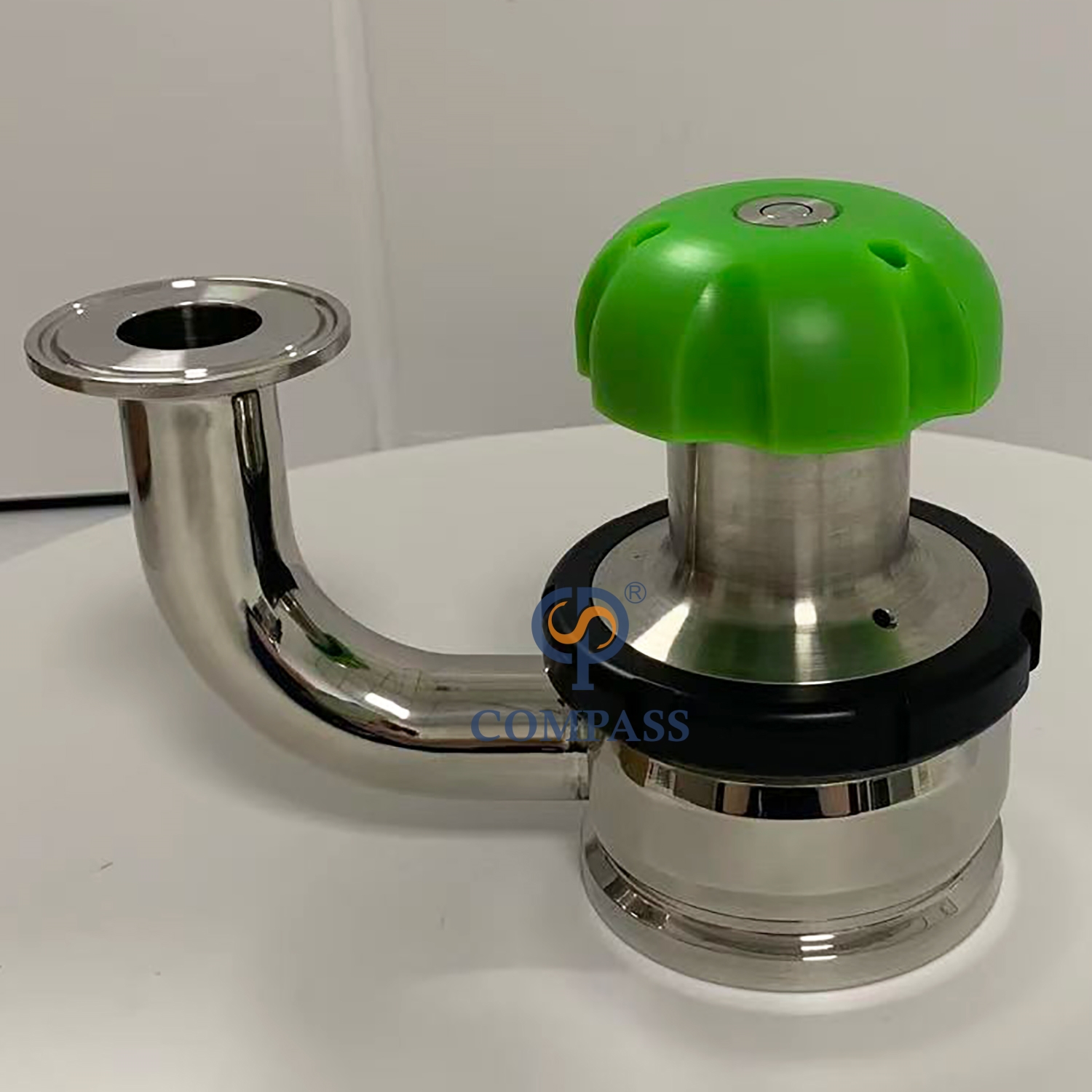

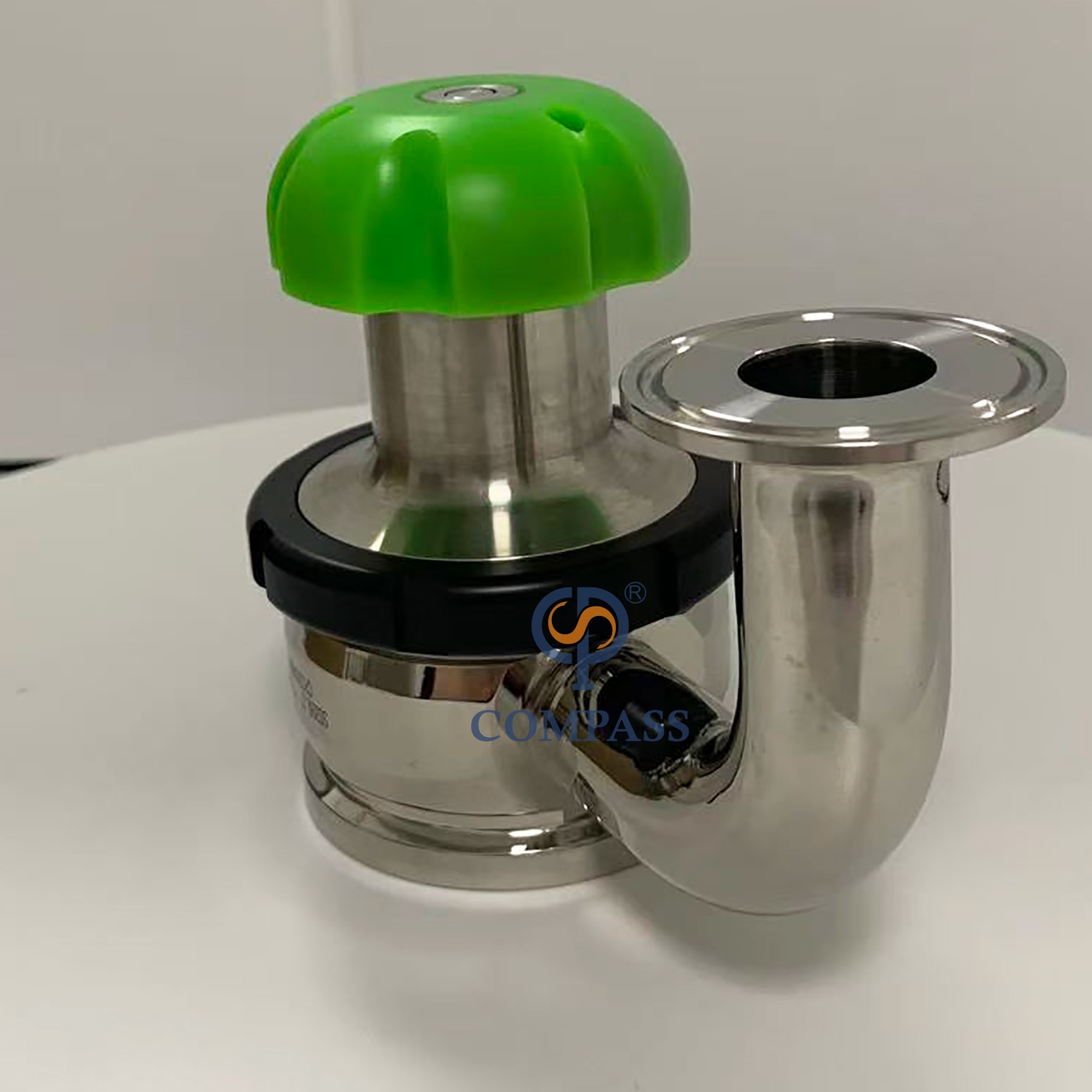

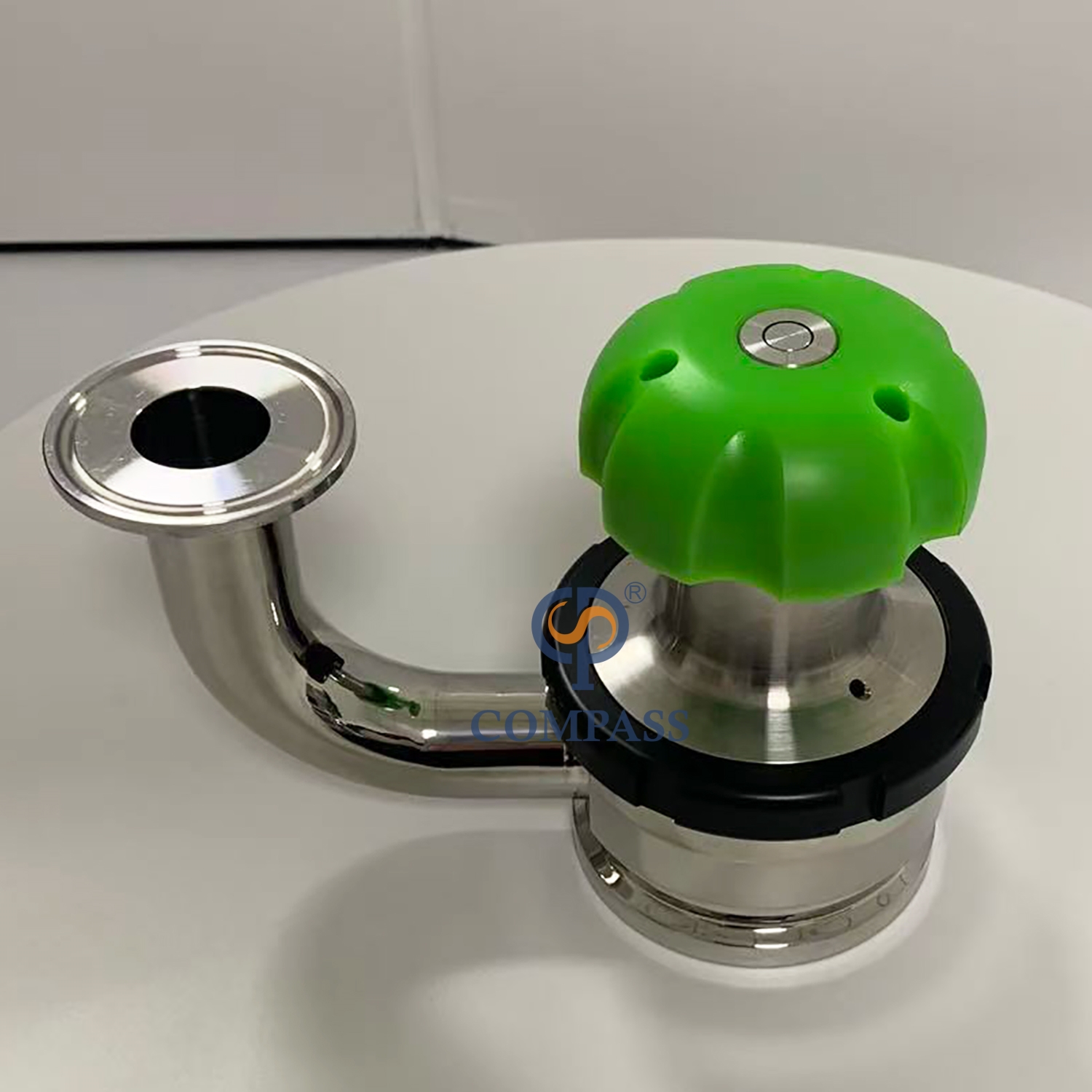

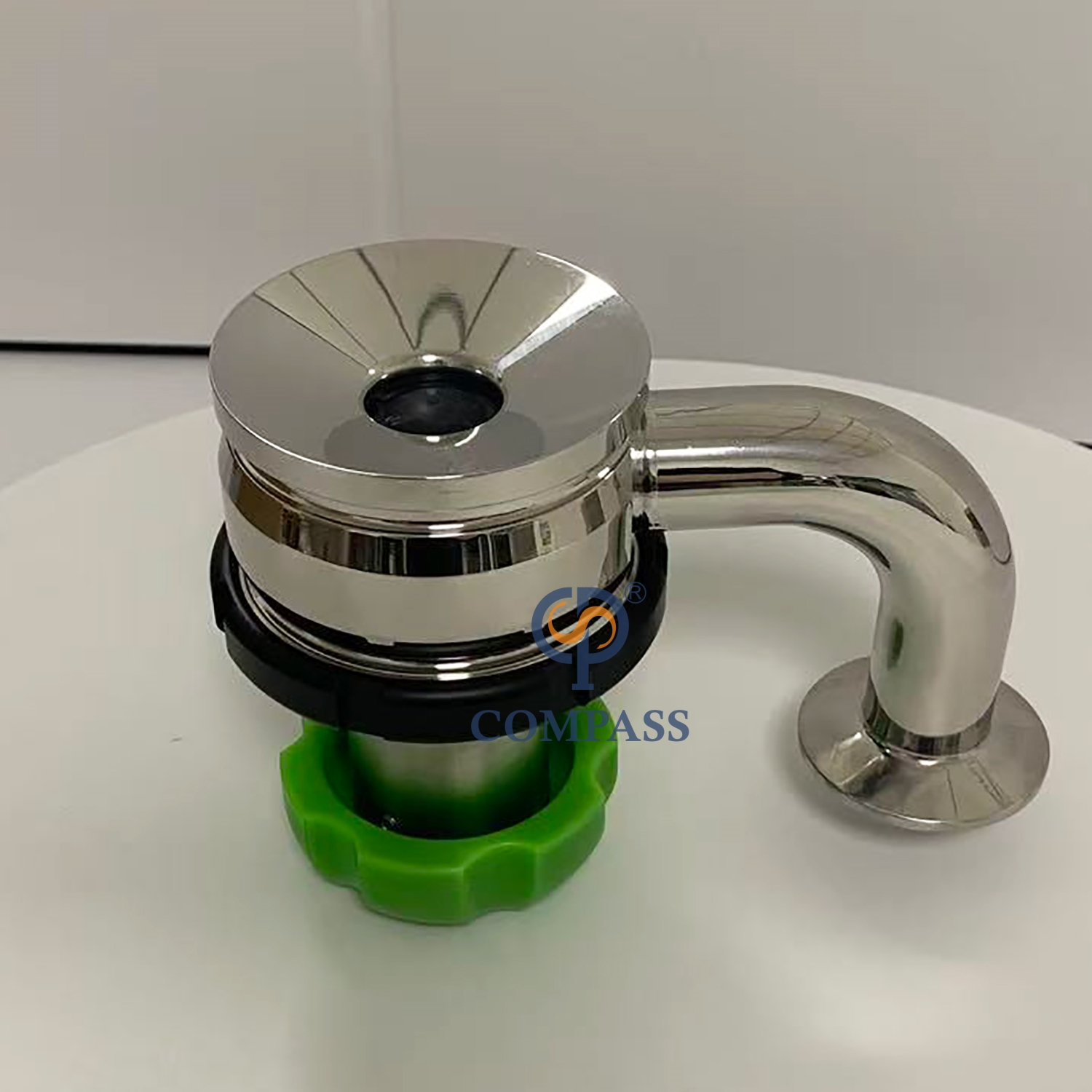

When Turn the hand wheel clockwise, whe valve shaft and seal rise up. At this tiome, Valve is open for sampling. when turn the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.
Technical Specifications
Max. pressure: 0~10bar(0~145psi)
Temperature range
Working Temperature PTFE : -4 ~ 266°F(-20~ + 130℃)
Sterilization Temperature: PTFE -4 ~ 266°F(-20~ + 130℃)
Surface Treatment
External: Ra32~64uin(0.8~1.6um)
Internal: Ra16~32uin(0.2~0.45um)
Design Features
1. The bottom of the tank will not accumulate liquid
2.It can be opened automatically when the pressure is too high.
3.It is practical, simple, has a long service life, is safe and reliable, and is easy to promote.
4.No leakage
5.No cross contamination
6.Easy to clean
How to Order Aseptic Tank Bottom Valves?
1.Only SS316L material.
2.What's size? Such as 1Inch, 1.5Inch.
3.What's working principle? Such as manual,pneumatic.
4.What's connection end? Such as butt-weld,tri-clamp.
5.What's material of seal? Such as silicone,EPDM.
6.What's standard for tank bottom valve? Such as DIN,SMS.
