The details of product
Standard | SMS, DIN |
Material Contact Parts | SS316L(1.4404) Provided with material inspection report |
Size | 3/4", 1", 1.25", 1.5", 2", 3", 4", DN20, DN25, DN32, DN40, DN50, DN65, D80, DN100 |
Inlet Connection | Flush Bottom |
Outlet Connection | Butt-weld,Tri-clamp |
Seal Material | PTFE, the material comply with FDA21CFR117.2600 |
Drive Option | Manual, Pneumatic Control |
Pressure Range | 0~10bar(0~145psi) |
Working Temperature | PTFE-4~266°F(-20~+130°C) |
| Sterilization Temperature | 302°F(150°C)≤30min |
External Surface Treatment | Ra32~64uin(0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.2~0.45um) |

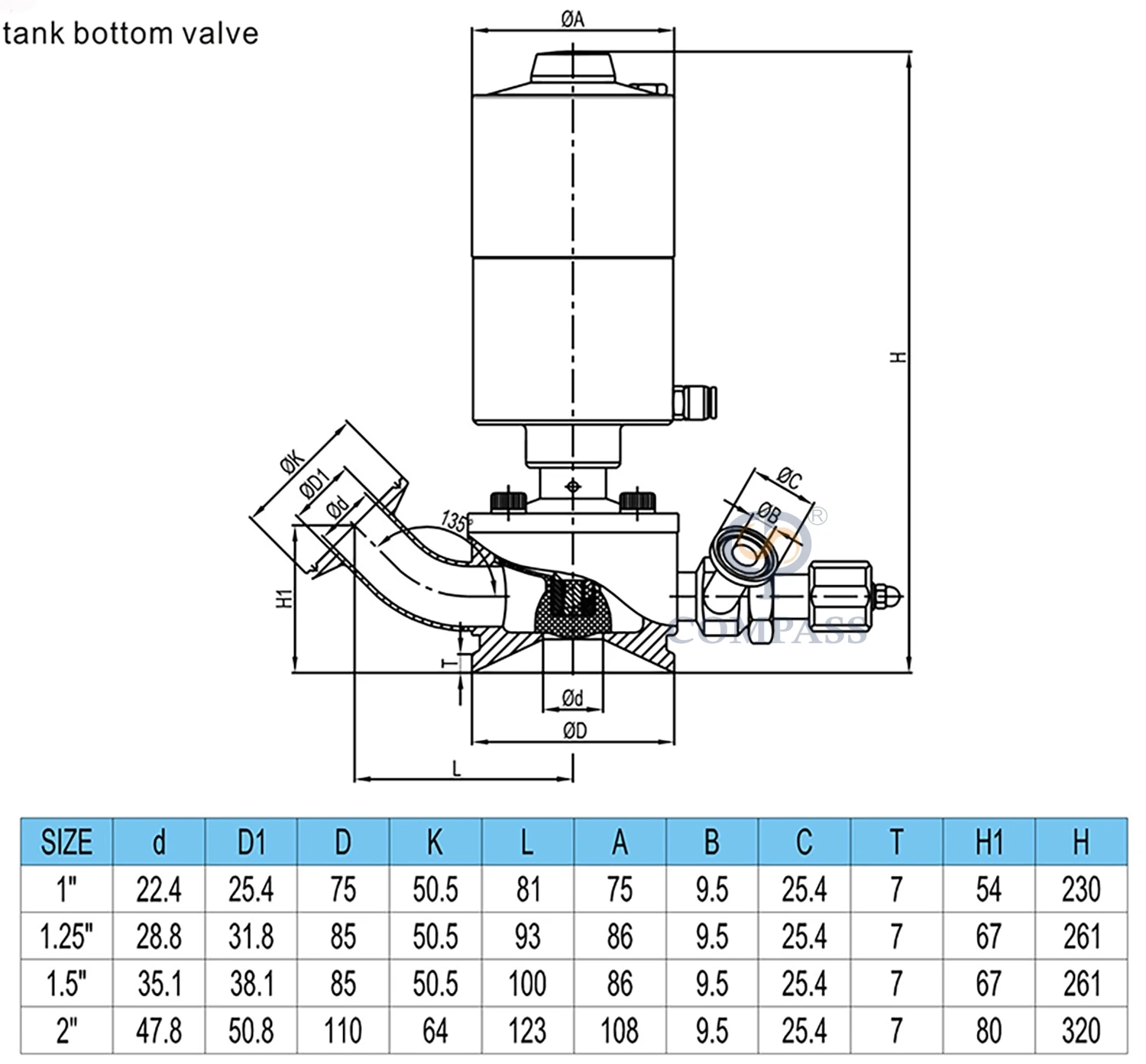

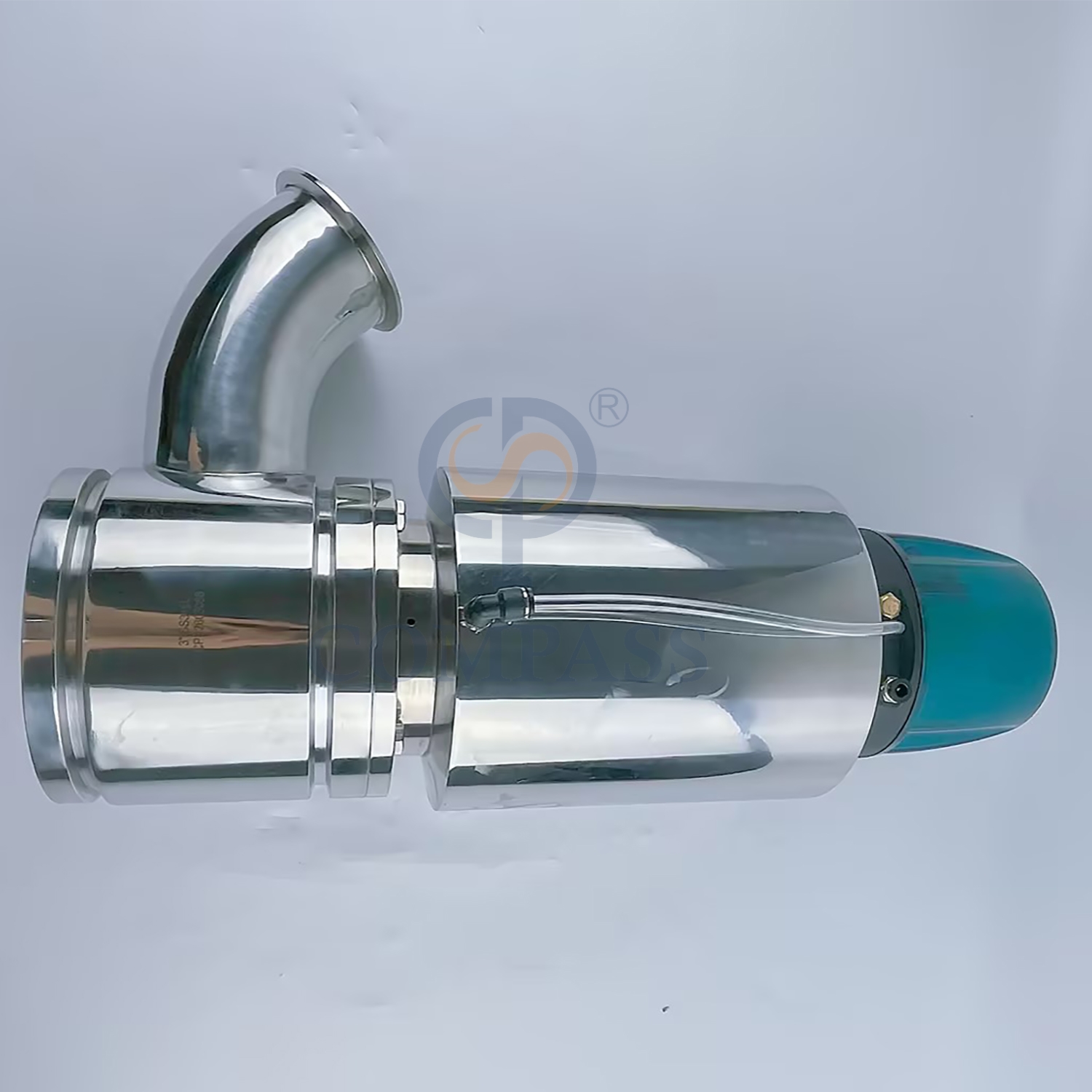

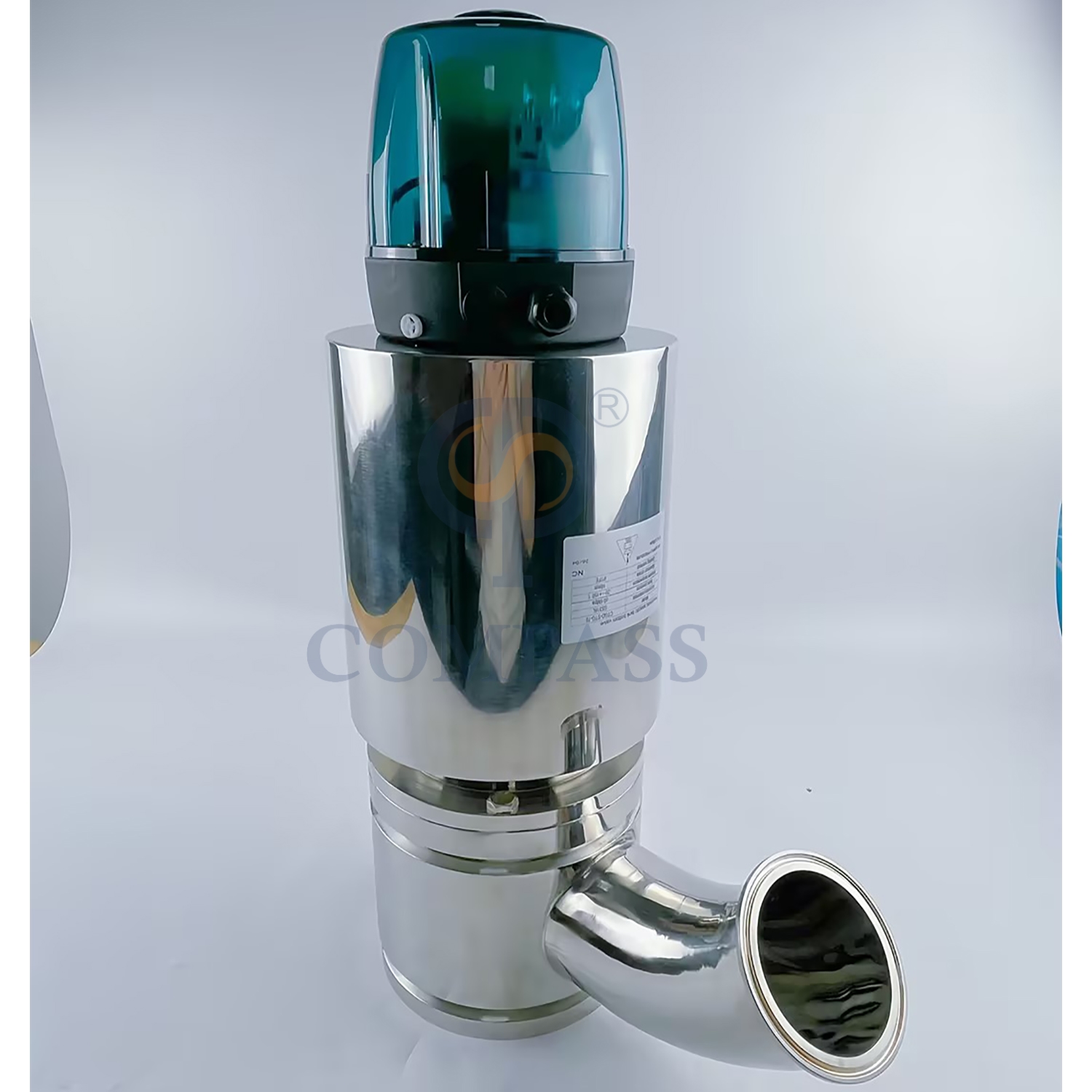

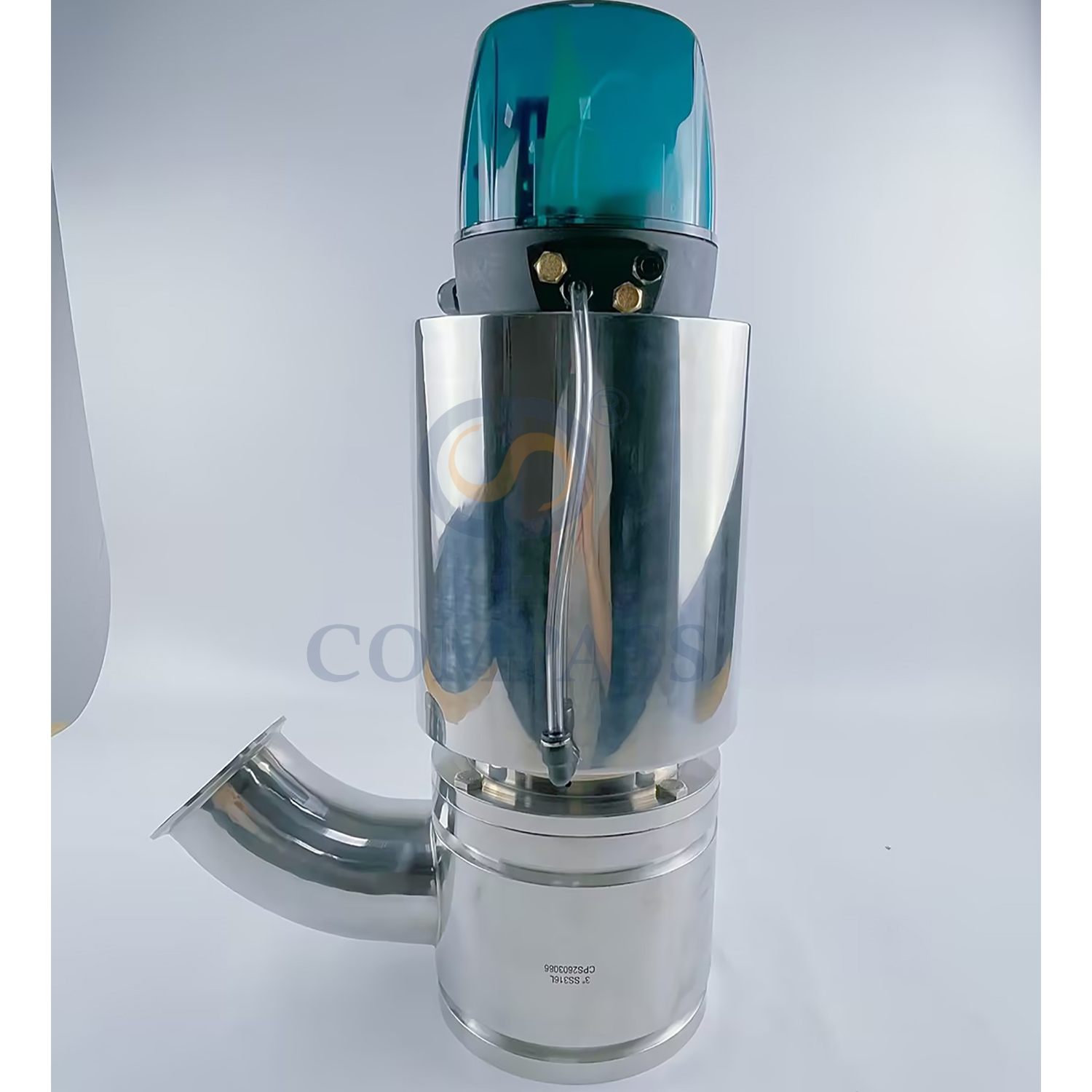

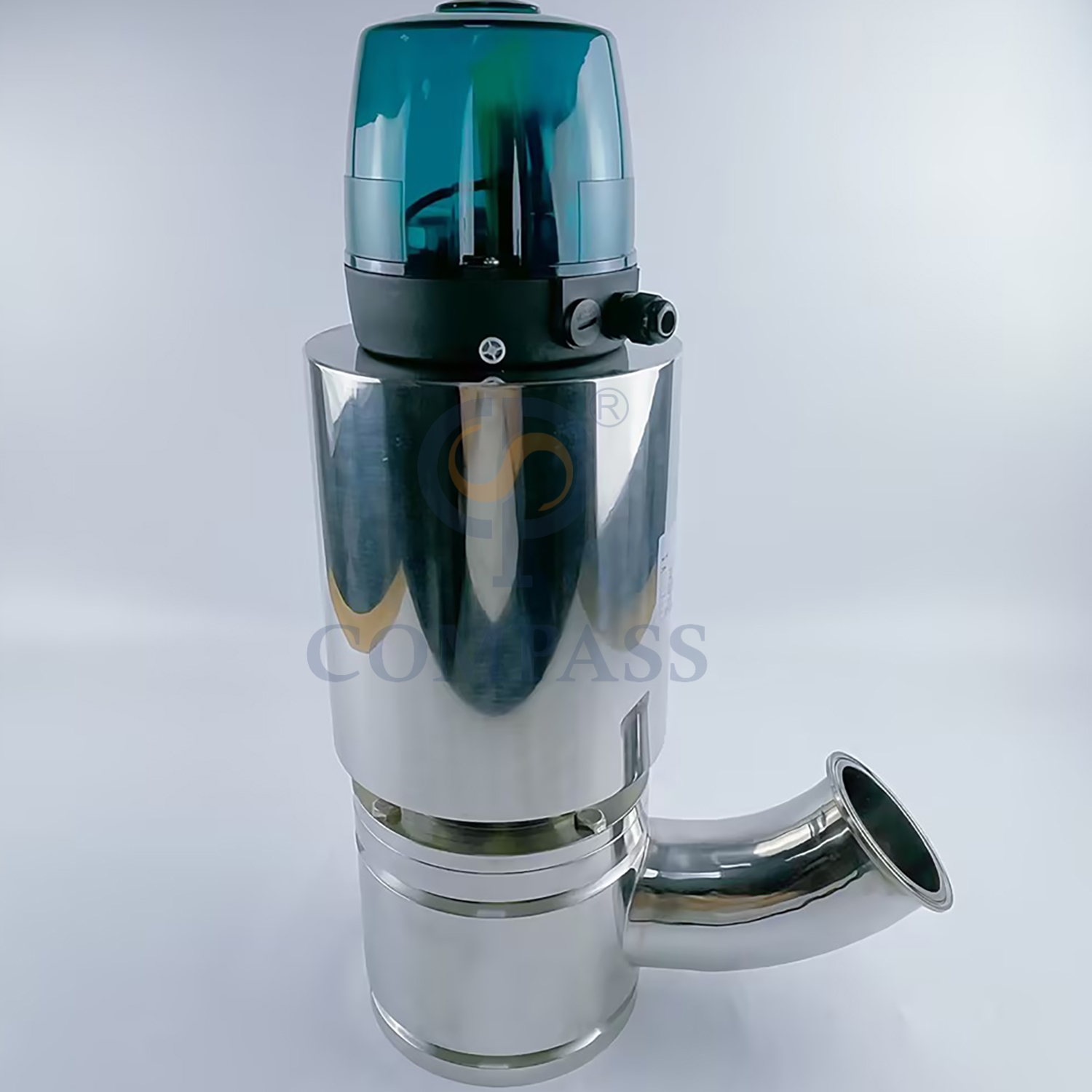

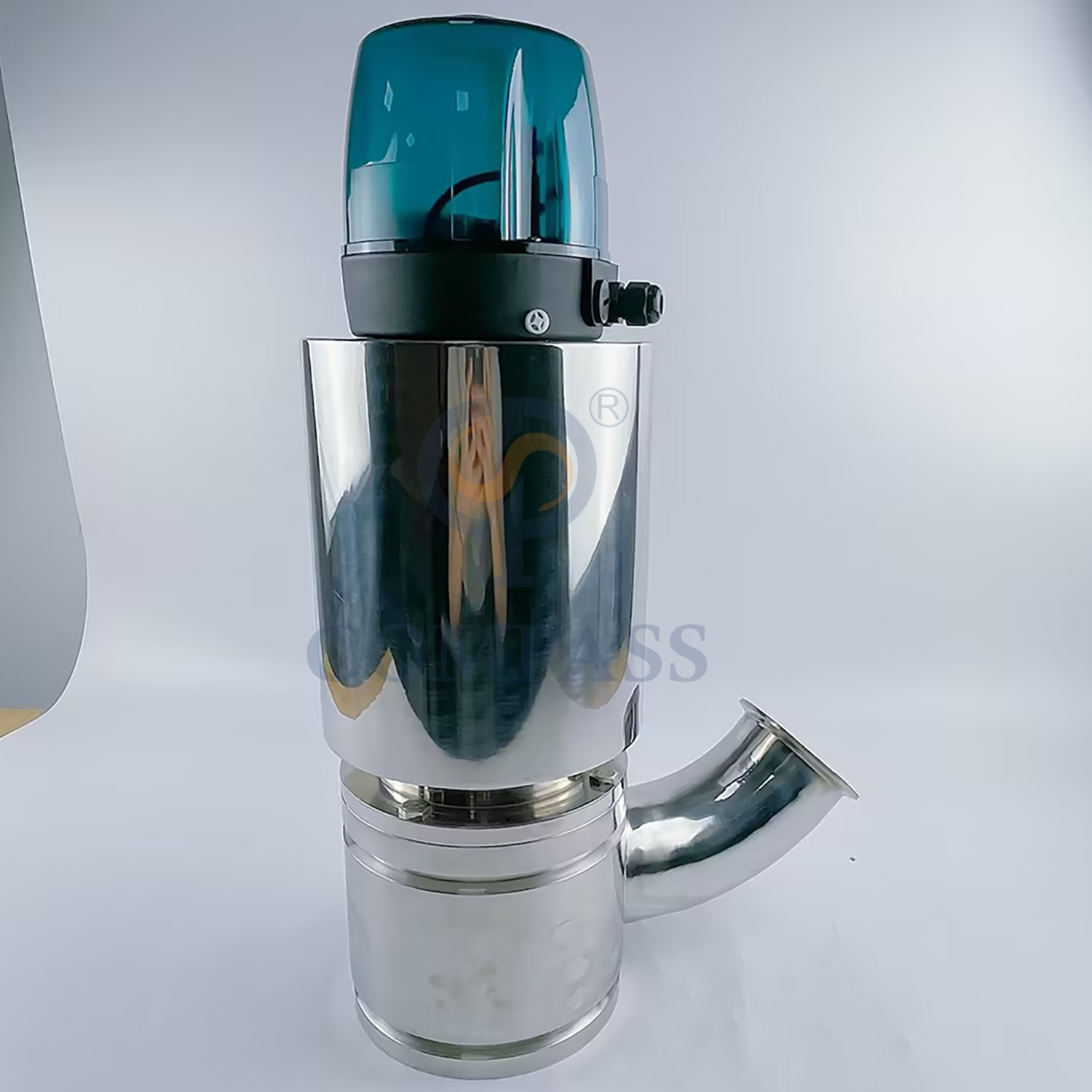

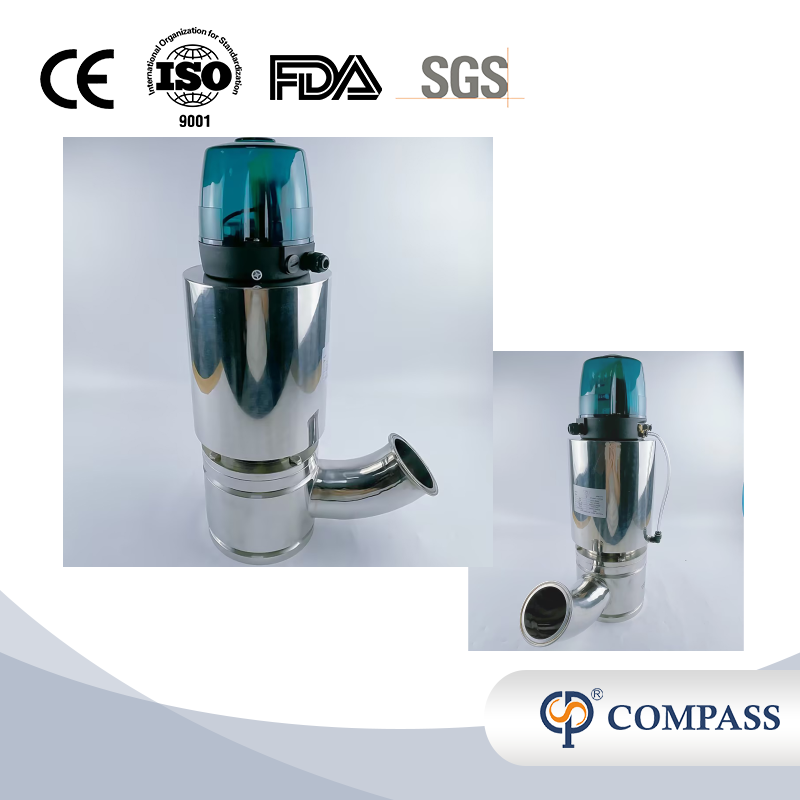

Description of Commodity: Hot Sale Air Actuated 76.2MM Sanitary Stainless Steel 316L Aseptic Clamp Pneumatic Flush Tank Bottom Valve with 24V Control Head
Design Features
1. The bottom of the tank will not accumulate liquid
2. It can be opened automatically when the pressure is too high.
3. It is practical, simple, has a long service life, is safe and reliable, and is easy to promote.
4. No leakage
5. No cross contamination
6. Easy to clean
Technical Specifications
Max. pressure: 0~10bar(0~145psi)
Temperature range
Working Temperature PTFE : -4 ~ 266°F(-20~ + 130℃)
Sterilization Temperature: PTFE -4 ~ 266°F(-20~ + 130℃)
Surface Treatment External: Ra32~64uin(0.8~1.6um)
Internal: Ra16~32uin(0.2~0.45um)
Technical Summary
This utility model relates to a aseptic tank bottom valve, which includes a tank bottom valve body, where in the tank bottom valve body includes a suitable valve body and a valve cover, a valve chamber is set inside the valve body, and a valve core is matched with it, and the valve core is made of PTFE. The valve core includes an integrated valve core part and an elastic part, and a hollow structure is set inside the valve core part, and at least one elastic support is set inside the hollow structure, A valve stem through hole is set at the center of the valve cover, and a valve stem fixedly connected to the valve core is inserted into the through hole of the valve stem.

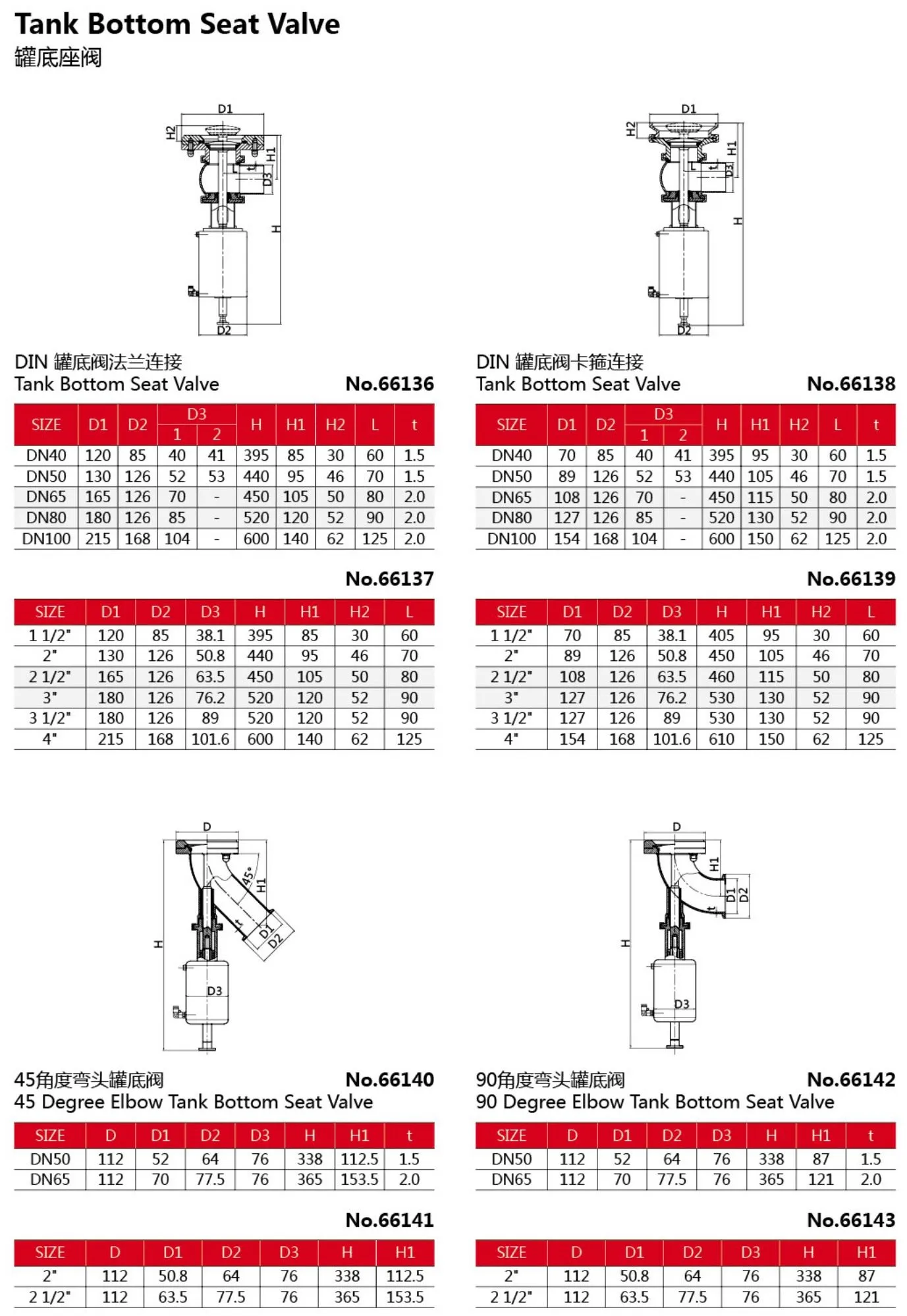

Options
1. The available size is 3/4”-4”, DN20~DN100
2. Outlet Connection can be Butt-weld,Tri-clamp
3. Drive Operation has Manual and Pneumatic Control
How to order?
1.What's standard for tank bottom valve? Such as DIN, SMS
2.What’s material quality? Such as SS304 and SS316L for optional
3.What’s size? The available size is from 3/4inch to 4inch, DN20 to DN100
4.What’s connection end? Such as butt-weld, tri-clamp, threaded, union, ect.
5.What's working principle? such as manual, pneumatic, control head ?
6.What's material of seal? such as silicone, PTFE?
