Main Parameter
Standard | SMS, 3A, DIN |
Material Contact Parts | SS316L(1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |

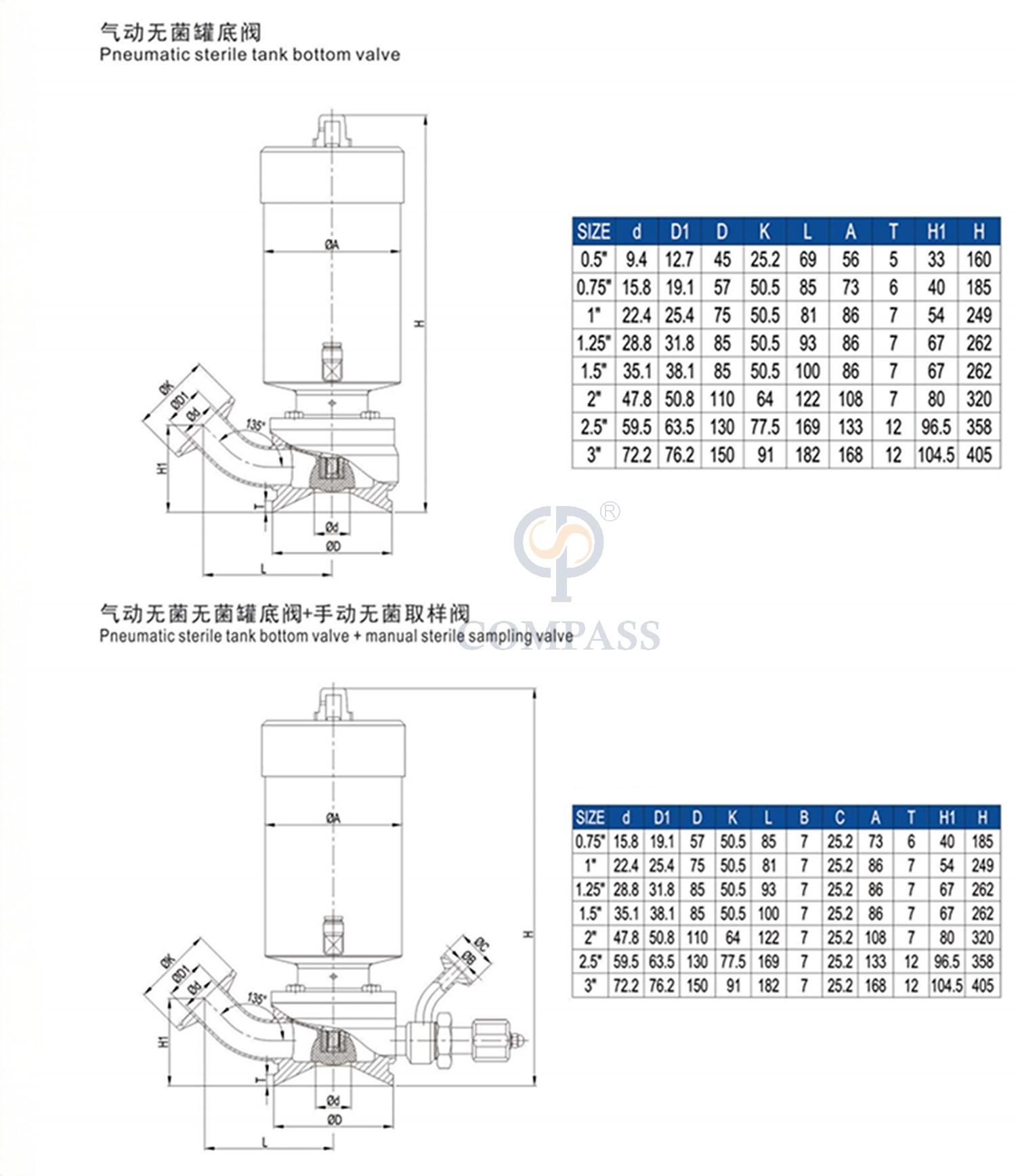

Size | 3/4", 1", 1.25", 1.5", 2", DN20, DN25, DN32, DN40, DN50 |
Inlet Connection | Flush Bottom |
Outlet Connection | Butt-weld,Tri-clamp |
Seal Material | PTFE, the material comply with FDA21CFR117.2600 |
Drive Option | Manual, Pneumatic, Control Head |
Pressure Range | 0~10bar(0~145psi) |
Working Temperature | PTFE -4 ~ 266°F(-20~ + 130ºC) |
Sterilization Temperature | 302°F (150ºC)≤30min |
External Surface Treatment | Ra32~64uin(0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.2~0.45um) |
Technical Specifications
Max. pressure: 0~10bar(0~145psi)
Temperature range
Working Temperature PTFE : -4 ~ 266°F(-20~ + 130ºC)
Sterilization Temperature: PTFE -4 ~ 266°F(-20~ + 130ºC)
Surface Treatment External: Ra32~64uin(0.8~1.6um)
Internal: Ra16~32uin(0.2~0.45um)
Design Features
1. The bottom of the tank will not accumulate liquid
2.It can be opened automatically when the pressure is too high.
3.It is practical, simple, has a long service life, is safe and reliable, and is easy to promote.
4.No leakage
5.No cross contamination
6.Easy to clean
Design Features
1. The bottom of the tank will not accumulate liquid
2.It can be opened automatically when the pressure is too high.
3.It is practical, simple, has a long service life, is safe and reliable, and is easy to promote.
4.No leakage
5.No cross contamination
6.Easy to clean
How to Order Sanitary Manual Aseptic Tank Bottom Valves?
1. What's material, such as SS304, SS316L ?
2. What's size? Such as 3/4 inch to 2inch,DN20 to DN50
3. What's working principle? Such as manual,pneumatic,control head?
4. What's connection end, such as butt-weld,tri-clamp?
5. What's material of seal? Such as silicone,EPDM?
6. What's standard for tank bottom valve?such as DIN,SMS.
