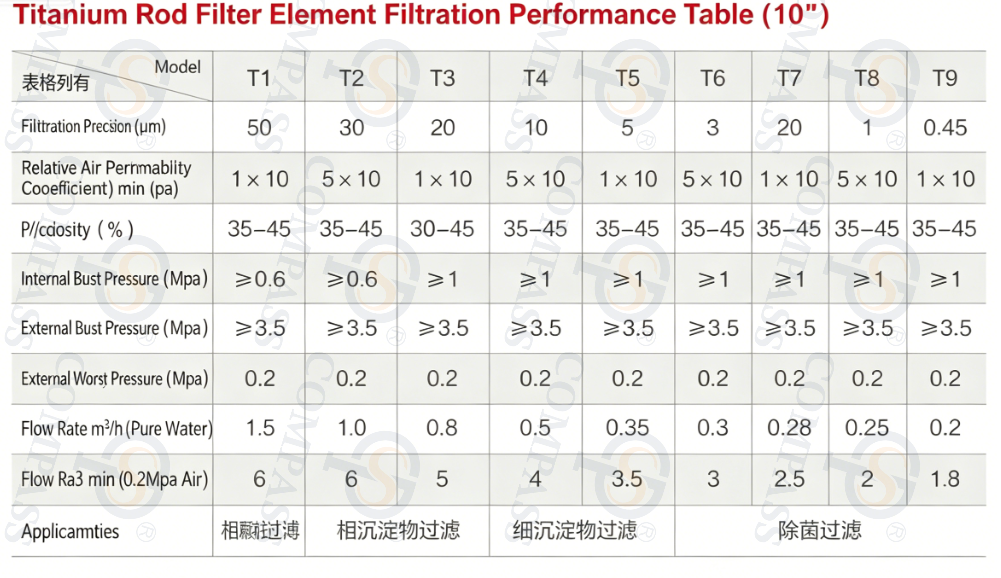

Specification
Filtration Rating | 0.45~100 μm |
Length | 2.5~40 inch |
Outer Diameter | 20~100 mm |
Filtration Efficiency | 95%~99.9% |
Max. Operating Temperature | 280℃ (Wet Condition) |
Max. Differential Pressure | 0.6 MPa |
Connection Port | #220, #222, #226 |

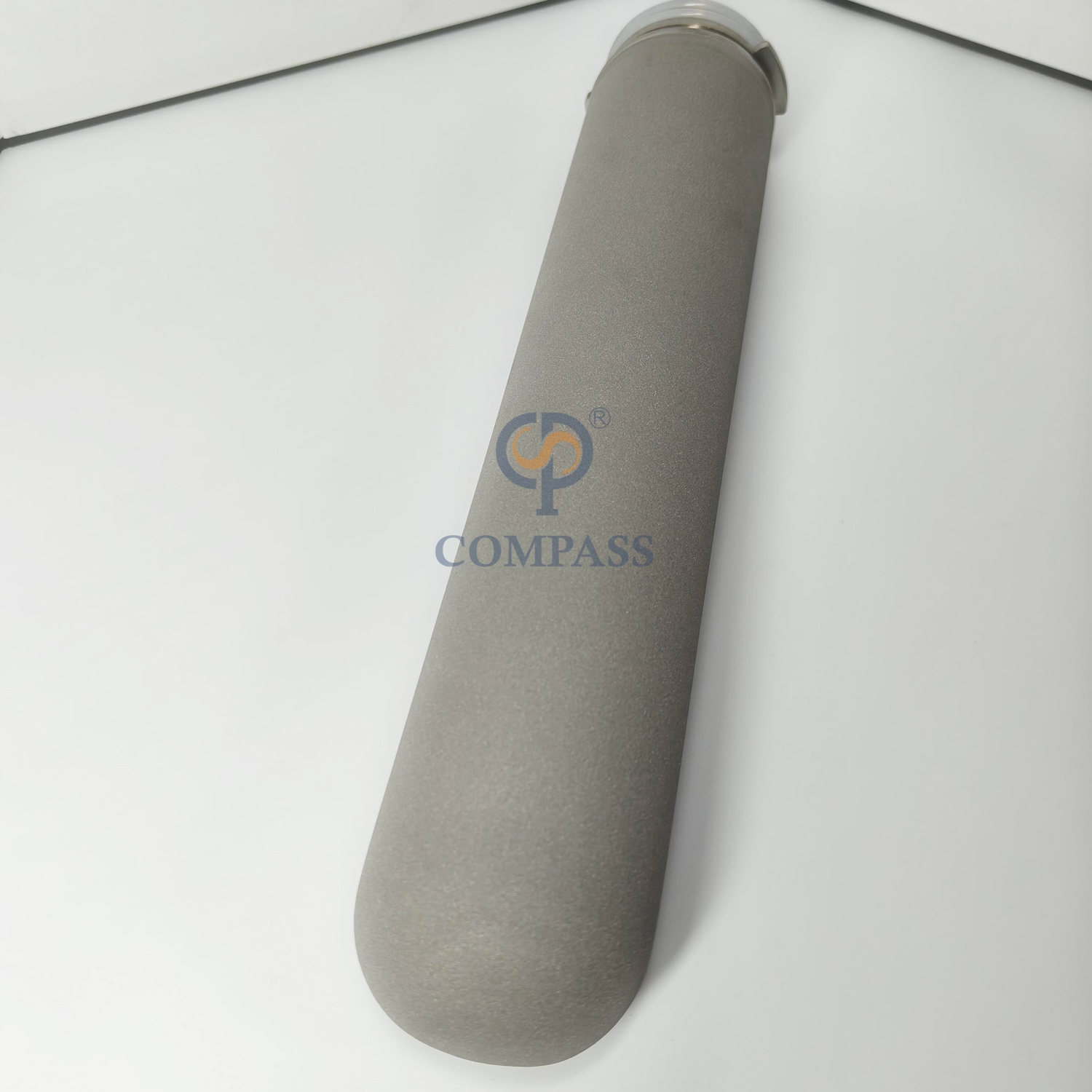

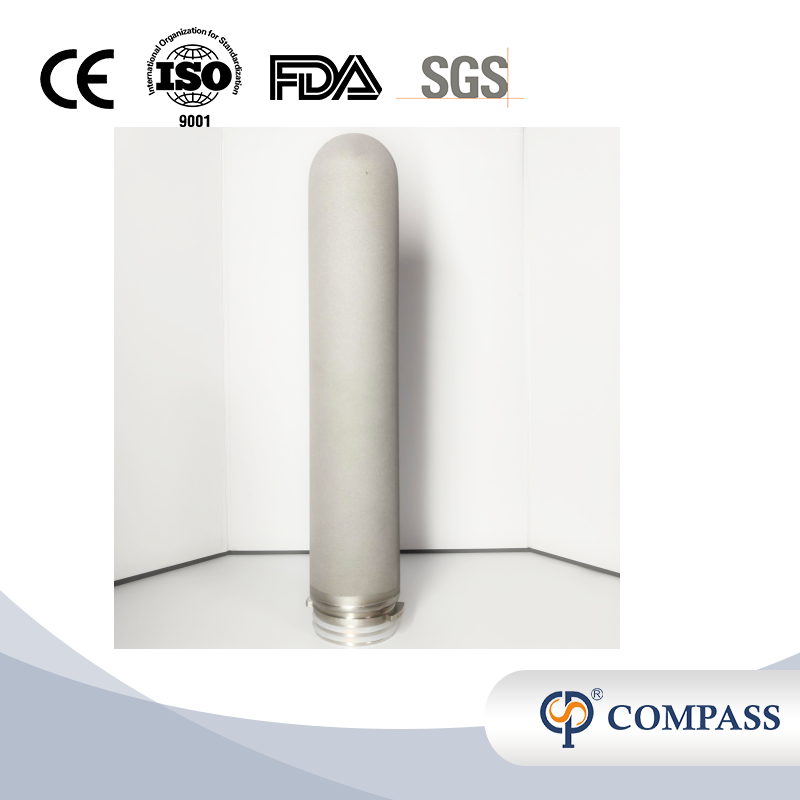

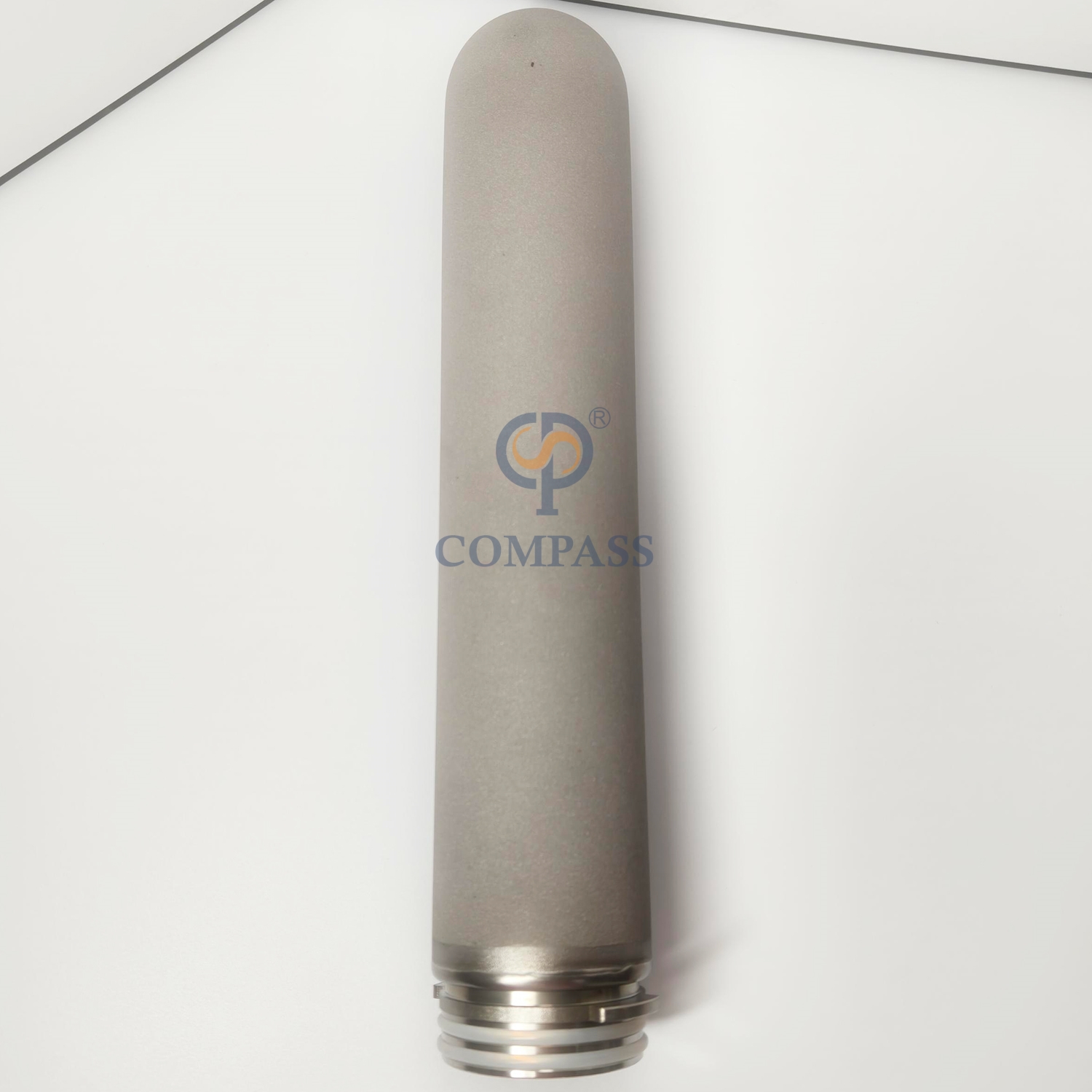

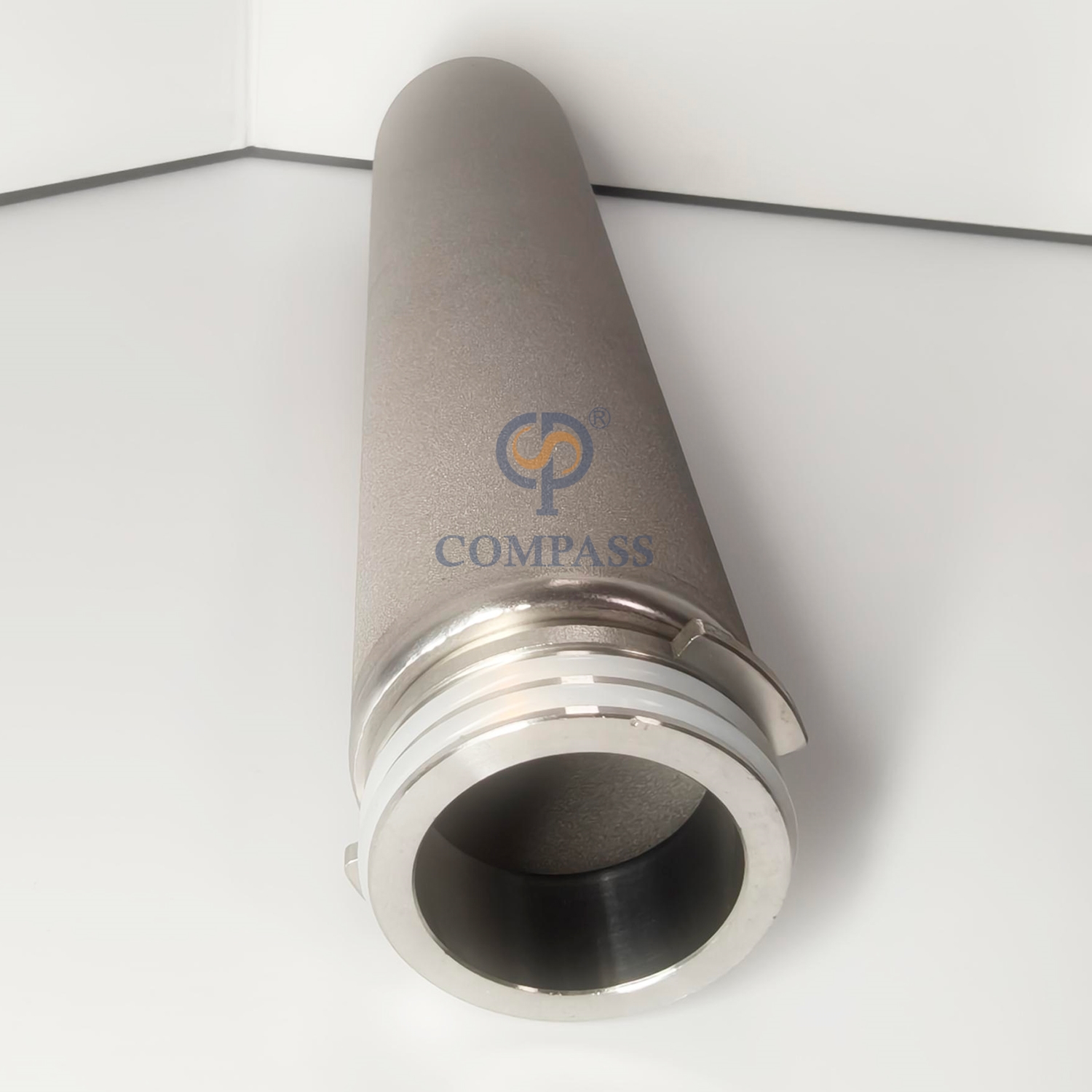

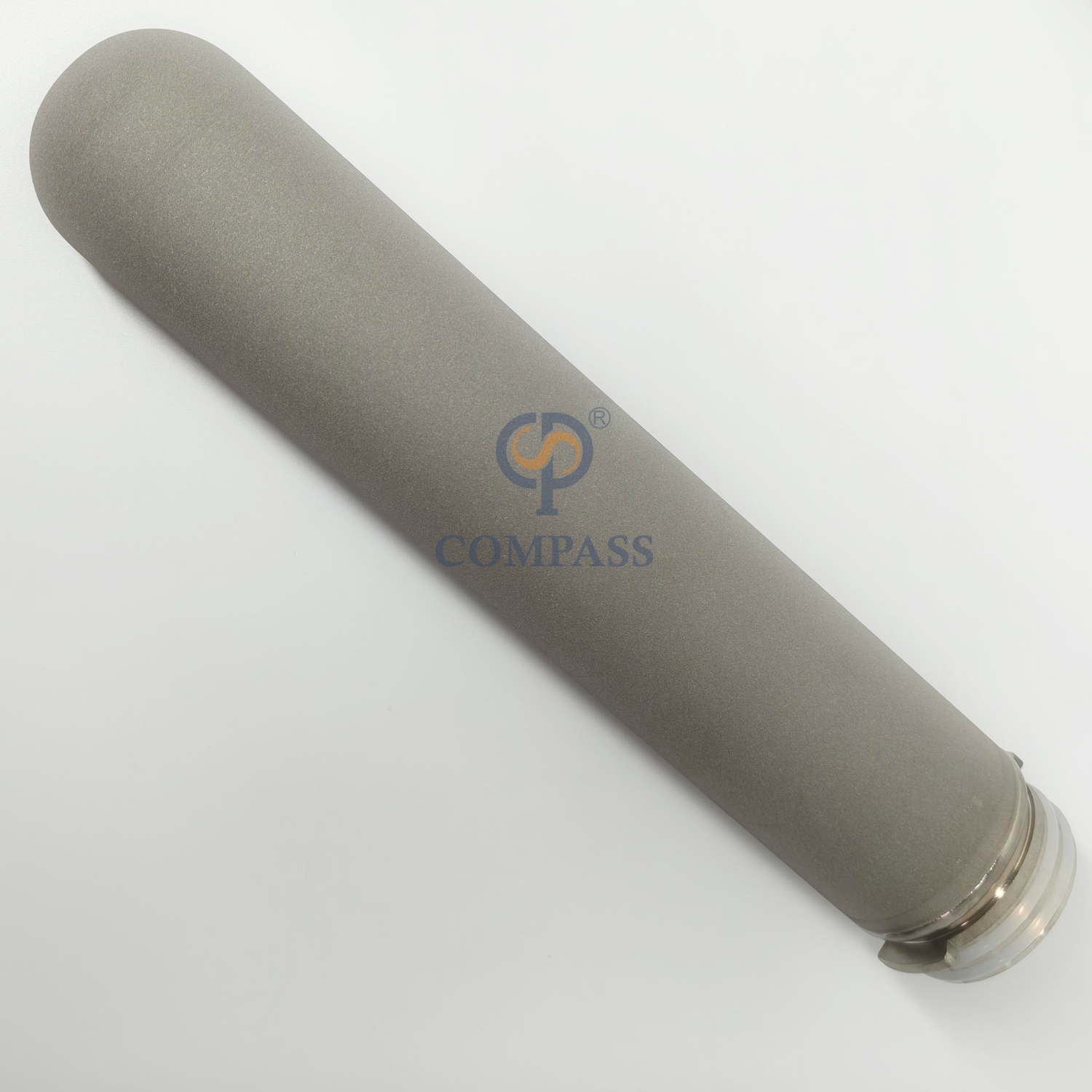

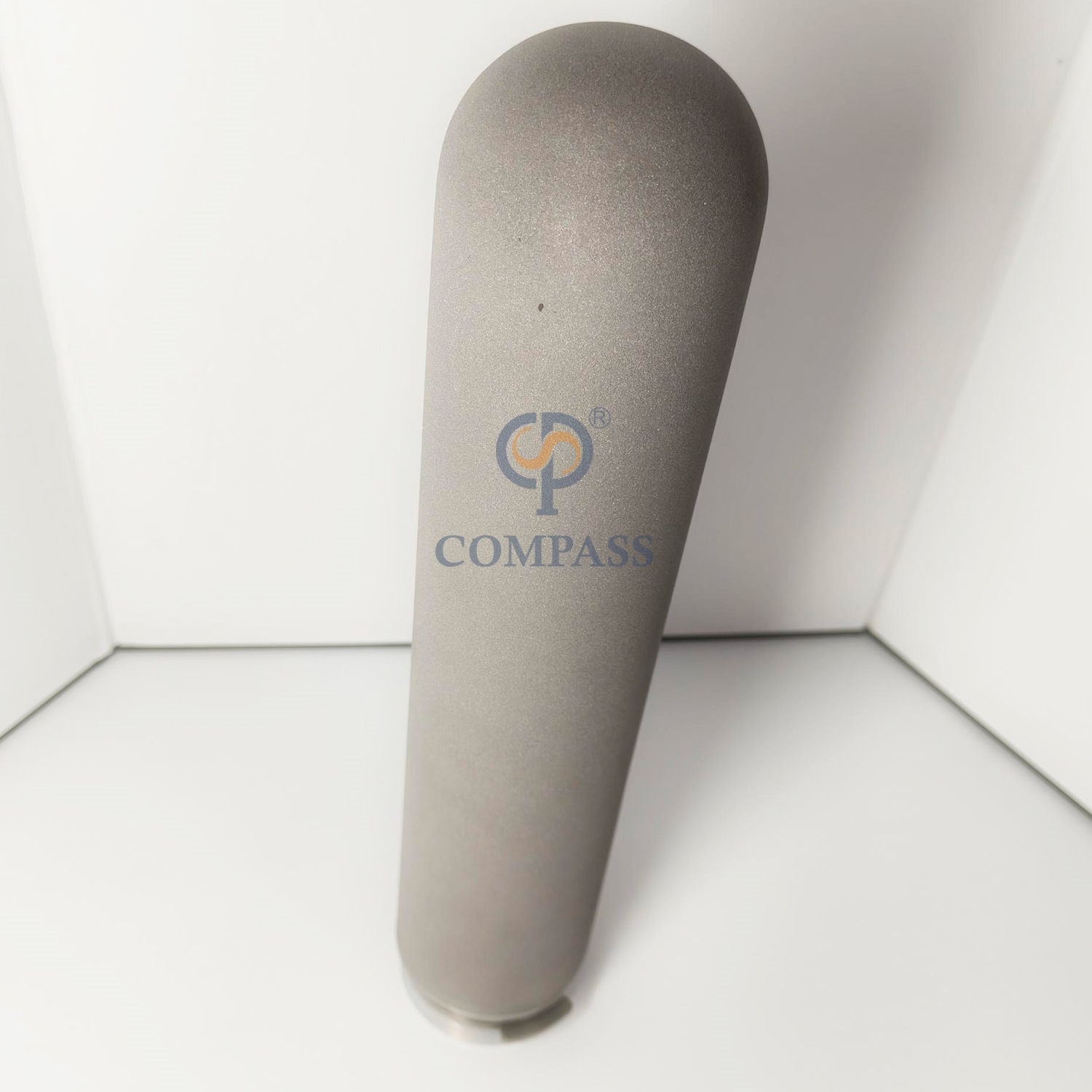

Filter Material | Titaniumrod |
PH Range | 1~14 |
Application | Widely used for beer, beverage, dairy, food, biological and so on |
Main Functions
1.Remove particles, suspended impurities and bacteria from fluid medium
2.Protect filling valves, pumps and precision pipeline components from clogging and wear
3.Realize sterile filtration, online CIP/SIP sterilization treatment
4.Medium purification, bubble removal and stable fluid flow
Advantages
1.Strong acid and alkali corrosion resistance, long service life.
2.High mechanical strength, pressure resistant, no material shedding.
3.High temperature resistant, support repeated 280℃ steam sterilization.
4.Reusable after backwashing and ultrasonic cleaning, low use cost.
5.Food-grade sanitary material, comply with FDA and GMP standard.
Application Field
1.Steam filtration
2.High temperature filtration
3.Post-filtration after ozone sterilization and ozone aeration filtration in water treatment industry
4.Safety pre-filtration for decarbonization and dilution preparation before terminal filtration in pharmaceutical production of infusions, small injections and oral liquid formulations
Feature
1.Resistant to strong acid, strong alkali and high temperature
2.High pressure resistance
3.Excellent permeability
4.High mechanical strength
5.Strong oxidation resistance
6.Excellent chemical stability
7.Uniform pore size structure
8.No adhesive added
9.No medium shedding from filter cartridge
10.100% pure water cleaning for every filter cartridge
11.100% integrity test for every filter cartridge
12.Regenerable both chemically and physically with excellent reusability
13.Suitable for solid-liquid-gas separation and purification of various media
14.Long service life, quick cartridge replacement and easy operation
How to order?
1.What length do you need? Such as 2.5~40 inch.
2.What outer diameter do you require? Such as 20~100 mm.
3.What filtration rating do you want? Such as 0.45~100 μm.
4.What filtration efficiency do you need? Such as 95%~99.9%.
5.What maximum operating temperature do you require? Such as 280℃ (Wet Condition).
6.What maximum differential pressure do you want? Such as 0.6 MPa.
7.What pH range do you need? Such as 1~14.
