The details of product
Type of Plate Type Heat Exchanger | Detachable Plate Heat Exchanger (also known as plate heat exchanger with sealing gasket) Welded Plate Heat Exchanger Spiral Plate Heat Exchanger Plate Coil Heat Exchanger (also known as honeycomb heat exchanger) |
Process Combination Form | Single Process, Multi Process, Mixed Process |
Material Contact Parts | SS304(1.4301)/SS316L (1.4404) |
Material Non-contact Parts | SS304(1.4301) Provided with material inspection report |
Sealing Material | NBR,EPDM,Sillicone,FKM All material comply with FDA21CFR117.2600 |
Flow | 0.1-1000m*/h |
Exchanger Type | Heating,Cooling,Evaporation,Sterilization and Disinfection |
One Plate Exchanger Area | 0.02m2,0.04m2,0.06m2,0.08m2,0.12m2,0.13Bm2,0.15m2,0.22m2, 0.24m2,0.32m2,0.4m2,0.65m2,0.75m2,0.85m2,1.54m2,1.8m2 |
Plate Thickness | 0.7-1.0mm |
| Connection | Union,Tri-clamp, Flange |
| Max. Pressure | 10bar (145psi) |
Working Pressure | 0-6bar (0-87psi) |
Working Temperature | 14 ~ 302°F (-10°C~+150℃) |
Sterilization Temperature | 302°F (150°C)≤30min |

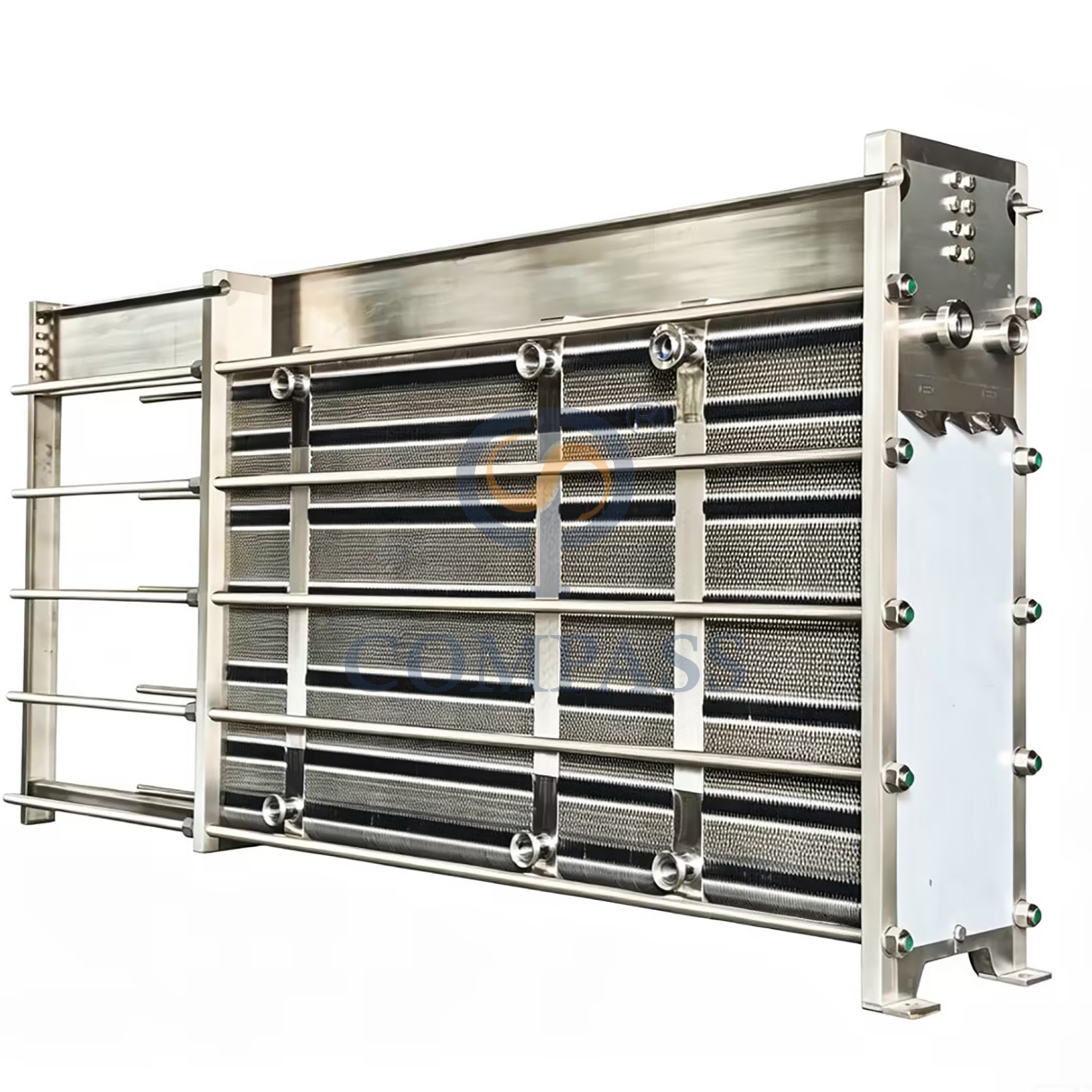

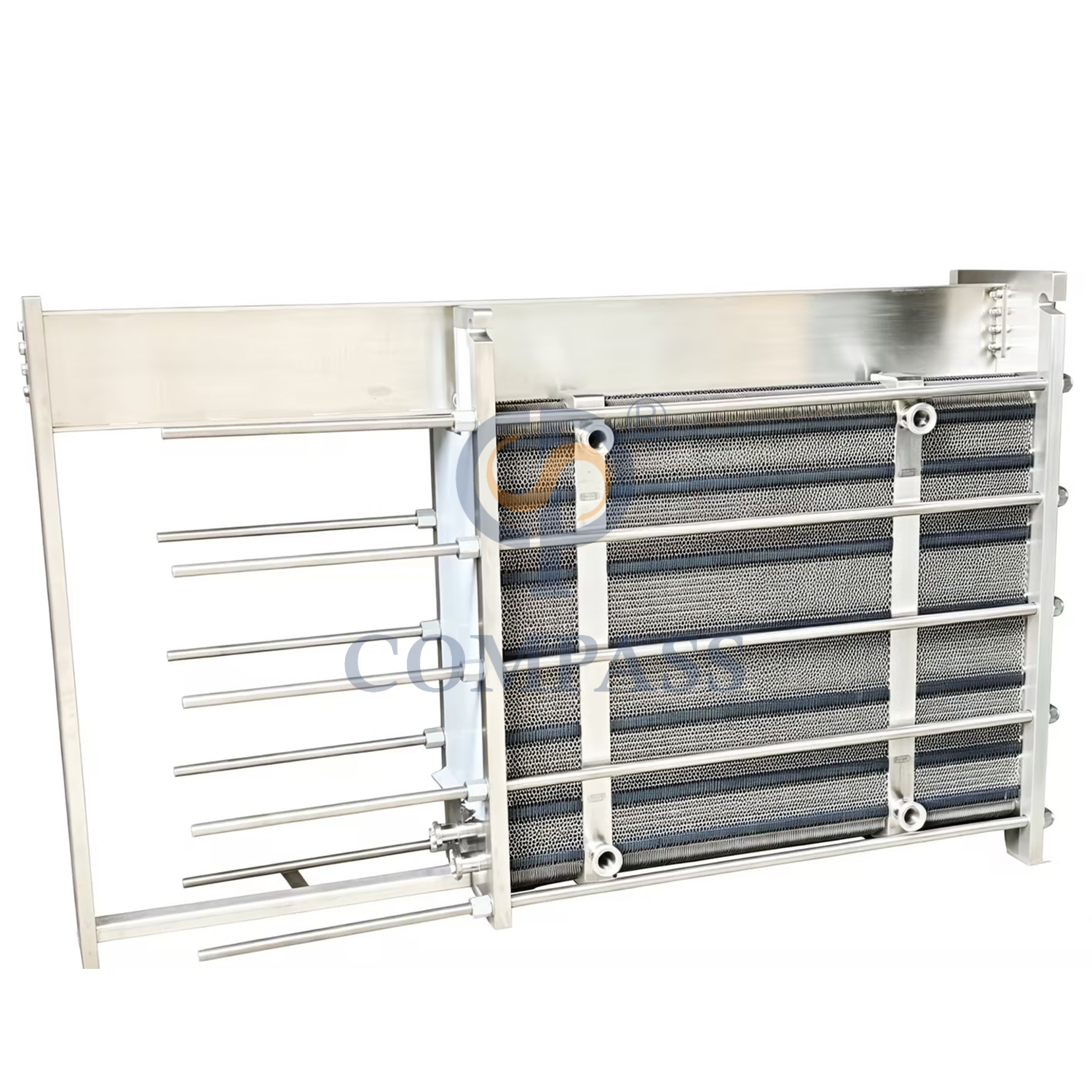

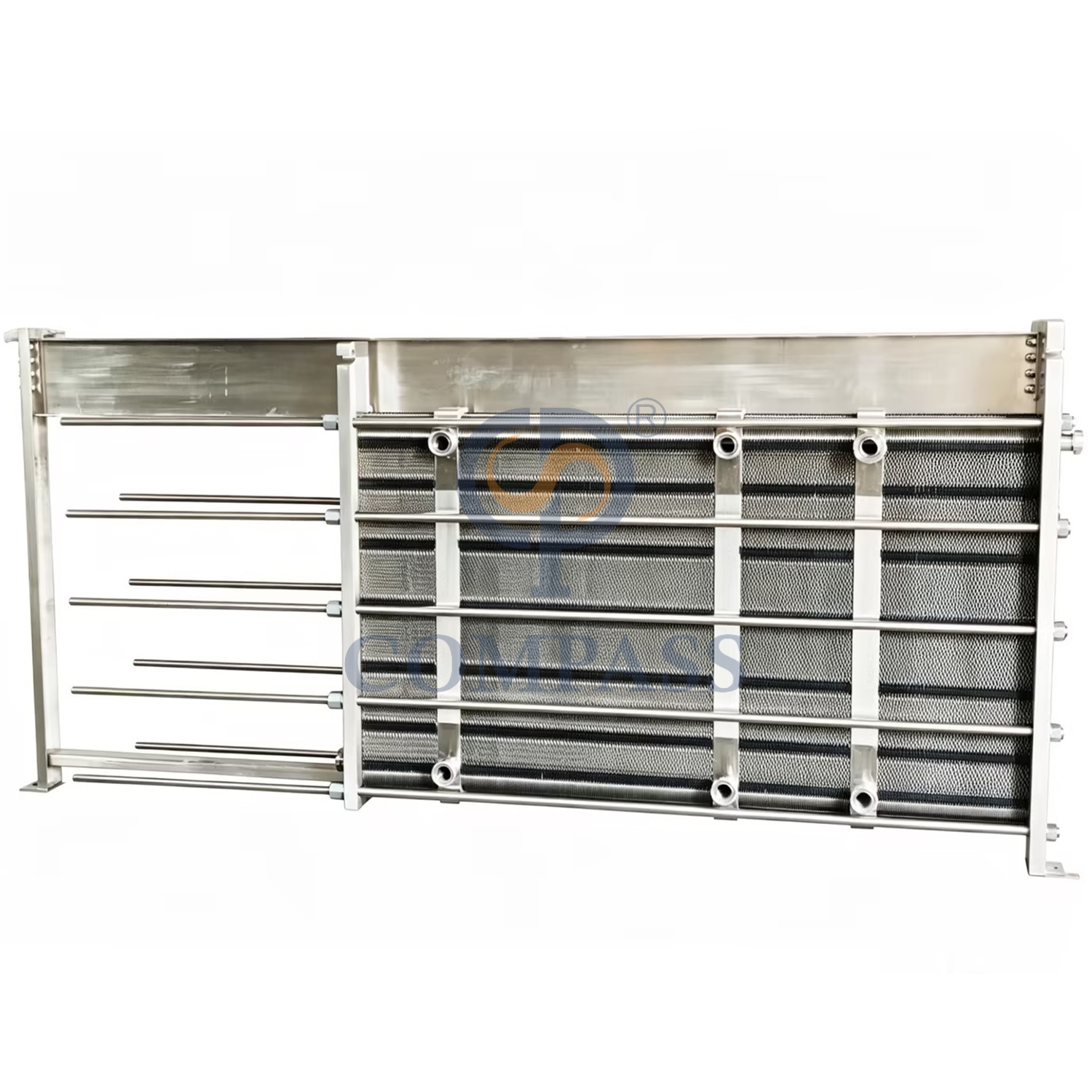

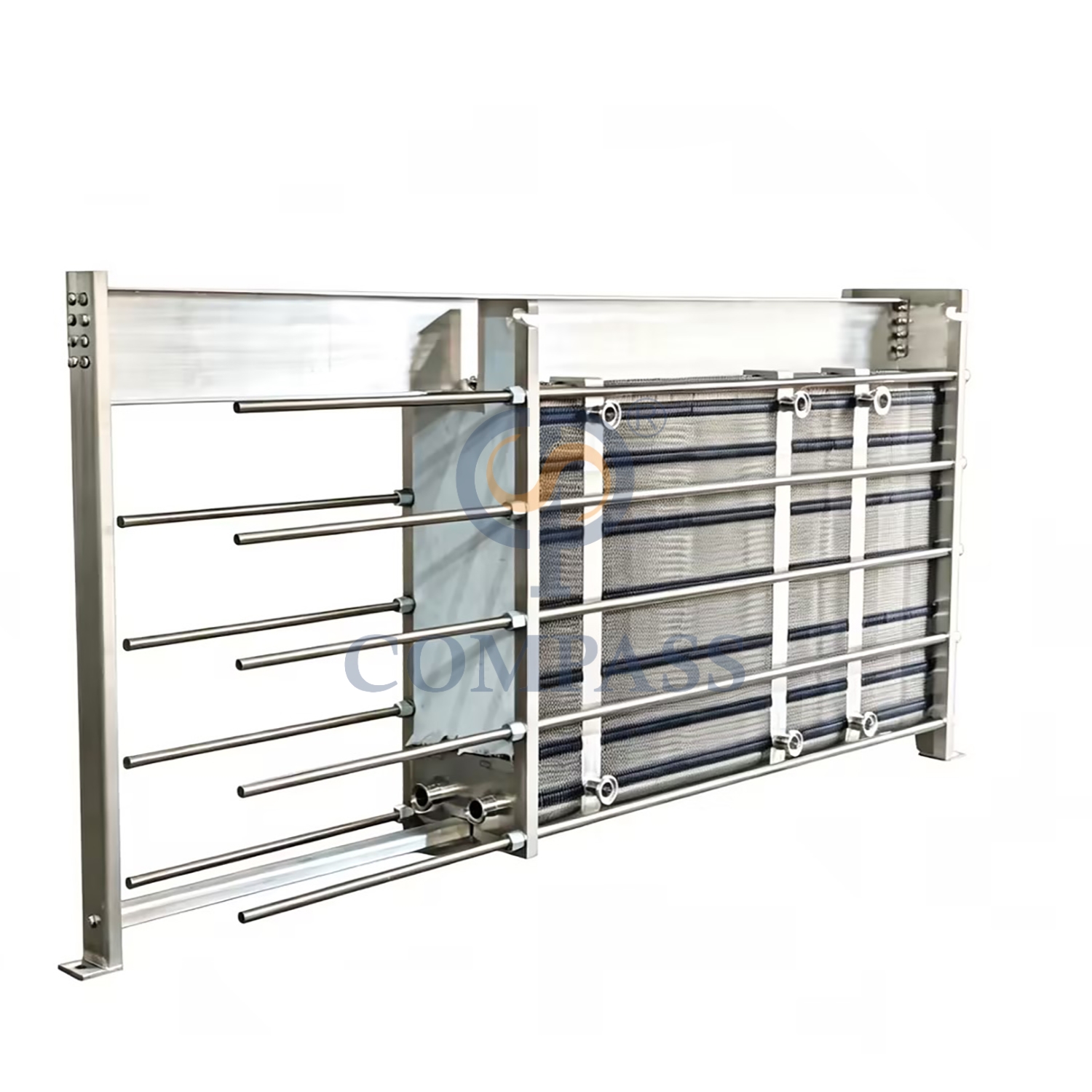

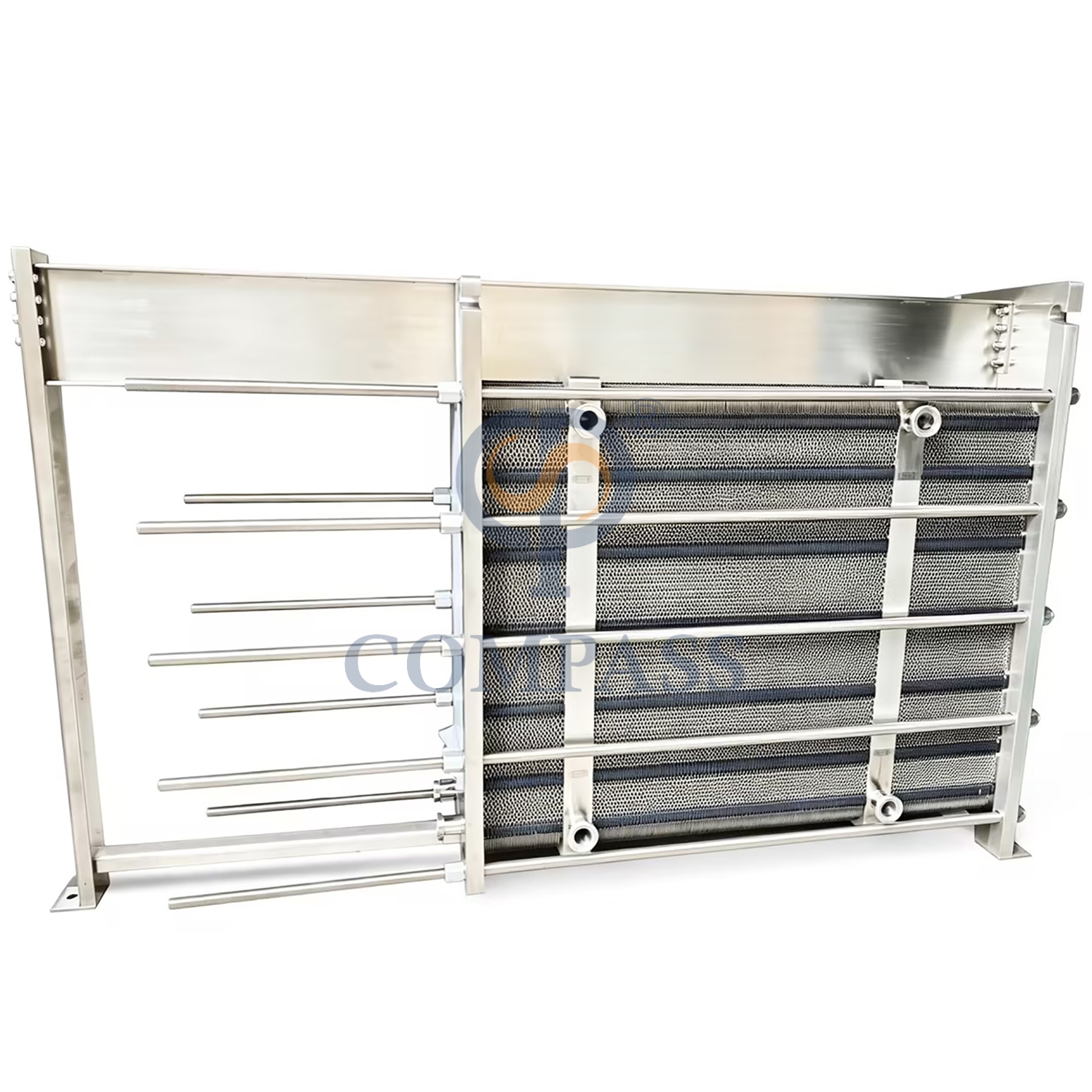

Description of Commodity: BR033-116M² SS316L 0.6 mm Plates Full SS304 Frame DN50 Union Multistage Four-Stage Plate Heat Exchanger with EPDM Rubber Gasket
Applications:
Our plate type heat exchanger is widely used in food and beverage processing.
1.All kinds of dairy products: Fresh milk, milk powder, milk drinks, Yogurt and so on.
2.Vegetable protein drinks: Peanut milk, milk tea, soy milk, soy milk drinks, etc.
3.Juice drinks: Fresh fruit juice, fruit tea and so on.
4.Cool tea drinks: Tea drinks, reed drinks, fruit and vegetable drinks, etc.
5.Seasoning: Soy sauce, rice vinegar, tomato juice, sweet chili sauce, ect.
6.Breweries: Beer, rice wine, wine and so on.
The plate type heat exchanger is applied to other industrial liquid treatment.
Pharmaceutical, printing and dyeing, heating and heat exchange, chemical, power plant, swimming bath heating, petroleum, metallurgy, hot water, ship, machinery, paper, textile, geothermal utilization, environment protection, refrigeration.
Process Flow of Plate Type Heat Exchanger:
1.Because of the special effect of the plate corrugated surface, the fluid flows along the corrugated channel. The velocity direction of the plate heat exchanger changes constantly, which results in the strong end-movement of the fluid at a small flow rate, thus strengthening the heat transfer process. It effectively improve the heat transfer capability and has the outstanding advantages of compact structure, low metal consumption, flexible operation and long service life.

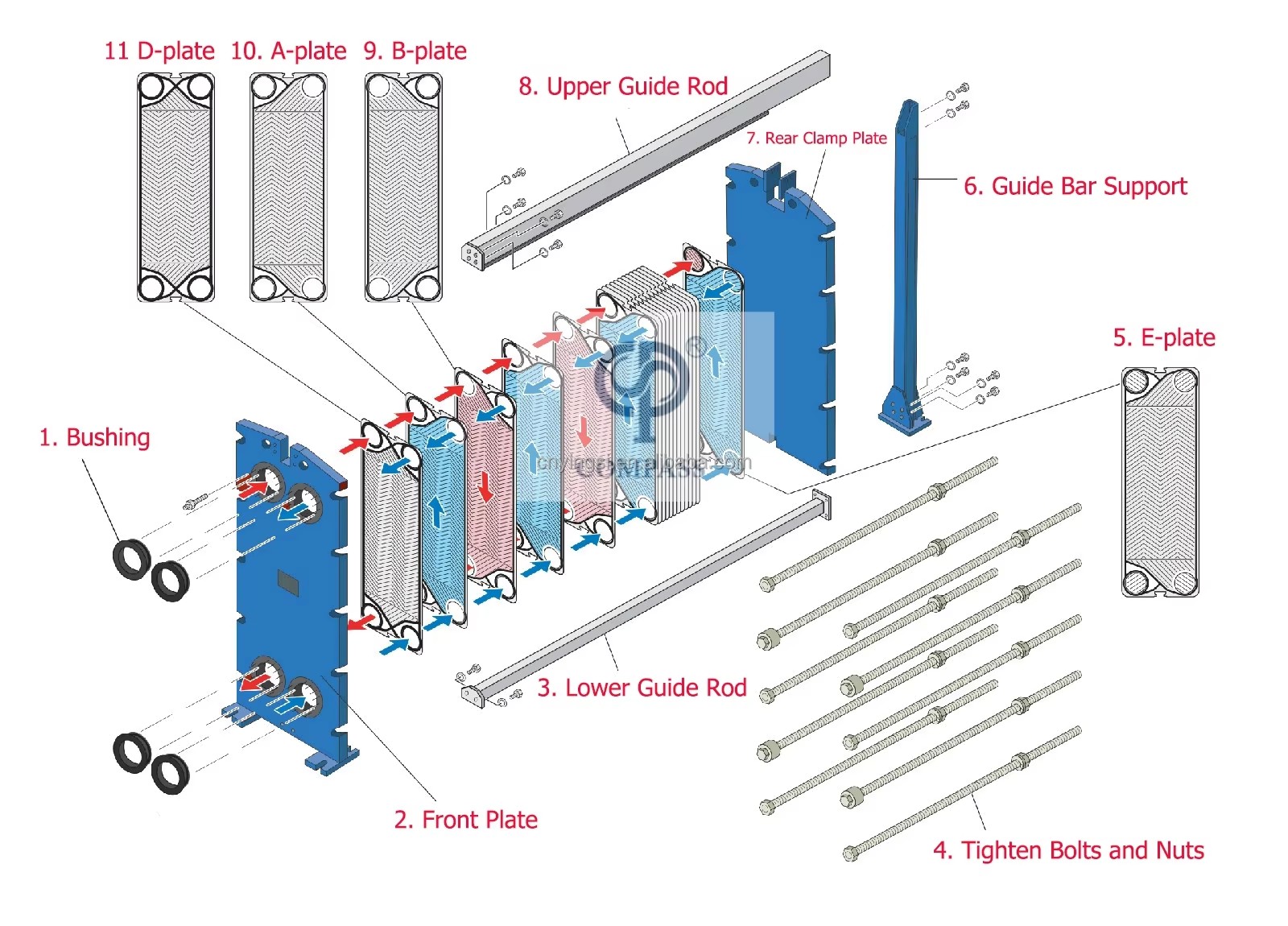

2.The process of heat exchanger is composed of many plates assembled according to a certain process and requirement of the buyer. When assembling, A and B plates are arranged alternately and a network is formed between the plates. The sealing gasket seals the cold and hot media in the heat exchanger. Meanwhile, the cold and hot media are separated reasonably without mixing. Exchanger so as to achieve the desired effect.

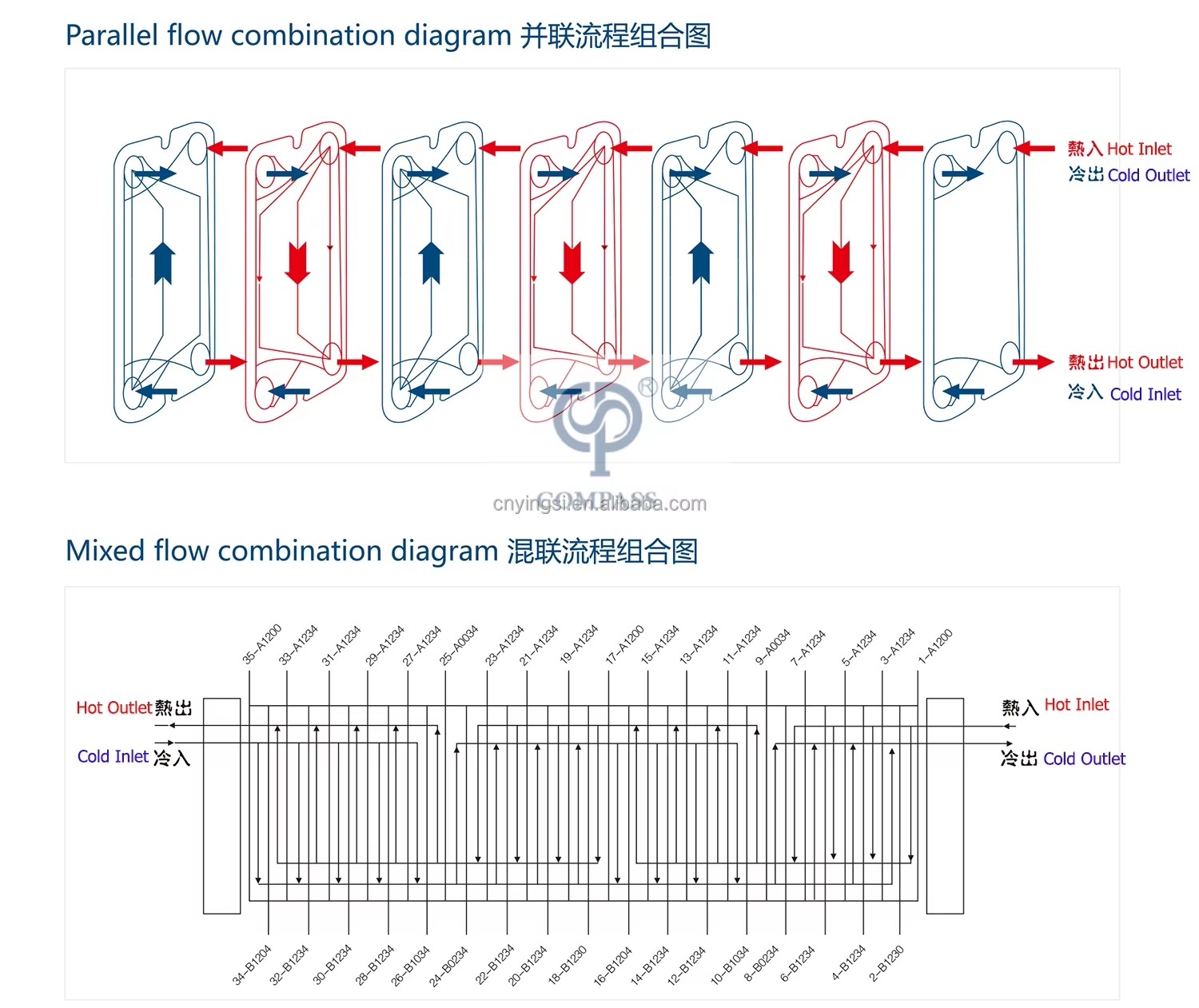

3.There are many kinds of flow combinations of plate heat exchanger, which are realized by different reversing plates and different assembly. The process combination can be divided into single process, multi process and mixer process.
How to order plate heat exchanger?
1. What’s product used for plate heat exchanger ? such as milk
2. What’s milk inlet temperature ?
3. What’s milk outlet temperature ?
4. What’s capacity for milk ?
5. What’s media inlet temperature ？
6. What’s media ? if Media is water, please also kindly inform us .
7. What’s capacity for water?
8. What’s Sterilizing temperature ?
9. What's cooling temperature or heating temperature ?
