Specification
Stanadrd | SMS, DIN, ISO |
Material Contact Parts | SS304/ SS316L (1.4301/1.4404) |
Material Non-contact Parts | SS304 (1.4301) |
Seal Material | Silicone, EPDM, PTFE. All seals material comply with FDA21CFR117.2600 |
Size | 1Inch to 8Inch, DN25 to DN200 |
Mesh Size | 3Mesh to 400Mesh, 37Micron to 6730Micron, 0.037MM to 6.730MM Such as 10 mesh,20 mesh,40 mesh,100 mesh,150 mesh |
Inside Cartridge Filter Screen | Perforated Plate Screen, Wedge Wire Screen, Metal Mesh Screen |
Body Combination | Staringht Type, Angle Type, Y Type, Duplex Type |
Connection | Butt Weld,Tri Clamp, Male Thread, Female Male Threaded, Union, Flange |
Working Pressure | ≤10bar (145psi) |
Temperature Range | Minus 20degree Celsius~135degree Celsius |
External Surface Treatment | Ra32~64uin (0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin (0.4~0.8um) |
Warrenty | One Year |
Support | OEM, ODM Are Welcome |
Application | Milk, Juice, Beer, Beverage, Ect. |

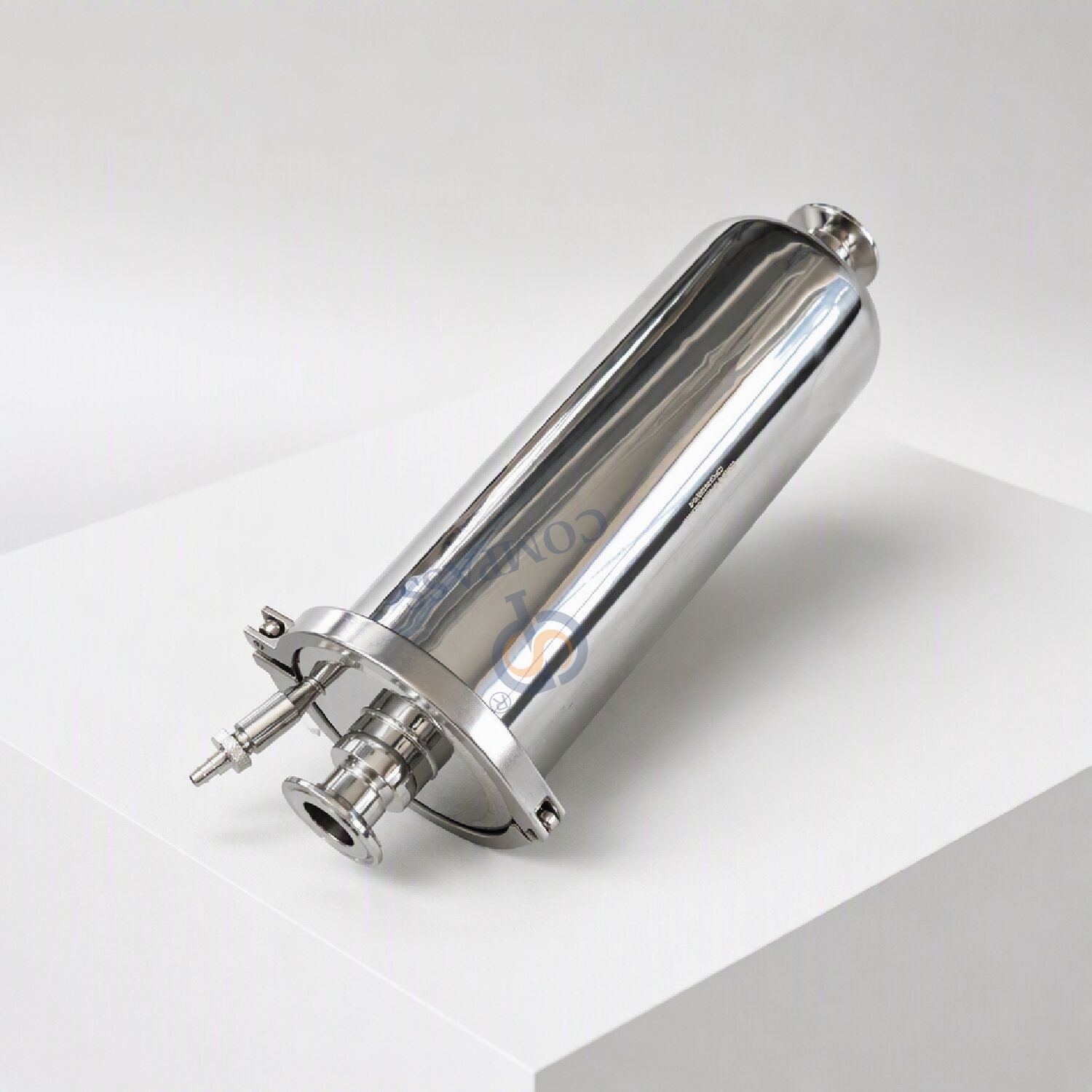

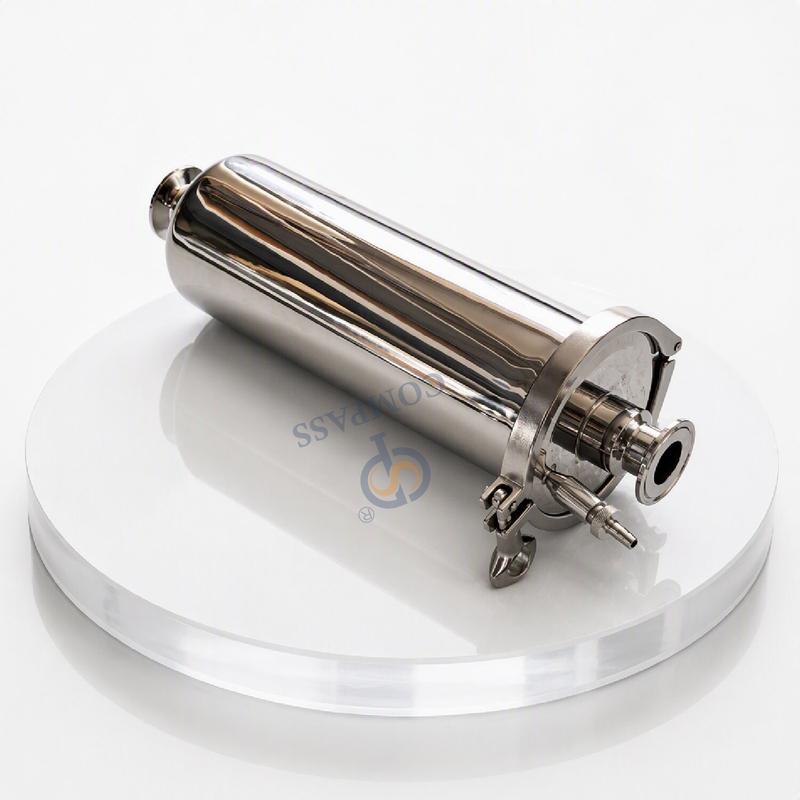

Highlights at a glance
* 0.22µm Precision Filtration: Removes tiny particles for pure performance.
* Tri Clamping Design: Easy installation and secure connection for reliability.
* SS304 Stainless Steel: Durability and corrosion resistance for long-lasting use.
* Aseptic Sterile: Ideal for food and beverage industries requiring high sanitation standards.
* Exhaust Valve Included: Facilitates air release for smooth flow and prevents blockages.
Operating Principle
The filter basically consists of a filter body with an inlet and an outlet for the product.
The screen is fixed inside the body. The screen retains all particles that are equal or larger
than the size of the screen openings.
Materials
Filter body SS316L, SS304
Gaskets EPDM (according to FDA 117.2600)
Internal surface finish Ra < 0,8μm
External surface finish mirror polish
Design and Features
There are several configurations:
- Cleaning of the screen without disassembling the filter:
Angular filter: the inlet and the outlet form a right angle.
Y filter: the product enters and leaves the filter in the same direction.- Cleaning of the screen disassembling the filter:
Straight filter: the product enters and leaves the filter in the same direction.
Low pressure drops.
Screen with circular (from Ø 0,5 mm to Ø 3 mm) or longitudinal openings (10 x 1 mm).
Options
Gaskets in FMP.
Connections: DIN, Clamp, SMS, RJT, FIL-IDF, etc.
Wedge wire screen cylinder.
Heating jacket.
Option of filtering from outside to inside of the screen. Double filter.
Advantage of Products
1.Each kind of products has strong corrosion resistance and over-long service lifetime
2.Problem-free welding and assembly and highest possible strength
How to Order for Sanitary Filters?
1. Which material? Such as SS304 or SS316L.
2. Which size? Such as 1inch to 8 inch and DN25 to DN200.
3. Which connection? Such as clamp, thread, weld, flange, union.
4. Which mesh of inside element strainer? Such as 10mesh, 20mesh, 100mesh.
5. Which structure? Such as Straight Type,Angle Type,Y Type, Micro type.
6. Which Products used for sanitary filter? Such as juice, milk.
7. What's polished surface inside and outside? Such as mirror, matte, electrolyze.
