The Details of Product
| |
| | Provided with material inspection report |
Material Non-contact Parts | |
| DN25-DN150/1"-6" |
|
Heavy Wall Borosilicate Tubing; Polycarbonate Tubing; Acrylic Tubing; etc |
| Weld, Clamp, Thread, Flange,etc. |
| |
| Structure | |
| Pressure range | |
| The most advanced CNC machine from Japan for processing |
| -10 degree to +120 degree (EPDM) |
| Certificate | |

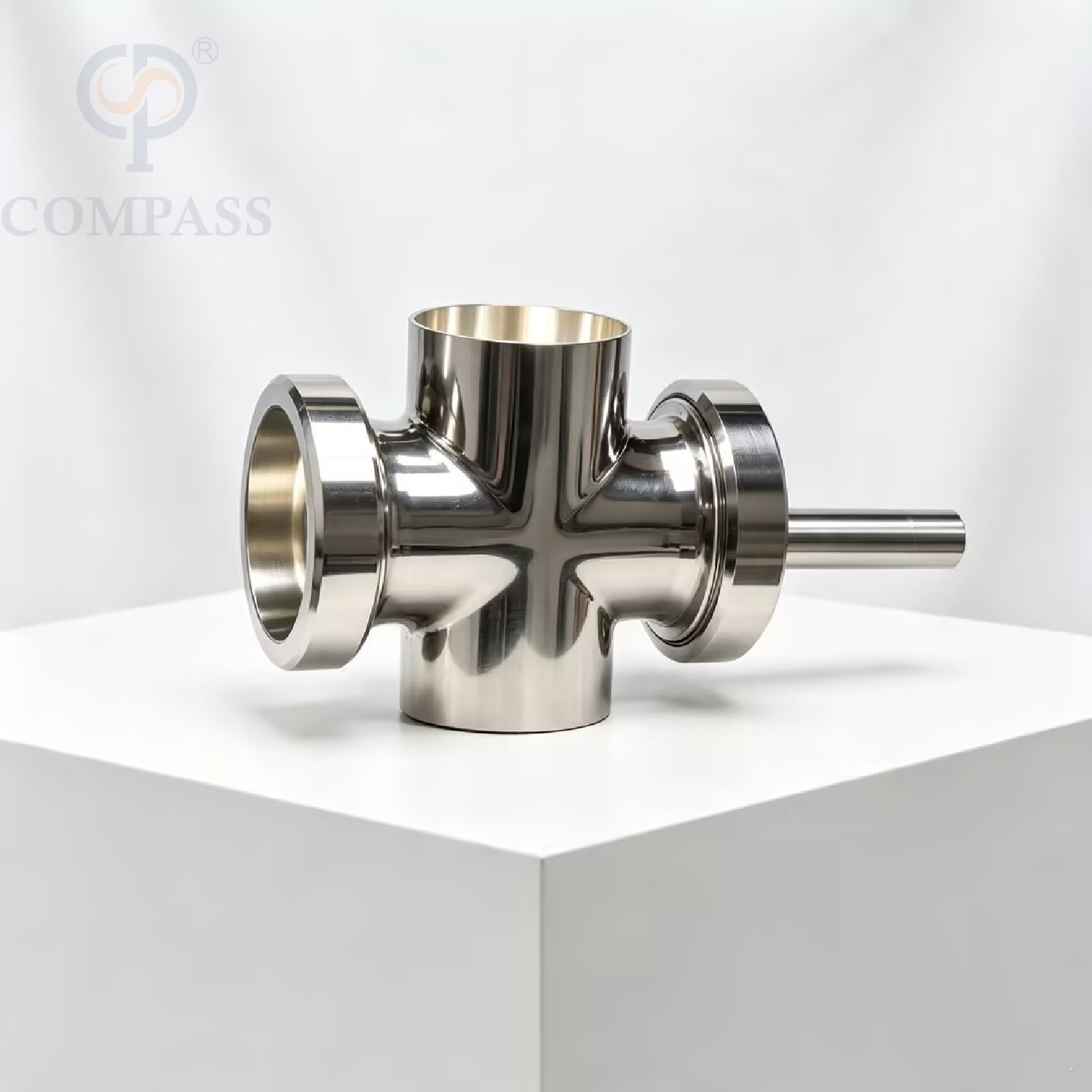

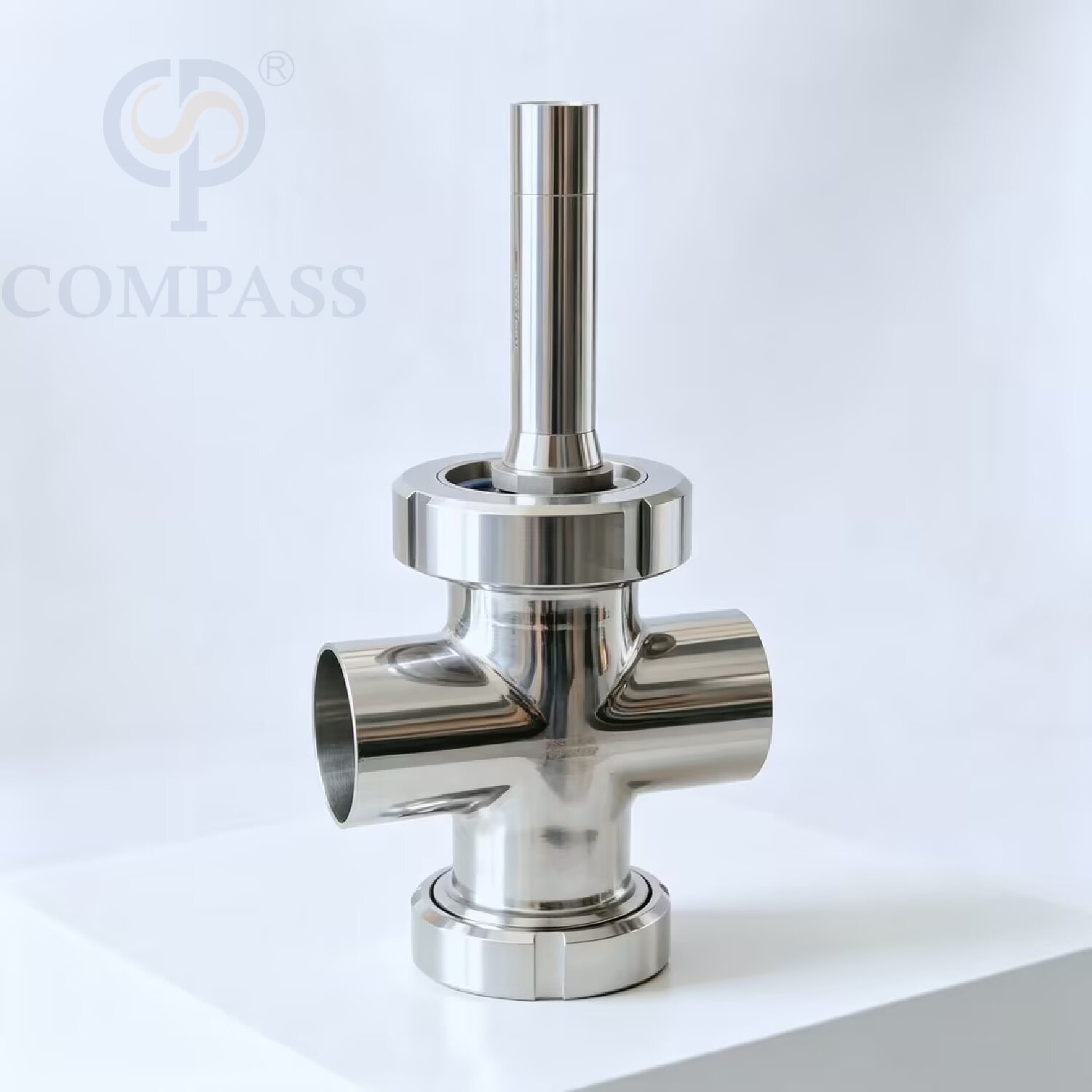

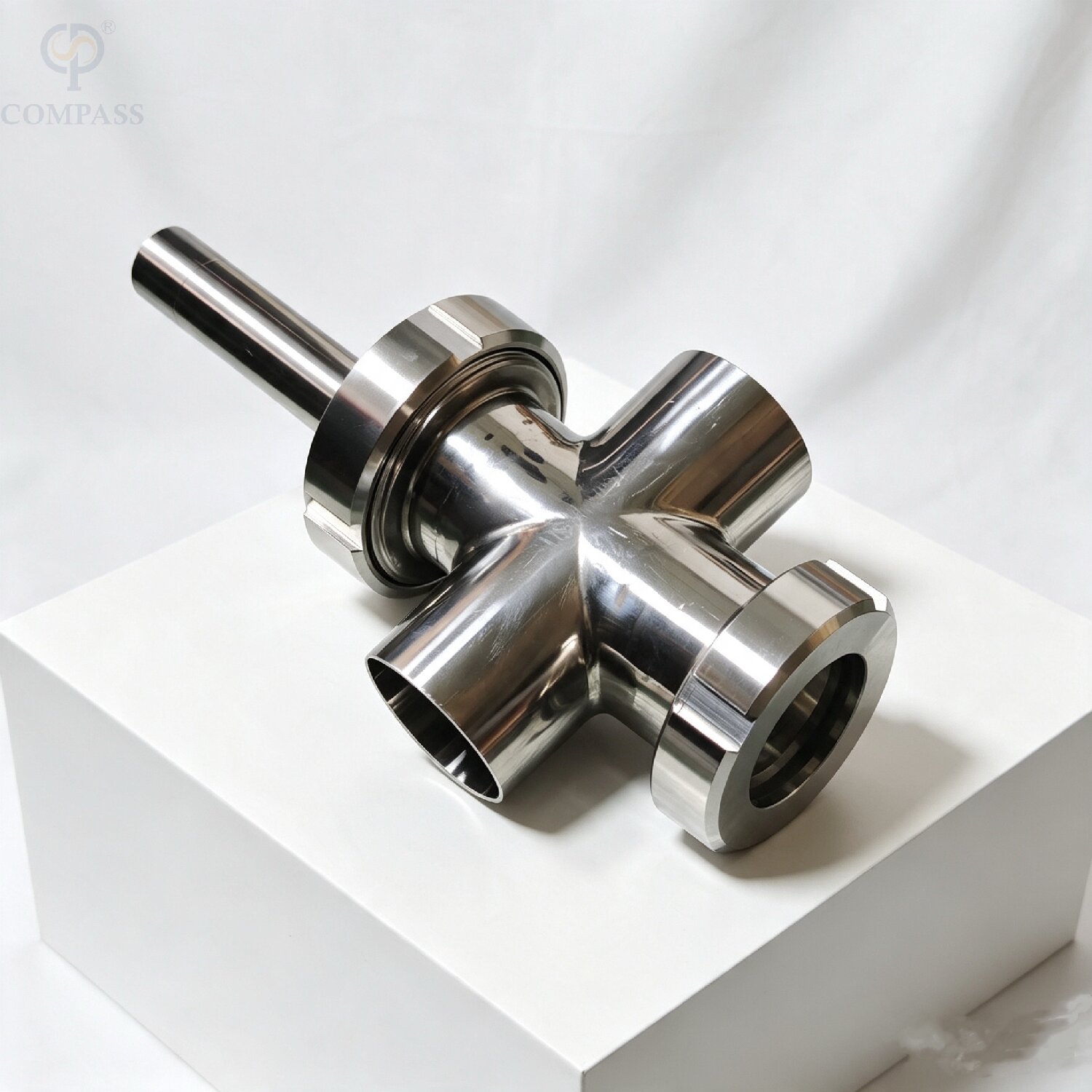

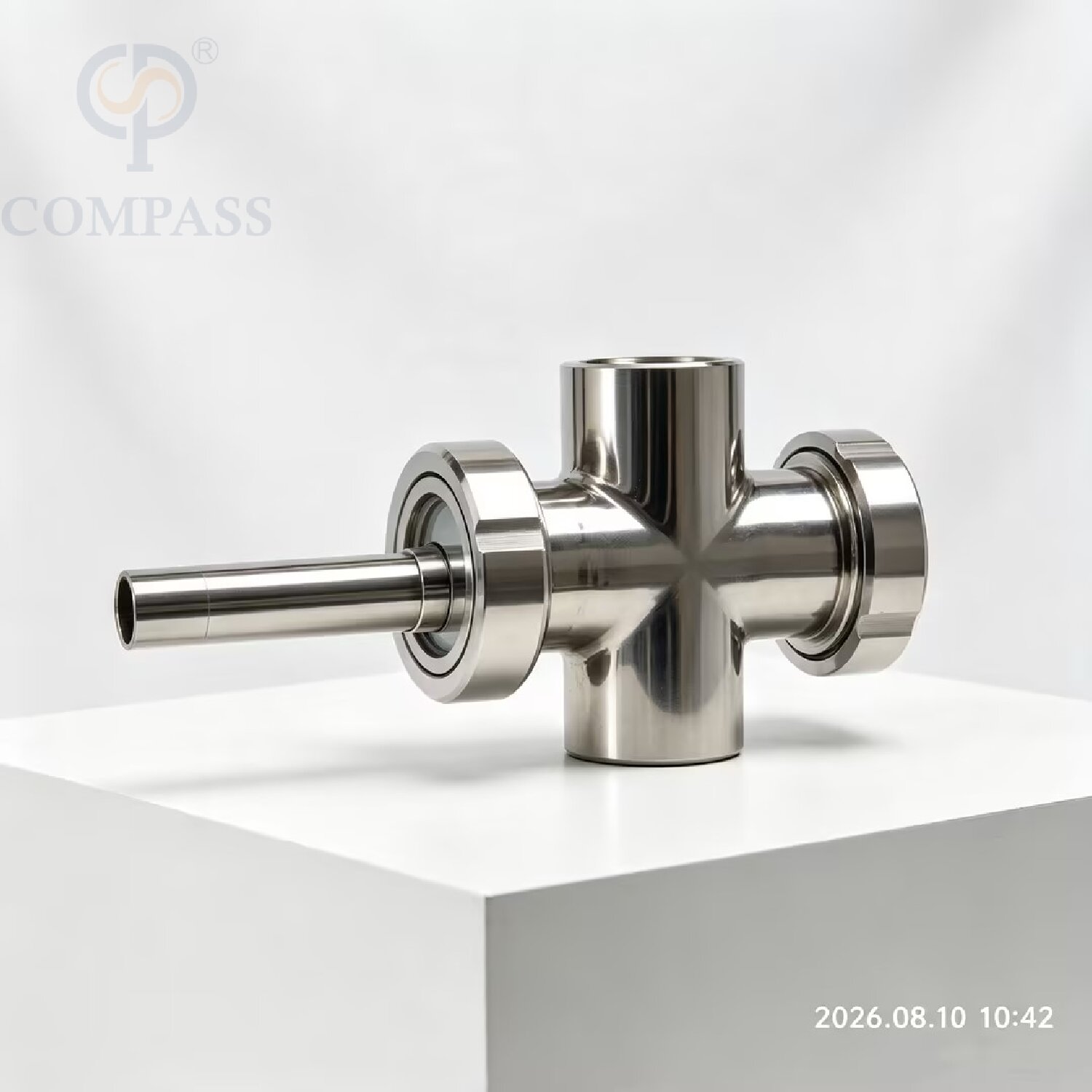

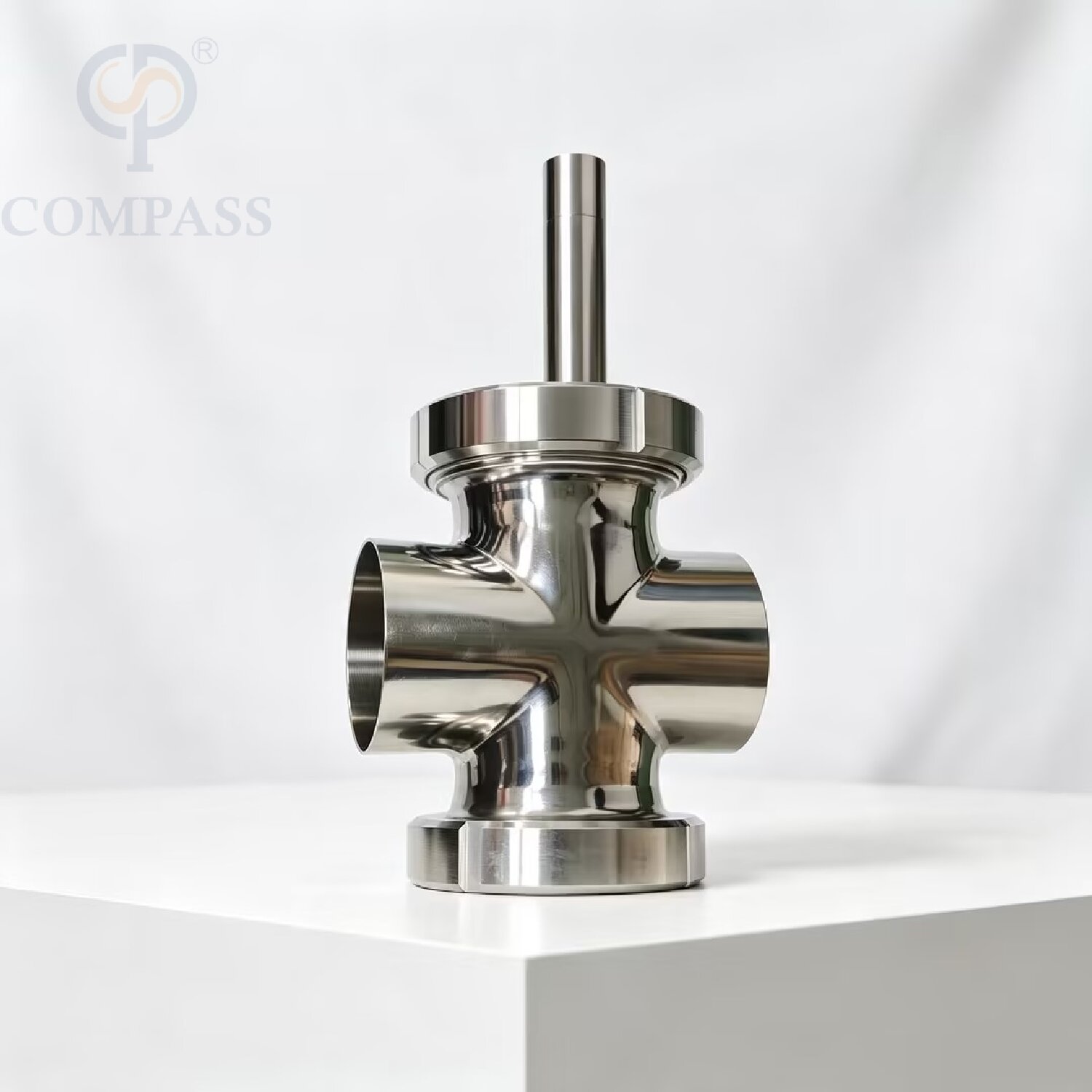

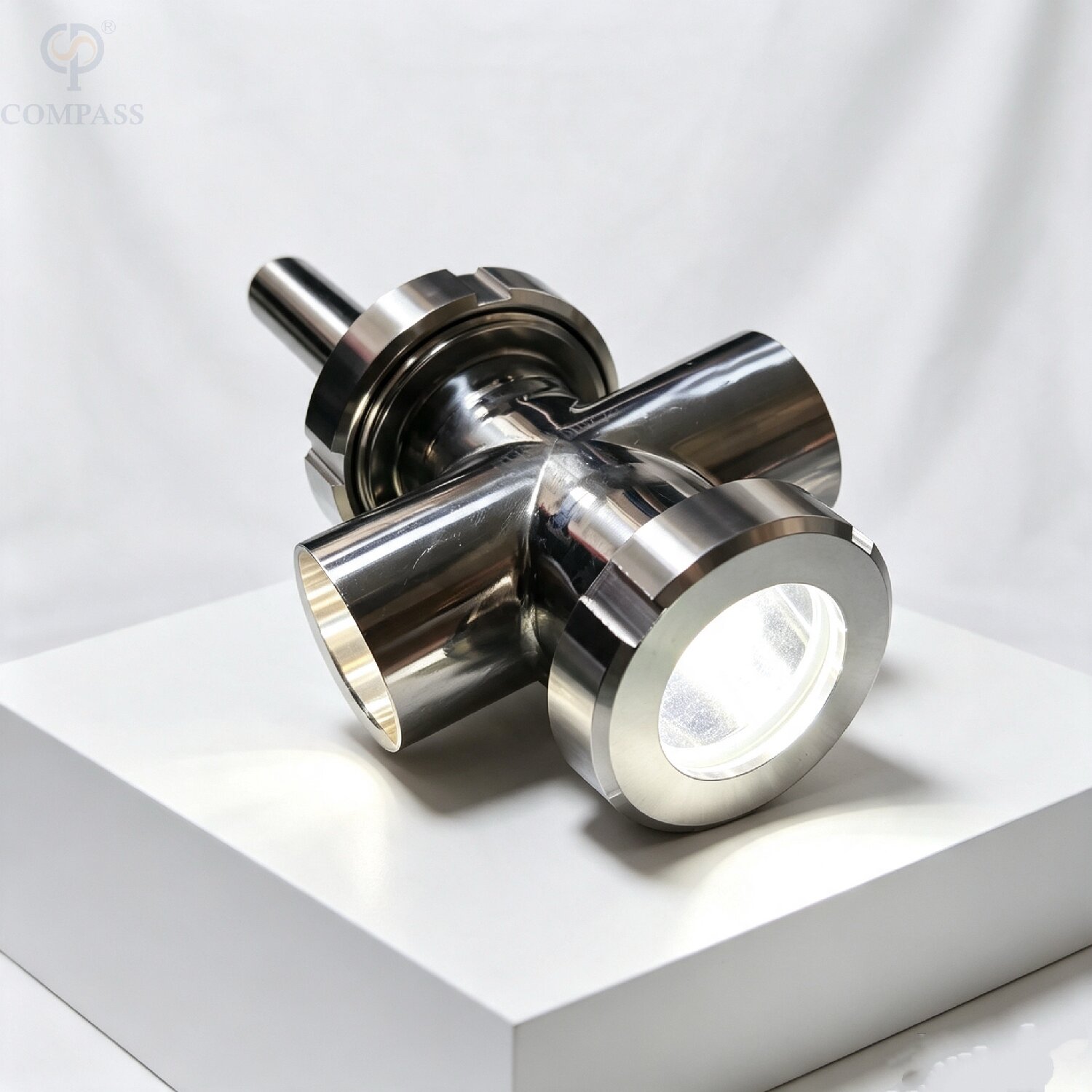

Description of Commodity: DN50 Food Grade Sanitary Cross Sight Glass SS304 Union Type Weld End Four Way Sight Glass with Light for Pipe Observation Window
Description
1. Seal Ring: Silicon, EPDM, FPM etc.
2. Glass: Boronizing silicon glass/toughened glass
3. Material quality: AISI304, AISI316L
4. Standard: DIN
5. Specification: 1/4"-4", DN15-DN100

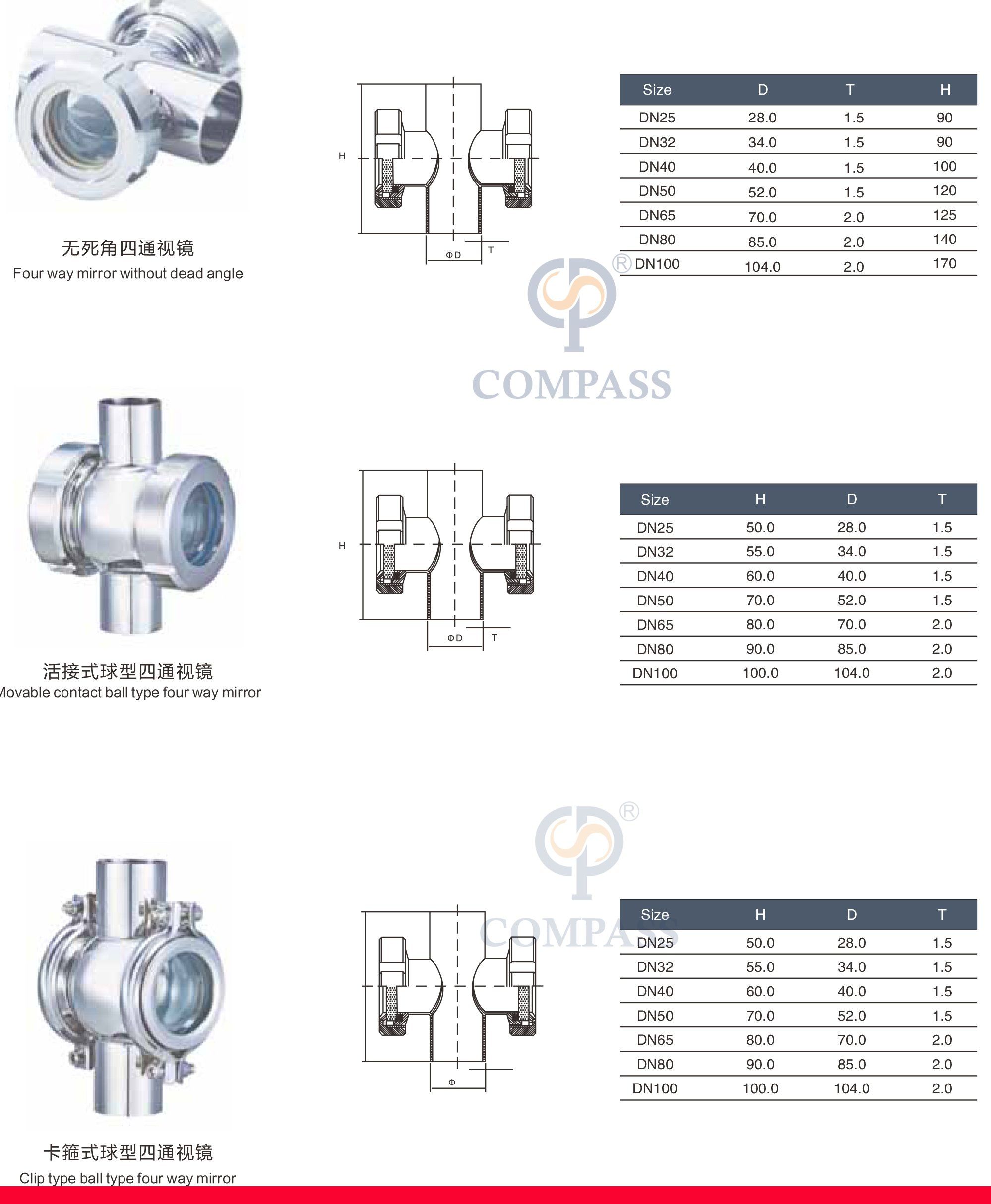

6. Structure: inline, cross,union type
8. Surface treatment: mirro polish or satin polish
Inside surface treatment Ra≤ 0.4um
Outside surface treatment Ra≤ 0.8um
9. Application: beer, food, dairy, beverage, cosmetic, chemical industry
Design feature
1. Double bearing design with excellent rotation effects,and better stability and long life bearing
2. Self-cleaning self-luvricating design
3. Cleaning without dead angle
4. Low consumption of liquid,operating under low pressure
5. Compliance with industry standard
Advantage
Using sight glass is probably the simplest method of measuring liquid level. The sight glass is attached to the outside of the tank so that the liquid level can be seen through the glass. The sight glass is marked with graduations to allow the level to be measured.
Working Principle
Sanitary sight glass made of standard stainless steel 304. 316L material. The whole is mirror polish. No dead ends. Easy to clean and hygienic. It is suitable for clean pipelines in places with strict requirements for food, industry, beer and beverage, and biopharmaceutical engineering. There can be no residual breeding bacteria during use. The working principle is the same as that of ordinary sight glasses.and it can be used in chemical towers with high temperature, strong corrosion, easy poisoning, greater danger, and easy crystallization to ensure its safe production.
The structure is roughly divided into three parts, mainly composed of sight glass bottom plate, sight glass, valve components and so on.
Sanitary pipeline sight glass has the following advantages:
The operation is simple and quick, and it also has good flow adjustment function and closing sealing characteristics. The sight glass is the dominant sight glass in the application field of large and medium caliber and medium and low pressure.
In addition using electronic polishing, smooth surface to ensure clean, no medium accumulation area, will not produce potential pollution. The maximum working pressure is 25kg/cm2, and the medium temperature is 0-200 degrees Celsius
How to order?
1.What's material, SS304,SS316L.
2.What’s size, such as DN50-DN150 ?
3.What’s gasket? Silicone, EPDM.NBR
4.What’s connection end, such as butt-weld, tri-clamp ?
