Main Parameter
Pump Material Contact Parts | SS304, SS316L (1.4301,1.4404) | Provided with material inspection report |
Pump Material Non-contact Parts | SS304 (1.4301) |
Material of Rotor | SS304, SS316L (1.4301,1.4404) |
Material of Stator | FKM, Silicone, Buna, EPDM |
Flow Rate Range | 500 to 60000 Lr/h |
Pressure Range | 0bar to 6bar, 6bar to 12bar, 12bar to 18bar |
Motor Power | 0.37kw to 15kw |
Inlet & Outlet Size | 19.05mm~101.6mm, DN20~DN200 |
Motor Speed | 470RPM | 720RPM | 960RPM | 1400RPM |
Motor Brand | Other China Motor |
Voltage | 110V | 220V | 380V | 440V |
Motor Frequency | 50HZ | 60HZ |
Type of Motor | Explosion-proof | without Explosion-proof |
Function of Motor | Gear Constant Speed Ratio Motor |
Stepless Variator Motor |
Frequency Type Motor |
VFD Frequency Converter Control Box |
Type of Hertz | Single Phase, Three Phase |

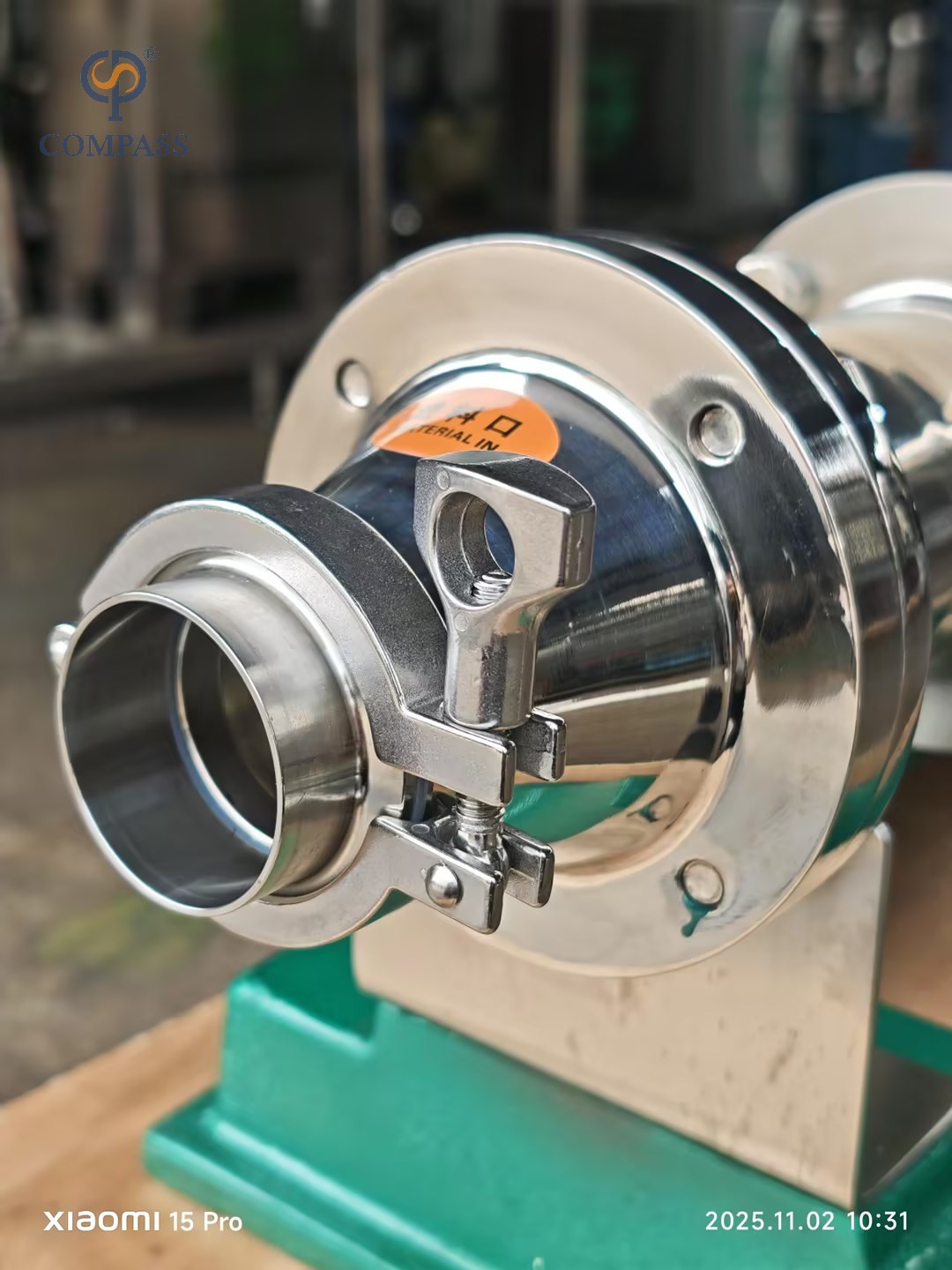

Available Connection | Clamp, Union, Rectangular Flange, Threaded Fittings, and so on |
Temperature | -20°C ~140 °C |
Viscosity of Products | 1mpa~3000000mPas |

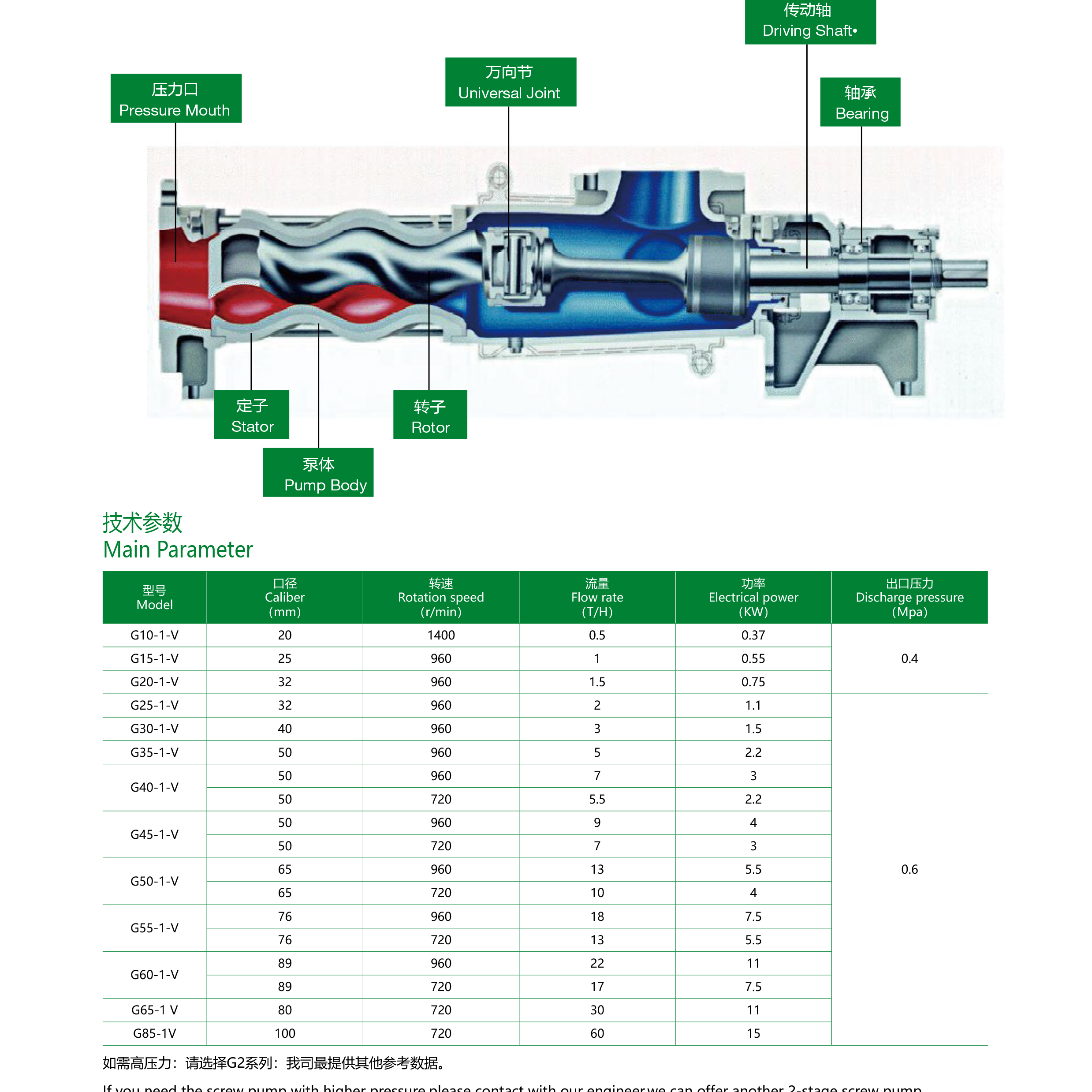

Operational Principle

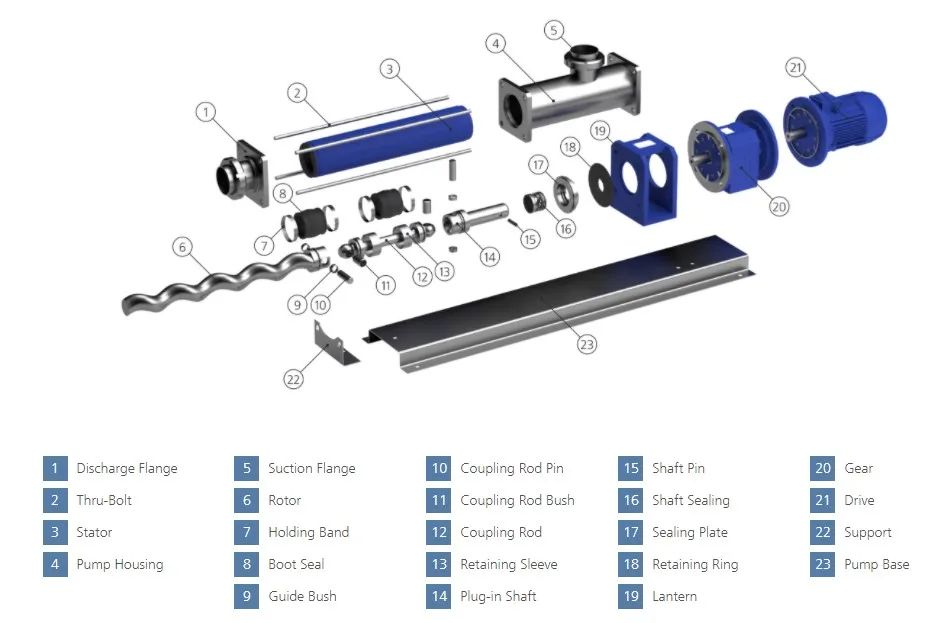

Sanitary screw pump is a single-screw transport pump. Its main working parts are the screw of the eccentric screw (called the rotor) and the screw bushing (called the stator) with the inner surface of the double helical surface. Its working principle is that when the motor drives the pump shaft to rotate, the screw rotates around its own axis on the one hand, and on the other hand it rolls along the inner surface of the bushing, thus forming the sealed chamber of the pump. Each time the screw rotates once,the liquid in the sealing cavity advances by a pitch, and with the continuous rotation of the screw, the liquid is pressed from one sealing cavity to the other sealing cavity in a spiral manner, and finally squeezes out of the pump body. Sanitary Single Screw Pump is used for in all fields widely to feed kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium , and change the gauging aim through adjusting rotation speed.
Feeding Medium
1. This products is applicable for feeding medium which has the following properties
2. High solid content (diameter of the biggest particle is 50mm) or no soild content
3. Medium with all viscosities (1mPas ~ 300000mPas)
4. Medium that is easy to be generated and swelled
5. Shearing sensitive medium
6. Medium with erosion
7. Medium with/without self lubrication
8. Erosive medium (PH=1~14)
9. Adhesive medium
10. Toxicity hazard medium
Feeding Medium
1. This products is applicable for feeding medium which has the following properties
2. High solid content (diameter of the biggest particle is 50mm) or no soild content
3. Medium with all viscosities (1mPas ~ 300000mPas)
4. Medium that is easy to be generated and swelled
5. Shearing sensitive medium
6. Medium with erosion
7. Medium with/without self lubrication
8. Erosive medium (PH=1~14)
9. Adhesive medium
10. Toxicity hazard medium
How To Order Screw Pump ?
1. What's product used for screw pump?
2. What's viscosity of product?
3. What's material quality? Such as SS304 and SS316L for optional
4. What's flow rate for screw pump, such as 10000 liters per hour ?
5. What's head, such as 12bar?
6. What's motor power, such as 3kw ?
7 What's voltage and hertz, such as 380v, 50hz, three-phase?
8. What's motor brand,？
9. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
