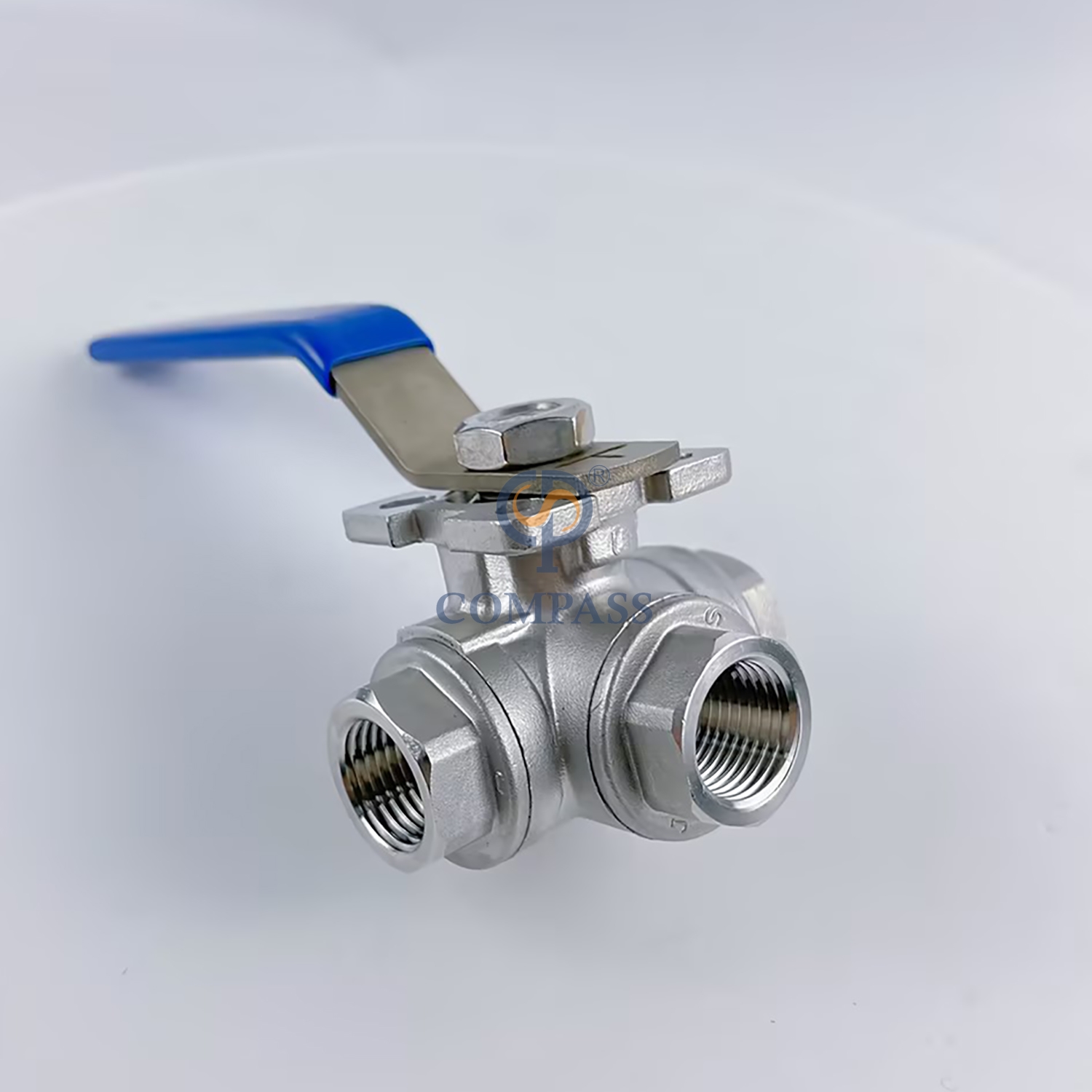

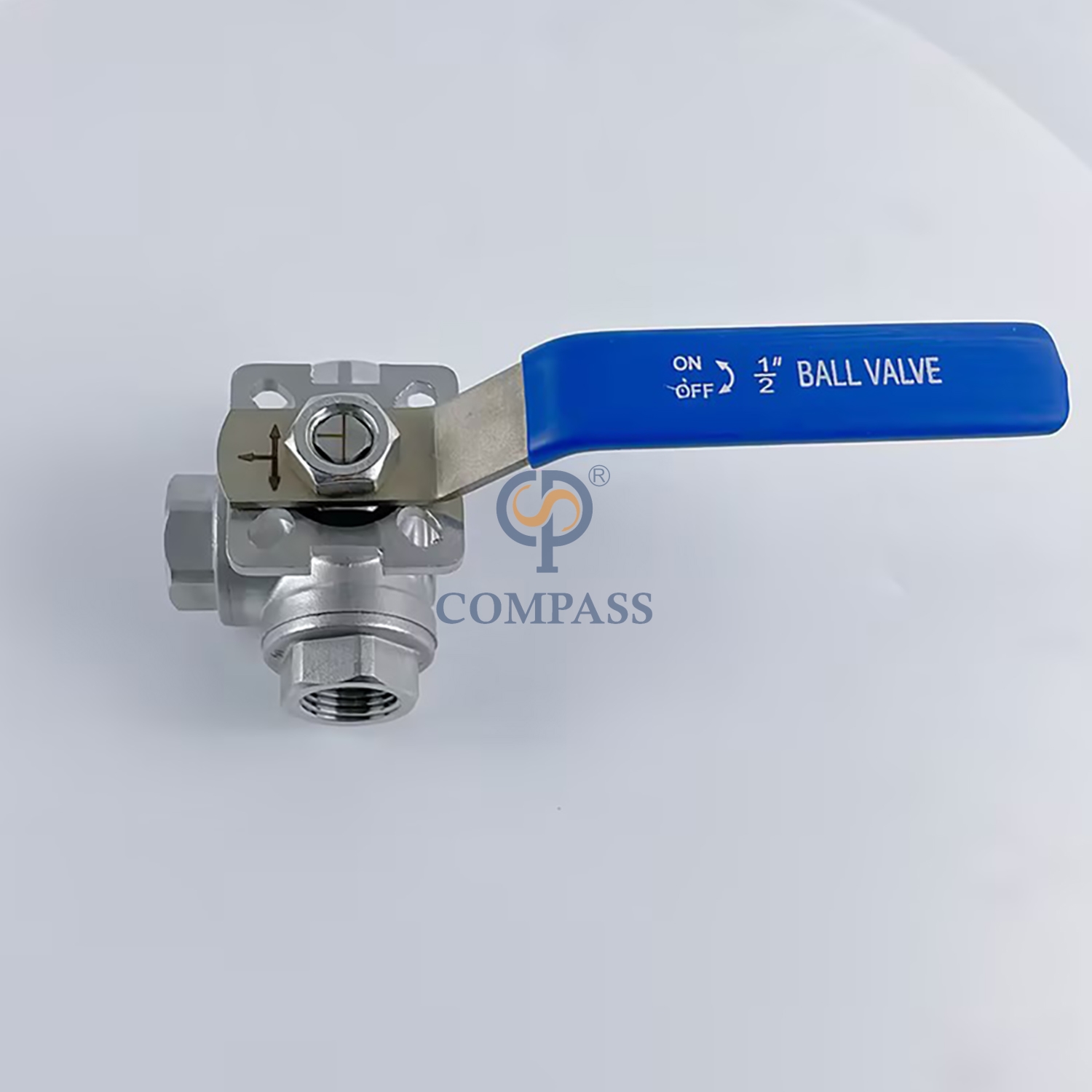

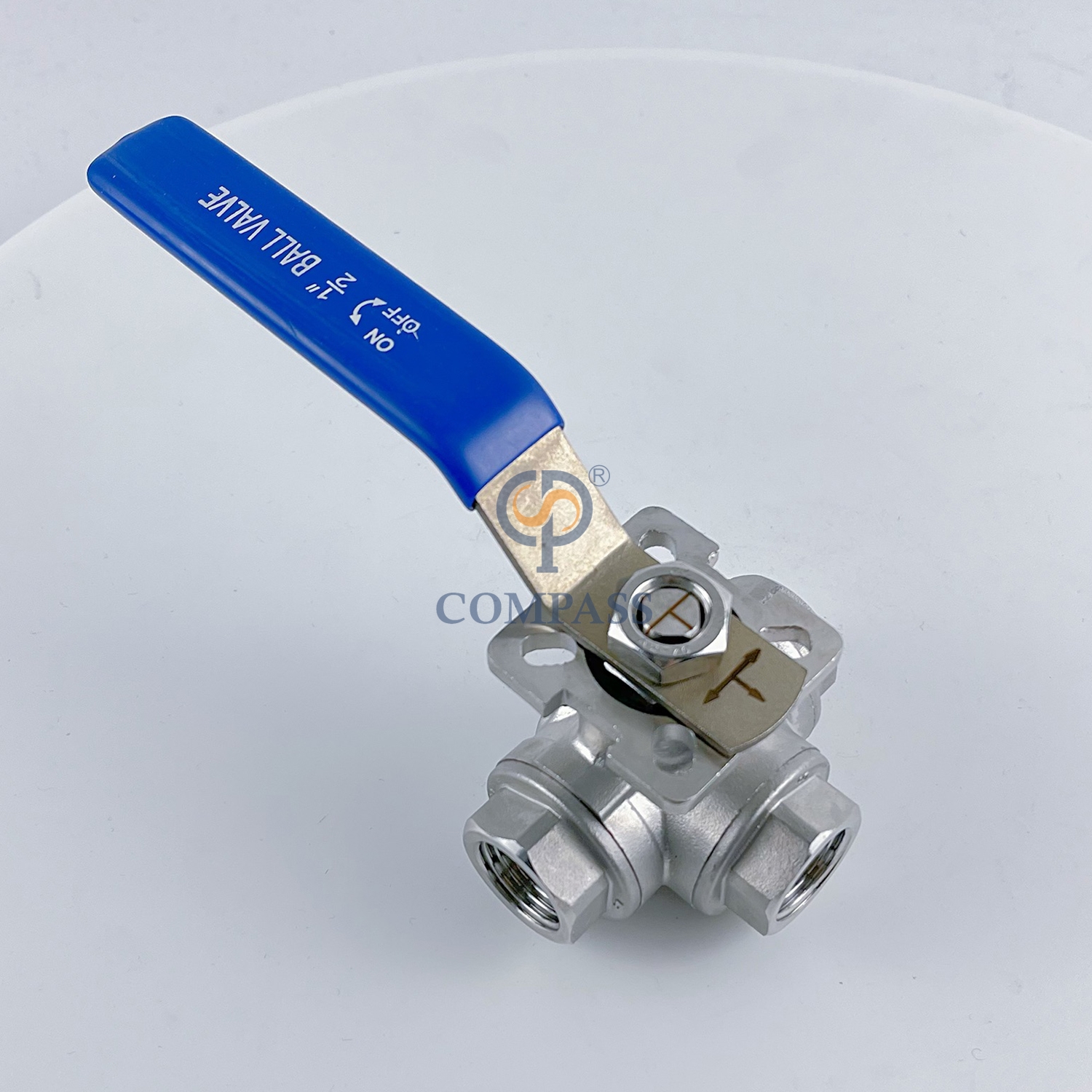

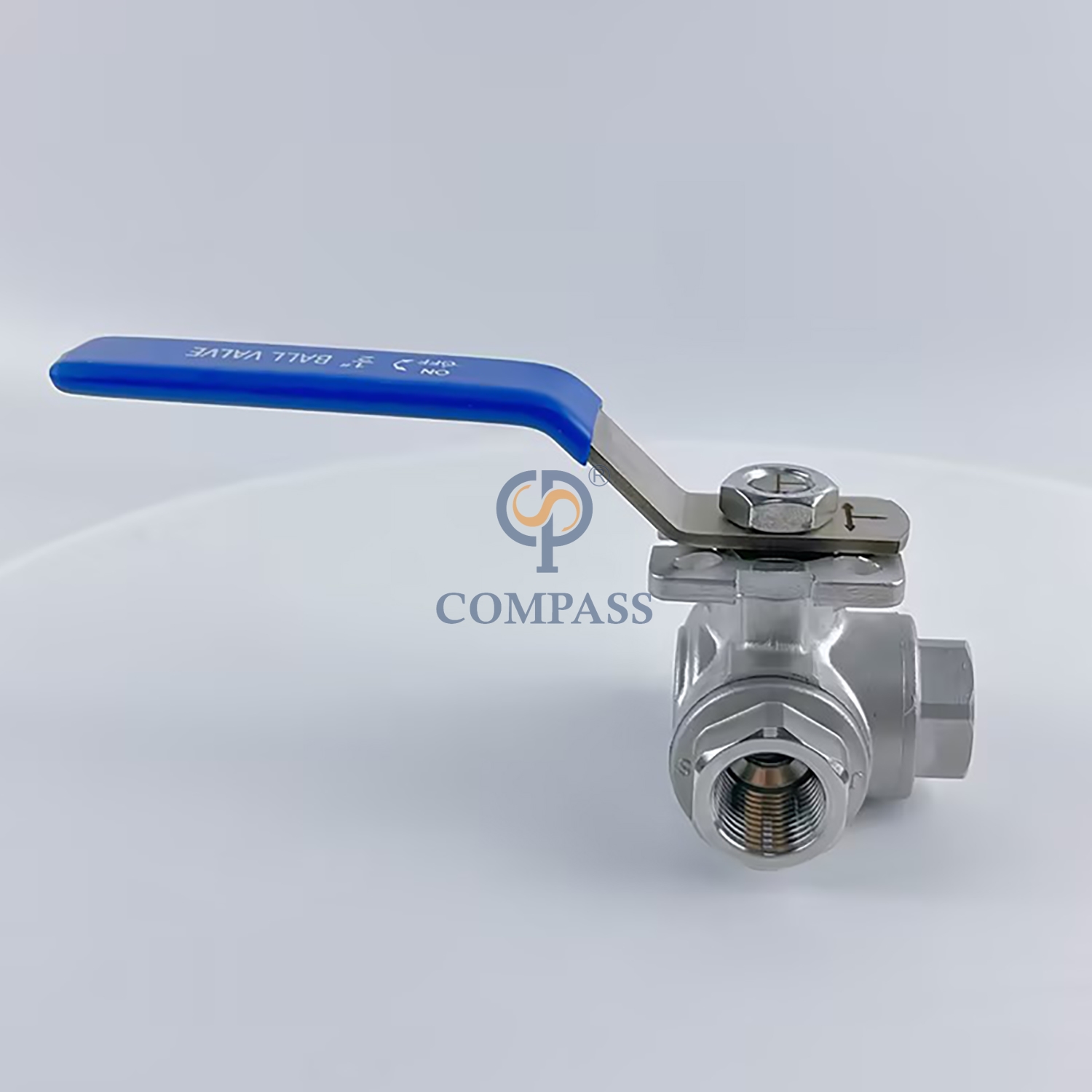

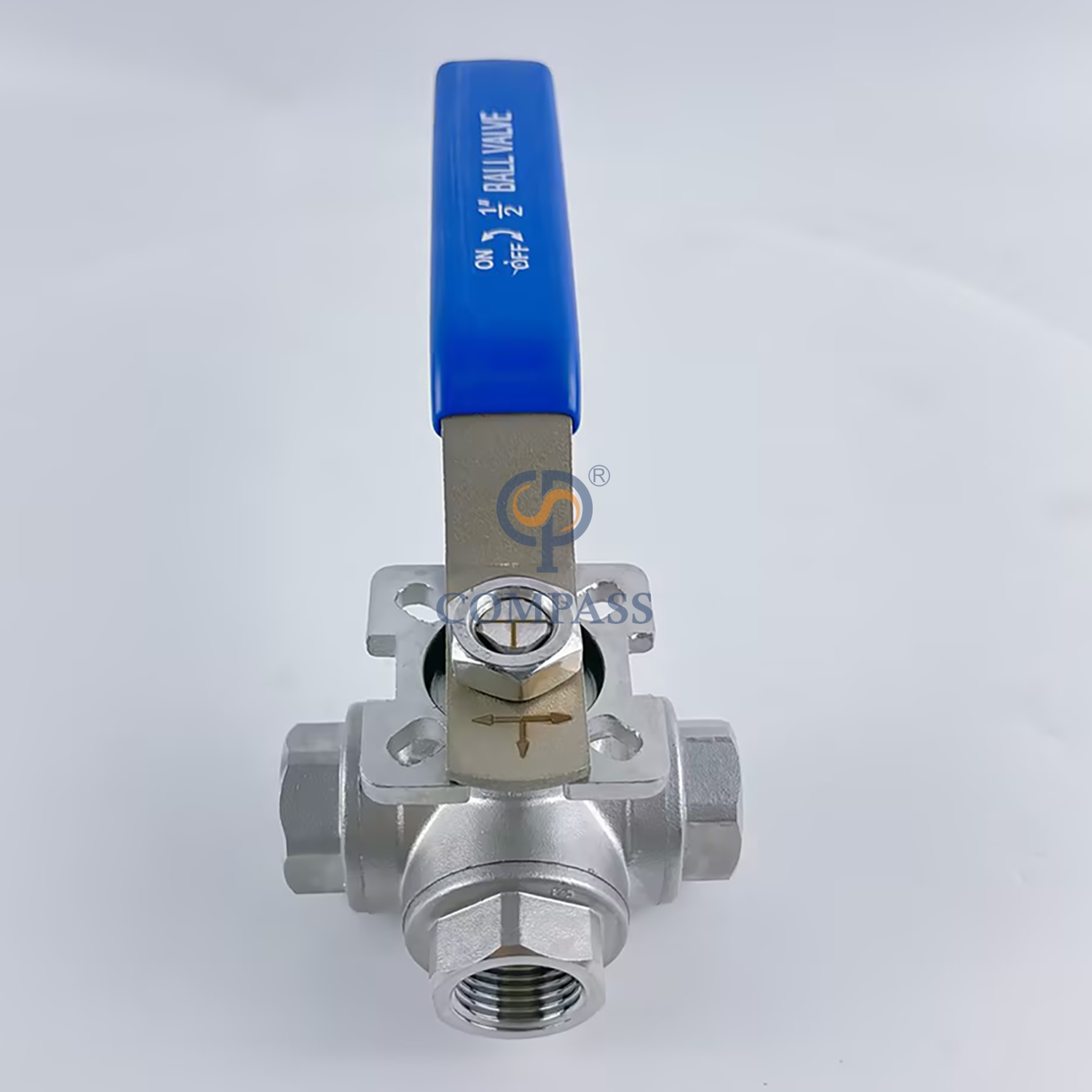

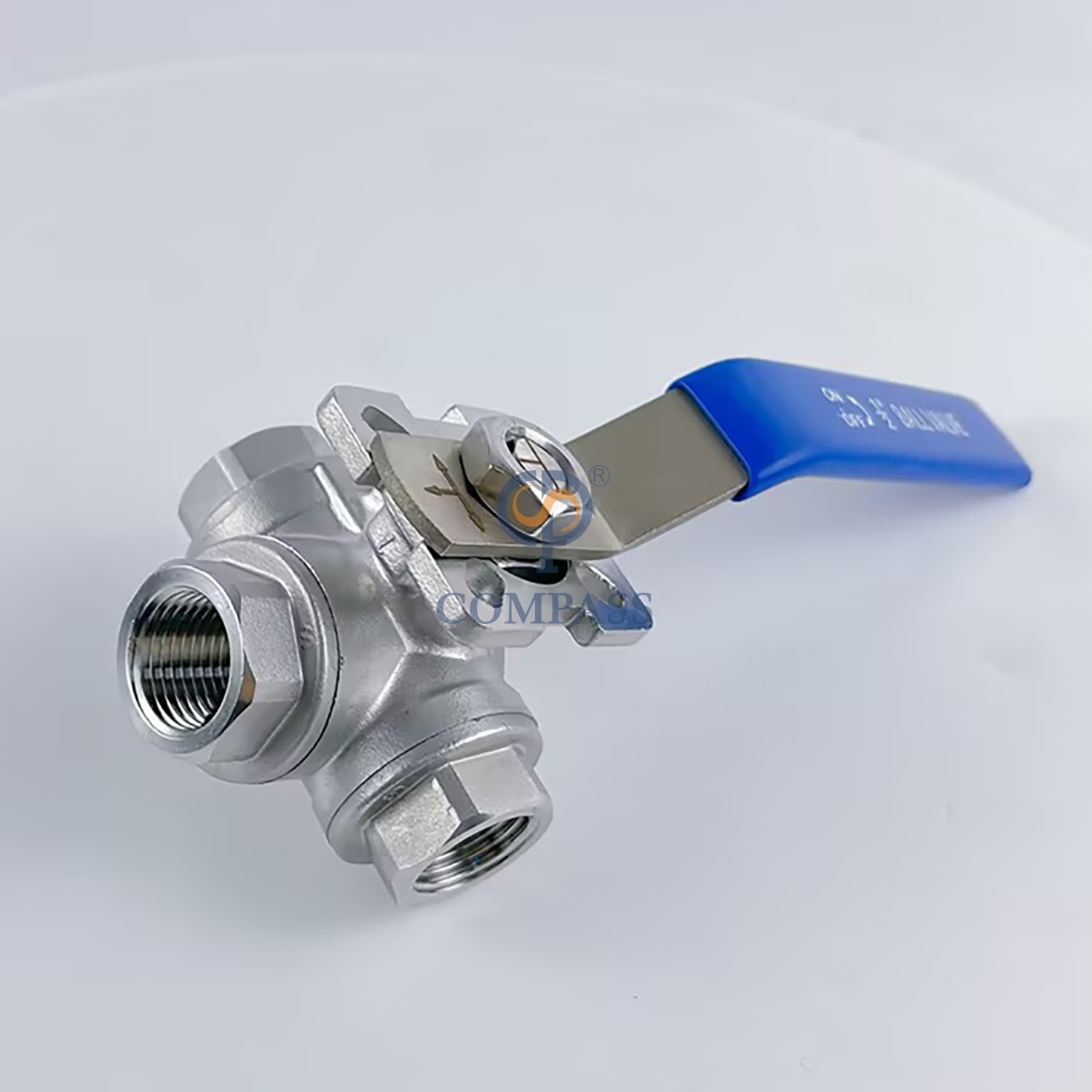

Industrial Grade T Port NPT Female Thread PN16 SS304 DN15 Ball Valve

Ball Valves are widely used in industrial process control occasions. It is manual operated ball valve, suitable for various applications inside the piping system. Ball valve seat seal is made of PTFE material, with good sealing performance.

  • 1/2"-DN15

  • Compass

  • 1007A0101A0103010112

Availability:
Quantity:
Inquire Add to Basket

The Details of Product

Standard

SMS,DIN

Material Contact Parts

SS316L(1.4404)/SS304(1.4403). Provided with material inspection report.

Size

DN10-DN100, 1/2Inch-4Inch

Body Combination

Straight Way, T port, L port

Connection

Butt-weld, Tri-clamp, Flange, Female Thread

Seal Material

PTFE

Power Option

Manual Operated

Working Pressure

≤10bar(145psi)

Supply Pressure for Air Actuator

5~8(72.52psi~116psi)

External Surface Treatment

Ra16~32uin(0.4~0.8um)

Internal Surface Treatment

Ra16~32uin(0.4~0.8um)



How to order?

1.What's material? Such as SS304, SS316L.

2.What’s size? Such as DN15.

3.What’s gasket? Only PTFE.

4.What’s connection end? Such as butt-weld, tri-clamp, female thread.

5. What's type of power you need? Such as manual, pneumatic or manual-pneumatic.

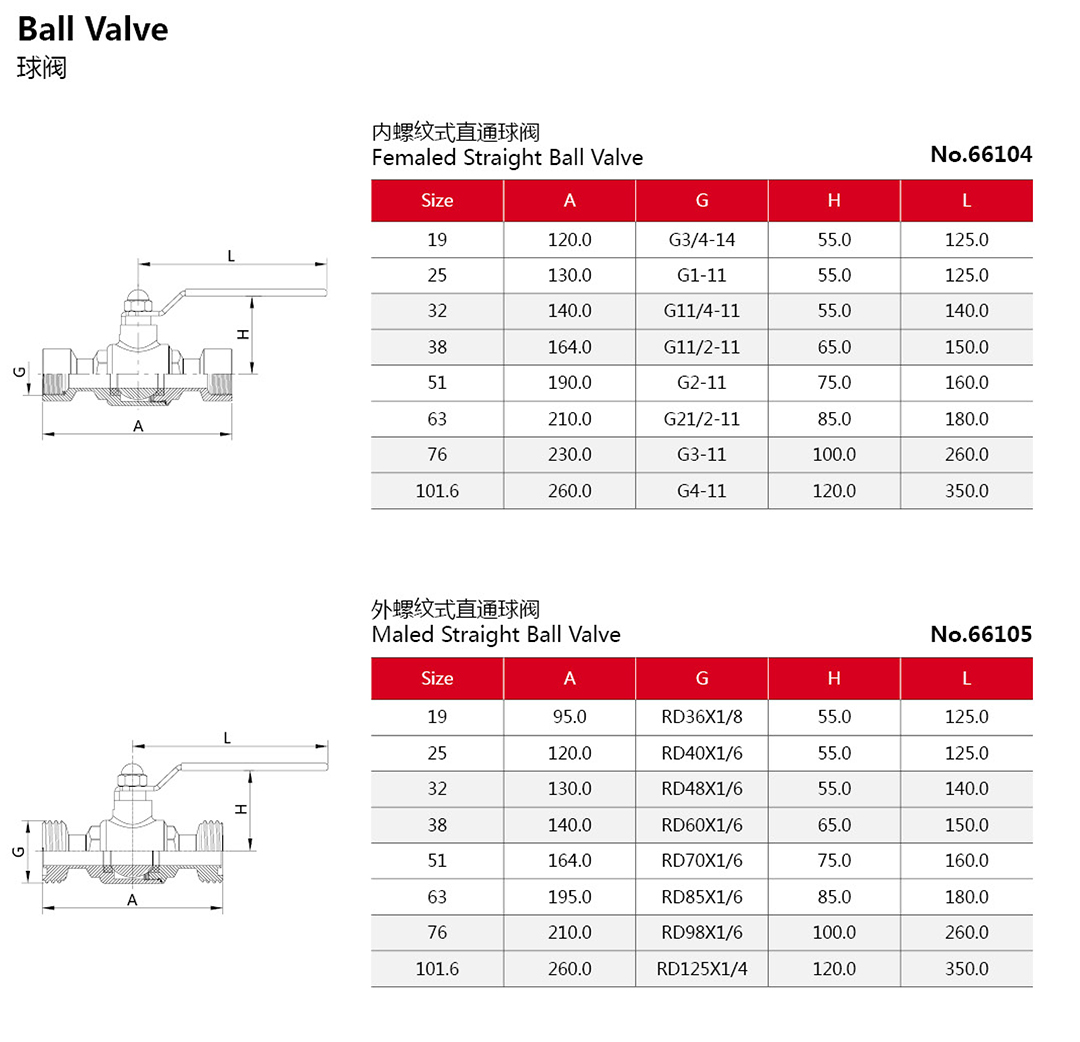

Drawing & Techanical

48

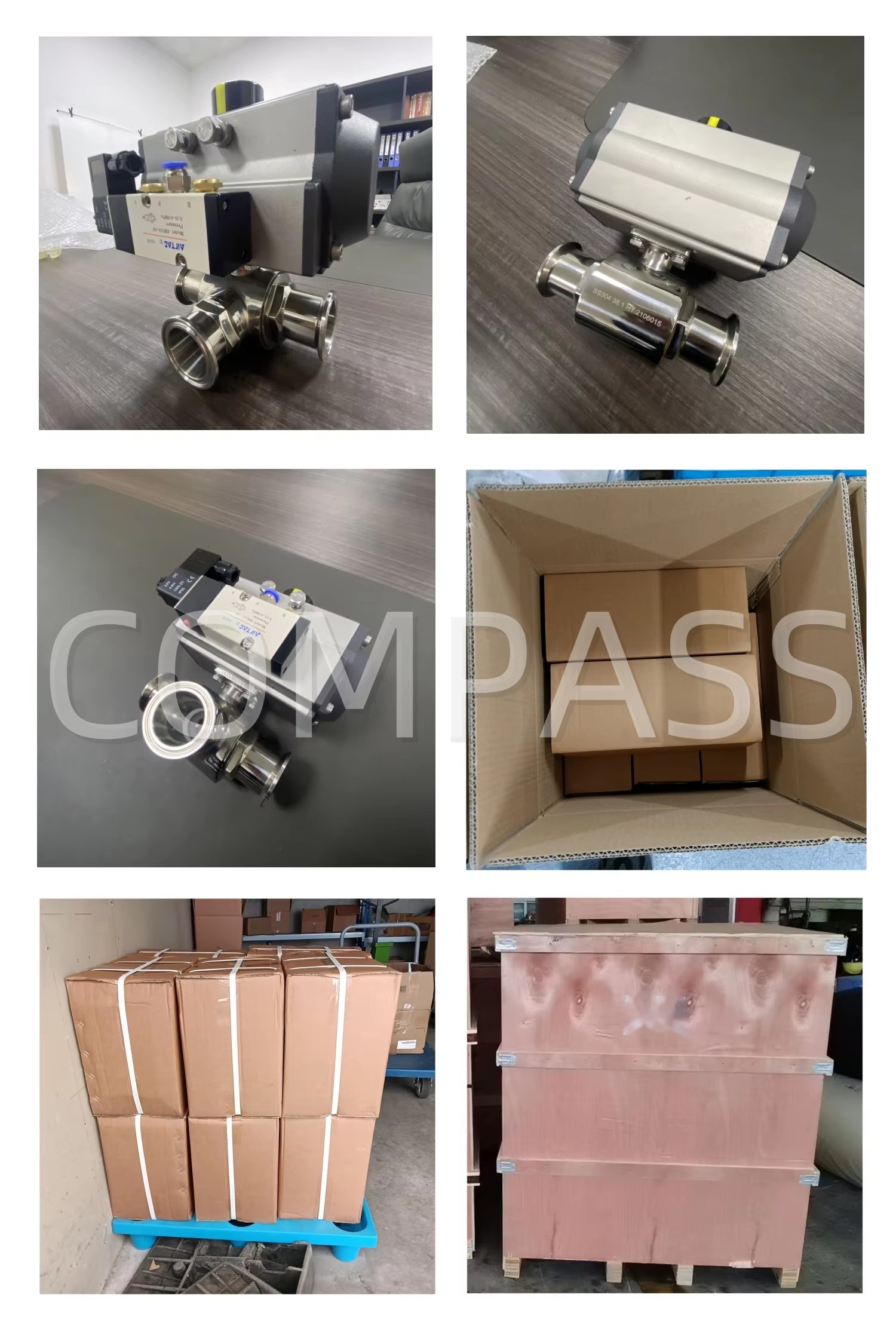

Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.

If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .

In order to protective items , which will be packed by safety and resistance to shock in plywooden cases .

1

Application

It is applied in industry and sanitary system. Good sealing,no leak,in the oil, chemical industry, water conservancy,electric power, boiler, machinery, metallurgy, sanitary, construction etc.

2

Previous:
Next:

HOT PRODUCTS

1.5 INCH STAINLESS STEEL MANUAL HIGH PLATFORM THREE-PIECE BALL VALVE WITHOUT HANDLE
1.5 INCH STAINLESS STEEL MANUAL HIGH PLATFORM THREE-PIECE BALL VALVE WITHOUT HANDLE
DN50 STAINLESS STEEL STAINLESS STEEL MANUAL FLANGE-THREADED HEAVY-DUTY BALL VALVE WITH BLIND NUT AND CHAIN
DN50 STAINLESS STEEL STAINLESS STEEL MANUAL FLANGE-THREADED HEAVY-DUTY BALL VALVE WITH BLIND NUT AND CHAIN
Manufacturer′ S Price 38.1mm Stainless Steel SMS Electric Type T Clamp Ball Valve
Manufacturer′ S Price 38.1mm Stainless Steel SMS Electric Type T Clamp Ball Valve

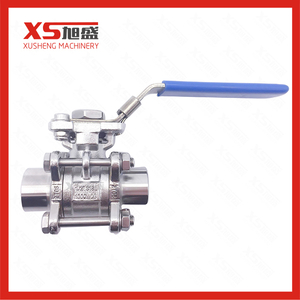

1000 WOG SS304 stainless steel hygienic Sanitary Threaded 3 PC Ball Valve for food cosmetic
