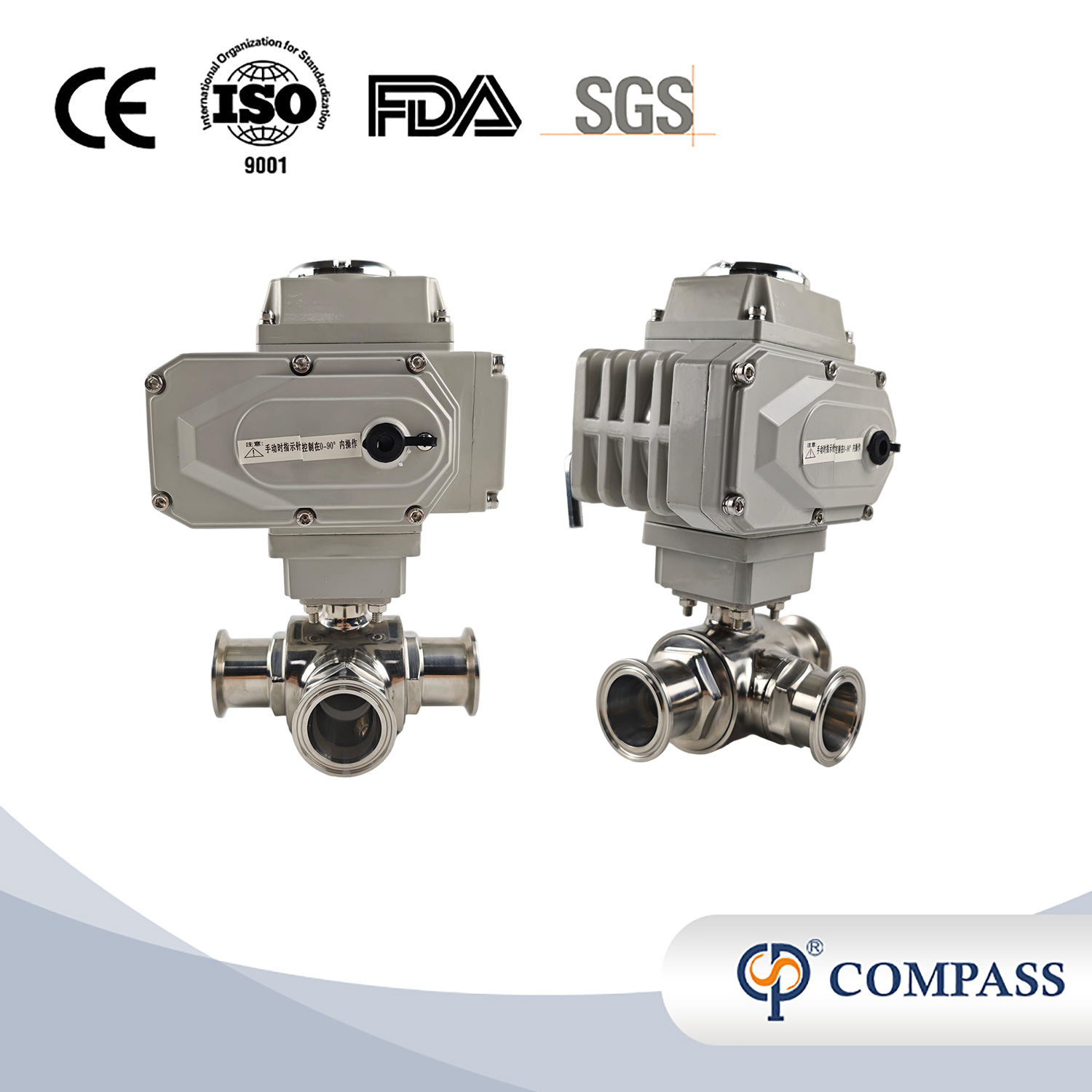

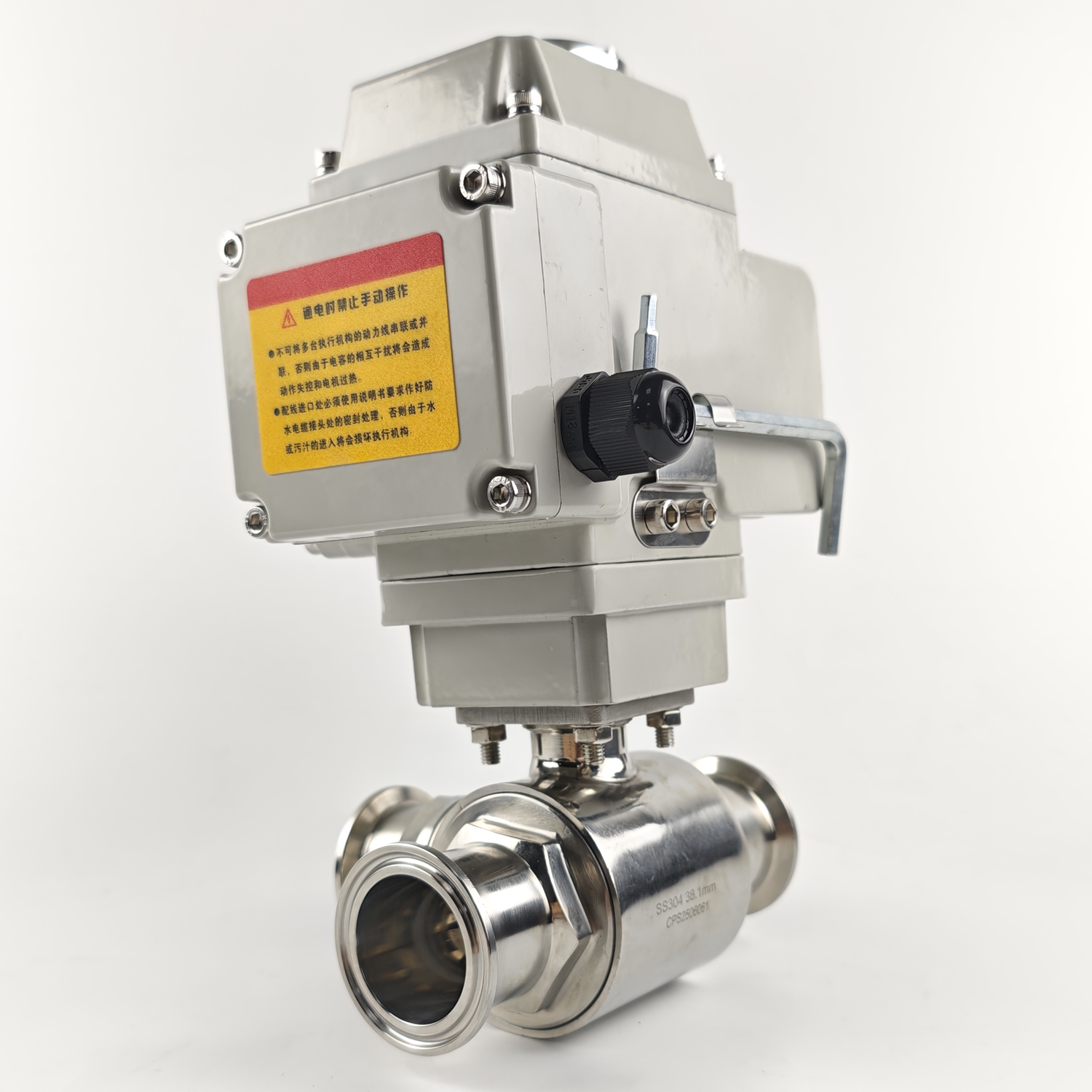

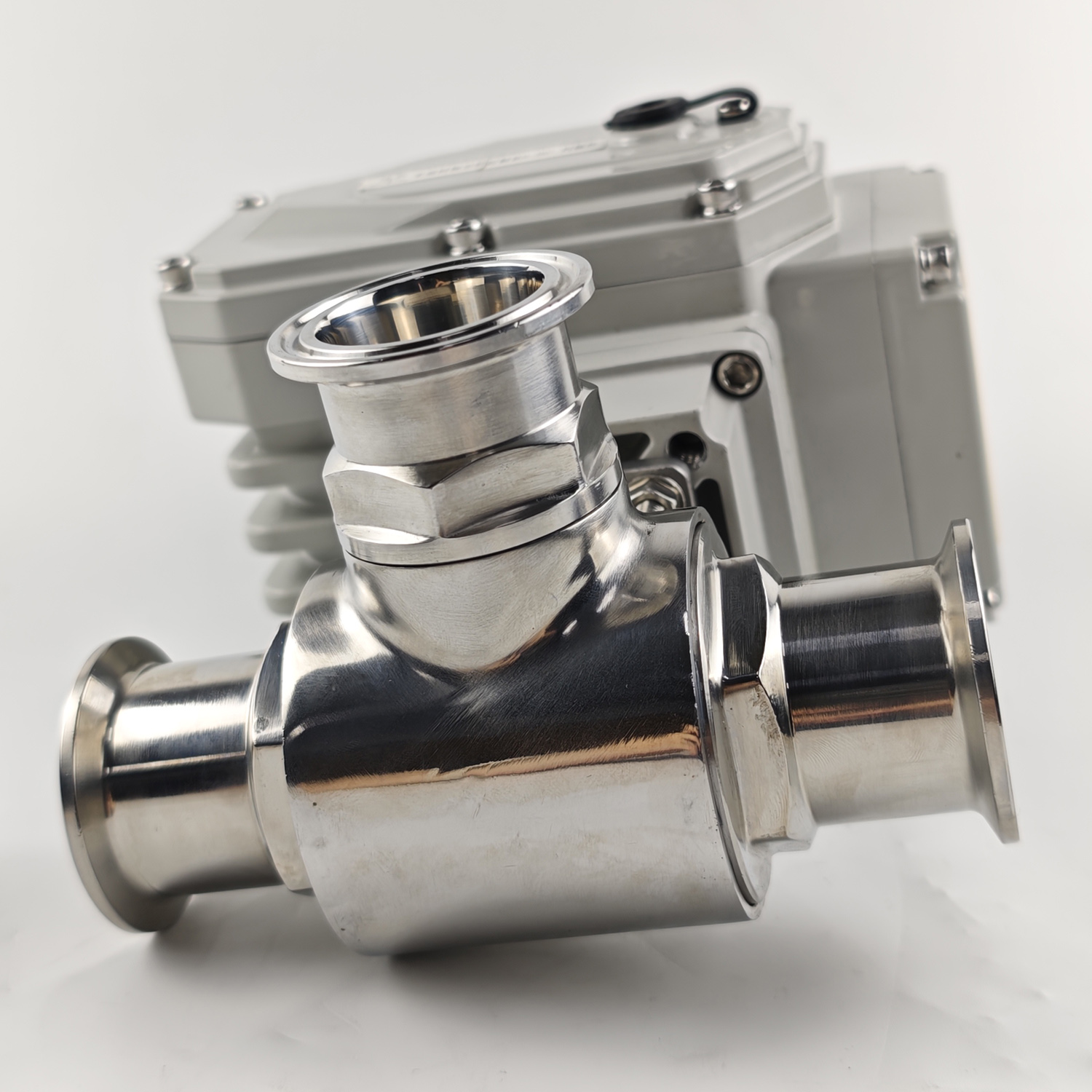

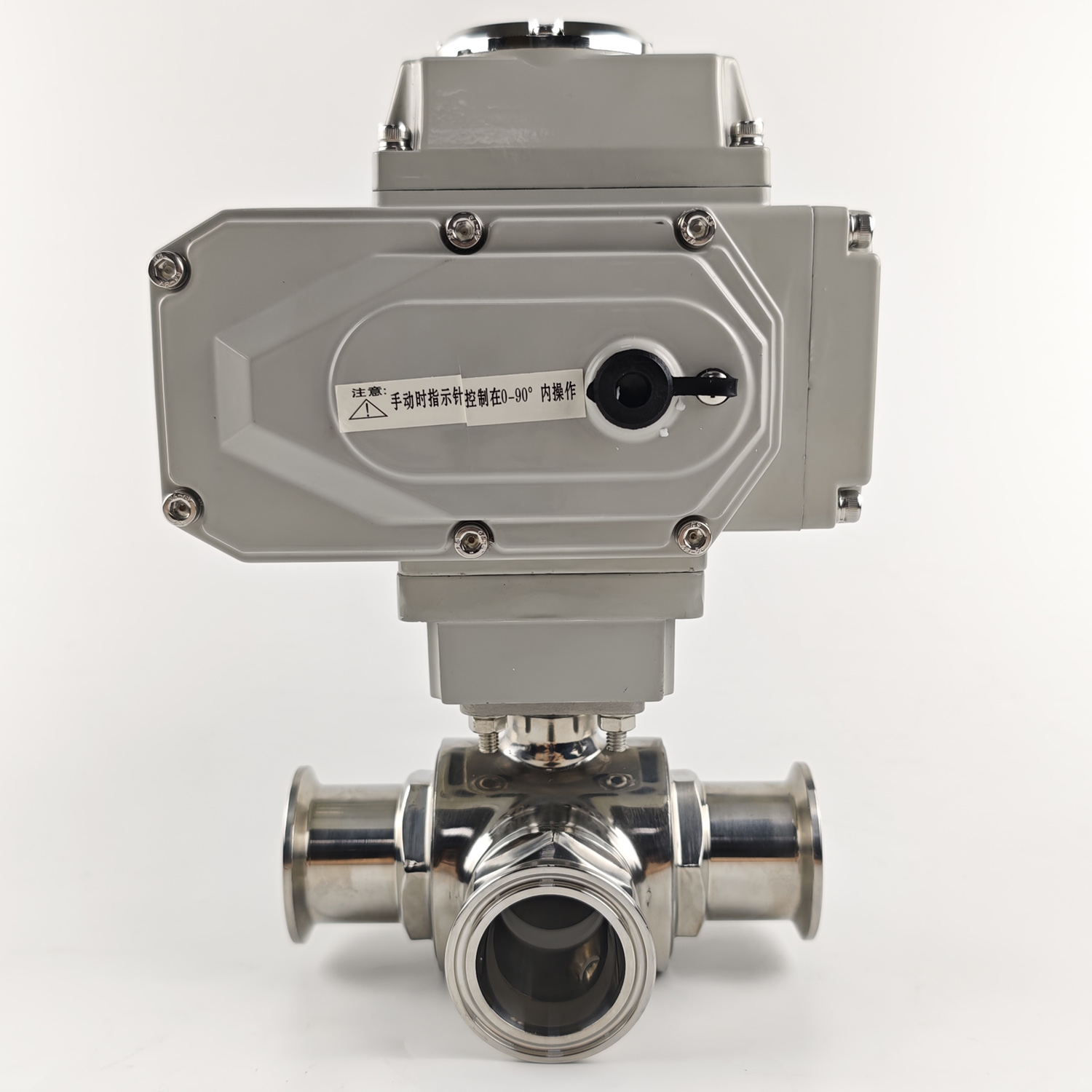

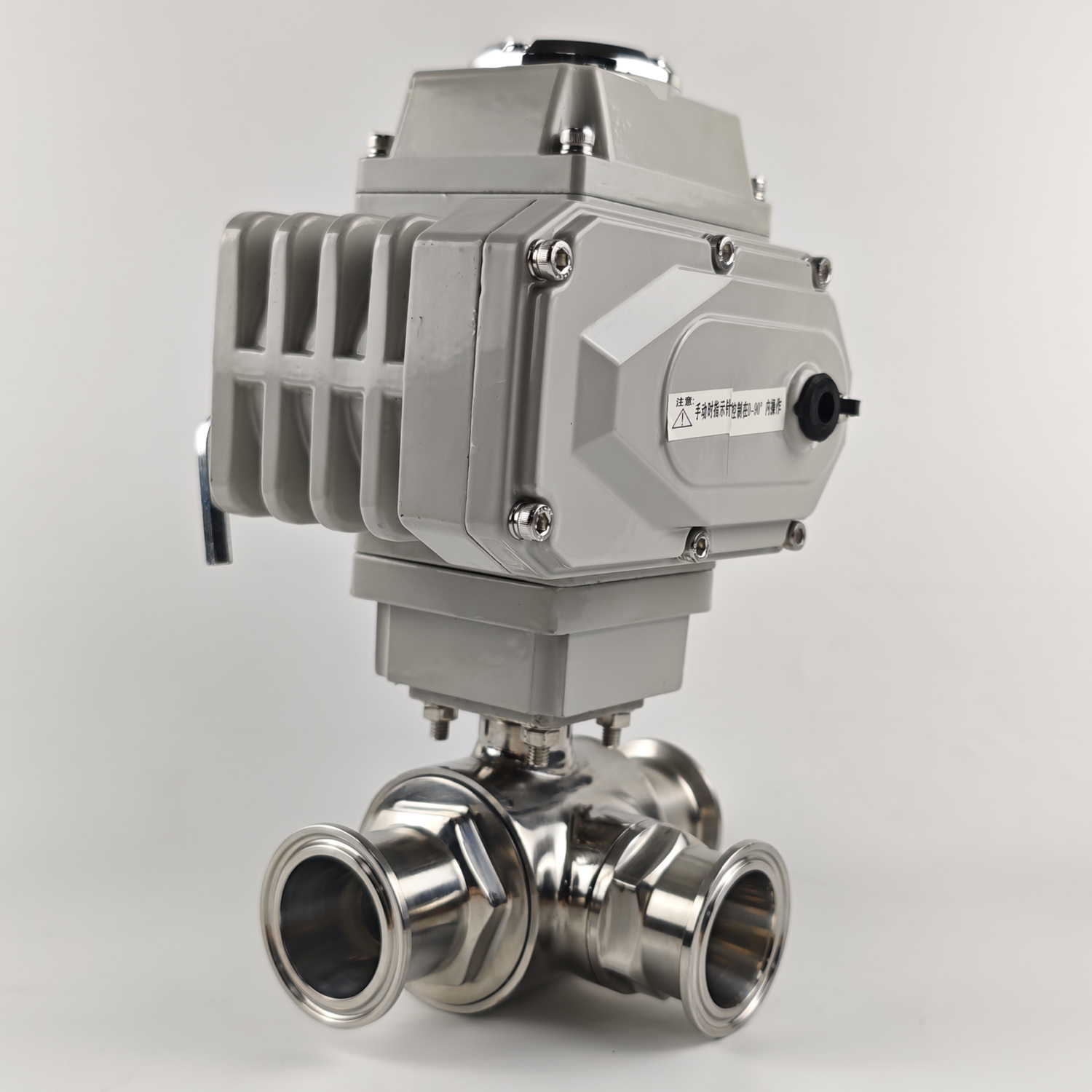

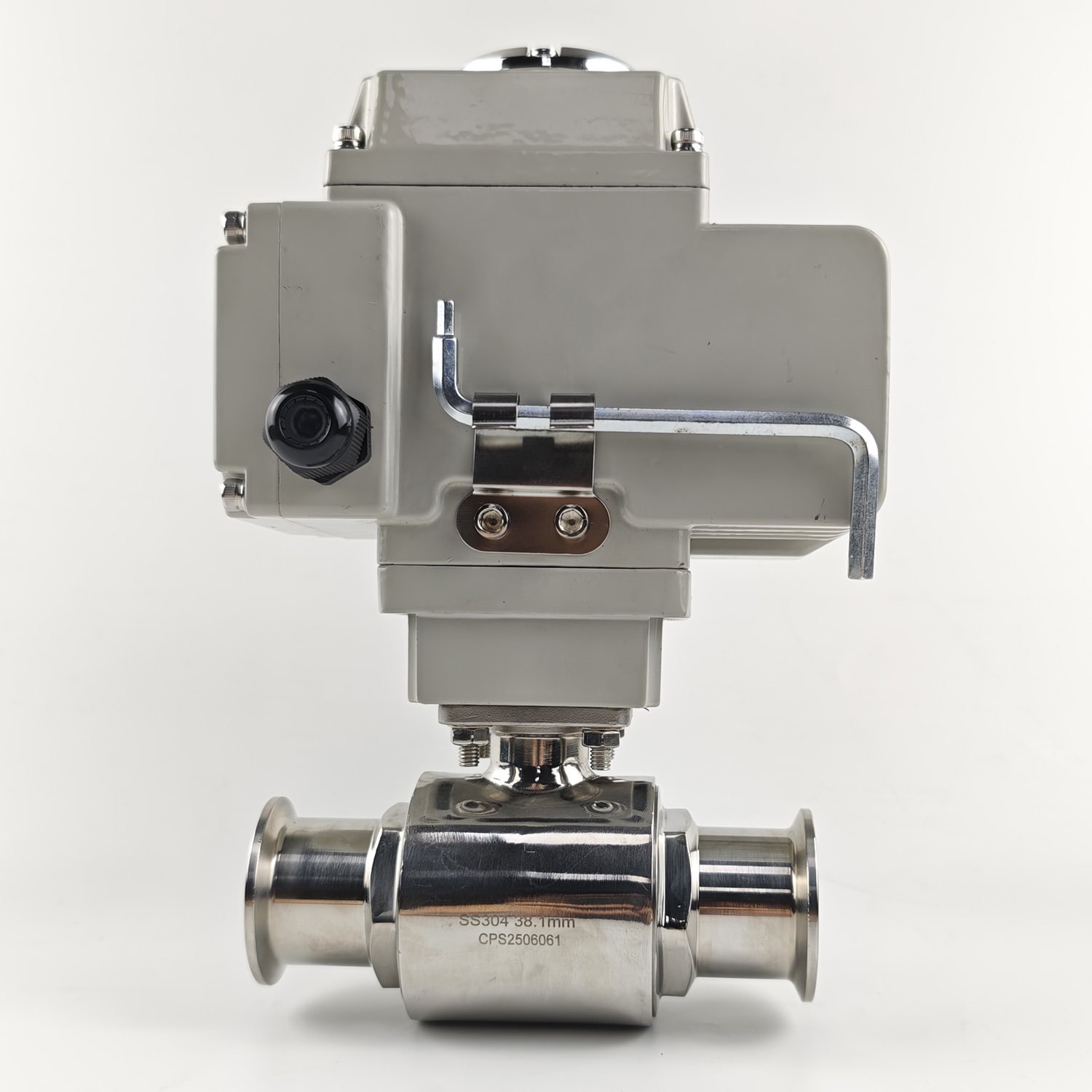

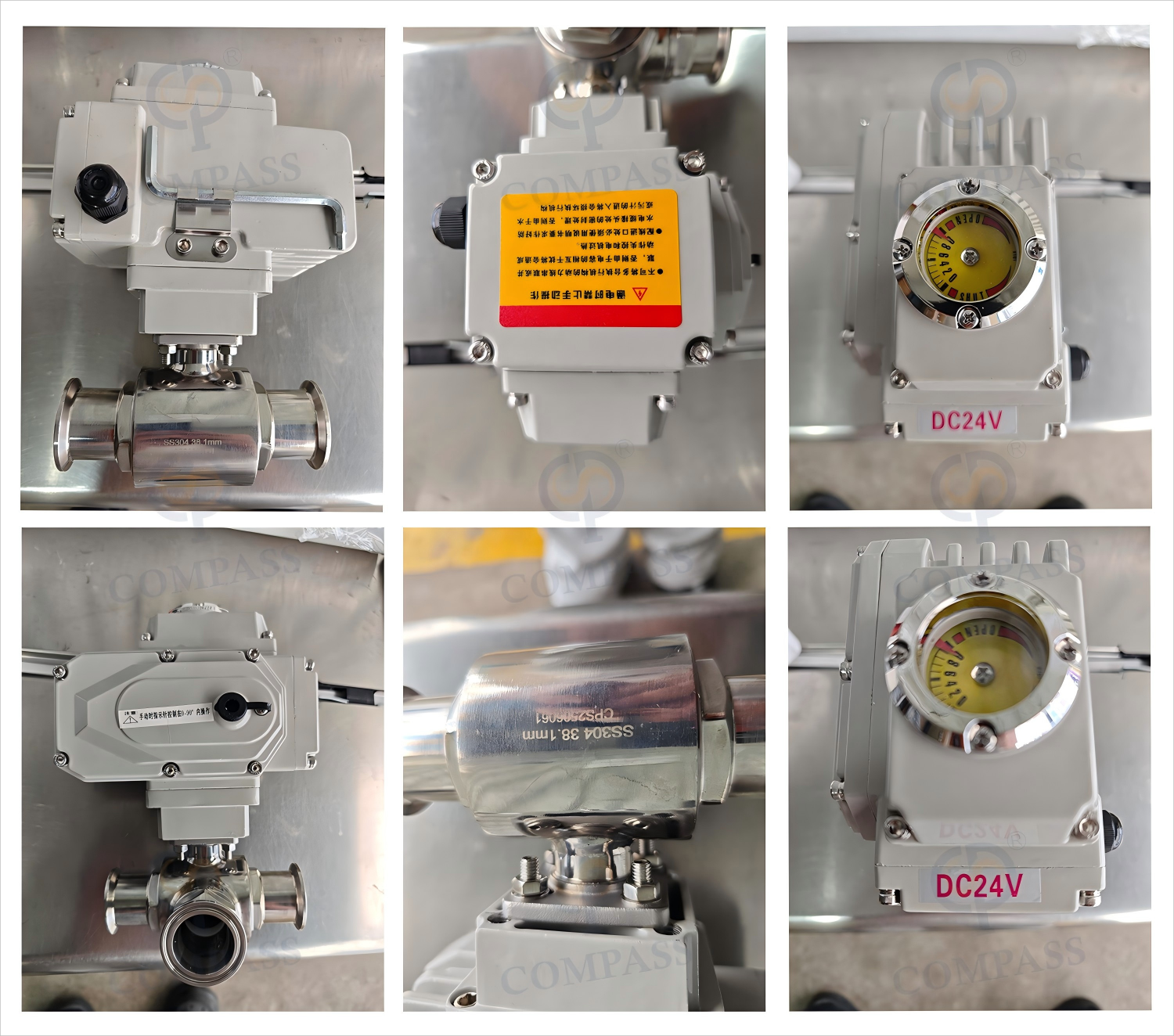

Manufacturer′ S Price 38.1mm Stainless Steel SMS Electric Type T Clamp Ball Valve
MANUFACTURER′S PRICE 38.1MM STAINLESS STEEL SMS ELECTRIC TYPE T CLAMP BALL VALVE
Sanitary Ball Valves are widely used in food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, biochemical industrialprocess control occasions. It is automatic or manual operated Ball valve, suitable for various applications inside the stainless steel piping system. Sanitary ball valve seat seal is made of PTFE material, with good sealing performance.
Working Principle
Sanitary ball valves can be tightly closed with only 90 degrees of pneumatic rotation and a small turning torque. The completely equal valve body cavity provides a small resistance and straight flow path for the medium. It is generally believed that ball valves are most suitable for direct opening and closing use, and ball valves have been designed to have throttling and flow control functions. The main characteristic of ball valves is their compact structure, easy operation and maintenance, suitable for general working media such as water, solvents, acids, and natural gas, and also suitable for harsh working conditions such as oxygen, hydrogen peroxide, methane, and ethylene. The valve body of a ball valve can be integral or modular.
Straight Two Ways, Three Ways T port, Three Ways L port
Connection
Butt-weld, Tri-clamp, Male Thread, Union, Flange
Seal Material
PTFE Seal. The seal material comply with FDA21CFR117.2600
Power Option
Manual Operated
SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator
Working Pressure
≤10bar(145psi)
Supply Pressure for Air Actuator
5~8(72.52psi~116psi)
Internal Surface Treatment
Ra16~32uin(0.4~0.8um)
External Surface Treatment
Ra32~64uin(o.8~1.6um)
Operating Torque( N.M.) Matched with Actuator
Size
DN10-DN20
DN25
DN32
DN40
DN50
2.5"
DN65
DN80
DN100
1/2"-3/4"
1"
1-1/4"
1-1/2"
2"
2.5"
3"
3.5"
4"
Dry test(N.M.)
8
8
10
12
17
25
30
40
70
Aluminum Actuator
AT50
AT50
AT50
AT63
AT75
AT88
AT88
AT115
AT125
Electric Actuator
5
5
5
5
10
20
20
20
20
Design & Features
1.Various standards can be provided: SMS,DIN 2.Available in sizes from 1/2"-4", DN10-DN100 3.Seals comply with FDA 21CFR 177. 2600. 4.The valve body can be customized with a wide selection of different connections.
Advantages 1.Free of maintenances 2.Compact and portable 3.Small operating torque 4.Gasket complies with PTFE FDA 177.2600 5.Handle level can be installed on the side of valves body, no matter of the flow direction.
How to order Sanitary Ball Valve?
1. What's standard for ball valve? Such as DIN, SMS 2. What's material quality? Such as SS304 and SS316L for optional 3. What's size? The available size is from 1/2inch to 4inch, DN10 to DN100 4. What type of ball valve? Such as straight two ways, three ways T port, three ways L port. 5. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect. 6. What's working principle, such as SS pneumatic actuator, aluminum pneumatic actuator, electrical Actuator ?
Main Parameter
Standard
SMS,DIN
Material Contact Parts
SS304(1.4301)/SS316L (1.4404)
Provided with material inspection report
Material Non-contact Parts
SS304(1.4301)
Size
1/2 to 4 inch, DN10 to DN100
Body Combination
Straight Two Ways, Three Ways T port, Three Ways L port
Connection
Butt-weld, Tri-clamp, Male Thread, Union, Flange
Seal Material
PTFE Seal. The seal material comply with FDA21CFR117.2600
Power Option
Manual Operated
SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator
Working Pressure
≤10bar(145psi)
Supply Pressure for Air Actuator
5~8(72.52psi~116psi)
Internal Surface Treatment
Ra16~32uin(0.4~0.8um)
External Surface Treatment
Ra32~64uin(o.8~1.6um)
Operating Torque( N.M.) Matched with Actuator
Size
DN10-DN20
DN25
DN32
DN40
DN50
2.5"
DN65
DN80
DN100
1/2"-3/4"
1"
1-1/4"
1-1/2"
2"
2.5"
3"
3.5"
4"
Dry test(N.M.)
8
8
10
12
17
25
30
40
70
Aluminum Actuator
AT50
AT50
AT50
AT63
AT75
AT88
AT88
AT115
AT125
Electric Actuator
5
5
5
5
10
20
20
20
20
Design & Features
1.Various standards can be provided: SMS,DIN 2.Available in sizes from 1/2"-4", DN10-DN100 3.Seals comply with FDA 21CFR 177. 2600. 4.The valve body can be customized with a wide selection of different connections.
Advantages 1.Free of maintenances 2.Compact and portable 3.Small operating torque 4.Gasket complies with PTFE FDA 177.2600 5.Handle level can be installed on the side of valves body, no matter of the flow direction.
How to order Sanitary Ball Valve?
1. What's standard for ball valve? Such as DIN, SMS 2. What's material quality? Such as SS304 and SS316L for optional 3. What's size? The available size is from 1/2inch to 4inch, DN10 to DN100 4. What type of ball valve? Such as straight two ways, three ways T port, three ways L port. 5. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect. 6. What's working principle, such as SS pneumatic actuator, aluminum pneumatic actuator, electrical Actuator ?
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases. If heavy weight of cargo ,which be packed by strongly seaworthy ply-wooden ases . In order to protective items , which will be packed by safety and resistance to shock in ply-wooden cases.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases. If heavy weight of cargo ,which be packed by strongly seaworthy ply-wooden ases . In order to protective items , which will be packed by safety and resistance to shock in ply-wooden cases.
It is applied in industry and sanitary system. They are widely applied in food, beverage, brewing, pharmacy, biological industry, oil refinery, cosmetic, chemical industries, lithium battery equipment, ect.
It is applied in industry and sanitary system. They are widely applied in food, beverage, brewing, pharmacy, biological industry, oil refinery, cosmetic, chemical industries, lithium battery equipment, ect.
