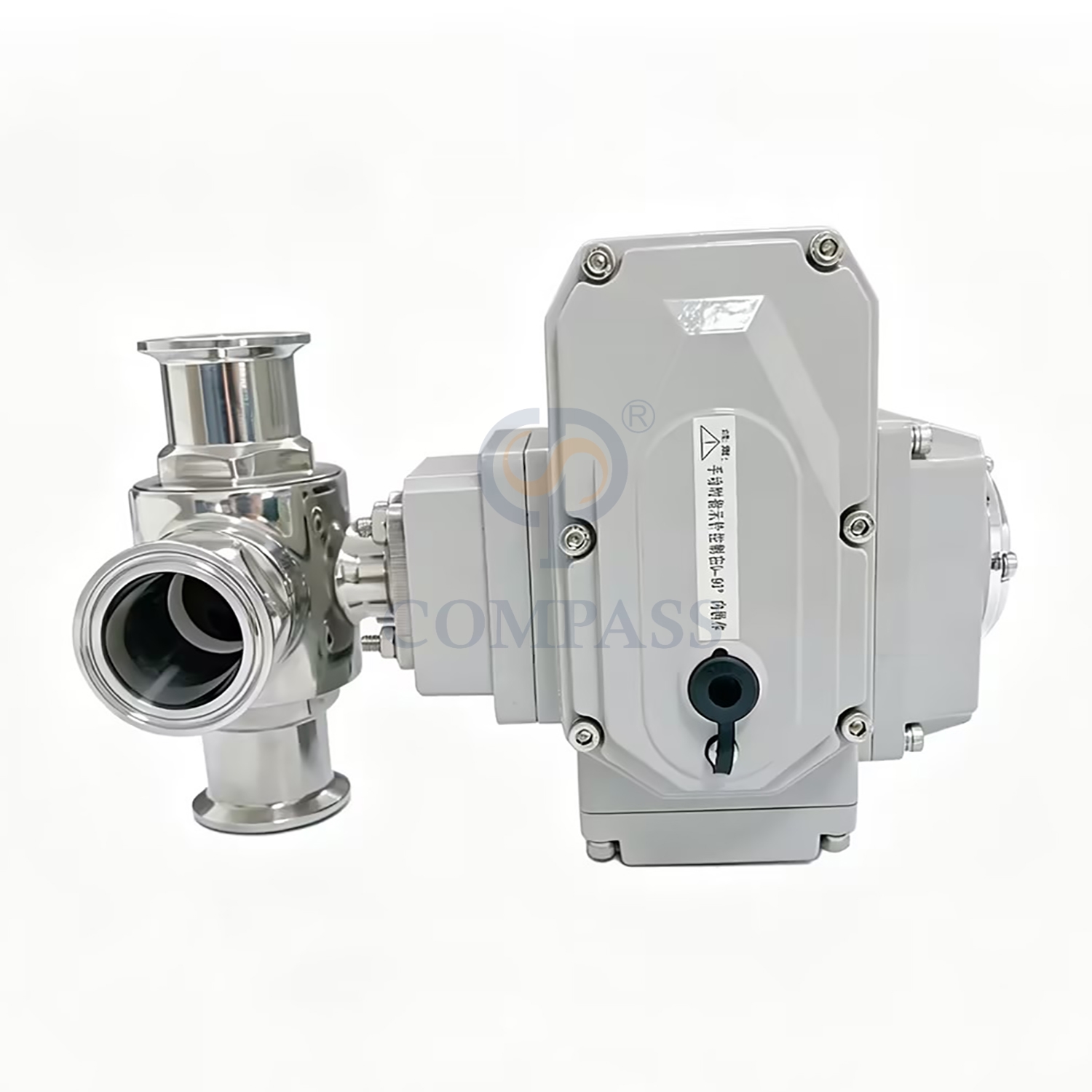

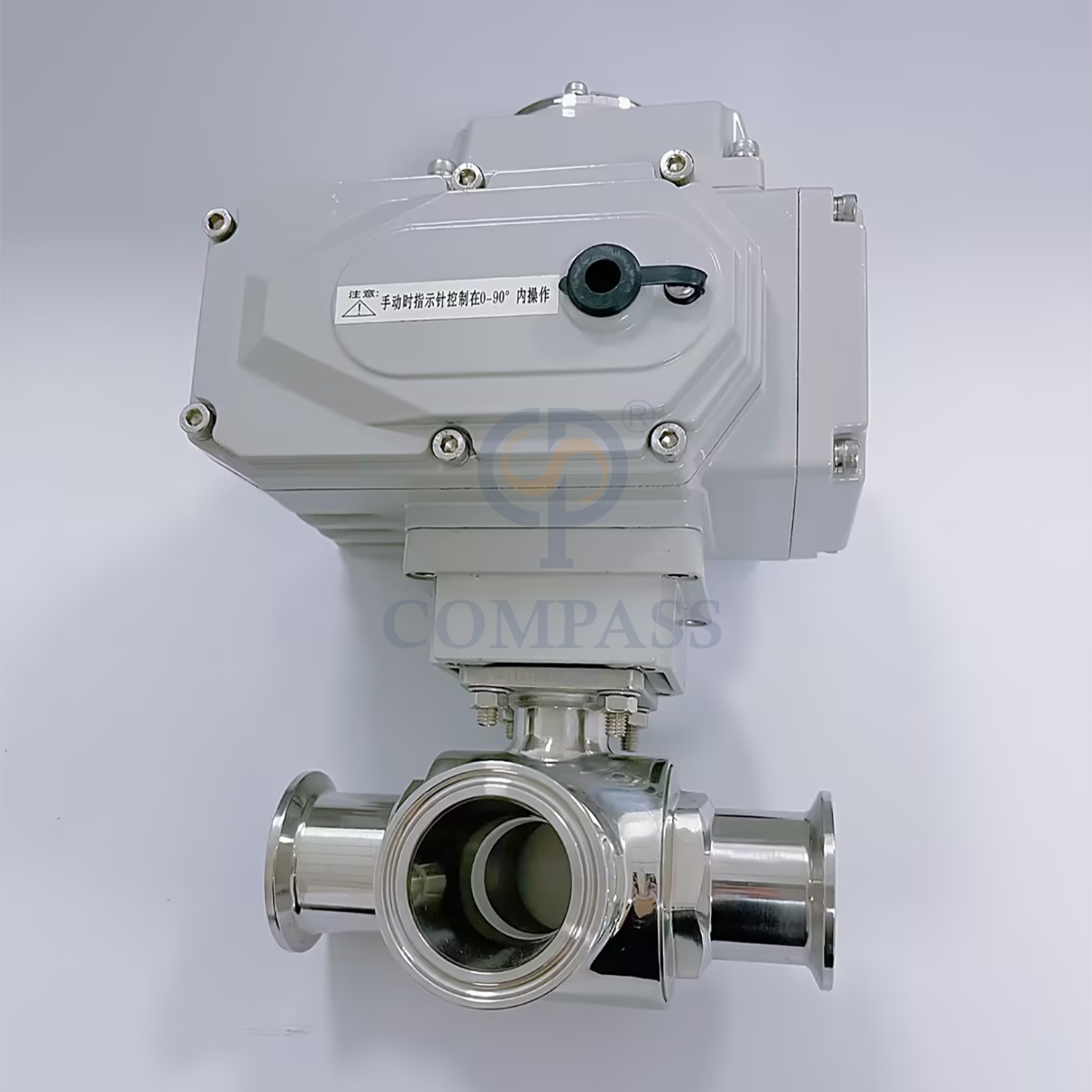

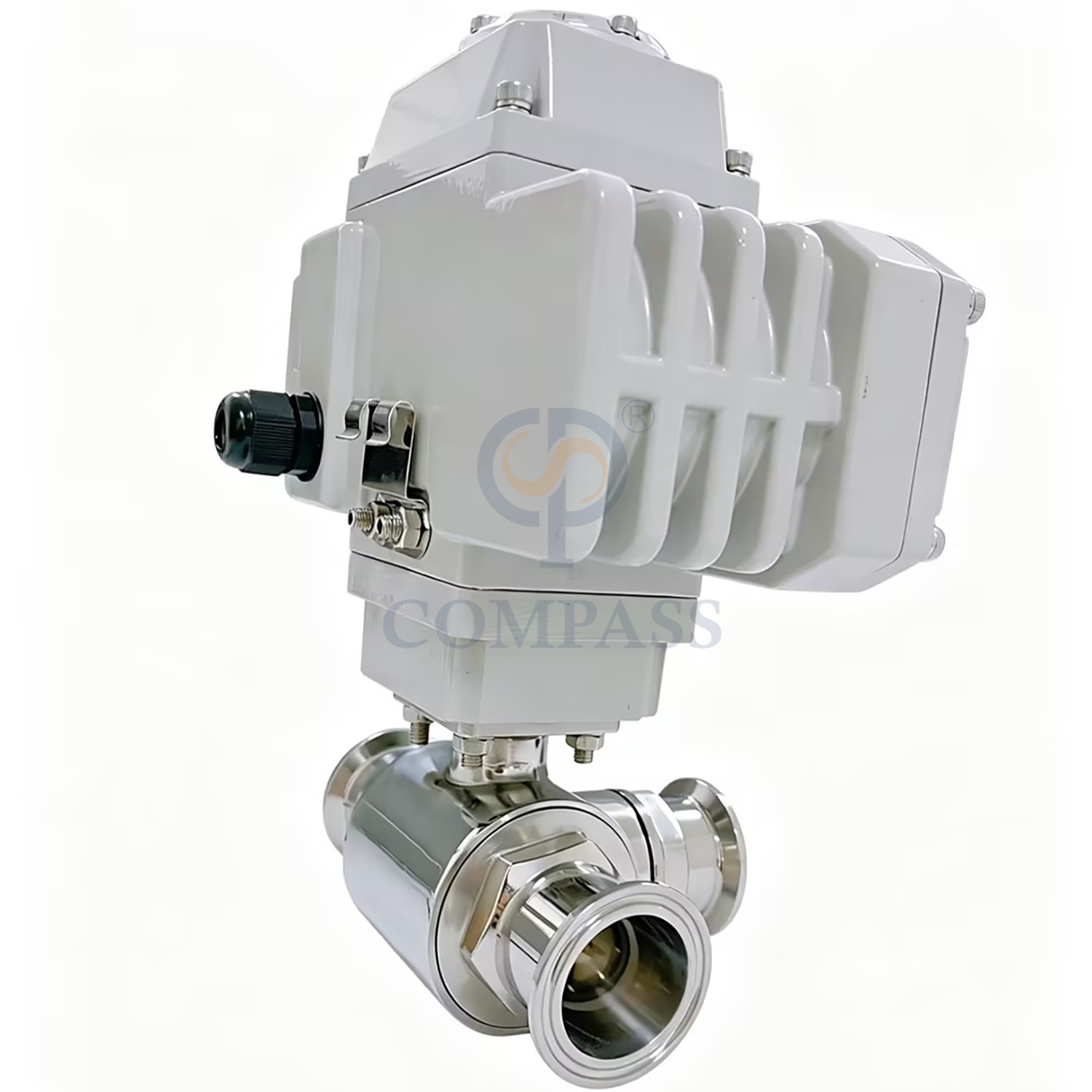

Best Selling Sanitary Stainless Steel Electric Ball Valve SS304 50.8mm Clamp Three Way L-port Ball Valves with 220 Electric Head

You are here: Home » Products » Sanitary Valves » Sanitary Ball Valve » Best Selling Sanitary Stainless Steel Electric Ball Valve SS304 50.8mm Clamp Three Way L-port Ball Valves with 220 Electric Head

Share to:

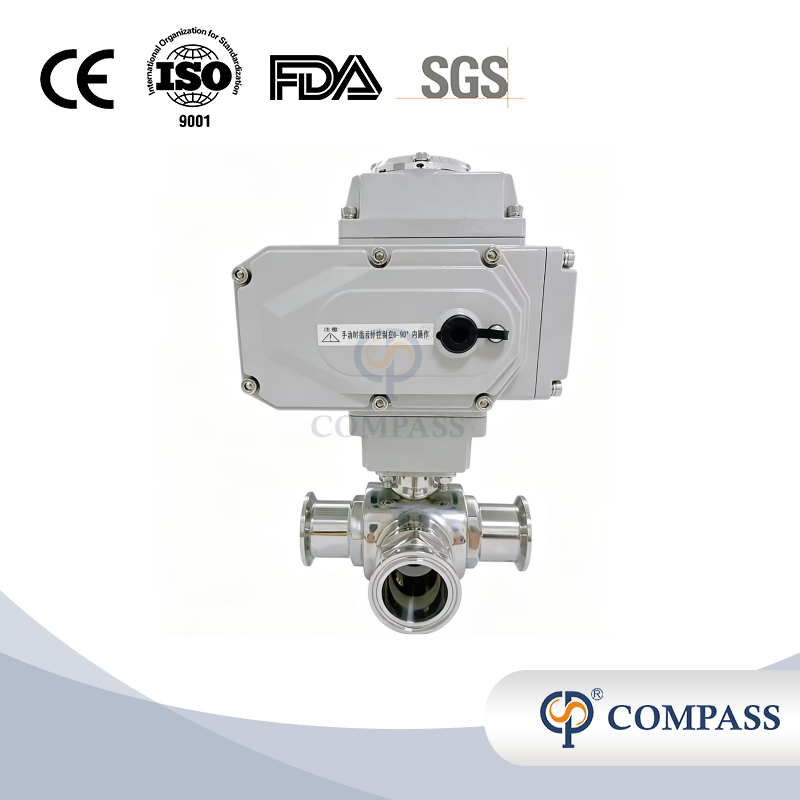

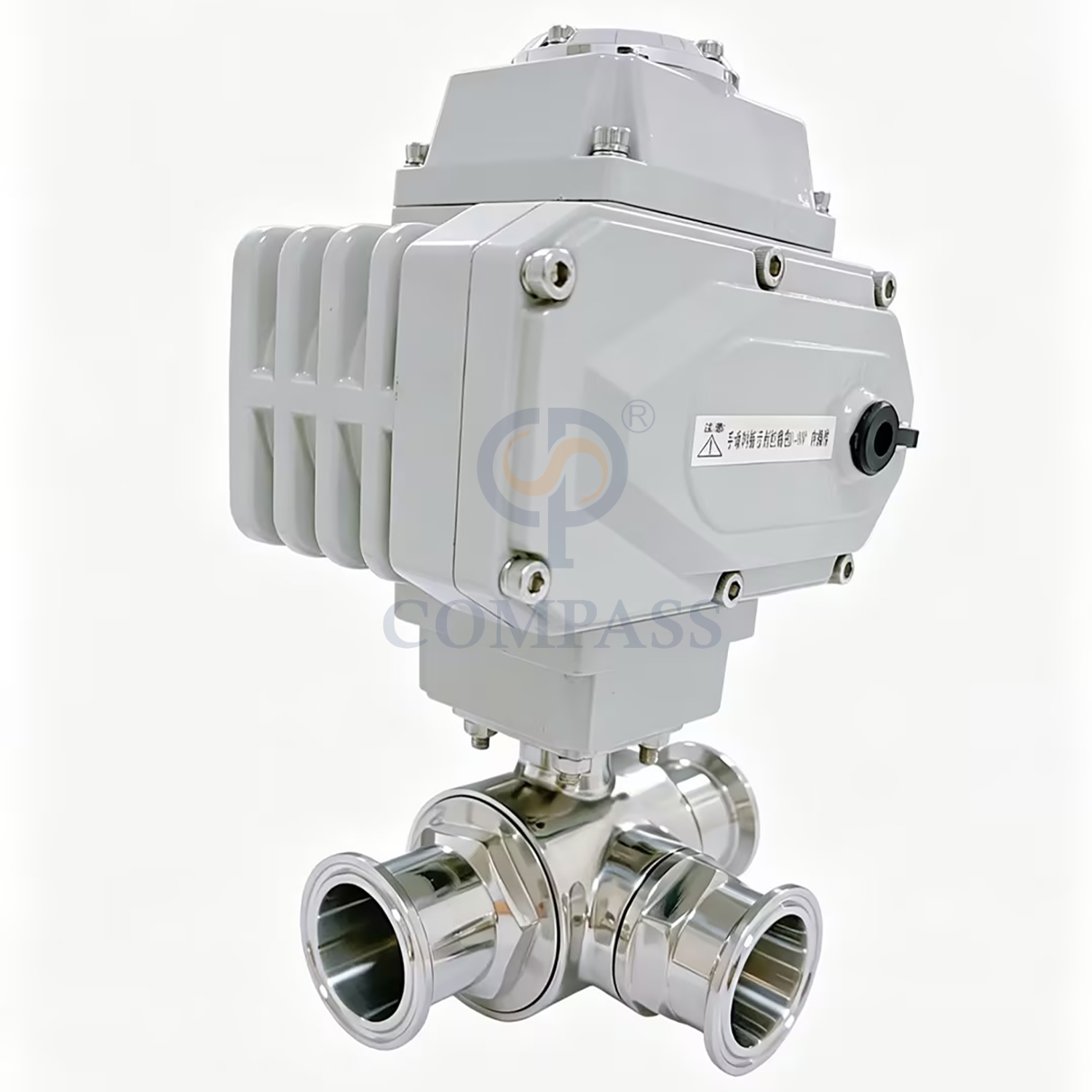

Best Selling Sanitary Stainless Steel Electric Ball Valve SS304 50.8mm Clamp Three Way L-port Ball Valves with 220 Electric Head

Name: Best Selling Sanitary Stainless Steel Electric Ball Valve SS304 50.8mm Clamp Three Way L-port Ball Valves with 220 Electric Head
Brand: XUSHENG
SKU: 149233096
Rating: 5.0 (60 reviews)

Xusheng(Sanicompass)'s Sanitary Ball valves are widely used in food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, biochemical industrial process control occasions. It is a sanitary, automatic or manual operated Ball valve, suitable for various applications inside the stainless steel piping system.
Xusheng(Sanicompass)'s Ball valves has the following characteristics: compact and portable, small operating portable,hand lever can be installed on the side of the valve body, no matter of the flow direction. At the same time, our valves have welding, clamp, thread, union, flange and other connection methods, and meet DIN, SMS, RJT, ISO, IDF, 3A and other standards.
The parts of our ball valve can be replaced, Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other. And the any kind of connection of valve body can be changeable.
And our ball valve are made form stainless steel 304 and 316L, the available size includes of 1/2”-4”, DN15-DN100, But customers have special size requirements, we can customize production. Xusheng(Sanicompass) can produce sanitary butterfly valves as per customers' design drawing and requirement.

Model:
2Inch 50.8MM
Brand:
XUSHENG
Code:
010604A02A0201A51

Size:	1/2"-12",DN15-DN300
Availability:

Quantity:



Inquire Add to Basket

The Details of Product

Standard	SMS,DIN
Material Contact Parts	SS304(1.4301)/SS316L(1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Size	1/2 to 4 inch, DN10 to DN100
Body Combination	Straight Two Ways, Three Ways T port, Three Ways L port
Connection	Butt-weld, Tri-clamp, Male Thread, Union, Flange
Power Option	Manual Operated
	SS Pneumatic Actuator, Aluminum Pneumatic Actuator
	Electric Actuator
Working Pressure	≤10bar(145psi)
Supply Pressure for Air Actuator	5~8(72.52psi~116psi)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)
External Surface Treatment	Ra32~64uin(o.8~1.6um)

Description of Commodity: Best Selling Sanitary Stainless Steel Electric Ball Valve SS304 50.8mm Clamp Three Way L-port Ball Valves with 220 Electric Head

Three-way ball valves：

Two-way and three-way ball valves are the most common types of ball valves. Three-way ball valves are especially useful because they can be set up in ways that simplify the control of gas and fluid flow. For example, they can be used to divert the flow of oil from one tank to another.

How is a three-way ball valve different from a two-way ball valve?

Two-way ball valves are widely used as shut-off valves for gases or liquids (media) moving through closed tube or pipe systems.This is because of their simplicity and reliability. Two-way valves have two ports or openings where pipe or tubing is connected to the valve. The ball in two-way ball valves has a single straight hole through it where the liquid or gas (media) passes through the valve.

What is a three-way ball valve?

Three-, four- and five-way ball valves are called multi-port valves. The three-way ball valve is the most common multi-port ball valve. A three-way ball valve has three ports or openings that are connected to piping or tubing for gas or fluid flow (media) to pass through. These ports are usually described as one inlet and two outlet ports or one outlet and two inlet ports depending upon the flow direction through the valve.Three-way ball valves are popular because they are an economical and simple way of providing both shut off and flow direction control in a single valve body.

Valve types:

*Manual Butterfly type Ball Valve *Pneumatic Butterfly type Ball Valve *Electric Butterfly type Ball Valve

Features

* Free of maintenance
* Compact and portable
* Small operating torque
* Hand lever can be installed on the side of the valve body, no matter of the flow direction.
* It can match with pneumatic and electric actuators.

* Small fluid resistance and drainable.

* Simple and compact structure, light weight, strong and reliable design.

* Variety connection of tri-clamp, welded, threaded etc.

* Surface finishing: External surface sand blasting, Internal surface Ra 0.8mm or on request.

How to order?

1. What's standard for ball valve? Such as DIN, SMS
2. What's material quality? Such as SS304 and SS316L for optional
3. What's size? The available size is from 1/2inch to 4inch, DN15 to DN100
4. What type of ball valve? Such as straight two ways, three ways T port, three ways L port.

5. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
6. What's working principle, such as SS pneumatic actuator, aluminum pneumatic actuator, electrical Actuator ?
