The Details of Product
| |
| SS304(1.4301)/SS316L(1.4404) | Provided with material inspection report |
Material Non-contact Parts | |
| 1/2 to 4 inch, DN10 to DN100 |
| Straight Two Ways, Three Ways T port, Three Ways L port |
| Butt-weld, Tri-clamp, Male Thread, Union, Flange |
| |
SS Pneumatic Actuator, Aluminum Pneumatic Actuator |
|
| |
Supply Pressure for Air Actuator | |
Internal Surface Treatment | |
External Surface Treatment | |

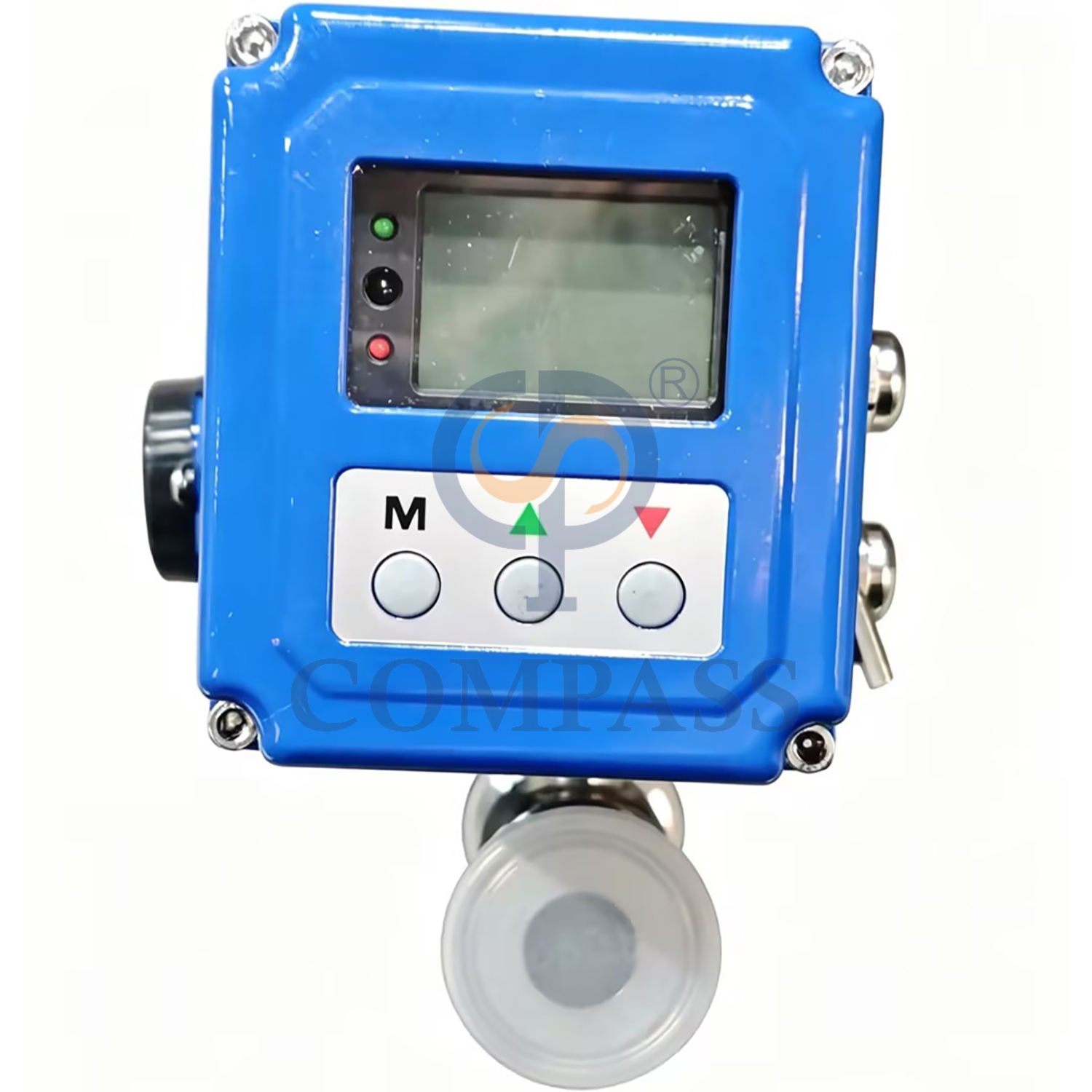

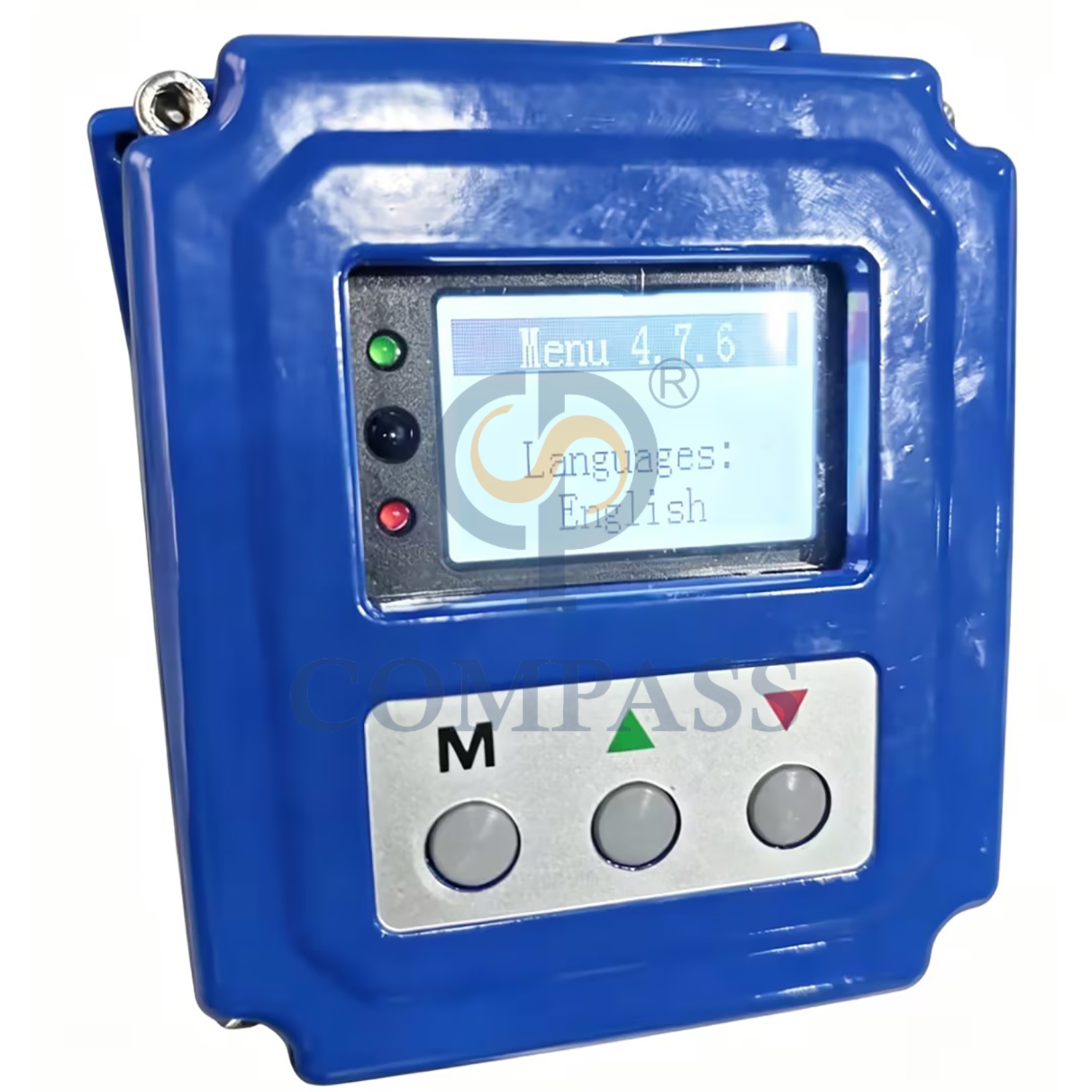

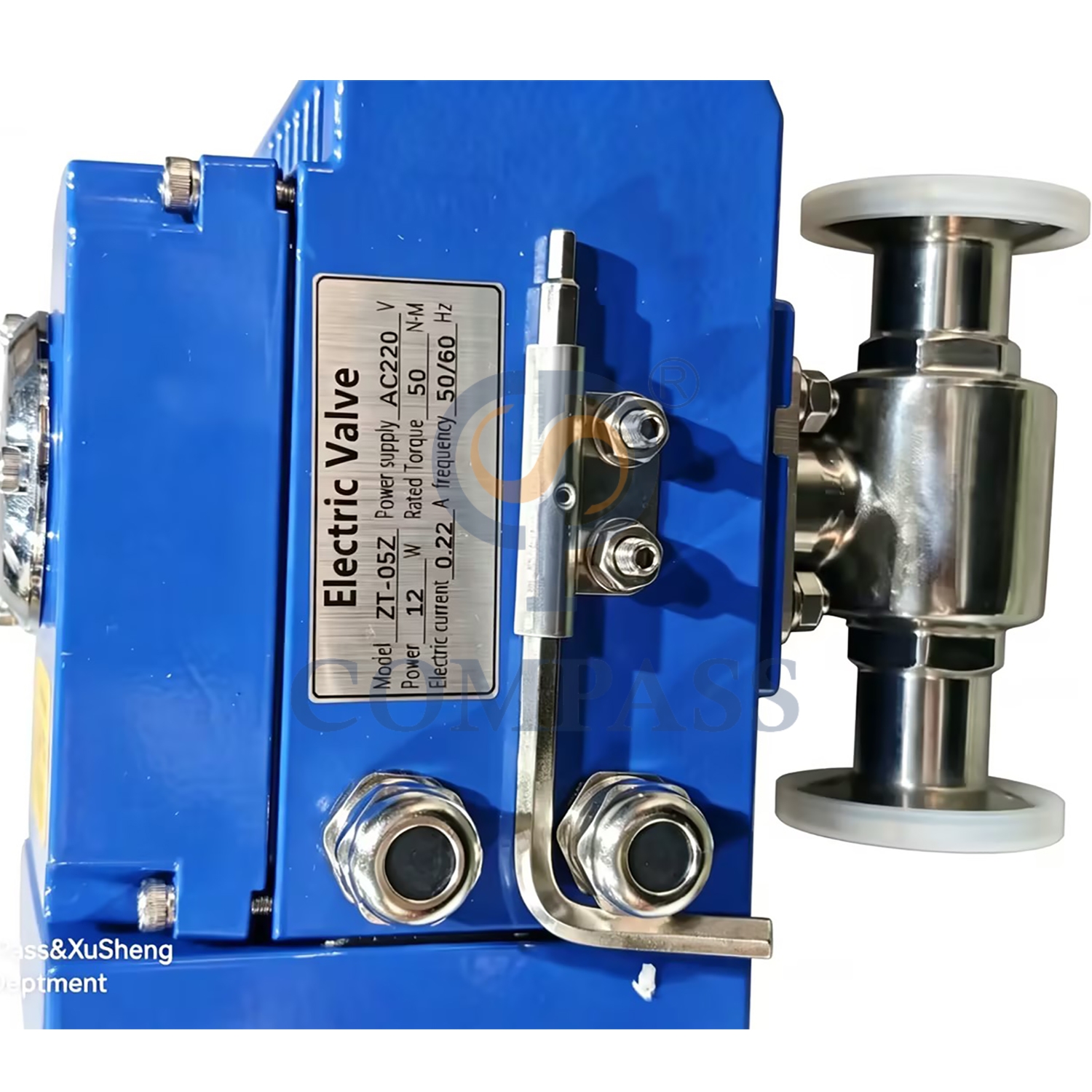

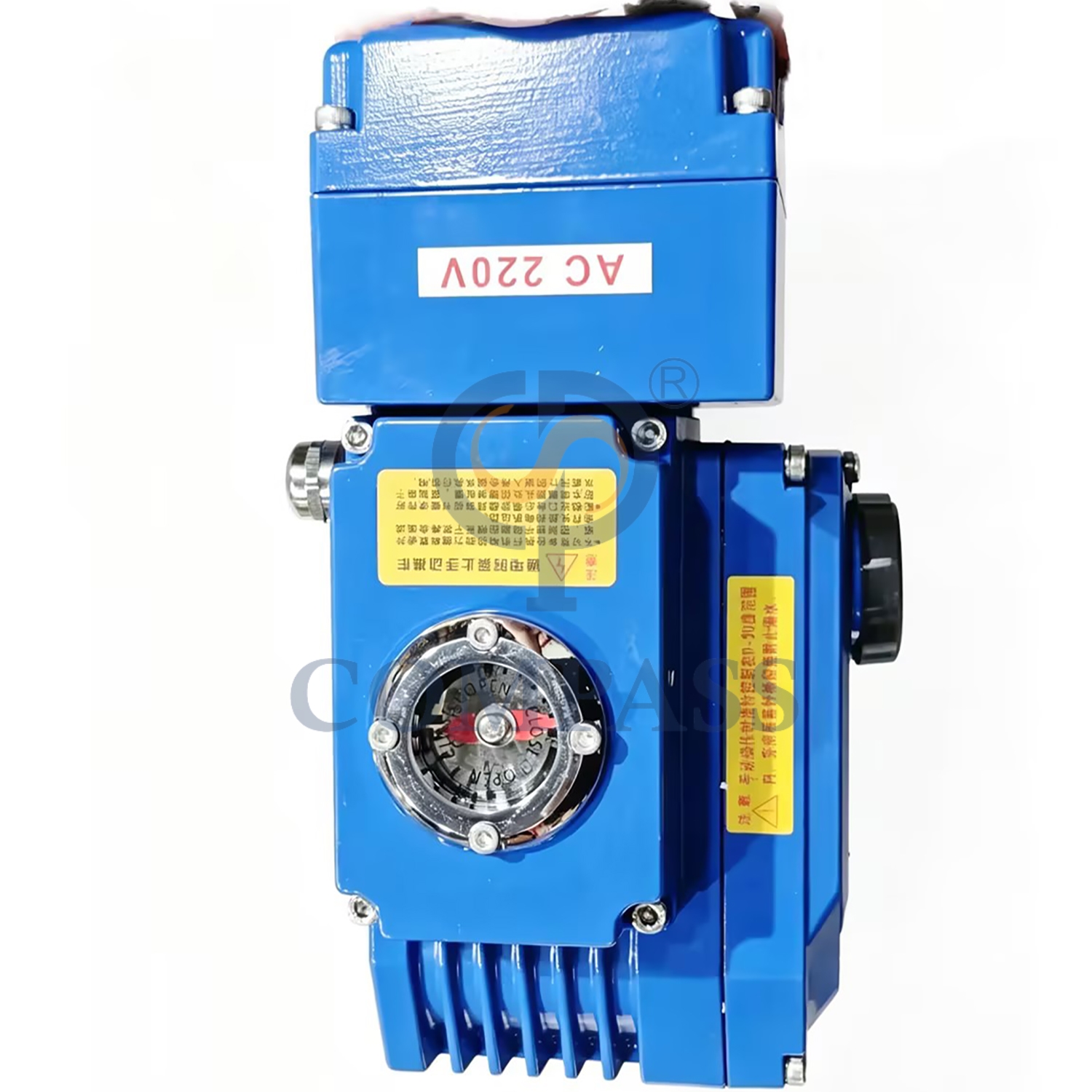

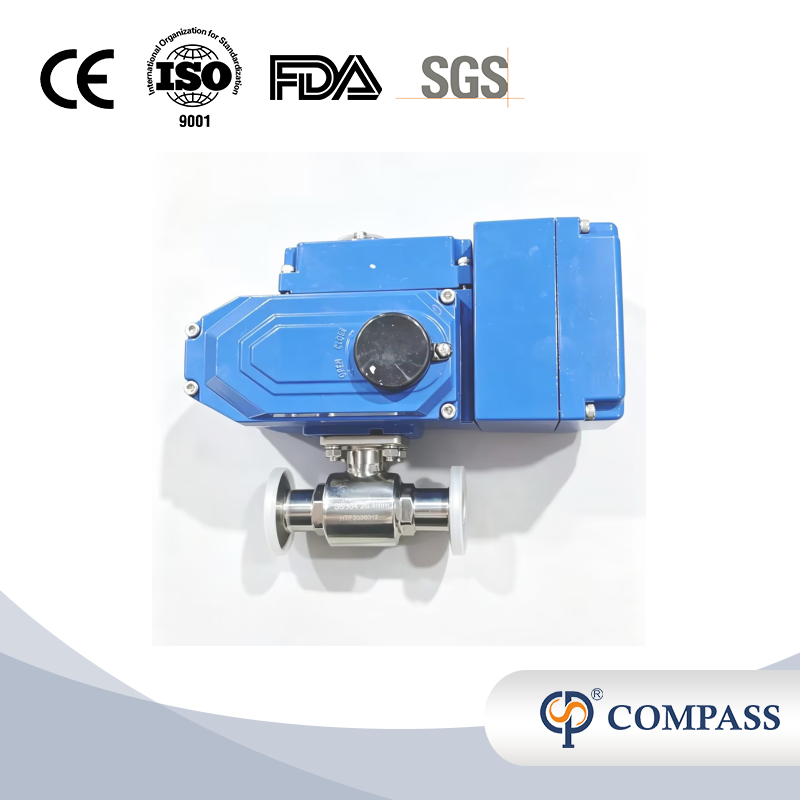

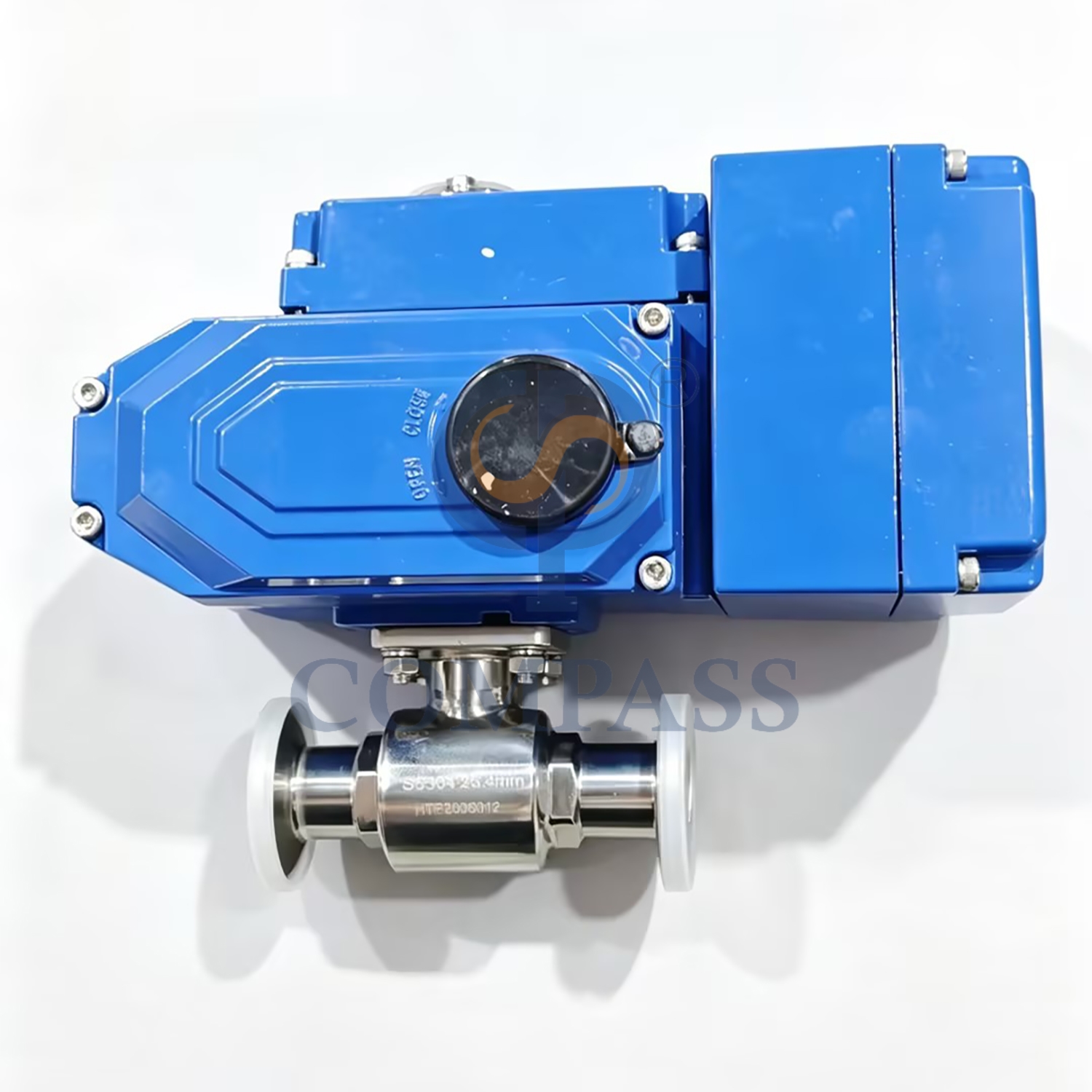

Description of Commodity: Sanitary Stainless Steel Medium Pressure Electric Ball Valve SS3041Inch Clamp Straight Ball Valves with 220 VDC Electric Head and Panel
Options:
1.Connection can be Butt-weld,Tri-clamp,Male Thread,Union,Flange or others upon request.
2.Power operated: Manual,SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator
3.Body Combination:Straight Port, T Port, L Port
Design features:
1.Various standards can be provided: SMS,DIN
2.Available in sizes from 1/2”-4”, DN10-DN100
3.Seals comply with FDA 21CFR 177. 2600.
4.The valve body can be customized with a wide selection of different connections.
Advantages:
1.Free of maintenance
2.Compact and portable
3.Small operating torque
4.Gasket complies with PTFE FDA 177.2600
5.Handle level can be installed on the side of valves body, no matter of the flow direction.
How to order ball valve?
1. What's standard for ball valve? Such as DIN, SMS
2. What's material quality? Such as SS304 and SS316L for optional
3. What's size? The available size is from 1/2inch to 4inch, DN15 to DN100
4. What type of ball valve? Such as straight two ways, three ways T port, three ways L port.
5. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
6. What's working principle, such as SS pneumatic actuator, aluminum pneumatic actuator, electrical Actuator ?
