Made in China Sanitary Stainless Steel Filters AFR 2000 Copper Core Plastic and Iron 1/4'' Female Thread FL Reduced Pressure Filter

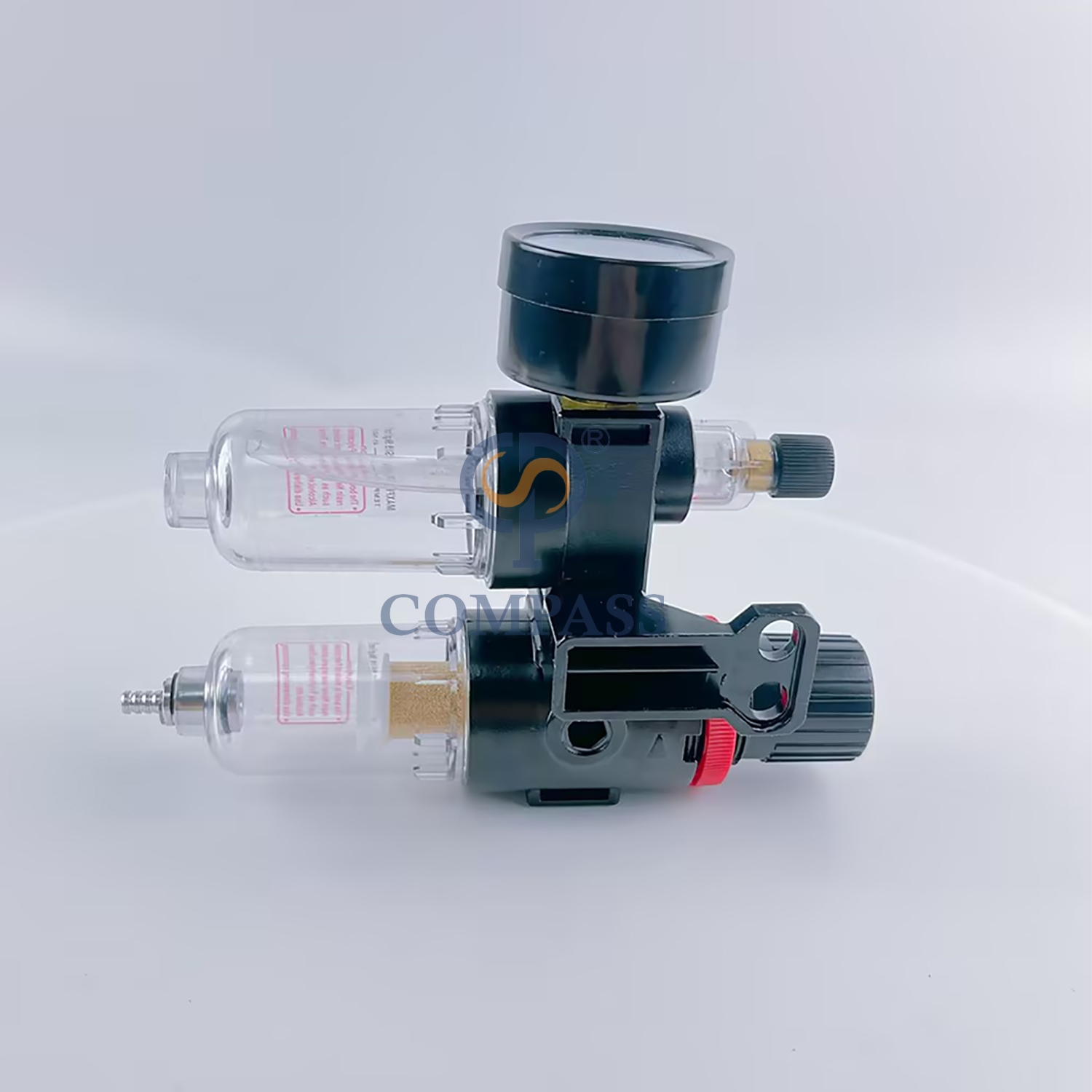

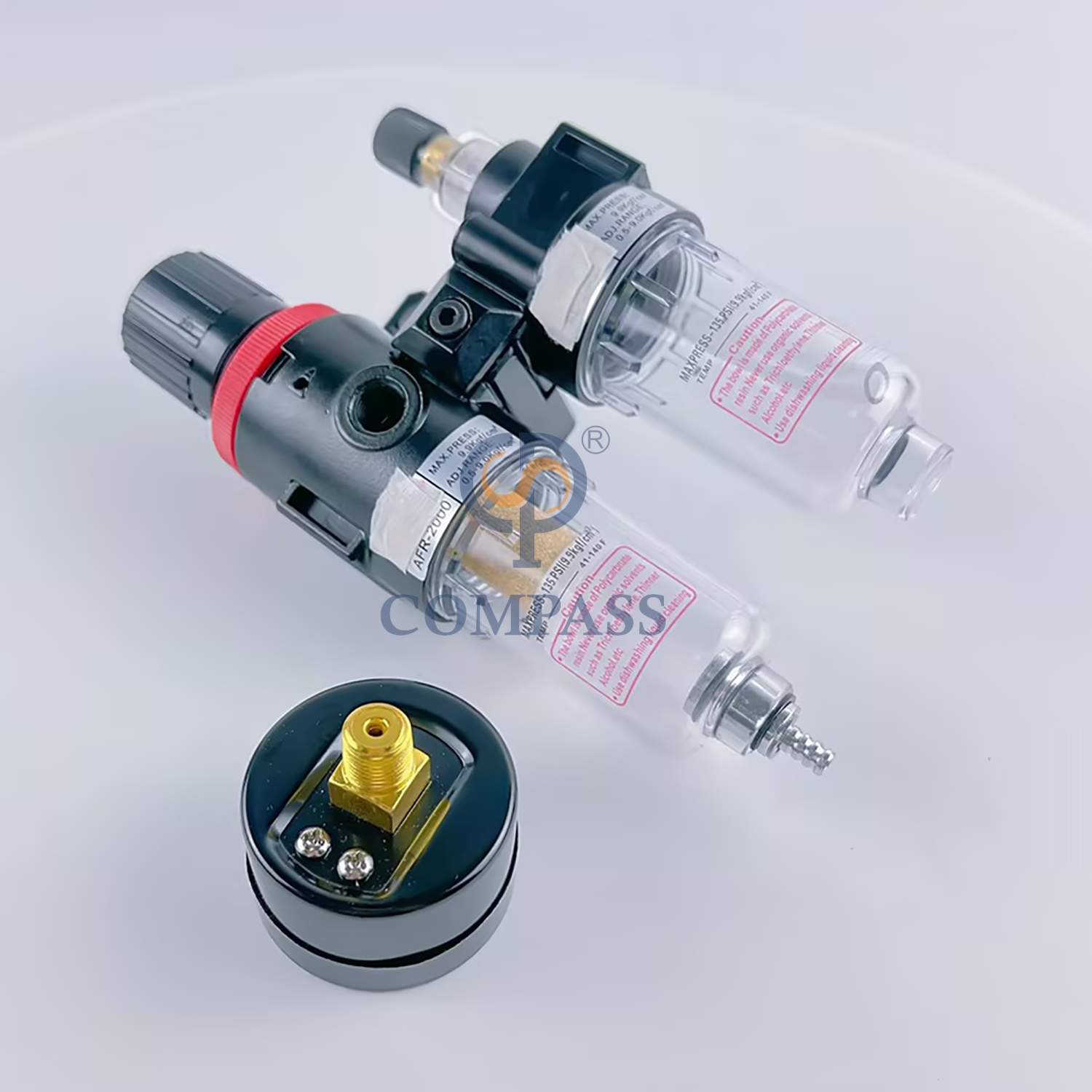

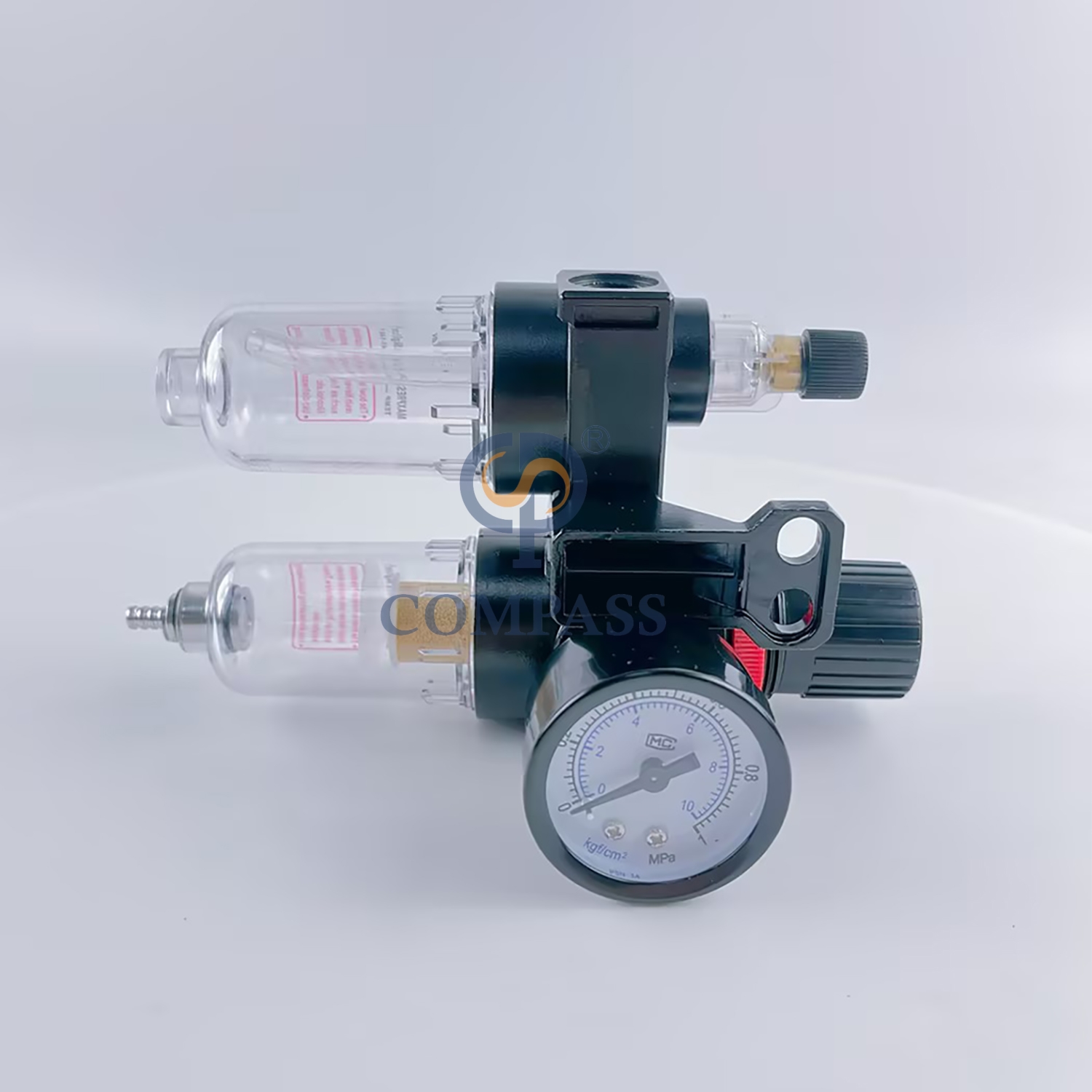

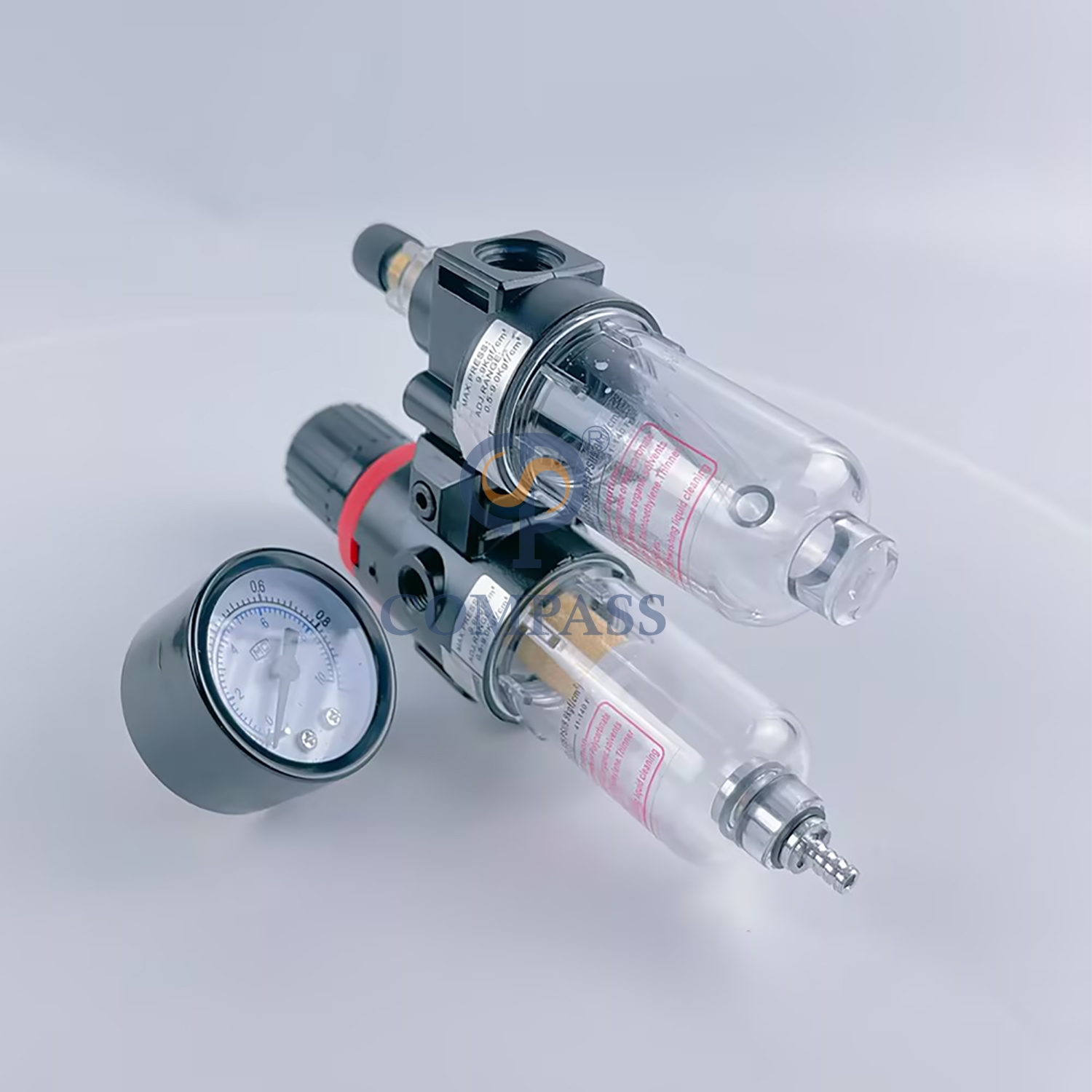

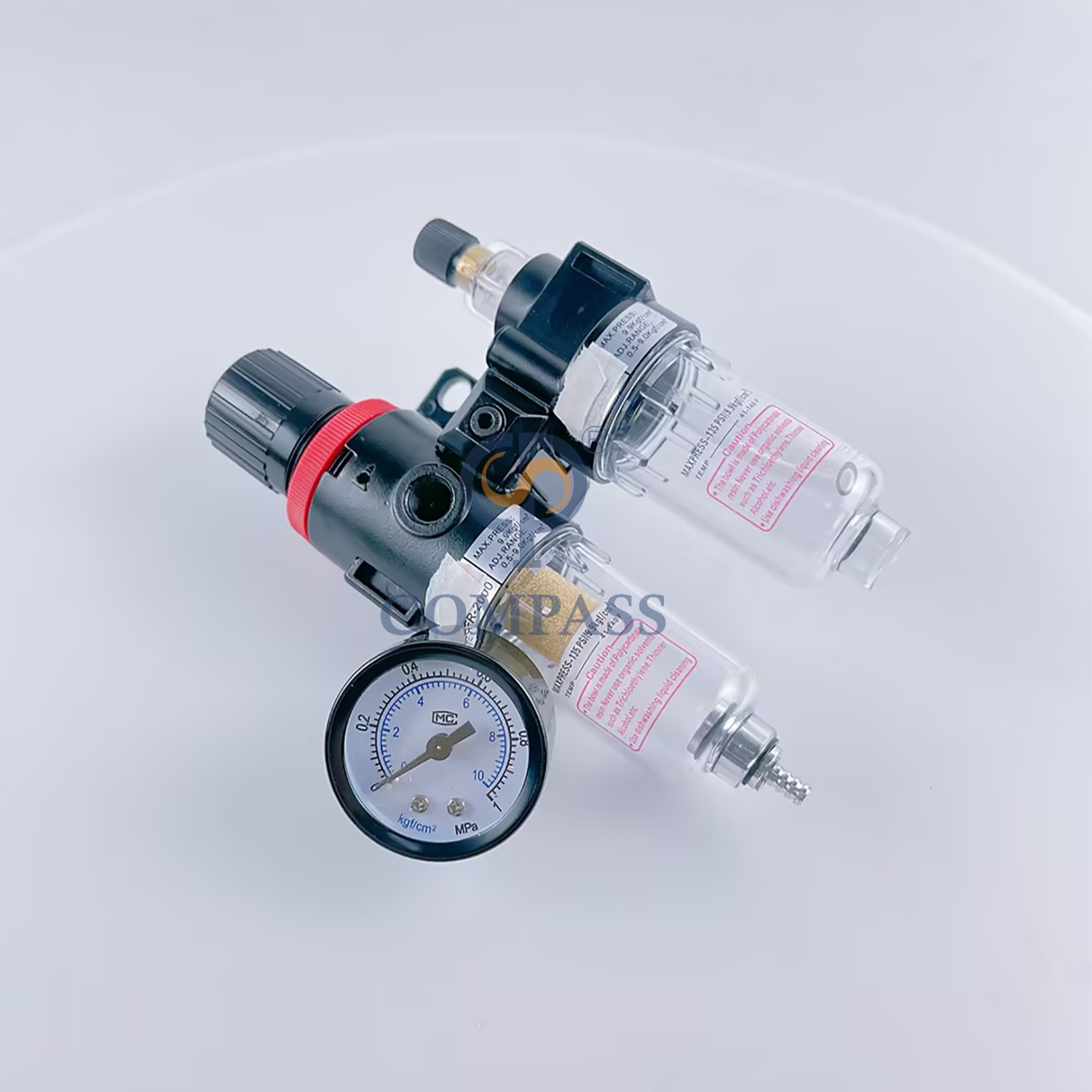

The two-piece air preparation unit (also referred to as air source treatment two-piece unit or pneumatic two-piece unit) is an essential air supply device in pneumatic transmission systems.
It typically combines an air filter and a pressure regulator, mainly used to purify compressed air and adjust its pressure to ensure air quality.
It is an indispensable component in most pneumatic systems.
Food and Beverage,Pharmaceutical,General Industry, etc
Fluid pressure
0.5–10 MPa
Filtration Rating
50–75 μm,Other options are available upon request: 5–10 μm, 10–20 μm, 25–40 μm, etc.
Material
Plastic and iron
Description of Commodity: Made in China Sanitary Stainless Steel Filters AFR 2000 Copper Core Plastic and Iron 1/4'' Female Thread FL Reduced Pressure Filter
Highlights at a glance
Hygienic Design: Ideal for food grade applications due to plastic and iron construction.
Pressure Monitoring: Includes a pressure gauge for precise control and safety.
Installation: Internal thread.
OEM: Available in various sizes like 1/4'' and 3/8''.

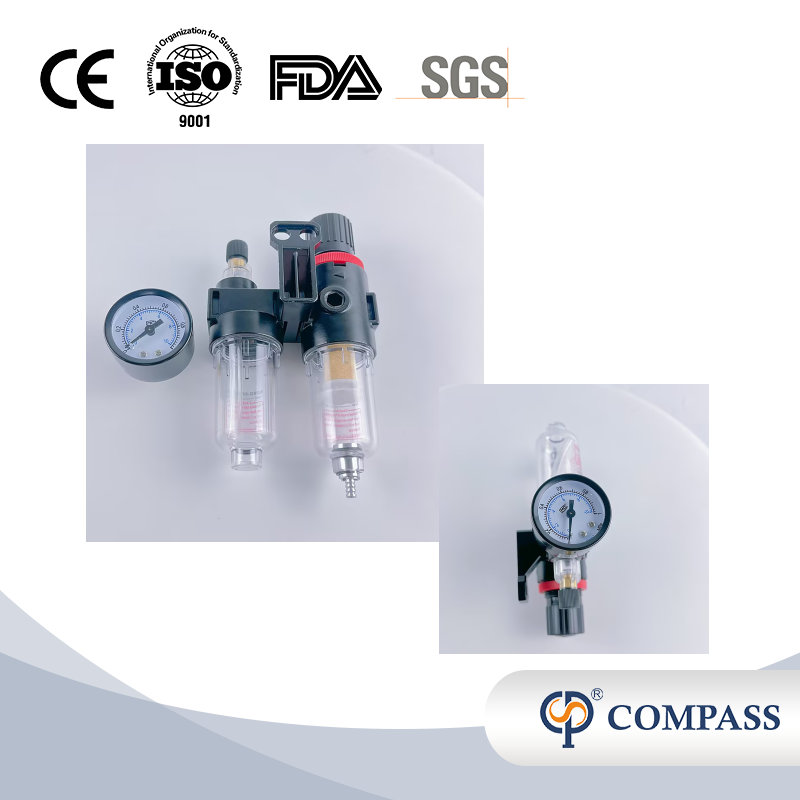

Quality Assurance: Certified to ISO9001:2008 and CE standards.
Installation precautions 1. Please pay attention to cleaning the connecting pipes and joints during installation to prevent dirt from entering the air path. 2. Please pay attention to whether the direction of gas flow is consistent with the direction indicated by the arrow on the body during installation - and ensure that the connection and joint teeth are correct. 3. Fixing the filter, pressure regulating valve (pressure regulating filter) and oil feeder: match the convex groove of the fixing bracket with the groove on this groove, and then tighten it with a fixing plate and screw. 4. When using a pressure regulating valve or filter separately, simply lock the attached fixing plate with the fixed rotating fixing ring.
Pressure regulation (regulator) 1. Before turning the rotary knob, please pull it up and then turn it. Press down the rotary knob to position it. 2. Rotate the knob to the right to increase the outlet pressure, and to the left to decrease the outlet pressure. 3. When adjusting the pressure, it should be gradually and evenly adjusted to the desired pressure value, and should not be adjusted in one step. Oil supply method and adjustment (oil mist device) JISK2213 engine oil (ISOVG32 or equivalent) is used for the oil mist generator Please do not refuel more than 80% of the cup.
Precautions for use 1. Some parts are made of PC material and should not be used near or in organic solvent environments. Please use neutral cleaning detergent to clean the PC cup. 2. Do not use pressure exceeding 9.5kgf/cm2 3. When the air outlet is significantly reduced, the filter element should be replaced in a timely manner.
How to order?
1.What's material,Plastic and Iron. 2.What's size,such as G1/4" or G3/8"? 3.What's connection end,suh as female thread?
4.What's pressure,such as 0.5–10 MPa?

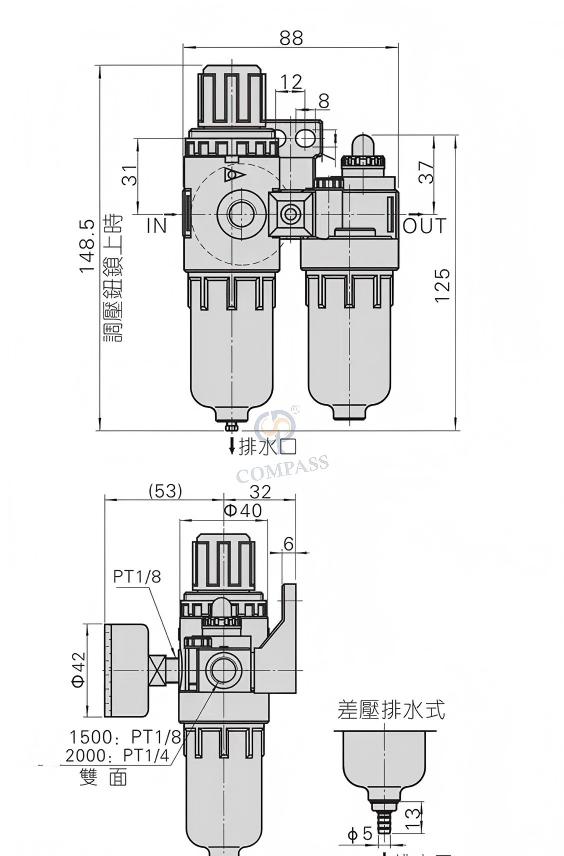

Drawing & Techanical
Packaging & Shipping
In order to better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If ordered in small batches and selected by express delivery, the items are packaged in shrink packaging and cartons.
If the cargo is heavy, it is packaged in a highly airworthy wooden box.
To protect items, these items will be packaged in wooden boxes by safety and impact resistance.
Application
The diaphragm valve is made of stainless steel. Its hygienic and cost-effective design makes it highly suitable for industries,such as beverage and food processing, pharmaceuticals, bioengineering, and cosmetics.
