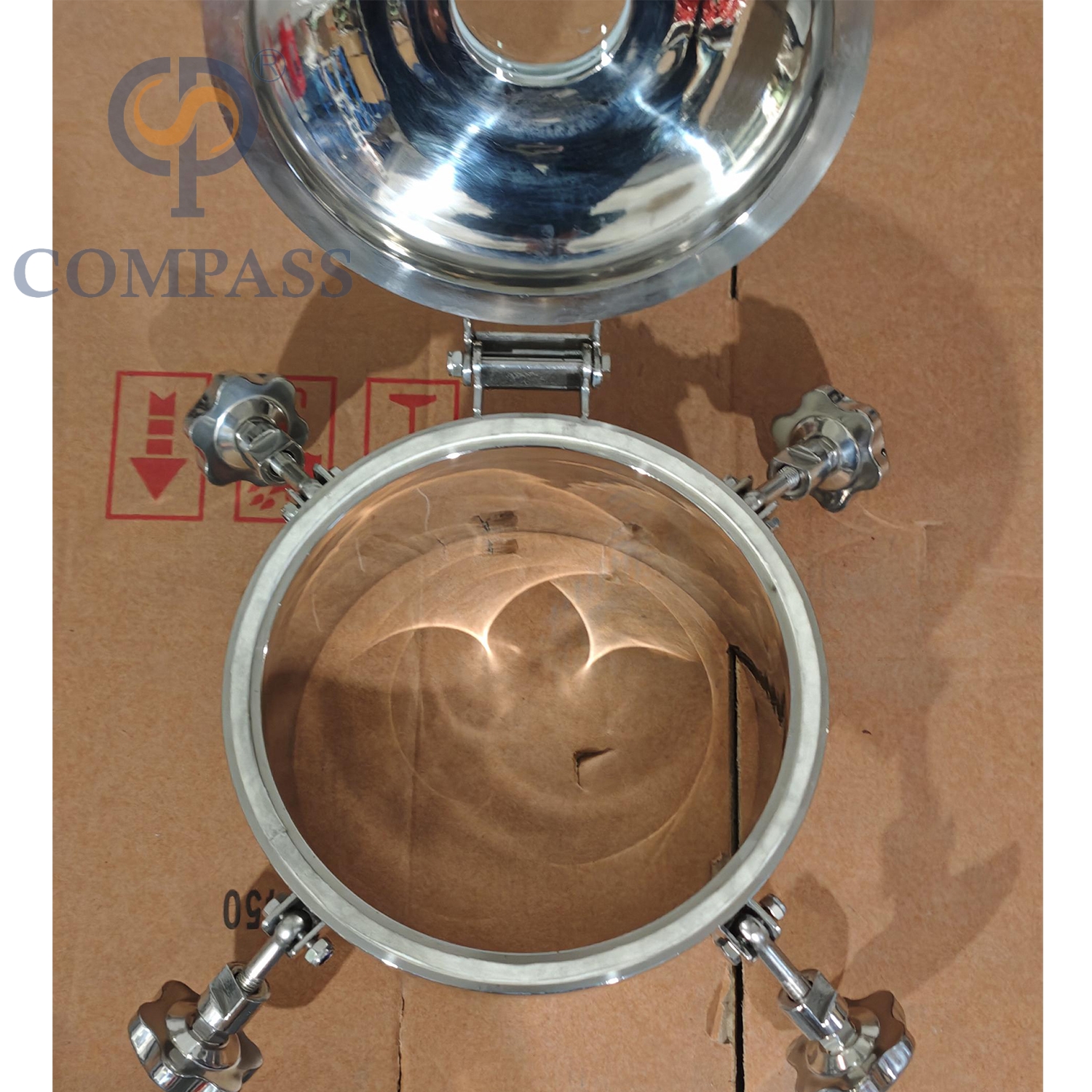

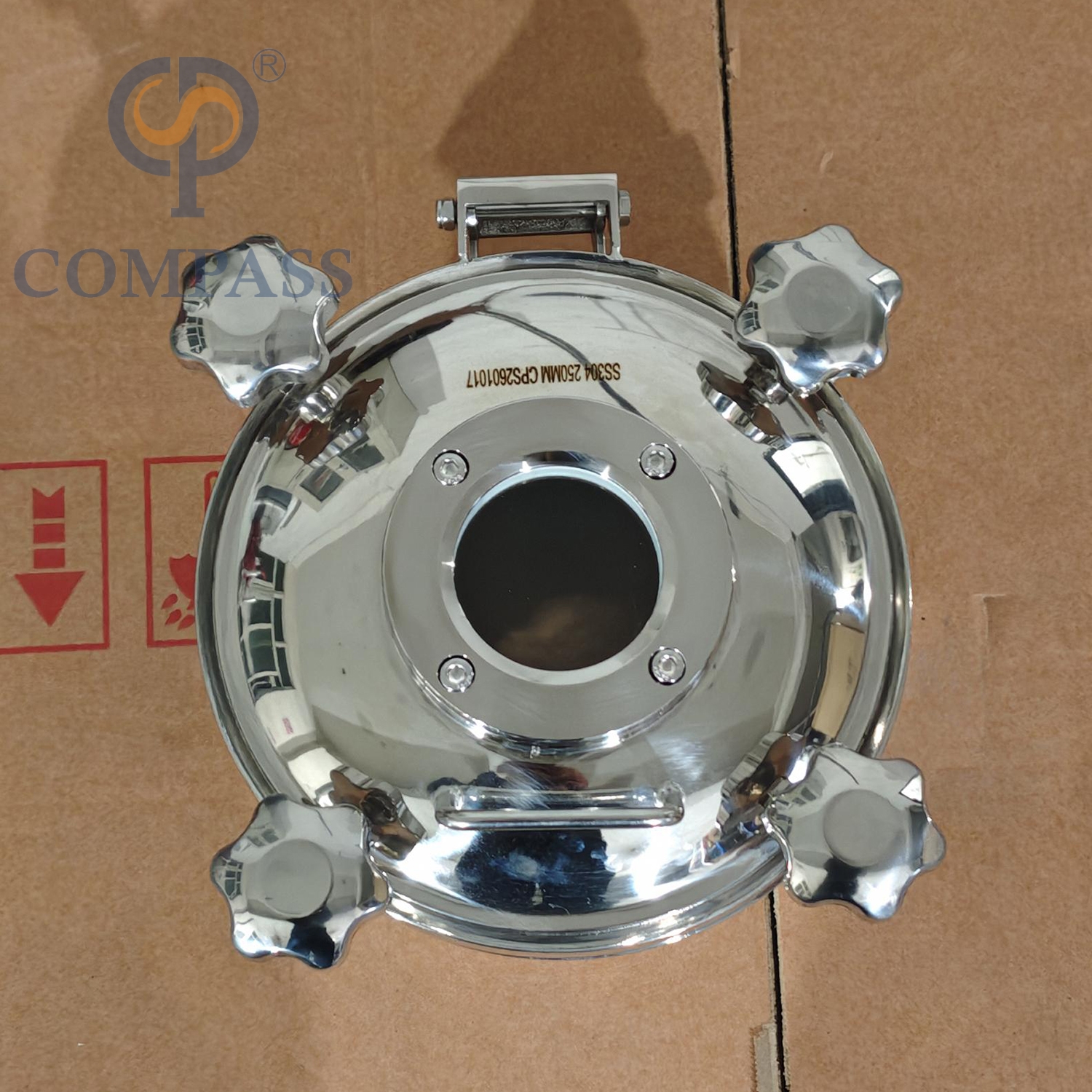

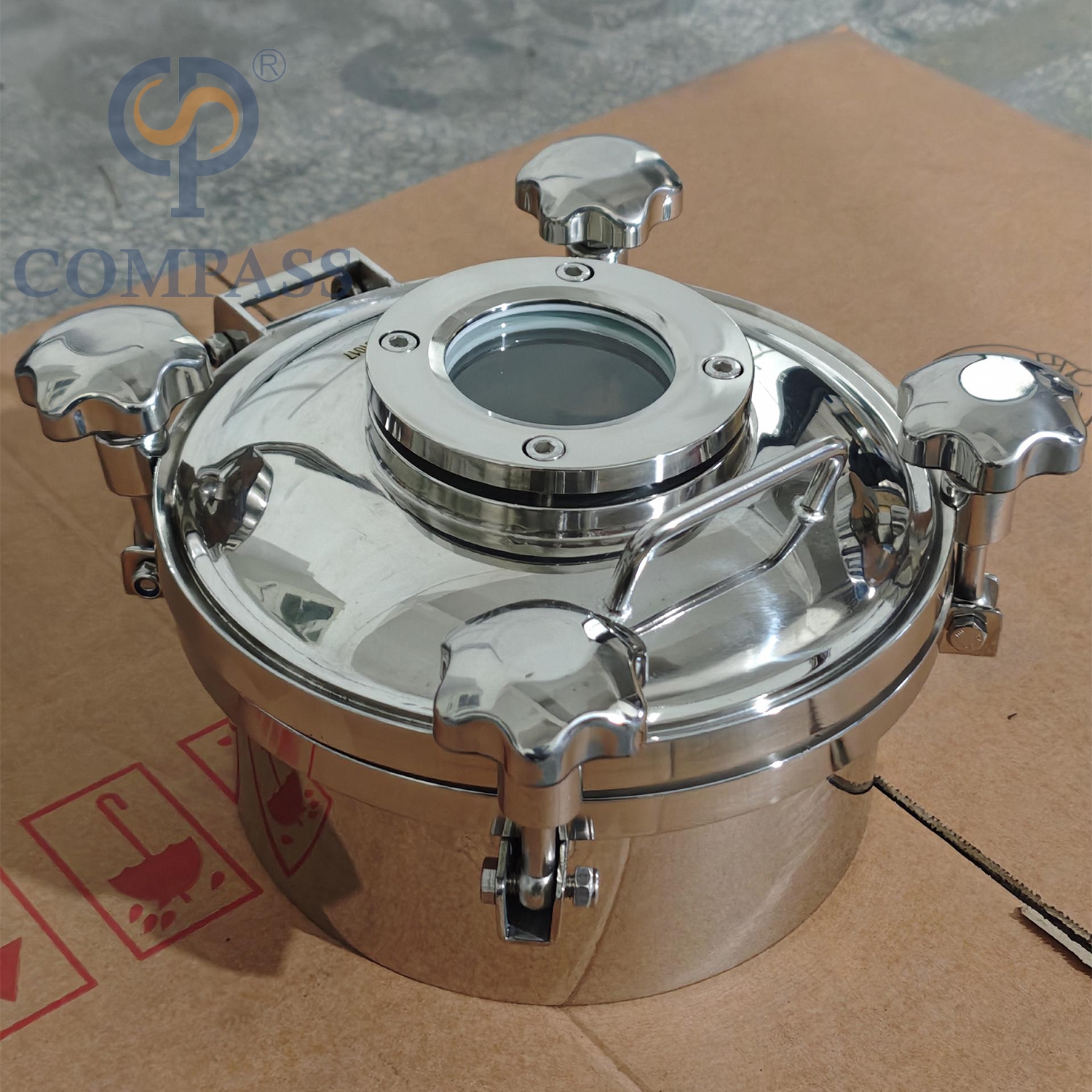

Popular Sale 250MM Sanitary Stainless Steel SS304 Hygiene Outward Round Pressure Tank Manways with Sight Glass and Silicone Seal

Sanitary manholes are used in industrial fields such as dairy products, beer, food, beverages, and pharmaceutical processes.Generally all meet the special requirements of various media in food and bio-pharmaceutical fields.they are all relatively hygienic industries, completely food machinery industries, especially the equipment of large companies such as brewing and beverages.

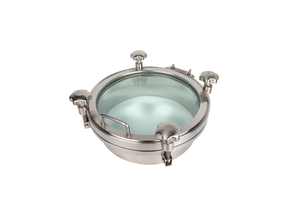

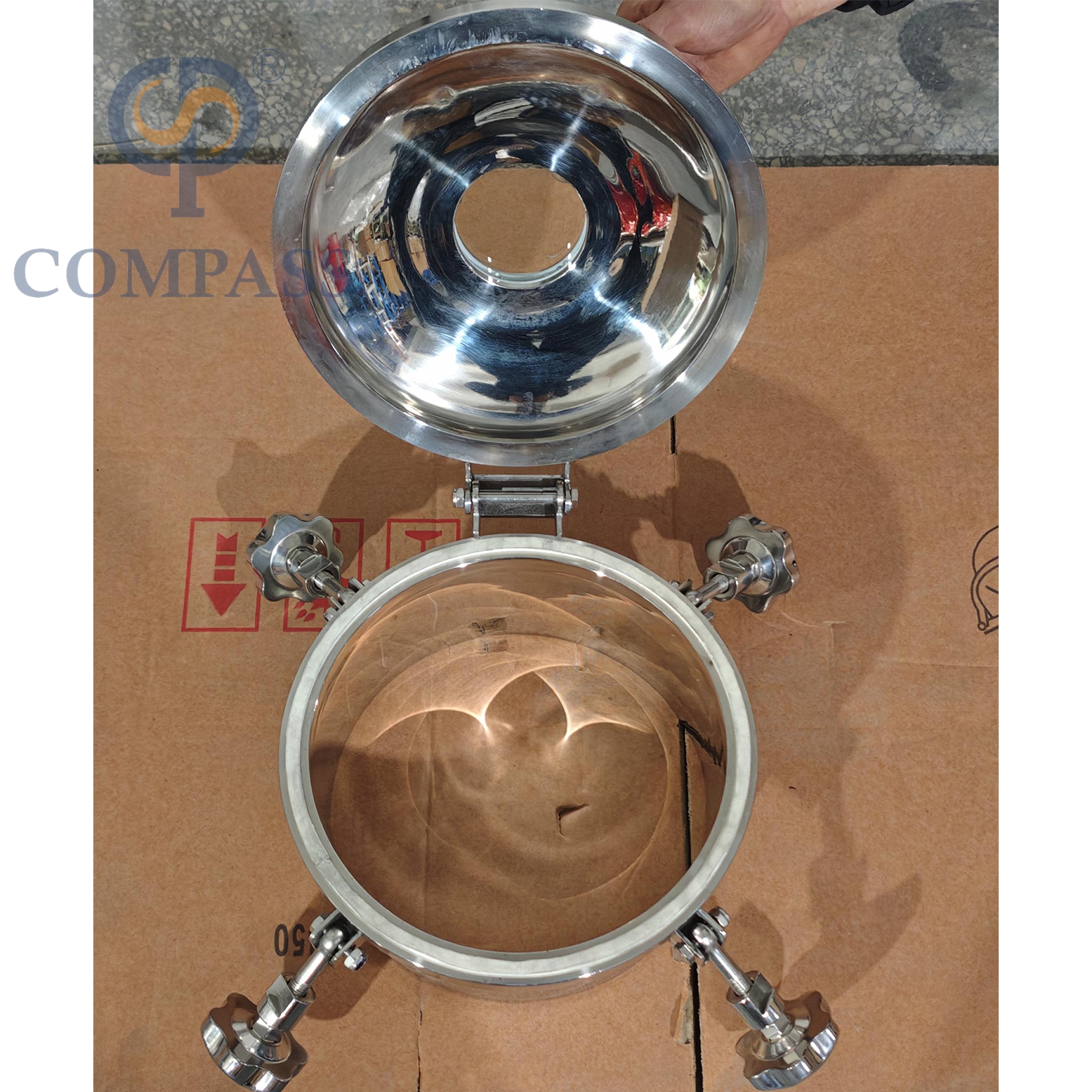

The manhole of the full-view mirror is full of glass inserted in stainless steel flange,10-20mm thick tempered glass,more intuitive observation of biological fermentation state.

Model:
250MM
Brand:
XUSHENG
Code:
030102A11111DN250

Size:	DN200-DN600
Availability:

Quantity:



Inquire Add to Basket

The Details of Product

Support	OEM, ODM Are Welcome
Material Contact Parts	SS304(1.4301)/SS316L(1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)

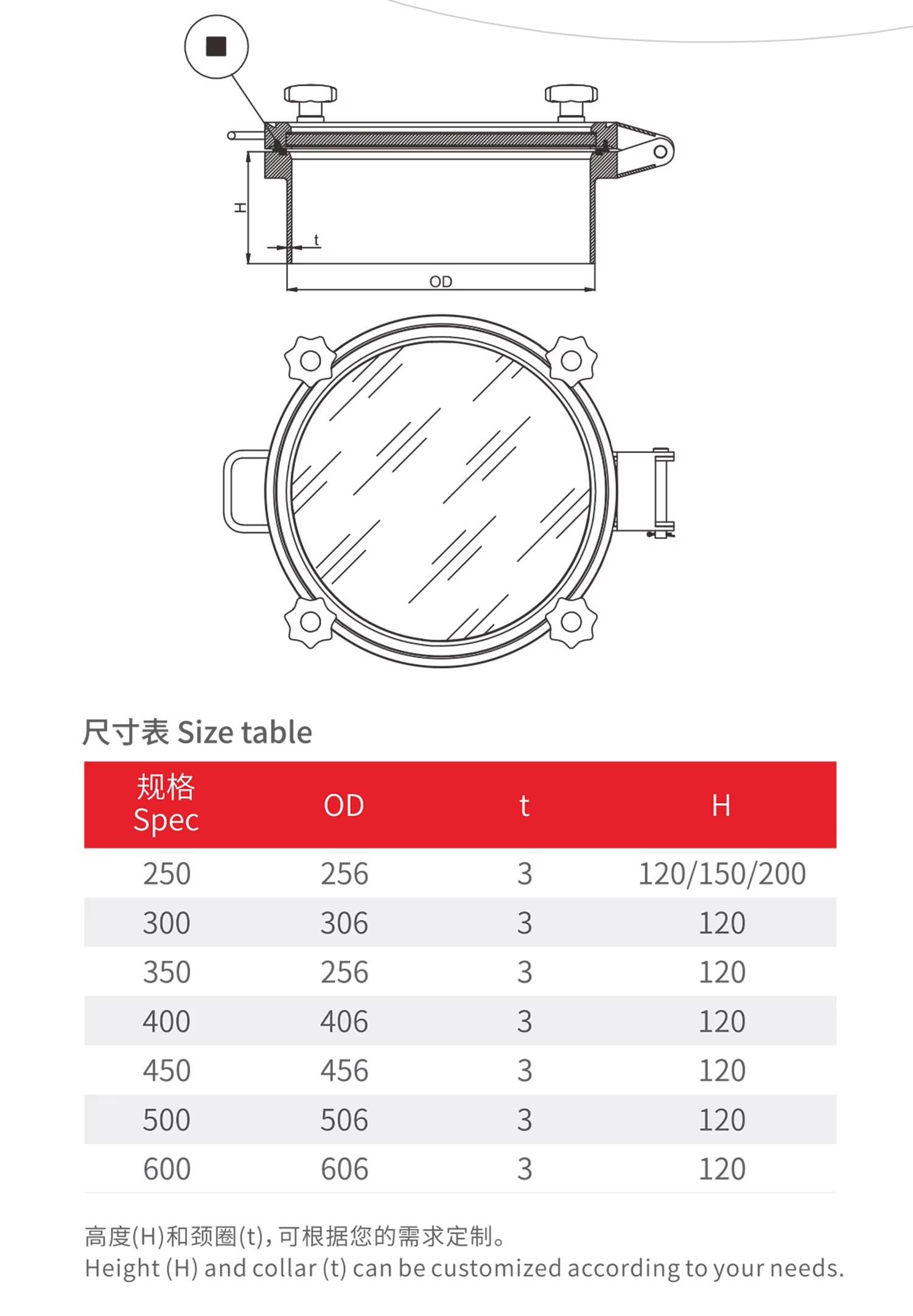

Size	DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600
Seal Material	Silicone, EPDM, FKM, Buna. All seals material comply with FDA21CFR117.2600
Height of Frame	80MM, 100MM, 120MM, 150MM, 200MM
Thickness of Frame	2MM, 2.5MM, 3MM, 4MM
Thickness of Glass	12MM, 15MM, 19MM
Pressure Rating	Atmospheric, 1bar to 3 bar
External Surface Treatment	Ra32~64ui n (0.8~1.6um)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)
Temperature range	-20~150 ℃ (up to Seat Seal)

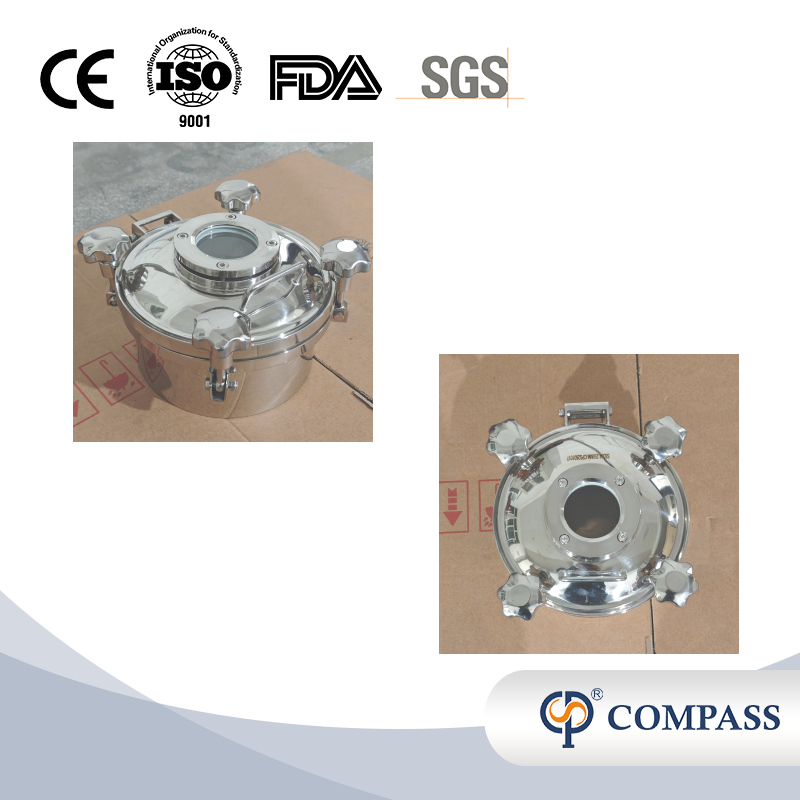

Certificate	ISO 9001, FDA, SGS, CE

Description of Commodity: Popular Sale 250MM Sanitary Stainless Steel SS304 Hygiene Outward Round Pressure Tank Manways with Sight Glass and Silicone Seal

Options
1. The gasket can be Silicone, EPDM, FKM,Buna. All seals material comply with FDA21CFR117.2600
2. Size can be DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600.

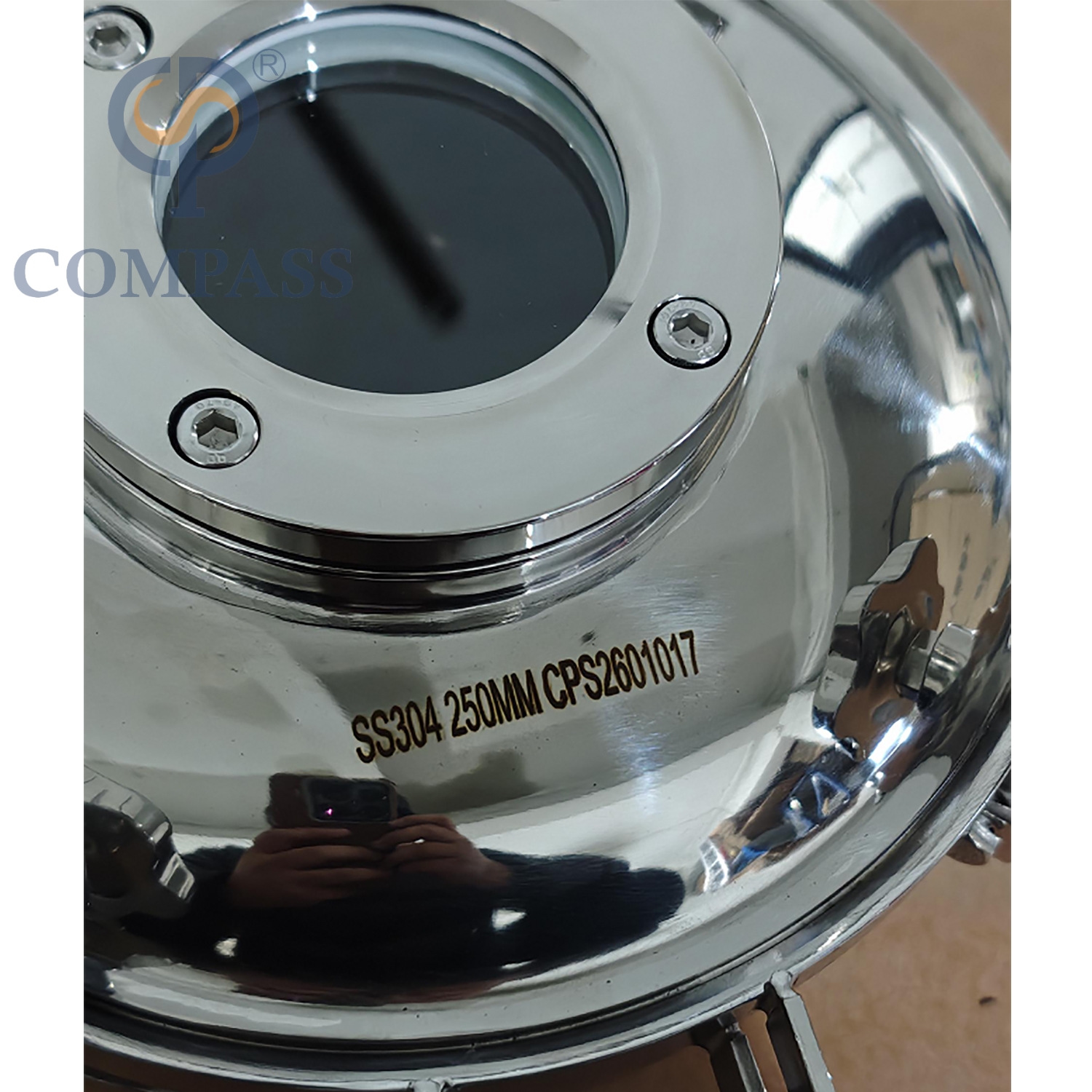

3. Size of sight glass: DN80, DN100.

4. Pressure rating: 1bar to 3bar.
5. Manual handle includes of stainless steel handle and plastic handle.
6. Height of Frame: 80MM, 100MM, 120MM, 150MM, 200MM.

7. Thickness of Frame: 2MM, 2.5MM, 3MM, 4MM.

8. Thickness of Glass: 12MM, 15MM, 19MM.

9. Polishing: Mirror polishing or matte polishing

Design Features

1. Gasket: Silicone, EPDM, FKM, Buna, . All seals material comply with FDA21CFR117.2600

2. Material: 304(1.4301),316L(1.4404)

3. Internal surface: 0.8um-0.4um; Outside surface: Mirror polished, Matte,sand-blasting finished.

4. Height and frame and cover can be customized according to customer's requirement.

How to Order Outward Pressure Manhole Cover with Sight Glass ?

1. What's material quality? Such as SS304 and SS316L for optional
2. What's pressure rating for outward pressure manhole ?
3. Which size you need ?
4. What's polished for external and internal ?
5. What's material of seal, such as silicone, EPDM or FKM or Buna ?
