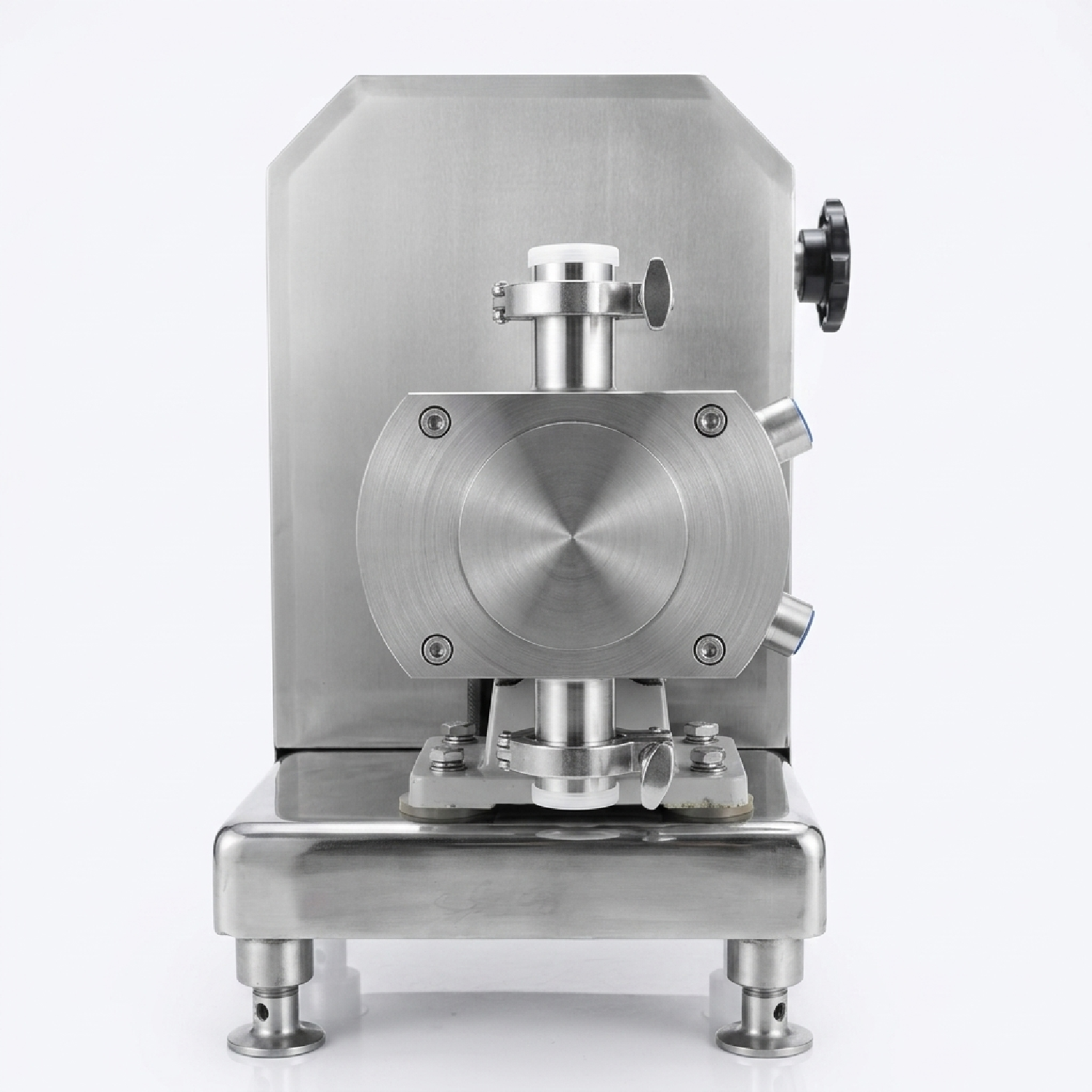

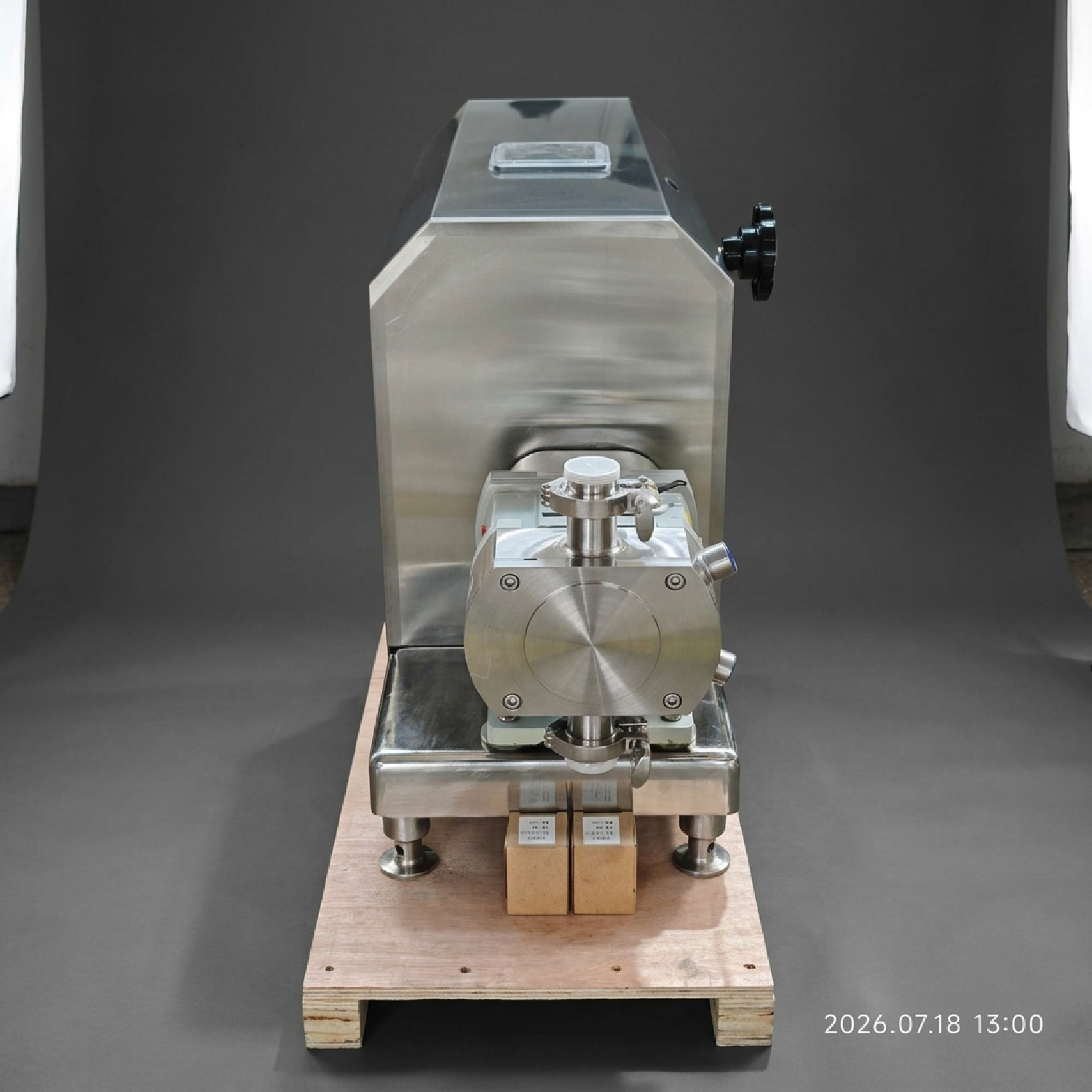

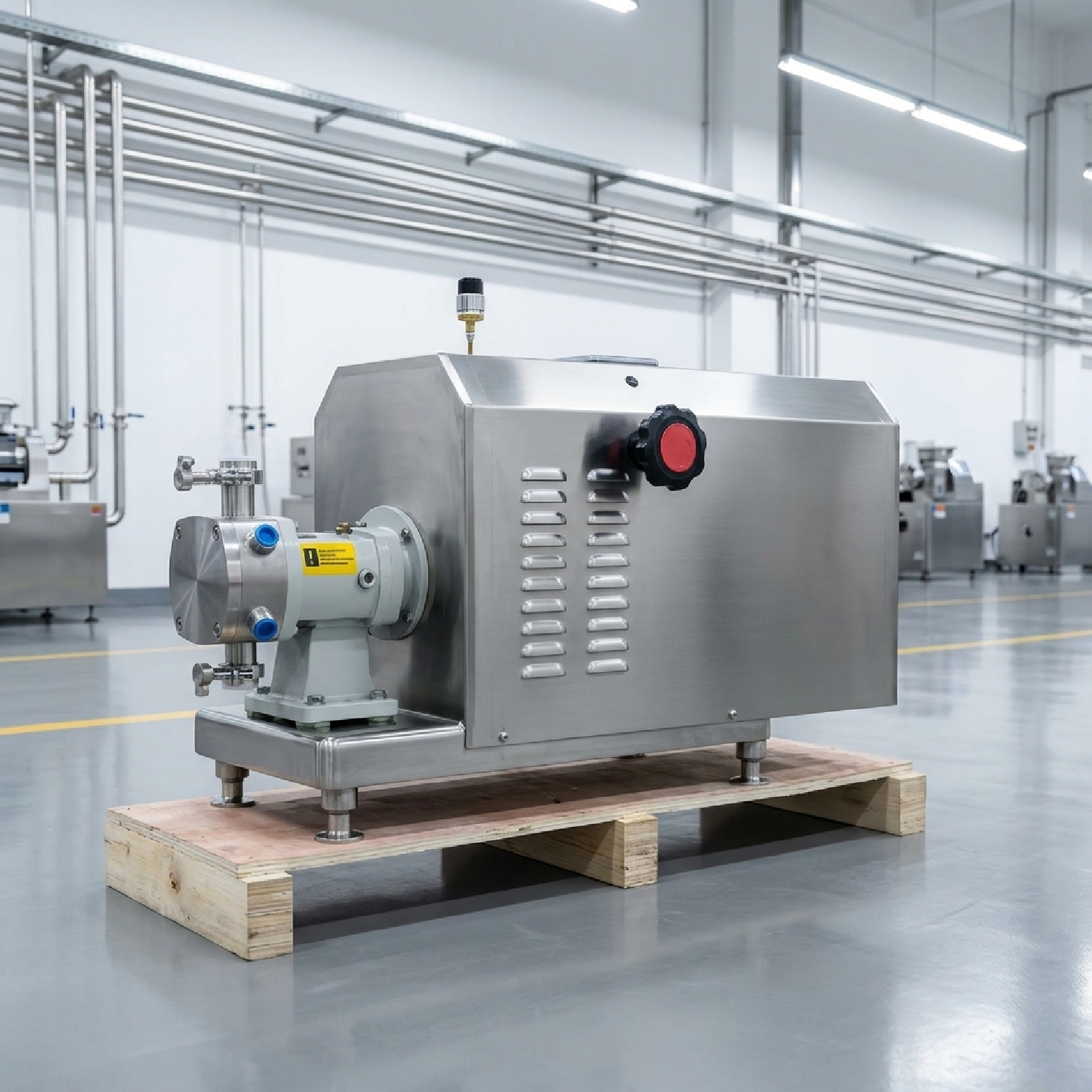

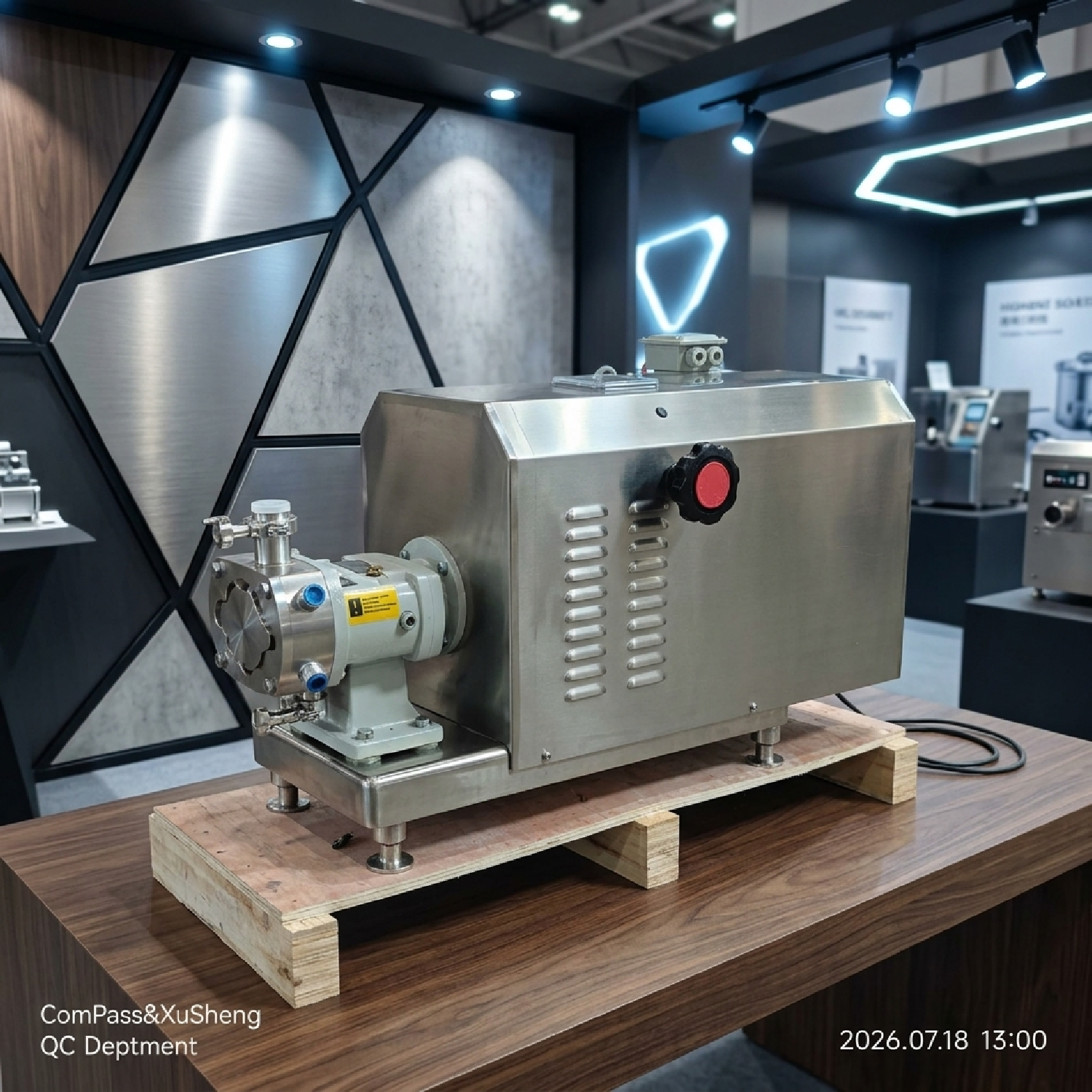

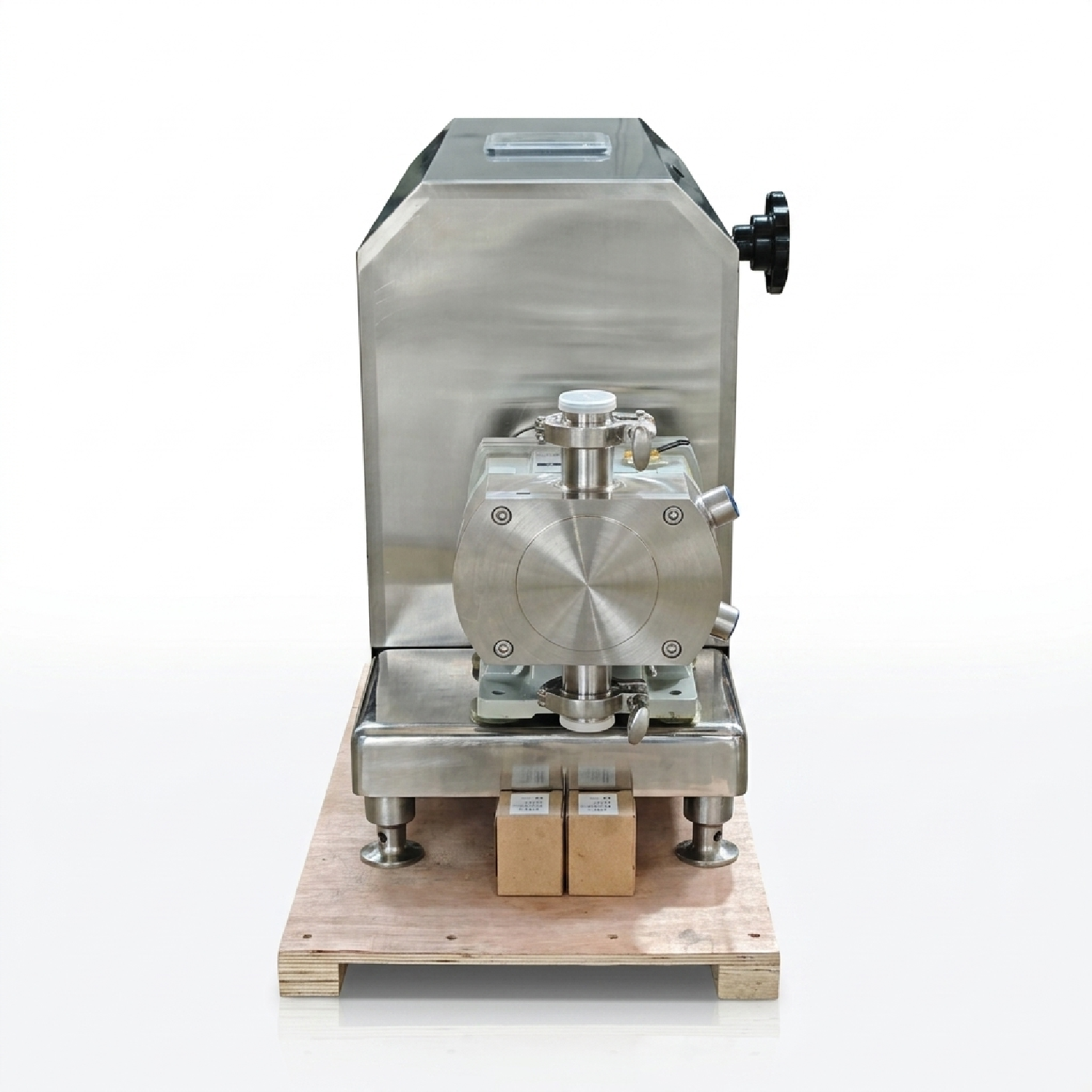

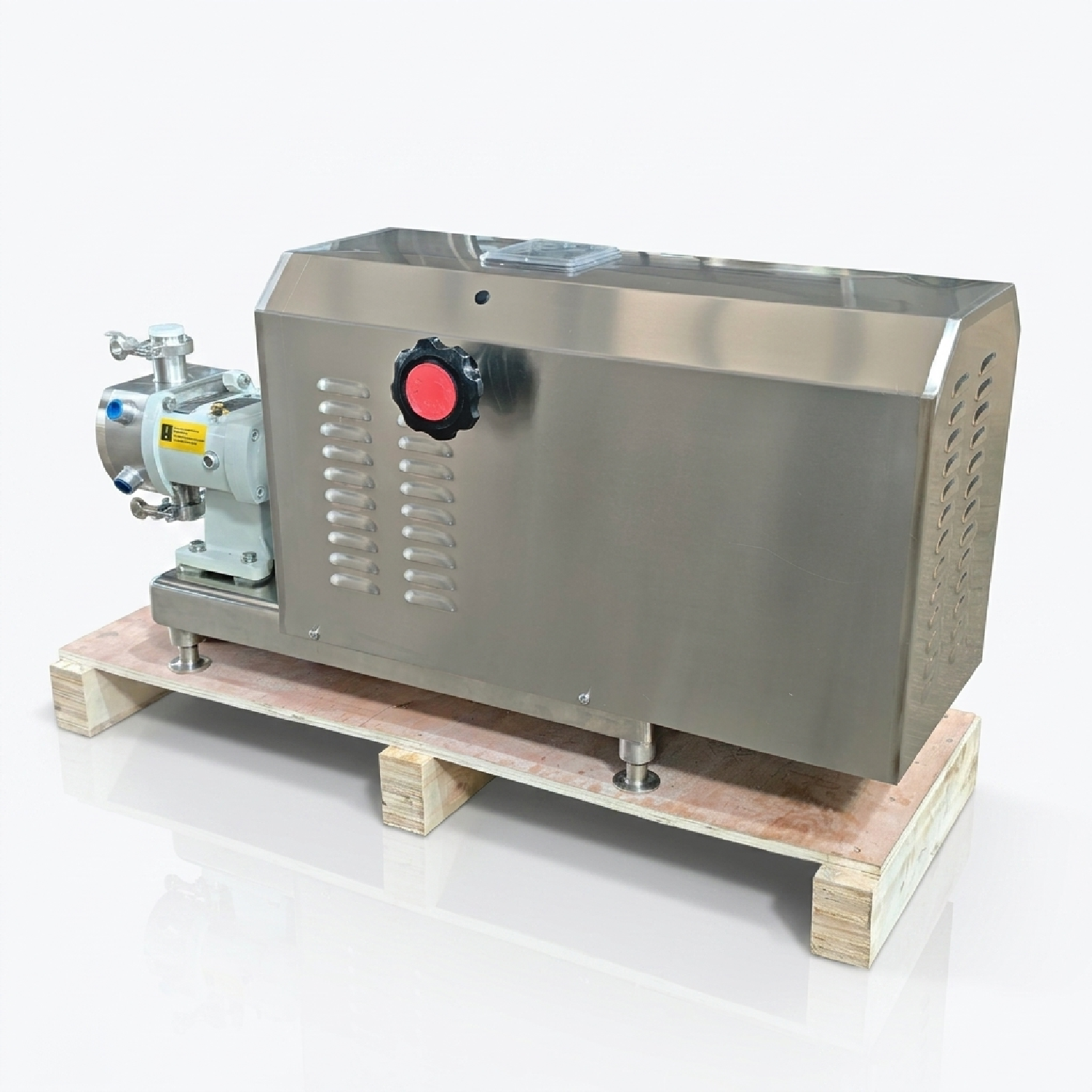

SS316L 3600L 2.2 KW Tri Lobe Rotor Stepless Variator Lobe Pump with Insulation Head

Rotor pump is also named rotary lobe pump, threelobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.

Model:
ZB8A-32-3C-2.2KW
Brand:
Compass
Code:
0202401B01B08111ZB8A-32-3C-2.2A

Availability:

Quantity:



Inquire Add to Basket

Specification

Material Contact Parts	SS304, SS316L (1.4301,1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304 (1.4301)
Flow Rate Ranges	3600 L/H
Max Head	10Bar
Motor Power	0.55kw to 37kw
Type of Lobe	Single-wing Rotor, Double-wing Rotor, Tri-lobe Rotor
Voltage	110V, 220V, 380V, 440V
Motor Frequency	50HZ, 60HZ
Type of Motor	China motor
Type of Hertz	Single Phase, Three Phase
Available Connection	Clamp, Union, Flange, Threaded Fittings
Mechanical Seal	Tungsten Alloy or Collected Machine Seals
Type of Control Box	On and off Control Box and VFD Frequency Converter Control Box
Temperature	-20°C ~140 °C
Viscosity of Products	100cps to 50000cps

Highlights at a glance

* Hygienic Lobe Pump: Designed for safe handling of food and beverage products.

* Stepless Variator: Offers smooth control for precise flow adjustment.

* Sanitary Grade: Ensures aseptic transfer of high viscosity liquids.

* 2.2KW Motor: Provides powerful performance for heavy-duty tasks.

* Stainless Steel Construction: Durability and easy maintenance.

Applications Of Stainless Steel Rotor Pump

Suitable for the food industry, such as yogurt, fresh cream, ice cream, beer, malt juice, yeast, soda, beverages, tomato sauce, and so on. Daily chemical industry, such as facial cream lotion, hair gel, hair dye, essence, toothpaste, detergent, etc. The pharmaceutical industry, such as various types of pill paste like drugs, etc. Chemical industry construction, such as fats, solvents, resins, polymers, etc

Main Application Characteristics

1.High Viscosity Material Feeding Pump

2.Thin Medium Feeding Pump

3.Sanitary Feeding Pump

4.Heat Preservation Sleeve Design

5.Water Cleaning Mechanical Seal

6.Almost Have No Quick-wear Parts

How to order?

1. What's product used for lobe pump?

2. What's viscosity of product？

3. What's material quality? Such as SS304 and SS316L for optional.

4. What's flow rate for lobe pump? Such as 10000 liters per hour.
