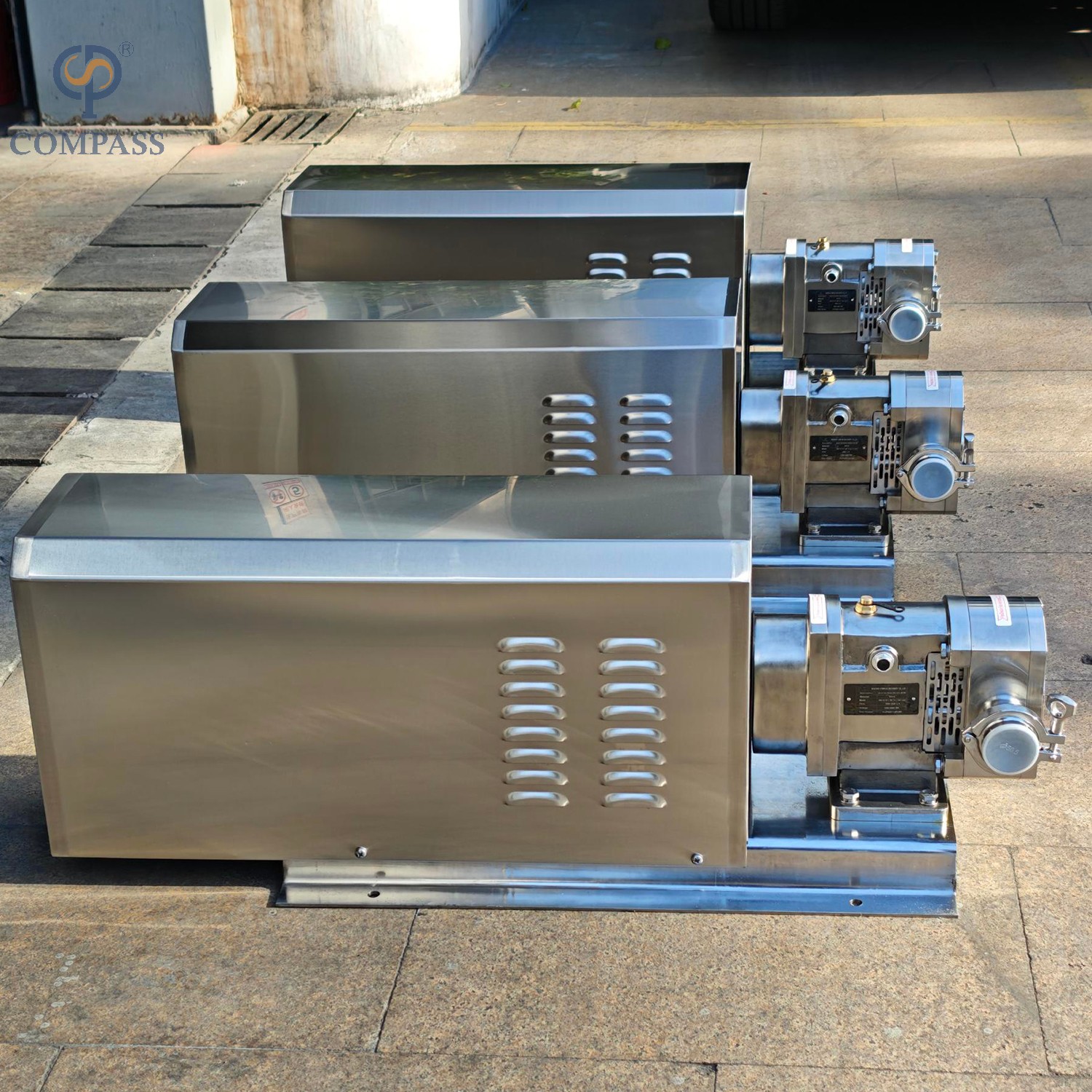

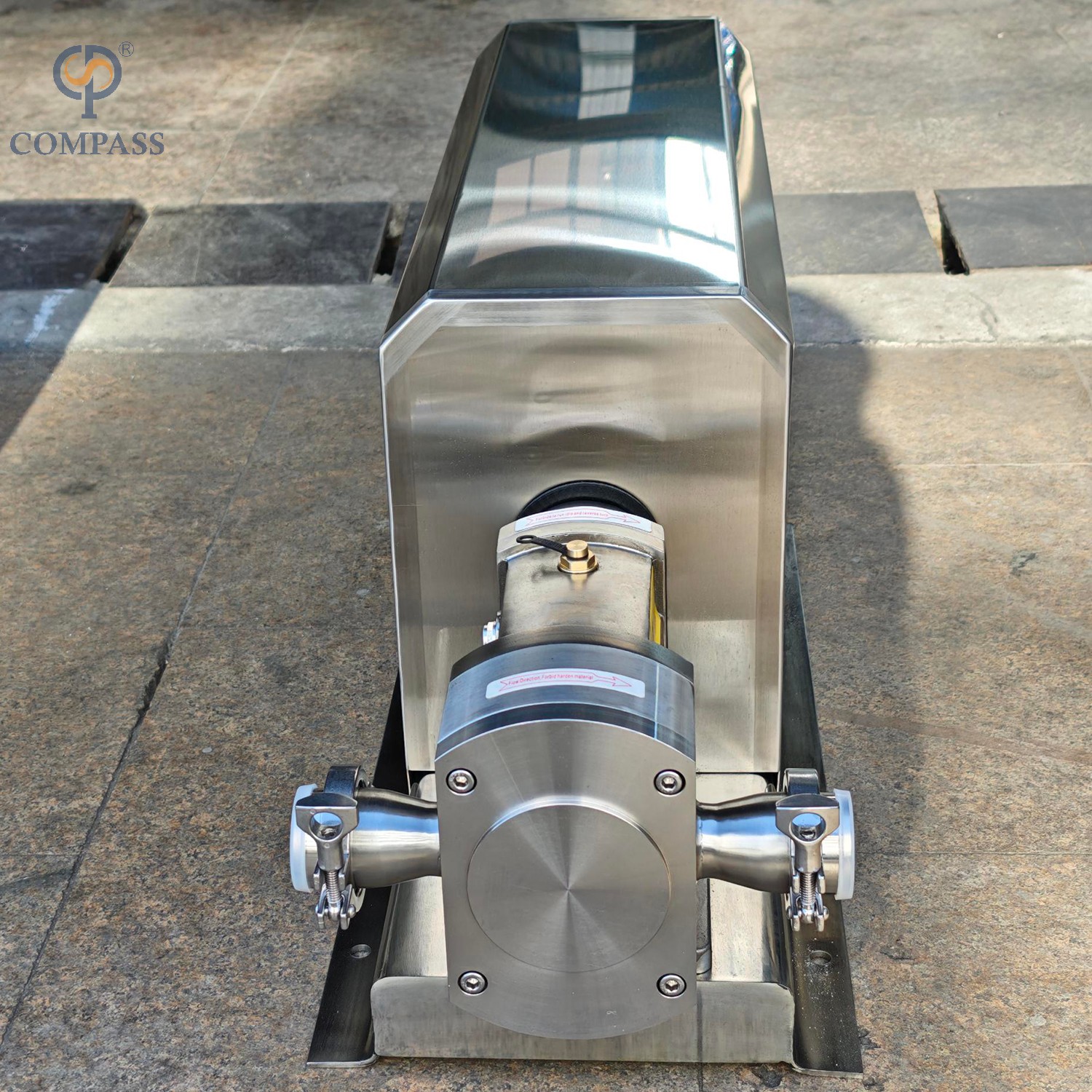

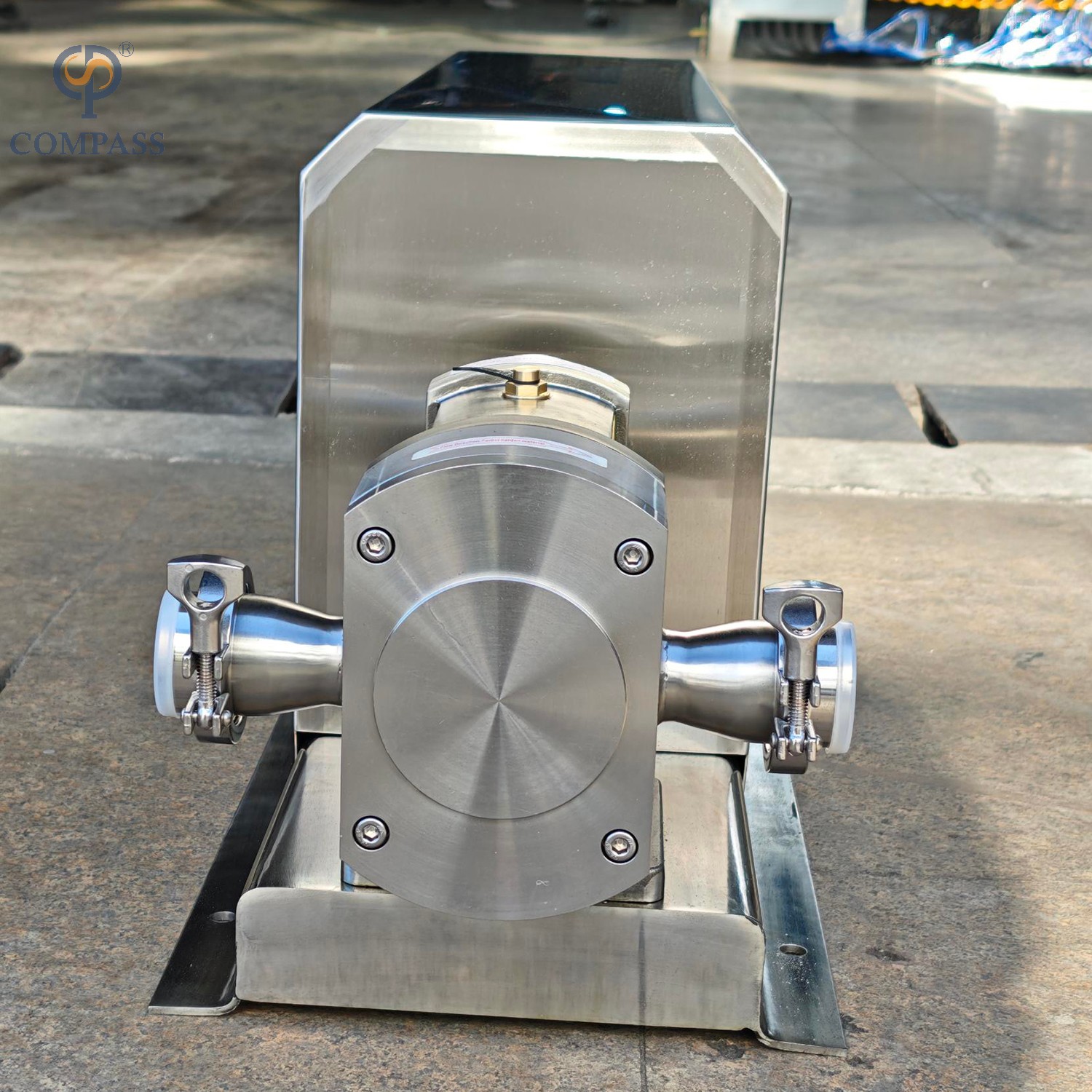

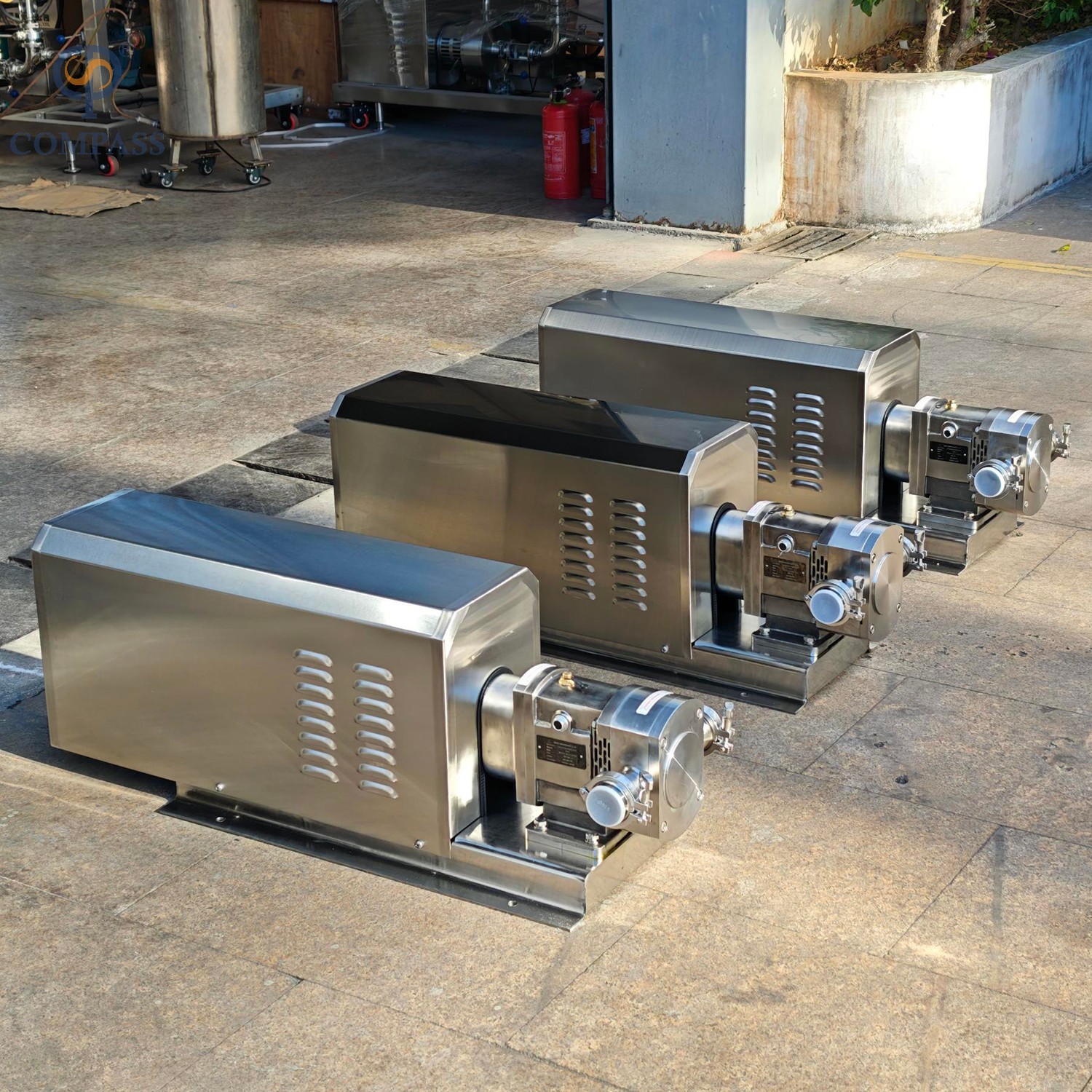

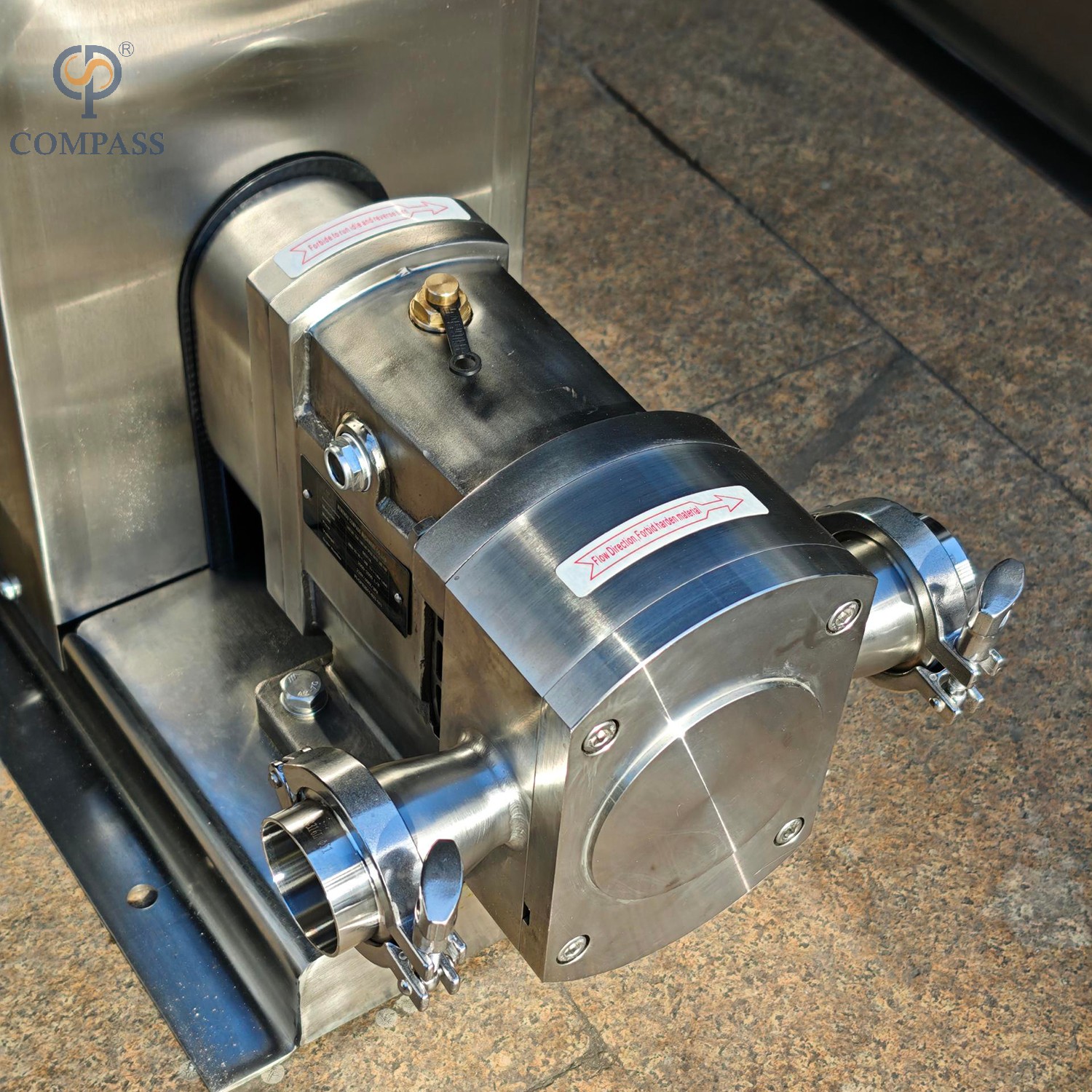

SS316L Sanitary Lobe Pump With Fixed Ratio Motor

The lobe pump is widely used for food industry, Daily Chemical, Pharmacy, Chemical Industry, Construction Industry and other industries.

Operating Principles

Rotor pump is also named rotary lobe pump, threelobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.

Model:
ZB8A-32- 3C-2.2KW
Brand:
COMPAASS

Availability:

Quantity:



Inquire Add to Basket

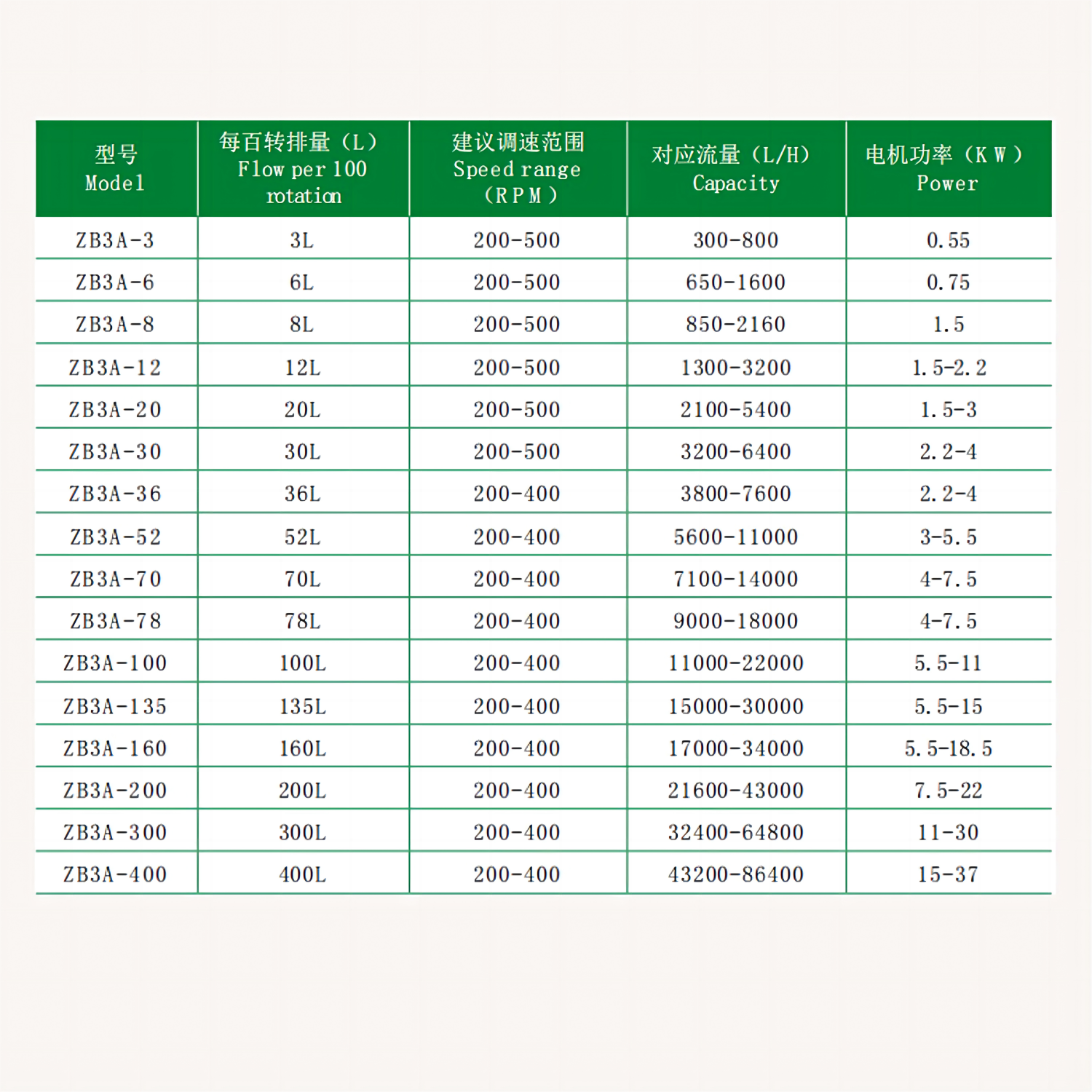

Main Parameter

Material Contact Parts	SS304, SS316L (1.4301,1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304 (1.4301)
Flow Rate Ranges	300 to 86400 Lr/h
Max Head	20Bar
Motor Power	0.55kw to 37kw
Type of Lobe	Single-wing Rotor, Double-wing Rotor, Tri-lobe Rotor
Voltage	110V, 220V, 380V, 440V
Motor Frequency	50HZ, 60HZ
Type of Motor	Explosion-proof or without Explosion-proof
Type of Hertz	Single Phase, Three Phase
Available Connection	Clamp, Union, Flange, Threaded Fittings
Mechanical Seal	Tungsten Alloy or Collected Machine Seals
Type of Control Box	On and off Control Box and VFD Frequency Converter Control Box
Temperature	-20°C ~140 °C
Viscosity of Products	100cps to 50000cps

Main Application charecteristics

1. High Viscosity Material Feeding Pump
2. Thin Medium Feeding Pump
3. Sanitary Feeding Pump
4. Heat Preservation Sleeve Design
5. Water Cleaning Mechanical Seal
6. Almost Have No Quick-wear Parts

How to order Sanitary Lobe Pump?

1. What's product used for lobe pump?
2. What's viscosity of product?
3. What's material quality? Such as SS304 and SS316L for optional
4. What's flow rate for lobe pump, such as 10000 liters per hour ?
5. What's head, such as 2bar?
6. What's motor power, such as 3kw ?
7 What's voltage and hertz, such as 380v, 50hz, three-phase?
8. What's motor brand ?
9. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
