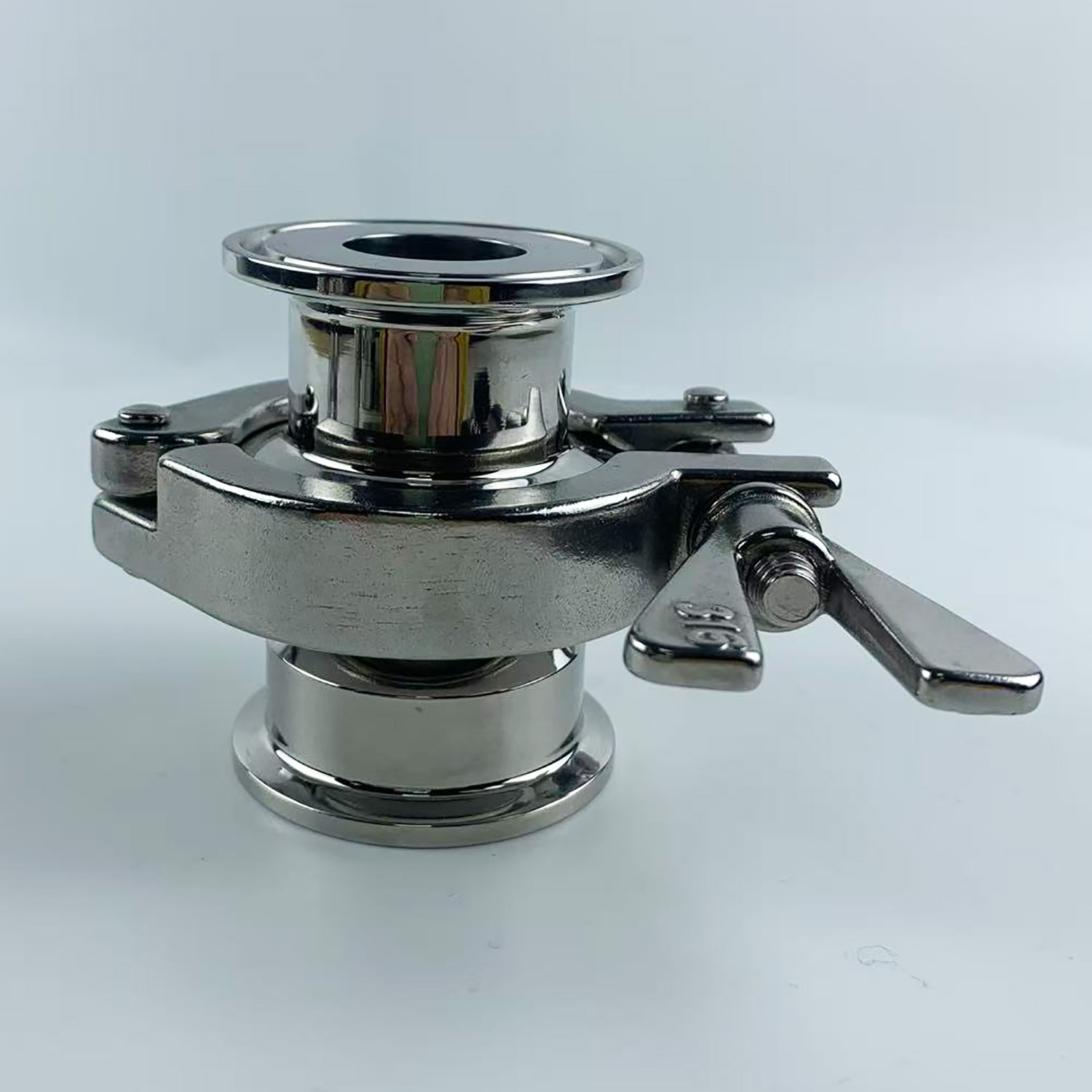

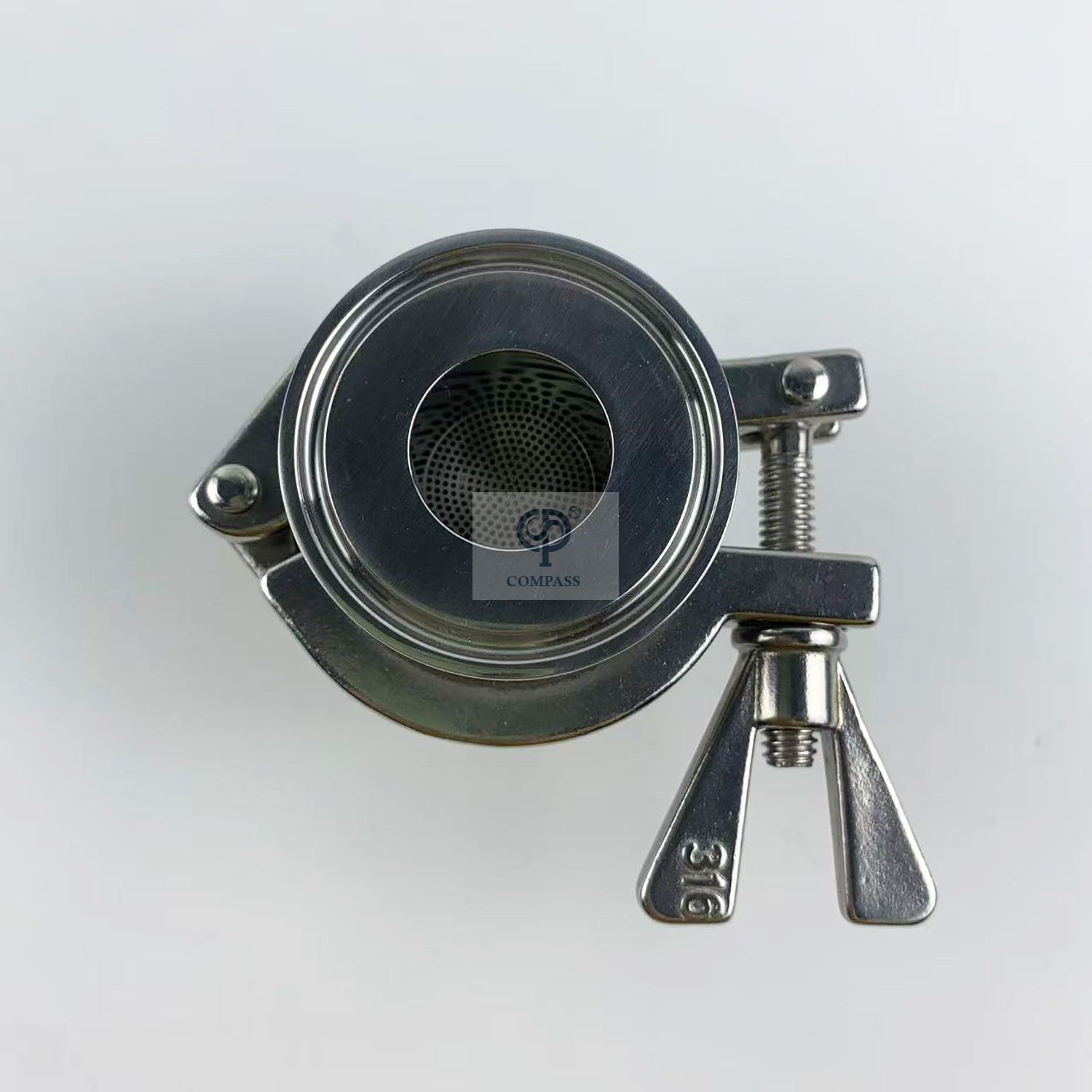

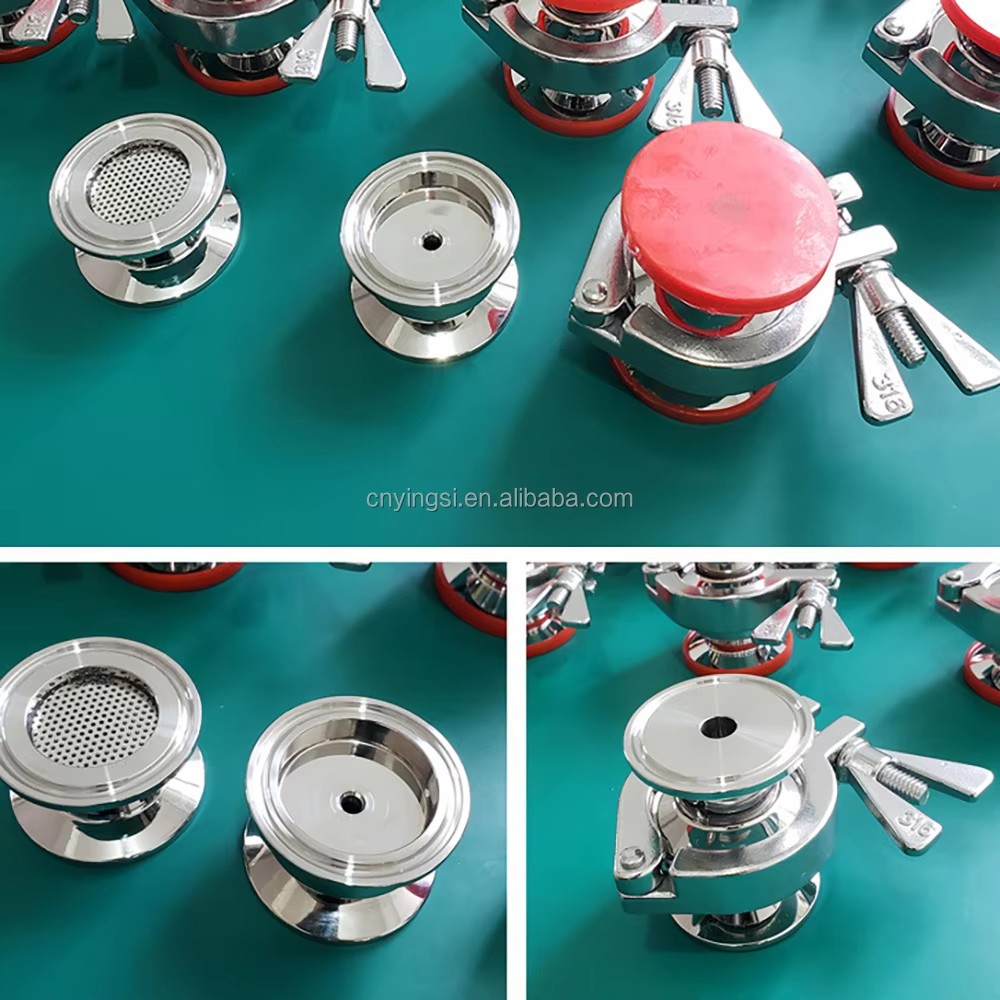

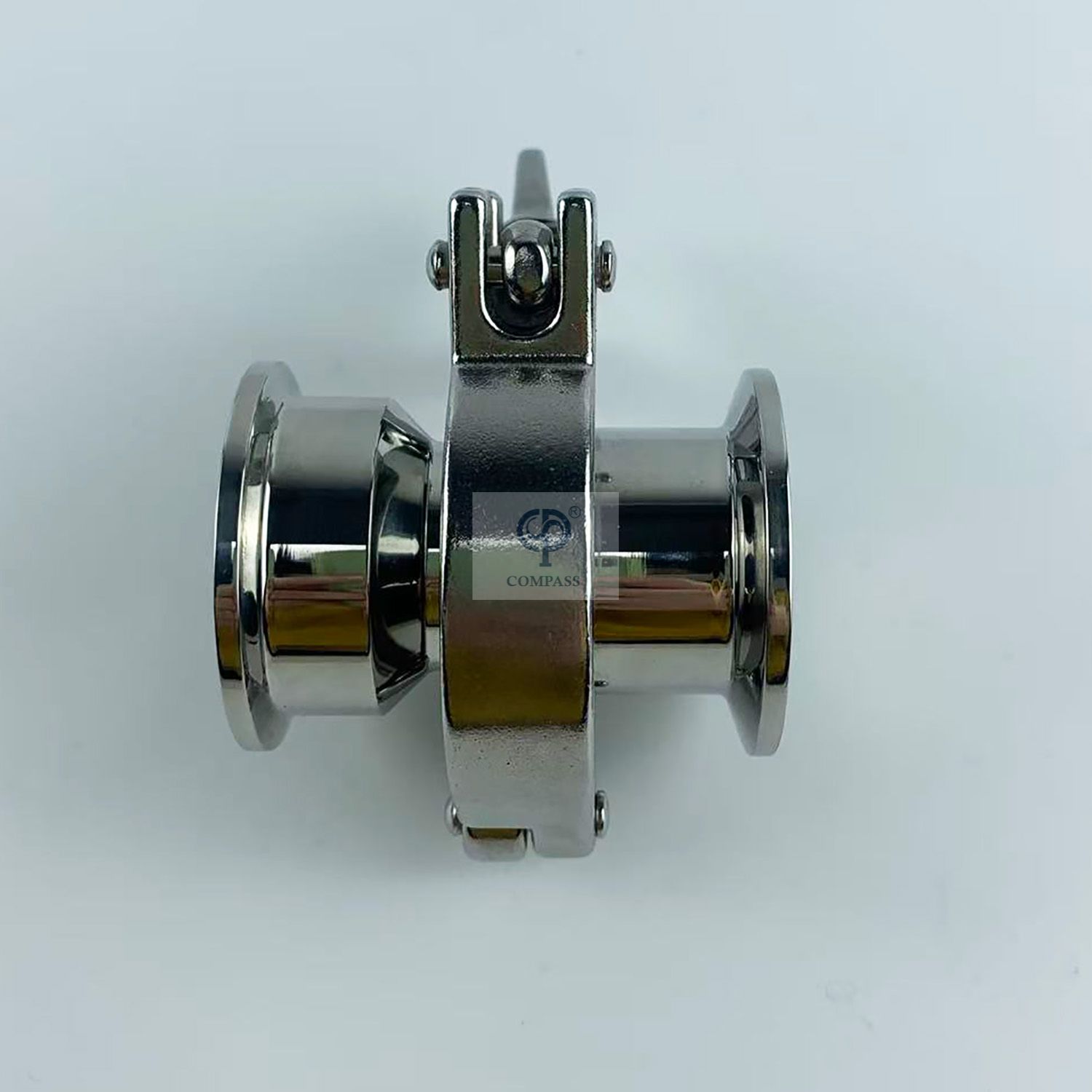

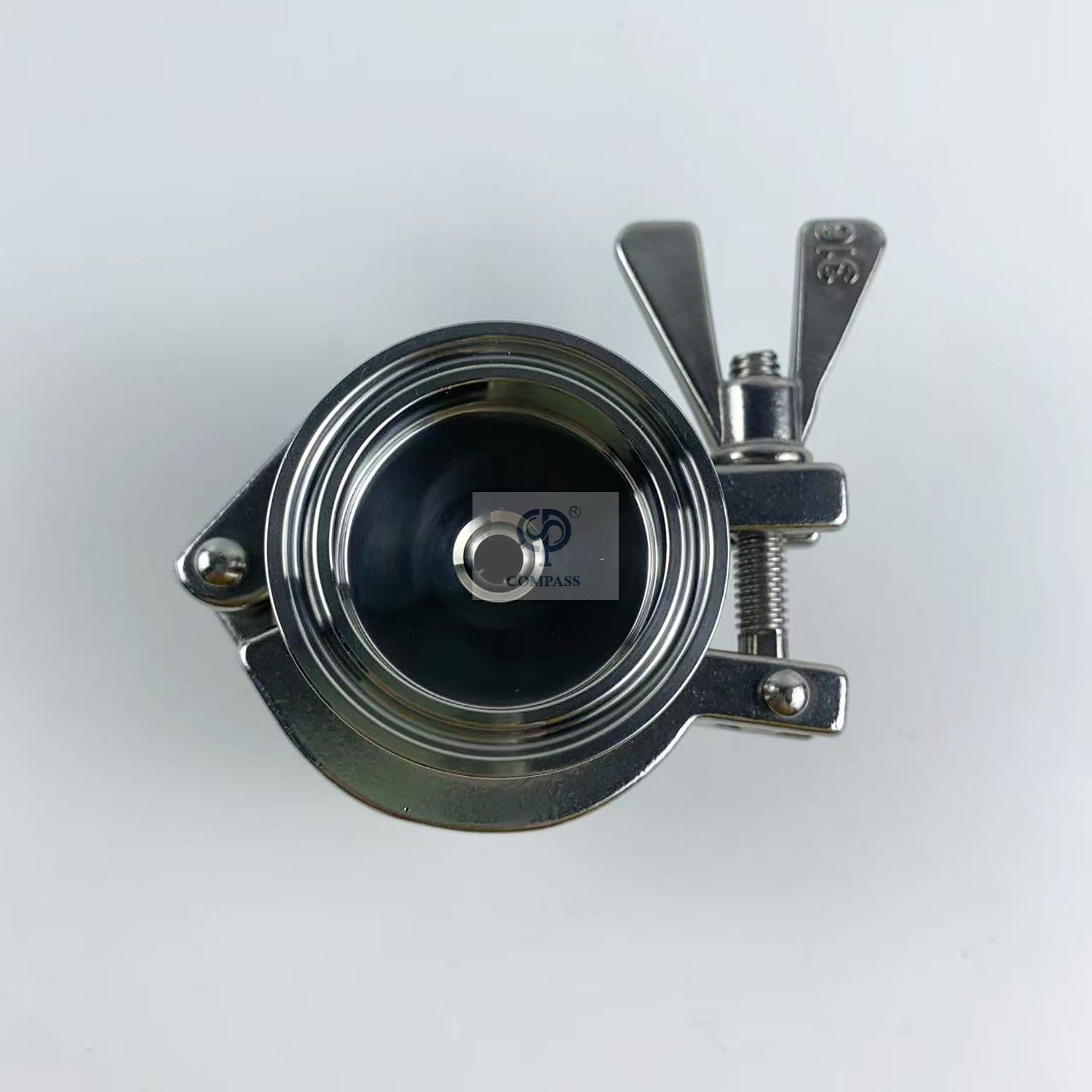

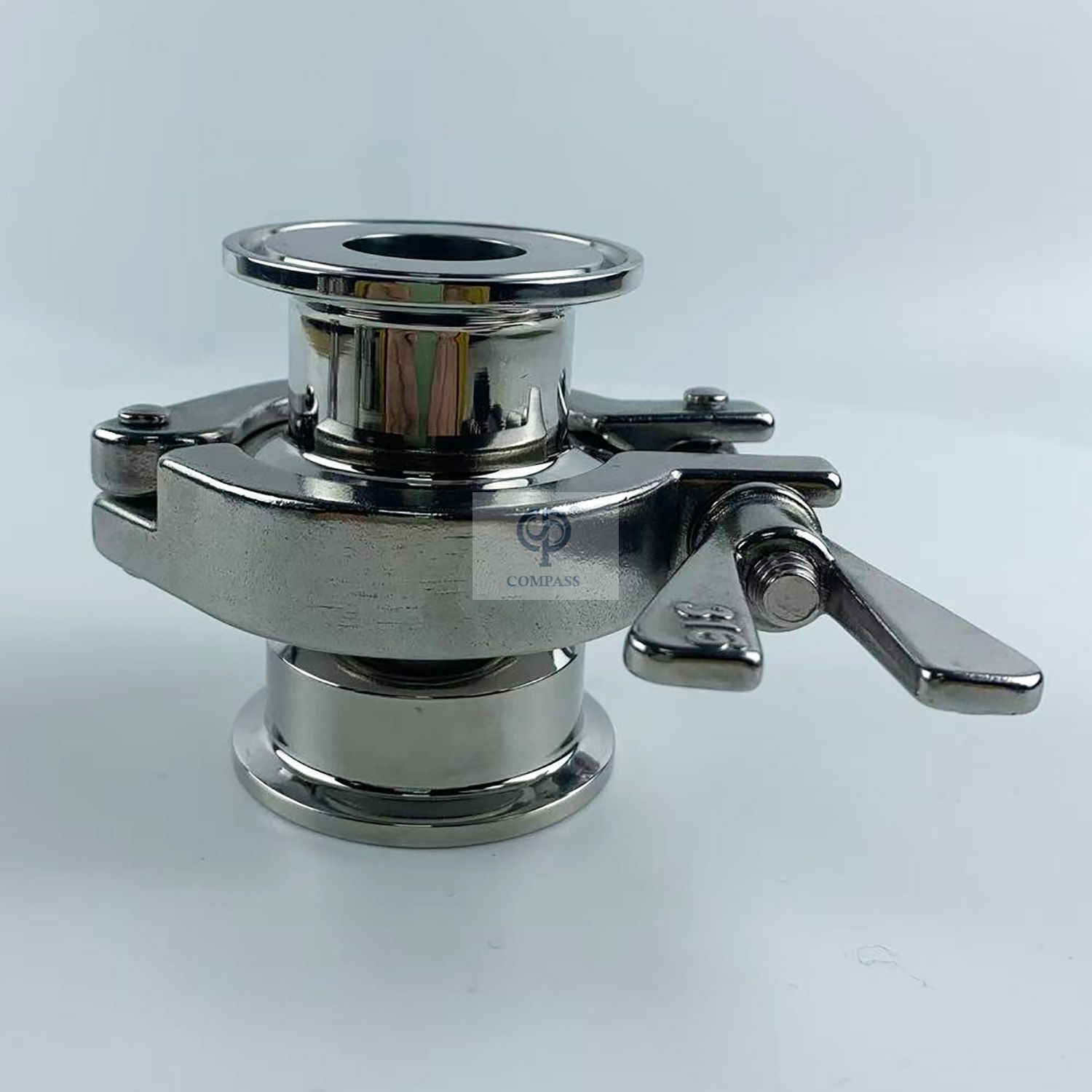

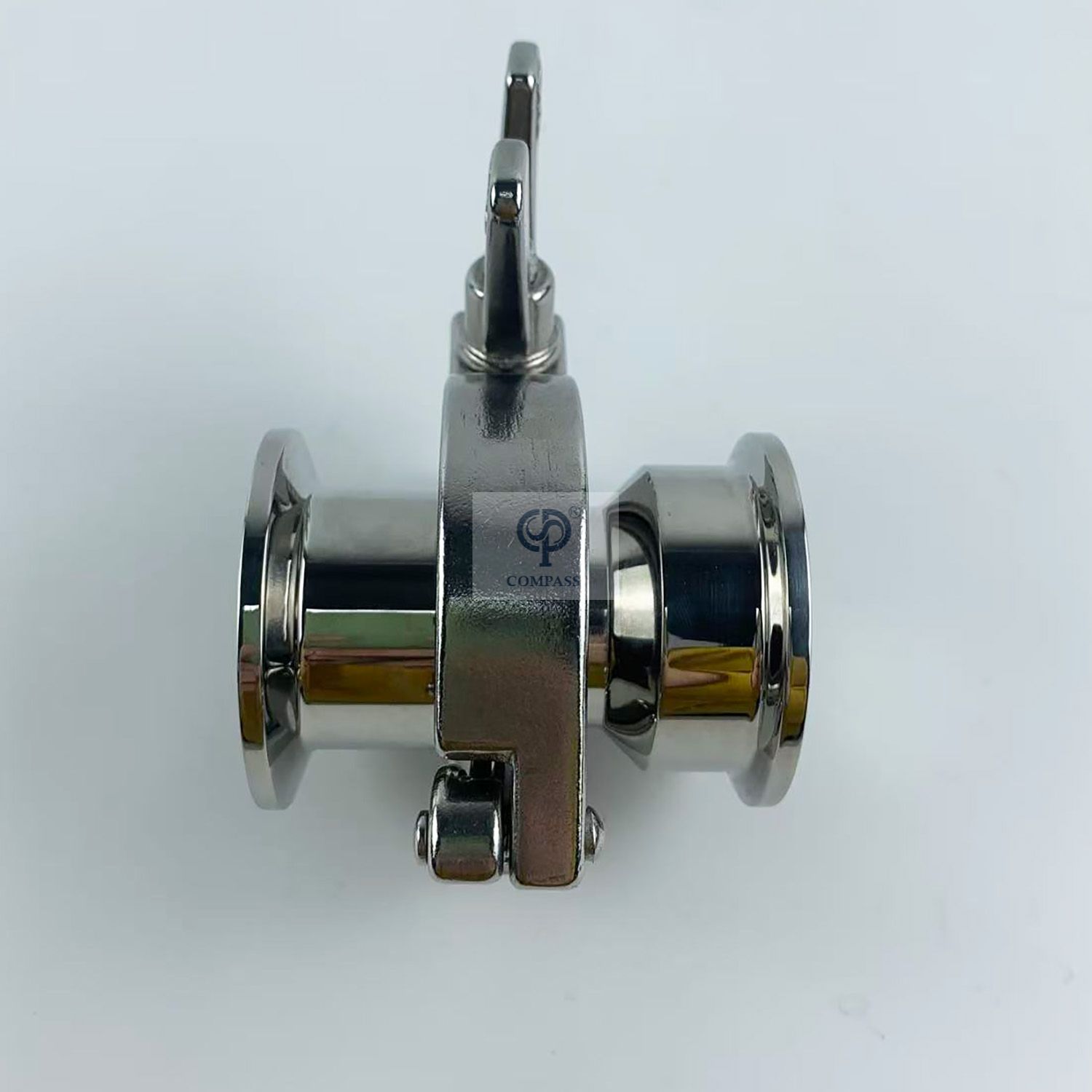

TC50.5MM DN25 SS316L Sanitation Tri Clamp End Steam Traps

Steam Trap is a type of automatic valve that filter out condensate and non-condensable gases (such as air) without letting steam escape.It opens, closes or modulates automatically, discharging condensate as soon as it is formed in an energy efficient manner.Our steam trap is a maintainable balanced pressure thermostatic trap used for systems.Large nozzle design can quickly exhaust air,shorten start-up time and avoid blockage.Compact structure,convenient installation and easy maintenance.Internal polishing to prevent bacterial derivation.

Model:
DN25
Brand:
Compass
Code:
012001002B25

Availability:

Quantity:



Inquire Add to Basket

The Details of Product

Standard	SMS,DIN
Material Contact Parts	SS316L (1.4404)
Size	1/2”, 3/4”, 1”,DN25
Temperature Range	-13 ~329°F(-25 ~ 165℃)
Connection	Tri-clamp
Seal Material	PTFE, seals material comply with FDA21CFR117.2600
Power Option	Manual Operated
Working Pressure	≤10bar(145psi)
Supply Pressure	6bar(87psi)
External Surface Treatment	Ra16~32uin(0.4~0.8um)
Internal Surface Treatment	Ra16~32uin(0.4~0.8um)
