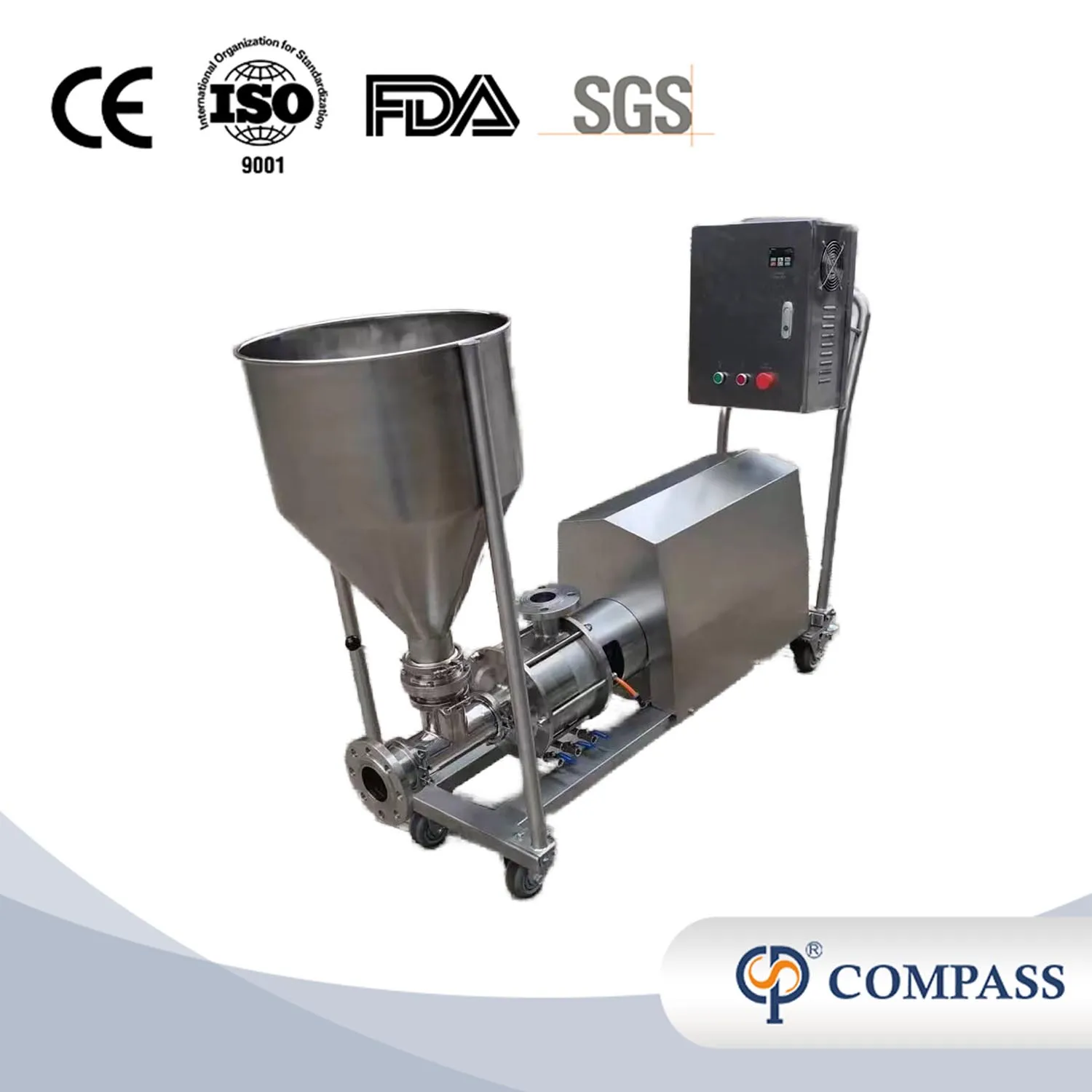

TRL3 SS304 Sanitary Three Stages Inline High Shear Dispersing Emulsion Pump with Hopper Control Cabinet and Frequency Converter

You are here: Home » Products » Sanitary Pumps » Sanitary Emulsion Pump » TRL3 SS304 Sanitary Three Stages Inline High Shear Dispersing Emulsion Pump with Hopper Control Cabinet and Frequency Converter

Share to:

TRL3 SS304 Sanitary Three Stages Inline High Shear Dispersing Emulsion Pump with Hopper Control Cabinet and Frequency Converter

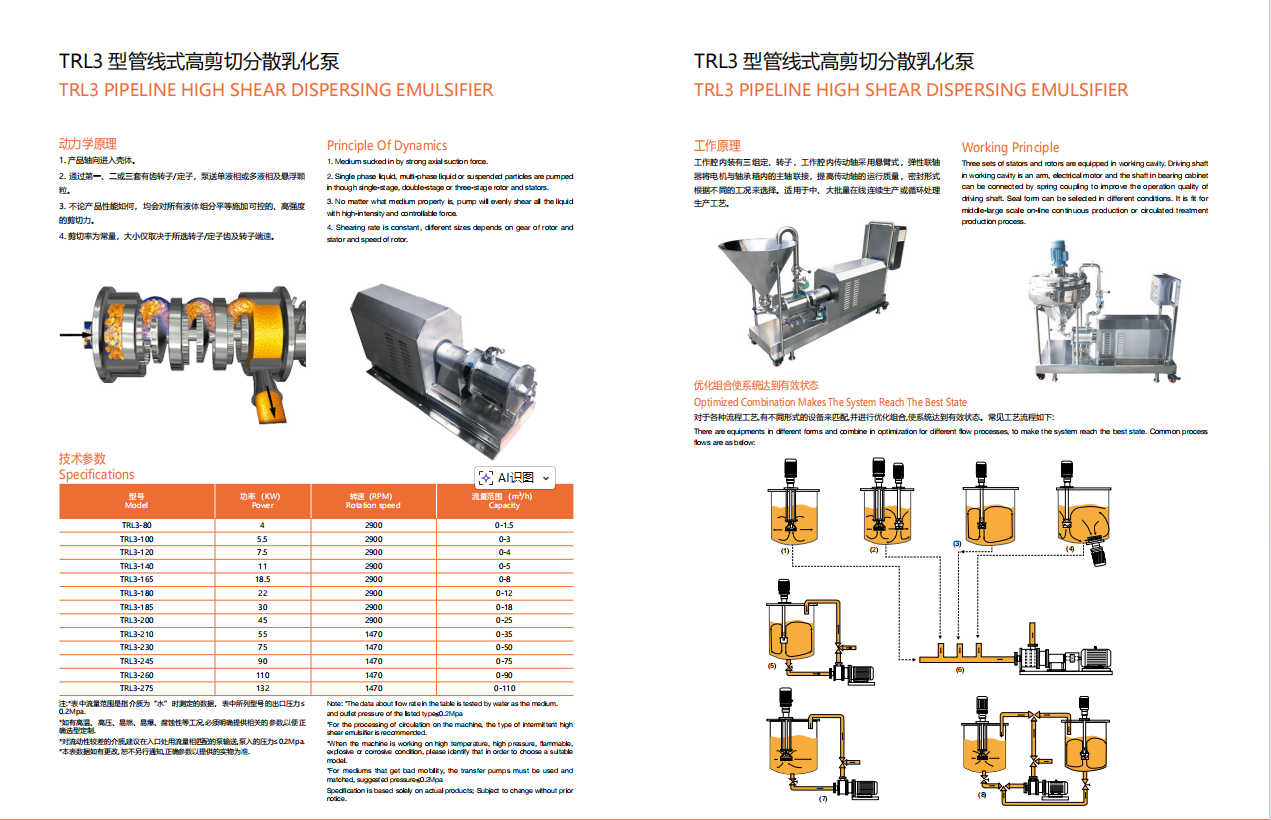

Working Principle
Three sets of stators and rotors are equipped in working cavity. Driving shaft in working cavity is an arm, electrical motor and the shaft in bearing cabinet can be connected by spring coupling to improve the operation quality of driving shaft. Seal form can be selected in different conditions. It is fit for middle-large scale on-line continuous production or circulated treatment production process.

Principle Of Dynamics
1. Medium sucked in by strong axial suction force.
2. Single phase liquid, multi-phase liquid or suspended particles are pumped
in though single-stage, double-stage or three-stage rotor and stators.
3. No matter what medium property is, pump will evenly shear all the liquid with high-intensity and controllable force.
4. Shearing rate is constant, different sizes depends on gear of rotor and stator and speed of rotor.

Model:
TRL-3-100-5.5KW
Brand:
XUSHENG
Code:
02052103100LA022110202

Availability:

Quantity:



Inquire Add to Basket

The Details of Product

Material Contact Parts	SS304/SS316L(1.4301/1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Flow Rate	1.5-130 m3/hr
Motor Power	1.5-132kw
Voltage	380v,220v, 230v, 208v, 460v, 440v, 415v, 400v
Seal Material	Silicone,EPDM,FKM,Buna, all seals material comply with FDA21CFR117.2600
Hertz	50hz,60hz
Phase	Single Phase, Three Phases
Speed	2900rpm, 3500rpm
Motor Brand	China
Type of Teeth	Rough Teeth, Middle Teeth, Fine Teeth
Processing	Method Mixing-Dispersing-Emulsifying-Homogenizing
Material of Mechanical Seal	Alloy+ EPDM
Connection	Butt-weld, Ferrule End, Male Thread, Female-Male Threaded, Union, Weld-Thread,Flange
External Surface Treatment	Ra32~64ui n(o.8~1.6um)
Internal Surface Treatment	Ra16~32uin(0.4~0.8um)

Description of Commodity:TRL3 SS304 Sanitary Three Stages Inline High Shear Dispersing Emulsion Pump with Hopper Control Cabinet and Frequency Converter

Advantage

1. Mass production suitable for continuous production of industrialized assembly line

2. Small diameter range,and highly even

3. Time saving,highly efficient and energy saving

4. Low noise,stable operation

5. Reduced quality difference between lots

6. Material is fully dispersed and sheared

7. Delivery in short distance with low lift

8. Easy operation,convenient maintenance

9. Automatic control

Options

1. Material SS304 an SS316L are optioned
