How to Choose a Sanitary Butterfly Valve for Dairy Processing

You need to know how to pick the right sanitary butterfly valve for your dairy work. The right butterfly valve keeps your products safe from germs. It also helps you follow strict rules in food and drink making, medicine, and food processing. When you pick sanitary butterfly valves, look for ones that are clean and fit your fluid systems. The table below shows how top rules keep your dairy products safe:

Picking the right valve keeps your process safe, works well, and is steady.

Key Takeaways

• Pick sanitary butterfly valves with smooth surfaces. These are easy to clean. They use food-safe materials. This helps keep dairy safe from germs.

• Choose valve materials like stainless steel 316L. Use seals like EPDM or silicone. These resist strong cleaning. They fit your dairy needs.

• Get the right valve size and connection type. This makes sure flow is good. Cleaning is easy. The system works well.

• Think about automated actuation for faster control. It keeps valves cleaner. Manual valves are good for small jobs. They work for less use.

• Buy valves from certified and trusted makers. They follow FDA, 3-A, and EHEDG rules. This ensures quality and safety. Maintenance is simple.

Dairy Process Needs & Hygiene Standards

Process Conditions for Sanitary Valves

First, you need to know your dairy process. Think about what kind of fluid you use, like milk, cream, or whey. Each one needs something different. You should check the temperature and pressure in your system. Food processing often uses high heat and strong cleaners. Sanitary butterfly valves must handle these tough conditions. You also need valves that work with Clean-in-Place (CIP) and Steam-in-Place (SIP) cleaning. These cleaning methods let you clean equipment without taking it apart.

When picking sanitary butterfly valves, look for these hygiene rules:

• Smooth inside surfaces stop bacteria from growing.

• Self-draining designs keep liquid from staying inside.

• Valves should use FDA-approved, food-safe materials like stainless steel and special elastomers.

• Surface roughness should not be more than 0.8 micrometers.

• Valves must handle high heat and strong cleaners.

• Pneumatic valves are good for clean processing because you can wash them easily.

Hygiene and Surface Finish

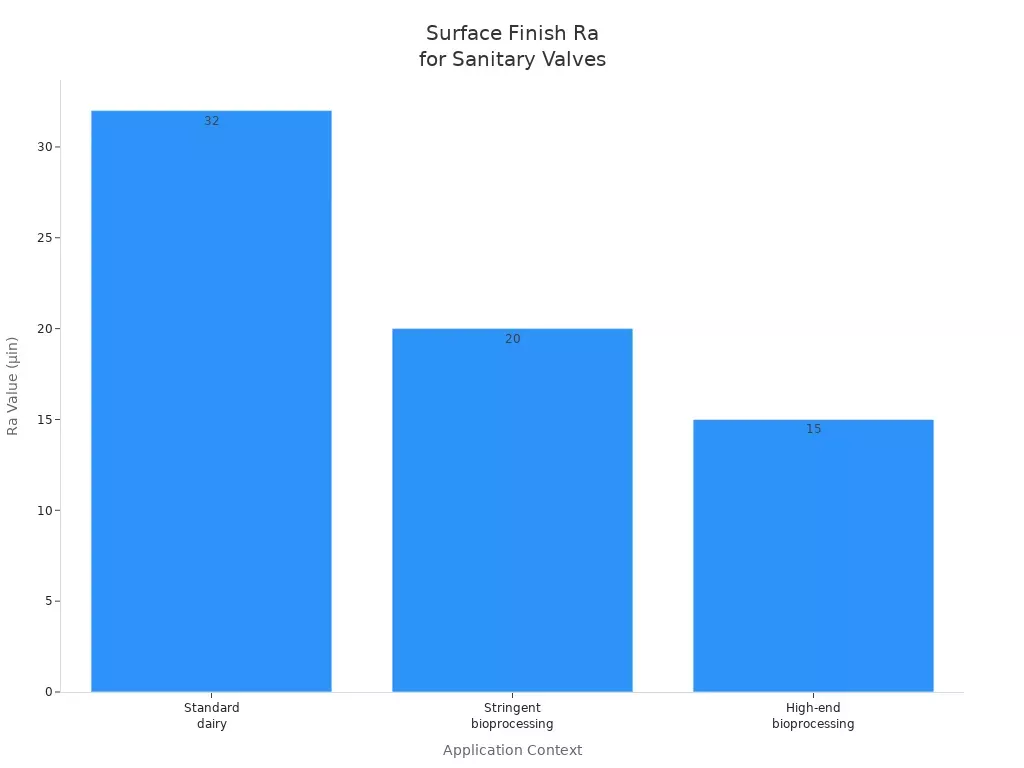

Hygiene is very important in dairy processing. You need sanitary butterfly valves with surfaces that are simple to clean. Surface finish is important because rough spots let bacteria stick and grow. Smoother surfaces are easier to clean and keep safe. You should know the best surface roughness for sanitary valves:

You can make cleaning better by lowering surface roughness and using special coatings. Some coatings, like peptide coatings, help stop bacteria from sticking. You can also use antimicrobial or anti-adhesive coatings to fight biofilm. When you pick a sanitary valve, make sure it has the right surface for your dairy process.

Sanitary Butterfly Valve Materials & Seals

Stainless Steel Choices (304/316L)

It is important to pick the right valve material. Stainless steel 304 and 316l are used a lot in dairy processing. Both types protect against rust and are easy to clean. Stainless steel 304 is good for most dairy jobs. But it can get damaged if there are lots of chlorides. Stainless steel 316l is better with chlorides because it has molybdenum. This extra part helps the valve last longer and keeps dairy safe.

Pick stainless steel 316l if you use salty ingredients or strong cleaners. Both types help you follow hygiene rules and make cleaning simple.

Sealing Mechanism & Material Compatibility

You need seals that fit your dairy products and cleaning steps. Good seals stop leaks and block germs. The best seal materials for dairy valves are EPDM, silicone, FKM, FFKM, and PTFE-encapsulated O-rings. Each one has its own strengths:

• EPDM works well with steam, water, and cleaning chemicals. It is used in pasteurizers and CIP systems.

• Silicone stays soft in hot and cold places. You can use it for dairy, baking, and drinks.

• FKM handles heat and works with oils and fats.

• FFKM gives the best chemical resistance. It keeps its shape with strong acids or bases.

• PTFE-encapsulated O-rings are pure and strong for special jobs.

EPDM and FFKM seals last through many steam cleaning cycles. Silicone seals stay soft and strong in very hot or cold places. You must match your seal to your cleaning steps and dairy product. This keeps your valve clean and your dairy safe.

How to Choose the Right Sanitary Butterfly Valve Size & Connection

Valve Sizing for Dairy Pipelines

You must pick the right size for your sanitary butterfly valve. The correct size helps your dairy process work well. If you choose the wrong size, your system may not flow right. You could have low flow or too much pressure. Follow these steps to find the best size and connection:

1. Find the Cv value you need. Use your highest, normal, and lowest flow rates. Check your inlet and outlet pressures for this step.

2. Think about your product. Look at the density, viscosity, temperature, and phase of your dairy fluid.

3. Use the right formula. For liquids, watch for flashing and cavitation. For gases or steam, check compressibility and pressure drop.

Tip: Always use the real properties of your dairy product. Do not use water as a guide if your product is thick or flows differently.

If you pick the wrong butterfly valve size, you may have problems:

• High viscosity fluids make it hard for the product to move.

• A lower Cv means you need a smaller valve for the same flow.

• Using water-based sizing can cause mistakes in food processing.

Match the butterfly valve size to your pipeline diameter and process flow. This keeps your dairy system safe and efficient. Choosing sanitary butterfly valves with the right size and connection helps you avoid costly errors.

Butterfly Valve Connection Types

You have different ways to connect sanitary butterfly valves in your dairy plant. The main types are clamp, weld, and threaded connections. Each type has good and bad points. The table below shows how they compare:

Clamp butterfly valve connections are used most in dairy processing. You can install or remove them fast. They are good for cleaning and maintenance. Welded butterfly valve connections give you the best hygiene and no leaks. Use them when you need a strong, permanent connection. Threaded connections are easy and cheap, but they can trap bacteria. Do not use them in main food lines.

Note: Use clamp butterfly valves for most dairy jobs. Use welded butterfly valves for high-purity or permanent setups. Save threaded connections for vents or sampling ports that do not touch food.

When you choose the size and connection type, think about cleaning needs, how often you take valves apart, and your budget. The right sanitary butterfly valve keeps your dairy process safe, clean, and easy to manage. You can find many types of sanitary butterfly valve designs to fit your needs.

Actuation & Automation for Sanitary Valves

Manual vs. Automated Butterfly Valves

You can pick manual or automated butterfly valves for your dairy plant. Manual butterfly valves have a handle. You turn the handle to open or close the valve. This is good for small systems. It works well if you do not change the flow often. Manual valves cost less. They are simple to use.

Automated butterfly valves use actuation devices. These devices open and close the valve for you. You can choose electric or pneumatic actuation. Pneumatic devices use air pressure. They work fast and fit high-speed dairy lines. Electric actuators use motors. They need less maintenance. They last longer. The table below shows how electric and pneumatic actuators compare:

Automated actuation keeps your process clean and safe. It lets you control many valves at once from a control room.

Selecting Actuation for Dairy Applications

You must think about a few things when you pick actuation for sanitary butterfly valves:

• Hygiene: The actuation system must stay clean. It should not trap bacteria.

• Efficiency: Fast actuation helps you keep up with dairy production.

• Cleanability: You must clean the actuation parts easily.

• System Integration: The actuation device should fit your setup.

• Materials: Stainless steel and food-grade rubber stop contamination.

Pneumatic actuation gives you speed and flexibility. It helps you use less energy and reduce downtime. Electric actuation gives you low maintenance and long life. Both types help you keep dairy products safe. They help you meet food safety rules. Picking the right actuation makes your butterfly valve system work better and last longer.

Compliance, Maintenance & Manufacturer Quality

Regulatory Standards (FDA, 3-A, EHEDG)

You must follow strict rules when picking a sanitary butterfly valve for dairy. These rules keep your products and customers safe. The FDA, 3-A Sanitary Standards, and EHEDG are the main groups. Each group has rules for materials, design, and how easy it is to clean. You need to make sure your valves meet these rules.

You must keep records to show you follow the rules. These records include material certificates, traceability papers, and validation documents. They prove your butterfly valve is safe for food and follows all rules.

Maintenance & Cleanability of Sanitary Butterfly Valves

You need sanitary butterfly valves that are simple to clean and take apart. Valve design makes cleaning and maintenance easier. Smooth surfaces and good seals help you clean and sterilize valves in place. They also cut down cleaning time. You can use clean-in-place systems to wash valves without removing them. This saves time and keeps your dairy safe.

A sanitary butterfly valve with self-draining and easy-to-reach parts makes cleaning simple. You can check and fix these valves fast. This means you do not need to clean as often and you avoid germs. You must pick valves that are easy to clean and fit your dairy needs.

Tip: Pick sanitary valves with smooth inside surfaces and seals that stop leaks. This makes cleaning easier and lowers the chance of bacteria.

Manufacturer Certification & Reputation

You should buy sanitary butterfly valves from companies with strong certifications and a good name. Look for companies with 3-A, EHEDG, CE, FDA, and ISO certifications. These show the company follows rules and quality standards.

A trusted company gives you good products and support. You can count on their engineering and materials. They help you keep your dairy running well and handle cleaning problems. You get valves that are easy to take apart and clean, which helps them last longer.

• Pick companies with 3-A Sanitary Standards for milk.

• Look for EHEDG rules for clean design.

• Trust companies that give reliable products and support.

You keep your dairy safe when you pick butterfly valves from trusted suppliers. You make sure you follow rules, clean easily, and keep food safe.

You can pick the best sanitary butterfly valve by using a few steps. First, make sure the valve fits your dairy process. Then, choose materials and seals that keep your product safe. Check if the valve meets FDA, 3-A, and EHEDG rules. Make sure you can clean and fix the valve easily.

• Certified suppliers help you get valves that work for your job.

• They know which materials and designs are right for you.

• You can ask them for special choices if you need extra clean valves.
  Always check the certifications and talk to trusted experts to get the best valve.

FAQ

What makes a butterfly valve sanitary for dairy processing?

A sanitary butterfly valve has smooth surfaces. It is made from food-safe materials. The design lets you clean it easily. These things help stop bacteria from growing. They also keep your dairy products safe.

How often should you clean sanitary butterfly valves?

You need to clean the valves after every production cycle. Use Clean-in-Place (CIP) systems for quick and deep cleaning. Cleaning often keeps your dairy process safe.

Which seal material works best for milk?

EPDM seals are good for milk. They can handle steam and cleaning chemicals. Silicone is also good if you need to use high heat. Always make sure the seal works with your dairy product.

Can you use threaded butterfly valves in main dairy lines?

Threaded valves can hold bacteria inside. You should not use them in main dairy lines. Clamp or welded connections are better for keeping things clean and safe.
