Specification
Flow Rate | 0 to 100000 Liters per Hour |
Model of Bag Filter | 1#Bag, 2#Bag, 3#Bag, 4#Bag |
Material Contact Parts | SS304/SS316L (1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304 (1.4301) |
Type and Material of Bag | Suction Bag | Made of Non-woven Fabrics and Oil-absorbing Material, Both Filter Has Oil-absorbing Function |
Activated Carbon Filter Bag | Effectively Absorbing Pigment and Smell |
Seal Material | Silicone, EPDM. All seals material comply with FDA21CFR117.2600 |
Mesh Size | 3Mesh to 400Mesh, 37Micron to 6730Micron, 0.037MM to 6.730MM |
Connection | Butt Weld,Tri Clamp, Male Thread, Female Male Threaded, Union, Weld Thread, Flange |
Max Operating Pressure | ≤10bar(145psi) |
Max Operating Temperature | 150 Degree Celsius |
Basket Polish Precision | Ra≤0.6um |
External Surface Treatment | Ra≤0.8um |
Internal Surface Treatment | Ra≤0.6um |
Type of Finish Polished | Mechanical, Electrolytical Polishing, Sand Blasting |
Warrenty | One Year |
Support | OEM, ODM Are Welcome |
Application | Food and Beverage, Liquor, Dairy Industry, Edible Oil, Water Treatment, Fine Chemicals, Pharmaceutical |
Highlights at a glance

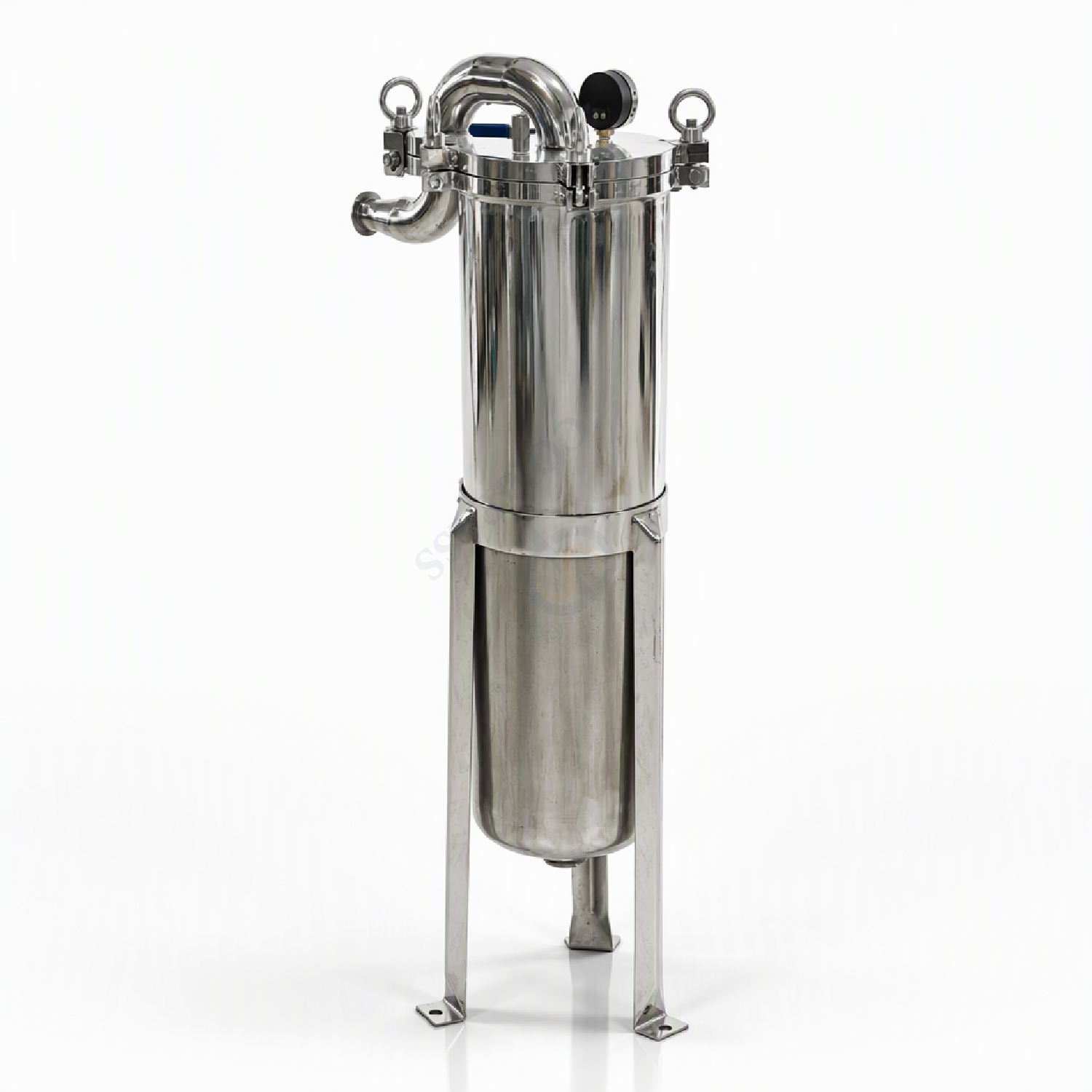

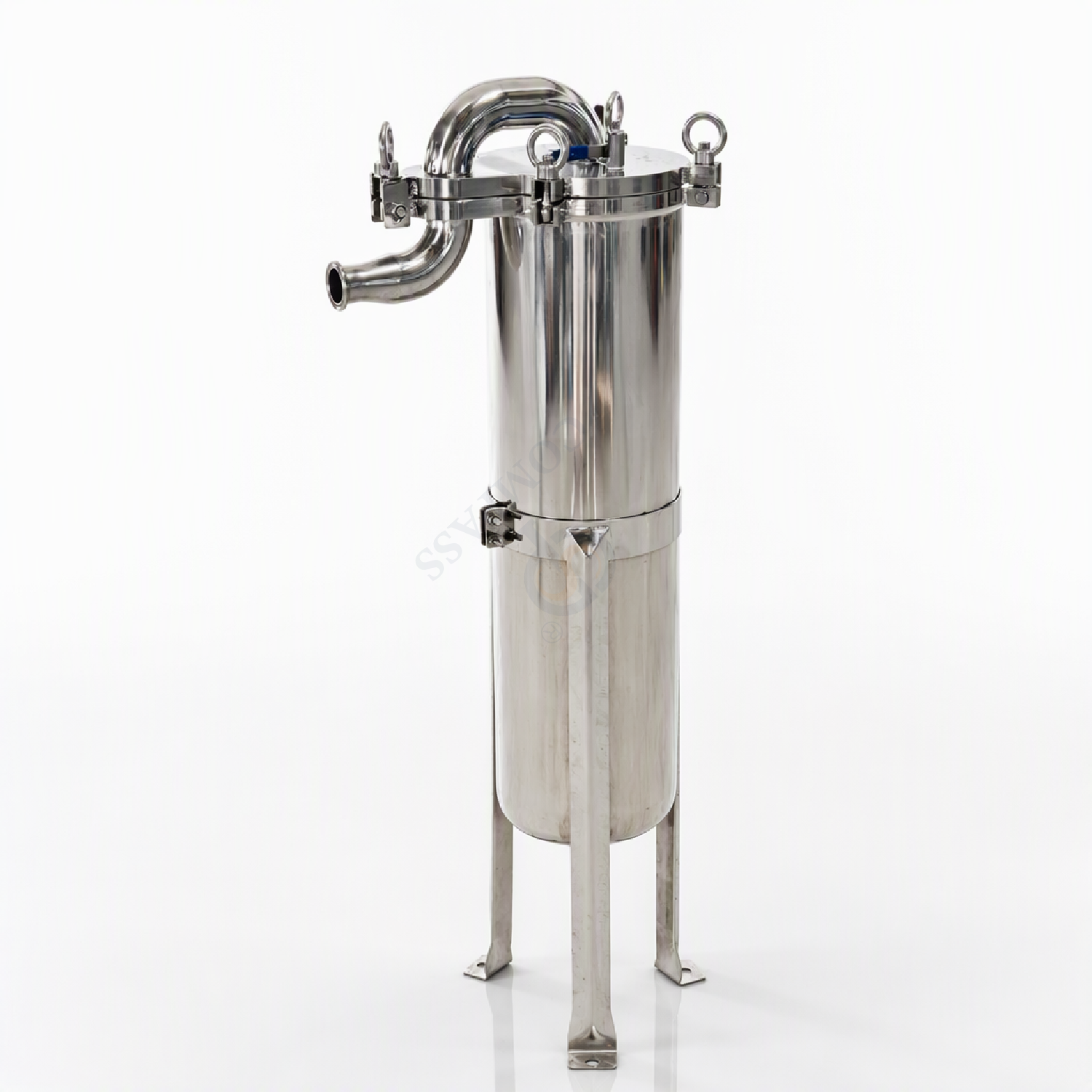

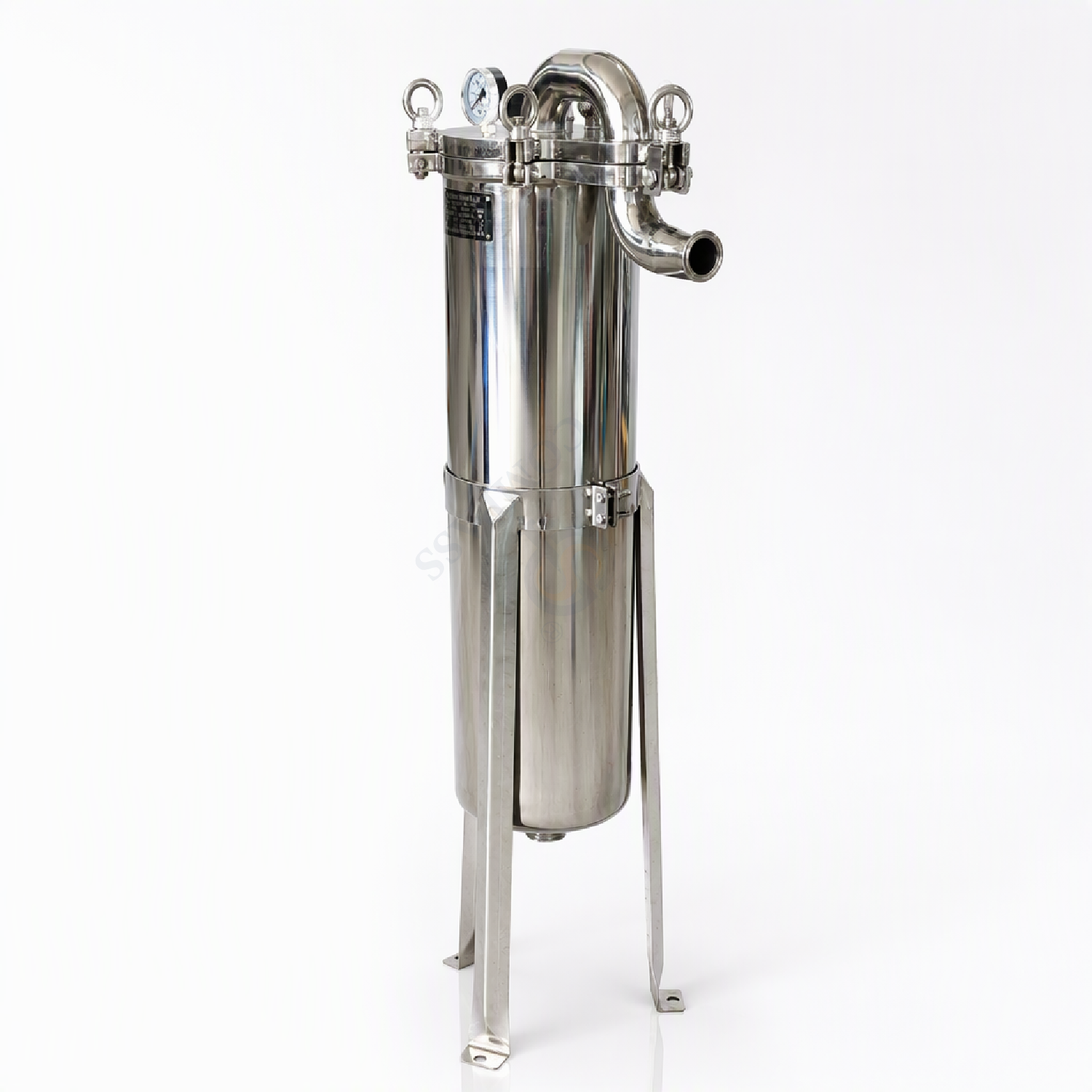

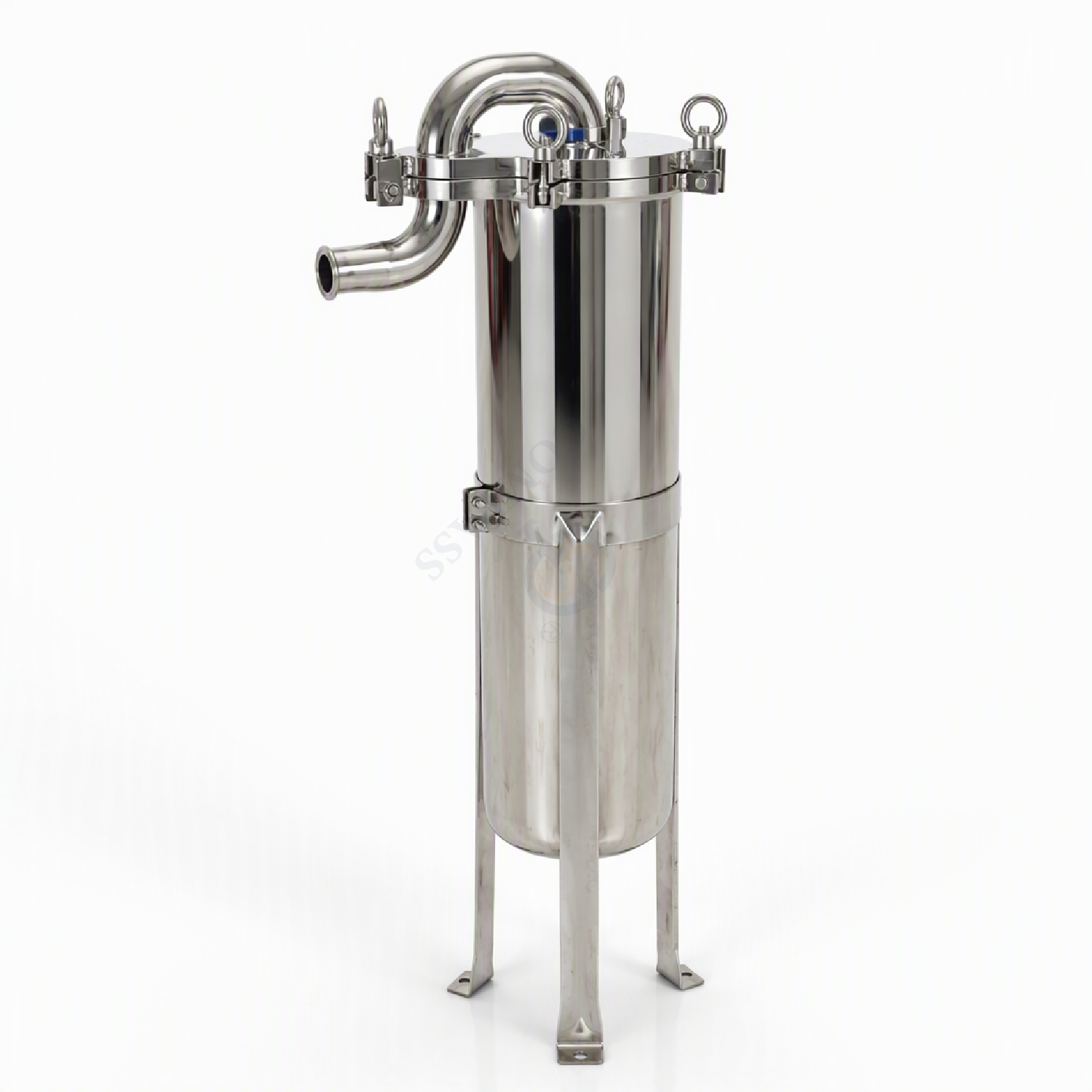

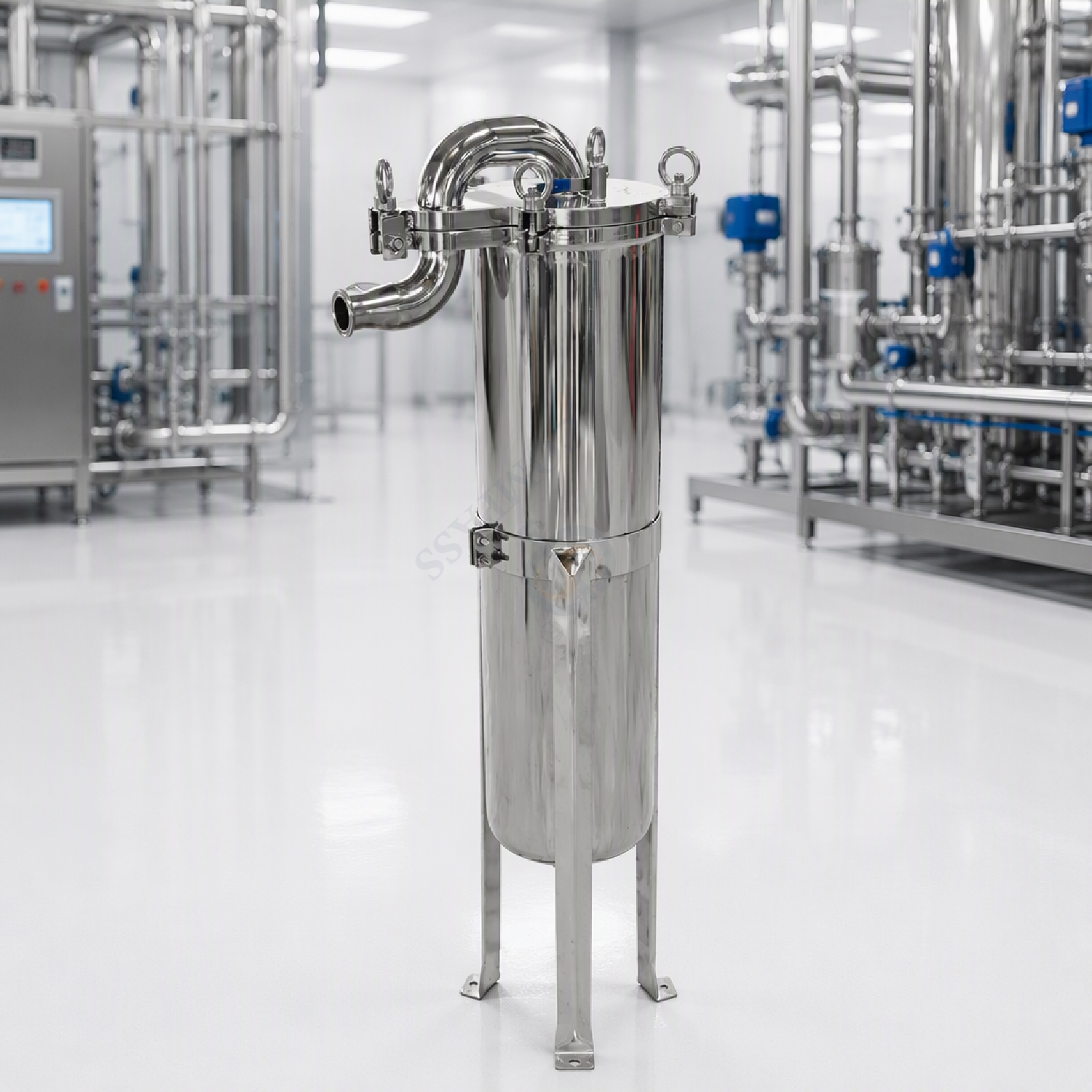

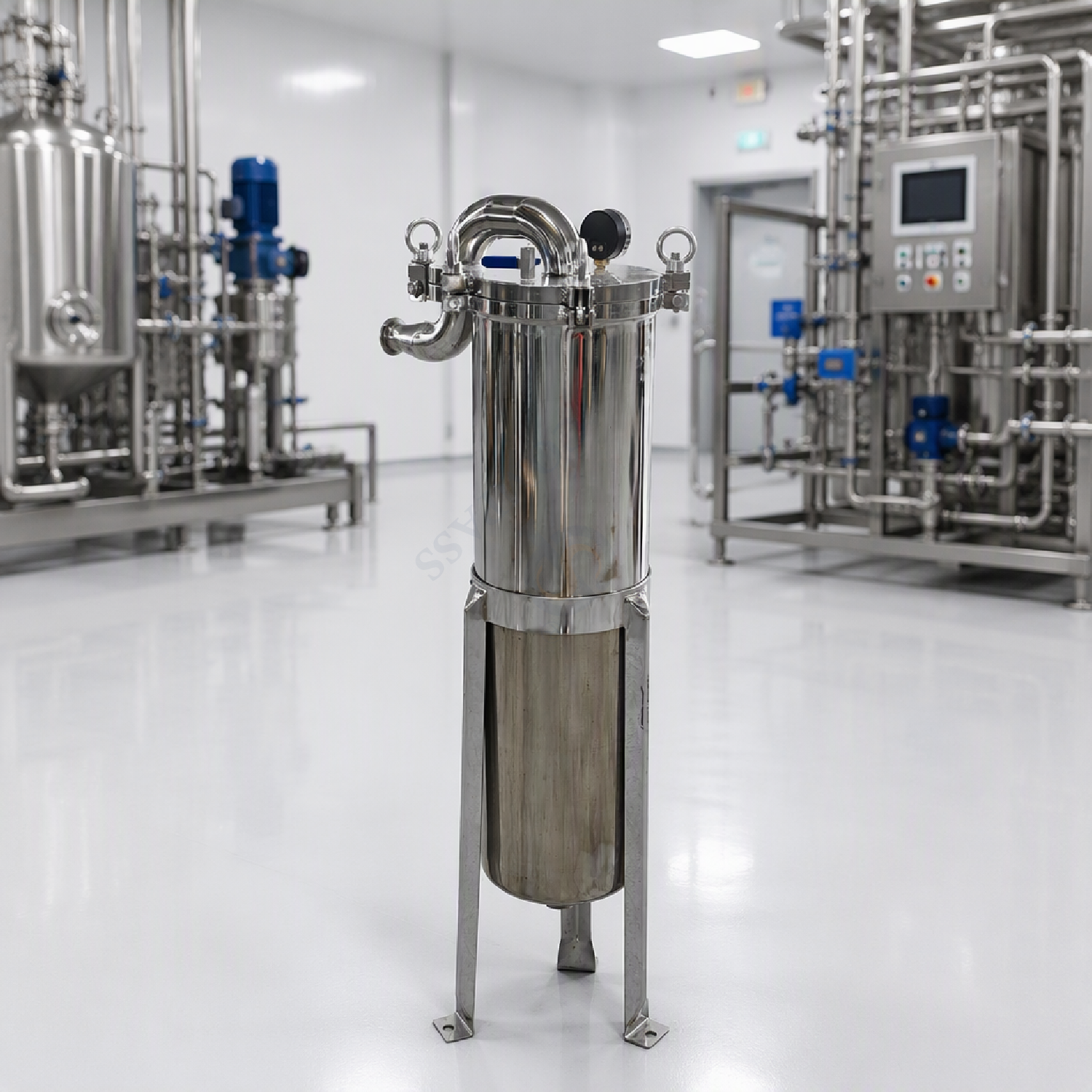

Filtration Setup: 200um mesh core traps hop residues in processing
Stainless Construction: SS304 body with mirror polished surface finish
Tri Clamp Connection: 1.5 inch TC50.5 tri-clamp for pipeline fitting
Top Entry Design: Top clamp cover for easy mesh element access
Features
1.The bag filter has large flow rate capacity, small volume and dirt holding capacity.
2.It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.
3.The side leakage rate of the filter bag is small, which greatly improves the filtration quality.
4.The bag filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.
5.Filter bag filtration accuracy has been continuously improved and has reached 0.5um.
6.The bag filter has a wide range of applications, flexible use and various installation methods.
Technical specification
1. Material: SS304, SS316L
2. Design vessel pressure: 6~10Bar (87PSI~150PSI)
3. Operate temperature: -4ºF~302ºF (-20°C~150°C)
4. Filtering accuracy: 0.1-20um
5. Filter Bag type: 1#Bag, 2#Bag, 3#Bag, 4#Bag

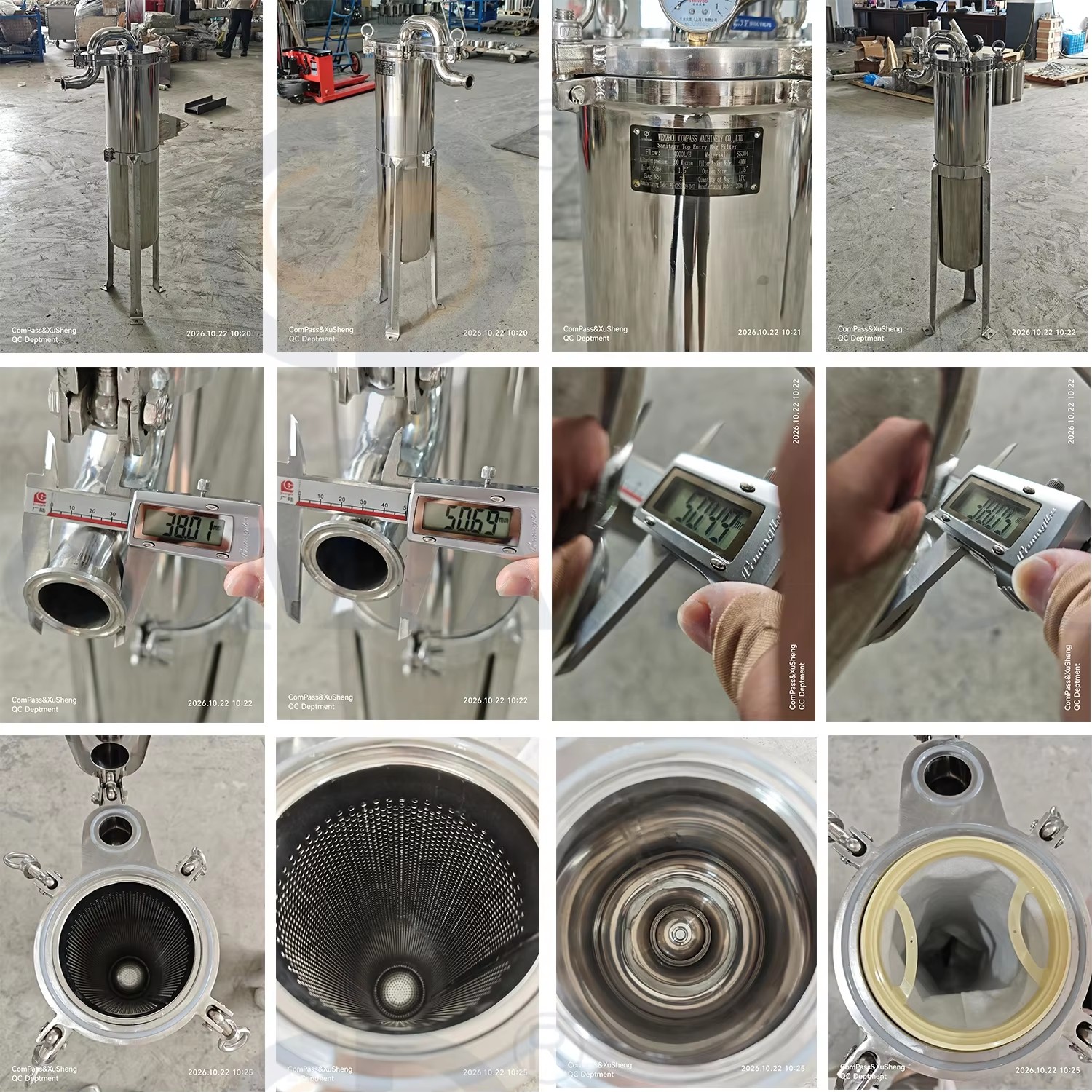

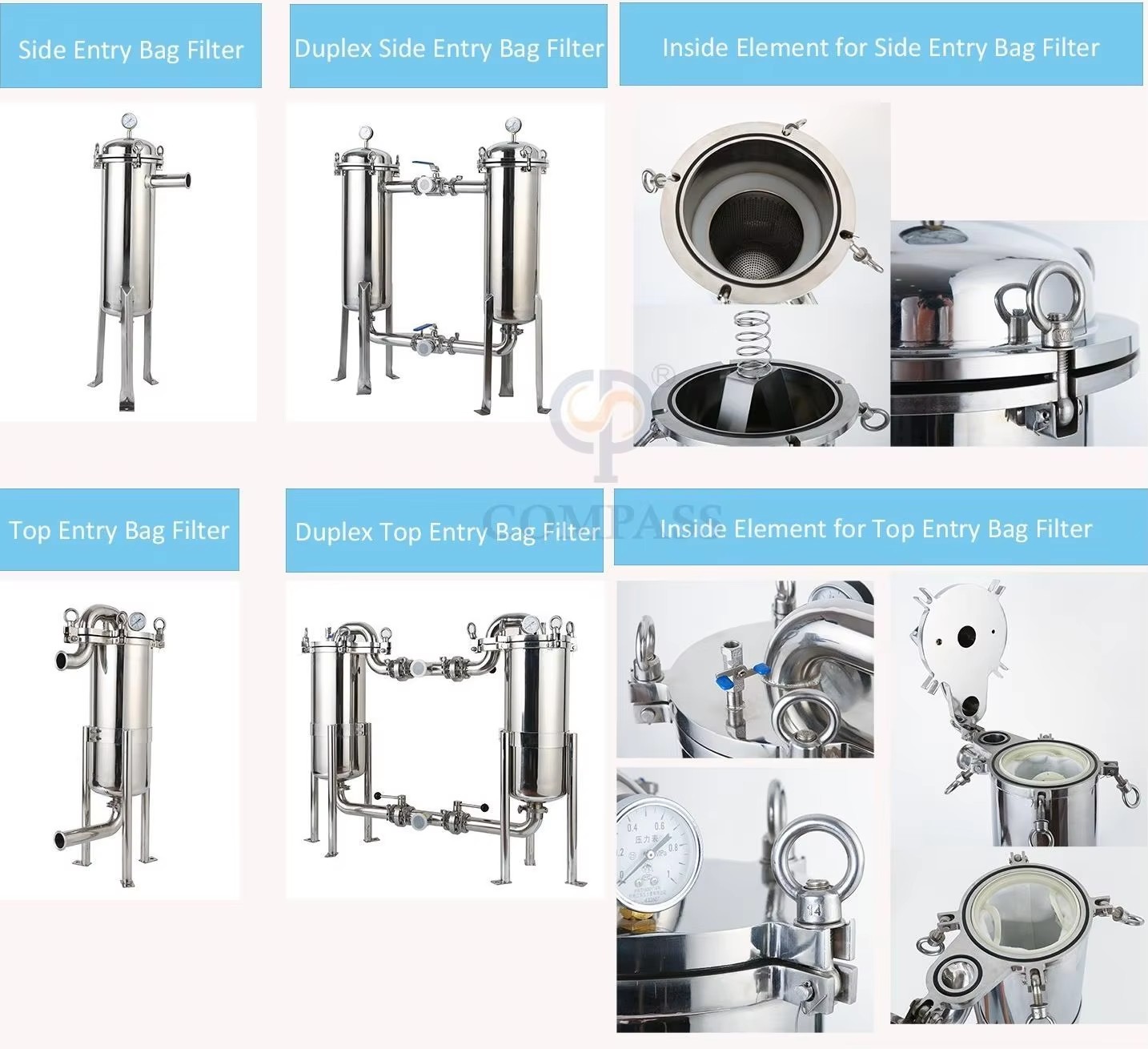

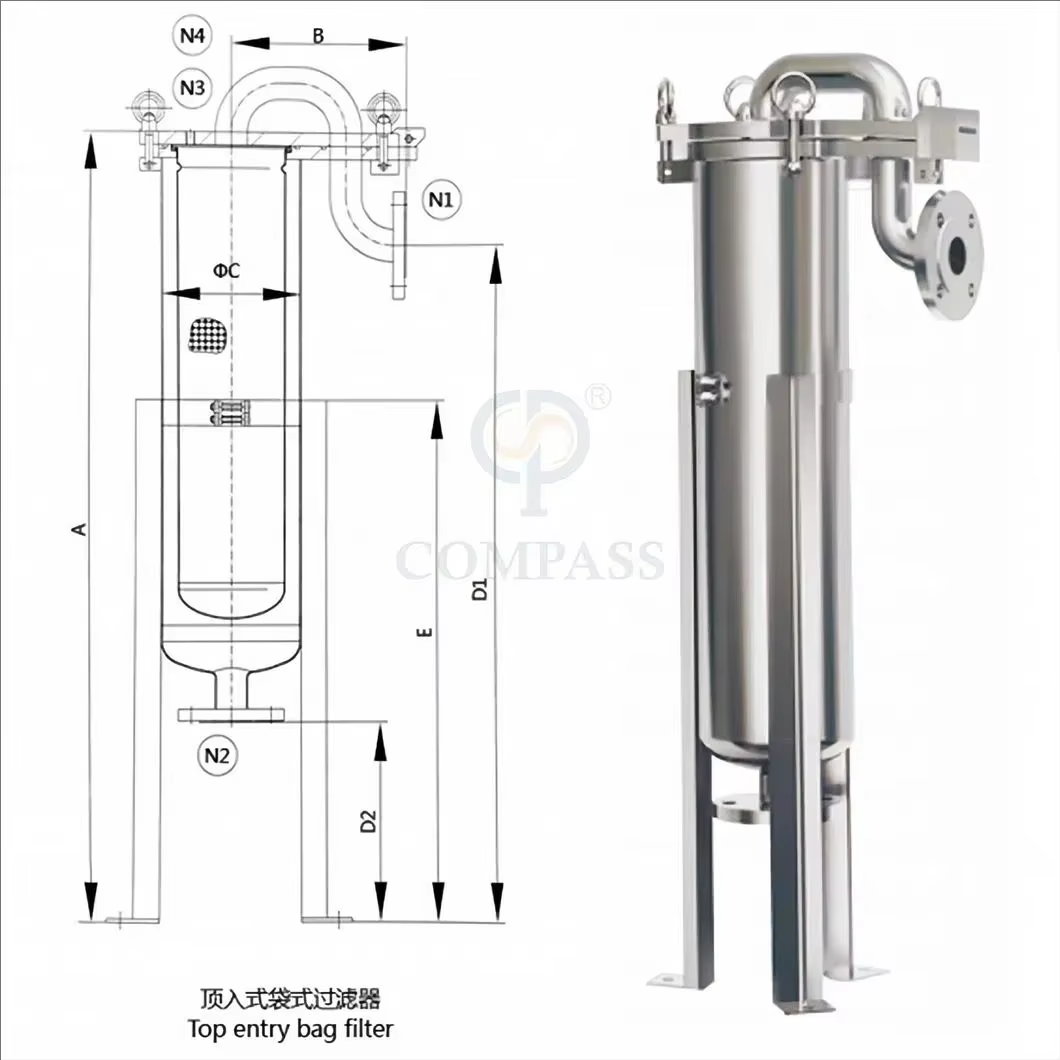

6. Flow Type: Side Entry, Top Entry, S-Multi, B-Multi Bag Filter
7. Connection: Tri-clamped, Flanged, Threaded , Union, Welded
8. Inlet/Out Dimension: 1", 1.5", 2", 2.5", 3", 3.5", 4"
9. Material of Gasket: EPDM,, Silicone
9. Surface Finish: Mirror Polish, Electrical Polish, Acid Washing, Matt Polish, echanical Polishing
10. Usage: Widely used in Food & Beverage, Wine Industry, Medicine, Chemical Industry, Electronic Industry and so on.
11. Suction bag: made of non-woven fabrics and oil-absorbing material, both filter has oil-absorbing function.
12. Activated carbon filter bag: and effectively absorbing pigment and smell.
Bag filter - composite metal filter basket, a new generation of basket filter pipeline launched in the field of filter
elements,filter surface protective layer, filter layer, the diversion layer and enhancement layer optimization combination through state of-the-art vacuum high-temperature composite technology combined into one, "durable, washable filter effect" outstanding advantages. The traditional structure of the filter basket is a simple superposition of the filter layer and enhancement layer them spot welding, there is easily damaged, intolerance backwash, accuracy deterioration ills. Our customers in the selection of the metal filter basket cleaning easier, the filtering effect is more stable, longer life. This filtering technology, customers reduce operating costs, maintenance and replacement costs of the filter basket, the most important is to have a stable filtrationprocess and improve the quality of the final product.
How To Order Top Entry Bag Filter Housing?
1. Which material do you need? Such as SS304 or SS316L.
2. How many flow rate? Such as 10000 lilter per hour.
3. What's product and viscosity of products used for bag filter?
4. What's connection you need? Such as butt weld, tri clamp, male thread.
5. What's micron for bag? Such as 200um.
