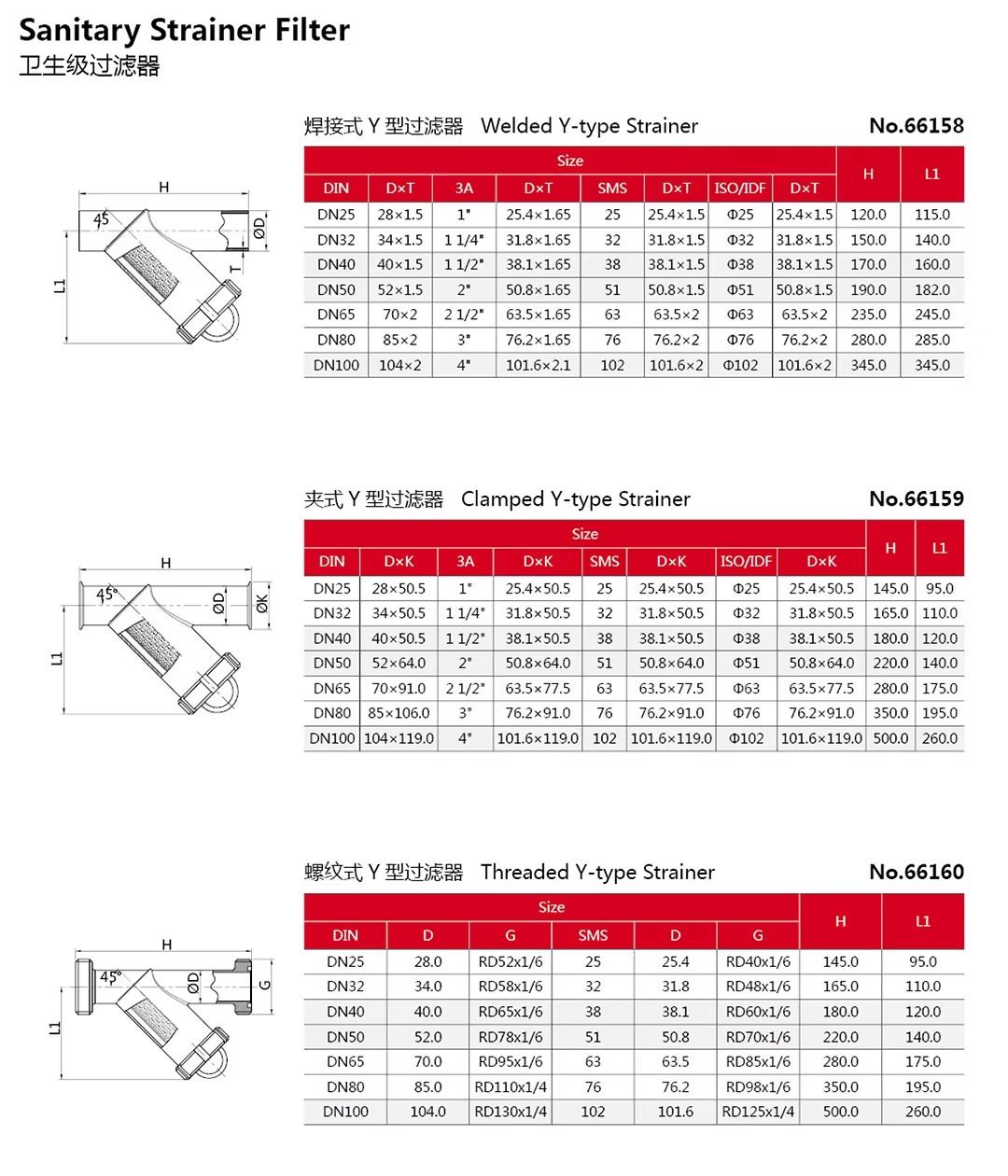

Specification
Standard | DIN, ISO, SMS |
Material Type | SS304,SS304L SS316,SS316L | Provided with material inspection report |
Size | 1''-4'', DN25-DN125 |
Availabe Connection | Clamp, Thread, Weld, Union, Flange |
Mesh | 10 mesh,20 mesh,40 mesh,100 mesh,150 mesh |
Flow Media | Water, Beverage, Milk, Beer, Juice,oil |
Structure | Staringht Type, Angle Type, Y Type, Micro type |
Customized | OEM |
Packaging Details | Shrink wrapped - carton - pallet . Or as per the request of customers |
Application | stainless steel pipeline system with ferrules, clamps, end caps,valves, unions, sight glass etc. |

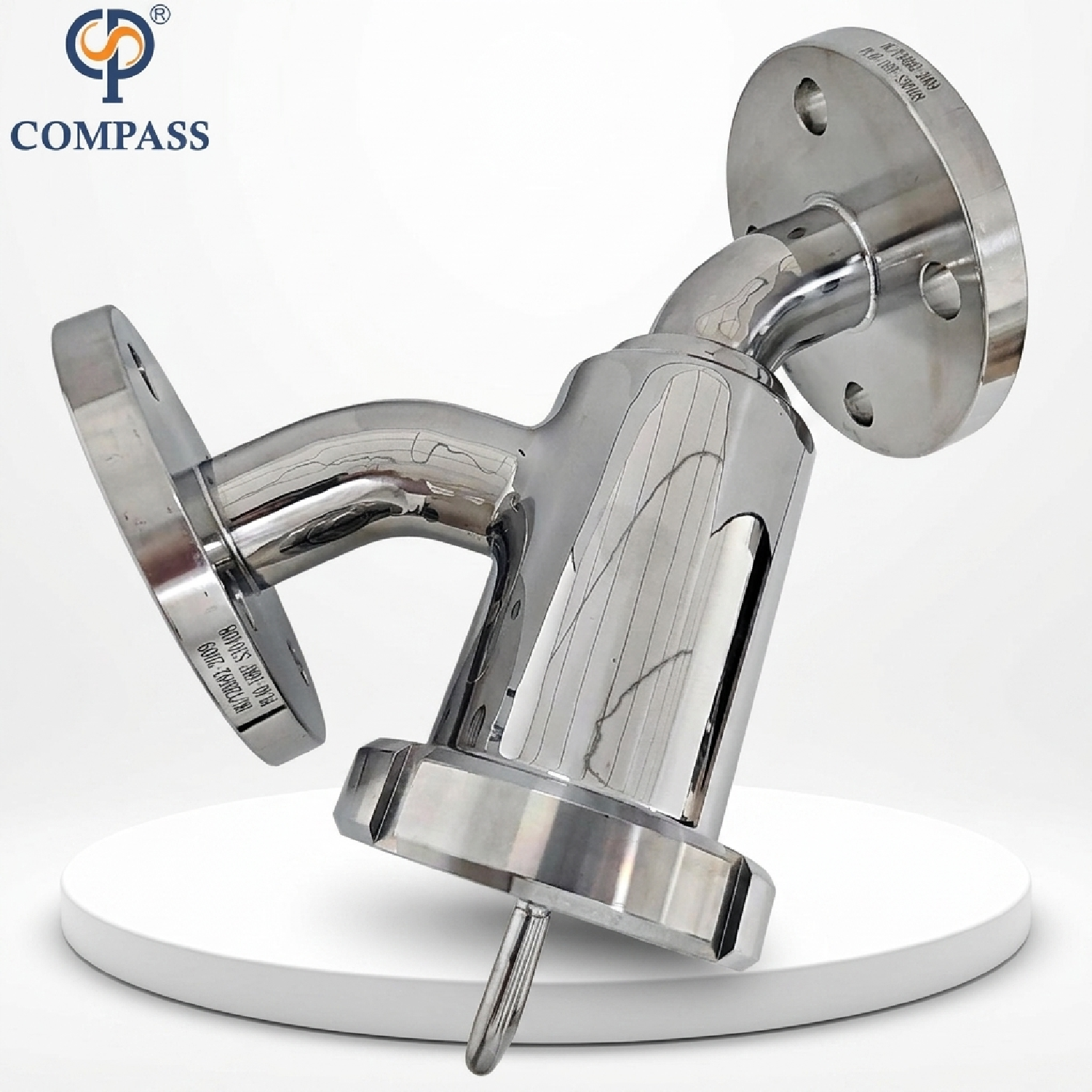

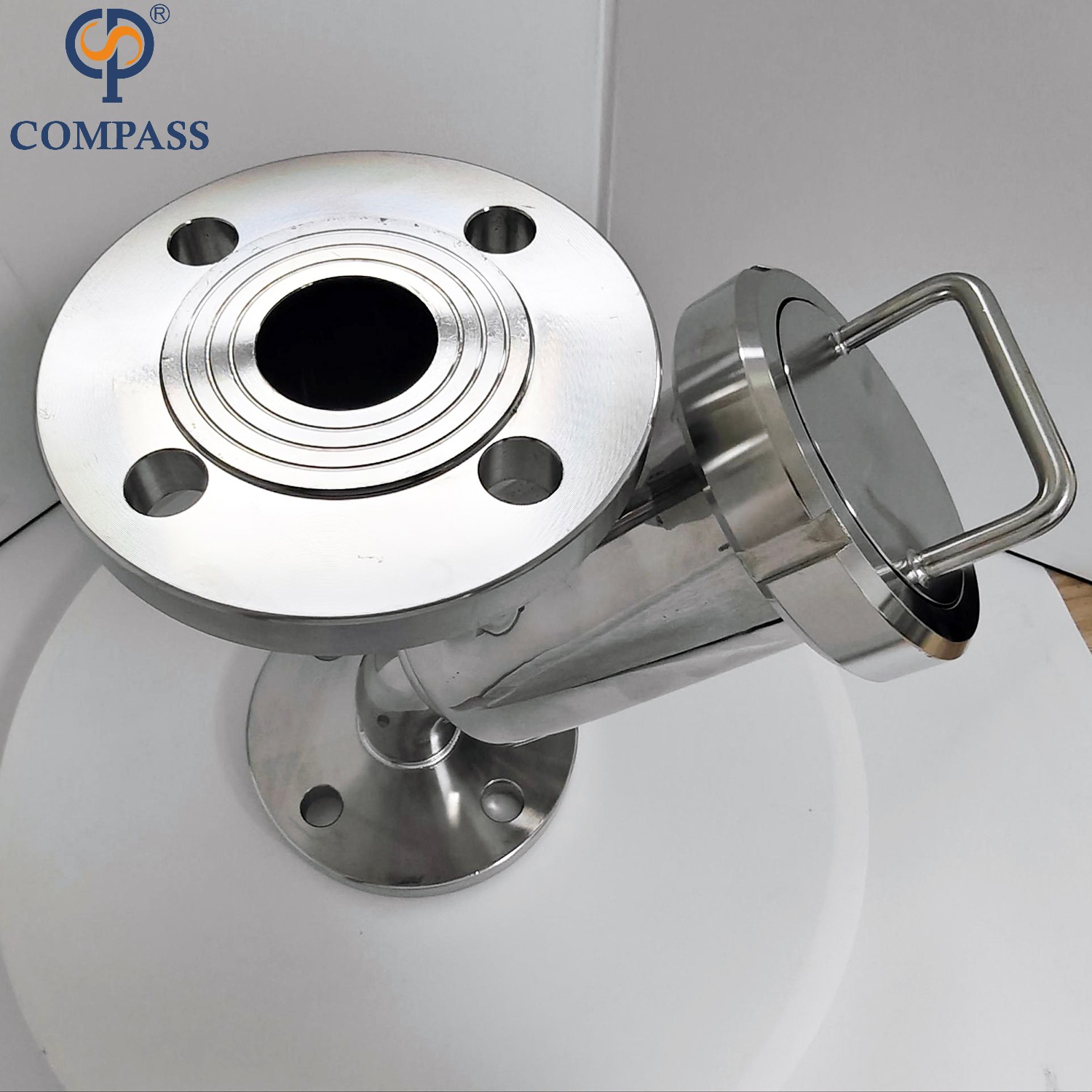

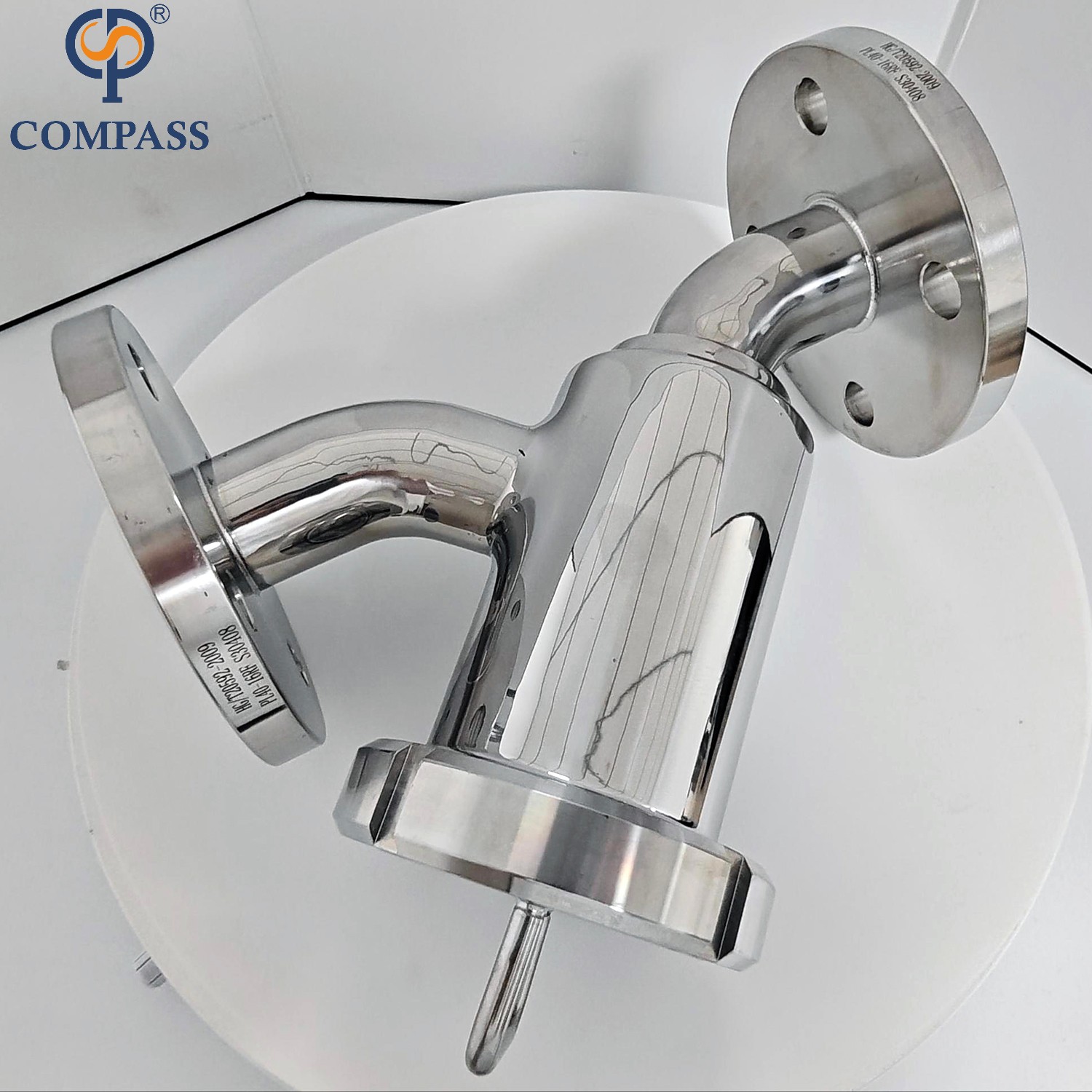

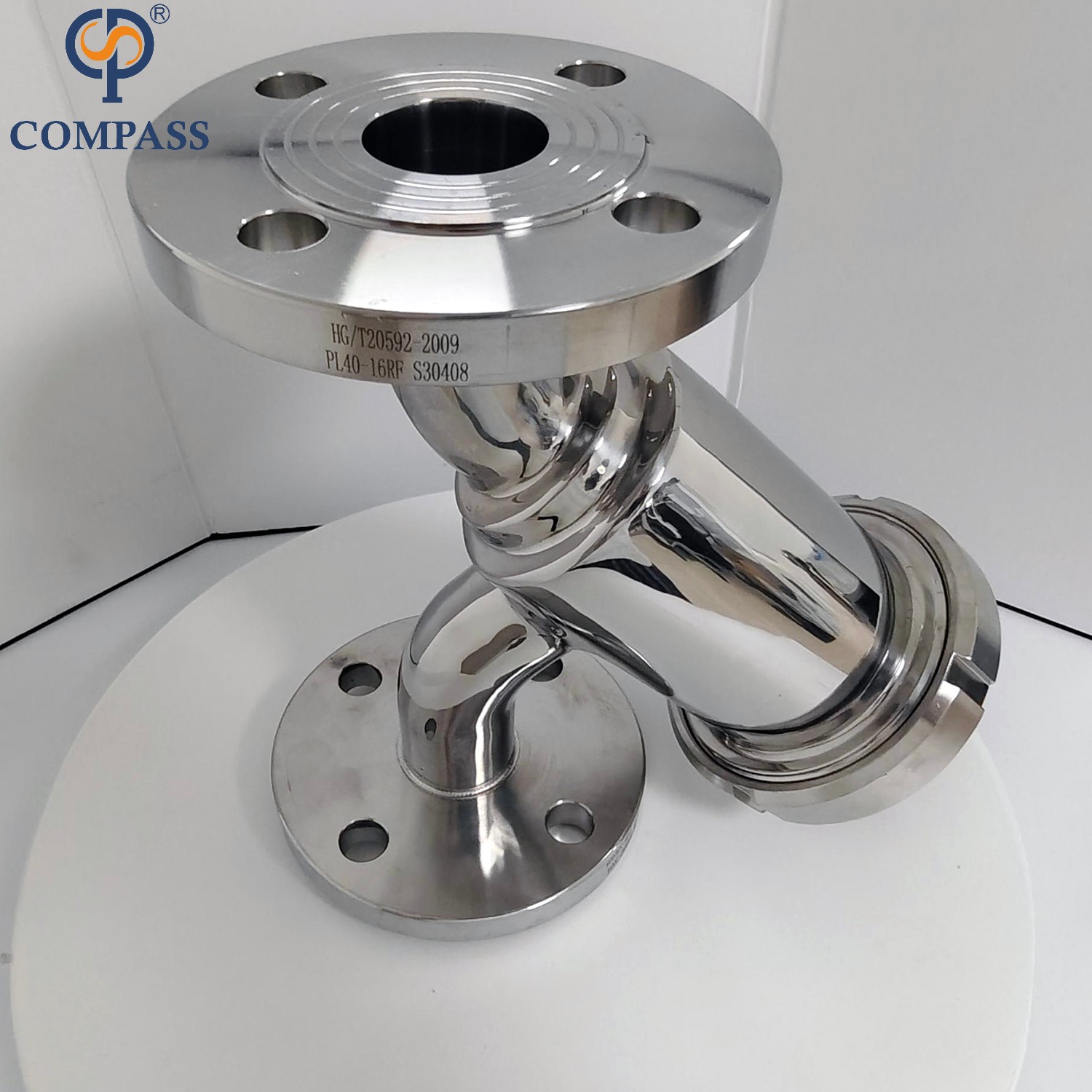

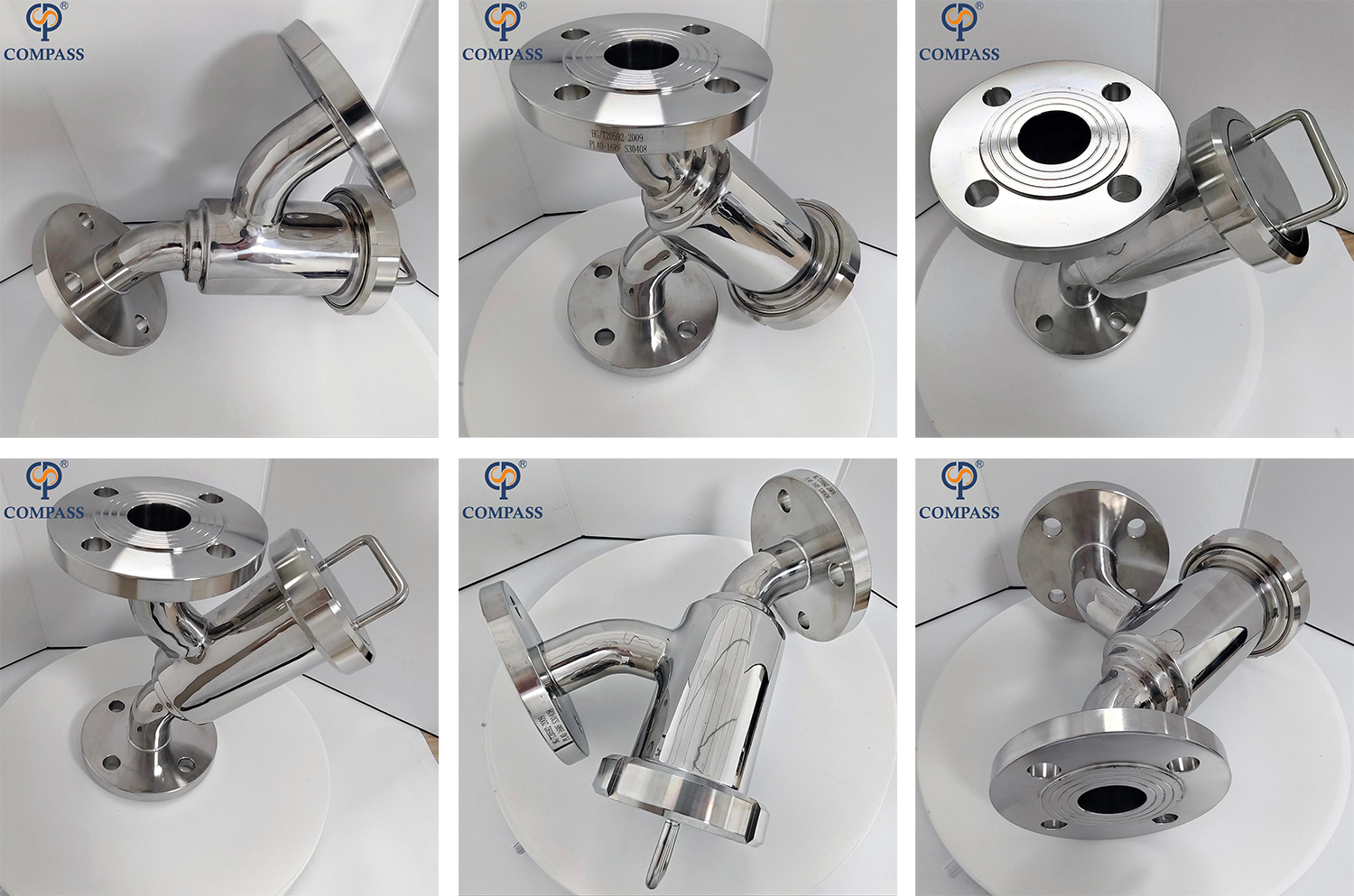

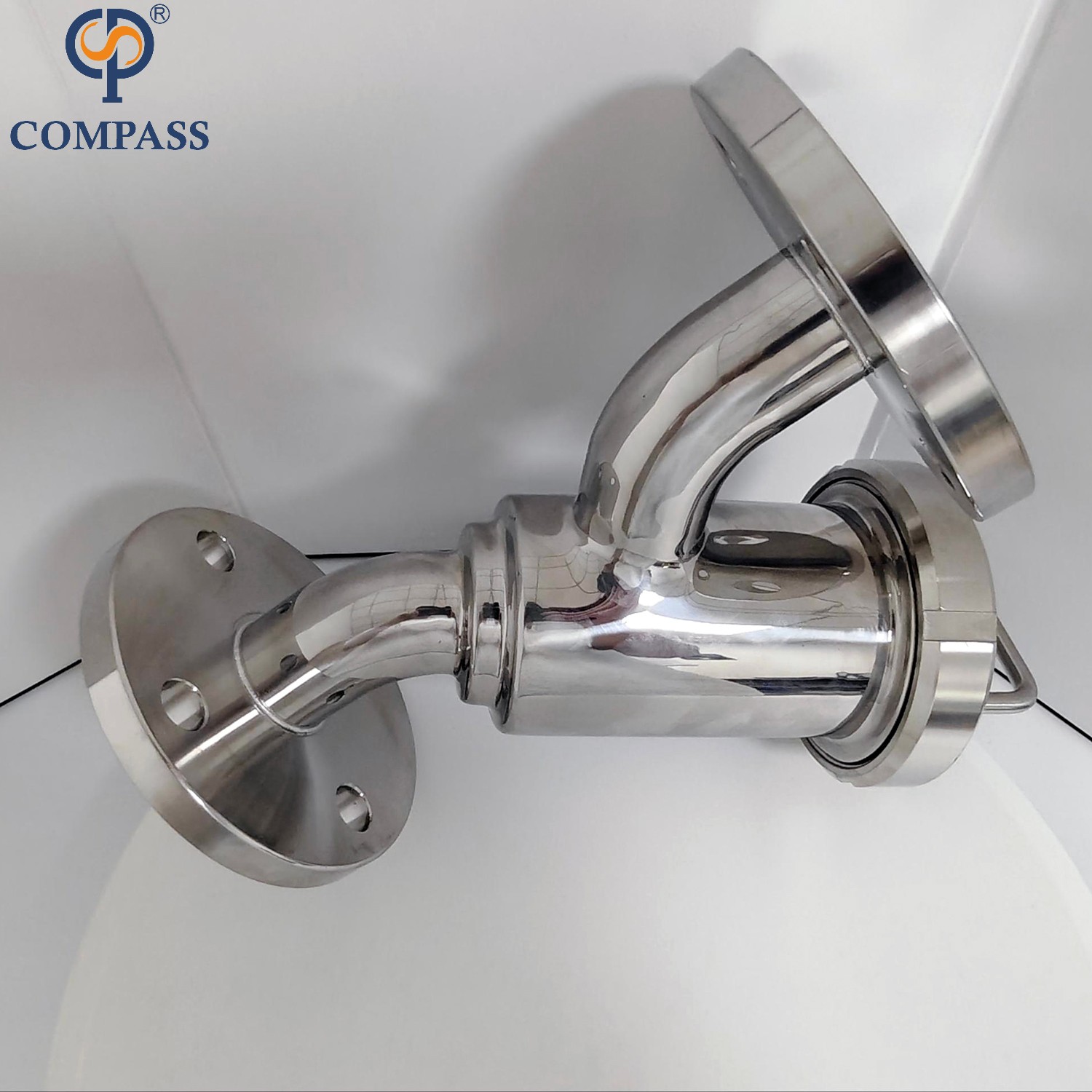

Highlights at a glance
* Mirror Polished Finish: Enhances durability and hygiene in food-grade applications.
* High-Pressure Flow: Designed for medium-pressure applications up to PN16.
* Durable Stainless Steel: Made from SS304, ensuring longevity and resistance to corrosion.
* Sanitary Grade: Ideal for water, juice, milk, and other beverages requiring hygienic handling.
* Flanged Ends: Easy installation and connection in stainless steel pipeline systems.
Application
Filter series is a kind of sanitary filter, mainly used for flitering liquid with solid particles, protect the pump, instruments and other devices to work properly. Because of its reasonable structured, filtration and seal abolity strong, pressure loss of small and easy maintenance and other characteristics, widely used in wine,beverage, etc.
Work Princple
When with larger solid particles or impurity of media through the filter, these larger solid particles and impurities will be filtered and stay in certain specification filter inside, thus preventing the solid particles and impurities into subsequent pipes, filtered medium criterion by export outflow, achieve the requirement.
How to Order ?
1. Which material? Such as SS304 or SS316L.
2. Which size? Such as 1''-4''/ DN25-DN125.
3. Which connection? such as clamp, thread, weld, flange, union.
4. Which mesh? Such as 10mesh, 20mesh.
5. Which structure? Such as Straight Type,Angle Type,Y Type, Micro type.
