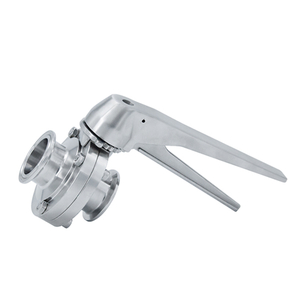

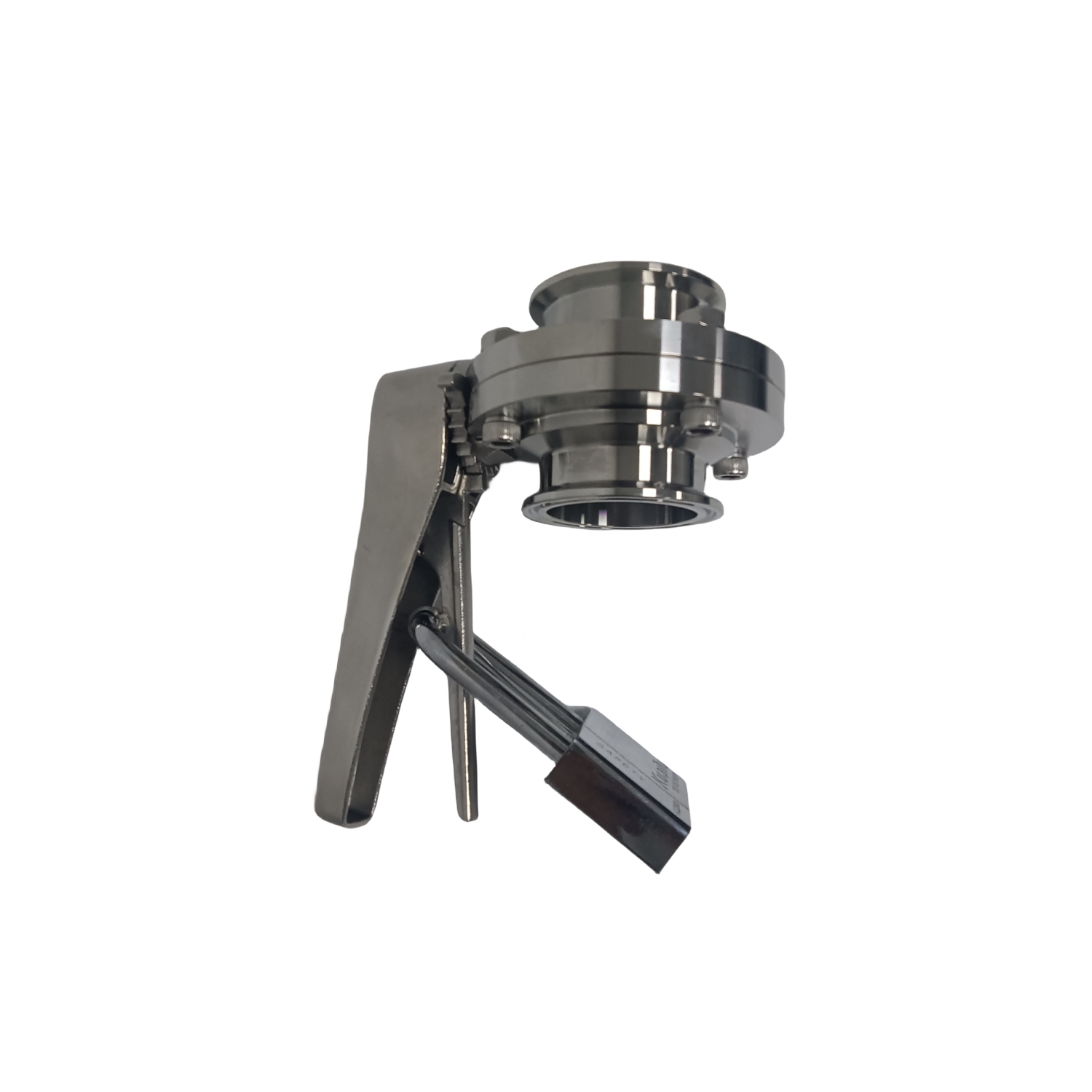

2Inch 51MM Sanitary Hygienic Stainless Steel Food Grade SS304 SMS Manual Tri Clamp Butterfly Valve with Viton Seal

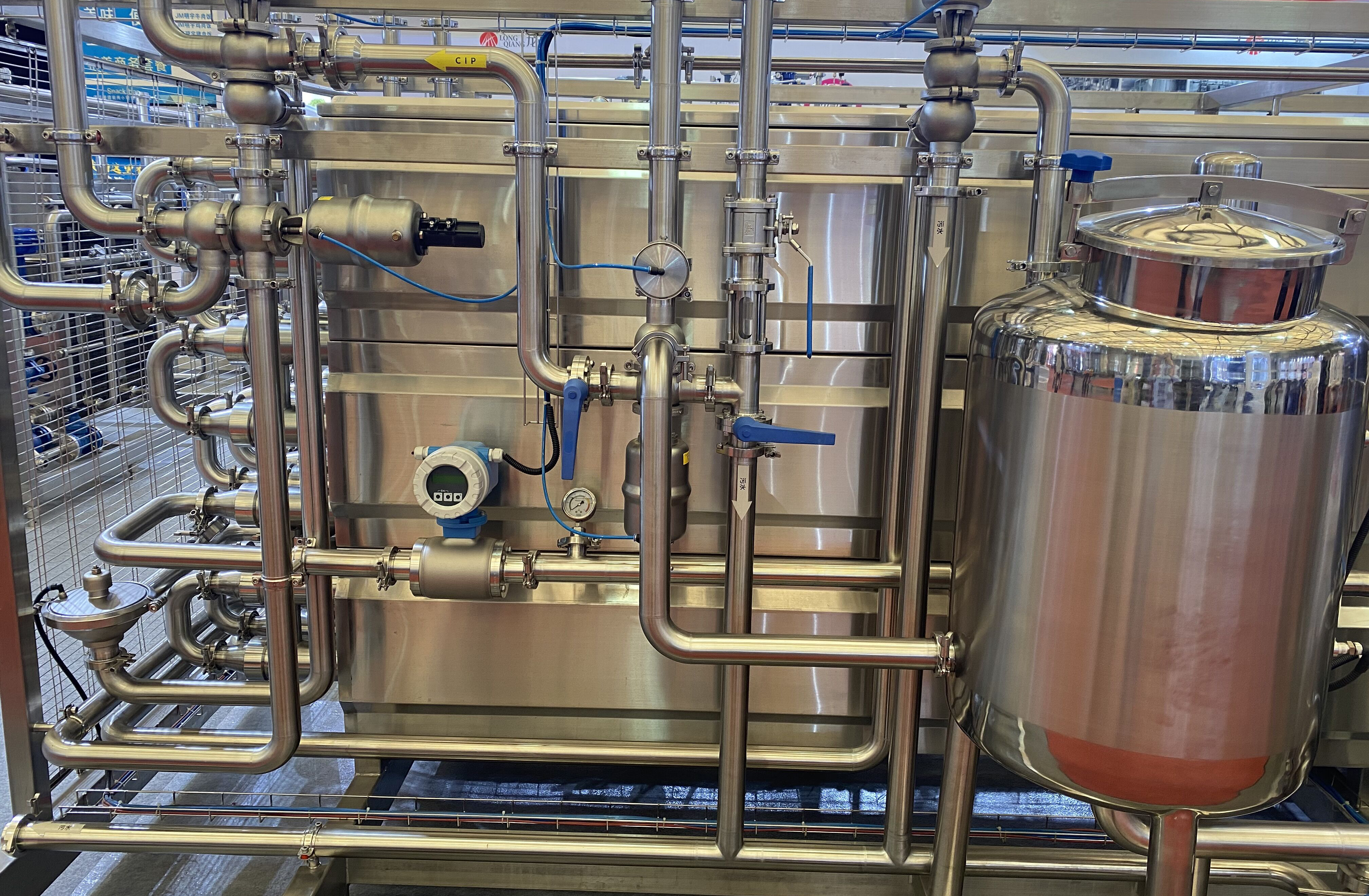

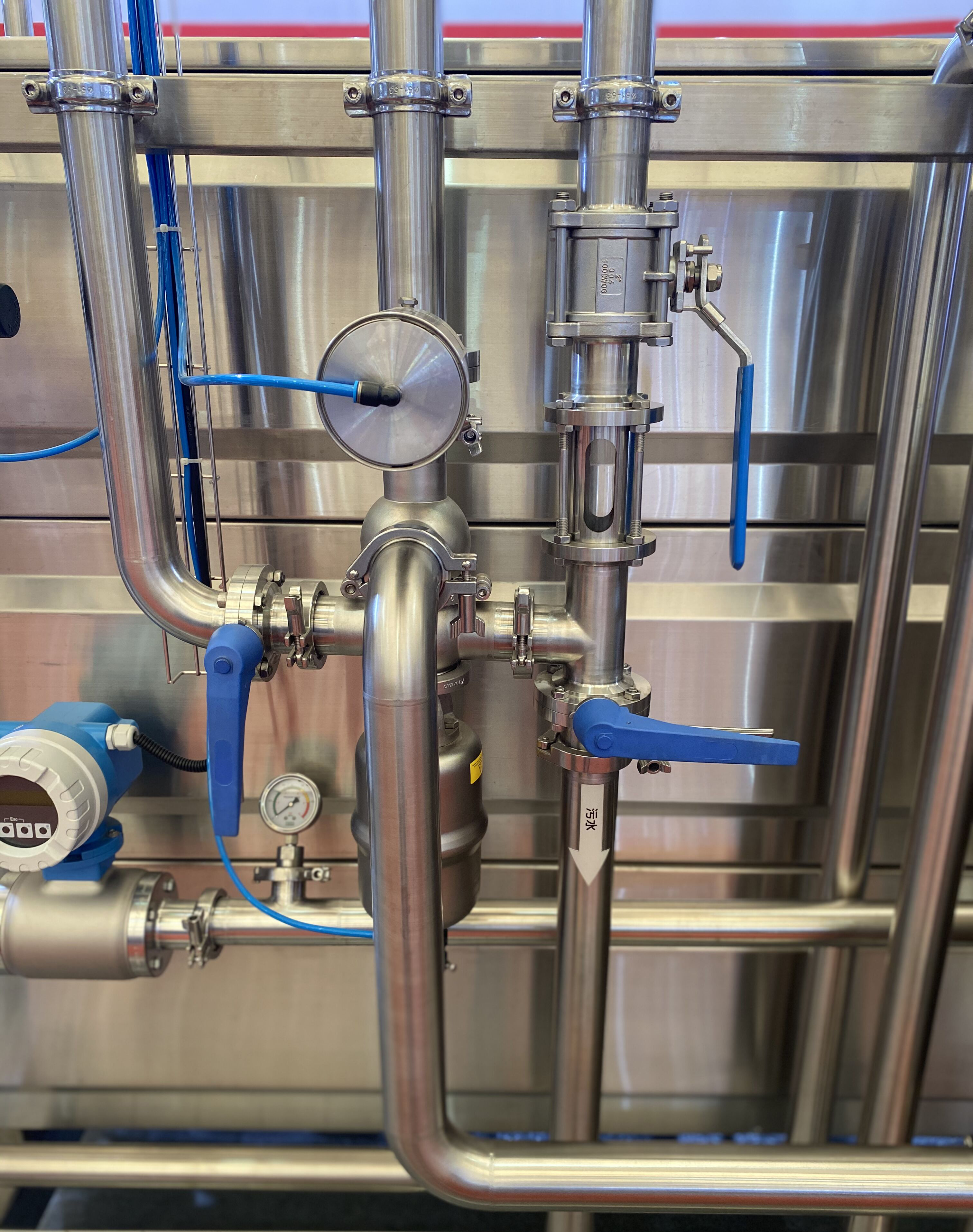

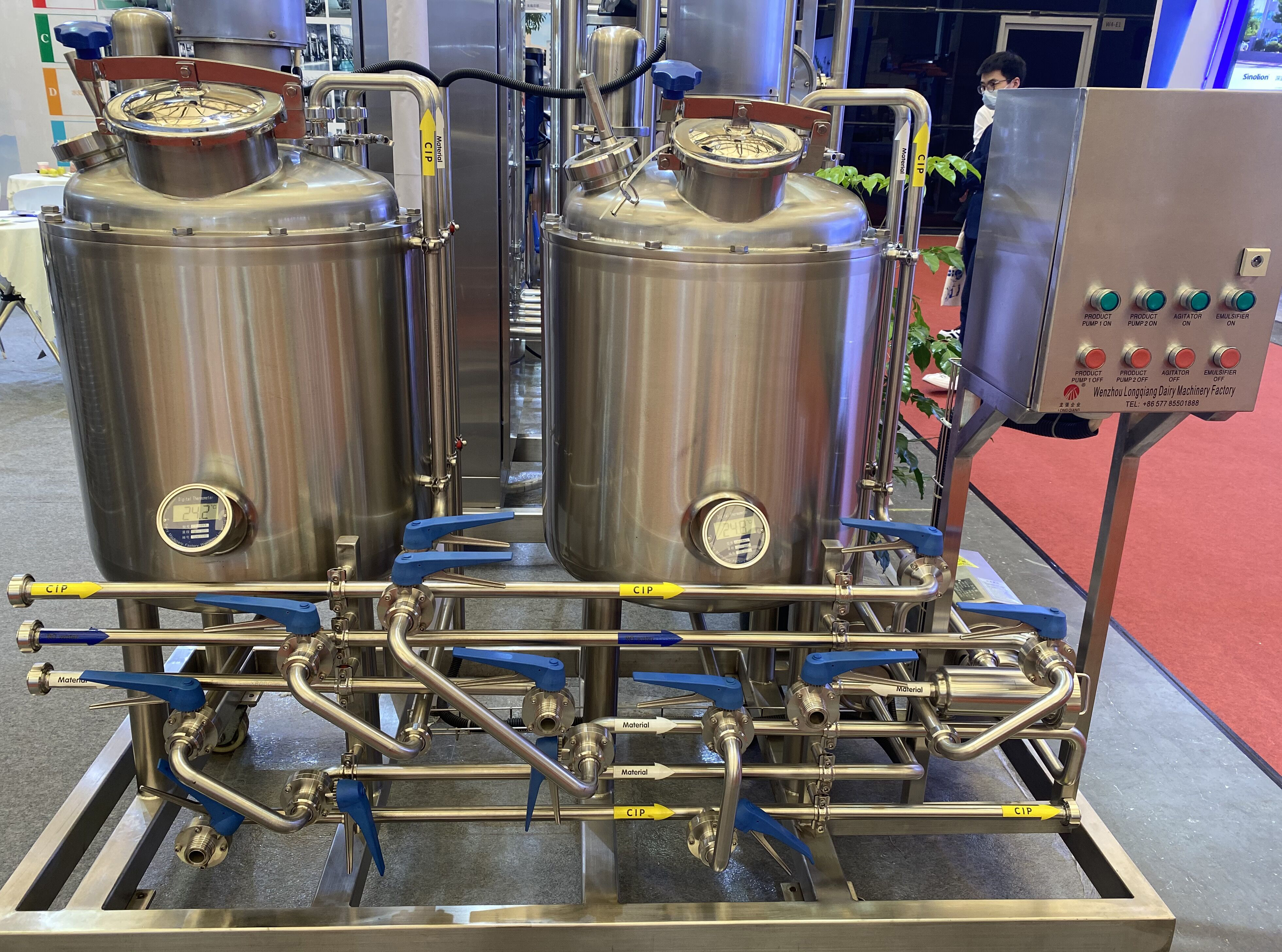

Sanitary Butterfly valve can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-effect, double-effect, and modulating. They can be fitted with control tops and proximity. It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Model:
2Inch 51MM
Brand:
XUSHENG
Code:
010111B02F51

Size:	1/2"-12",DN15-DN300
Availability:

Quantity:



Inquire Add to Basket

The Details of Product

Standard	SMS, DIN
Material Contact Parts	SS304(1.4301)/SS316L(1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Size	1/2 to 12inch, DN10 to DN300
Connection	Butt-weld, Tri-clamp, Male-thread, Female-male Threaded, Union, Weld-thread, Flange
Seal Material	Silicone, EPDM, FKM, Buna, PTFE, all seals material comply with FDA21CFR117.2600
Drive Opton	2-position SS Pull Handle, 3-position SS Pull Handle, 4-position SS Pull Handle, Multi-position Plastic Gripper Handle, Multi-position SS Gripper Handle
	SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator

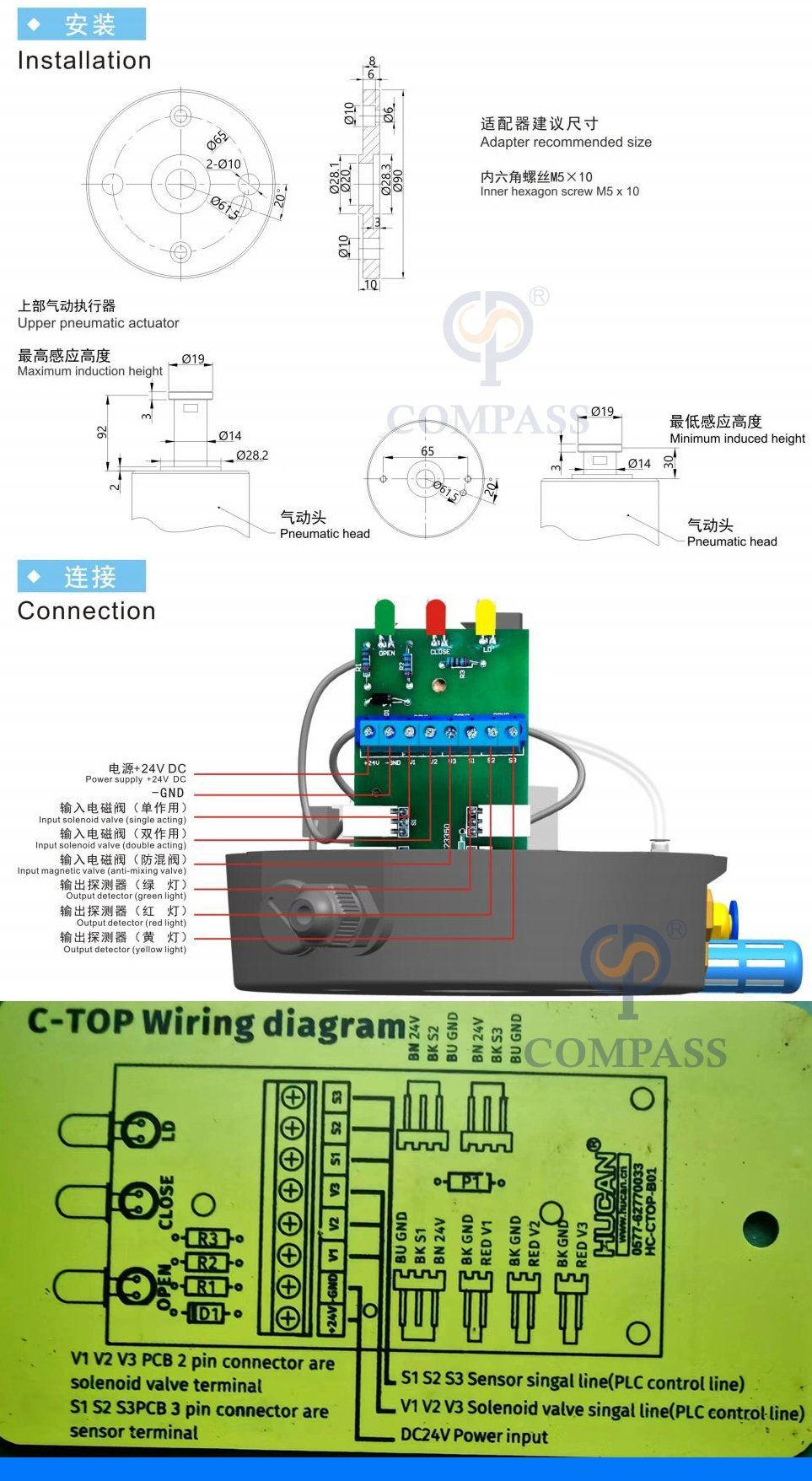

	Position Sensor, C-top Controller, C-top Controller (AS-I)
Working Pressure	≤10bar(145psi)
Supply Pressure for Air Actuator	5~8 (72.52psi~116psi)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)
External Surface Treatment	Ra32~64uin (0.8~1.6um)

Description of Commodity: 2Inch 51MM Sanitary Hygienic Stainless Steel Food Grade SS304 SMS Manual Tri Clamp Butterfly Valve with Viton Seal

Options
1. The gasket can be Silicone, EPDM, FKM,Buna, PTFE. All seals material comply with FDA21CFR117.2600
2. Connection can be Butt-weld, Tri-clamp, Male Thread, Female-Male Threaded, Union, Weld-Thread, Flange

or others upon request.

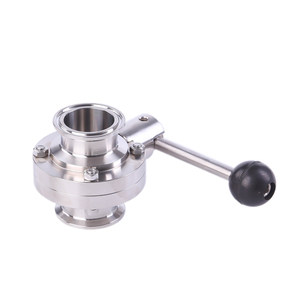

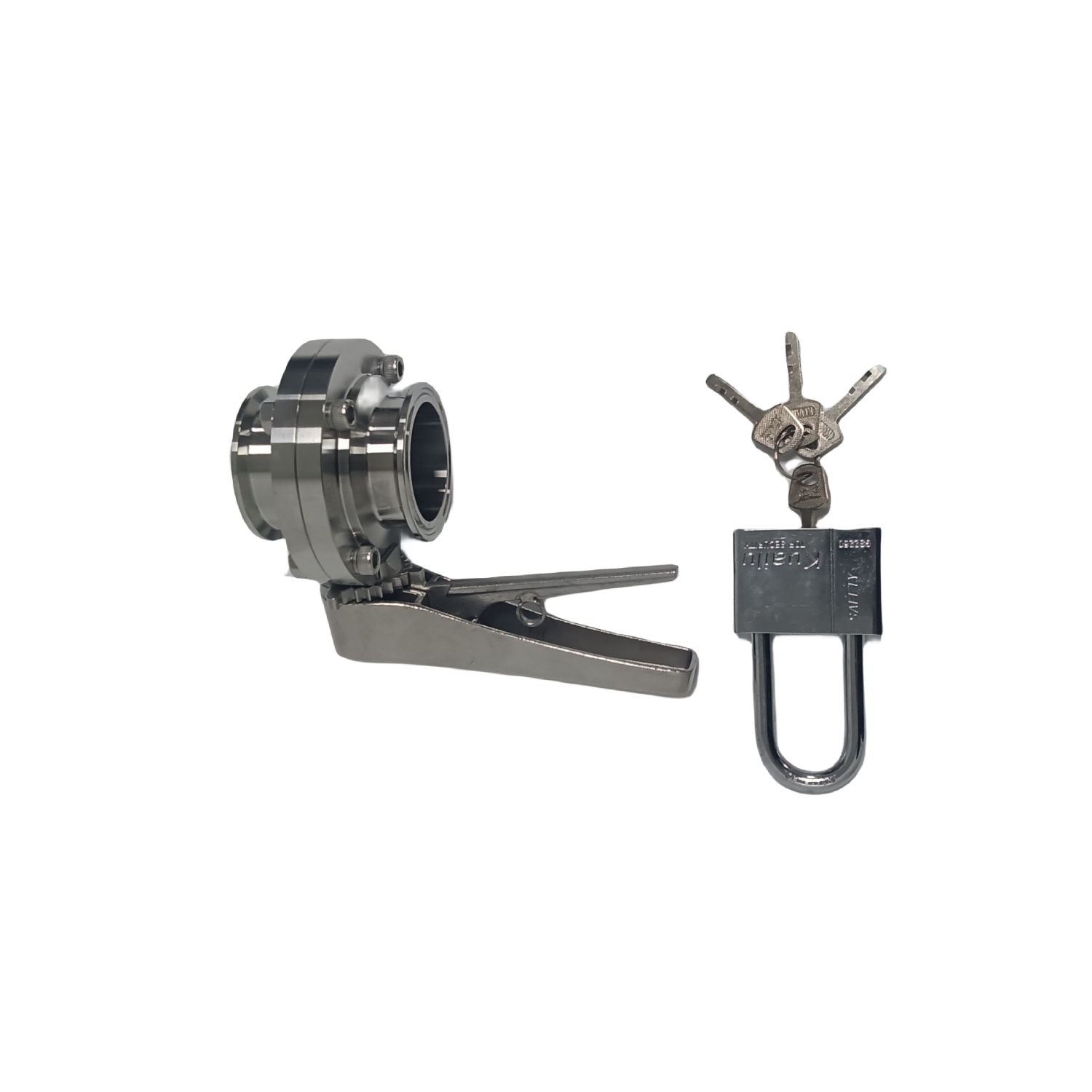

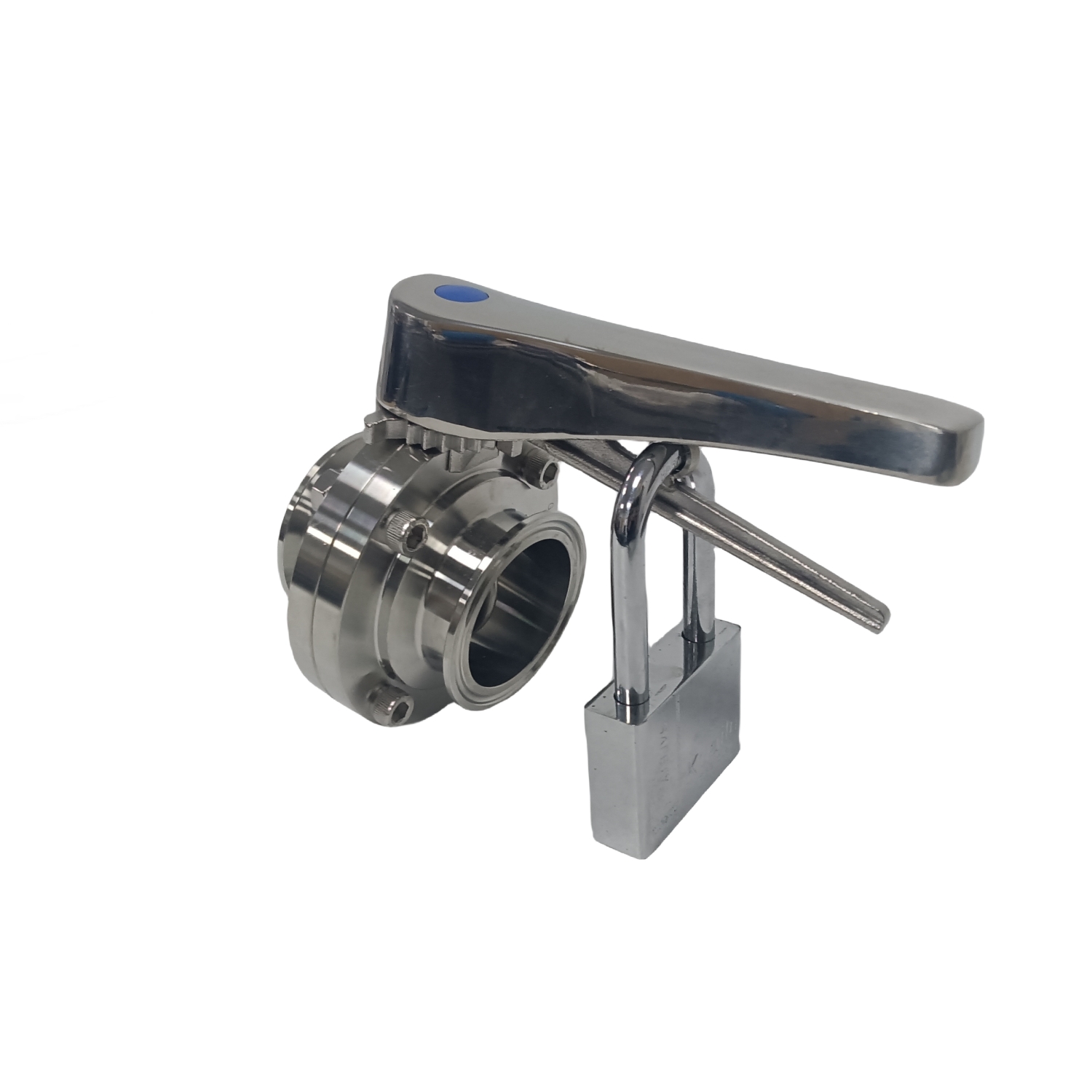

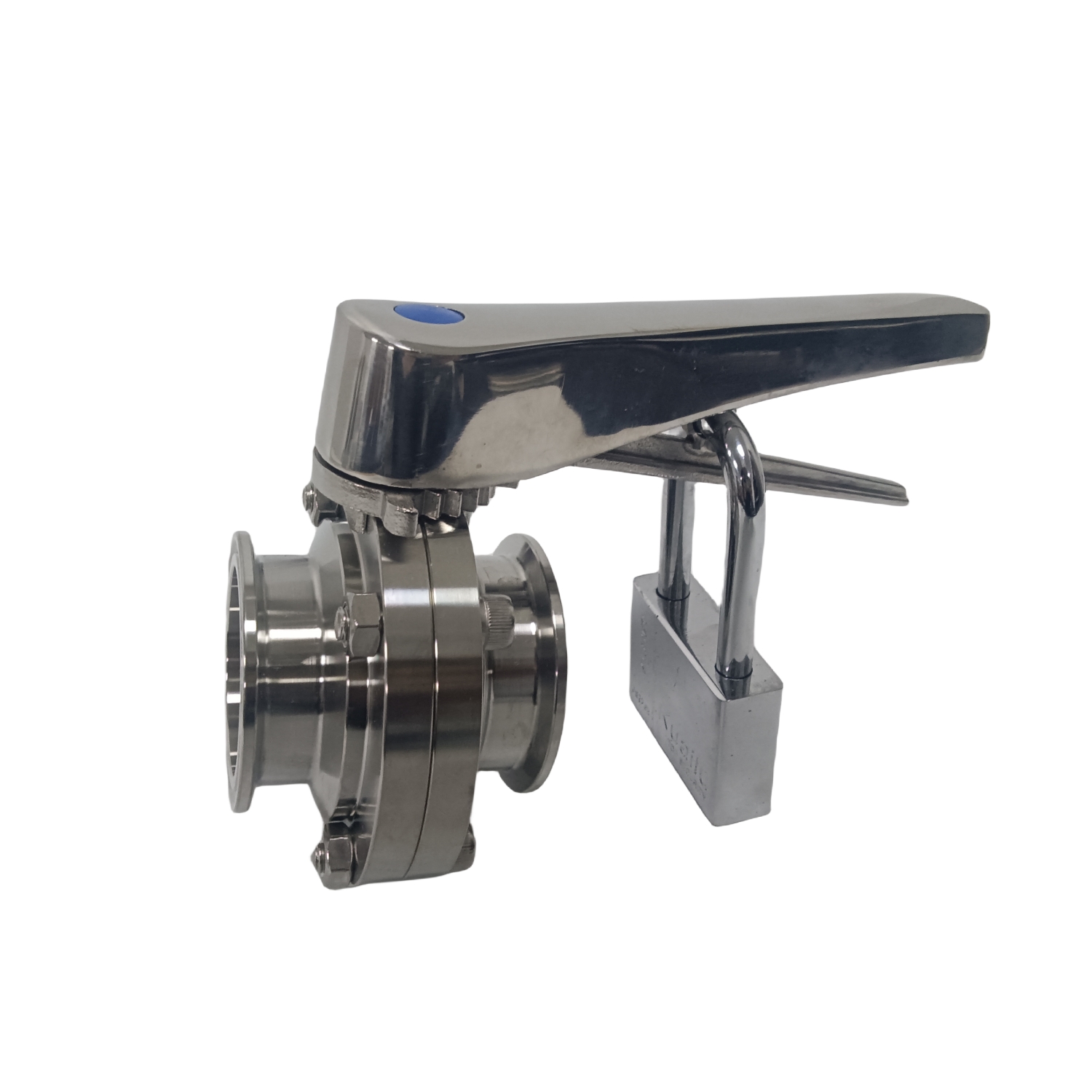

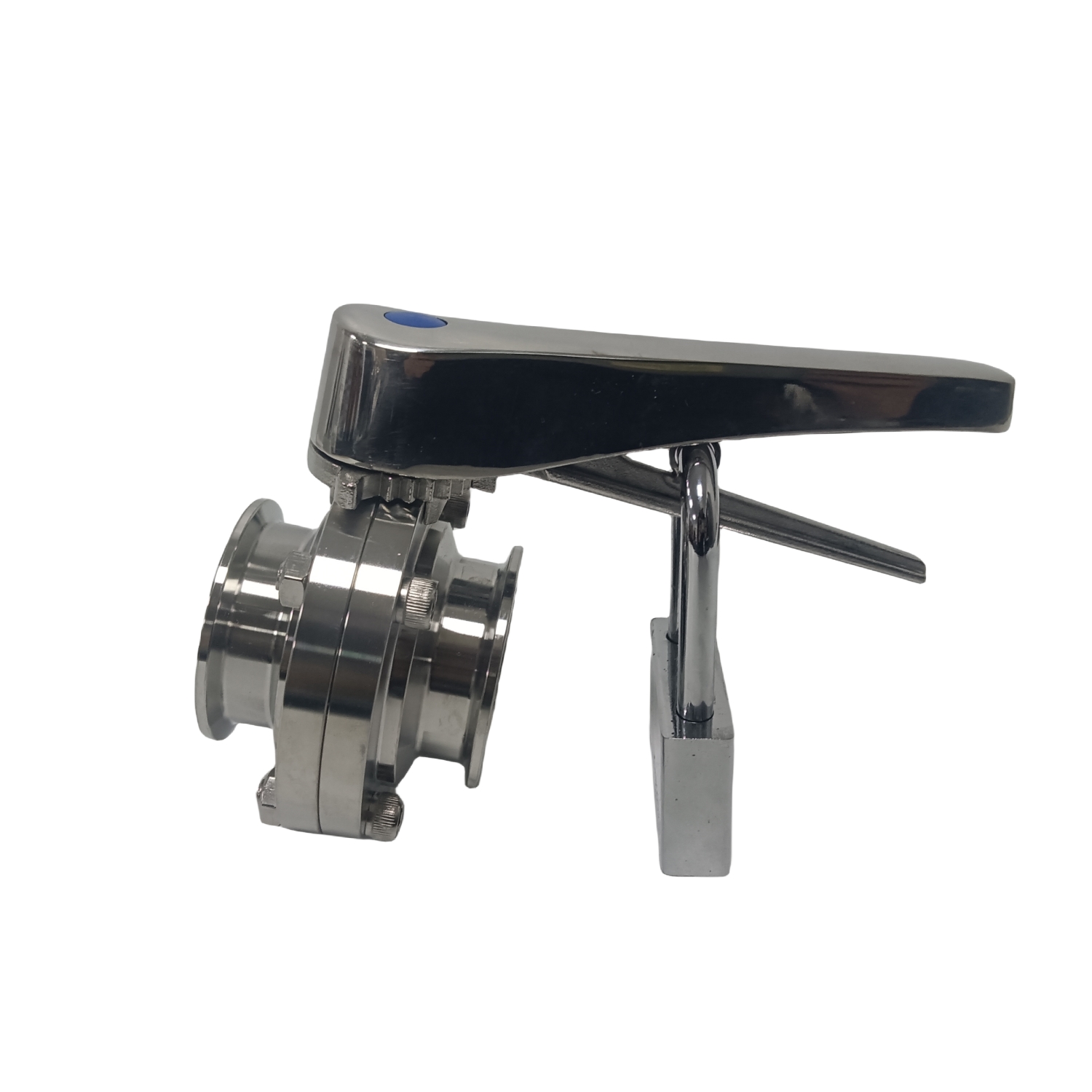

3. Manual handle includes of 2-position SS Pull Handle, 3-position SS Pull Handle, 4-position SS Pull Handle, Multi-position Plastic Gripper Handle, Multi-position SS Gripper Handle.

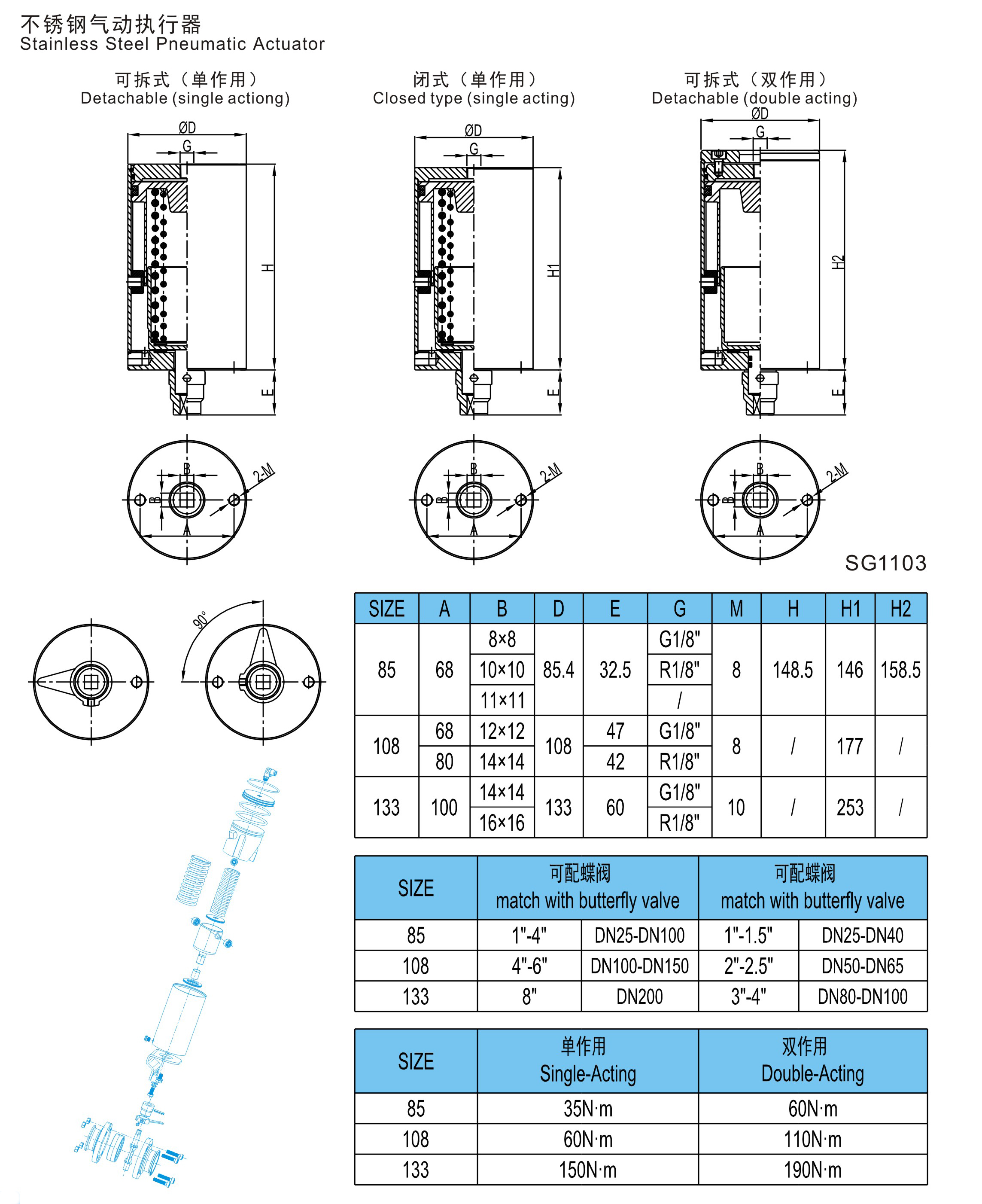

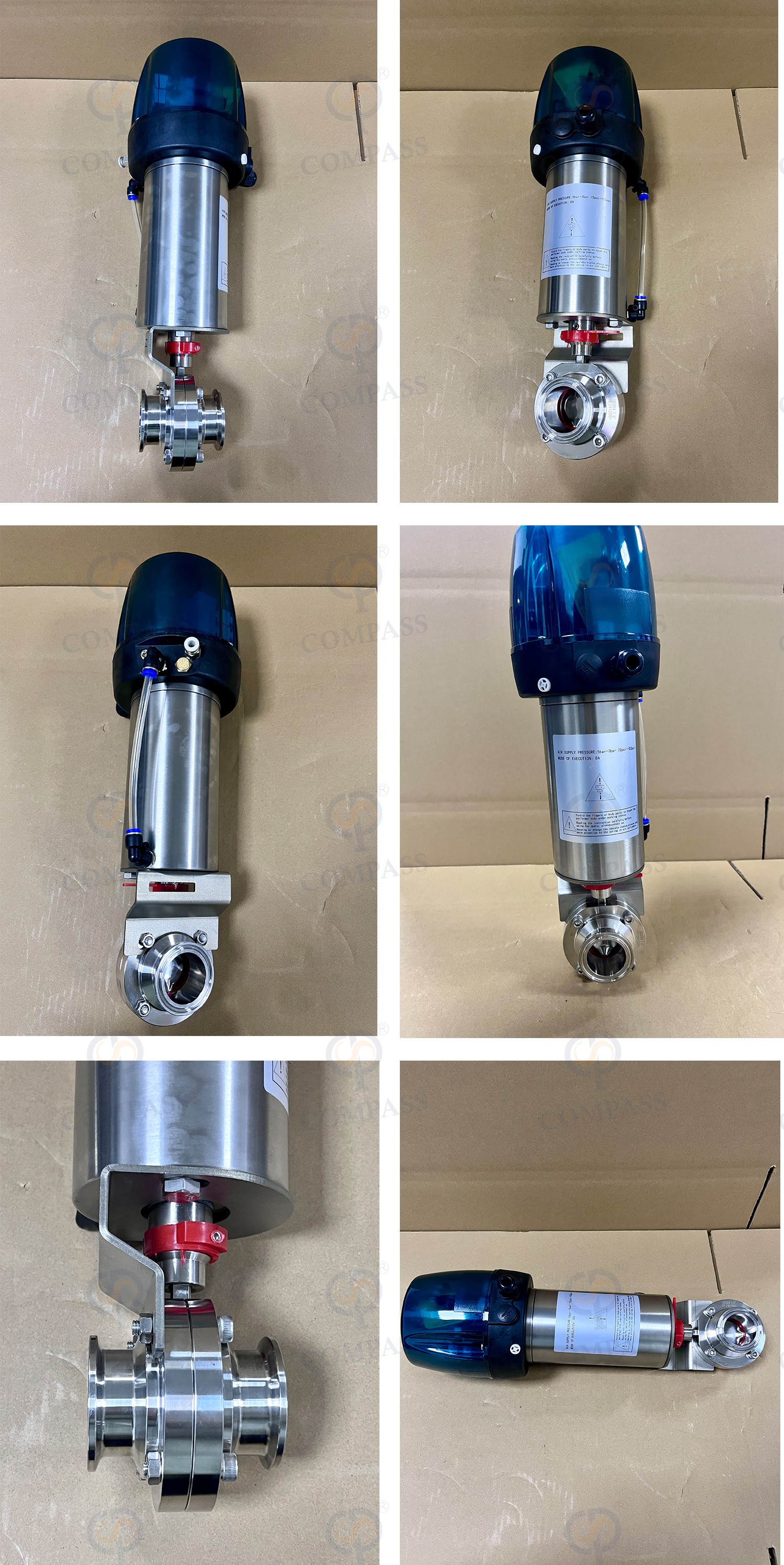

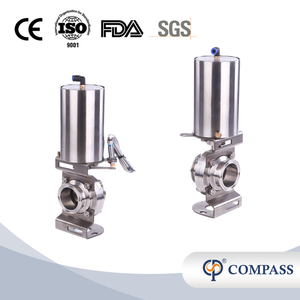

4. Actuator: SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator

5. Control: Position Sensor, C-top Controller,C-top Controller (AS-I)

6. Pneumatic head: Normally Closed (NC)-Air to Open,Spring to Close, Normally Open (NO)-Air to Close,Spring to Open, Air to Air (AA)-Air to Open, Air to Close

Design Features
1. Various standards can be provided: SMS,DIN,3A
2. Available in sizes from 1/2”to 12”，DN10 to DN300
3. Multi position handles can be used for valves up to DN150 / 6"
4. Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
5. Pneumatic actuator and electric actuator are interchangeable.

6. Pneumatic actuator can be double acting or single acting
7. Seals comply with FDA 21CFR 177. 2600.
8. The valve body can be customized with a wide selection of different connections.

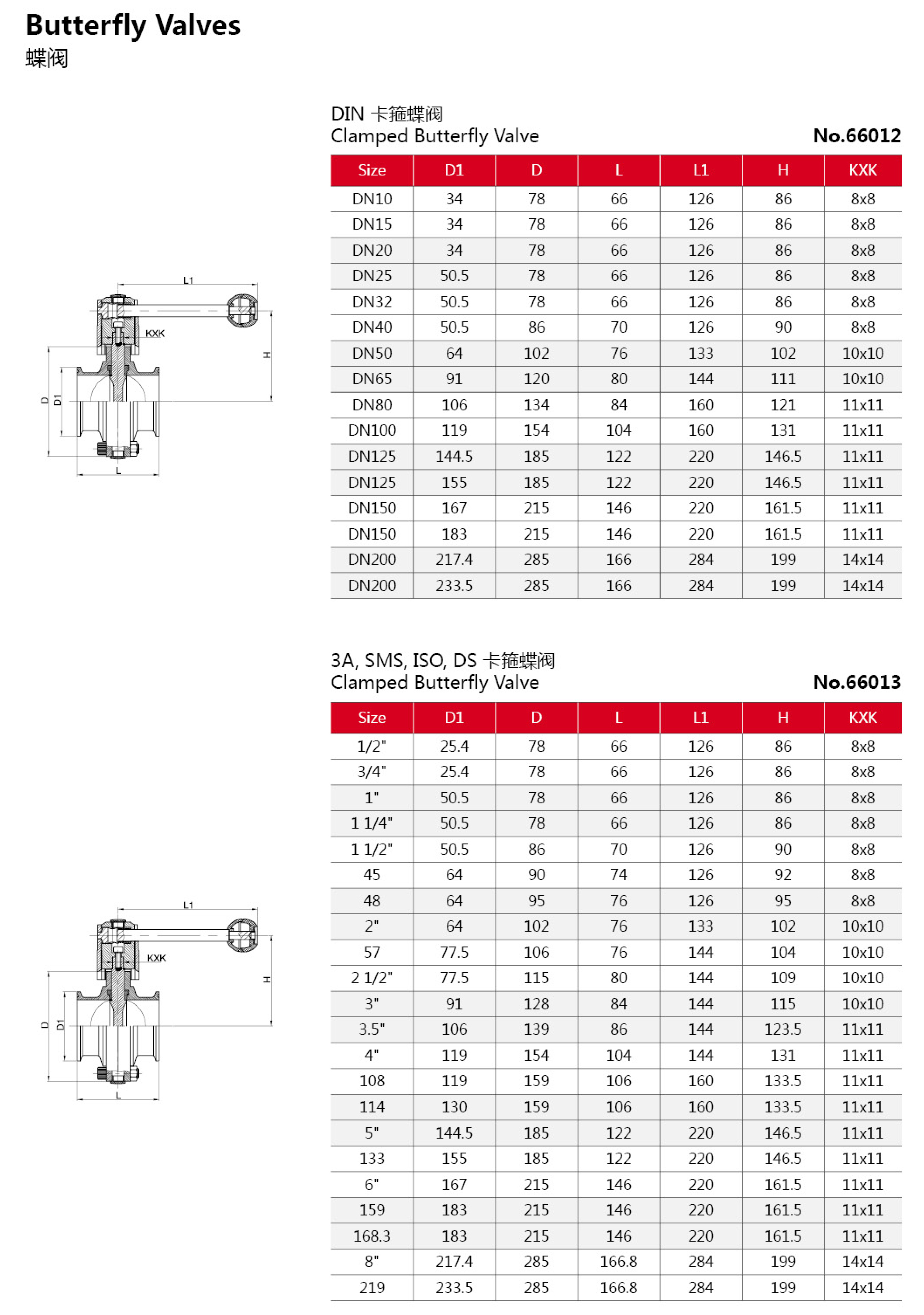

Technical Specifications

Max. pressure: 10bar

Min. pressure: 0.2bar

Temperature Range

EPDM: -5 ~ 212°F(-20 ~ 100℃)

Silicone: -31 ~ 248°F(-35~ 120℃)

FKM:10~ 392°F(-12.2 ~ 200℃)

Other materials are Available upon request

How to Order about Butterfly Valve?

1. What's standard for butterfly valve? Such as DIN, SMS

2. What's material quality? Such as SS304 and SS316L for optional

3. What's size? The available size is from 1/2inch to 12inch, DN25 to DN300
