Sanitary Clamping Butterfly Valve

  • DN20-DN200, 12.7MM-203.2MM

  • XUSHENG

  • D10000030001

Availability:
Quantity:
Inquire Add to Basket

StandardDIN, 3A, SMS, RJT
Flow Medium Parts304,  316L(1.4301, 1.4307, 1.4404)
Port SizeDn20-200 or 1/2"-203.2MM
ConnectionWeld, Male, Clamp, Flange ,Three-piece
Gasket for butterfly valveSilicone, EPDM, Viton, NBR
Max. pressure10 bar
Min. pressure0.2 bar
Working temperature -10~135 ℃
ApplicationIt is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc
Working principleRemote-controlled operation by the driving gear or manual operation by handle.

Three drive forms

Normally closed, normally opened and opened and closed by two air flues seperately.

Handle


Metal handle, reinforced nylon handle
Adjustable handle, built to order according to users' request.
Advantage1. Sanitary condition passed FDA Certification
2. With strong resistance to acid, alkali and high temperature
3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages
4. Appearance desigh: Keep pace with international latest designs
5. Service life: Comparable to imported butterfly valve, with 18months warrenty for normal use


Previous:
Next:

HOT PRODUCTS

Stainless Steel Sanitary Male Threading Nut Butterfly Valves
Stainless Steel Sanitary Male Threading Nut Butterfly Valves
Sanitary Three-piece Manual Butterfly Valves With Gripper Handle
Sanitary Three-piece Manual Butterfly Valves With Gripper Handle

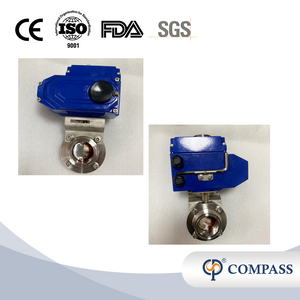

Stainless Steel Sanitary Tri-clamp Butterfly Valves with Eletric Actuator
